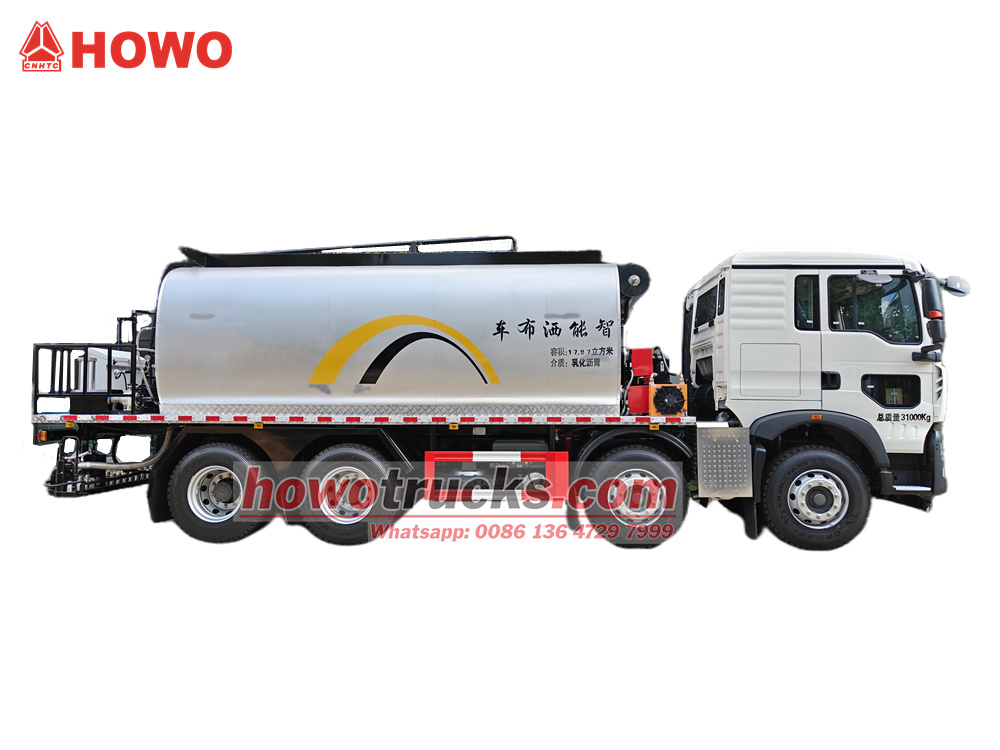

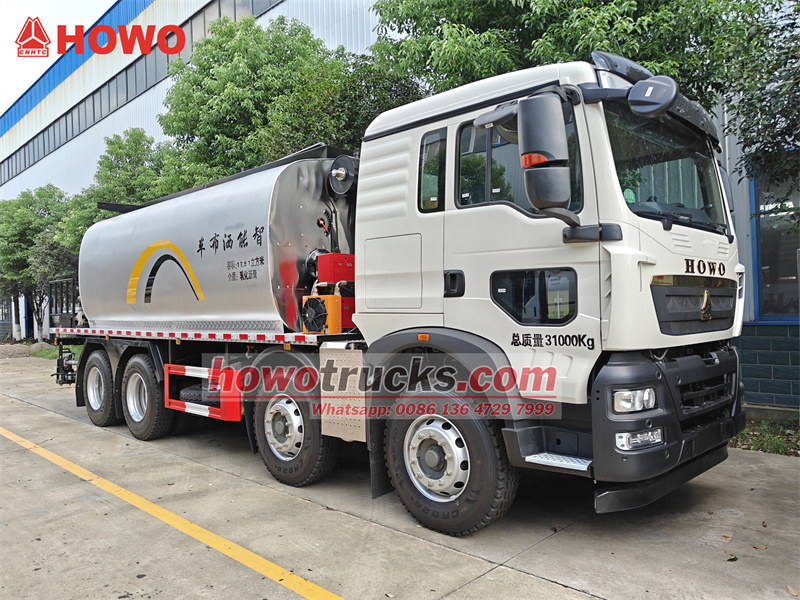

The HOWO 8x4 18 cubic meter asphalt spreader is modified based on the HOWO TX-W 8X4 cab chassis. It has an 1800+3800+1350mm wheelbase, is equipped with a MC07H.35-60 engine, and an HW13709XSTC2 gearbox. The upper part is an 18 cubic meter asphalt tank that can be loaded with emulsified asphalt and hot asphalt. It is equipped with an intelligent RY40-25-160 air-cooled hot oil pump and 36 asphalt nozzles at the rear. The spraying width is 6m and the spraying volume is 0.2-3 kg/m². It also has an imported diesel burner (calorific value: 10×10⁴kcal/h), automatic thermal oil heating, and an intelligent computer control in the cab (Siemens, Germany).
Working capacity :
18000 litersCabin type :
Howo TX-W one and half row cabinDrive system :
8x4,LHDWheelbase ( mm) :
1800+3800+1350 mmEngine specific :
350 HP / MC07H.35-60Gear box :
HW13709XSTC2, 9-speed, manualFront axle ( Kg ) :
6500/7000Rear axle ( Kg ) :

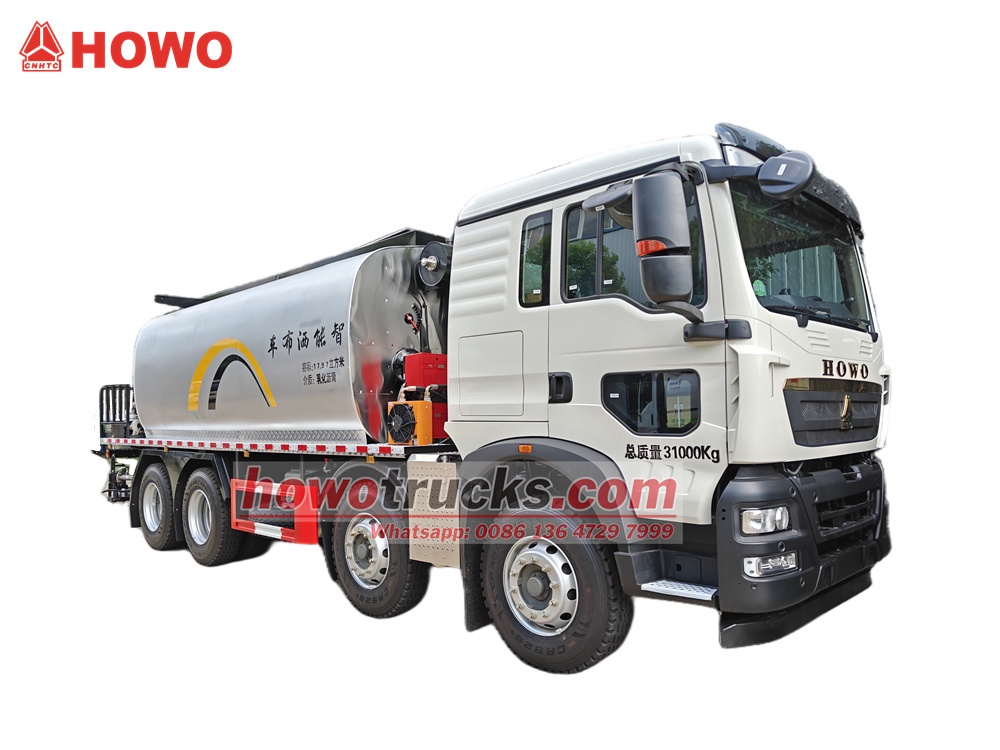

17500(2 axles)The HOWO TX Mobile Bitumen Sprayers is designed specifically for road maintenance. Based on the HOWO 8x4 350-horsepower heavy-duty chassis, the vehicle features an 18-cubic-meter multifunctional asphalt tank compatible with both emulsified and hot asphalt. It utilizes an Italian G20 diesel burner and an automatic thermal oil heating system for precise and efficient temperature control. The vehicle is equipped with 36 precision nozzles at the rear, utilizing a German Siemens intelligent system to achieve a 6-meter-wide spread and stepless control of 0.2-3 kg/m². The system supports independent operation of each nozzle. The vehicle integrates efficient heating, intelligent control, and precise spreading, making it suitable for high-grade road construction and maintenance operations.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Key Features
1. Excellent Chassis: HOWO TX 8x4 chassis, 350-horsepower Weichai engine, and Sinotruk 10-speed transmission provide powerful power and excellent maneuverability.
2. Large Tank: The 18-cubic-meter asphalt tank is compatible with both emulsified and hot asphalt, providing thermal insulation and durability.
3. Accurate Spreading: Intelligent Siemens control system, 36 nozzles, 6-meter wide spraying area, and intelligent control of 0.2-3 kg/m².
4. Fast Heating: Thermal oil combined with imported Italian G20 burners ensures rapid and even heating.
» Ⅱ. Product Parameters for HOWO 18CBM asphalt distributor truck:
|
HOWO 8X4 18000L Asphalt Spreader Truck |
||
|
General |
Truck Model |
CS5310GZR |
|
Cab |
HOWO TX-W one and half row,3 seats,with A/C,USB... |
|
|
Dimension (L×W×H) |
9950×2550×3850 mm |
|
|
GVW/Curb weight |
31000/12350kg |
|
|
Drive Type |
8×4,LHD |
|
|
Max speed |
82km/h |
|
|
Engine |
Engine Type |
6 cylinders in line, 4-stroke,water cooling, turbo-charged diesel engine, inter-cooling |
|
Engine model |
SINOTRUK MC07H.35-60 |
|
|
Horse power |
350HP/257kW |
|
|
Fuel Type |
Diesel |
|
|
Emission Standard |
Euro 6 |
|
|
Displacement |
7.8L |
|
|
Rated speed |
2100rpm |
|
|
Chassis |
Chassis Brand |
HOWO |
|
Wheelbase |
1800+3800+1350mm |
|
|
Tire No. |
12+1 |
|
|
Tire size |
11.00R20 |
|
|
Axle No. |
4 |
|
|
Gear Box |
Sinotruk HW13709XSTC2, 9 speed forward with 2 reverse, manual |
|
|
Brake |
Air brake |
|
|
Tank |
material |
Stainless steel |
|
capacity |
18000L |
|
|
Asphalt Pump |
Model |
RY40-25-160 air-cooled hot oil pump, Intelligent |
|
Flow |
10 m³/h |
|
|
Lift |
28m |
|
|
Power |
22kW |
|
|
Speed |
2900r/min |
|
|
Spray |
Width |
6000 mm |
|
Volume |
0.2-3 kg/㎡ |
|
|
Precision |
1% |
|
|
Medium |
Hot asphalt, emulsified asphalt and other asphalt media |
|
|
Asphalt Nozzle Number |
36 pcs intelligent nozzles |
|
|
Apply |
Road paving,etc |
|
|
Asphalt Heating Method |
G20 Italy Imported diesel burner (calorific value 10×10⁴kcal/h), Heat conducting oil automatically heating |
|
|
Asphalt Heating Rate |
12 ℃/h |
|
|
Hydraulic system |
Proportional valve, automatic reversing valve and overflow valve, asphalt pump hydraulic drive motor, hydraulic pump or engine power take-off |
|
|
Control system |
Intelligent computer control in the cabin (Germany's Siemens), one control one |
|
|
Equipment |
chassis, an asphalt tank, an asphalt pumping and spraying system, a thermal oil heating system, a hydraulic system, a combustion system, a control system, and an operating platform. |
|
» Ⅲ. Product Details
Sinotruk Chassis
• Basic Platform: Based on the HOWO TX-W 8x4 350hp cab chassis, featuring a three-stage wheelbase design of 1800mm, 3800mm, and 1350mm.
• Powertrain: Equipped with a SINOTRUK MC07H.35-60 engine (350hp) and an HW13709XSTC2 9-speed transmission, it offers smooth power delivery and strong heavy-load climbing capability.

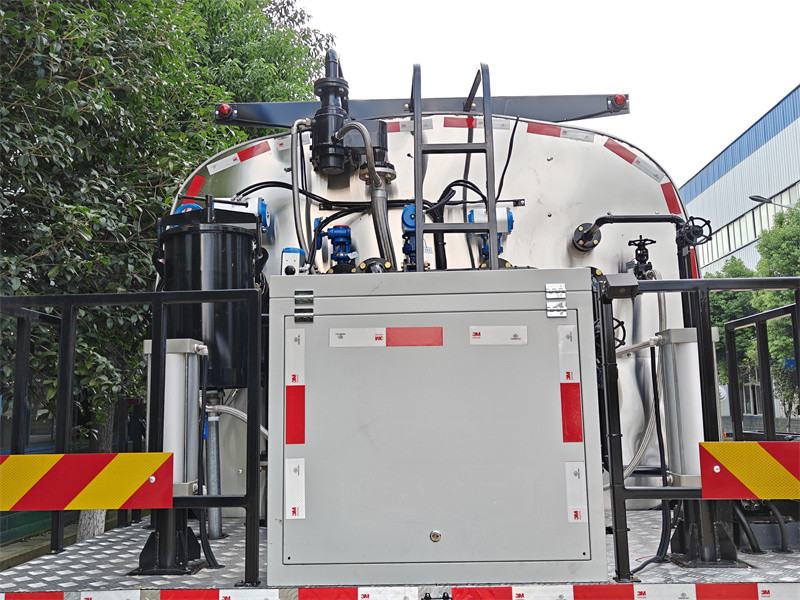

Intelligent upper body system
1. 18cbm large-capacity tank
• Stainless steel construction with double-layer insulation, supports storage of both emulsified asphalt (room temperature) and hot asphalt (160-190°C). A roof overflow prevention device and side access provide safe and easy maintenance.

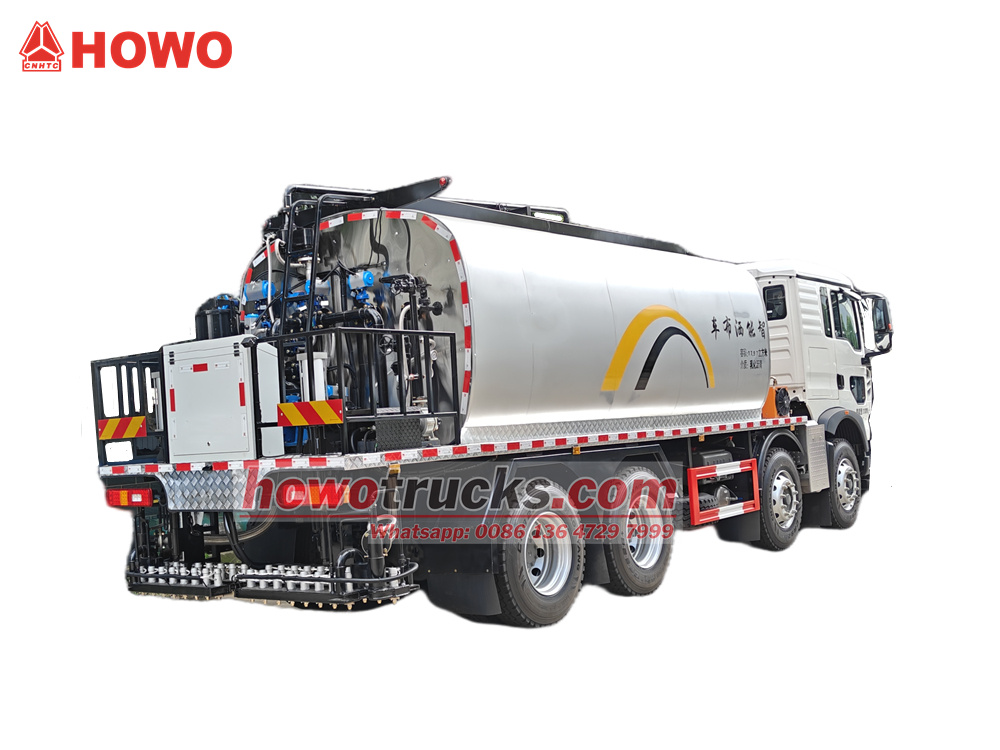

2. Fully intelligent spraying system
• RY40-25-160 air-cooled hot oil pump: 10 m³/h flow rate, 28-meter head, 2900 rpm, 22 kW power, fast and stable material supply. The air-cooled design is suitable for high-temperature environments and increases lifespan by 30%.

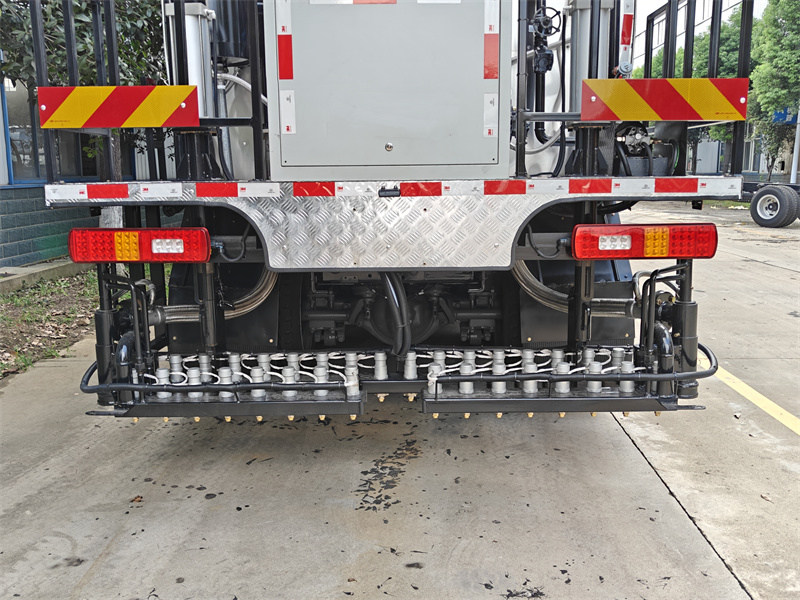

• 36 stainless steel nozzles: 6-meter wide coverage, adjustable spray rate from 0.2-3 kg/m² with a ±1% tolerance. Supports "one-control-one" independent opening and closing, creating various spray patterns such as rectangular and trapezoidal.

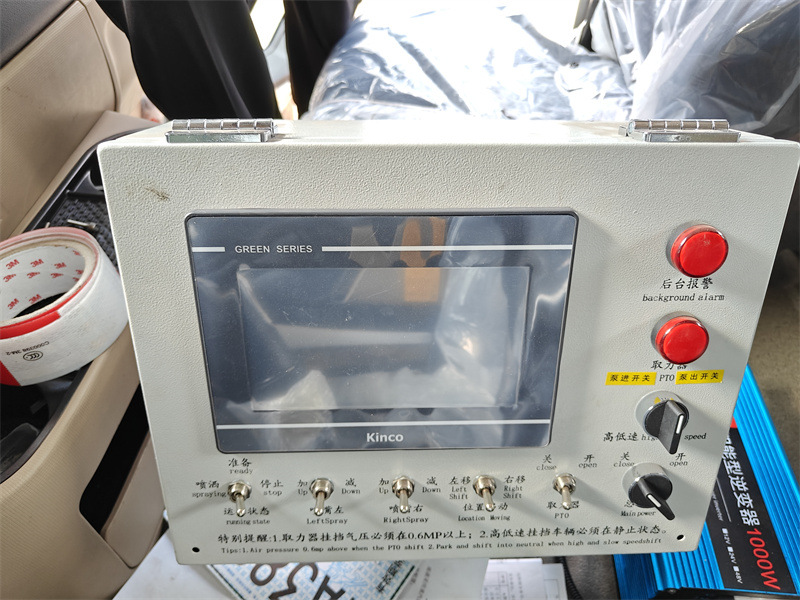

• German Siemens Intelligent Control: Operated via a touchscreen in the cab, it allows real-time adjustment of the spraying function, nozzle spray rate adjustment, spray position movement, high and low speed switches, power take-off pump inlet and outlet switches, and background alarms.

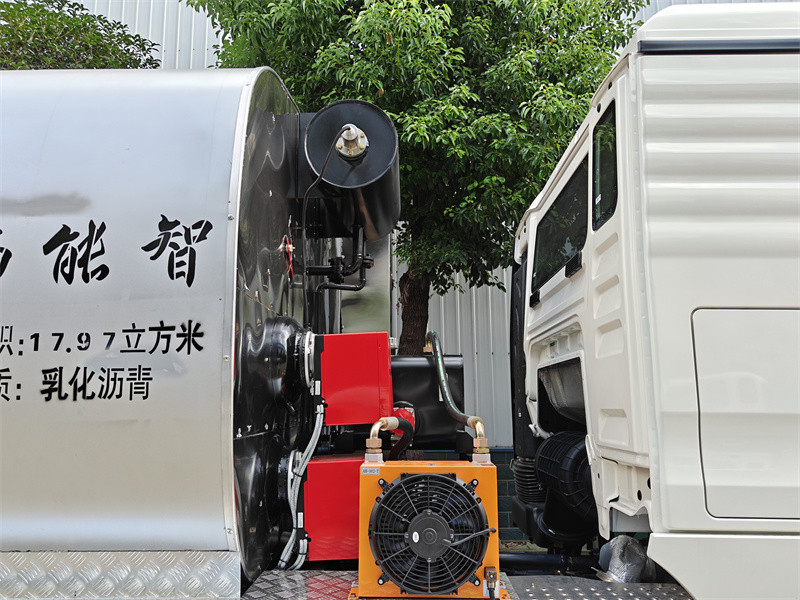

3. Efficient Heating and Insulation
o Imported diesel burner: Calorific value 10×10⁴kcal/h, dual-circuit thermal oil heating system, temperature control accuracy ±2°C, heating rate ≥15°C/h, and an intelligent temperature control module that automatically sets the optimal operating temperature based on asphalt type.
4. Hydraulic System
The asphalt pump uses a QGB950 type, a proportional valve (Taiwan EFBG-03-160-HF), an automatic reversing valve, and a relief valve. The asphalt pump hydraulic drive motor is model 05-110-BD31. The hydraulic pump is a CBQ550-L or a GPC4-50R with rear engine power take-off. The radiator is a Risheng brand.
5. Humanized design:
• High-pressure cleaning device: Quickly rinses the tank after application to reduce residue.
• Electronic level gauge: Real-time monitoring of asphalt remaining to avoid running with an empty tank.
• Tool box and non-slip ladder: Convenient storage of spare parts and maintenance.
