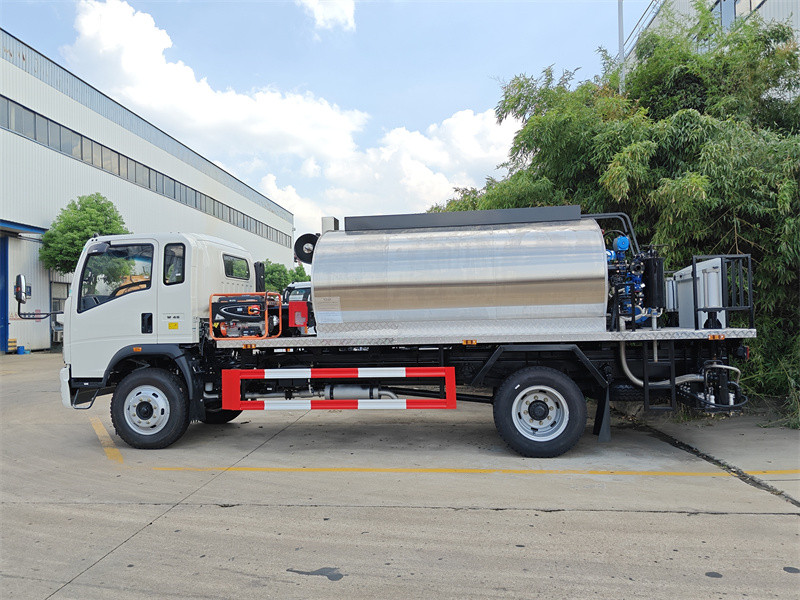

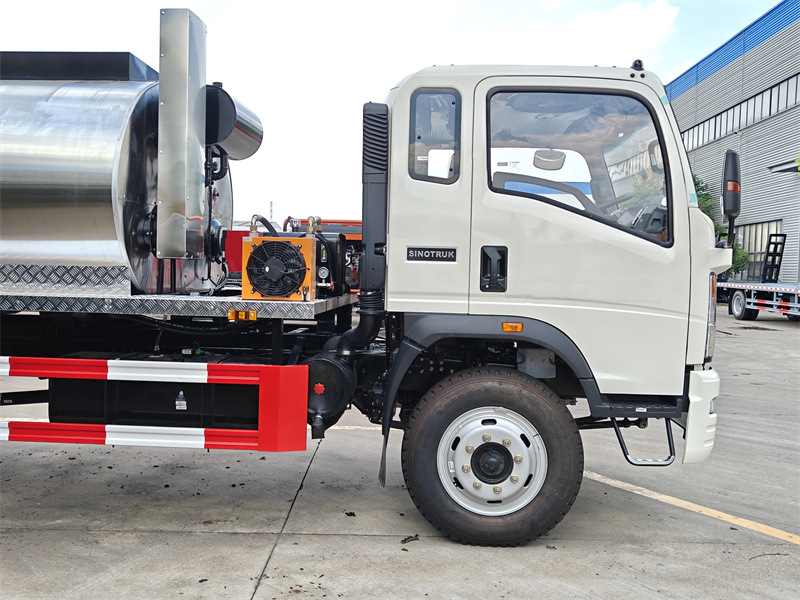

The Howo 4x2 5cbm asphalt distributor truck is modified from the Howo 2080 single-row cab chassis, with a 3800mm wheelbase. It is equipped with a YN4102QBZL engine and a WLY6TS55C gearbox. The superstructure consists of a 5 cubic meter asphalt tank, a smart RY40-25-160 asphalt heat pump, and 28 asphalt nozzles at the rear, with a spraying width of 4 meters and a spraying rate of 0.20-1.5L/㎡. It features an Italian-imported Riello G10 burner with automatic heat transfer oil heating, intelligent computer control in the cab, and an auxiliary generator set.
Working capacity :
5000LCabin type :
HOWO 2080 single row cabDimension (mm ) :
7450×2400×2780 mmDrive system :
4x2,LHDWheelbase ( mm) :
3800mmEngine specific :
116 HP/ YN4102QBZLGear box :
WLY6TS55C, 6-speed, manualFront axle ( Kg ) :
2700Rear axle ( Kg ) :
7200Remark :

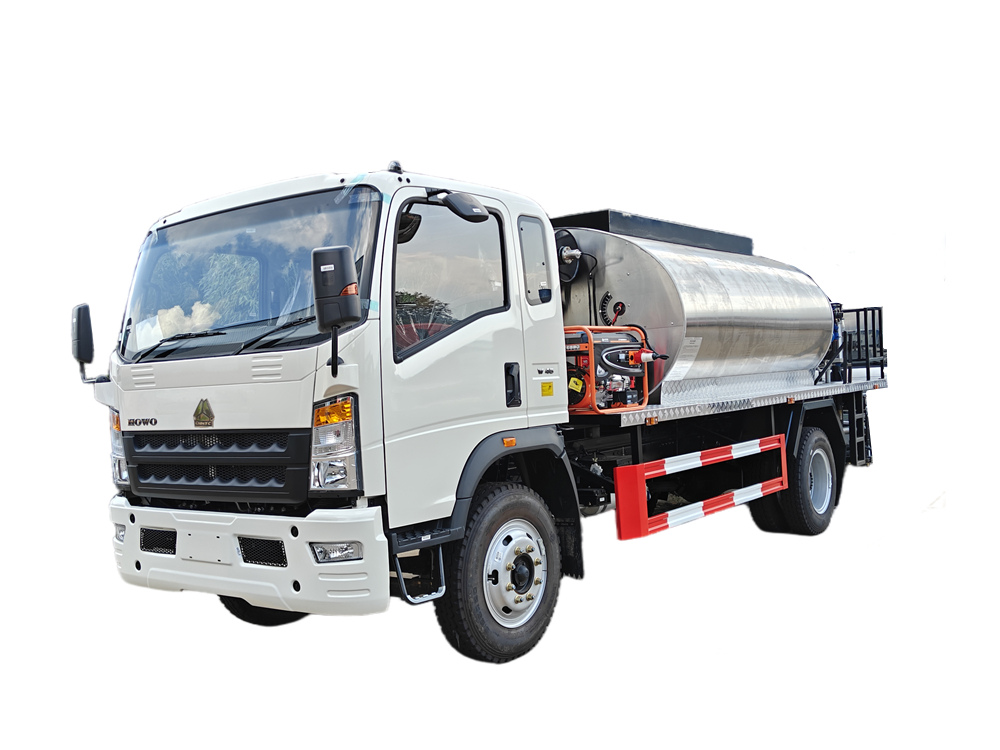

Tank capacity can be customizedThe Howo Truck-Mounted Bitumen Distributor is a high-efficiency, intelligent, and professional road construction equipment designed specifically for the transportation, insulation, and precise spraying of asphalt (emulsified asphalt, modified asphalt, and hot asphalt). Its core superstructure utilizes an Italian-imported Riello burner and an automatic heat transfer oil heating system, enabling rapid heating and sustained maintenance of the asphalt's working temperature. The intelligent computer in the cab allows for precise control of 26 nozzles, achieving an adjustable spray volume of 0.20-1.5 L/m² within a 4-meter width, ensuring uniform application. It is particularly suitable for the refined maintenance and high-standard construction requirements of urban roads and highways of all levels.

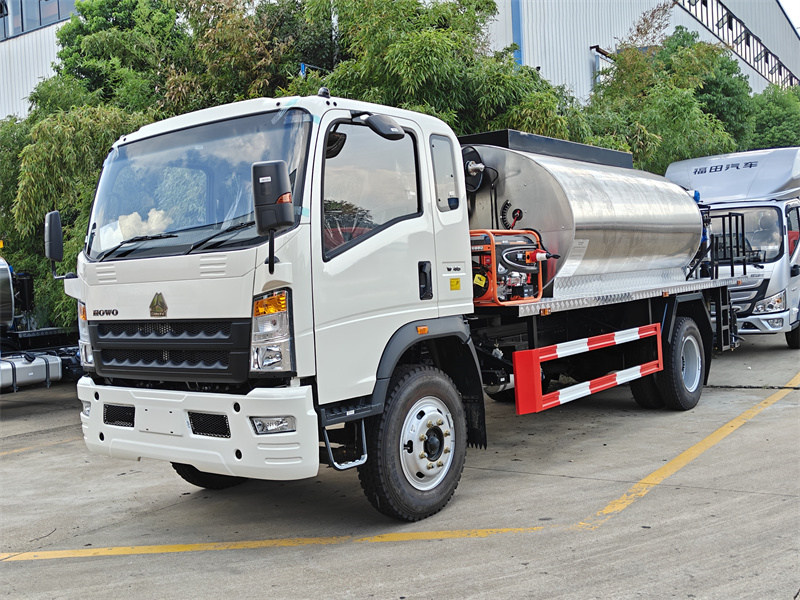

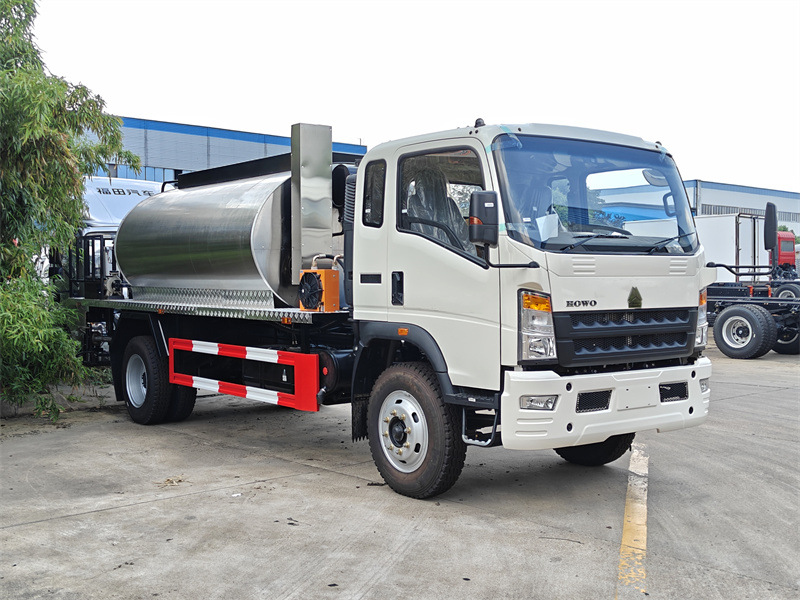

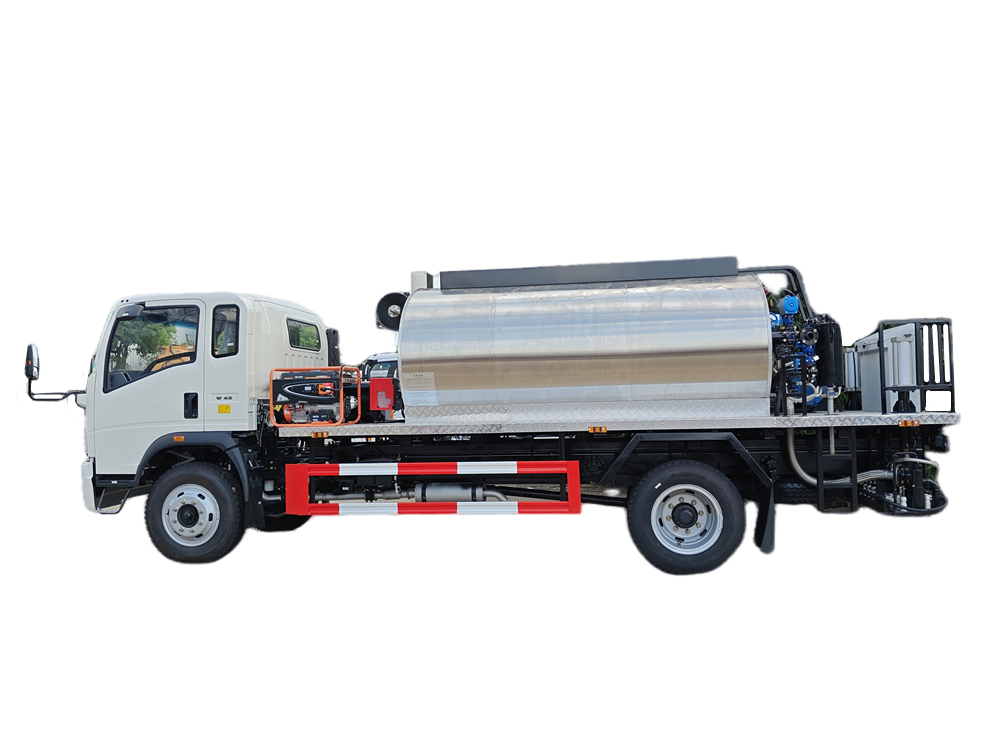

*HOWO 4x2 5000L Intelligent Asphalt Distribution Truck
5CBM Asphalt Distribution Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction
Manufacturer: CS Trucks Group
Features
1. High-Efficiency Power: Equipped with a YN4102QBZL engine, offering high torque at low speeds, and compatible with a WLY six-speed gearbox, accommodating both low-speed spraying and high-speed transport.
2. Intelligent Spraying: 28 nozzles, independently controllable, with a spray width of 4 meters and stepless adjustment from 0.20-1.5L/㎡.
3. High-Efficiency Heating and Insulation: Italian Riello burner + heat transfer oil circulation ensures rapid heating and uniform temperature within the tank, effectively maintaining the working temperature of asphalt for extended periods.
4. Intelligent and Precise Control: The cab is equipped with an intelligent control computer that monitors and controls spraying operations.
Product Parameter For Howo Truck mounted Bitumen Distributor
|

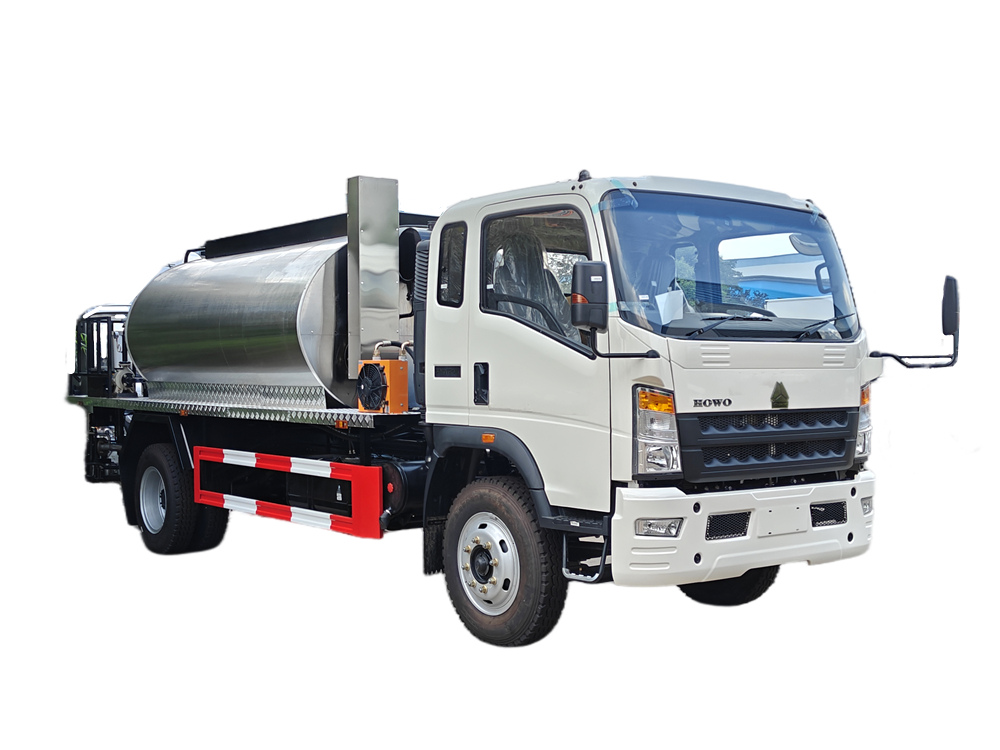

HOWO 5000L Asphalt Spreader Truck |
||
|
General |
Truck Model |
CS5100GXR |
|
Cab |
HOWO 2080 single row,3 seats,with A/C,USB... |
|
|
Dimension (L×W×H) |
7450×2400×2780 mm |
|
|
GVW/Curb weight |
9890 /5050kg |
|
|
Drive Type |
4×2,LHD |
|
|
Max speed |
95km/h |
|
|
Engine |
Engine Type |
4 cylinders in line, 4-stroke,water cooling, turbo-charged diesel engine, inter-cooling |
|
Engine model |
YN4102QBZL |
|
|
Horse power |
116 HP/ 85kW |
|
|
Max torque |
290N.m |
|
|
Max torque speed |
1800-2100rpm |
|
|
Fuel Type |
Diesel |
|
|
Emission Standard |
Euro 2 |
|
|
Displacement |
3.76L |
|
|
Auxiliary Engine Model |
4TE35A-39A |
|
|
Auxiliary Engine Power |
26 Kw/35HP |
|
|
Chassis |
Cab |
HOWO 2080 single row cab |
|
Wheelbase |
3800mm |
|
|
Tire No. |
6+1 |
|
|
Tire size |
8.25R16 |
|
|
Axle loading |
2.7/7.2tons |
|
|
Steering Wheel |
With power-assisted |
|
|
Gear Box |
WLY6TS55C, 6-speed, manual |
|
|
Brake |
Air brake |
|
|
Tank |
material |
Stainless steel/carbon steel |
|
capacity |
5000L |
|
|
Asphalt Pump |
Model |
RY40-25-160, Intelligent |
|
Flow |
10 m³/h |
|
|
Speed |
2900r/min |
|
|
Suction lift |
28m |
|
|
Power |
2.2kW |
|
|
Spray |
Width |
4000 mm |
|
Volume |
0.20-1.5L /㎡ |
|
|
Precision |
1% |
|
|
Medium |
Modified asphalt, hot asphalt, emulsified asphalt and other asphalt media |
|
|
Asphalt Nozzle Number |
28 pcs intelligent nozzles |
|
|
Apply |
road paving,etc |
|
|
Asphalt Heating Method |
Imported diesel burner, Heat conducting oil automatically heating |
|
|
Asphalt Heating Rate |
12 ℃/h |
|
|
Hydraulic system |
Proportional valve, automatic reversing valve and overflow valve, asphalt pump hydraulic drive motor, hydraulic pump or engine power take-off |
|
|
Control system |
Intelligent computer control in the cabin |
|
|
Equipment |
chassis, an asphalt tank, an asphalt pumping and spraying system, a thermal oil heating system, a hydraulic system, a combustion system, a control system, and an operating platform. |
|
Main Advantage Of HOWO 5000L Asphalt Spreader Truck

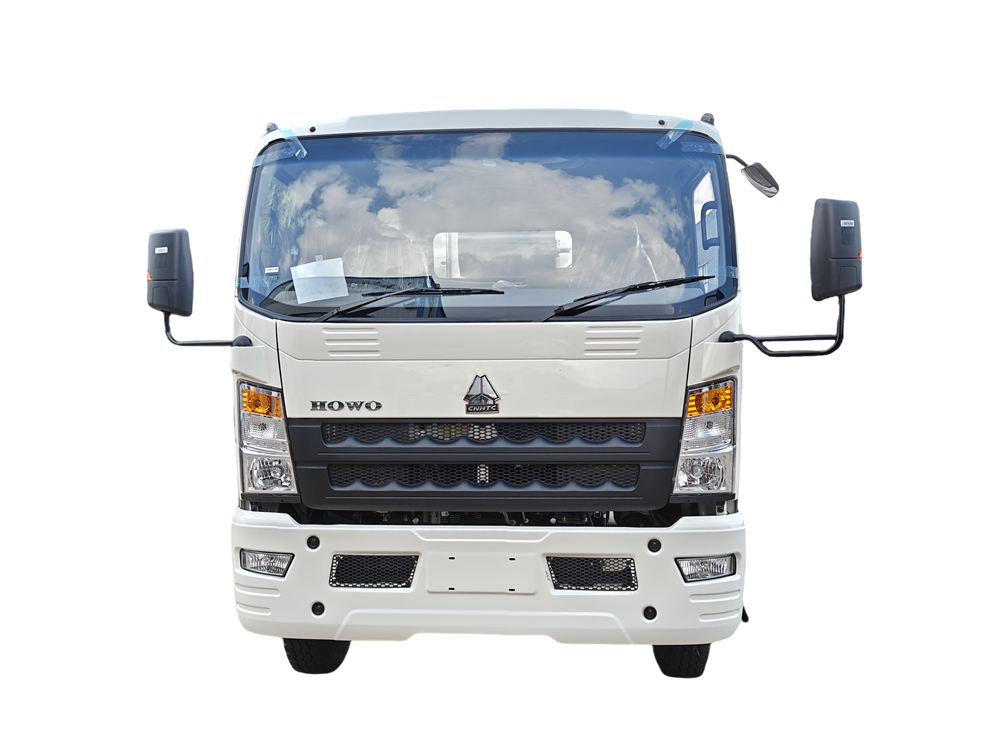

Chassis
Chassis Base: Based on the Howo 2080 single-row cab chassis, with a wheelbase of 3800mm, the compact and agile body adapts to the needs of urban roads, rural roads, and narrow sections of construction sites.
Powertrain Configuration:
• Engine: Equipped with a YN4102QBZL diesel engine, 116 HP/85kW, 290N.m torque, featuring low-speed high torque characteristics, smooth power output, and excellent fuel economy.
• Transmission: WLY6TS55C six-speed manual transmission, offering smooth shifting and a reasonable gear ratio, suitable for both low-speed spraying operations and high-speed relocation.
Tank Design
• Capacity: 5 cubic meters standard volume, made of Q235B carbon steel or 304 stainless steel, with a special anti-corrosion treatment on the inner wall, resistant to high temperatures and corrosion, extending service life.
• Optimized Structure: Streamlined tank design reduces asphalt residue; equipped with a self-priming discharge port and quick connector, improving unloading efficiency by 20%.

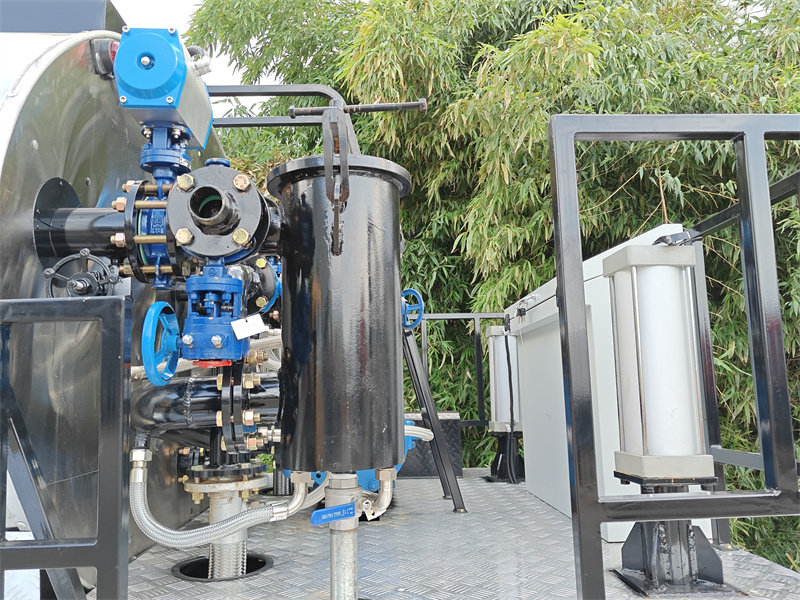

Spraying System

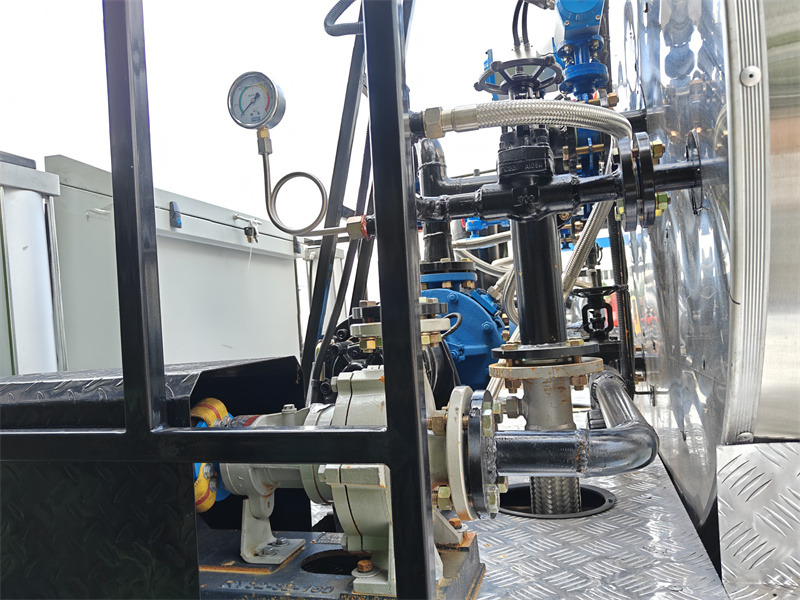

• Asphalt Pump: RY40-25-160 intelligent air-cooled hot oil pump, flow rate 10m³/h, 2900r/min, supports stable delivery of high-temperature asphalt; the pump body has a built-in heating function to prevent asphalt solidification.

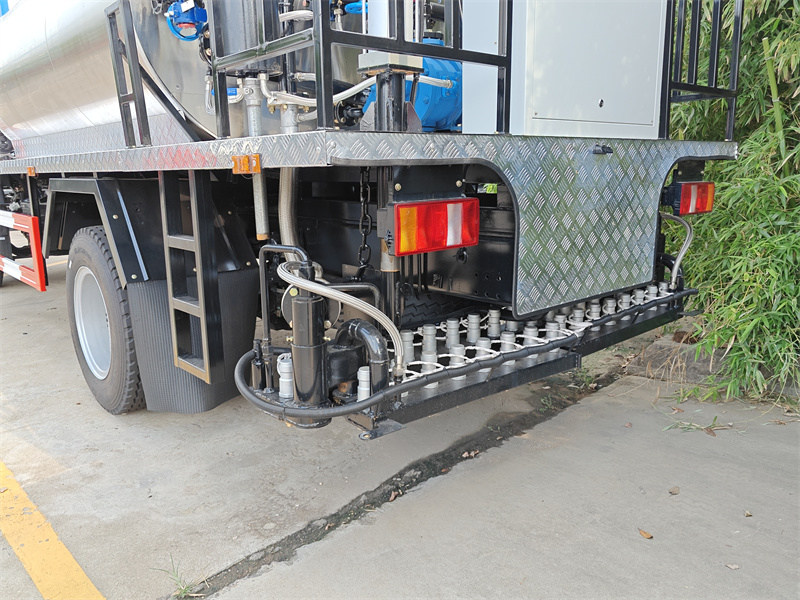

• Nozzle Layout: Equipped with 28 high-precision fan-shaped nozzles at the tail, spraying width 4 meters, spray volume adjustable from 0.20-1.5L/㎡, single/double row switching achieved via pneumatic control valve to adapt to different paving thicknesses.
• Heating system: Italian Riello G10 burner, automatic circulation heating of heat transfer oil, heating rate ≤45 minutes, temperature control accuracy ±3℃, ensuring asphalt fluidity.
Control and Power System

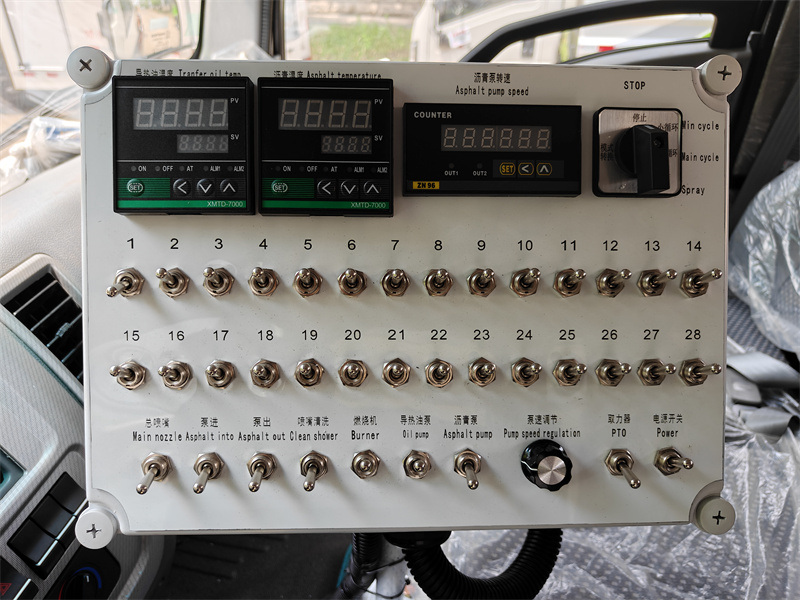

• Equipped with a 7-inch color touchscreen, displaying real-time heat transfer oil temperature, asphalt temperature, asphalt pump speed, etc.; independent control of 28 nozzles, including main nozzle, pump inlet/outlet, nozzle cleaning, burner, heat transfer oil pump, asphalt pump, pump speed adjustment, PTO, power switch, etc.

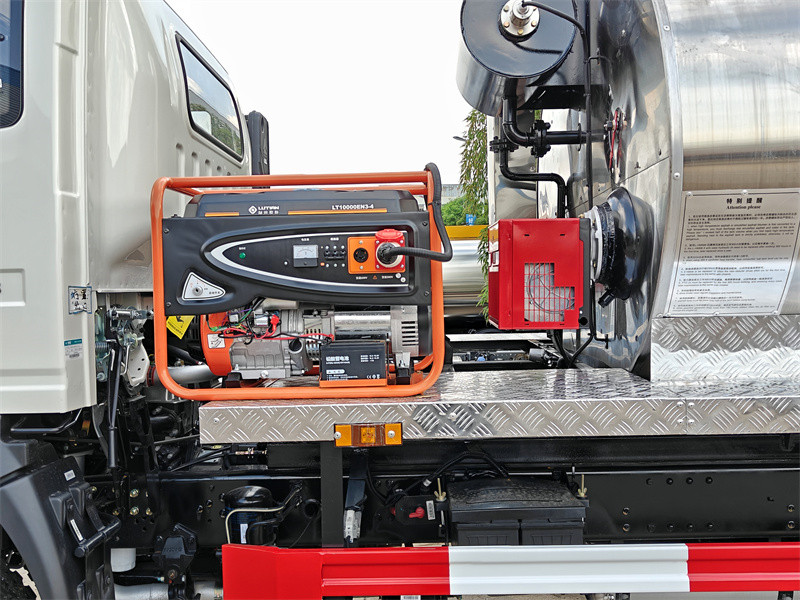

• Auxiliary Power: Diesel generator set, providing stable power for the heating system, control terminal, and nighttime construction lighting.
Applicable scenarios
HOWO 4x2 5000L intelligent Asphalt distribution truck are widely used in municipal road maintenance, rural road construction, highway sealing, and industrial park pavement construction. They can efficiently complete tasks such as applying tack coat and primer, thin overcoat, simultaneous chip seal, and crack repair, adapting to the needs of small to medium-sized projects. Their intelligent spraying system and rapid heating function ensure uniform material coverage and low-temperature operation capabilities. Combined with an economical 5 cubic meter tank design, they balance flexibility and cost control, making them a versatile and ideal choice for road construction, renovation, and routine maintenance.
