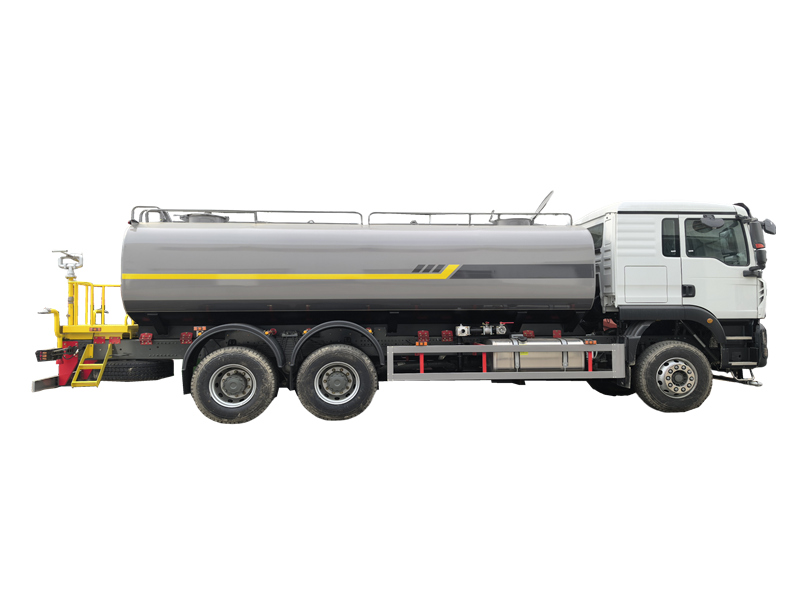

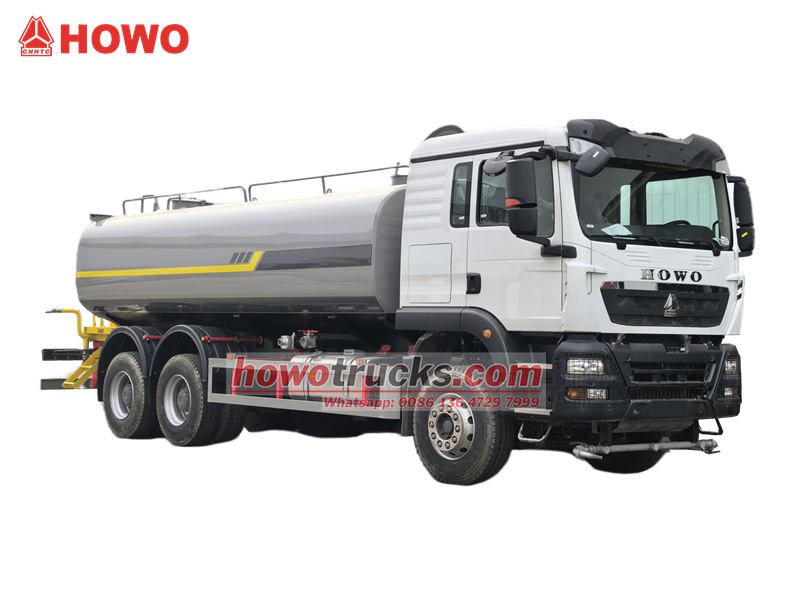

The HOWO TX 20,000-liter water sprinkler truck is a comprehensive large-scale sanitation equipment. Built on a robust HOWO 6×4 heavy-duty chassis, it features a 20-cubic-meter carbon steel anti-corrosion water tank and an efficient water pump. Equipped with multiple functions such as front flushing, rear sprinkling, side spraying, and a remote water cannon, it can efficiently perform tasks like road flushing, greening irrigation, and dust suppression. It is a reliable tool for urban and industrial environmental maintenance.
Working capacity :
20000 litersCabin type :
HOWO TXDimension (mm ) :
9600×2500×3200Drive system :
6×4Wheelbase ( mm) :
4600+1350Engine specific :
340HP/WP10.340E22Gear box :
HW19710 10-speedFront axle ( Kg ) :
9000Rear axle ( Kg ) :
16000Remark :
stainless steel tank, 6×6, RHD is optionalThe HOWO TX 20,000-liter water sprinkler truck is a large multifunctional sanitation vehicle that integrates cleaning, dust suppression, and greening functions. Built on the HOWO TX 6×4 chassis, it is powered by a 340-horsepower engine and a 10-gear transmission, providing ample power reserves. Its 20-cubic-meter carbon steel water tank undergoes electrophoretic anti-corrosion treatment, ensuring durability and corrosion resistance, making it suitable for harsh working environments.

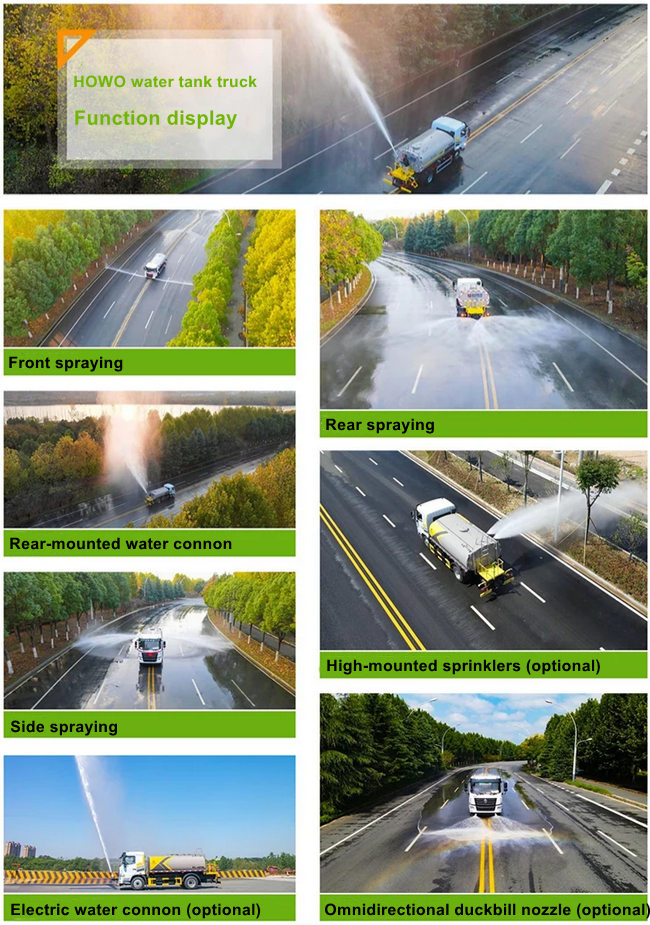

This HOWO 6×4 water tanker truck boasts an excellent operational system, equipped with a high-flow Chinese brand water pump that has strong suction and fast water intake, capable of filling the entire tank in just 15 minutes. The front of the vehicle is fitted with a duckbill nozzle for road flushing, while the rear and sides are equipped with sprinkler heads for dust suppression. The rear high-range water cannon has a spray range of over 35 meters, allowing it to flexibly meet the spraying demands of various scenarios. Additionally, the vehicle is equipped with a low-water level alarm and an intuitive water level gauge, providing great convenience for daily use and water management.
CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Product Features
1. The water tank undergoes electrophoretic anti-corrosion treatment, offering excellent corrosion resistance.
2. Equipped with a low-water level sensor and alarm system; it automatically alerts when water is low, and the water level gauge allows for intuitive monitoring of the tank's water level.
3. Utilizes a renowned Chinese brand low-pressure water pump, which is reliable, has a long service life, and ensures effective cleaning performance.
4. The high-range water cannon on the rear platform provides a stable jet stream with minimal pressure loss, allows for flexible watering control, and boasts a long service life.
5. Includes opposite-facing (or duckbill) nozzles, a water suction hose, and a self-flowing valve, enabling self-priming and self-draining operations.
※ Ⅱ. Product Parameter for HOWO TX water tanker truck:
|
Vehicle Description |
||
|
Overall dimension |
9600*2500*3200mm |
|
|
GVW |
25000kg |
|
|
Curb weight |
10800kg |
|
|
Chassis brand |
HOWO |
|
|
Traction type |
6*4, left hand drive |
|
|
Chassis Description |
||
|
Model |
ZZ1257N |
|
|
Cab |

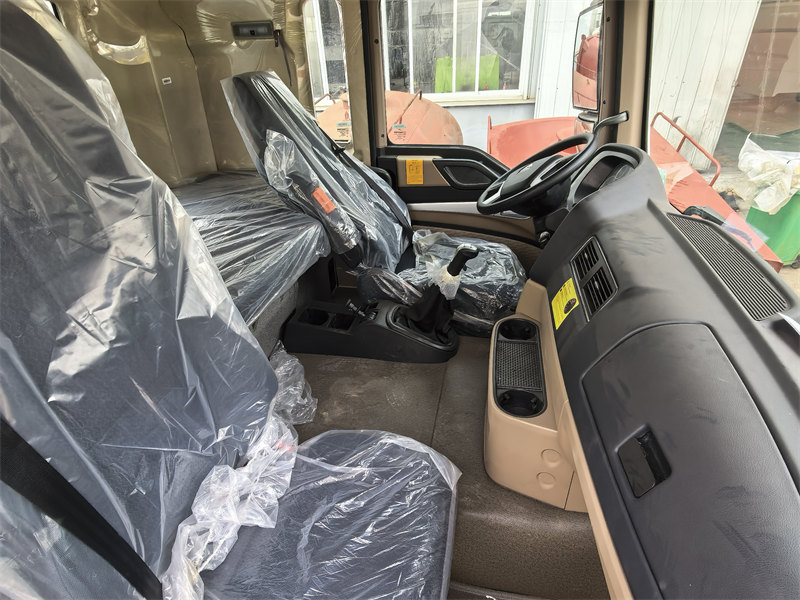

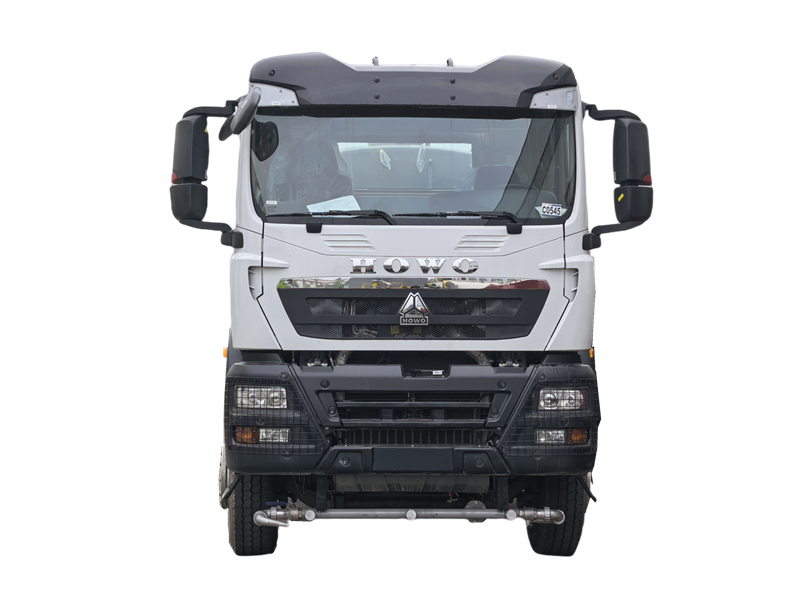

HOWO TX,2 seats, one sleeper bed, forward control type, low roof, new face, all welded steel cab, electrical cab tilting, front and rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electrical windows, central lock. |
|
|
Wheelbase |
4600+1350mm |
|
|
Tire specification |
12.00R20 |
|
|
Tire quantity |
10+1 units |
|
|
Engine |
Engine model |
WP10.340E22 |
|
Emission standard |
Euro 2 |
|
|
Max. output power |
250kw |
|
|
Displacement |
9726 ml |
|
|
Horse power |
340HP |
|
|
Max. torque |
1250 N.m |
|
|
Rated speed |
2200 rpm |
|
|
Gear box |
Model |
HW19710 |
|
Type |
10 forward gears & 2 reverse, synchronized |
|
|
Brake system |
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake. |
|
|
Axle |
Front |
9000 kg |
|
Rear |
16000×2 kg |
|
|
Tires |
Specifications |
12.00R20 |
|
Quantity |
10+1pcs |
|
|
Battery |
Voltage |
12V*2 |
|
Capacity |
165A.h*2 |
|
|
Fuel tank
|
Type |
Aluminum alloy tank with lockable cap |
|
Capacity |
400L |
|
|
Upper-body Description |
||
|
Water tank |
Volume |
20000 liters |
|
Material |
Carbon steel |
|
|
Water pump |
Model |
80QZ60/90 |
|
Flow |
60m ³/h |
|
|
Sprinkler system |
Suction height of Pump |
>7m |
|
Full Tank Suction Time |
<15 minutes |
|
|
Sprinkling width of front/rear/side Sprinkler |
≥14m |
|
|
Range of Water Cannon |
≥35m |
|

※ Ⅲ. Product Details & Features:

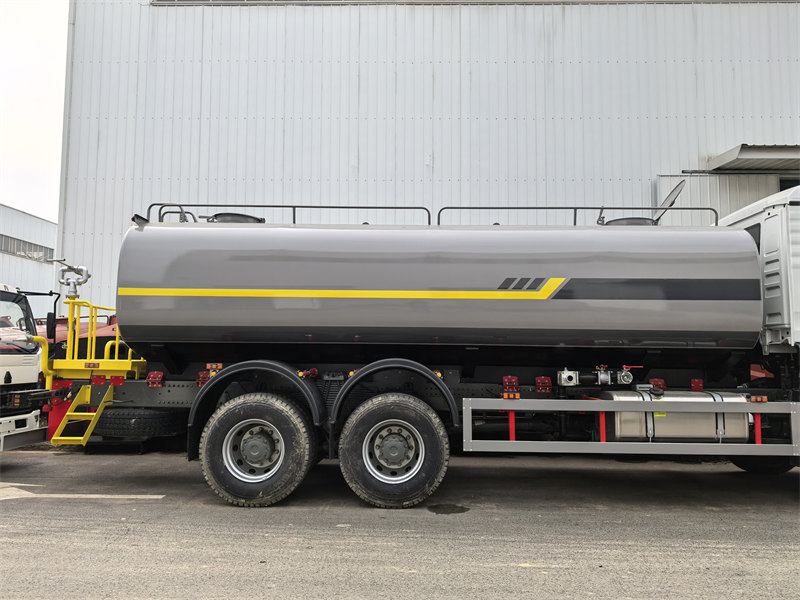

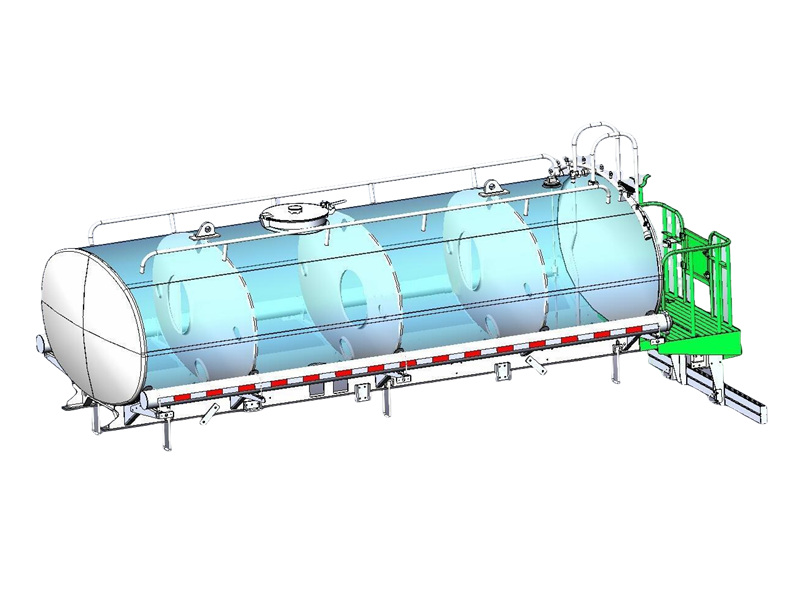

Tank body
The tank features an elliptical shape and is constructed from high-quality carbon steel plates. The tank body is divided into 3-4 compartments by baffles, with the lower sections of these intermediate baffles containing communication holes. The baffles inside the compartments serve an anti-surge function, reducing the impact of liquid sloshing within the tank during vehicle operation. The exterior is coated with anti-rust paint and decorative finish.

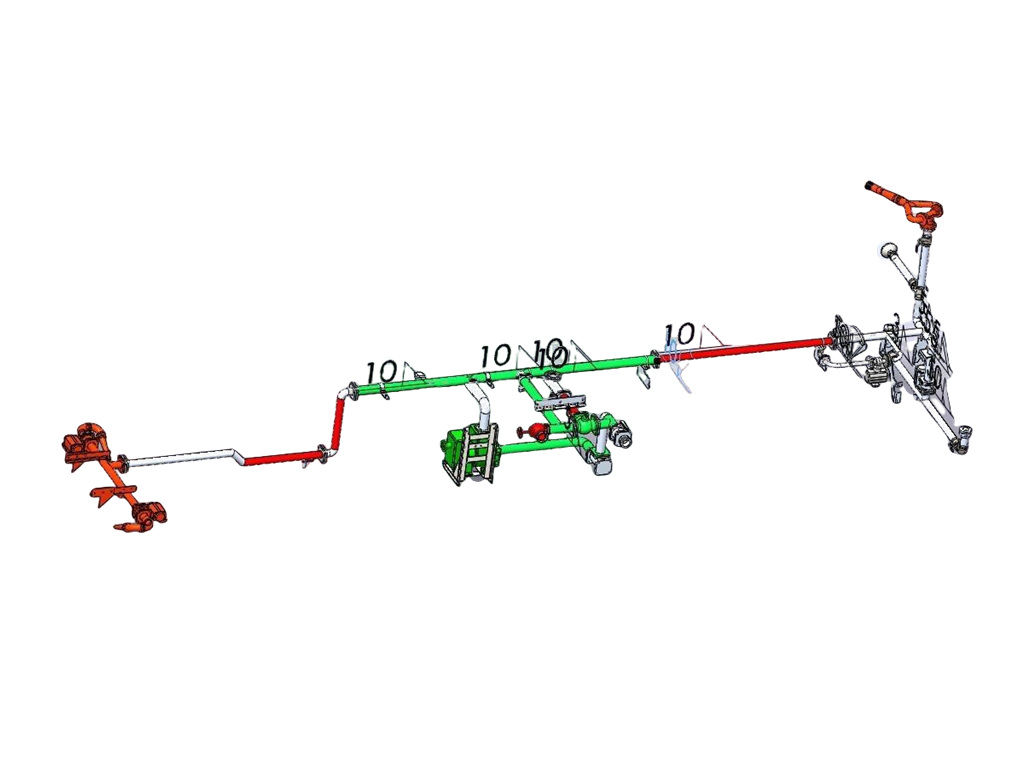

Piping system

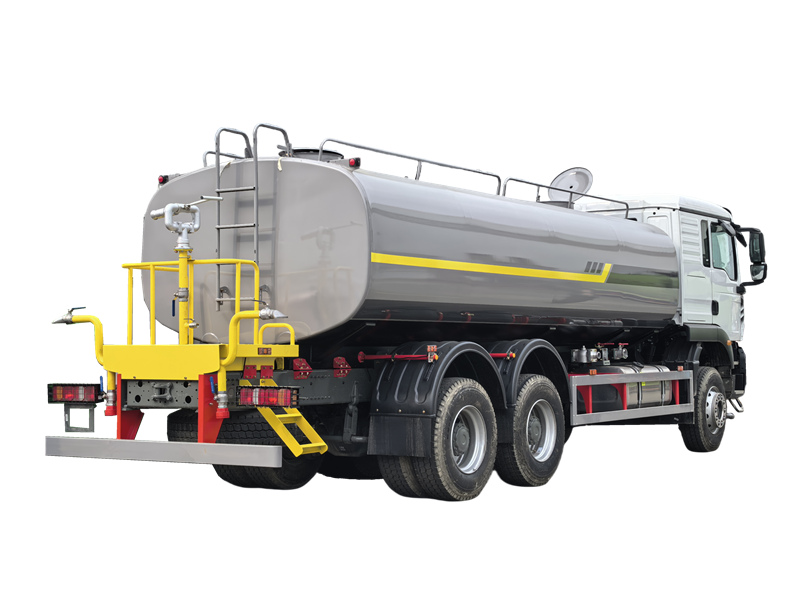

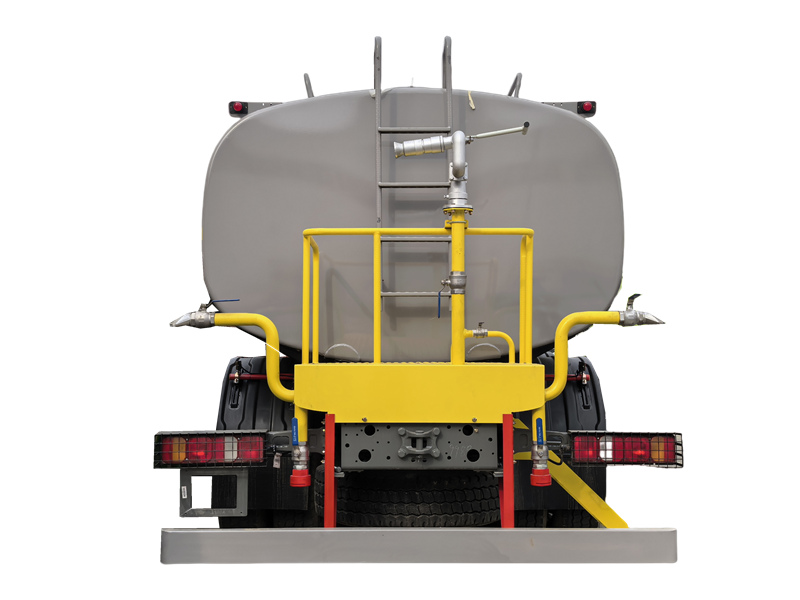

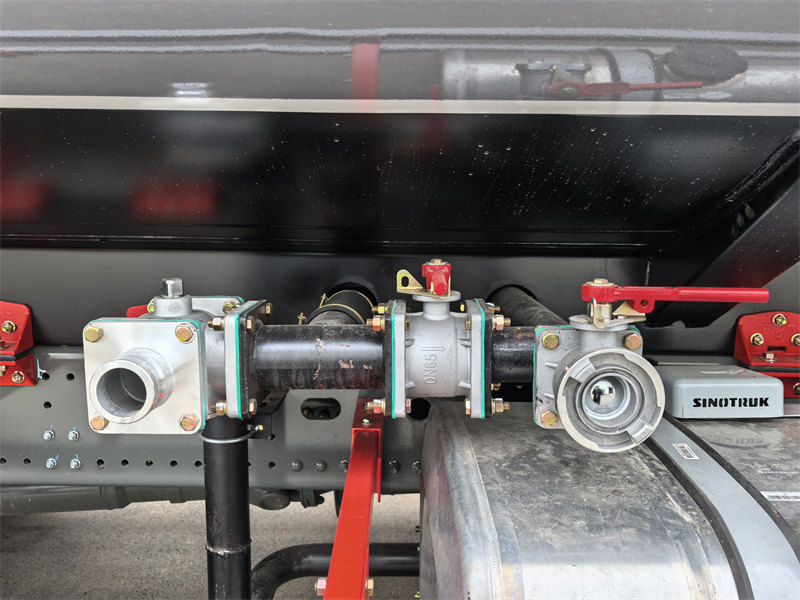

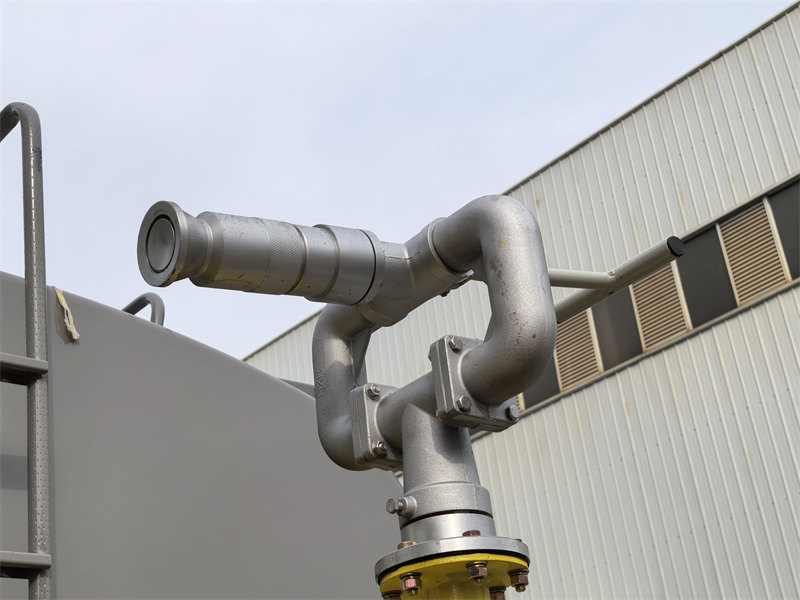

The piping system consists of two main parts: the main pipeline and the operational pipelines. The main pipeline is primarily composed of cast aluminum components and various ball valves. The operational pipelines refer to the front flush and rear sprinkling pipelines. The front of the vehicle is equipped with duckbill nozzles or round flush nozzles, while the rear is fitted with cylindrical sprinkler heads. The side spray features lotus-shaped sprinkler heads. A high-range water cannon is installed at the rear of the vehicle.

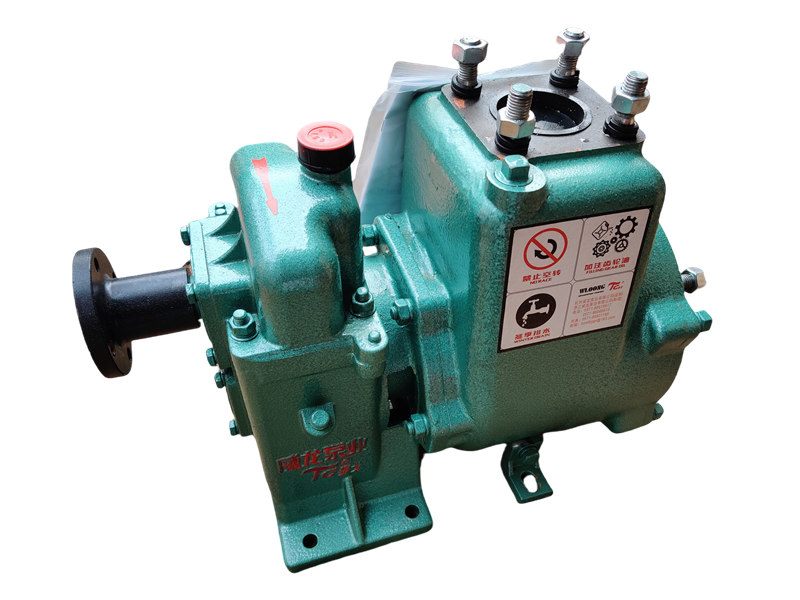

Water pump
Brand: Wloong
Model: 80QZBF-60/90
Flow: 60 m3/h
Lift: 90 m
Input speed: 1180 rpm
※ IV . Product Details:
※ Ⅴ. Product Function:

1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
