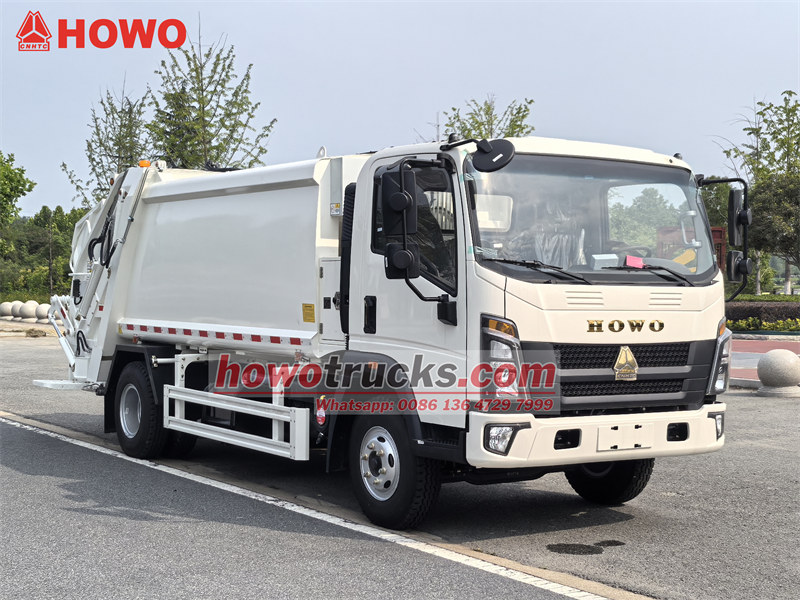

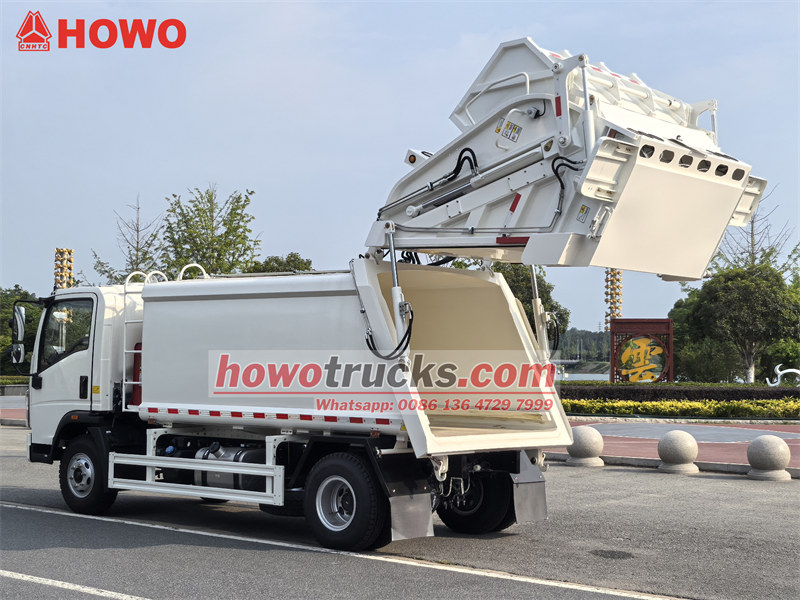

HOWO 8CBM refuse compactor truck

HOWO 8CBM refuse compactor truck

Chinese light duty Sinotruk HOWO Rear Loader Truck is a professional garbage collection vehicle built on HOWO 4×2 light duty truck chassis, equipped with WEICHAI WP2.3NQ130E50 model 130HP, Euro 5P diesel engine and WLY manual gearbox with 6F and 1R. HOWO 8000L refuse compactor garbage truck equipped with 8cbm compactor tanker body, all based on international St52 material, equal to Q355 material, thickness for side and floor 4mm. Full hydraulic working device for convenient working. Hydraulic cylinder for push plate, for rear tailgate, for slide plate, for scraper, for rear tilting device. Also matched with CAN-BUS control device for easy operation.

  • Working capacity :

    8CBM
  • Cabin type :

    HW1880 flat roof cabin, with half sleeper
  • Drive system :

    4x2
  • Wheelbase ( mm) :

    3280 mm
  • Engine specific :

    WP2.3NQ130E50 model 130HP, Euro 5
  • Gear box :

    WLY6G40, 6F & 1R
  • Front axle ( Kg ) :

    3200
  • Rear axle ( Kg ) :

    8000
New Products

Sinotruk HOWO Garbage Compactor Truck is a professional garbage collection vehicle, which is designed and produced to collecting, compressing, storage, and transporting garbage. Also can be named as rear loader truck,refuse compactor truck, trash compactor truck. HOWO Dumpster Compactor Truck is designed and produced based on the HOWO 4x2 light duty truck chassis, equipped with 130HP WEICHAI EURO 5 diesel engine, suitable for Philippines market. Truck equipped with CAN BUS electric control box and Hydraulic control box, which can make truck operation more convenient, suitable for daily usage. Whole truck matched with powder coating process painting, which can make truck efficiently avoid rusty and extend life service.

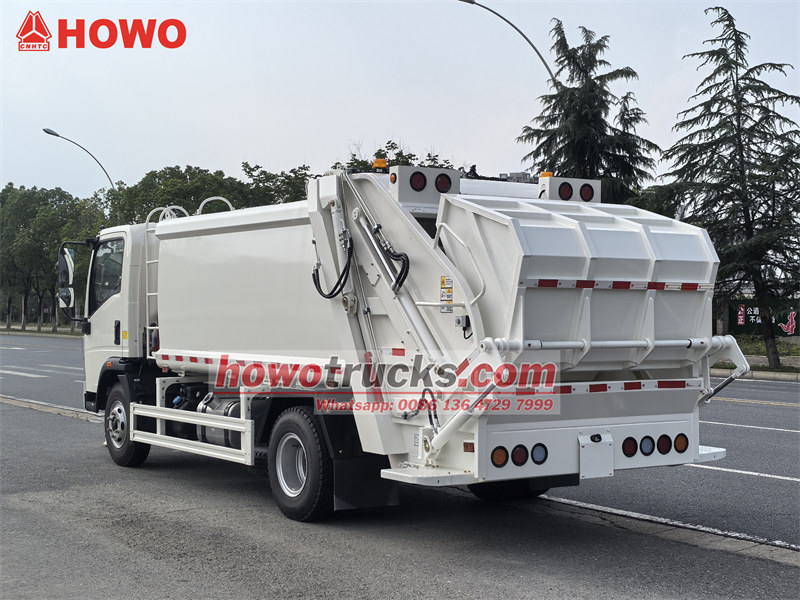

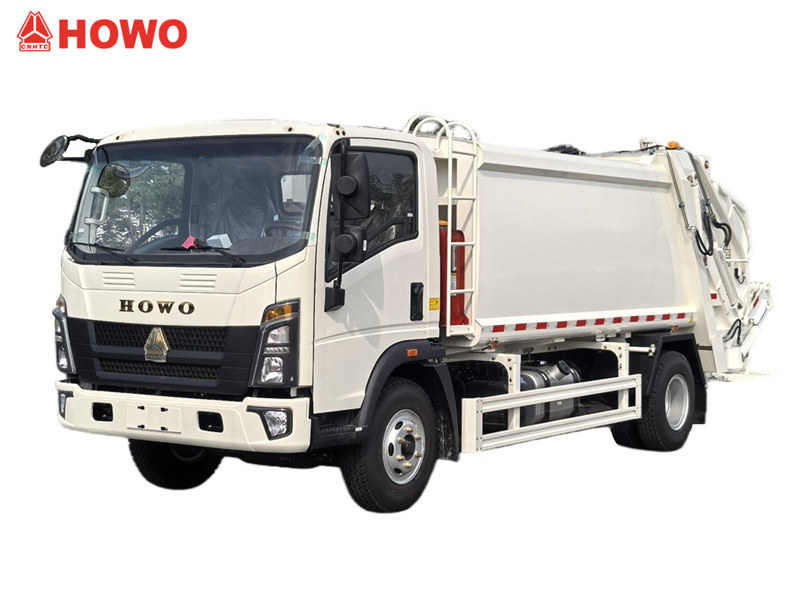

HOWO 4x2 rear loader truck




*SINOTRUK HOWO Rear Loader Garbage Truck 8CBM
8000L Refuse Compactor Truck
HOWO light duty compactor lorry truck*
-----------------------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



HOWO 8cbm refuse compactor truck

  • HOWO 4X4 garbage compactor vehicle
  • HOWO 4X4 garbage compactor truck

  • HOWO rear loader truck





Product Introduction

Manufacturer: CS TRUCKS
Features:
1. Truck Chassis: SINOTRUK HOWO heavy truck chassis, 4x2, 6x4 and 8x4 model
                              WEICHAI model with 120HP, 130HP, 160HP or 180HP
                              Optional EURO 2/3/4/5/6 emission for different market


2. Tank material: St52 material 4mm thick carbon steel for durable service
                            Q355, T420, HARDOX material can be choose


3. Tanker body: Customized for 8CBM compactor body


4. Control Box: CAN BUS control box with in cabin and rear hopper, convenient operation
                           Also matched hydraulic control valve for emergency usage



5. Rear Tilting Device: Standard 240L and 1100L bins, optional 360L, 660L, 770L bins


6. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m

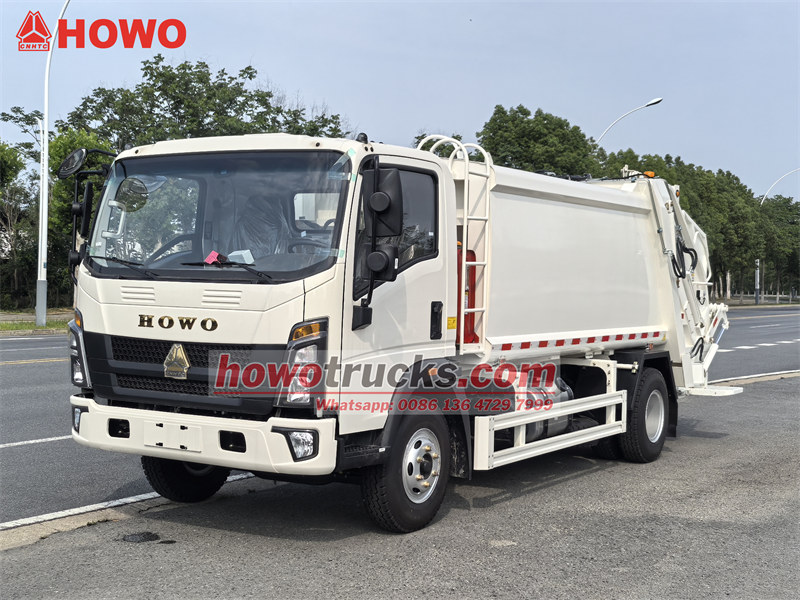

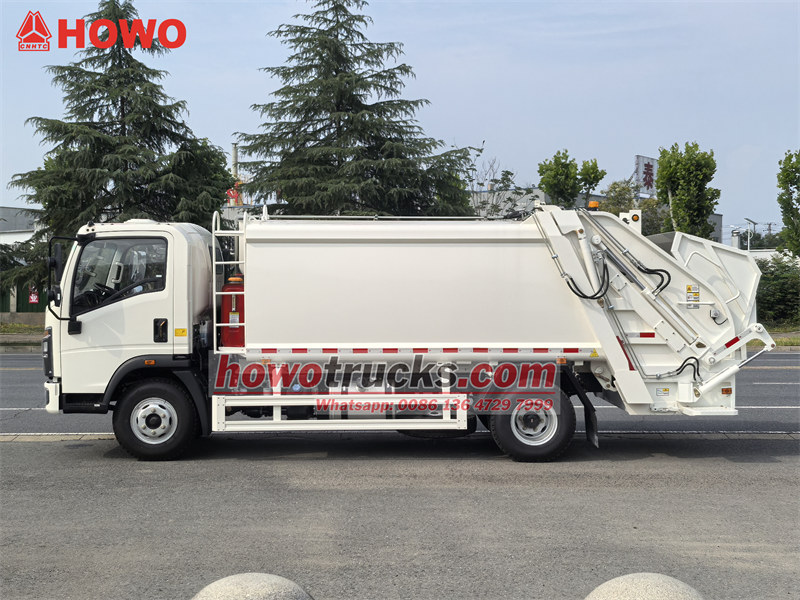

HOWO 8CBM garbage compactor vehicle



HOWO 8CBM garbage compactor vehicle





Product Parameter for HOWO 8CBM Rear Loader



Cabin Driving type 4x2
1880 Standard cab, with three seats, with A/C. Left Hand Driven. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 8000x2450x3100
Wheel base (mm) 4500
Wheel track (front/rear) (mm) 1798/1764
Approach/Departure angle(°) 27/20
Weight in KGS Tare Weight 6400
Loading Capacity 5000
Front axles loading capacity 1x3200
Rear axles loading capacity 1x8200
Max. driving speed(km/h) 90
Engine Brand YUCHAI
Model YC4E140-20
Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 140 HP
Emission standard Euro Ⅱ
Gearbox WLY6T51 , 6 forwards &1 reverse
Clutch Diaphragm spring clutch
Steering Gear Power steering
Fuel tank (L) 230 L
Tire 8.25R20 All radial tires with one spare, 7 pieces
Compression garbage box body system
Body Volume 8 CBM
Cycle Time of Filling(S) ≤40
Lifting Time of Filler(S) 8-10
Time of Discharging ≤60
Working Pressure(MPA) 16
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.

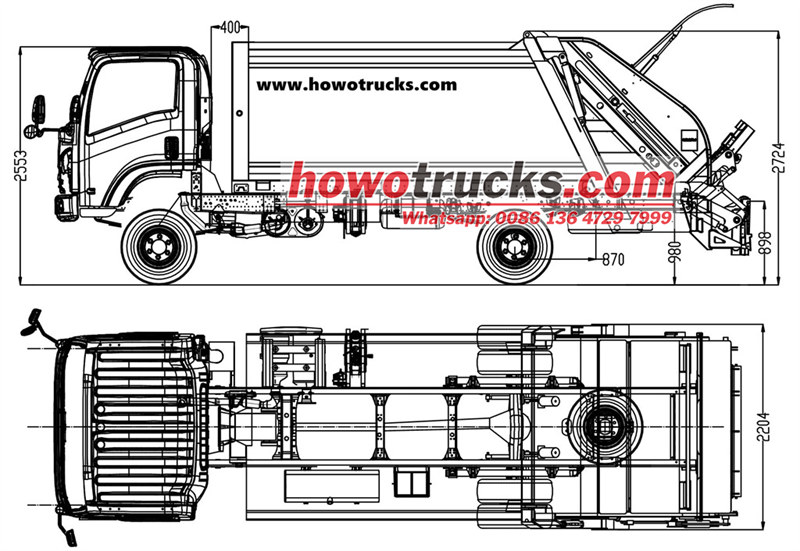

HOWO rear loader truck drawing





Product Advantages

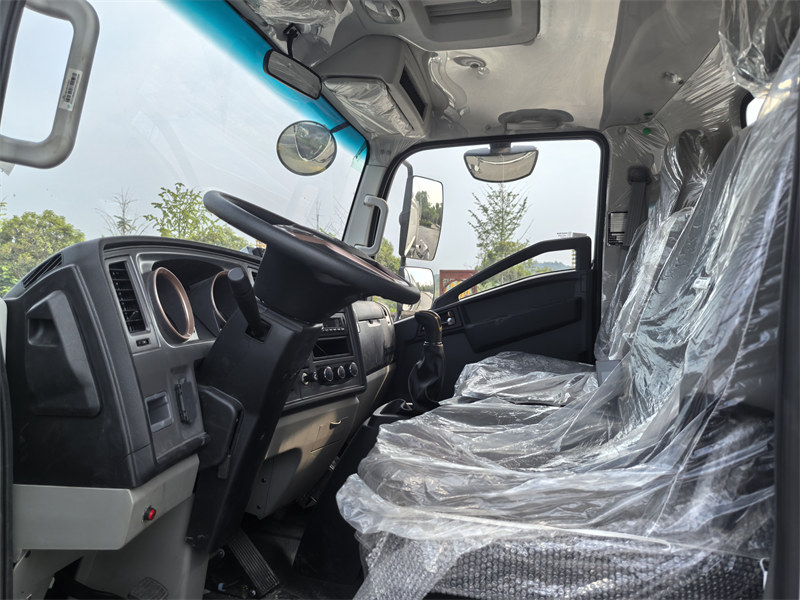

1. SINOTRUK HOWO Truck Cabinet
Light duty HOWO 4x2 truck chassis, 1880 cabinet with optional LHD and RHD, very comfortable and quiet, Air conditional, etc.

HOWO rear loader truck cabin


2. Curve Shape compactor tanker body
Special designed curve shape compactor body, with material St52, thickness for side 4mm, floor 4mm, reliable and durable

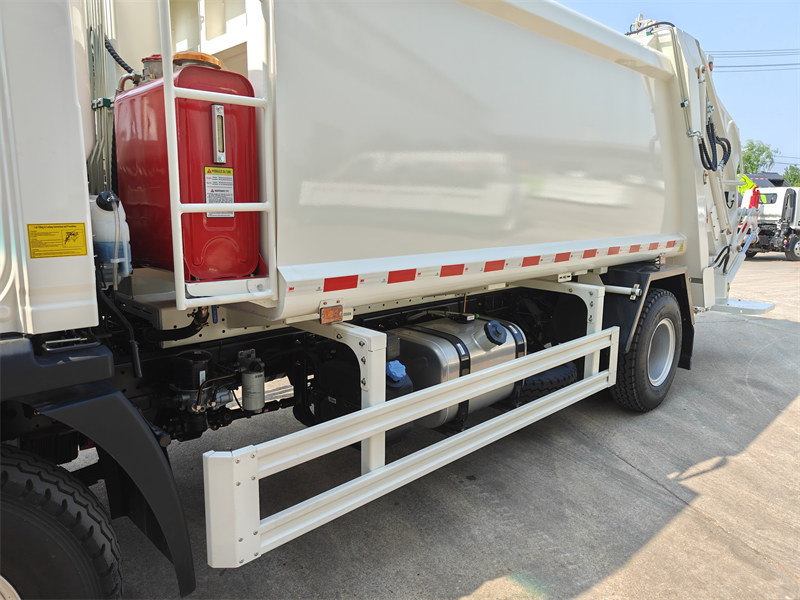

Rear loader compactor truck body kit

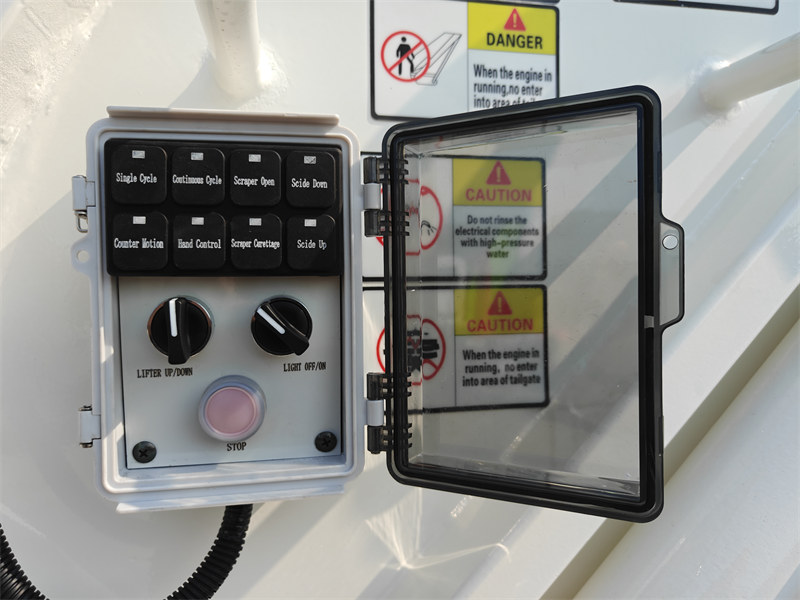

3. CAN BUS control box
HOWO garbage compactor truck mounted with CAN BUS electric control box, convenient operation, durable and reliable working

HOWO rear loader CAN BUC control box

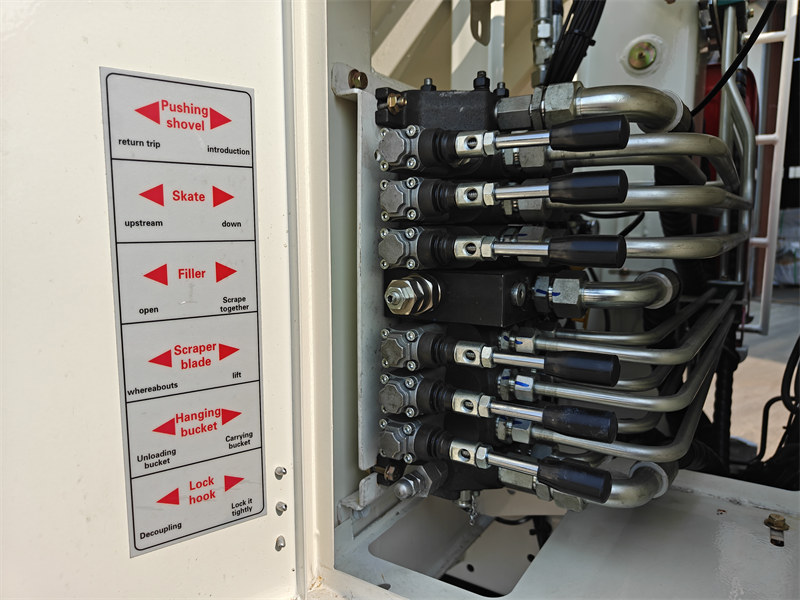

4. CE Standard control valve
Front mounted on compactor body, ISO and CE certified, matched with English operation guidance, safety and durable

CE Standard hydraulic control valve

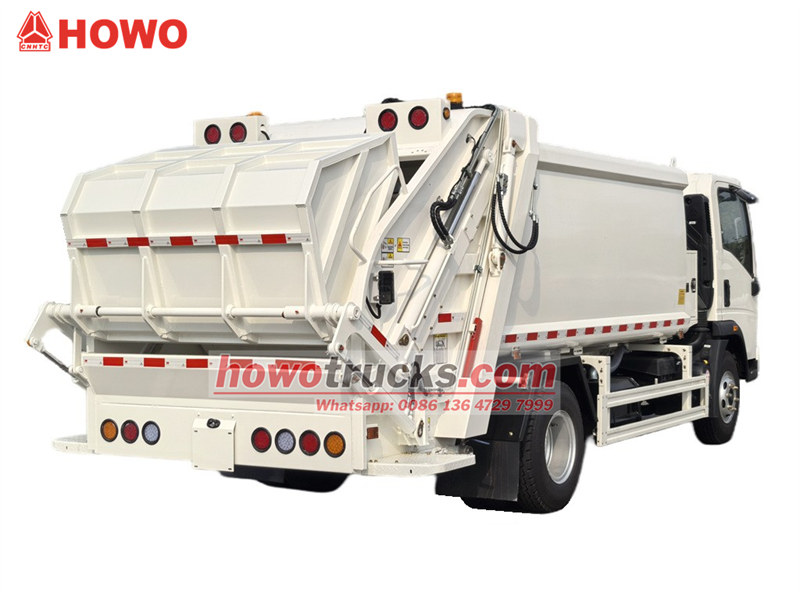

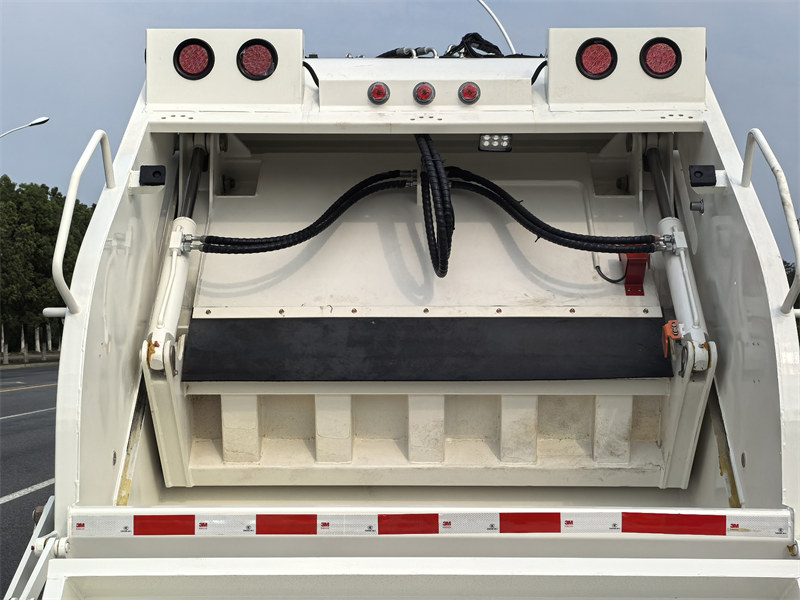

5. Tailgate assembly
Tailgate device, matched with slide plate and scraper, top mounted LED light for safety working and driving

HOWO rear loader tailgate

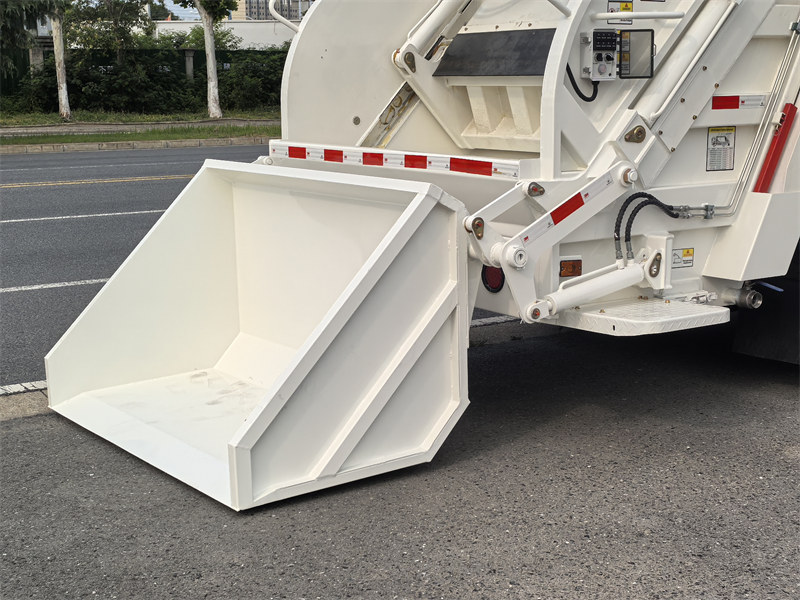

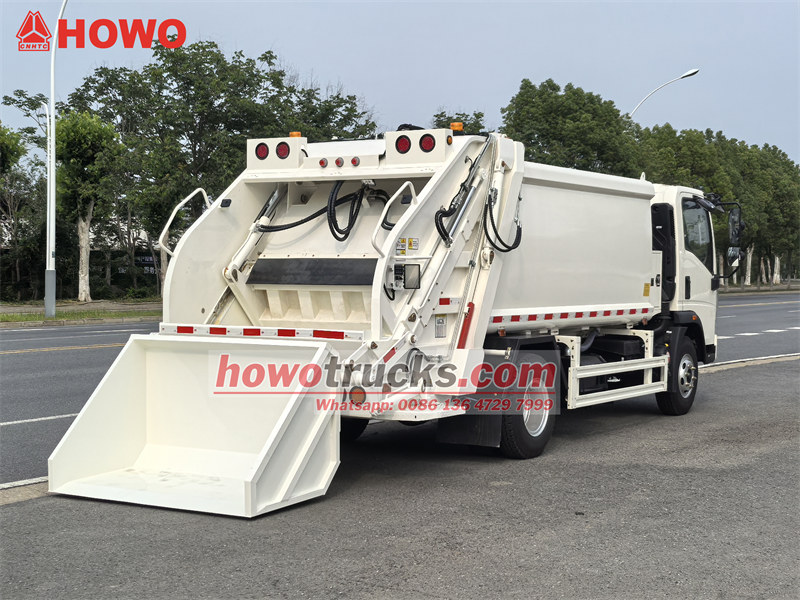

6. HOWO rear loader tilting device
Customized rear tilting device, suitable for garbage collection, also available 240L, 360L, 660L, 770L, 1100L, bins, plastic material and metal material both available

HOWO refuse compactor truck rear tilting device




Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!


We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

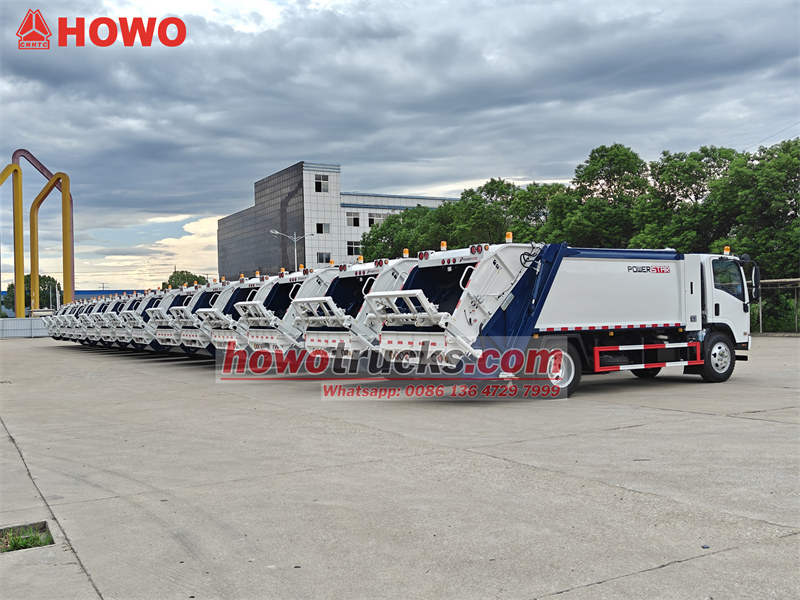

15 units rear loader truck for export

15 units Rear Loader Trucks ready for seaport for delivery to Africa

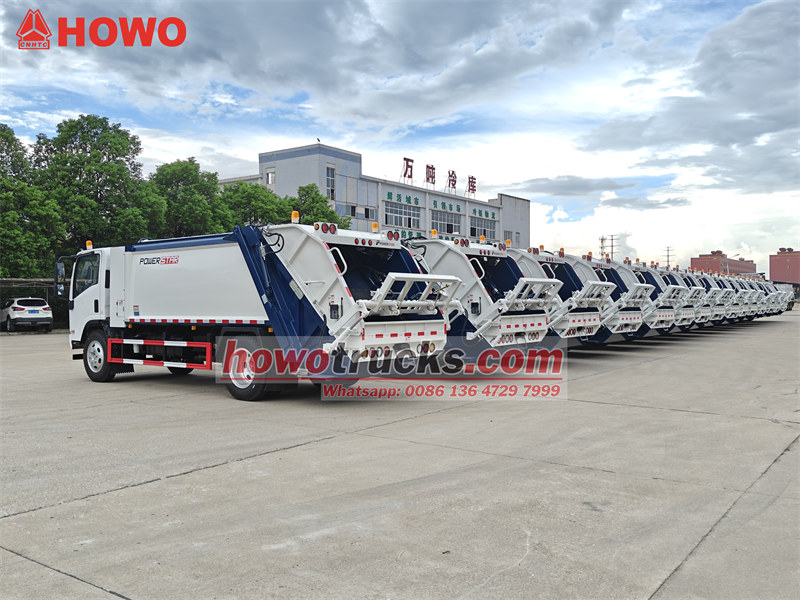

15 units refuse compactor trucks for export

Refuse compactor trucks factory testing and ready for shipment
