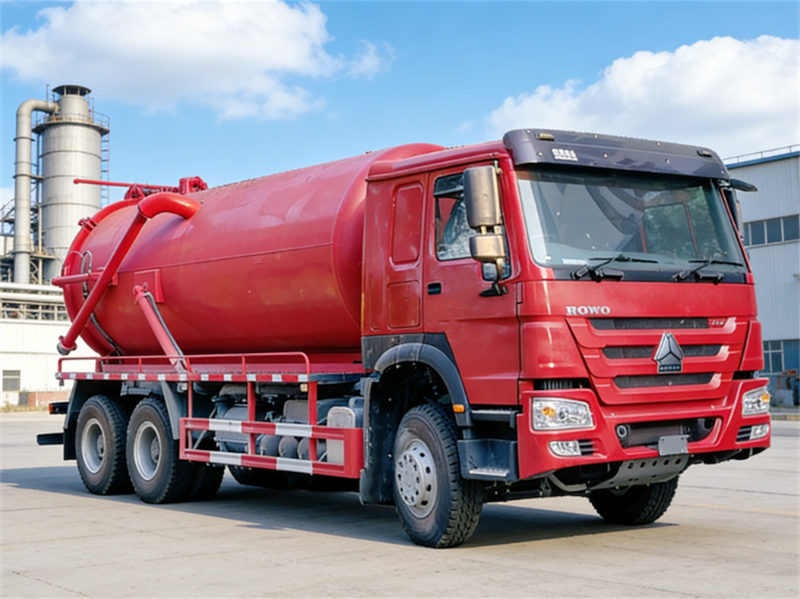

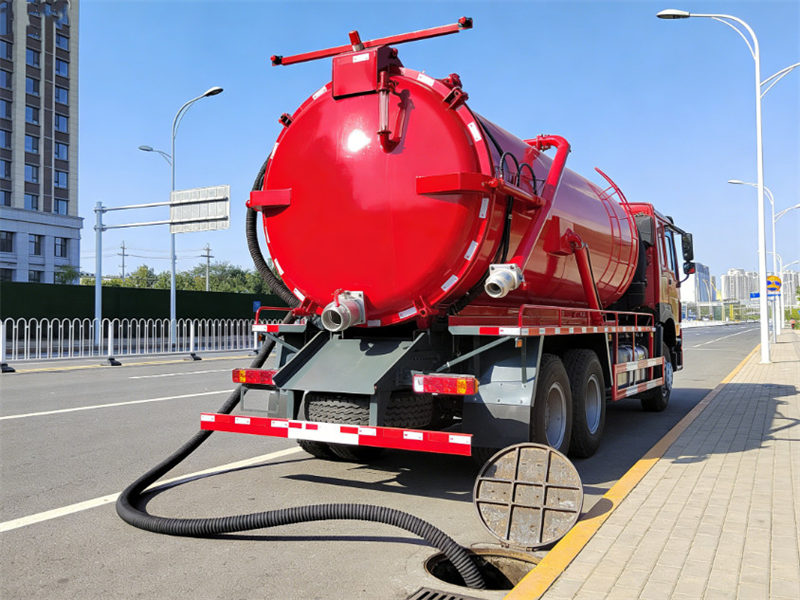

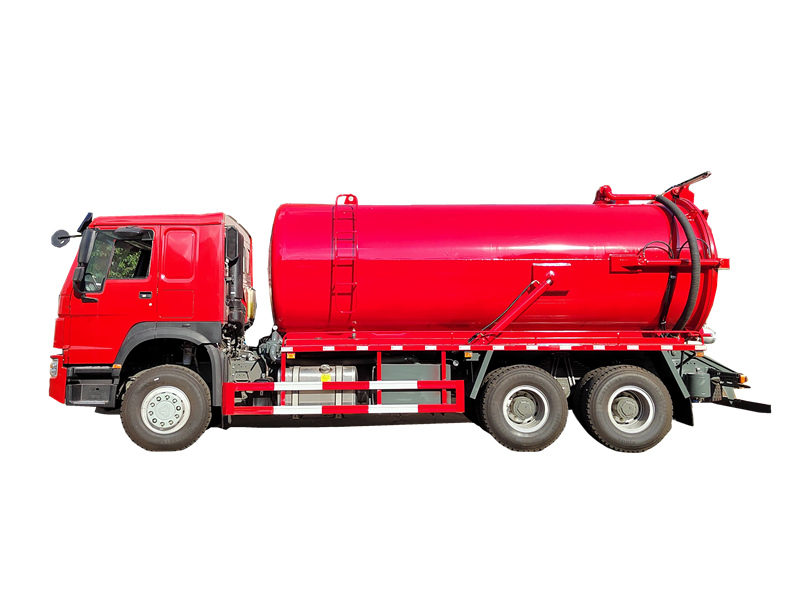

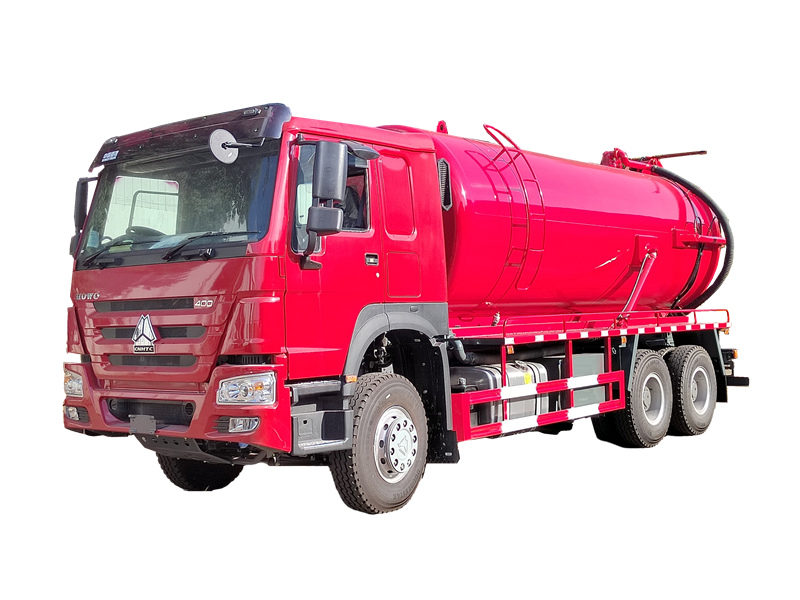

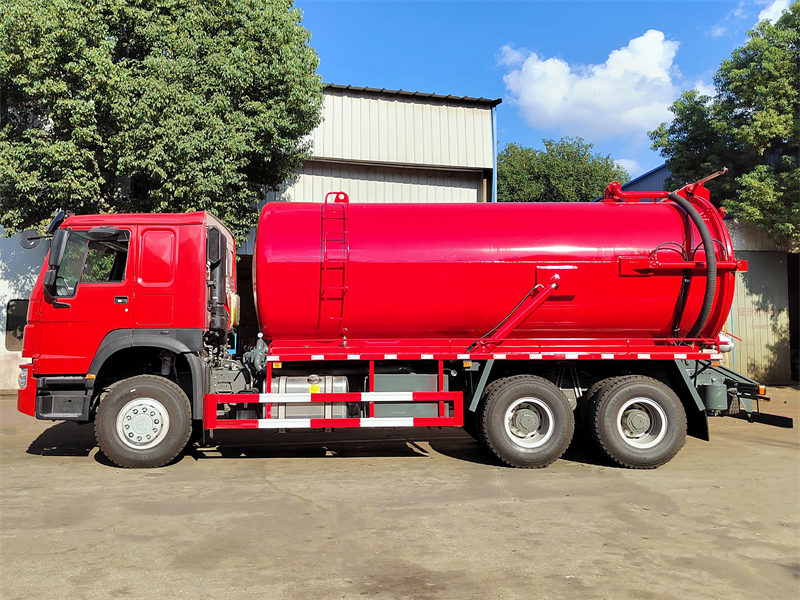

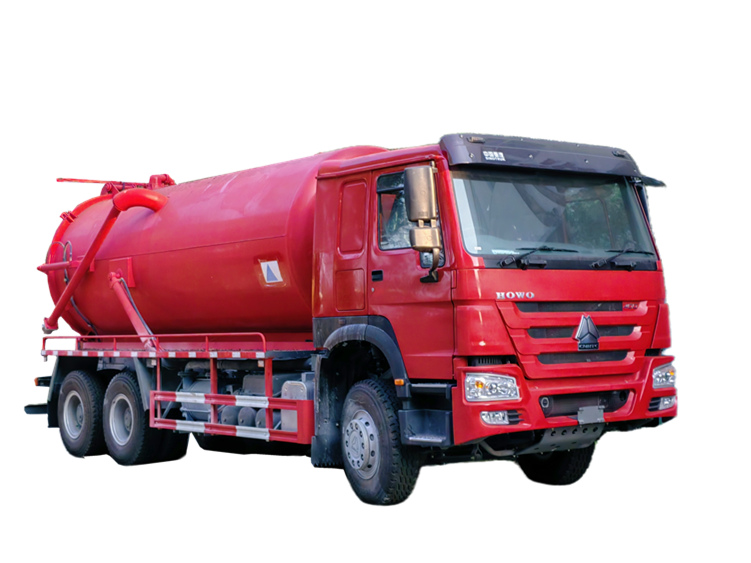

The HOWO heavy 20000L sewer cleaner truck is a specialized vehicle built on a 6x4 heavy duty chassis, equipped with a large capacity sealed tank and a vacuum pump system for sucking and transporting liquid waste such as feces and sludge. Powered by a high power Weichai engine and an China Top brand vacuum pump, it delivers robust suction performance and exceptional vertical suction depth. The tank features hydraulic self-unloading and a hydraulically operated rear cover, ensuring highly automated operations. This heavy duty sanitation equipment combines powerful performance with outstanding efficiency.
Working capacity :
20000 litersCabin type :
HOWO HW76Dimension (mm ) :
9850×2550×3450Drive system :
6×4Wheelbase ( mm) :
4600+1350Engine specific :
400HP/WP12S400E201Gear box :
HW19710Front axle ( Kg ) :
9000Rear axle ( Kg ) :
16000*2Remark :
Jurop pump, 4×4, 6×6, RHD drive is optionalIn the field of municipal sanitation, Howo heavy duty 20000L sewage tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a high-quality WP12S400E201 engine with a maximum horsepower of 400HP, and a powerful vacuum suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 20CBM, and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

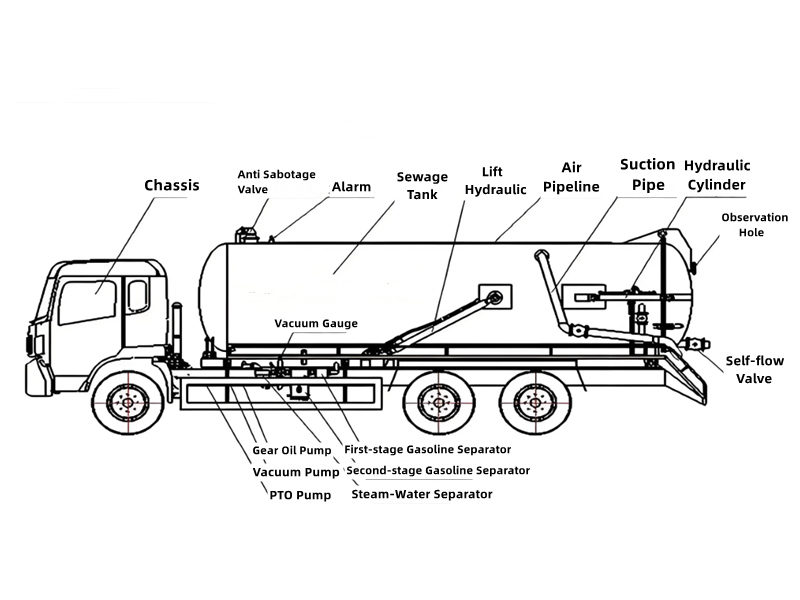

Product Introduction of Howo Sewage Tank Truck« « «
Manufacturer: CS TRUCKS GROUP
Product Features:
☛ Howo heavy 6x4 chassis with stronger power WP12S400E201 400HP engine.
☛ Suctioning,displacing(option),transporting and dischargeing dry,wet and hazardous substsnces, such as sluge sand,(roof) gravel, fly ash, powders and various types of liquids.
☛ The powerful tri-lobe blower gives the vacuum tanker with cyclone separator a very high suction and displacement capacity.
☛ Self-cleaning cyclone separation keeps the cyclones dust free at all times.
Product Parameter For Howo 20000l Sewage Tank Truck « « «

|
Howo heavy 20000L septic tanker truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
10300*2530*3150mm |
|
|
GVW |
2500kg |
|
|
Curb weight |
12350kg |
|
|
Sewage tank (m3) |
20 |
|
|
Drive system |
6*4 |
|
|
Chassis Description |
||
|
Chassis brand |
Howo |
|
|
Steering |
LHD |
|
|
Cab |
Howo,single row, 2 seats,with A/C |
|
|
Wheelbase |
4600+1350 mm |
|
|
Tire specification |
12.00 R 20 |
|
|
Tire quantity |
10 tires and 1 spare tire |
|
|
Engine |
Engine model |
WP12S400E201 |
|
Emission level |
EURO 3 |
|
|
Displacement |
9.85L |
|
|
Horse power |
400HP |
|
|
Weight |
1360Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
HW19710 |
|
Number of gears |
10-speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
7.5T |
|
Rear |
16T*2 |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
400L |
|
|

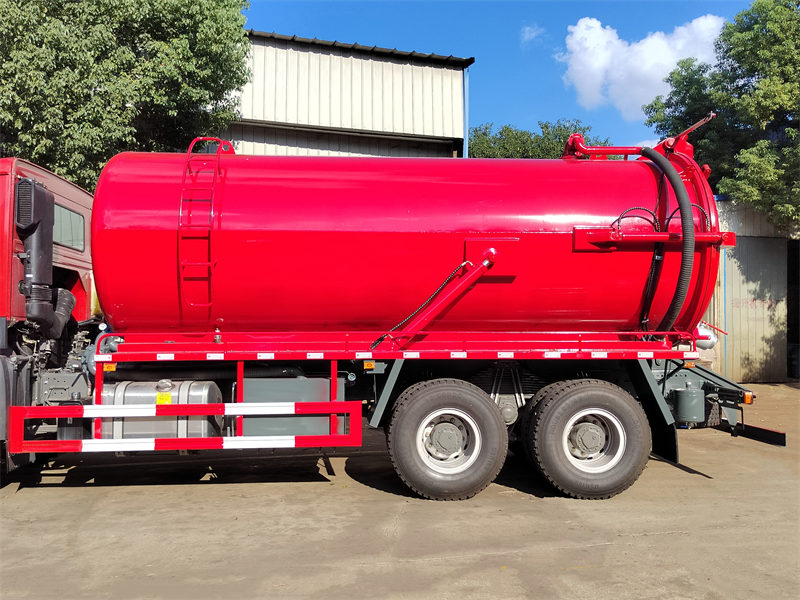

Tanker Description |
||
|
Tanker
|
Capacity |
20000 Liters |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump
|
Type |
Water circulation pump |
|
Flux |
68(L/S) |
|
|
Rating speed |
800~1000(r/min) |
|
|
Shaft power |
5(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|
Standard configuration |
Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|

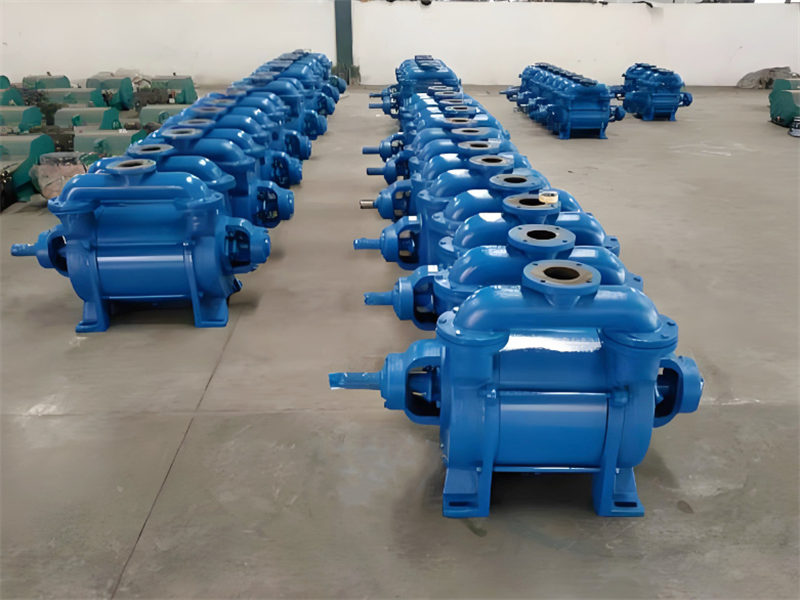

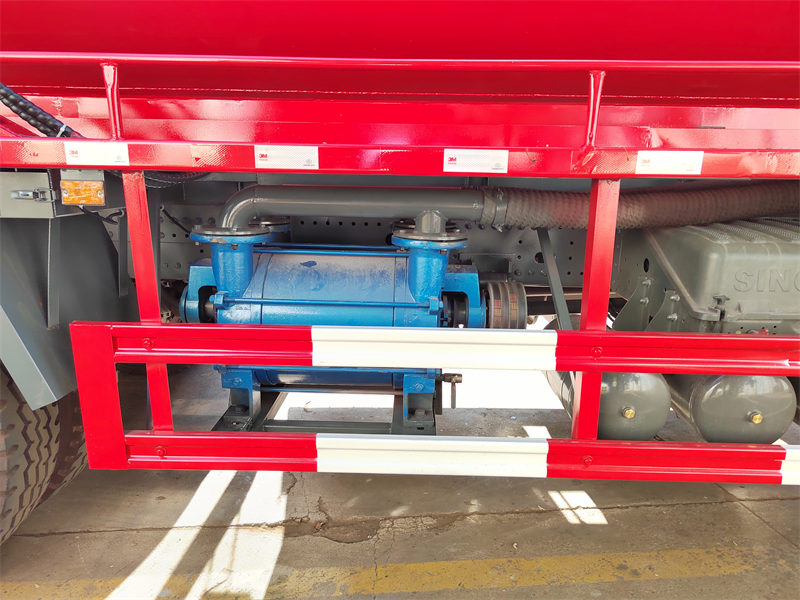

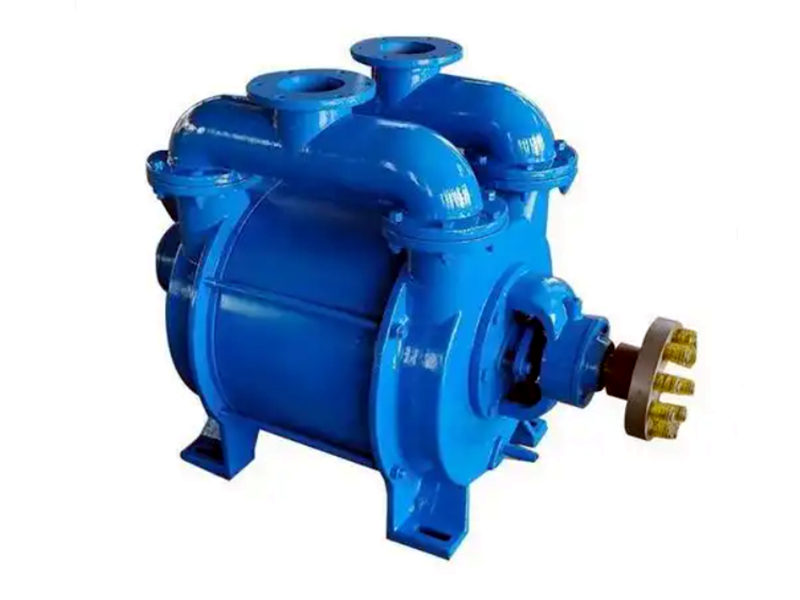

Key Component: Sewage Pump « « «
1.SK pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.
2.Key components of SK pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.
3.SK pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

|
Specification |
Unit |
Value |
|
Free air capacity |
cfm |
489 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
512 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Max. Pressure |
psig |
29 |
|
Power required at 15" of vacuum |
hp |
20 |
|
Power required at max. pressure |
hpa |
38 |
|
Max. speed |
rpm |
1400 |
|
Working speed |
rpm |
1200 |
|
Oil tank capacity |
lt |
4.8 |
|
Oil consumption |
Gr/h |
210 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
80 |
|
Hose |
in |
3/4 |
|
Flange |
in |
- |
|
Weight |
lbs |
585 |
Paint Anti-Corrosion Process « « «
♦ Tank design Use corrosion-resistant materials (such as stainless steel, carbon steel + anti-corrosion coating).
♦ Inner wall treatment, spray epoxy resin or polyurethane coating, thickness ≥ 200μm, acid and alkali corrosion resistance.
♦ Sandblasting and rust removal, spray anti-rust primer + polyurethane topcoat, suitable for complex outdoor environments.

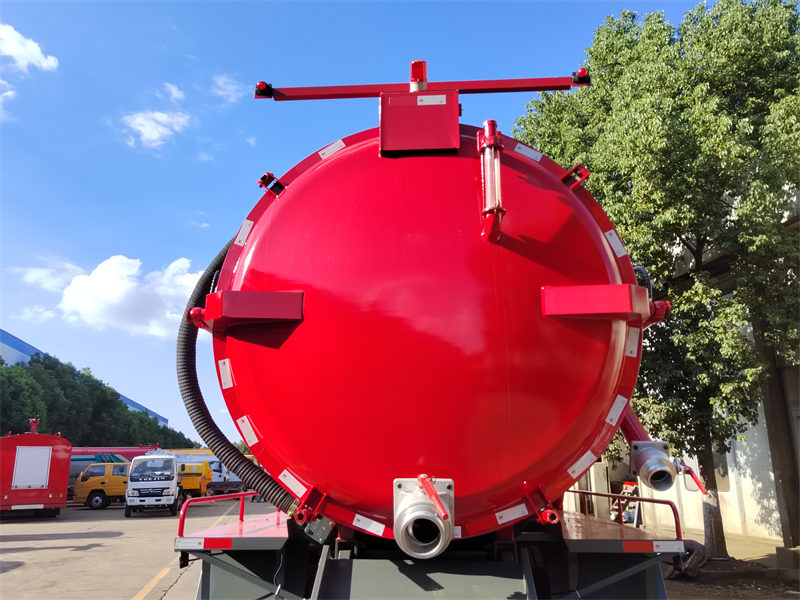

Tank Sealing Of Howo Sewage Tanker« « «
♦ The tank body welding must use argon arc welding or laser welding to ensure that the weld is uniform and free of pores.
♦ Annealing treatment is required after welding to eliminate welding stress and avoid deformation and cracking.
♦ For tank body welding, the weld must pass flaw detection (such as X-ray or ultrasonic testing).
♦ Wave-breaking plates (bulkheads) are installed to reduce the impact of liquid sloshing on the stability of the Howo sewage tank truck.


1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
