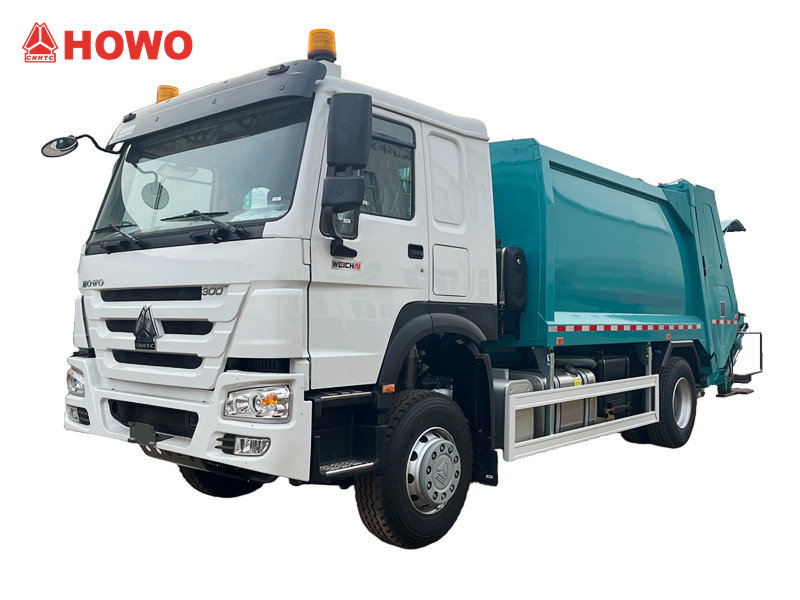

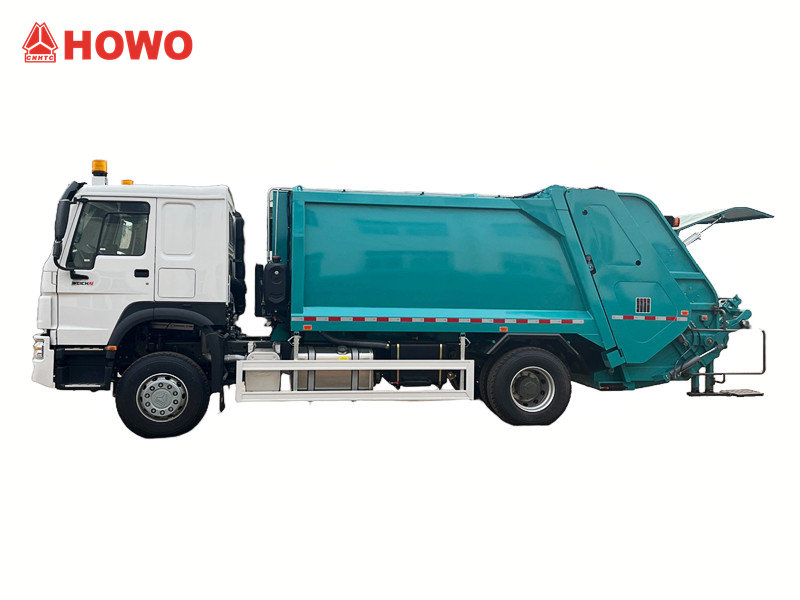

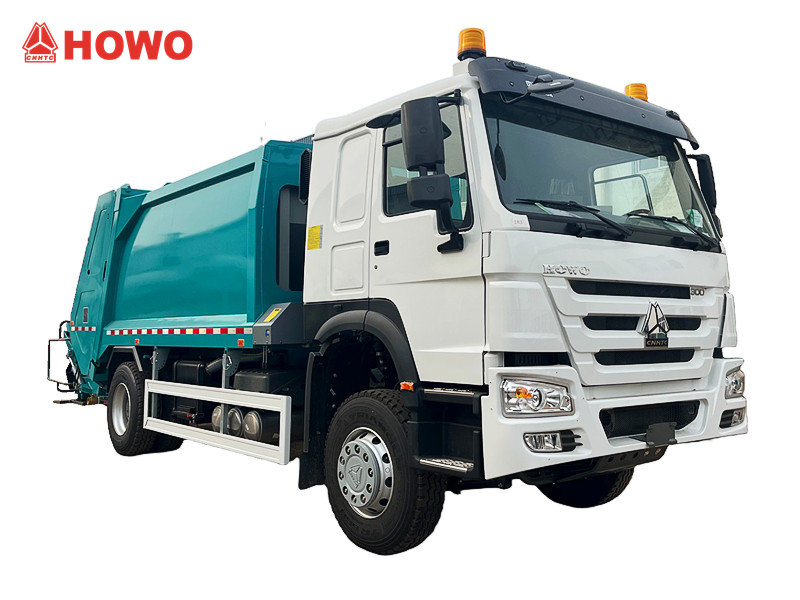

Zambia Howo 15 cbm recycling rear loader

Zambia Howo 15 cbm recycling rear loader

The Zambia Howo 15 cbm recycling rear loader has a wheelbase of 4600mm and is equipped with a WP10.300E32 300hp diesel engine with a displacement of 9.726L. It is paired with an HW19710 transmission, offering strong power and smooth transmission. 295/80R22.5 tires with totally 7 pcs, air conditioning, a USB port, power steering, and a three-seat design, ensuring comfortable and convenient operation. The body is made of high-strength weather-resistant steel, and the side panels are manufactured using a one-piece molding process.



  • Working capacity :

    15 cbm
  • Cabin type :

    Howo HW76 cabin
  • Dimension (mm ) :

    8850 X 2520 X 3350
  • Drive system :

    4x2, LHD
  • Wheelbase ( mm) :

    4600
  • Engine specific :

    300HP / WP10.300E32
  • Gear box :

    HW13710, 10-speed, manual
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    16000
  • Remark :

    PLC control system
New Products

The Zambia Howo 15 cbm recycling rear loader uses a hydraulic system to drive a compression device, powerfully compressing loose waste to reduce its volume and significantly increase loading capacity. The vehicle is equipped with a sealed cargo box to prevent leakage and odor spread, avoiding secondary pollution.

During operation, the entire process of waste collection, compression, and unloading is completed automatically. The Howo 15cbm recycling rear loader high efficiency, environmental friendliness, and automation make it a key piece of equipment in urban waste collection systems, helping to improve sanitation efficiency and urban environmental quality.

● China best recycling rear loader factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service



*Zambia Howo 15 cbm recycling rear loader

Howo rear loader compactor truck*

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED



Product Features

High-efficiency compression: Utilizing an advanced hydraulic compression system, the volume of waste is significantly reduced, improving transportation efficiency.

Sealed and leak-proof: The compartment is highly airtight, effectively preventing sewage leakage and odor spread.

Robust structure: The vehicle body is constructed of high-strength weather-resistant steel plates, offering corrosion resistance, wear resistance, and a long service life.

Easy operation: Equipped with an electro-hydraulic combined control system, operation is simple and safe, and maintenance is convenient.

Zambia Howo 15 cbm recycling rear loader (also called HOWO 4x2 refuse compactor vehicle, Howo 15cbm compactor trash truck, Howo 300hp trash compactor truck, Howo 4x2 rear loader compactor truck, Howo garbage compactor truck, Howo 15cbm garbage removal truck, Howo waste compaction truck,etc.) is a new type of sanitation vehicle specially used for collecting, transferring and removing garbage.

The vehicle is equipped with an emergency stop button, which can stop the waste compaction equipment in any state or position, ensuring the safety of operators and equipment.





--- Electro-hydraulic combined control

The control system of Howo 15 cbm recycling rear loader comprehensively utilizes the advantages of electric control, pneumatic control and hydraulic control. The electric control system controls the pneumatic control system, which in turn controls the hydraulic valve group.

It makes full use of multiple channels to effectively solve the interface problem between the hydraulic system and the electrical system. The reversing valve is more resistant to oil pollution than the solenoid reversing valve, which eliminates the valve jamming phenomenon and improves the reliability and efficiency of use.

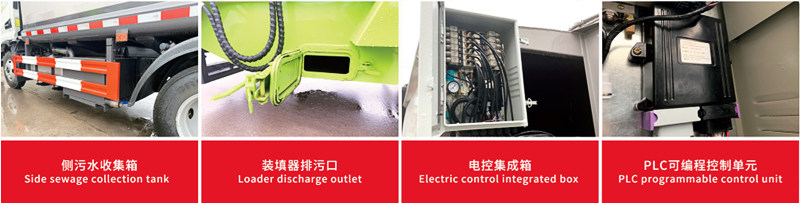

--- Advanced electronic control system

It adopts imported PLC (programmable logic controller) integrated control, the control circuit is generated in the PLC, and the logic loop is used to ensure that each operation instruction is executed in sequence. At the same time, it ensures the interlocking between each operation instruction.

The specially designed emergency brake button can stop the garbage filling mechanism in any state or any position to ensure the safety of operators and equipment.

» Ⅱ. Product Parameter for Zambia Howo 15 cbm recycling rear loader:



Zambia Howo 15 cbm recycling rear loader

Vehicle Description

Overall dimensions

8850X2520X3350 mm

Curb weight

9360kg

Chassis brand

HOWO

Traction type

4x2, Left-hand drive

Up-parts Specification

Dustbin volume

15 cbm

Sewage water tank

200L

Type of Rear garbage filler
(Rear Turnover device)

Hanging trash bin flip mechanism

Control system

Electrically Controlled Hydraulic + Manual Hydraulic

Type of compactor

Fill, push and compression

PLC

Importation PLC (Programmable controller)

Chassis Description

Wheelbase

4600mm

Tire specification

295/80R22.5

Tire quantity

6+1 units

Engine

Model

WP10.300E22

Emission level

Euro 3

Displacement/output

6.8L/221KW

Horse power

300HP

Gear box

Model

HW13710

Brake system

Full air brake

Color and Logo

According to wish



» Product Detailed introduction:

1. Product Structure and Performance

The Howo 15 CBM recycling rear loader is constructed from high-strength weather-resistant steel plates, featuring a robust structure, strong corrosion resistance, and a long service life. The cargo compartment boasts excellent sealing performance, effectively preventing sewage leakage and odor overflow.

The hydraulic system offers stable performance and, in conjunction with the electronic control system, achieves automated operation with smooth and continuous movements.

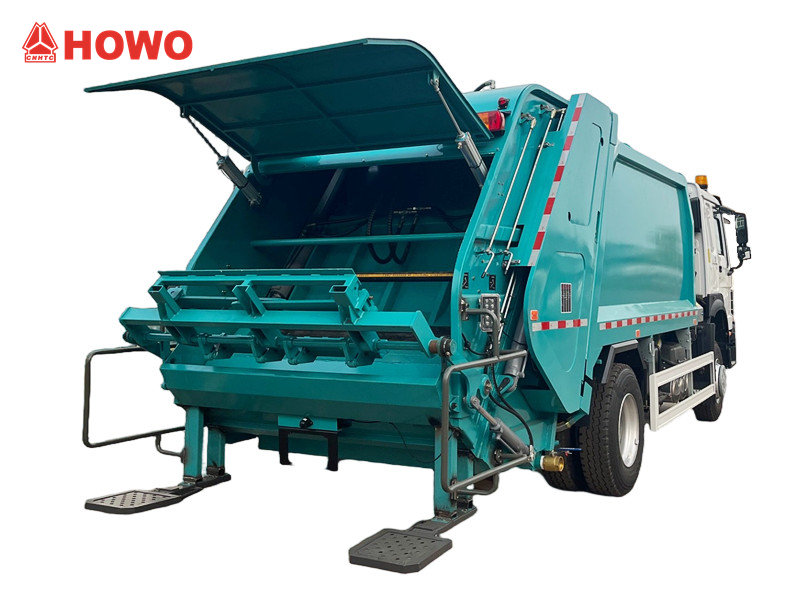

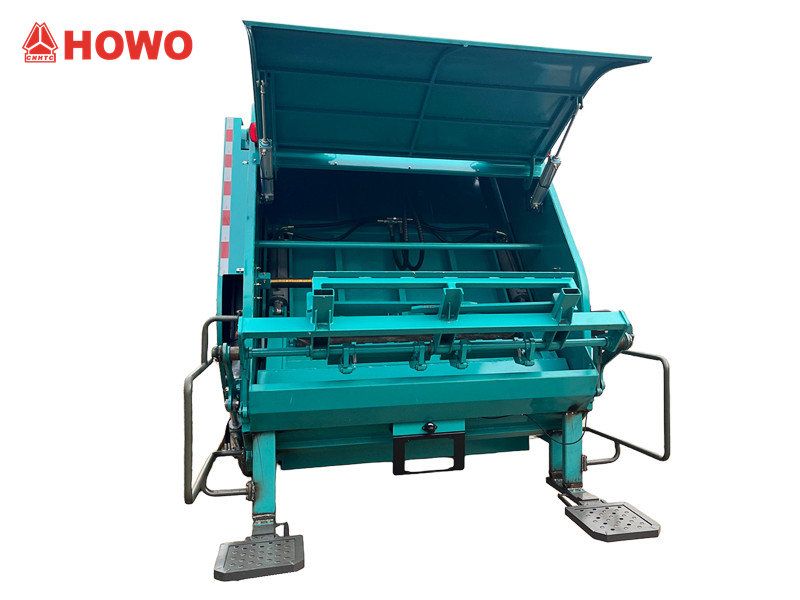

2. Compression and Loading/Unloading System

The vehicle is equipped with a tilting mechanism at the rear, which automatically tilts the garbage bins or hoppers, sending the garbage into the compression chamber. Hydraulic pushers compress the garbage multiple times, reducing its volume to about one-third of its original size, significantly increasing loading capacity.

During unloading, the pushers reverse direction, pushing the garbage out as a whole, making operation highly efficient and labor-saving.

3. Operation and Safety Features

The vehicle employs an electro-hydraulic combined control system, enabling switching between manual and automatic operation, making it easy to operate and maintain.

The driver's cab is equipped with a user-friendly control interface and safety devices to ensure driving and operational safety.

The overall vehicle design balances efficiency, energy saving, and environmental protection, making it an ideal waste collection and transportation equipment for urban sanitation systems.



Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

howotrucks is a leading exporter of recycling rear loader in China. We possess over 10-year export experience of recycling rear loader. We can ensure the fast delivery time and 12 months guarantee for our recycling rear loader. Our recycling rear loader are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safety, Quickly, Timely
