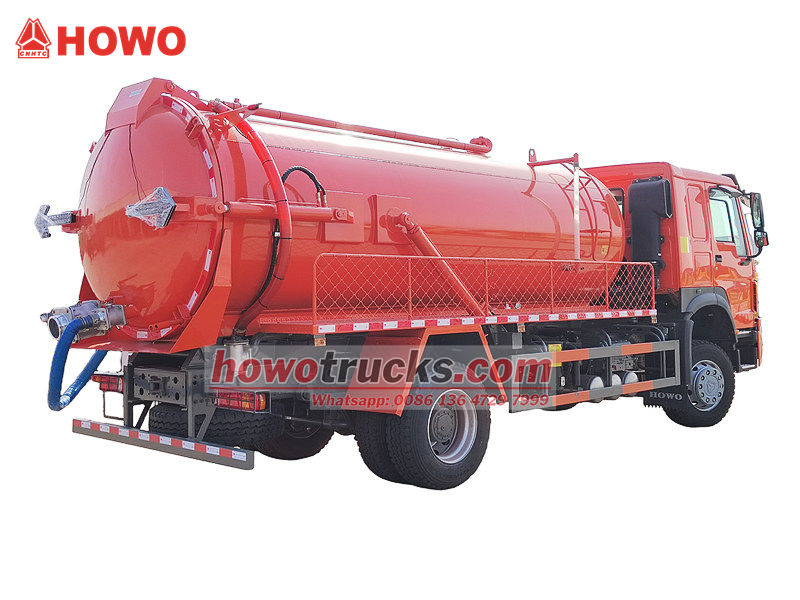

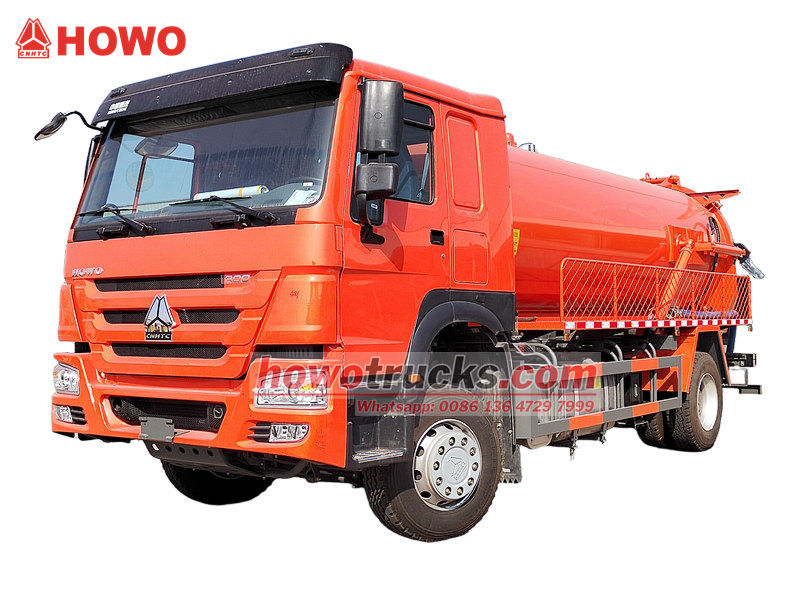

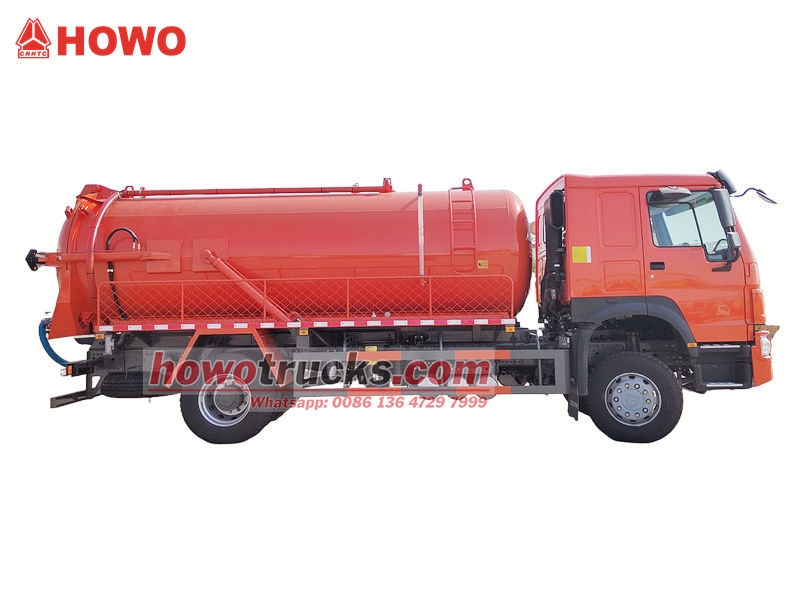

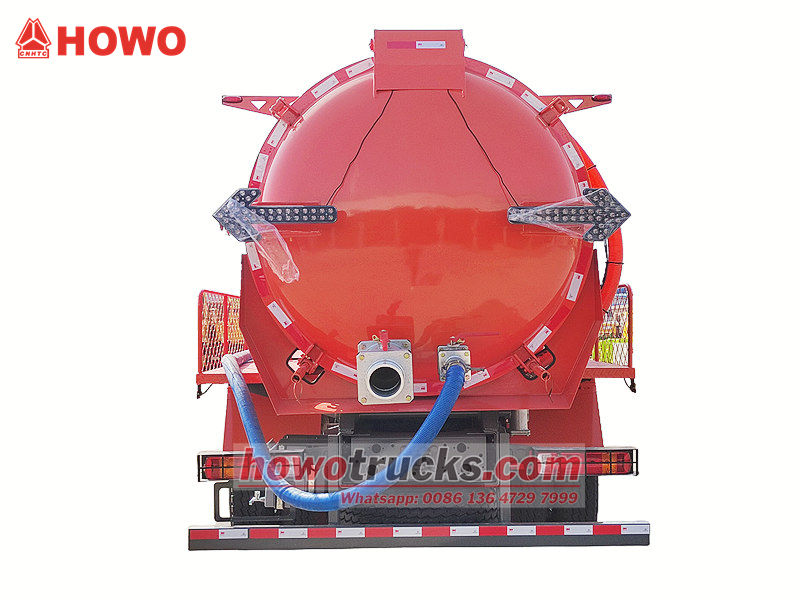

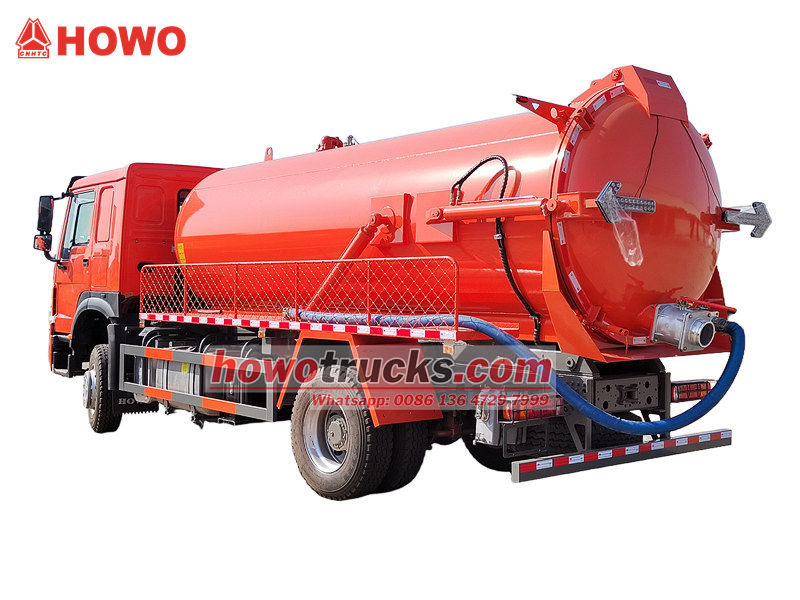

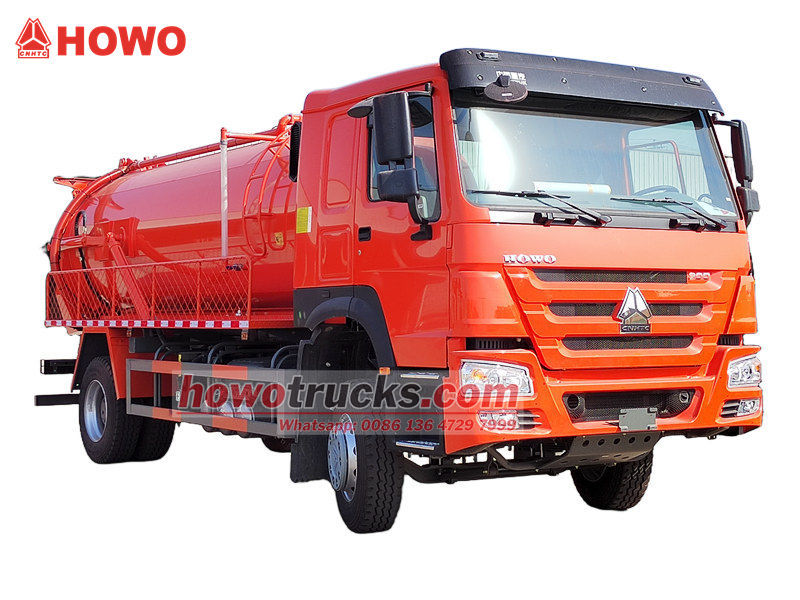

The 300HP howo waste water suction truck uses a Howo 4×2 chassis with a wheelbase of 4600 mm. It is equipped with a 300 hp WP10.300E22 diesel engine with a displacement of 9.726L, matched with an HW13710 gearbox and ZF8198 steering system, and 7 unit 295/80R22.5 tires, providing strong power and stability. The tank body is made of high-quality carbon steel, making it sturdy and durable, and is equipped with a high-efficiency vacuum pump system, featuring self-priming, self-draining, and self-unloading functions.
Working capacity :
10 cbmCabin type :
Howo HW76 cabinDimension (mm ) :
7860 x 2550 x 3250Drive system :
4x2, LHDWheelbase ( mm) :
4600Engine specific :
300HP / WP10.300E22Gear box :
HW13710, 10-speed, manualFront axle ( Kg ) :
7000Rear axle ( Kg ) :
16000Remark :
MORO or Jurop vacuum pumpThe 300hp Howo sewage suction truck is a sanitation vehicle specifically designed for cleaning, suctioning, and transporting sewage, sludge, feces, and other liquid impurities. Driven by a high-vacuum pump, it boasts powerful suction and efficient sewage discharge capabilities, enabling rapid completion of suction and unloading operations.
The truck body is robust and sealed, effectively preventing leaks and secondary pollution; the hydraulic control system ensures convenient and safe operation. The 300hp Howo sewage suction truck is widely used for cleaning urban pipes, septic tanks, and sewers, and is an indispensable environmental protection equipment in municipal sanitation, factory, and property maintenance.

● China best waste water suction truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Product Features
●Powerful suction: Utilizes a high-vacuum negative pressure system for high-efficiency waste removal, suitable for various types of contaminated environments.
●Easy operation: Equipped with a hydraulic self-unloading system and automatic lid opening device, making operation simple and labor-saving.
●Excellent sealing: Precision welding of the tank body prevents leakage and overflow, ensuring cleanliness and safety during transportation.
●High adaptability: Widely applicable to municipal, sanitation, and factory wastewater and sludge cleaning operations.

300HP howo waste water suction truck (also called Howo 10,000 liters single axle septic truck, Howo 4x2 vacuum sewage suction truck, Howo 300hp sewage disposal tanker, Howo 10 cbm vacuum suction pump truck, Howo 10,000 liters vacuum tanker truck, Howo 10 cbm septic tank pump truck, HOWO 4x2 10cbm vacuum suction truck,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic.The tank body has been treated with anti-corrosion and anti-rust treatment and is extremely durable, combined with a high-power vacuum pump, it has strong suction and is an indispensable professional equipment in urban and rural environmental governance.

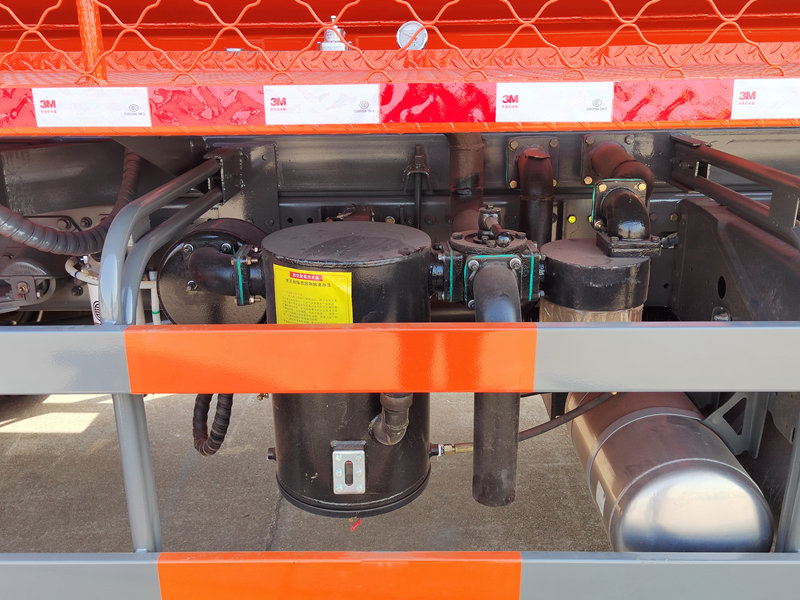

♦The 300HP howo wastewater suction truck mainly consists of a power take-off (PTO), drive shaft, vacuum pump, sealed tank, hydraulic system, piping system, vacuum gauge, observation window, and cleaning device.
♦The truck is equipped with an advanced high-performance vacuum pump, featuring strong suction, high efficiency, and long suction range, enabling stable operation in various complex environments.
♦The 300HP howo wastewater suction truck is particularly suitable for the suction, transportation, and discharge of sludge, sewage, and debris from sewers, septic tanks, and other similar areas. It is easy to operate, safe, and reliable, making it an essential piece of equipment for municipal sanitation and wastewater treatment.

➤Sewage Suction Principle:
●The howo wastewater suction truck uses a vacuum pump to generate high negative pressure, creating a vacuum inside the tank.
●When the suction pipe is inserted into the sewage or sludge, atmospheric pressure forces the waste into the tank, achieving rapid suction.
●This process provides strong suction, effectively removing viscous substances containing mud, impurities, and feces, suitable for various complex working conditions.

➤Discharge Principle:
●Once the tank is full, workers can switch valves to reverse the vacuum pump, pressurizing the gas inside the tank to create positive pressure, thus quickly discharging the waste from the discharge port.
●The vehicle is equipped with a hydraulic self-unloading device, which tilts the tank to allow the sludge to slide out automatically, improving unloading efficiency. The entire operation is closed and pollution-free, ensuring safe and efficient operation.

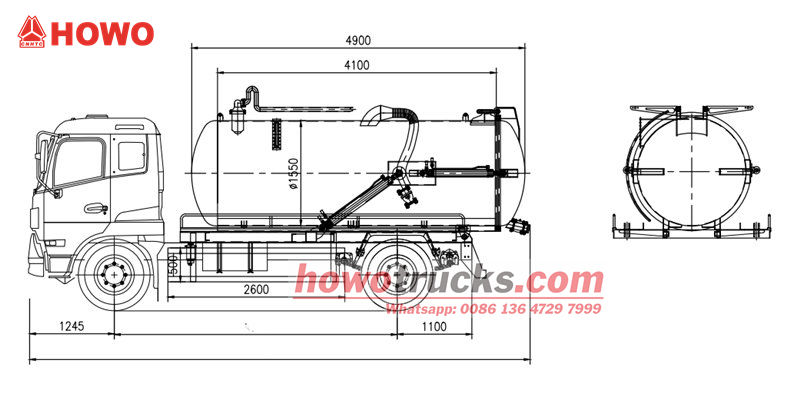

» Ⅱ. Product Parameter for 300HP howo waste water suction truck:
|
300HP howo waste water suction truck |
||
|
Vehicle Dimensions, Weights & Capacities |
Chassis brand |
HOWO |
|
Overall dimension (LxWxH) |
7860x2550x3250 mm |
|
|
Wheelbase |
4600mm |
|
|
Curb weight |
9800 Kg |
|
|
Gross weight |
23000 Kg |
|
|
Chassis |
Drive mode |
4x2 |
|
Seats |
2 seats, with sleeper |
|
|
Steering |
LHD |
|
|
Tires |
6+1 spare tire |
|
|
Tyre specification |
295/80R22.5 |
|
|
A/C |
Air conditioning |
|
|
Engine |
Engine model |
WP10.300E22 |
|
Horse power |
300HP |
|
|
Displacement |
9.726L |
|
|
Emission level |
Euro 3 |
|
|
Superstructure Description |
||
|
Tank |
Capacity |
10 cbm |
|
Material |
High quality carbon steel |
|
|
Thickness of material |
6mm |
|
|
Structure |
Welding, cylindrical |
|
|
Vacuum pump |
Brand |
Wloong(china famous brand) |
|
Model |
68/7000 |
|
|
Ultimate pressure |
7000 Pa |
|
|
Pumping speed |
68 L/s |
|
|
Maximum vacuum |
93% |
|
|
Rotation speed |
800 rpm |
|
|
Special function |
Suction time ≤ 8min |
|
|
Effective suction range > 8 |
||
|
Dump angle > 45° |
||
» Ⅲ. Product Detailed introduction:

1. Product Overview
●The 300HP howo wastewater suction truck is mainly used for cleaning sludge, sewage, and feces from septic tanks, sewers, sedimentation tanks, and industrial wastewater pools.
●The truck features a fully enclosed structure and is equipped with a high-performance vacuum pump system, enabling it to complete suction and unloading operations in a short time.

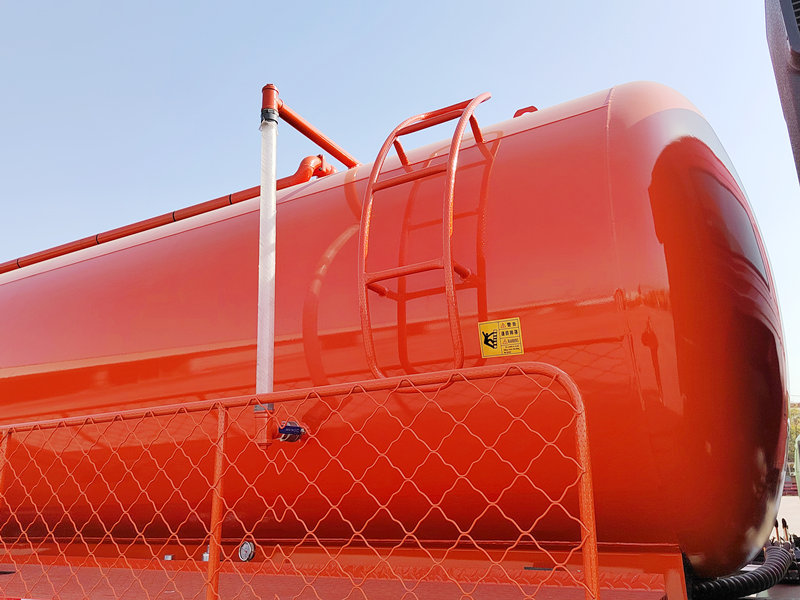

●The tank is welded from high-quality carbon steel, possessing excellent strength and sealing performance, ensuring no leakage or odor overflow during operation.

2. Working Performance
♦The Howo vacuum suction pump truck generates strong negative pressure through a vacuum pump, achieving efficient suction of liquid and semi-solid waste. It boasts a long suction range and strong suction power, adapting to complex working environments.
♦The vehicle is equipped with a sight glass, vacuum pressure gauge, and safety overflow valve, allowing operators to monitor the tank's status in real time and ensuring safe operation.

3. Product Features
➤The 300HP howo wastewater suction truck features a compact structure, easy operation, strong suction, excellent sealing, and high operating efficiency.

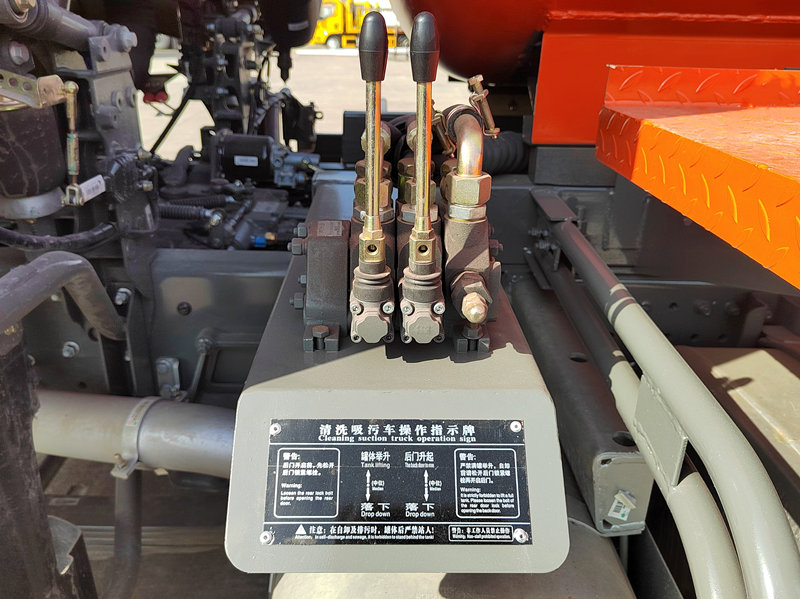

➤The hydraulic system is stable and reliable, supporting automatic lid opening and self-unloading functions, saving time and labor. Manufactured using advanced domestic technology, it is highly durable and easy to maintain.
➤Widely applicable to sewage and sludge cleaning in municipal sanitation, industrial and mining enterprises, and residential communities, it is an ideal piece of equipment for environmental protection and cleaning operations.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
howotrucks is a leading exporter of waste water suction truck in China. We possess over 10-year export experience of waste water suction truck. We can ensure the fast delivery time and 12 months guarantee for our waste water suction truck. Our waste water suction truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
