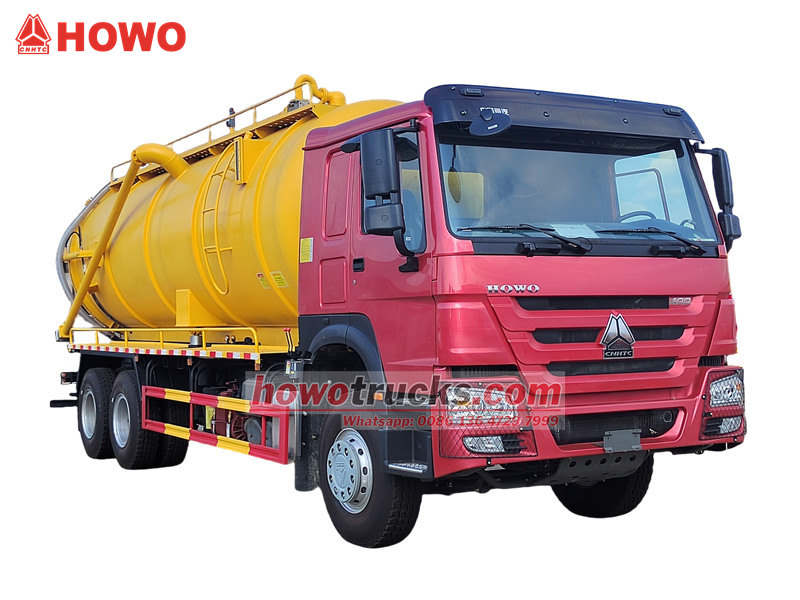

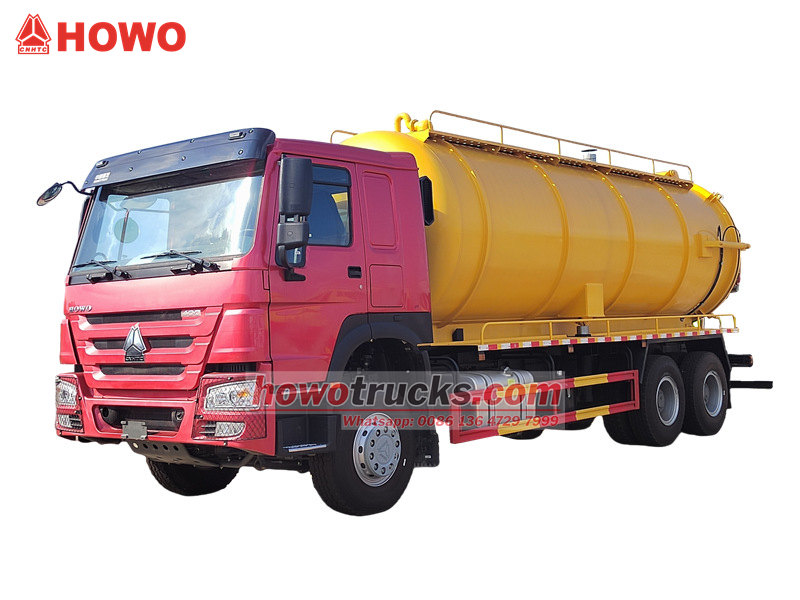

The HOWO vacuum sewer cleaner is built on SINOTRUK HOWO 6×4 chassis and features a 20-cubic-meter carbon steel tank paired with an Italian Jurop vacuum pump, capable of generating a 93% high vacuum level. Powered by a Weichai 400 hp engine and a 10-speed gearbox, the vehicle is equipped with a hydraulically locked rear cover, an anti-overflow alarm system, and a 10-meter suction hose. It is specifically designed for large-scale waste transport operations in river channels and municipal pipe networks.
Working capacity :
20000 litersCabin type :
HOWO HW76Dimension (mm ) :
9800×2500×3400Drive system :
6×4Wheelbase ( mm) :
4600+1350Engine specific :
400HP/WP12S400E201Gear box :
HW19710Front axle ( Kg ) :
9000Rear axle ( Kg ) :
16000Remark :
MORO pump, 6×6, RHD drive is optionalThe HOWO vacuum cleaner truck is a high-efficiency sanitation vehicle specially designed for dredging operations in rivers, sewage ponds, and urban pipe networks. Built on a Sinotruk HOWO 6×4 heavy-duty chassis, it features an HW76 classic cab, a hydraulic front-tilting mechanism, and a ZF steering system. The core power system is equipped with a Weichai 400 hp diesel engine, paired with a 10-speed HW19710 gearbox and 12R22.5 steel wire tires, providing reliable performance for operations in complex road conditions.
The key advantage of this HOWO heavy-duty sewer cleaner lies in its 20-cubic-meter carbon steel tank, combined with an Italian Jurop vacuum pump that achieves a 93% extreme vacuum level and includes a noise reduction system. The tank is equipped with a liquid level alarm and an anti-overflow valve, forming a dual safety mechanism. Through the hydraulic lifting system, multiple discharge modes can be achieved. The DN100 ball valve and 10-meter suction hose ensure smooth operation, while the side toolboxes and protective net form a complete operational module, fully meeting the stringent demands of municipal sanitation for large-scale waste transportation.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Product Features
● Designed for the cleaning and transportation of sludge from river channels, sewage ponds, sewer systems, and other similar environments.

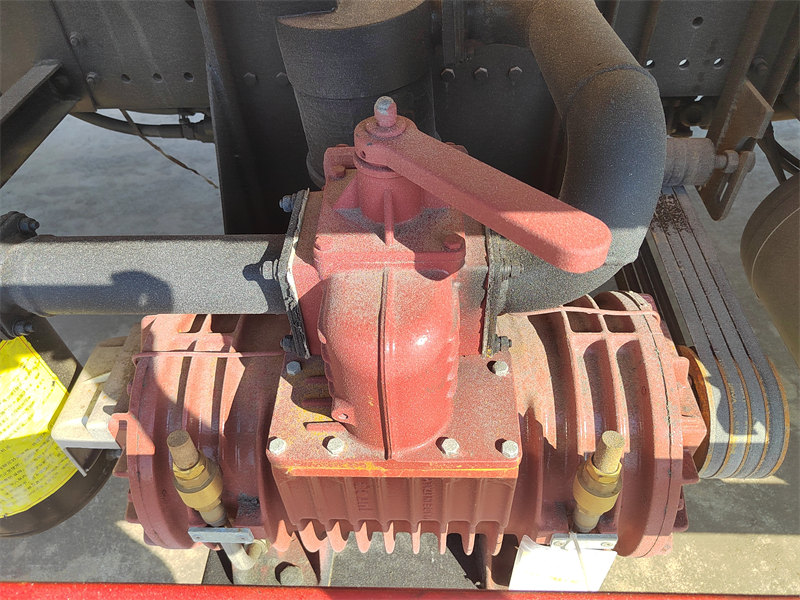

● Equipped with an imported Italian Jurop vacuum pump, suitable for various working conditions, and fitted with a noise reduction system for enhanced continuous operation capability.

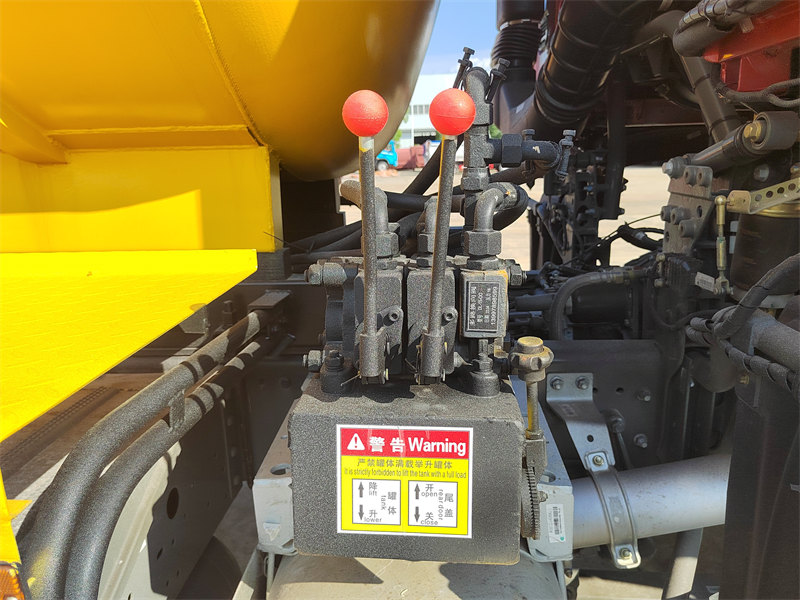

● Multiple unloading methods available, including front-lift and mid-lift hydraulic systems.
● Hydraulically operated and locked rear cover ensures smooth operation, excellent synchronization, and reliable sealing. Optional manual or hydraulic locking mechanisms are available.
● The tank is equipped with a low-liquid-level alarm system and an anti-overflow system.
※ Ⅱ. Product Parameter for HOWO 20000L vacuum truck:
|
Cabin |
Driving type 6x4. Left hand driven |
||
|
HW 76 cab, with two seats, one sleeper berth. With air conditioning A/C.70° hydraulically tillable to the front. |
|||
|
Vehicle Main Dimensions |
Overall dimensions (mm) |
9800*2500*3400 |
|
|
Wheelbase (mm) |
4600+1350 |
||
|
Wheel track (front/rear) (mm) |
2022/1830 |
||
|
Approach/Departure angle(°) |
16/18 |
||
|
Weight in KGS |
Tare Weight |
12400 |
|
|
Payload |
20000 |
||
|
Front axles loading capacity |
1x9000 |
||
|
Rear axles loading capacity |
2x16000 |
||
|
Max. driving speed(km/h) |
90 |
||
|
Engine |
Brand |
WEICHAI |
|
|
Model |
WP12S400E201 |
||
|
Type |
Diesel, 4-stroke direct injection, 6-cylinder in-line, turbo-charging and inter-cooling |
||
|
Output (kw) |
294 |
||
|
Horse Power(HP) |
400 |
||
|
Emission standard |
Euro 2 |
||
|
Displacement (ml) |
11596 |
||
|
Rated speed (rpm) |
2100 |
||
|
Max. torque (N.m) |
1780 |
||
|
Gearbox |
HW19710,10-speed forward and 2 reverse gear |
||
|
Tire Model |
12R22.5 radial steel tires, 10 pieces with one spare |
||
|
Steering |
ZF8118 |
||
|
Sewage Tank |
Color |
As requirements |
|
|
Effective Tank Volume |
20000L |
||
|
Tank Thickness |
6 mm |
||
|
Tank Material |
Carbon Steel Q235B |
||
|
Tank Lifting |
Hydraulic lifting, ≥45° |
||
|
Vacuum Pump |
Pump brand |
Jurop |
|
|
Pump model |
PNR155D |
||
|
Rotation speed |
1150(r/min) |
||
|
Air flow |
910 m3/h |
||
|
Max. vacuum |
93% |
||
|
Power required at max. vacuum |
16kW |
||
|
Max. pressure (bar) |
2.5 abs |
||
|
Suction Pipe |
Length(m) |
10 m |
|
|
Quantity(pcs) |
1 |
||
|
Main Parts |
1. Water-gas separator. |
||

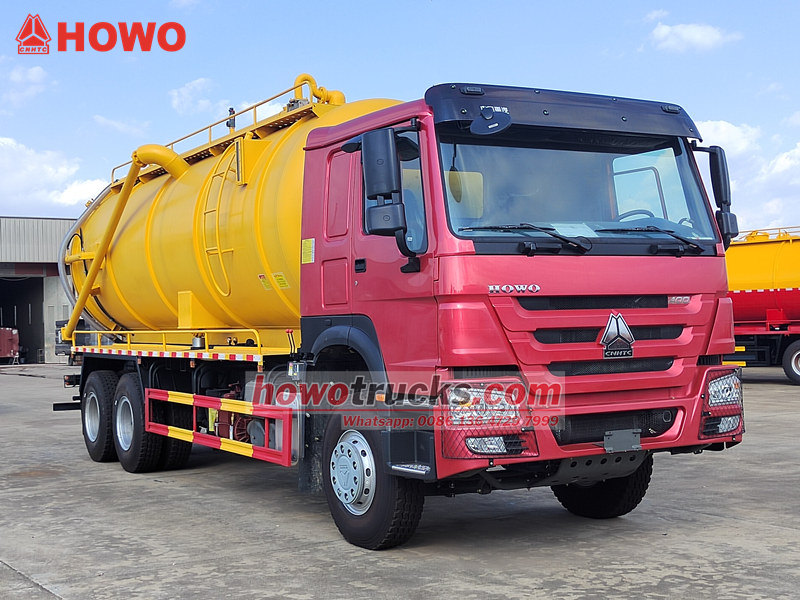

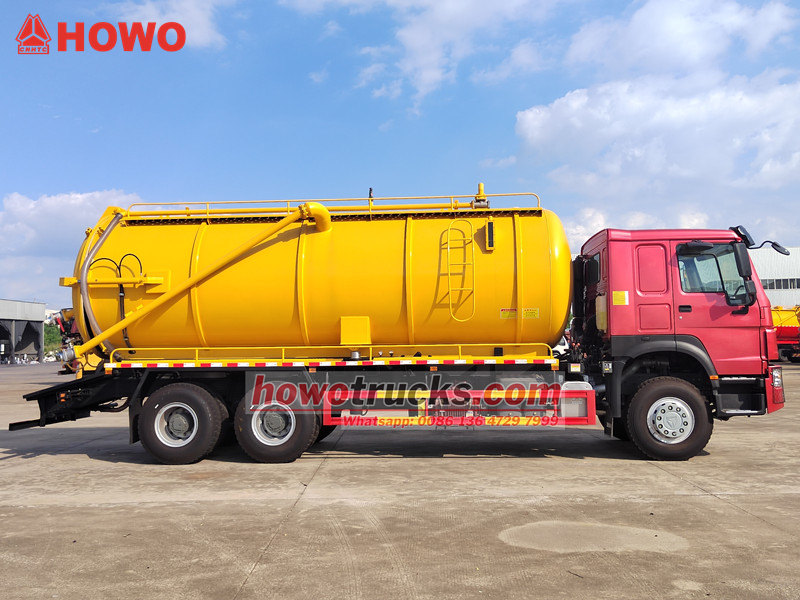

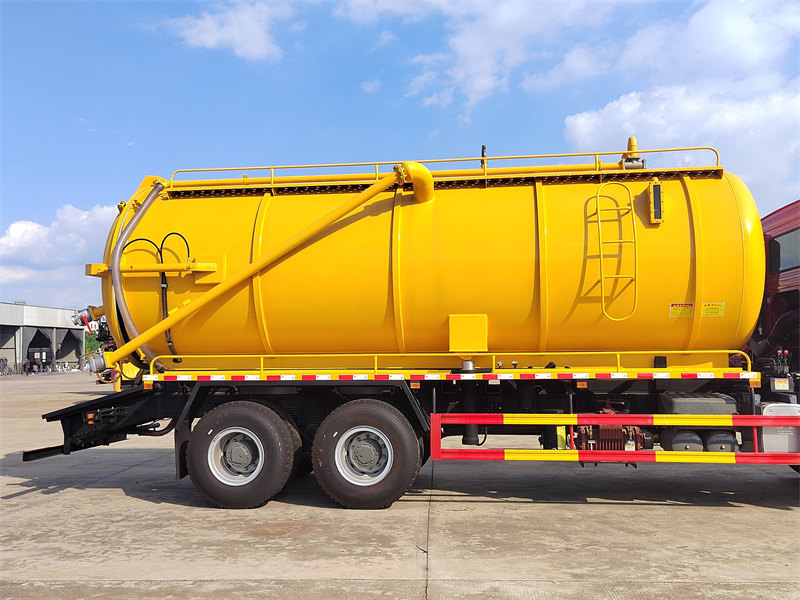

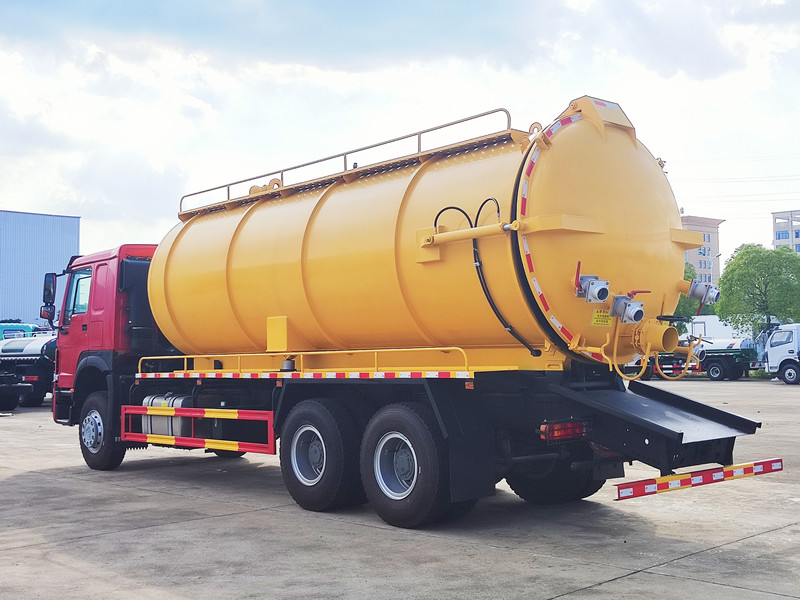

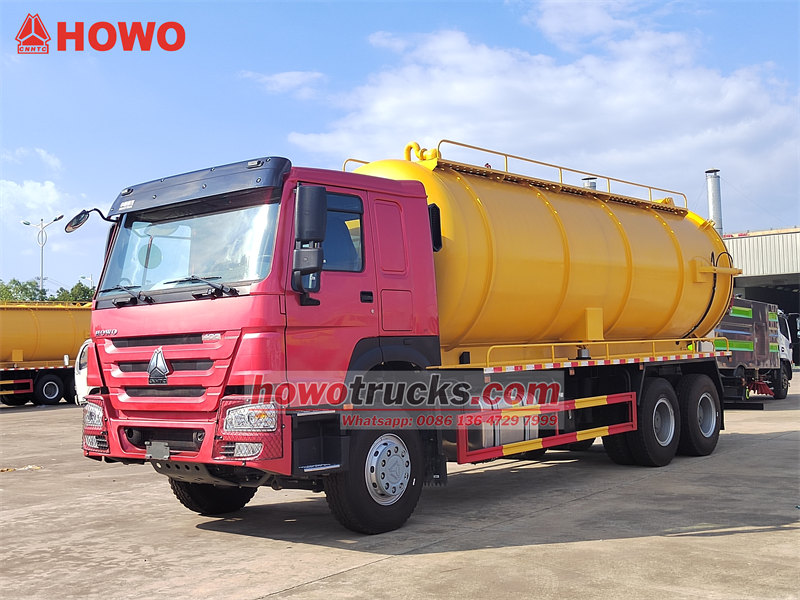

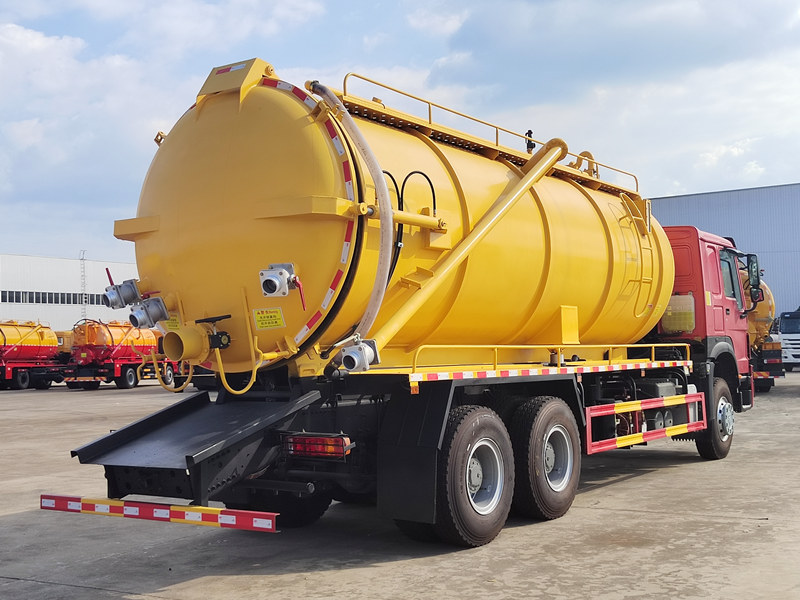

※ Ⅲ. Product Details

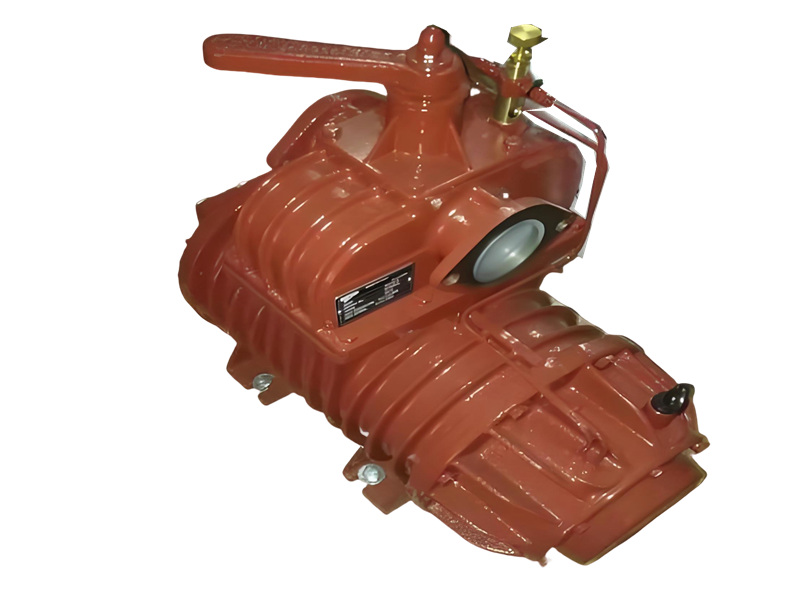

※ Ⅳ. Jurop PN155D vacuum pump specifications:
Jurop PN series vacuum pump specifications
|
PERFORMANCES |
|
|
PN 130 |
PN 140 |
PN 155 |
|
|
Max. speed |
|
rpm |
1350 |
1350 |
1150 |
|
|
Air flow (free ports) |
|
l/min |
12900 |
13850 |
15200 |
|
|
|
m³/h |
774 |
830 |
910 |
||
|
Air flow 60% vacuum rate |
|
l/min |
11400 |
12300 |
13500 |
|
|
|
m³/h |
684 |
738 |
810 |
||
|
Maximum vacuum |
|
% |
94 |
92 |
93 |
|
|
Continuous duty vacuum |
|
% |
60 |
60 |
60 / 70 (PN155R) |
|
|
Power required at maximum vacuum |
|
kW |
10,5 |
13 |
16 |
|
|
Max rel (abs) pressure in continuous duty |
|
bar |
1 (2) |
1 (2) |
1 (2) |
|
|
Oil consumption |
|
g/h |
240 |
240 |
240 |
|
|
Oil tank capacity |
|
|
|
|
4 |
|
|
Weight |
PN…D |
kg |
165 |
173 |
194 |
|
|
PN…M |
kg |
186 |
194 |
216 |
||
|
PN…HDR |
kg |
197 |
205 |
227 |
||

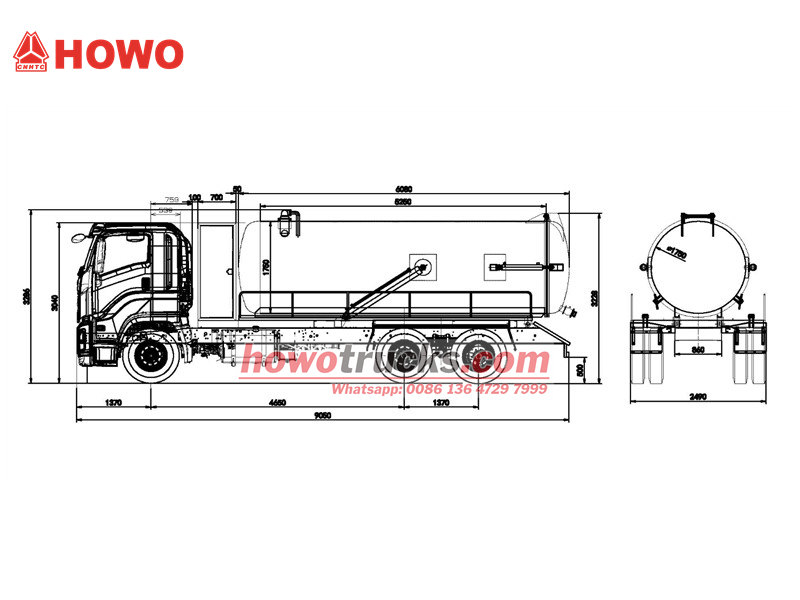

※Ⅴ. Product Drawing:

1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

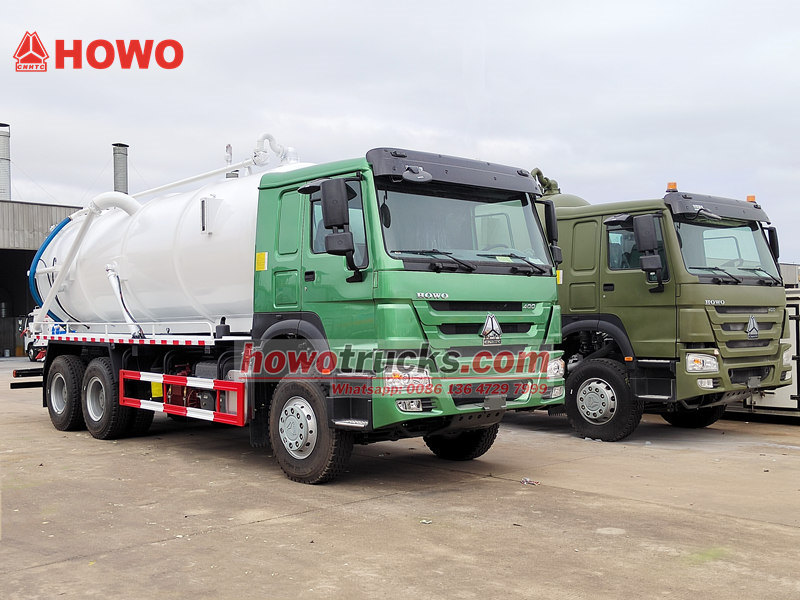

SINOTRUK HOWO 6×6 vacuum sewage trucks for export
