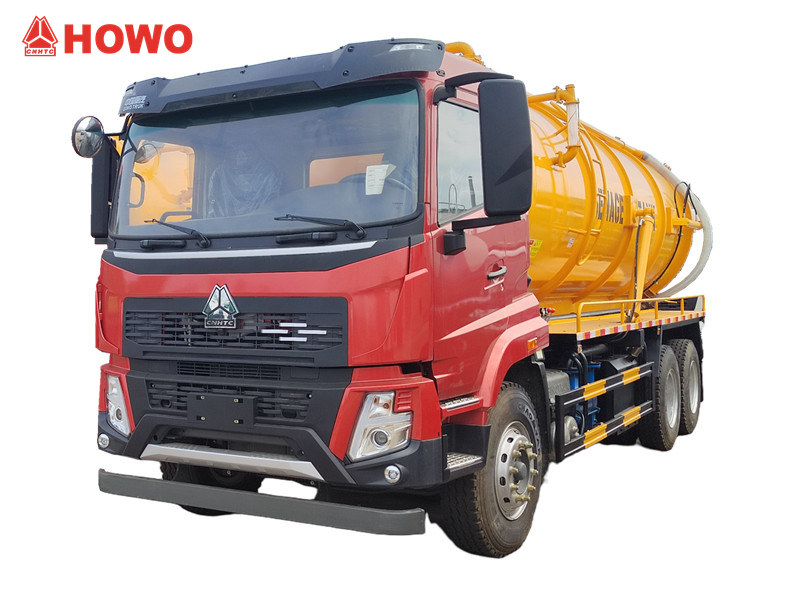

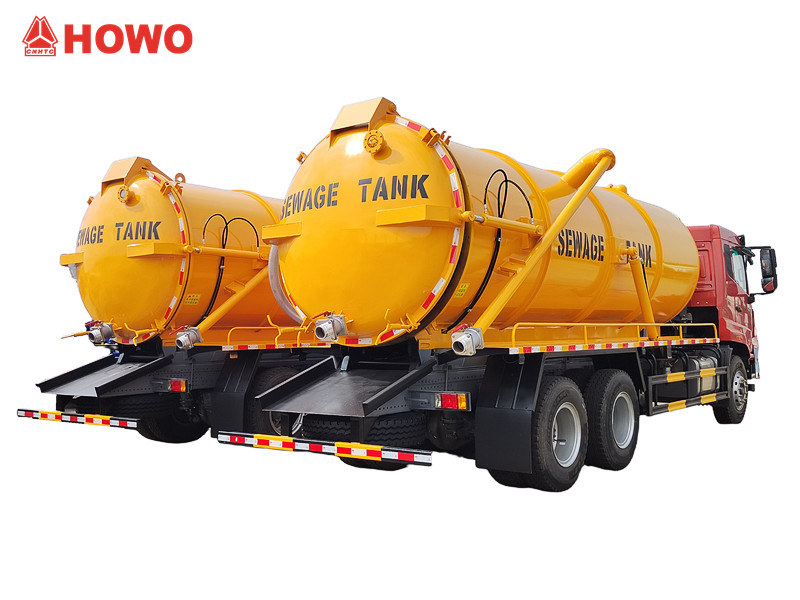

Congo howo 10 wheeler sewage tank truck

Congo howo 10 wheeler sewage tank truck

The Congo Howo 10-wheeler sewage tank truck is based on a Howo 6×4 chassis, with a wheelbase of 4325+1350mm and 295/80R22.5 tires with a total of 11 pcs. The vehicle is equipped with a WP10.340E32 340hp diesel engine, matched with an HW19710 gearbox (10 forward gears, 2 reverse gears) and a ZF8198 steering system, providing strong power output and agile handling. The tank body is made of high-strength, high-quality carbon steel, with a robust structure, and is equipped with a high-efficiency vacuum pump, enabling multiple operating functions such as self-priming, self-draining, and self-unloading.



  • Working capacity :

    20 cbm
  • Cabin type :

    Howo cabin
  • Dimension (mm ) :

    9270 x 2530 x 3350
  • Drive system :

    6x4, LHD
  • Wheelbase ( mm) :

    4325+1350
  • Engine specific :

    350HP / WP10.340E32
  • Gear box :

    HW19710, 10-speed, manual
  • Front axle ( Kg ) :

    6500
  • Rear axle ( Kg ) :

    13000*2
  • Remark :

    MORO or Jurop vacuum pump
New Products

The Congo Howo 10 wheeler sewage tank truck is a specialized vehicle for cleaning, suctioning, and transporting liquid or semi-liquid waste such as sewage, sludge, and feces. It mainly consists of a vacuum suction tank, a vacuum pump, a transmission system, and a piping system, achieving efficient suction and sealed transport through the principle of vacuum negative pressure.

The Howo 10 wheeler sewage tank truck is widely used in municipal sanitation, factories, residential communities, and other locations. It is easy to operate, has strong suction, and provides rapid discharge, effectively improving environmental sanitation.

● China best sewage tank truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service



*Congo howo 10 wheeler sewage tank truck

Howo 20,000 liters vacuum tanker truck *

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED



Product Features

Powerful suction: Employs a high-vacuum pump system for rapid removal of wastewater, sludge, and impurities.

Excellent sealing performance: Precision welding of the tank body prevents leakage and secondary pollution.

Easy operation: Equipped with hydraulic control and an automatic discharge system, improving operational efficiency.

High adaptability: Suitable for cleaning operations in various environments such as municipal facilities, factories, and communities.

Congo howo 10 wheeler sewage tank truck (also called Howo 20,000 liters vacuum tanker truck, Howo 20 cbm septic tank pump truck, Howo 20 cbm vacuum suction pump truck, Howo 10 wheels septic suction truck, Howo gully sucker vacuum truck, Howo sewage disposal tanker,etc.)  It is mainly used for cleaning and transporting liquid waste such as sewage, sludge, and feces, and is widely used in the cleaning and maintenance of municipal sanitation, factory, and community sewer systems.

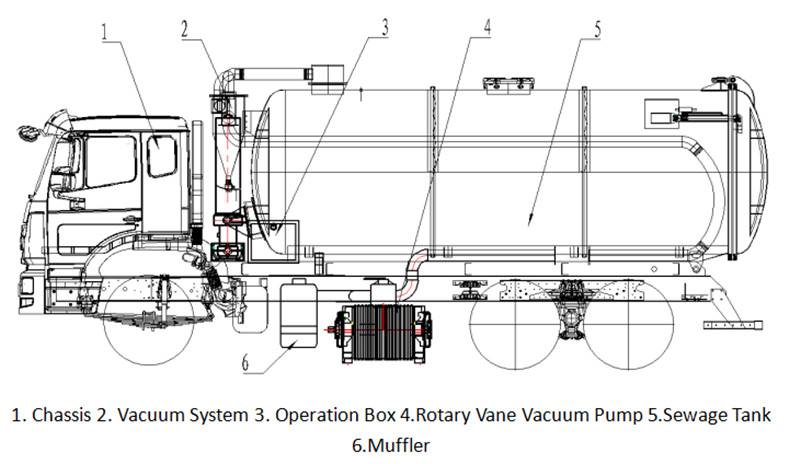

--- Composition and Functions of the Howo 10-Wheeler Sewage Tank Truck

The main components of the Howo sewage tank truck include a power take-off (PTO), drive shaft, vacuum pump, pressure tank, hydraulic system, piping system, vacuum gauge, sight glass, and handwashing device.

It utilizes a technologically advanced water ring vacuum pump, providing strong suction and a long suction range, making it particularly suitable for pumping, transporting, and discharging sludge from sewers.

Its tank features a circular design and compact structure, enabling it to withstand higher pressures and provide greater suction power.

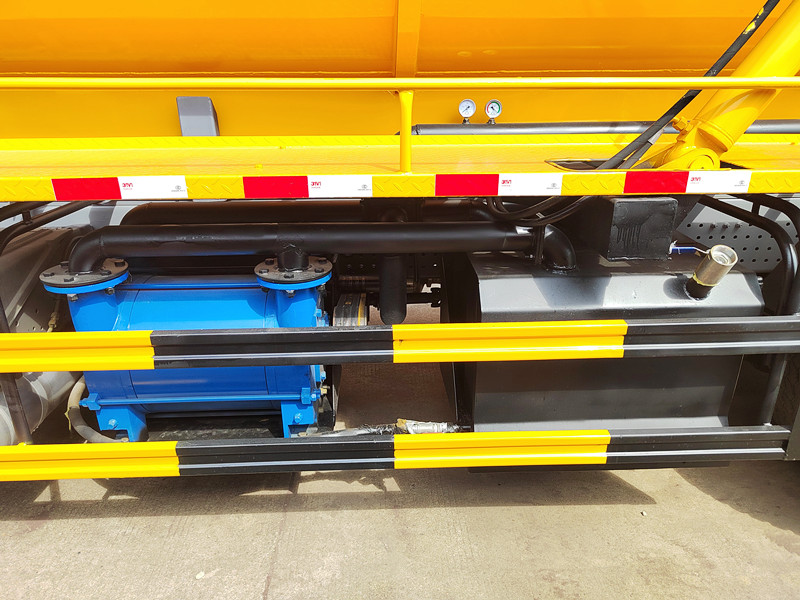

---Equipped with a 2BE-204S water ring vacuum pump

The 2BE-204S water ring vacuum pump adopts a single-stage, single-acting structure, featuring simple structure, convenient maintenance, reliable operation, and high energy efficiency.

The equipment is manufactured using high-quality wear-resistant materials, with a precise fit between the impeller and pump body, resulting in excellent vacuum and pumping speed performance. The blades are formed in a single stamping process, ensuring dynamic balance and impact resistance, adapting to harsh working conditions.

This pump has a built-in gas-liquid separator and multiple exhaust ports for easy installation and maintenance.

» Ⅱ. Product Parameter for Congo howo 10 wheeler sewage tank truck:



Congo howo 10 wheeler sewage tank truck

Vehicle Dimensions, Weights & Capacities

Chassis brand

HOWO

Overall dimension (LxWxH)

9270x2530x3350mm

Wheelbase

4325+1350mm

Curb weight

11350 Kg

Gross weight

32000 Kg

Chassis

Drive mode

6x4

Cabin type

Standard roof one bed

Seats

2 seats

Steering

Left-hand drive

Tires

10+1 spare tire

Tyre specification

295/80R22.5

A/C

Air conditioning

Engine

Engine model

WP10.340E32

Fuel and engine Type

Diesel, 6 cylinders in-line

Horse power

340HP

Displacement

9.726L

Emission level

Euro 3

Tops Parameters

Loading Capacity Volume

20cbm ( can be customized )

Tank Material

Strengthen high performance wear-resisting carbon steel with anti-corrosion treatment paint

Colour

As demands

Logo Paint

As demands

Others

Standard, customized



» Product Detailed introduction:

1. Advanced Structure and Stable Performance

The Howo 10-wheeler sewage tank truck features a high-strength carbon steel tank with internal anti-corrosion treatment, offering pressure and shock resistance for extended service life.

Equipped with a domestically leading water ring vacuum pump, it boasts strong suction, high efficiency, and can operate continuously for extended periods, adapting to various complex working conditions.

2. Easy to operate and fully functional

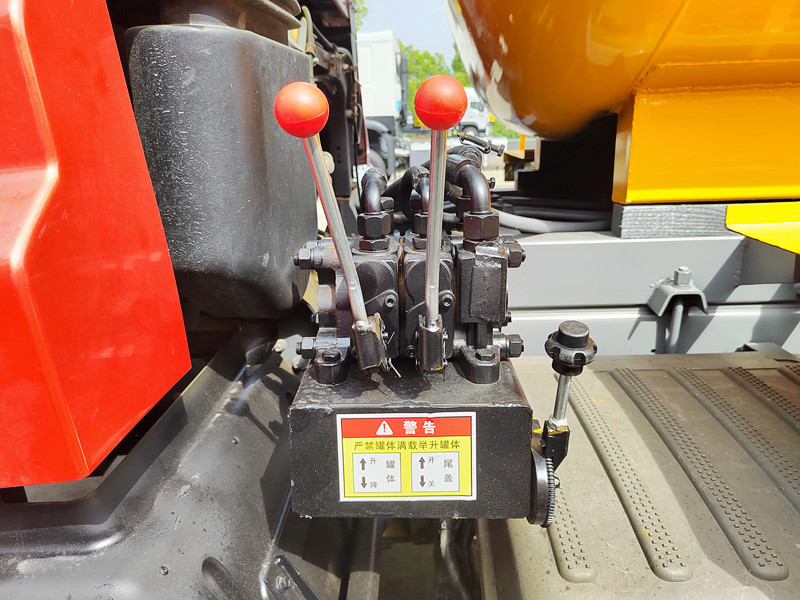

The vehicle is equipped with a hydraulic lifting and self-unloading system, an automatic sewage discharge valve, and an observation window. Operation is simple and safe, enabling rapid completion of suction and discharge operations.

It is also equipped with an anti-overflow valve and a liquid level alarm device, enhancing ease of use and safety.

3. Environmentally Friendly and Highly Efficient

The Howo 10-wheeler sewage tank truck is widely used in municipal sanitation, industrial and mining enterprises, residential communities, and rural sewage treatment projects. It effectively prevents secondary pollution and improves environmental sanitation.

Its highly sealed tank and vacuum discharge design ensure no odor and no leakage, resulting in significant environmental benefits and economic value.







Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

howotrucks is a leading exporter of sewage tank truck in China. We possess over 10-year export experience of sewage tank truck. We can ensure the fast delivery time and 12 months guarantee for our sewage tank truck. Our sewage tank truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safety, Quickly, Timely
