HOWO 20000 liters heavy sewer sucker truck

HOWO 20000 liters heavy sewer sucker truck

The SINOTRUK HOWO 20000L sewer cleaner truck is a specialized vehicle built on a 6x4 heavy-duty chassis, equipped with a large-capacity sealed tank and a vacuum pump system for sucking and transporting liquid waste such as feces and sludge. Powered by a high-horsepower Weichai engine and an Italian MORO PM110W vacuum pump, it delivers robust suction performance and exceptional vertical suction depth. The tank features hydraulic self-unloading and a hydraulically operated rear cover, ensuring highly automated operations. This heavy-duty sanitation equipment combines powerful performance with outstanding efficiency.

  • Working capacity :

    20000 liters
  • Cabin type :

    HOWO HW76
  • Dimension (mm ) :

    9850×2550×3450
  • Drive system :

    6×4
  • Wheelbase ( mm) :

    4600+1350
  • Engine specific :

    400HP/WP12S400E201
  • Gear box :

    HW19710
  • Front axle ( Kg ) :

    9000
  • Rear axle ( Kg ) :

    16000
  • Remark :

    Jurop pump, 4×4, 6×6, RHD drive is optional
New Products

The SINOTRUK HOWO sewer vacuum truck is a professional sanitation vehicle built on the HOWO 6x4 heavy-duty chassis, operating on the principle of vacuum negative pressure. It is primarily used for sucking and transporting liquid waste such as sludge and feces from sewers, septic tanks, and storm drains, effectively addressing pollution and cleaning challenges in urban underground pipelines and various types of ditches. Its core components include an efficient Italian MORO vacuum pump and a large-capacity sewage tank, offering long-distance suction capabilities and significant vertical suction depth.

This HOWO 20,000L heavy-duty sewer sucker is powered by a 400HP Weichai WP12 engine, compliant with Euro II emission standards. Paired with a 10-gear transmission and reinforced rear axles, it delivers robust power and high load-bearing capacity. The vacuum tank is designed with hydraulic self-unloading and a hydraulically operated rear cover, and is equipped with safety devices such as an anti-overflow valve, liquid level alarm, and secondary anti-overflow protection. These features not only enhance operational efficiency but also significantly reduce manual labor intensity, making it particularly suitable for cleaning tasks in complex environments such as urban areas and industrial plants.

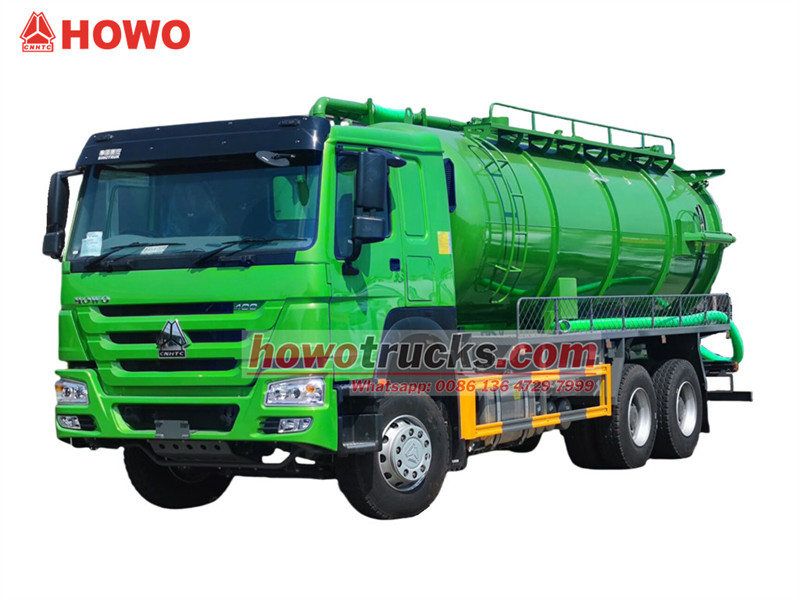

HOWO 6×4 vacuum tank truck



*HOWO Heavy-duty Vacuum Truck

HOWO 20000 liters Septic Tank Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



»» Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

It is suitable for the suction, transportation, and disposal of sewage and sludge from various underground sewer pipelines, rainwater wells, and inspection wells.

The vehicle is designed with a compact structure, offering strong adaptability to various environments and road conditions, making it suitable for operations in urban areas, residential communities, industrial plants, and townships.

Equipped with an Italian MORO vacuum pump, it delivers high exhaust volume, low noise, and exceptional vacuum performance, enabling suction distances of over 50 meters and vertical suction depths of 8-12 meters.

The dual-action single-front lifting and unloading system ensures a low center of gravity and enhanced safety.

The hydraulically operated rear cover provides a high degree of automation, effectively reducing the labor intensity and risks for operators.



HOWO 20000 ltr vacuum sewage tank truck



»» Ⅱ. Product Parameter for HOWO 20000L sewage tank truck:



Cabin

Driving type 6x4. Left hand driven

HW 76 cab, with two seats, one sleeper berth. With air conditioning A/C.70° hydraulically tillable to the front.

Vehicle Main Dimensions

Overall dimensions (mm)

9850*2500*3450

Wheelbase (mm)

4600+1350

Wheel track (front/rear) (mm)

2022/1830

Approach/Departure angle(°)

16/18

Weight in KGS

Tare Weight

12500

Payload

20000

Front axles loading capacity

1x9000

Rear axles loading capacity

2x16000

Max. driving speed(km/h)

90

Engine

Brand

WEICHAI

Model

WP12S400E201

Type

Diesel, 4-stroke direct injection, 6-cylinder in-line, turbo-charging and inter-cooling

Max. Output (kw)

294

Max. horsepower (HP)

400

Emission standard

Euro 2

Displacement (ml)

11596

Max. torque (N.m)

1780

Rated speed (rpm)

2100

Speed at Max. torque (rpm)

1200-1500

Gearbox

HW19710,10-speed forward and 2 reverse gear

Tire Model

12R22.5 radial steel tires, 10 pieces with one spare

Steering

ZF8118

Vacuum Tank

Color

Green

Tank Volume

20000L

Tank Thickness

6 mm

Tank Material

Carbon Steel Q345

Tank Lifting

Hydraulic lifting, 45°

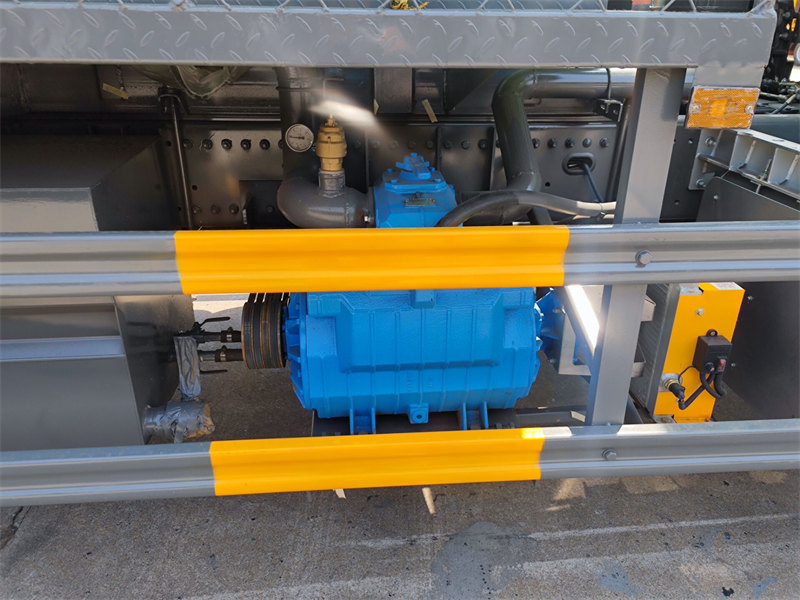

Vacuum Pump

Pump brand

MORO

Pump model

PM110W

Free air flow

984 m3/h

Continuous duty vacuum

95%

Maximum pressure

3 bar abs

Power required at max. vacuum

41kW

Max. speed

1400 rpm

Suction Pipe

Length(m)

10 m

Quantity(pcs)

1

Main Parts

1. Water-gas separator.
2. Oil-gas separator.
3. Tank body with pipe boxes on both sides.
4. Both sides with protective nets.

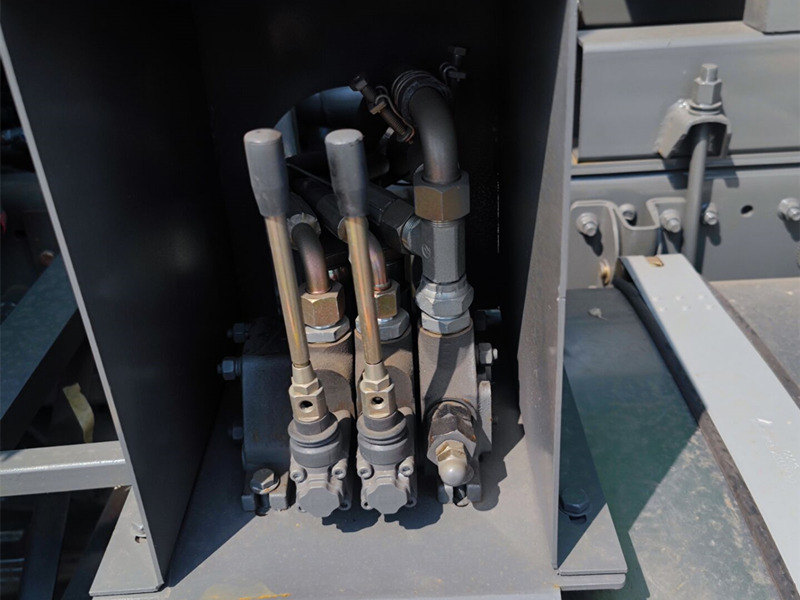

5. Multi-way valve.
6. Anti overflow valve.
7. Pressure gauge.
8. Floating ball alarm.
7. Hydraulic control rear cover, manual lock.
8. DN100MM discharge ball valve at the end of the tank.

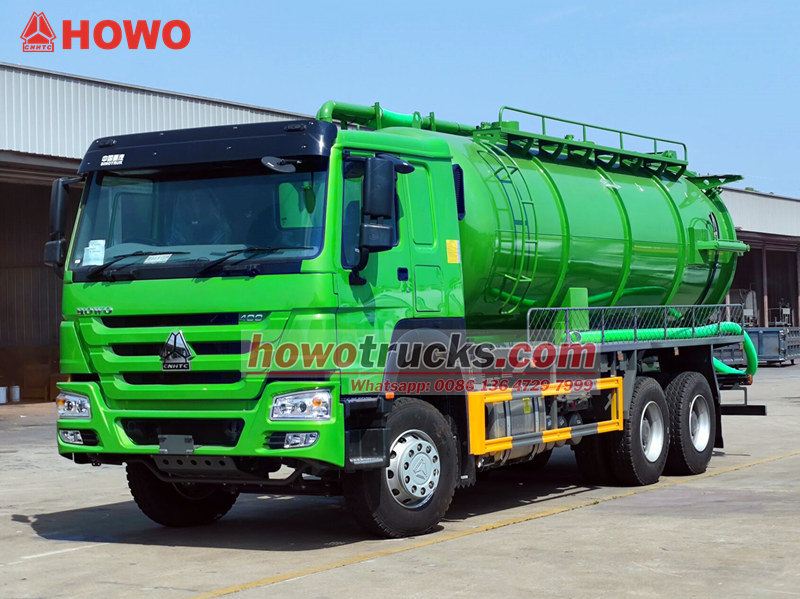

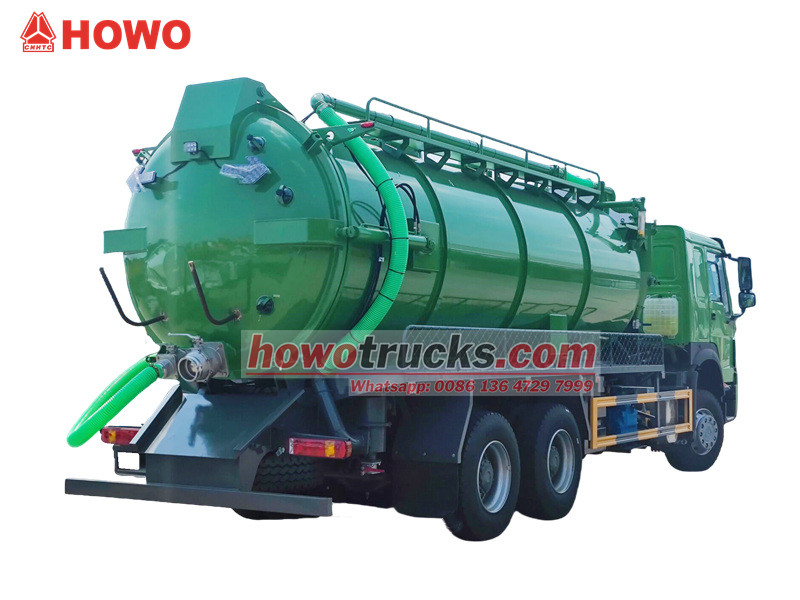

HOWO 6×4 sewer cleaner truck

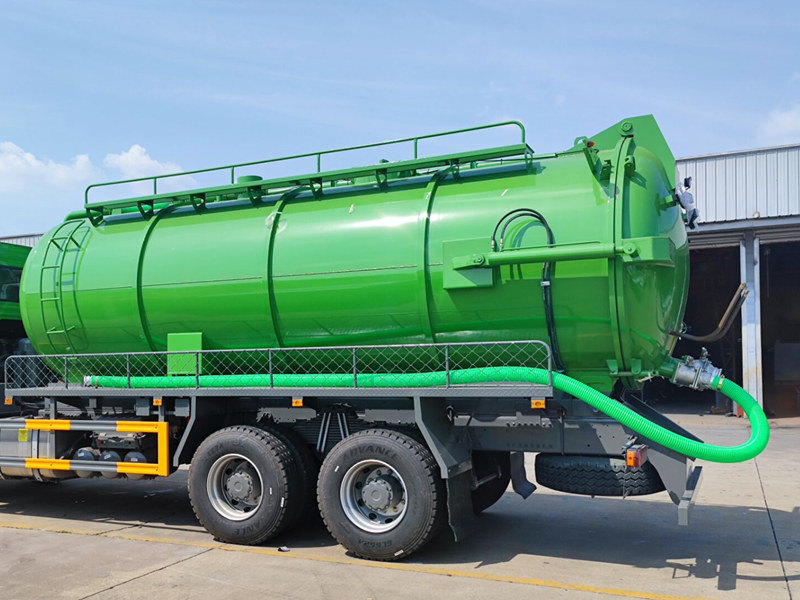

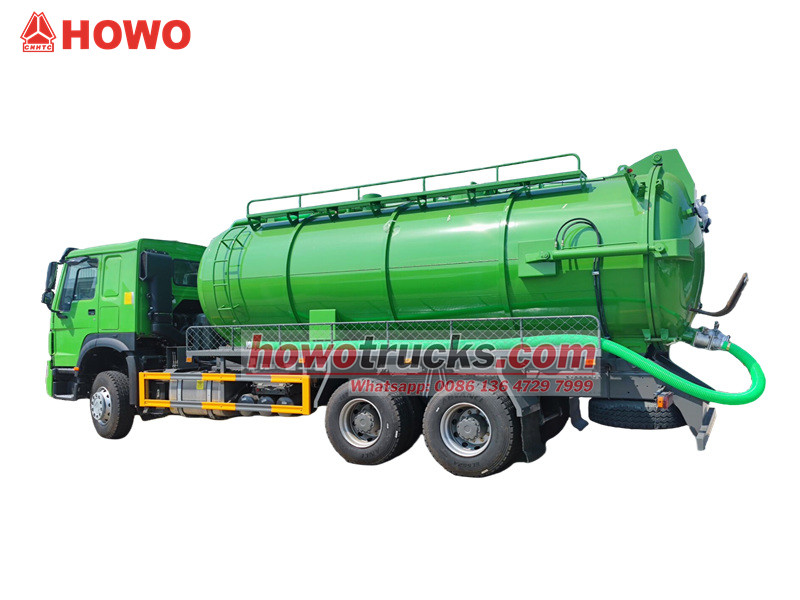

»» Ⅲ. Product Details











»» Ⅵ. Product Drawing:

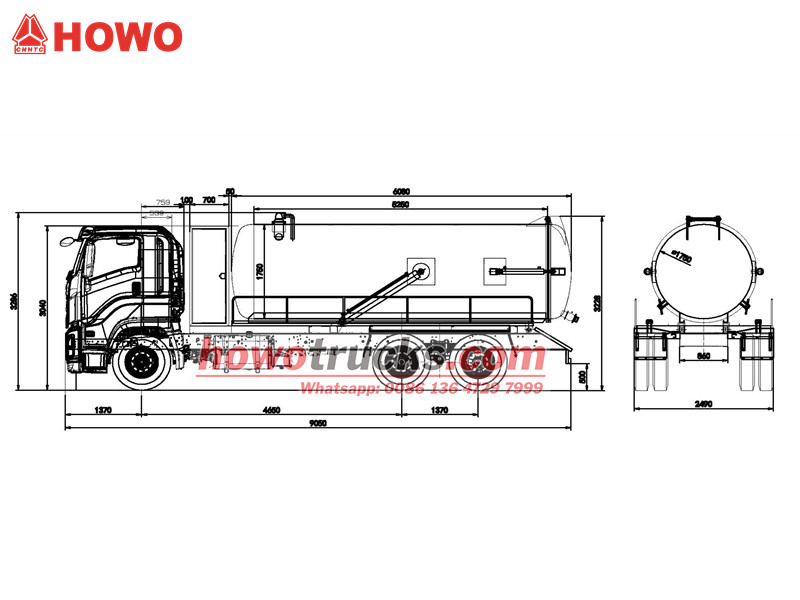

HOWO 6×4 septic tank truck drawing

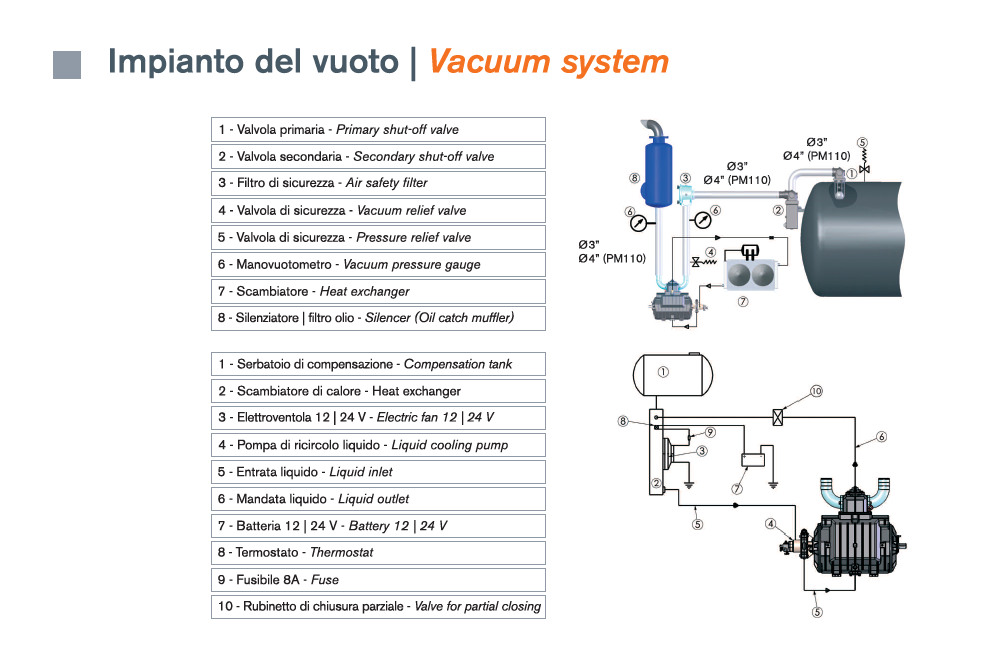

»» . Italy MORO PM110W Vacuum Pump Specifications

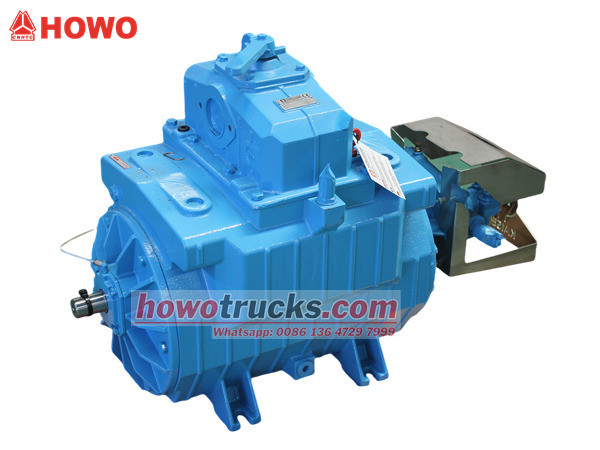

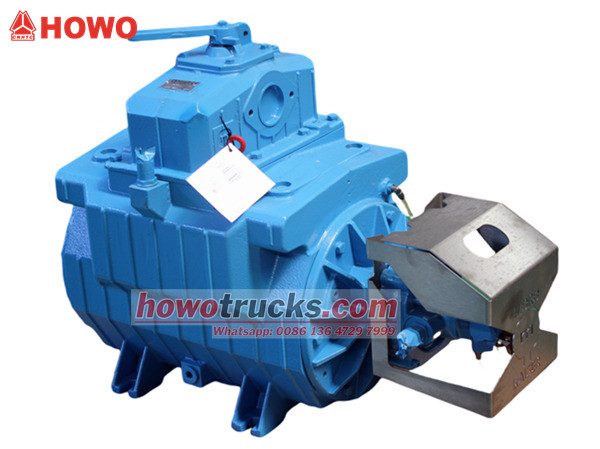

Italy MORO PM110W vacuum pump for sale Italy MORO PM110W vacuum pump price

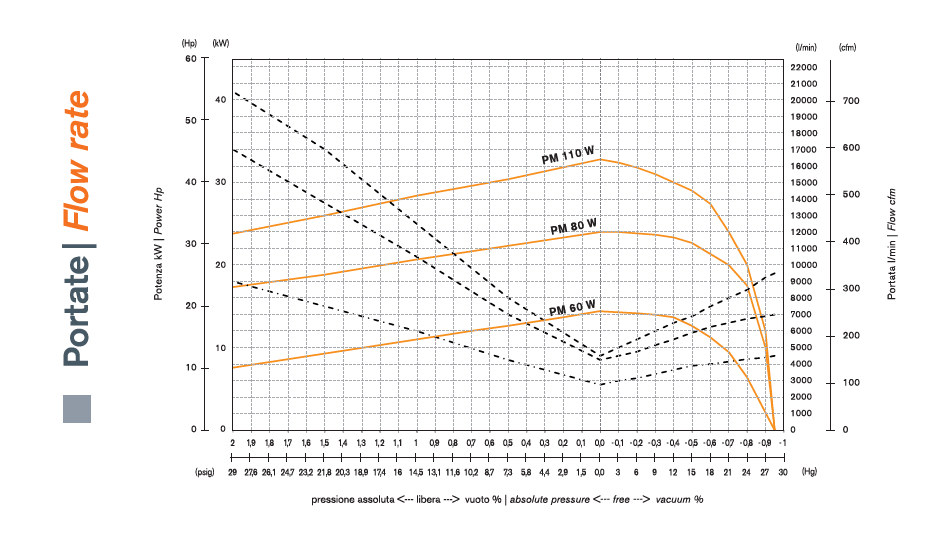

Italy MORO PM110W vacuum pump specifications


Specification

Unit

Value

Free air capacity

cfm

579

Air capacity at 15" Hg/50% vacuum

cfm

554

Max. Vacuum

Hg (in.)

28

Max. Pressure

psig

29

Power required at 15" of vacuum

hp

20

Power required at max. pressure

hp

54

Max. speed

rpm

1400

Working speed

rpm

1200

Oil tank capacity

lt

4.8

Oil consumption

Gr/h

210

Sound pressure at 7 meters (23 ft) 60% vacuum

dB

80

Hose

in

3/4

Flange

in

-

Weight

lbs

645





Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.













HOWO vacuum tank trucks for export

SINOTRUK HOWO 6×6 vacuum sewage trucks for export



SINOTRUK HOWO septic tank trucks for export

SINOTRUK HOWO heavy duty vacuum pump trucks ready for delivery
