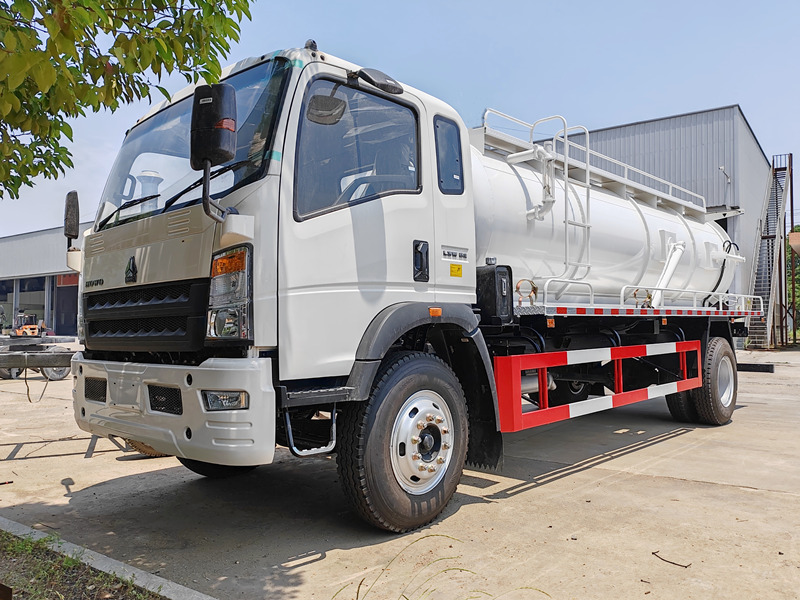

Howo 5 cbm sewage pump tanker truck

Howo 5 cbm sewage pump tanker truck

HOWO 5 cubic meter sewage suction truck, it adopts HOWO commander 2080 row half cab, 4200mm wheelbase, equipped with Cummins ISF3.8s3168 168 horsepower engine, WLY6G70 gearbox, the upper body is a 5 cubic meter sewage suction tank, carbon steel material, equipped with Jurop PN106D vacuum pump, sewage pipe, ladder, operating control valve( tank and tailgate lifting control), hydraulic oil tank, tailgate discharge valve, etc.



  • Working capacity :

    5cbm
  • Cabin type :

    Howo light cabin
  • Drive system :

    4x2,RHD
  • Wheelbase ( mm) :

    4200
  • Engine specific :

    168HP /Cummins ISF3.8s3168
  • Gear box :

    WLY6G70,6-speed,manual
  • Front axle ( Kg ) :

    3200
  • Rear axle ( Kg ) :

    8000
New Products

The HOWO 5 cbm sewage pump tanker truck is a high-efficiency specialized vehicle designed for urban sanitation, municipal engineering, and industrial cleaning applications. Powered by a 168-horsepower Cummins engine paired with a 6-speed transmission, it delivers robust power performance. The superstructure features a 5m³ carbon steel anti-corrosion tank equipped with an Italian Jurop high-vacuum pump (suction capacity: 11,000L/min), enabling rapid suction of sewage, sludge, and small solid particles. The visual inspection pipe and hydraulic control system ensure safe and convenient operation. With tank lifting and quick-opening rear cover discharge functions, the vehicle offers low maintenance costs and extended service life. It is widely applicable in municipal sanitation (septic tank cleaning, pipeline dredging), industrial wastewater treatment, emergency rescue operations, and various other fields.

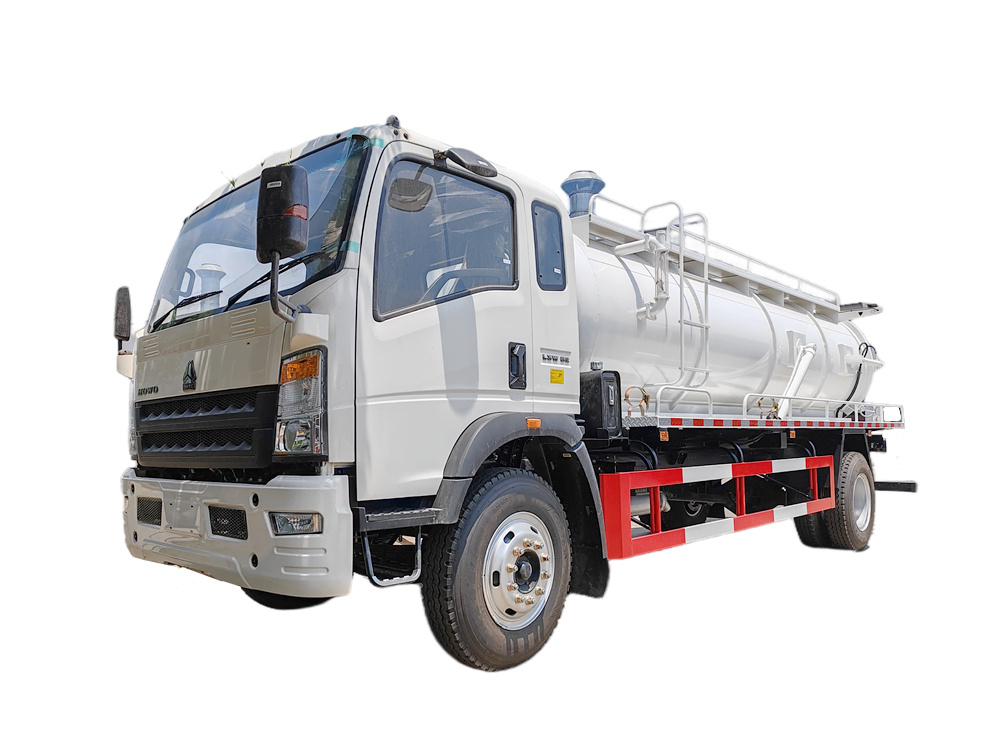

HOWO 5 cbm sewage pump tanker truck

*HOWO 4X2 RHD 5000L Vacuum Suction Truck

Sewage Vacuum Pump Truck*

-----------------------------------------------------------------



Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



» Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS GROUP LIMITED



Product Features

1. Powerful Power and Adaptability

• Equipped with a Cummins 168-horsepower engine and a 6-speed transmission, it offers high torque at low speeds, adapts to complex road conditions, and meets China VI emission standards.



2. Professionally Designed, Efficient and Durable

• 5cbm carbon steel tank: Corrosion-resistant and pressure-resistant, suitable for sewage and sludge transportation.

• Jurop PN106D Vacuum Pump: High suction power, fast pumping speed, and high operating efficiency.



3. Convenient Operation and Safety Features

• Hydraulic control system (tank lift, tailgate discharge) ensures effortless and precise operation.

• Visual suction pipe allows for real-time monitoring of suction status to prevent blockage or overload.

• Hydraulic ladder for easy access and maintenance

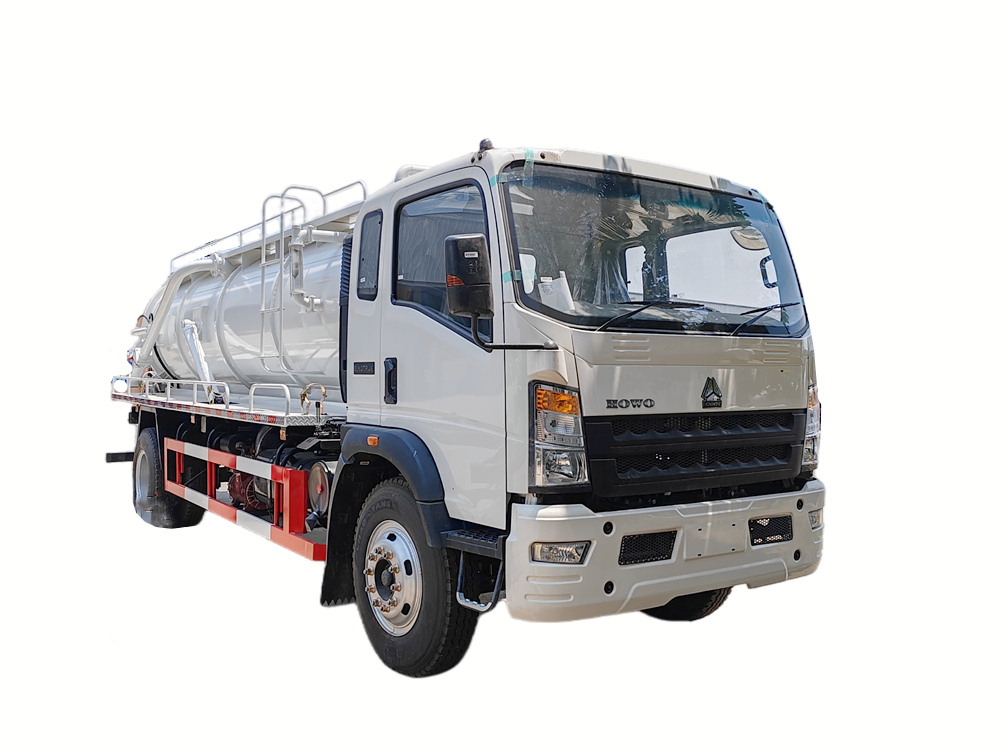

HOWO 5000L sewage suction truck» Ⅱ. Product Parameter for HOWO 5CBM vacuum suction truck:



Product Information

Product

Sewage suction truck

Brand Name

SINOTRUK-HOWO

Overall dimension(L*W*H)

7540*2350*2680mm

Place of Origin

Hubei, China

Color

Any color will be available

Manufacture

CS TRUCKS

Chassis Specifications

Wheelbase

4200mm

GVW

11.2tons

Axle loading

3200/8000kg

Max speed

95km/h

Transmission

WLY6G70,6-speed,manual

Tire

8.25R20, 6+ 1 spare

Cabin

2080 right-hand drive one and half row cab, with AC,USB

Engine

Model

Cummins ISF3.8s3168

Horsepower

168HP/125kW

Type

Inline 4-cylinder, 4-stroke, supercharged, intercooled, water-cooled

Max torque

600N.m

Rated speed

2600rpm

Max torque speed

1300-1700rpm

Displacement

3.76L

Emission

Euro 3

Fuel tank

120L aluminum alloy fuel tankdiesel

Mini fuel consumption rate at full load

195g/kW.h

Upper body specifications

Tank

5000L,5mm high quality carbon steel

Vacuum pump

Model

Jurop PN106D

Max pressure

1.5bar

Max speed

1300rpm

Max flow

11000L/min

Air flow at 60% vacuum

10000L/min

Max vacuum

92%

Continuous vacuum

60%

Max no-load power.

13.6 Kw/18.4HP

Weight

143kg

Suction head

7m

Moro pump,Spain pump available



» Product Detailed introduction

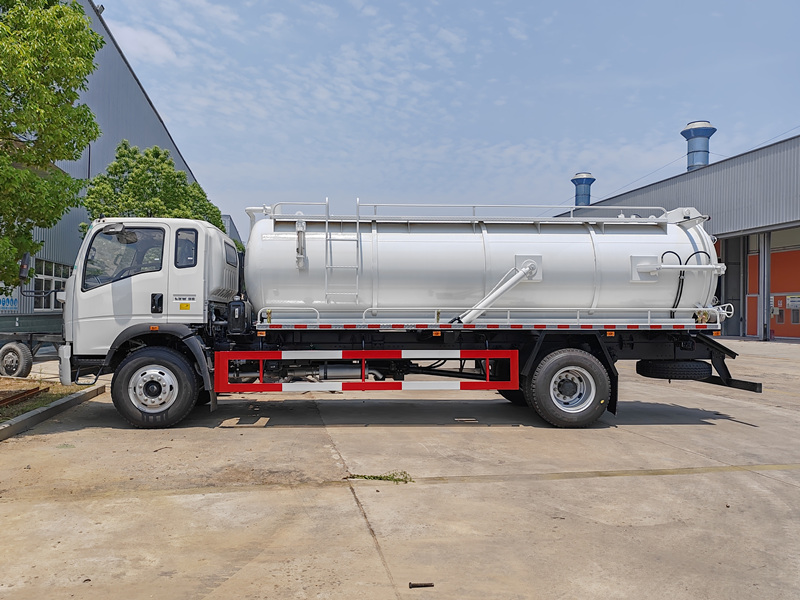

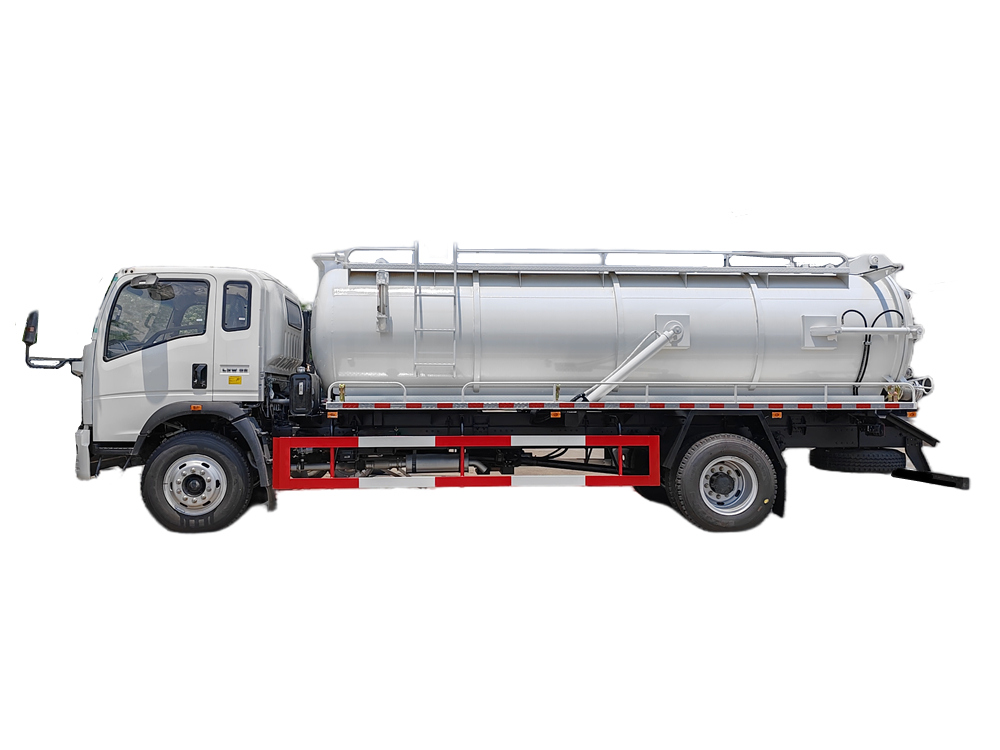

HOWO RHD 5CBM vacuum suction truck

Core Powertrain and Chassis Configuration

1. Cab and Wheelbase

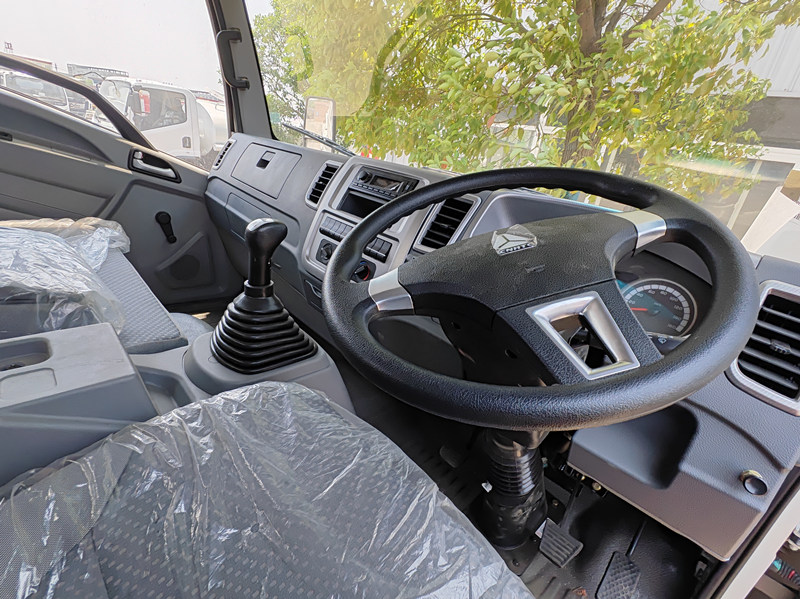

• The HOWO Commander 2080-row semi-cab offers spaciousness and excellent visibility. It features an ergonomic seat and multi-function steering wheel, balancing comfort and maneuverability.



• The 4200mm wheelbase provides stable support for the superstructure.



2. Powertrain

• Engine: Equipped with a Cummins ISF3.8s3168 inline four-cylinder diesel engine with a displacement of 3.8L, a maximum power of 168 horsepower (125kW), and a peak torque of 600Nm, meeting China VI emission standards.

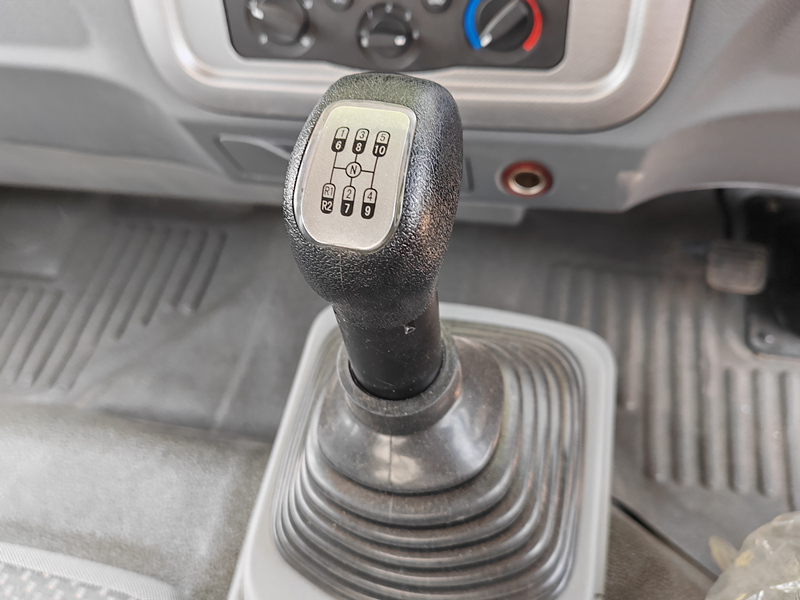

• Transmission: Equipped with a WLY6G70 six-speed manual transmission, it offers smooth shifting and high transmission efficiency, adapting to diverse operating conditions.

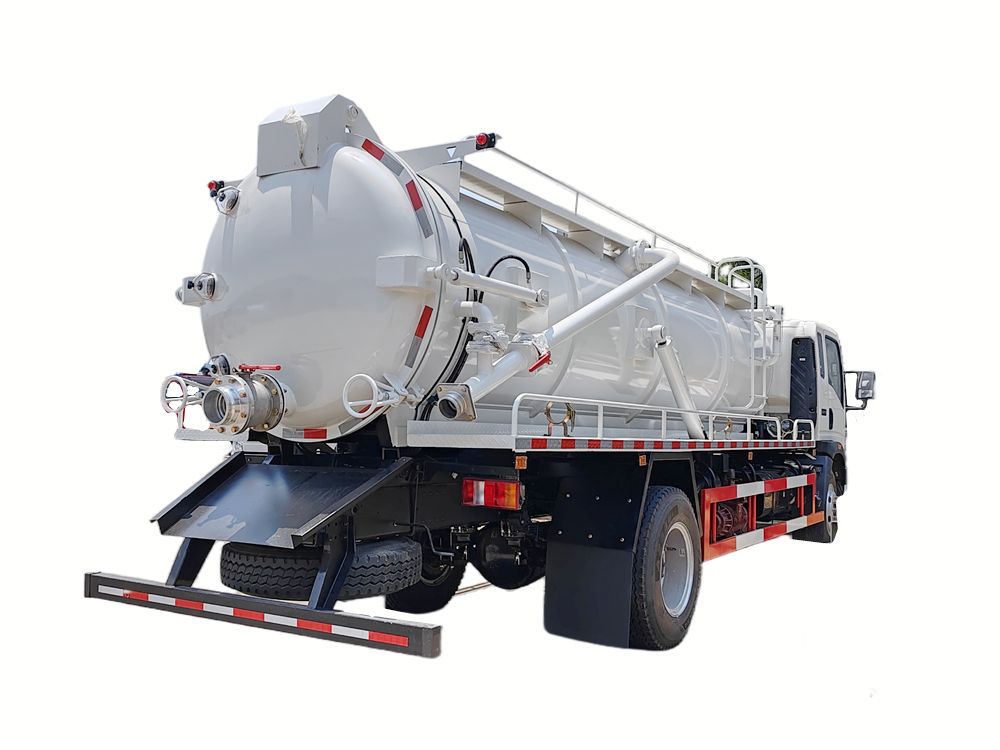

HOWO RHD 5000 liters sewer vacuum truck

Professional Upper Body Configuration

1. Sewage Suction Tank

• Material and Capacity: The tank is constructed from Q235B carbon steel using a one-piece stamping process, with a capacity of 5 cubic meters. The surface undergoes an anti-corrosion sandblasting treatment for superior corrosion resistance.



• Vacuum System: Equipped with an Italian Jurop PN106D liquid ring vacuum pump, it boasts a pumping speed of up to 11,000 L/min and a maximum vacuum of -0.092 MPa. It can rapidly extract sewage, slurry, and solid particles (diameter 50 mm), improving operating efficiency by 15% compared to similar products.

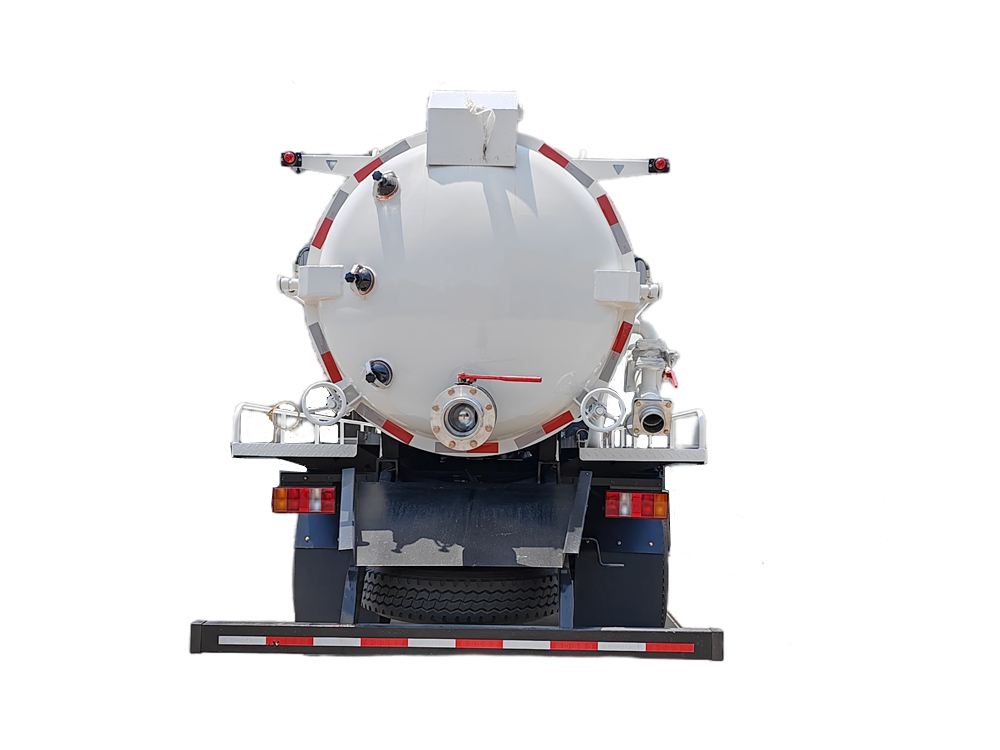

HOWO RHD septic tanker with JUROP PN106D pump

2. Functional Components

Sewage Inspector: Sewage windows on both sides provide real-time visibility of the tank's liquid level, preventing overload risks.

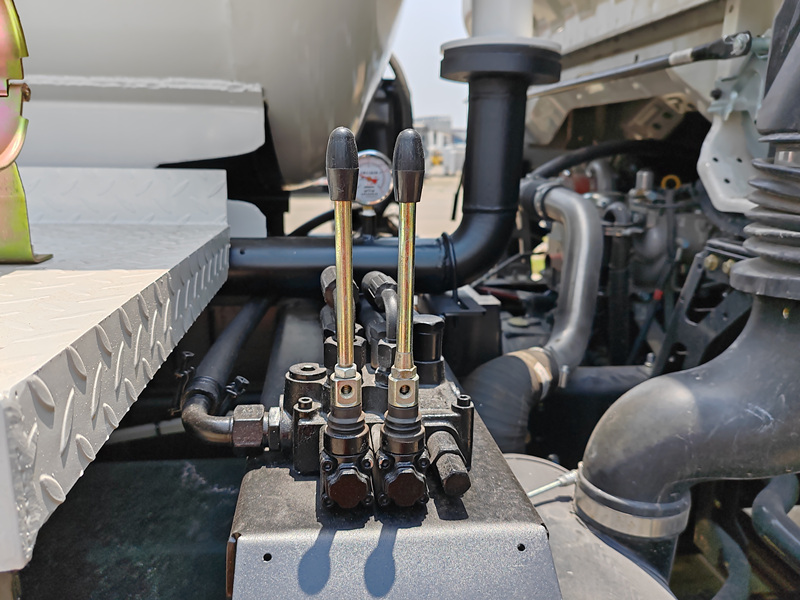

• Operation Control System: An integrated hydraulic control valve block supports one-touch operation for actions such as tank lifting and rear cover opening/closing.



• Discharge System: A DN200 quick-opening discharge valve is installed at the rear, supporting both gravity and vacuum-assisted emptying for complete, residue-free discharge. o Auxiliary devices: Standard ladder and warning lights, detailed design improves ease of use.

Drawing Of Sewage Suction Truck:

Drawing Of Sewage Suction Truck

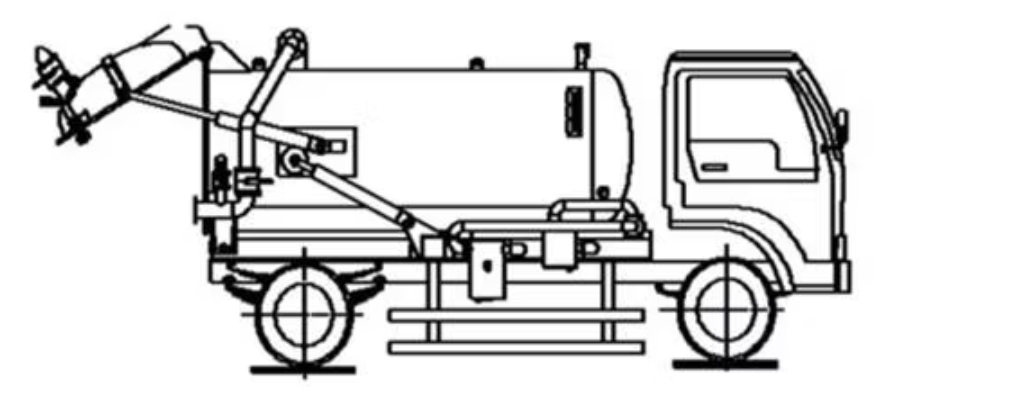

Open the rear door:

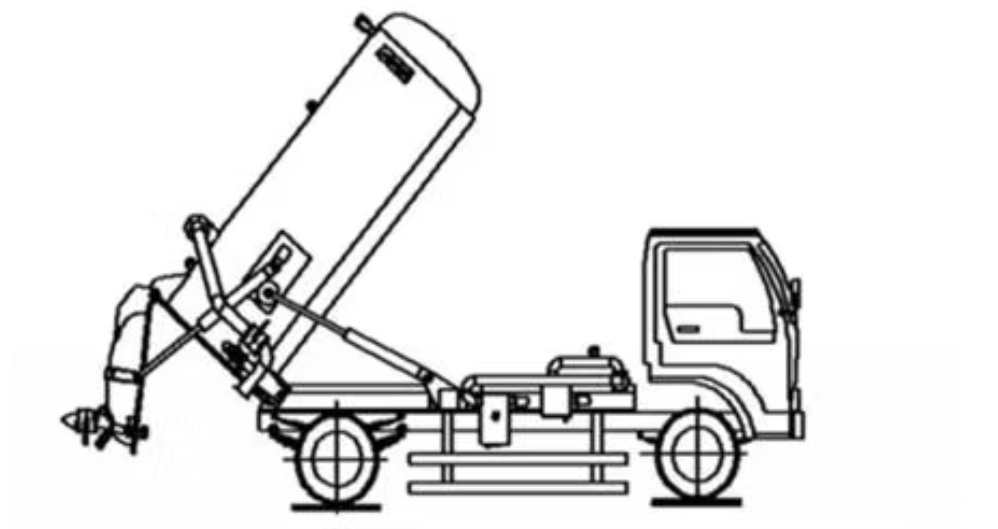

Drawing Of Sewage Suction Truck/ Vacuum Truck:Unloading the sewage:

Unloading the sewage:



» Ⅳ. Working Principle

1. Vacuum Suction Principle

• The engine drives the Jurop vacuum pump at high speed, creating a negative pressure (vacuum environment) within the tank.

• External wastewater/slurry is drawn into the tank through a suction pipe. The liquid level is monitored in real time to prevent overload.



2. Discharge and Cleanup

• After the operation is completed, wastewater is drained through the tailgate quick-opening valve using gravity or vacuum assistance.

• The tank lift function allows for complete dumping of residual waste.



3. Hydraulic System Coordination

• The hydraulic oil tank provides power to the control valves, enabling actions such as tank raising and lowering and rear cover sealing, ensuring a seamless operational process.

  • HOWO 5CBM sewage cleaner truck
  • HOWO RHD septic tanker with JUROP PN106D pump

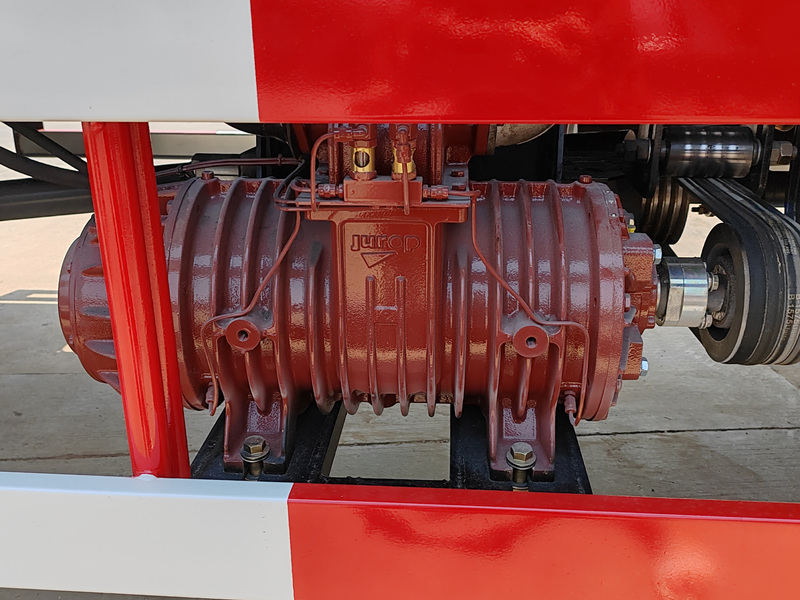

  • JUROP PN106D pump



» ⅤApplication Scenarios

1. Municipal Sanitation

◇ Cleaning urban septic tanks, sewage wells, and sewers to address sewage congestion.



◇ Regular maintenance of road stormwater inlets and drainage pipes to prevent flooding.



2. Industry and Construction

◇ Pumping out wastewater from factory sedimentation tanks and industrial wastewater pools, suitable for industries such as the chemical and food processing industries.



◇ Removing accumulated water and mud from construction site foundation pits to ensure a safe construction environment.



3. Emergency Rescue

◇ Pumping out wastewater and removing sludge after floods.



4. Rural Environmental Protection

◇ Farm manure collection and rural sewage treatment.

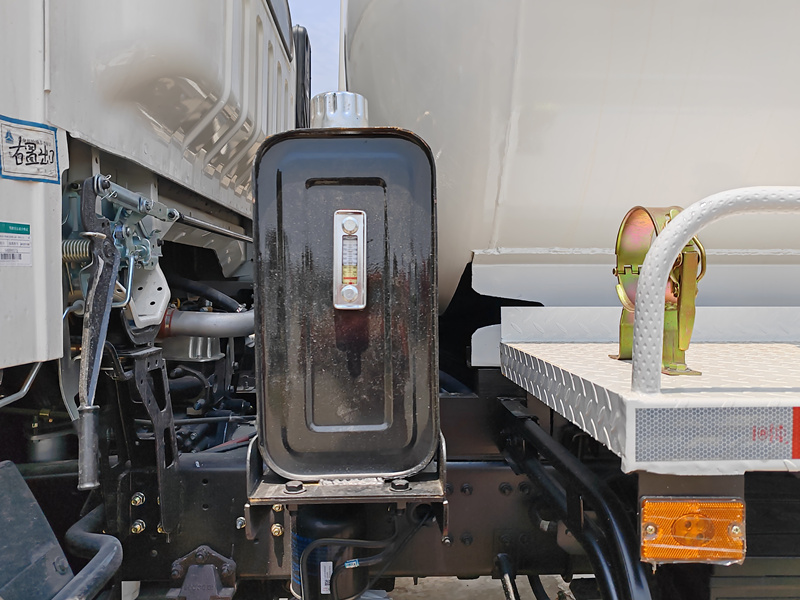

  • Hydraulic oil tank

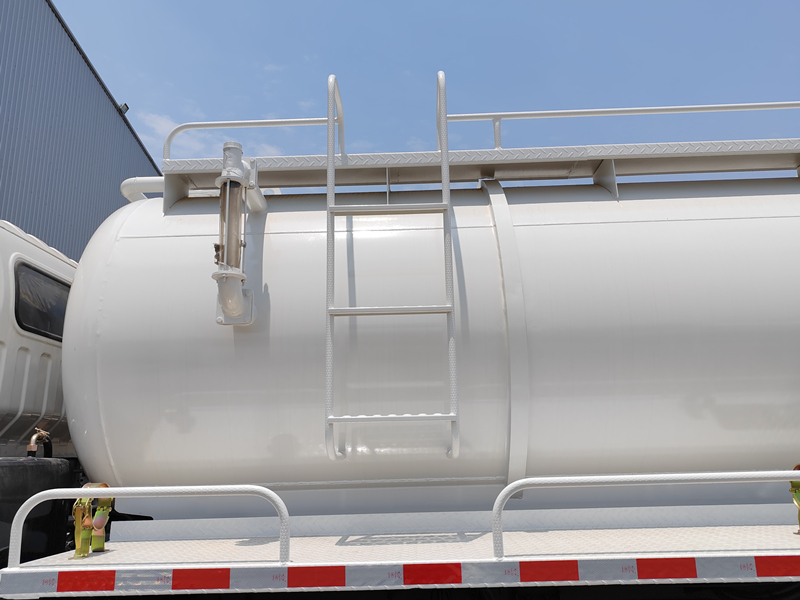

  • view window

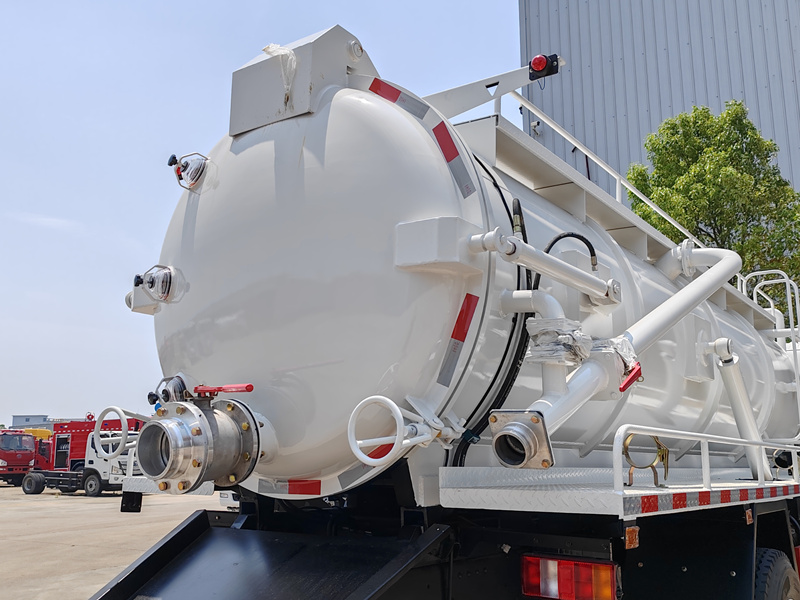

  • discharge valve

CS trucks 5000 square meters workshop for vacuum tank trucks.china best vacuum truck manufacturer. We are China best sanitation trucks plant and professional upper structure manufacturer. established in 1983 , we specialized in customized garbage compactor truck, road sweeper truck, sewage tanker trucks, crane truck, fire trucks. and other special purpose vehicles.



sewage suction truck
