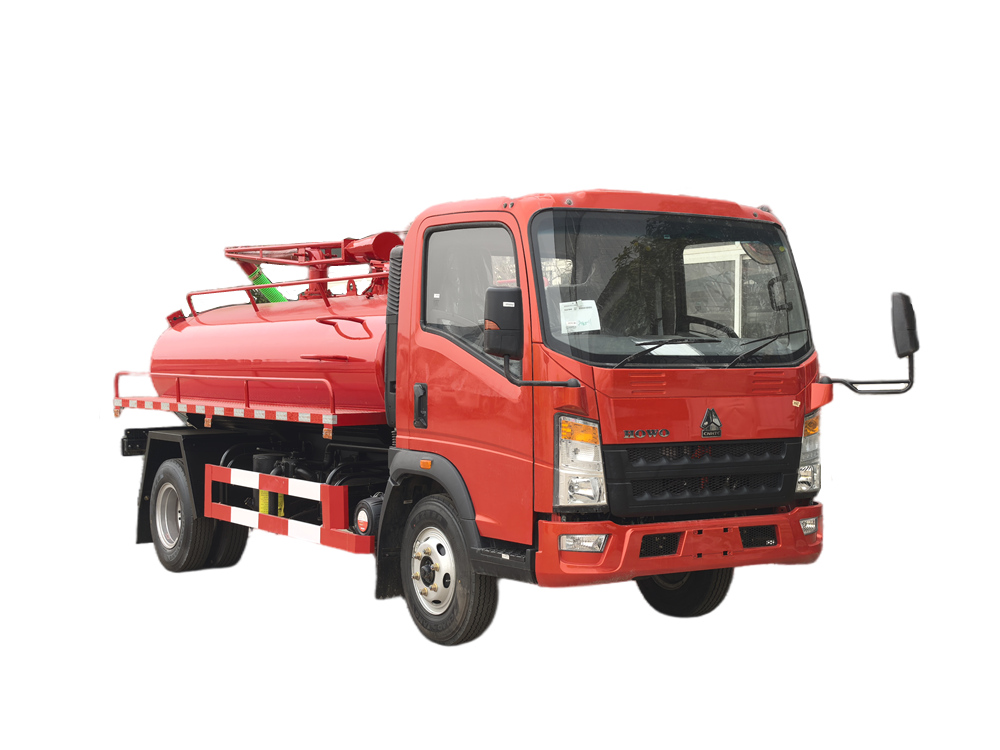

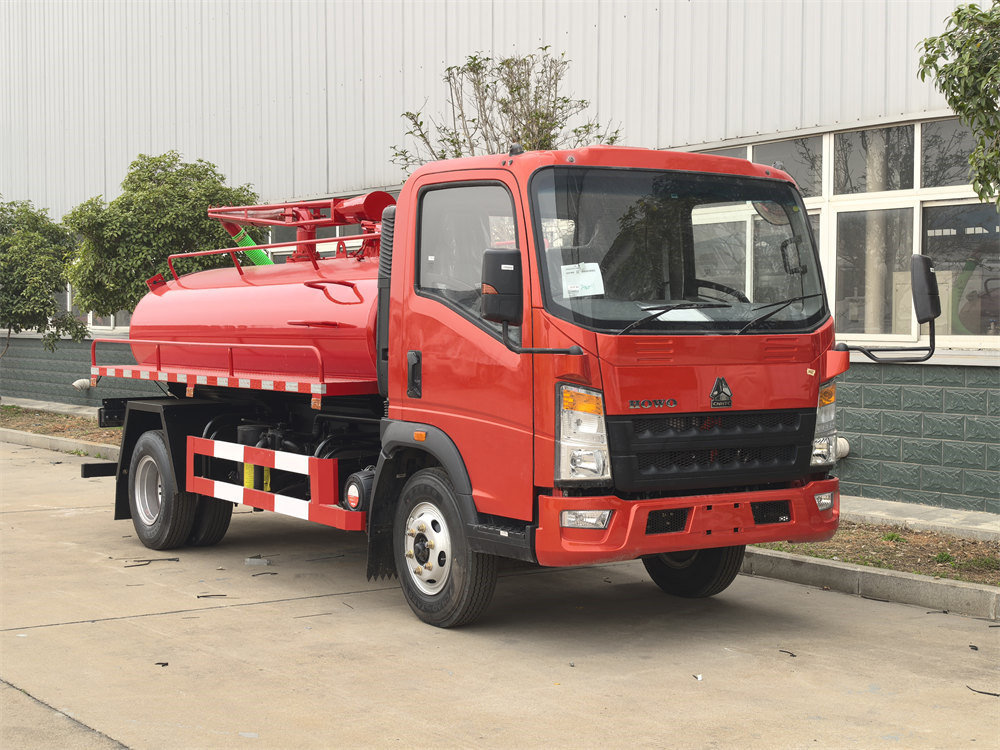

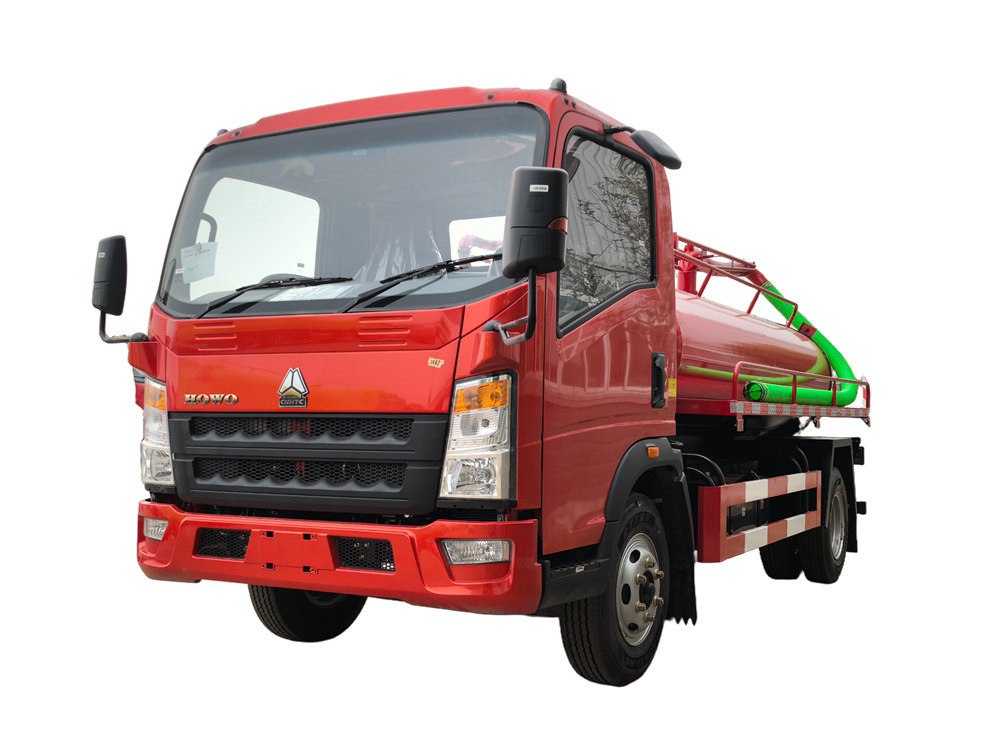

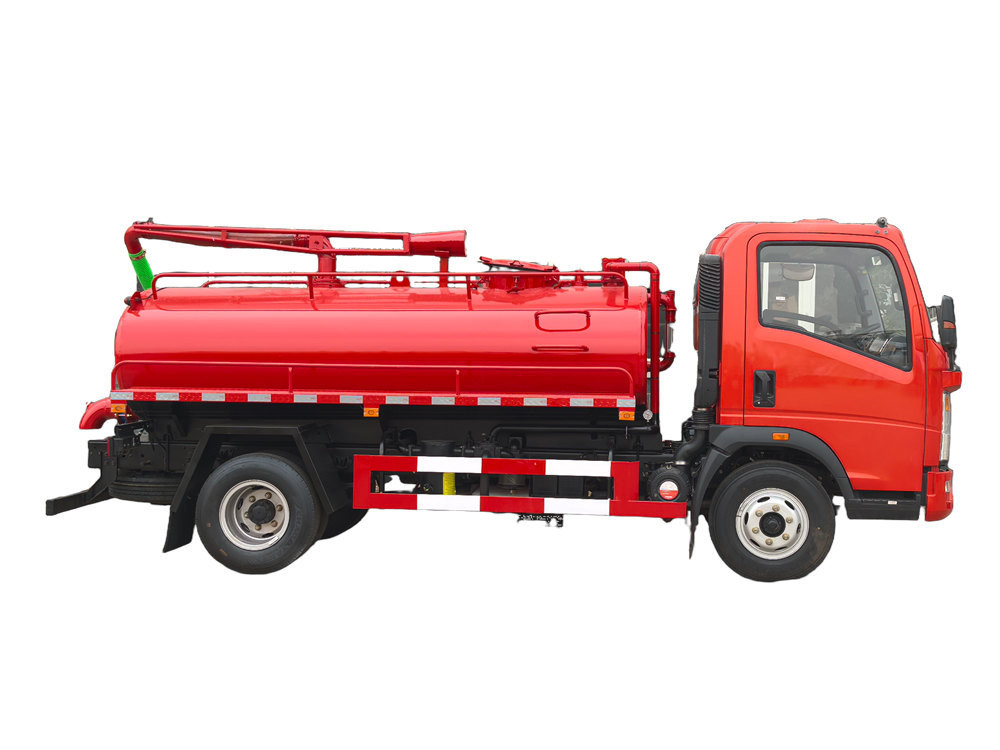

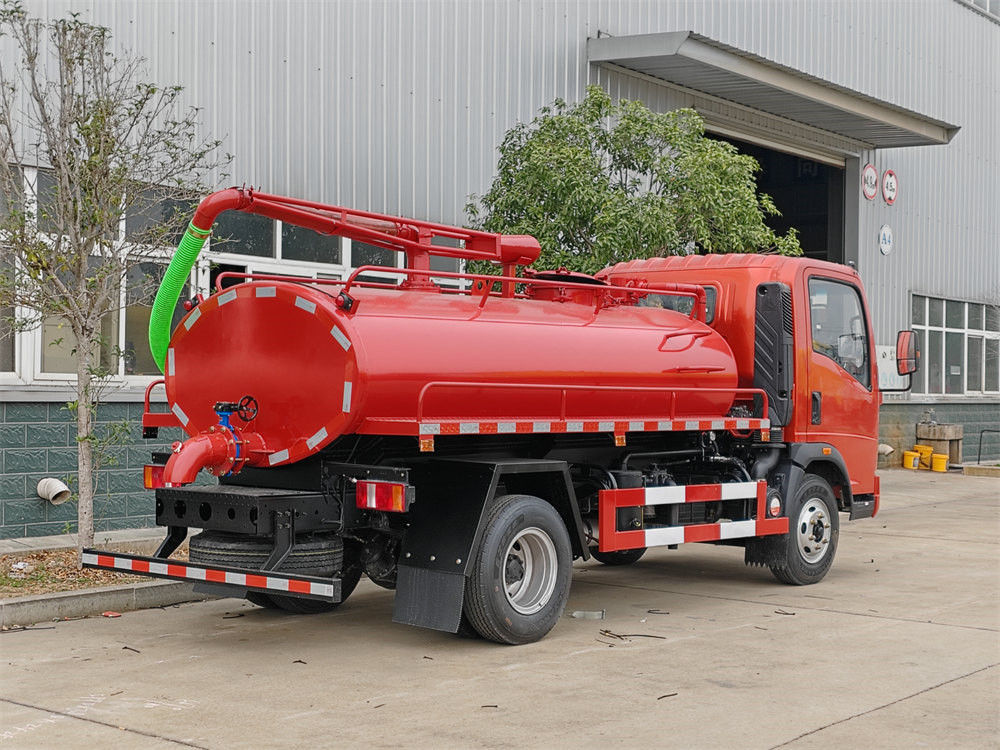

The HOWO 4x4 RHD 4cbm septic tank suction truck adopts HOWO Hanjiang 1880 single-row cab, 4x4 all-wheel drive, right-hand drive, 3360mm wheelbase, equipped with YN4102QBZL 116 horsepower engine, WLY6TS40 6-speed gearbox, the upper body is a 4-cubic-meter septic tank, carbon steel material, anti-corrosion and rust treatment, equipped with Yifeng SK-6 water ring vacuum pump, maximum pumping speed: 6 cubic meters / minute, speed: 970 rpm, top 6-meter septic tank suction boom, equipped with septic tank observation window, overflow valve, pressure gauge, exhaust valve, etc.
Working capacity :
4cbmCabin type :
Howo light cabinDrive system :
4x4,RHDWheelbase ( mm) :
3360Engine specific :
116HP / YN4102QBZLGear box :
WLY6TS40,6-speed,manualFront axle ( Kg ) :
2000Rear axle ( Kg ) :
3500The HOWO 4x4 drive septic pump truck is a highly efficient and durable sanitation vehicle designed for self-priming, extracting feces and sewage from manure pits, as well as sewage from ditches, ponds, and sewers. Powered by a 116-horsepower YN4102QBZL engine and a WLY6TS40 transmission, it boasts powerful all-wheel drive (4×4) for use in harsh environments such as muddy and sloped roads. Equipped with a high-power Yifeng SK-6 vacuum pump, the vehicle boasts a suction range of 8 meters, high suction and discharge efficiency, and can reach a full load in just 4 minutes. Equipped with a 6-meter retractable suction boom, a feces observation window, and an overflow valve, it offers convenient, safe, and reliable operation.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Performance Features
1. Efficient Operation: A pumping speed of 6 m³/min can fully pump a 4-cubic-meter tank in 5 minutes, making it suitable for frequent operations.
2. All-Wheel Drive Adaptability: 4×4 drive enhances escape capabilities, making it suitable for use in unpaved rural areas, farms, and other environments.
3. Durability:
• Carbon steel tank body with corrosion protection and internal reinforcement to prevent deformation.
• The water ring pump has a simple structure and a low failure rate.
4. Safety Design: Multiple protection features, including a relief valve and observation window, prevent the risk of overload and operational errors.
• Visual suction pipe allows for real-time monitoring of suction status to prevent blockage or overload.
• Hydraulic ladder for easy access and maintenance

» Ⅱ. Product Parameter for HOWO 4CBM fecal suction truck:
|
HOWO 4x4 RHD 4cbm vacuum pumper truck |
|
|
General |
|
|
Dimensions |
5995 x 2200 x 2560mm |
|
Weight |
3050kg |
|
Cab |
Sinotruk 1880 single-row RHD cab |
|
Max speed |
115km/h |
|
Chassis |
|
|
Wheelbase |
3360mm |
|
Front axle |
2 tons |
|
Rear axle |
3.5 tons |
|
Gearbox |
Wanliyang 6-speed gearbox, WLY6TS40 |
|
Vehicle frame |
Straight-through reinforced beam |
|
Tires |
7.00R16 steel tires |
|
Number of tires |
6+1 |
|
Drive type |
4*4, Steering wheel, right-hand drive |
|
Engine |
|
|
Model |
YN4102QBZL |
|
Type |
Inline 4-cylinder,diesel |
|
Power |
116HP/ 85kW |
|
Rated speed |
3000rpm |
|
Max torque |
290N.m |
|
Max torque speed |
1800-2100rpm |
|
Displacement |
3.76L |
|
Emission standard |
Euro 2 |
|
Fuel tank |
80L aluminum alloy fuel tank |
|
Upper-body |
|
|
Tank volume |
4cbm |
|
Tank material |
Q235 carbon steel,carbon steel |
|
Vacuum pump |
Water circulation vacuum pump |
|
Water circulation pump model |
YIFENG SK-6 (Chinese brand) |
|
Speed |
970rmp |
|
Maximum pumping speed |
6 m³/min |
|
Diameter |
Inlet: DN100, outlet: DN100 |
|
Water consumption |
80-100L/min |
|
Suction pipe |
1 piece/6 meters |
|
Stool viewing window |
Yes |
|
Grass flow outlet |
Yes |
|
Overflow prevention valve |
Yes |
|
Feed inlet |
DN100 |
|
Feed outlet |
DN100 |
|
Tank lifting |
Hydraulic cylinder/2 pieces |
|
Tank rear cover |
Can be opened with hydraulic pressure |
|
Color |
According to your wish |
» Ⅲ. Product Detailed introduction

Core Powertrain and Chassis Configuration
1. Cabin: HOWO Hanjiang 1880 single-row cab, right-hand drive layout, conforming to right-hand drive driving habits in China.
2. Drive Type: All-wheel drive (4×4), adaptable to complex road conditions such as muddy and sloped roads.
3. Wheelbase: 3360mm, balancing passability and stability.
4. Engine: YN4102QBZL diesel engine, 116 horsepower, high torque at low speeds, and abundant power.
5. Transmission: WLY6TS40 manual transmission (6 speeds), high transmission efficiency and low maintenance costs.

Upper System

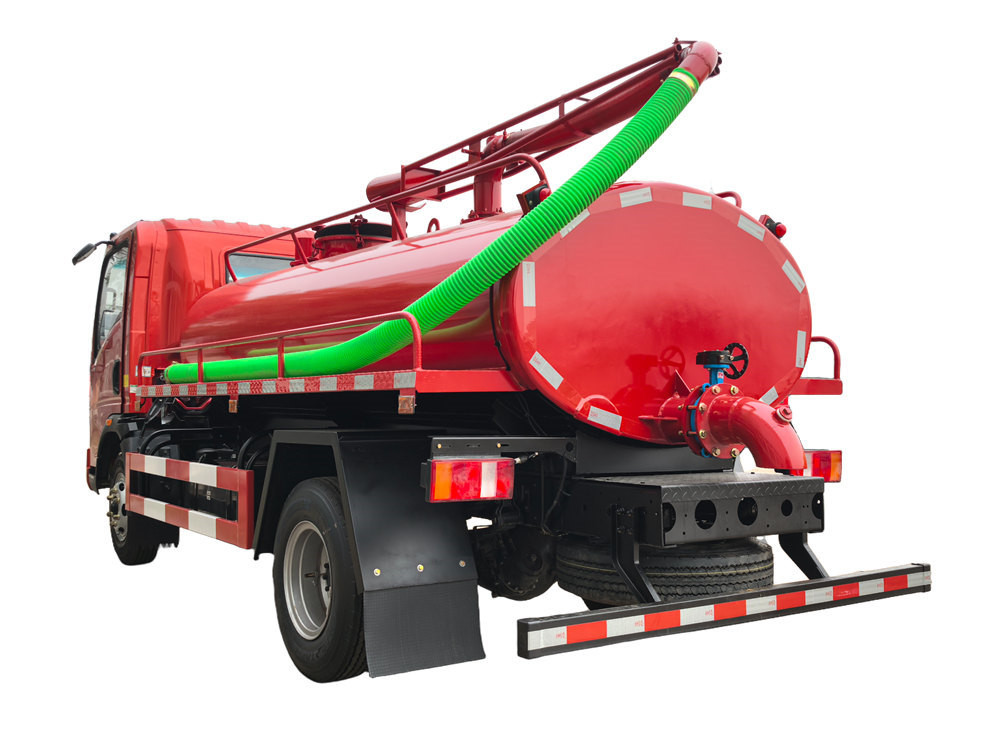

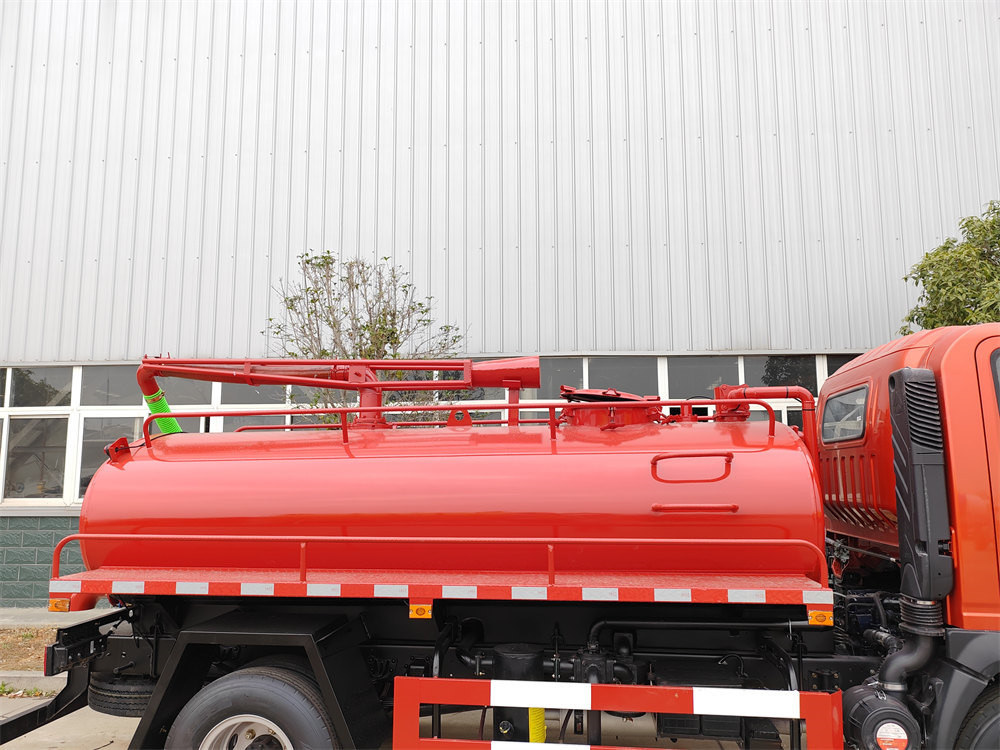

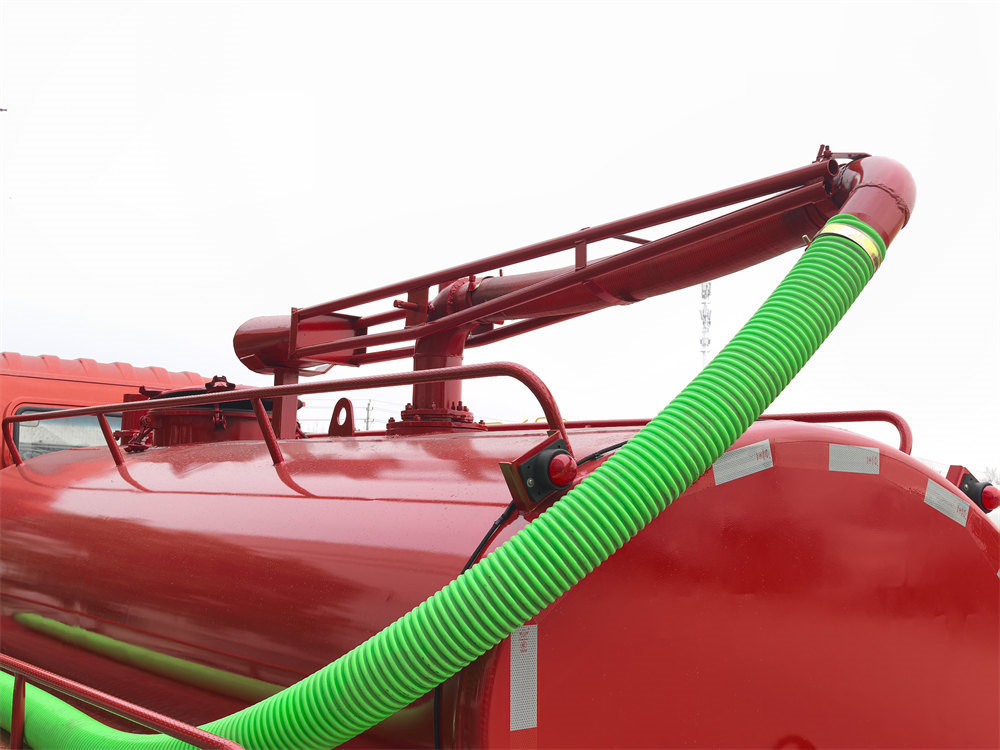

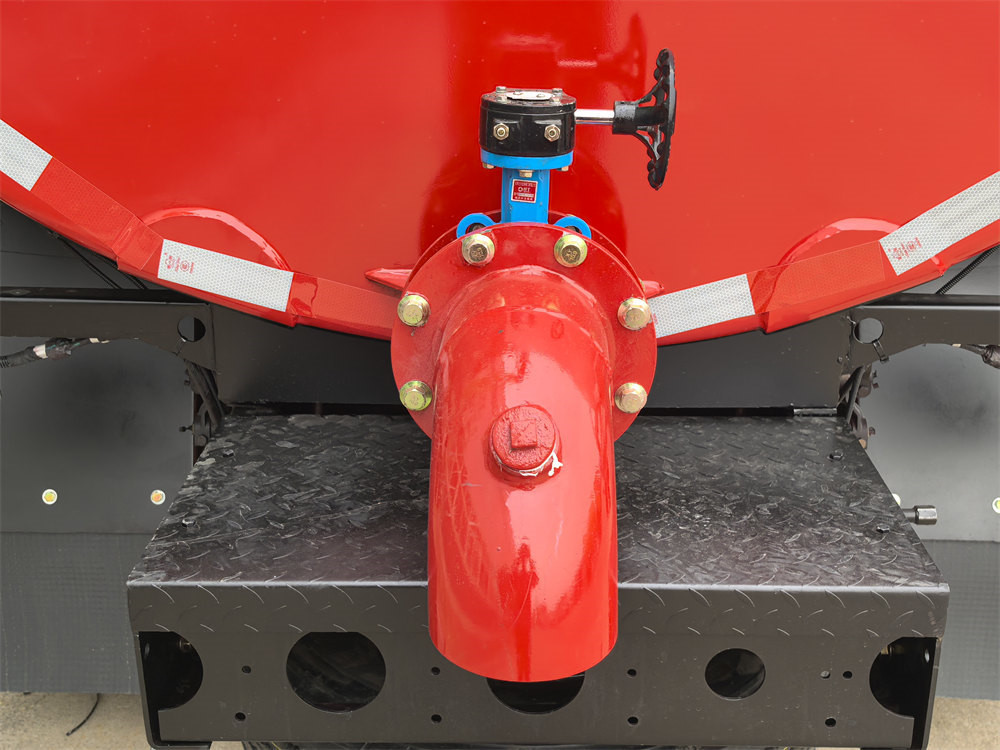

• Tank: 4 cubic meter carbon steel tank, ≥ 4mm thick, treated with an anti-corrosion and rust-resistant coating for extended service life. A 6-meter retractable suction boom is installed on top, enabling multi-angle operation. A discharge valve is installed at the rear, allowing for gravity or compressed air-assisted discharge.

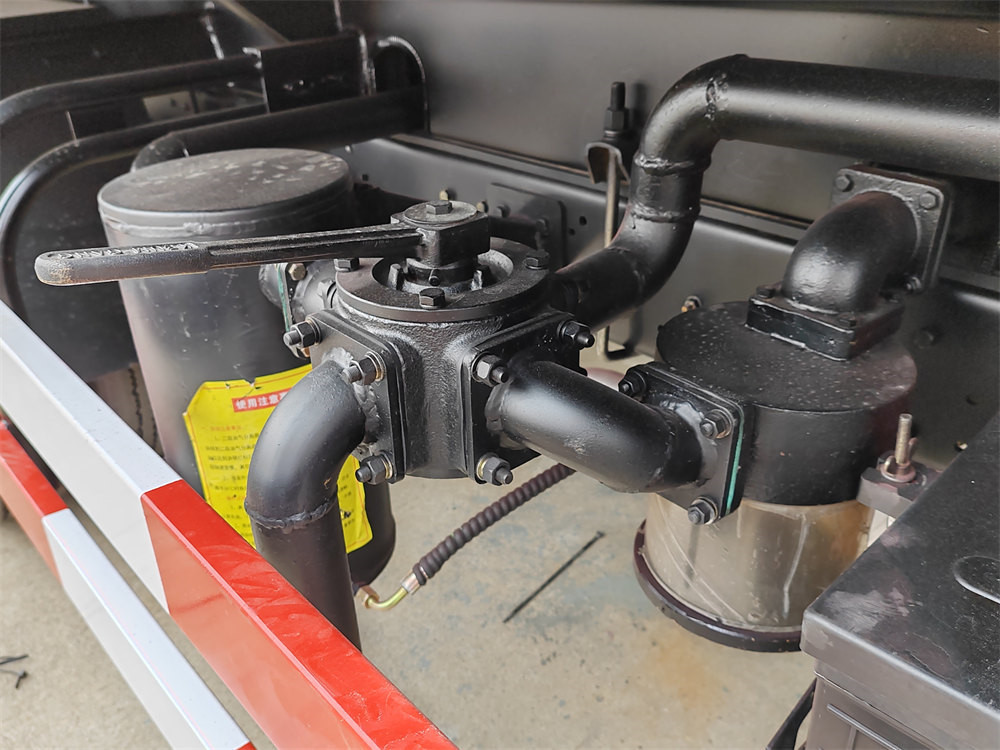

• Vacuum Pump: Yifeng SK-6 water ring vacuum pump, with a maximum pumping speed of 6 m³/min and a speed of 970 rpm, for high suction efficiency. A relief valve prevents overloads and a water/oil separator ensures continuous and stable operation.

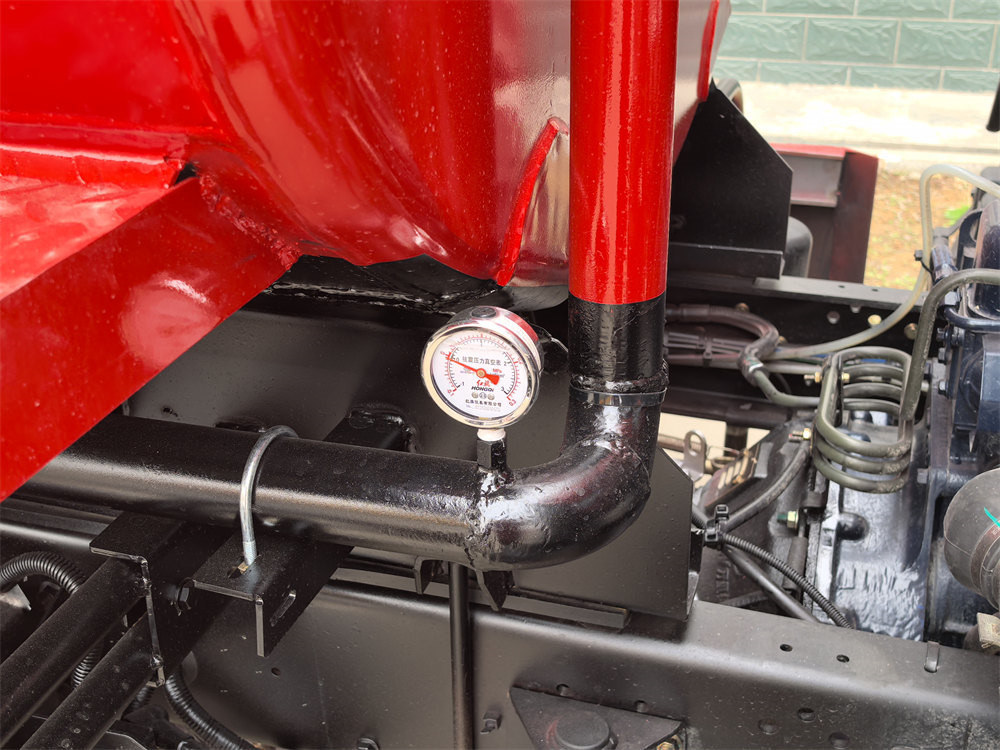

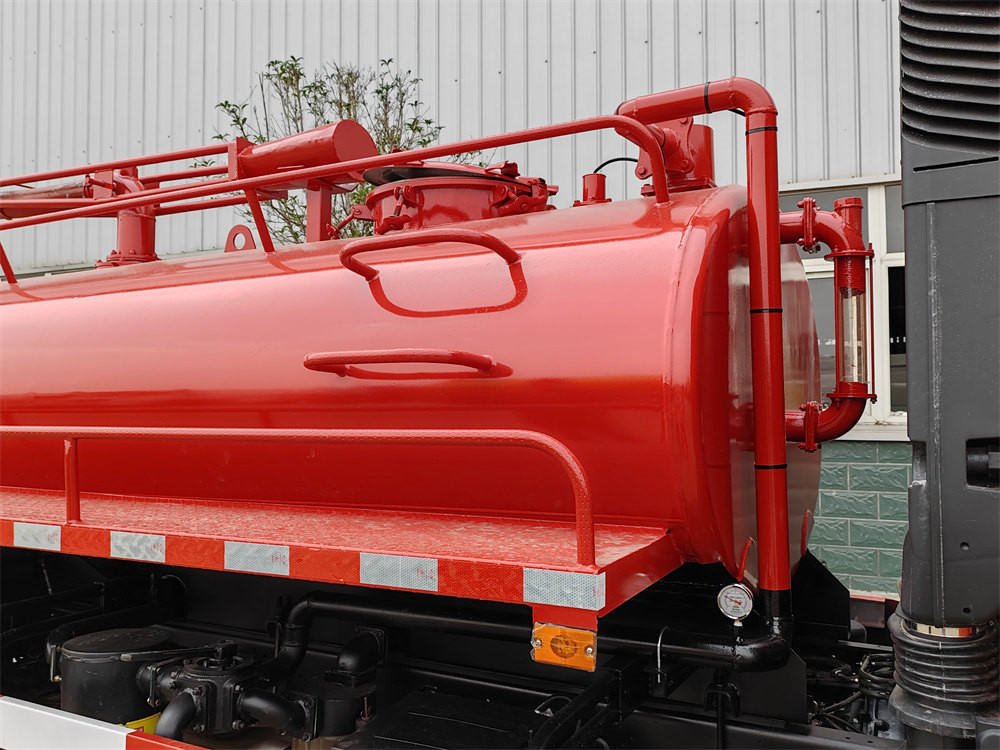

• Safety and Monitoring: A septic view window is located at the front of the tank for real-time monitoring of internal conditions. A vacuum pressure gauge prevents overpressure. A relief valve automatically releases pressure to prevent overpressure. A quick exhaust valve accelerates discharge during unloading.

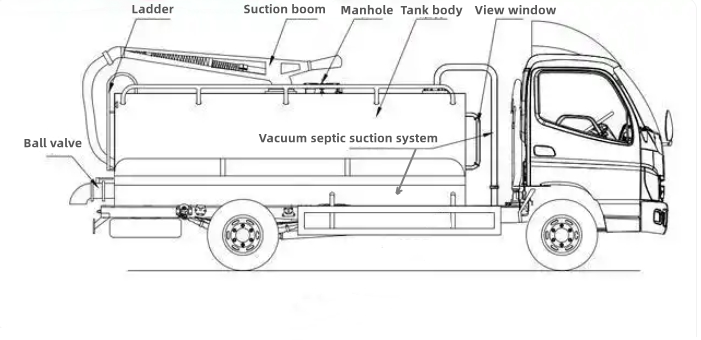

Drawing Of Septic Suction Truck:
» Ⅳ. Working Principle

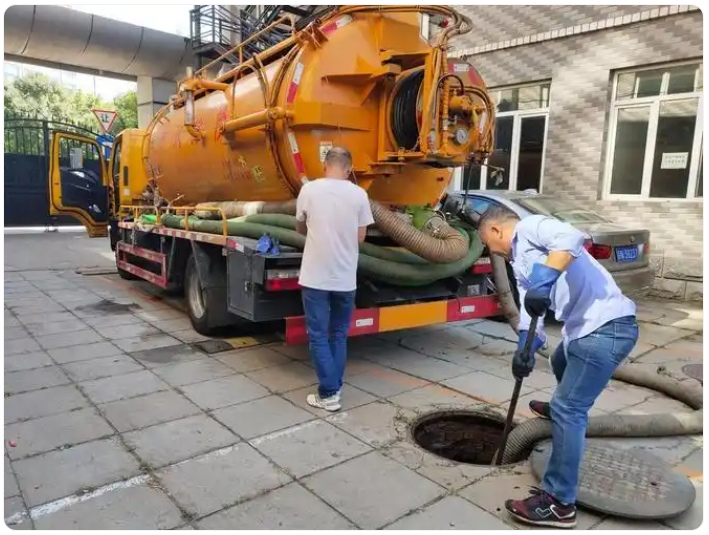

1. Suction Process:
◇ The vacuum pump's power comes from the chassis engine. This power is transmitted to the vacuum pump via the transmission, power take-off, and drive shaft.
◇ When the vacuum pump is running, a negative pressure is created inside the tank, drawing waste/wastewater into the tank through the suction pipe.
◇ The water ring pump uses circulating water to seal the tank, preventing air leakage and cooling the pump.
2. Discharge Process:
Open the tank's rear cover or valve, and quickly empty the tank using gravity or air pressure differentials.
