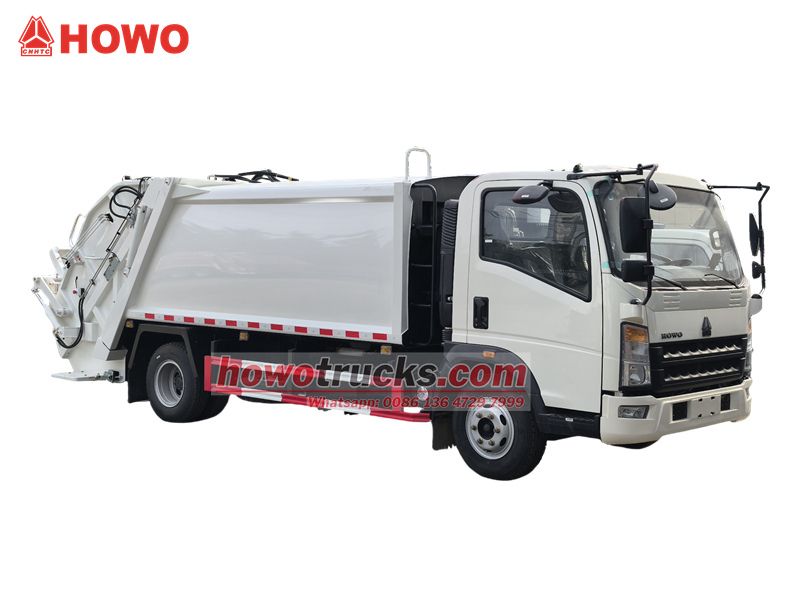

HOWO 6 cubic rear loader garbage truck

HOWO 6 cubic rear loader garbage truck

The HOWO 6-cubic-meter garbage compactor is a modern sanitation vehicle built on the HOWO light-duty chassis. The compactor body is constructed from high-strength steel and incorporates bidirectional compression technology, achieving a compression ratio of over 2.5:1. This enables a loading capacity 2.5 times greater than that of ordinary vehicles in the same tonnage class. Equipped with an intelligent control system that supports one-touch automatic operation, a single operator can complete all tasks independently. Combined with a sealed wastewater tank design, it effectively prevents secondary pollution, significantly enhancing the efficiency and environmental standards of sanitation operations.

  • Working capacity :

    6CBM
  • Cabin type :

    HOWO 1080
  • Dimension (mm ) :

    6760×2200×2540
  • Drive system :

    4×2
  • Wheelbase ( mm) :

    3280
  • Engine specific :

    141HP/ISF3.8S141
  • Gear box :

    MLY 6-speed
  • Front axle ( Kg ) :

    3000
  • Rear axle ( Kg ) :

    2580
  • Remark :

    4×4, right hand drive available
New Products

The HOWO 6CBM Rear Loader Garbage Truck is a modern sanitation solution built on the HOWO chassis, with its core function centered around efficient waste collection and transportation via bidirectional compression technology. Powered by a 3.76-liter Cummins engine delivering 105 kW of power, this truck achieves a compression ratio of no less than 2.5:1 within its 6-cubic-meter sealed body, enabling an actual loading capacity 2.5 times that of non-compacting vehicles of the same tonnage. The vehicle features an arc-streamlined compactor body made of T420 high-strength steel, combined with integrated edge-folding technology, completely eliminating any risk of leakage.

Designed for both intelligence and user-friendliness, the HOWO refuse compactor truck is equipped with a CAN-bus control system, allowing a single driver to effortlessly manage the entire process—from loading and compression to unloading. The operational system supports both automatic and manual modes and intelligently regulates engine power output, improving work efficiency while significantly reducing fuel consumption and operational complexity. The rear of the vehicle is fitted with a multi-functional turnover mechanism compatible with various standard garbage bins. Additionally, the dual wastewater tank design at the mid and rear section ensures efficient and contamination-free operations, making it an ideal choice for enhancing urban sanitation management.

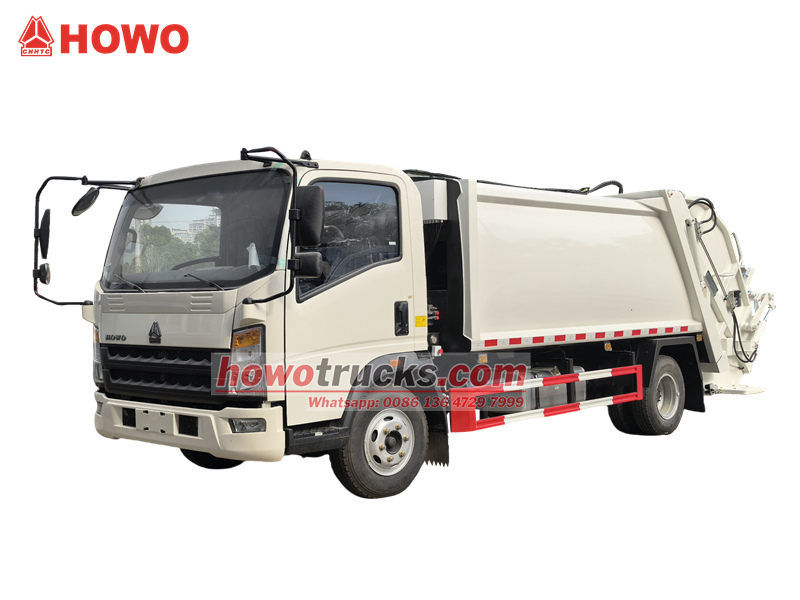

HOWO 6BM garbage compactor truck



*HOWO 4×2 Garbage Compactor Truck

 SINOTRUK HOWO 6CBM Rear Loader Garbage Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

1. Easy Waste Collection, High Compression Ratio, and Large Loading Capacity: The loading capacity is 2.5 times that of non-compacting garbage trucks of the same tonnage.

2. Automated Operation: Equipped with an imported computerized control system, all processes—including loading, compression, and discharge—can be handled by the driver alone. The system supports both fully automatic and semi-automatic operation modes, significantly reducing the labor intensity of sanitation workers and greatly improving the working environment.

3. Excellent Economical Performance: During specialized operations, the computerized control system automatically manages the throttle.

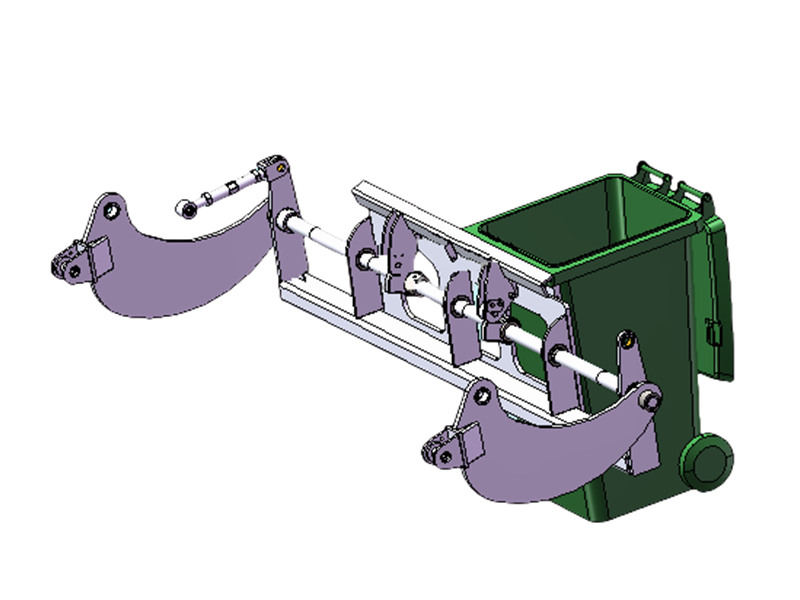

4. Bin Lifting Mechanism: The rear is fitted with a lifting mechanism for handling multi-capacity garbage bins, enabling automatic loading and unloading.



Ⅱ. Product Parameter for HOWO refuse compactor truck:



HOWO 6CBM rear loader garbage truck specifications

Vehicle information

Emission Standard

 Euro 3

Brand

 CS TRUCKS

Vehicle model

 CS5080ZYSC6

Driving Type

 4×2

Max. driving speed (km/h)

95

Approach/departure angle (°)

19/11

Dimensions

Wheelbase (mm)

 3280

Overall Dimensions (mm)

 6760×2200×2540

Compactor body volume (m3)

 6 CBM

Wheel track (Front/rear) (mm)

 1585/1595

Front / rear overhang (mm)

 1160/1780

Weight parameters

GVW (kg)

 8,280kgs

Max. Payload (kg)

 4,000kgs

Curb weight(kg)

 5,400kgs

Front axle load (kg)

 3000kg load capacity, leaf spring suspension

Rear axle load (kg)

5280kg drum rear axle, leaf spring suspension

Chassis

Frame

 Single-deck frame

Suspension

 Front and rear strengthen leaf spring

Tire

 7.50R16, total 6 tires + 1 spare tire

Engine

Brand

CUMMINS

Model

ISF3.8S3141

Engine type

4 stroke, direct injection, 4 cylinder in-line, water cooling, turbocharged with inter-cooler diesel engine

No. of cylinders

4 cylinders

Displacement(L)

3.76 L

Engine power(kw)

105kw/141HP

Rated speed (rpm)

2600

Max. torque/speed

450N.m/1200-2200rpm

Drive Line parameter

Clutch description

 Dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance

Transmission

 Manual operation, 6 forwarder,1 reverse gear

Braking system

Service brake

Air brake system, without ABS

Assistant brake

WEVB (Engine exhaust brake)

Park brake

Spring brake

 Steering wheel

 Power steering assistance, Left hand drive

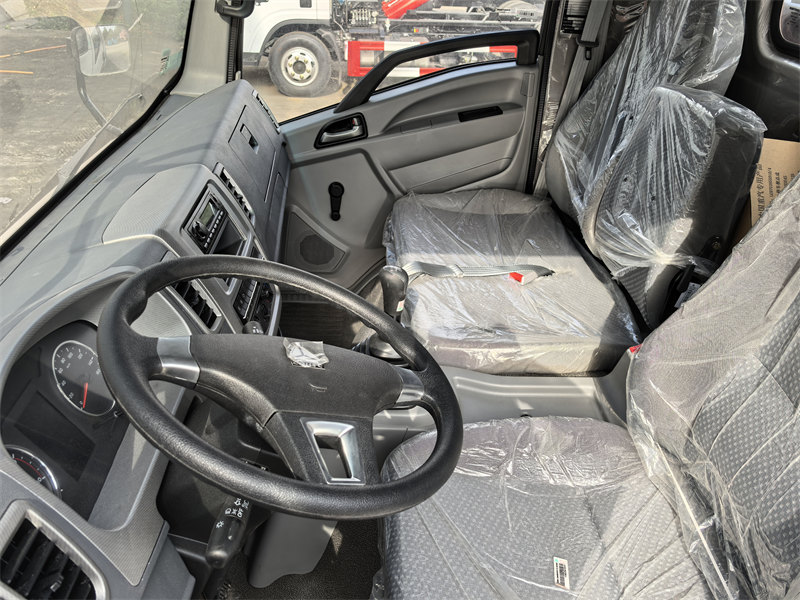

 Cab description

1. Single row, with cooling and heating air conditioner, electrical window, radio, USB interface
2. The cab can reversible forwardly, 2 people allowed

Upper body specifications

Garbage container volume (CBM)

Effective volume 6CBM

Garbage container shape

New style arc-shaped

The garbage container material

T420 high strength special steel

Compression ratio

≥2.5

Hopper effective volume(CBM)

Hopper volume: approximately 1cbm

Loading/unloading cycle time(s)

≤40s

Feeding cycle time(s)

≤15s

Garbage upload/discharge cycle time(s)

≤45s

Control model

Automated and manual 2 operation ways

Hydraulic system pressure (Mpa)

18Mpa

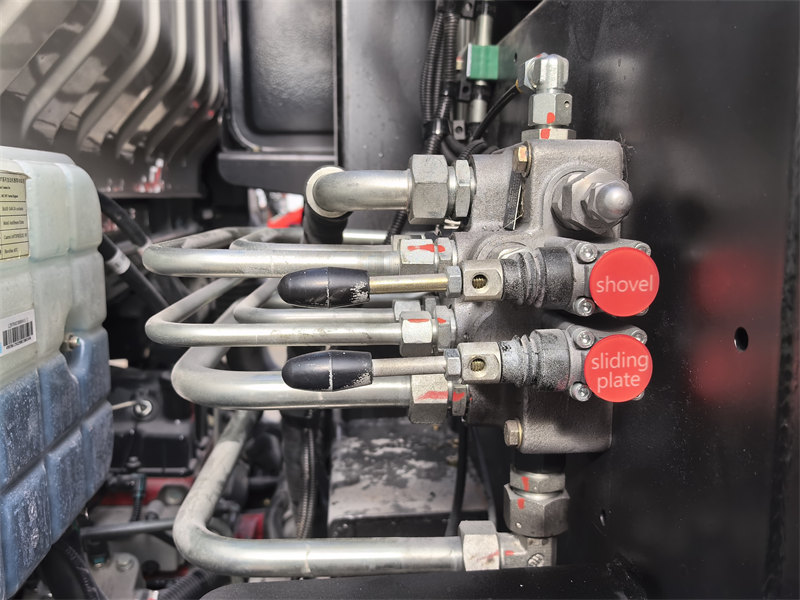

Multiple directional control valve

China famous brand

Hydraulic oil pump

Made in China

Power take off

Made in China

Hydraulic oil cylinder

China famous brand

Electrical control system (PLC)

SIEMENS PLC

Engine power control

Automatic control

Other special design characters of our garbage truck

1.New breakable scraper
2.Bidirectional peristalsis compression character
3.Equipped with middle and rear double sewage tanks to avoid secondary pollution
4.Shovel slider and skateboard slider are high quality MC nylon
5.The filler lift cylinder is equipped with a balancing valve
6.High profile light, side light, working light

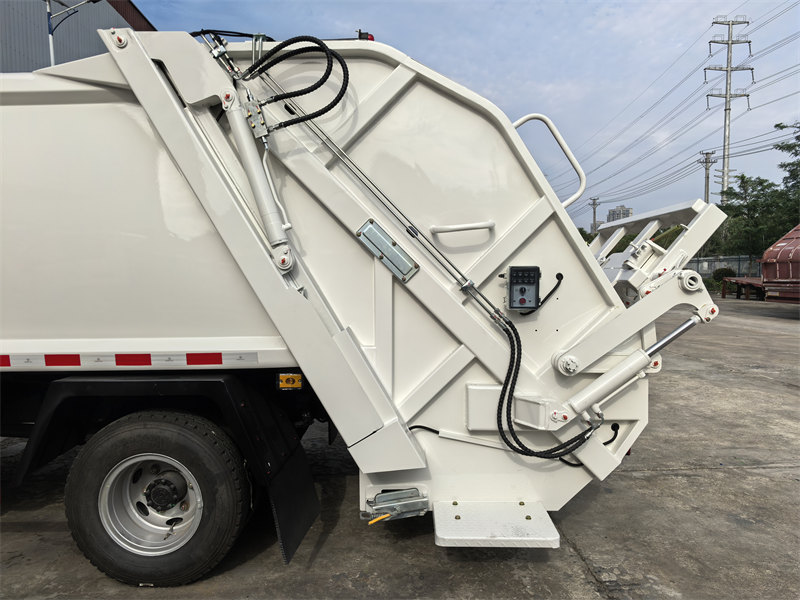

HOWO 6CBM waste compactor truck





Ⅲ. Product Advantages:

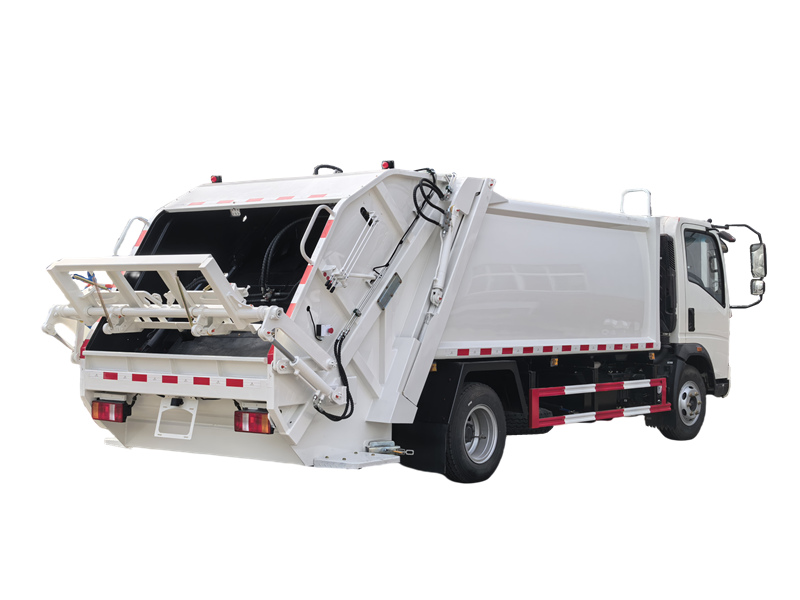

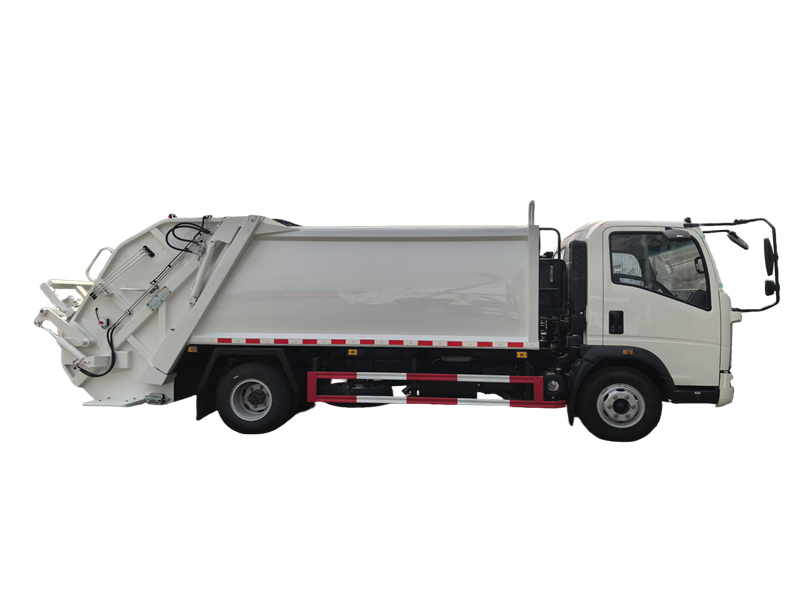

HOWO 6 wheeler garbage compactor truck

Strong load capacity

The vehicle boasts strong load-bearing capacity and is suitable for waste collection and transportation in diverse regions and over long distances.

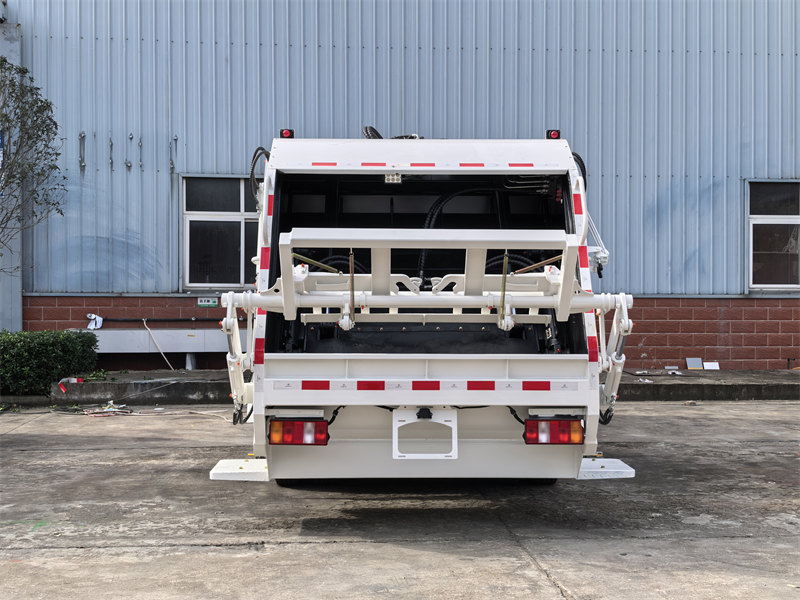

HOWO 4×2 truck mounted garbage compactor

Sealed Compactor Body

The compactor body features an arc-shaped streamlined design with an integrally folded base plate that requires no welding, effectively eliminating any risk of leakage. Constructed from high-strength manganese steel plates, it offers exceptional resistance to deformation, wear, and corrosion.

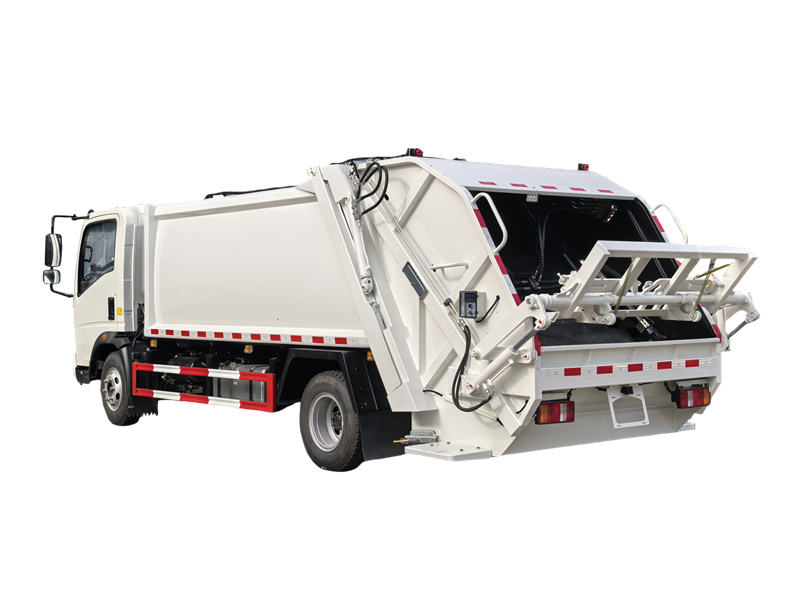

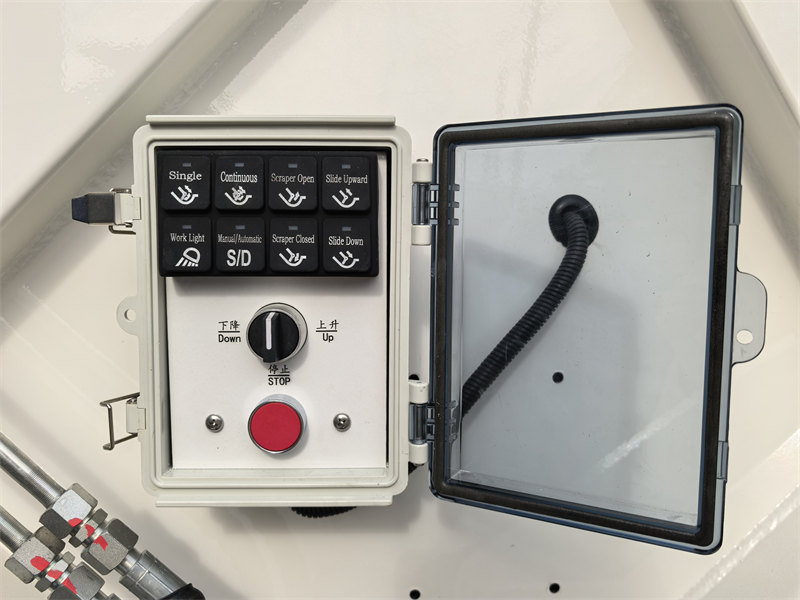

HOWO 6 cubic trash compactor truck

Automated Operation

The intelligent control system utilizes an imported CAN-bus design with a modular structure. By integrating both proximity switches and hydraulic sensing, it achieves an efficient, stable, and easily maintainable compression solution.

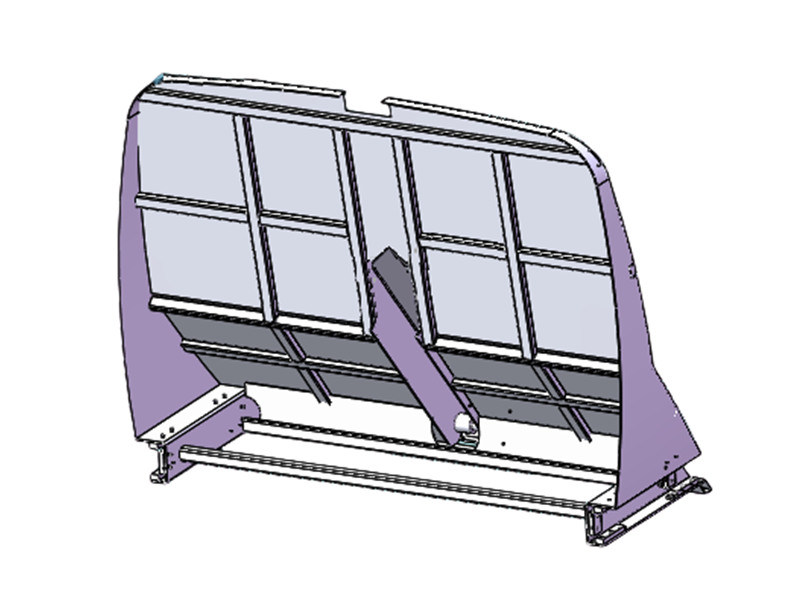

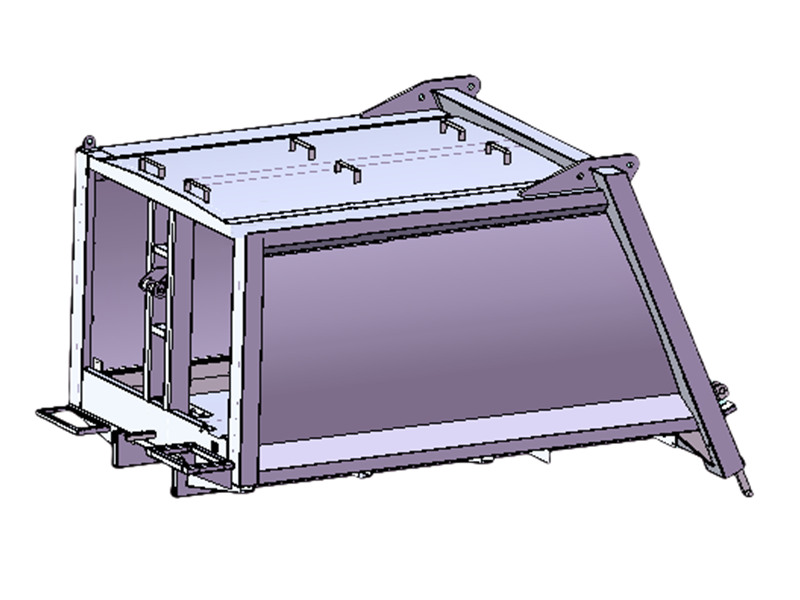

Ⅳ. Product Drawing:

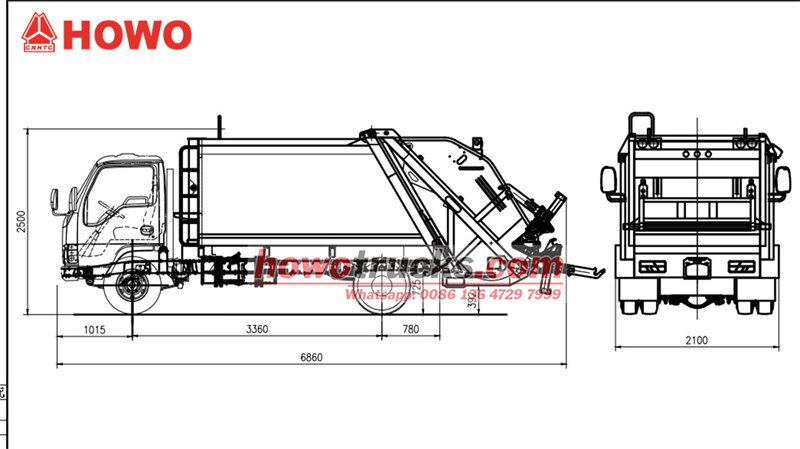

HOWO waste compactor truck drawing




Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.













HOWO waste compactor trucks for export

SINOTRUK HOWO rear loader compactor trucks for export

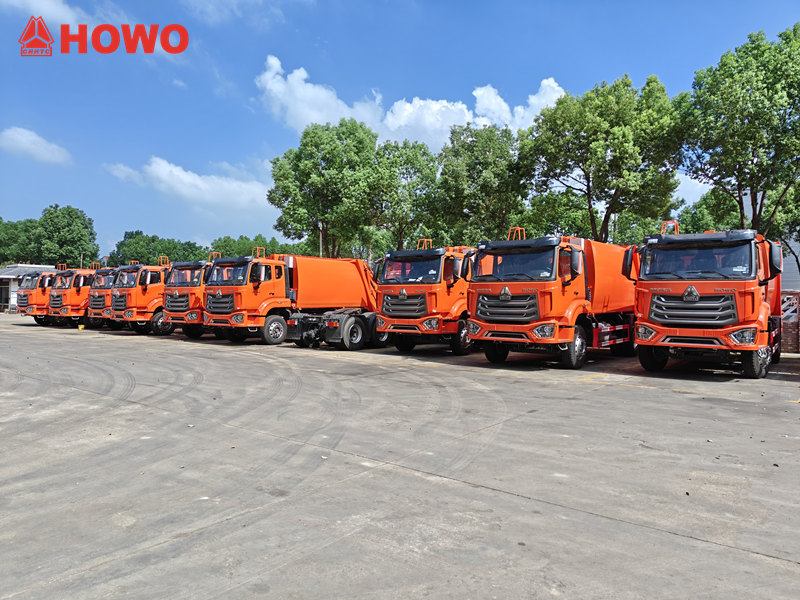

SINOTRUK HOWO refuse compactor trucks for export

SINOTRUK HOWO rear end loader trucks ready for delivery
