Africa HOWO light 8CBM trash compactor truck

Africa HOWO light 8CBM trash compactor truck

The Howo 8CBM garbage compactor truck is a high efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo 4x2 chassis, the garbage rear loader is equipped with a 160HP engine and a 6 speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo light 8CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.

  • Working capacity :

    8CBM
  • Cabin type :

    Light duty single cabin, with sleeper
  • Drive system :

    4x2
  • Wheelbase ( mm) :

    3800 mm
  • Engine specific :

    YC4E160-33 model 160HP, Euro 2
  • Gear box :

    WLY, manual 6F and 1R
  • Front axle ( Kg ) :

    4000
  • Rear axle ( Kg ) :

    7000
New Products

The Howo 8CBM garbage trash compactor truck is a high efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo 4x2 chassis, the garbage rear loader is equipped with a 160HP engine and a 6 speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo light 8CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.



HOWO 8cbm rear loader truck




*SINOTRUK HOWO Light Duty Rear Loader Truck
8CBM Garbage Trash Compactor Truck
HOWO Light Duty compactor lorry*
-----------------------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

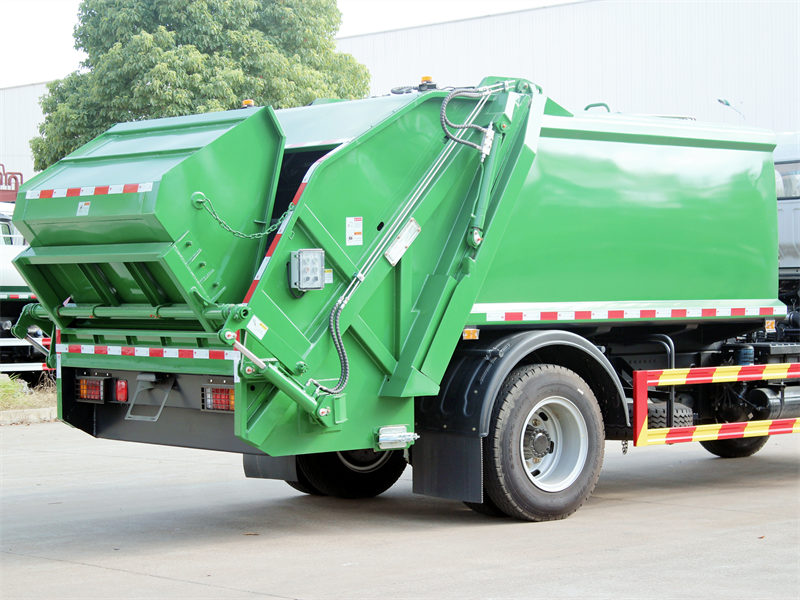

  • HOWO 8cbm garbage compactor vehicle
  • HOWO 8cbm garbage compactor vehicle

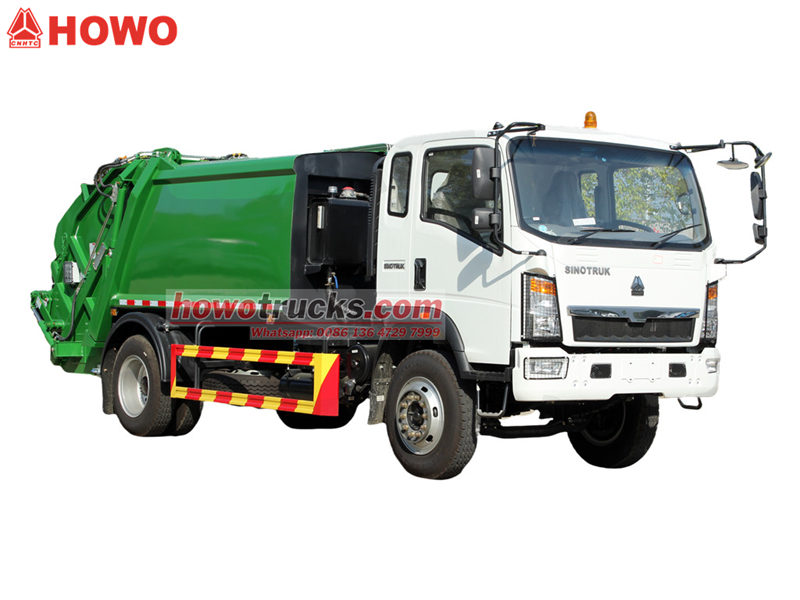

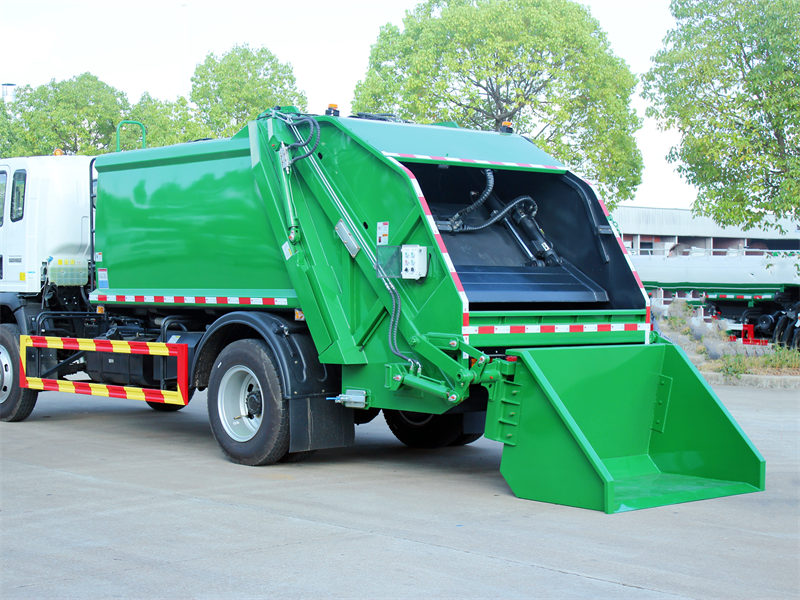

  • HOWO 8cbm rear loader truck


✦Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS Group
Features:



Chassis: Based on SINOTRUK 4x2 chassis, with 160HP diesel engine

Tank Volume: Garbage compactor tank capacity 8CBM

Tank construction: Tank made of 4-5mm thick reinforced steel (side 4mm, bottom 5mm)

Compression System: Hydraulic compaction mechanism, electrically controlled with manual override

Operation Scope: Suitable for municipal solid waste collection, commercial refuse compaction, and urban sanitation operations

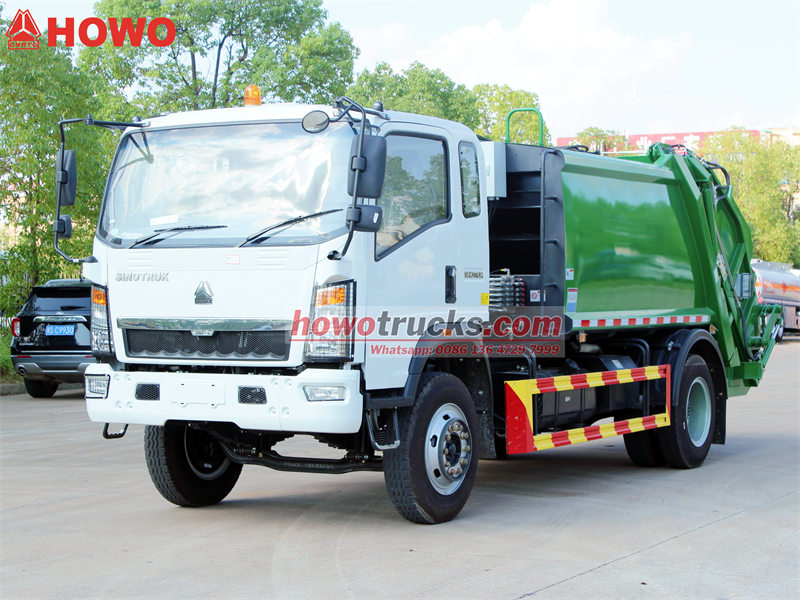

HOWO 8CBM garbage compactor vehicle



HOWO 20CBM garbage compactor truck


✦Ⅱ.Product Parameter for Howo 8CBM Rear Loader:
Howo light duty 8 CBM garbage compactor truck

Howo 8CBM REAR LOAD GARBAGE TRUCK

Chassis Model

Howo light

Engine

Make: Howo

Diesel 4-stroke direct injection diesel engine

Engine model:YC4E160-33, Euro 6 emission standard

4-cylinder in-line with water cooled, turbocharged and intercooler

Maximum output: 160HP/118KW

Maximum torque: 600 N.m

Displacement: 4.2 L

Transmission

WLY, 6 forwards and 1 reverse, manual

Drive system

Left/Right hand 4x2 drive

Chassis

Frame: U-profile parallel ladder frame and reinforced subframe

Front suspension:8 pcs semi-elliptic leaf spring

Rear suspension:10+6 pcs semi-elliptic lea spring

Fuel tank: 100 L capacity with locking fuel cap

Steering

Power steering, hydraulic steering with power assitance

Brakes

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

ABS

Wheels & Tyres

Tire: 7 pcs 8.25R20

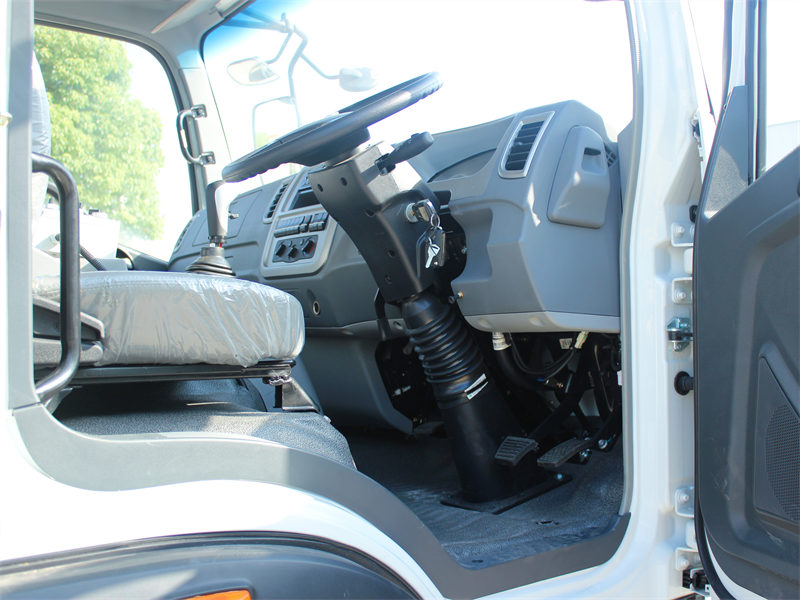

Driver's Cab

Howo 1970 wide cab, with three seats, A/C, electric glass, central lock

Dimensions  mm

Wheel base

4600 MM

Overall length

7400 MM

Overall width

2300 MM

Overall height

2640 MM

Weight  kg

Curb weight

6900 KG

Rated Loading Capacity

4000 KG

Gross vehicle weight(GVW)

11000 KG

Front axle loading capacity

4000  KG

Rear axle loading capacity

7000 KG

Compactor Body


Volume of body(m3)

10

Volume of filler(m3)

2

Time of one filling cycle(s)

≤25

Lifting time of filler (s)

8-10

Time of discharge (s)

 ≤40

Pressure of hydraulic system (Mpa)

18

Front/rear sewage capacity (L)

250+150

Control system

 CAN-bus (electrical) and manual (hydraulic)

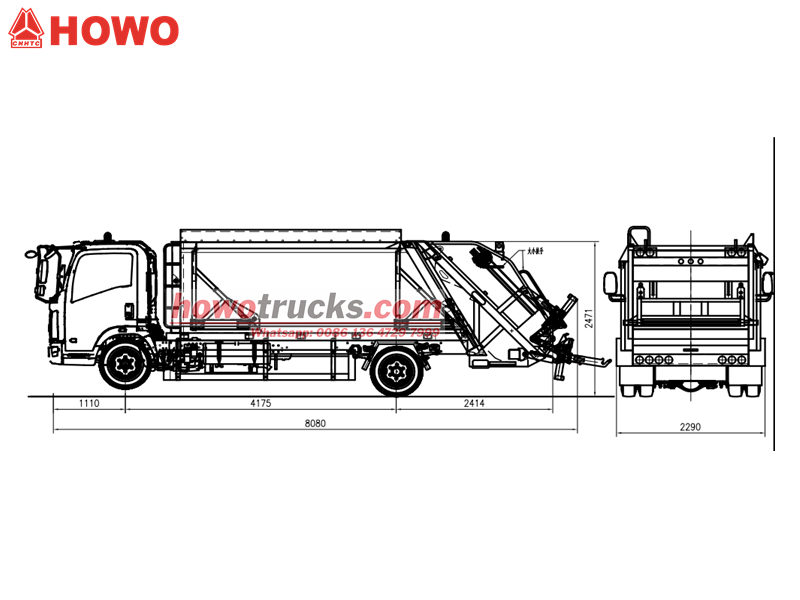

HOWO rear loader truck drawing

✦Ⅲ.Feature for Howo Light 8CBM Garbage Trash Truck:

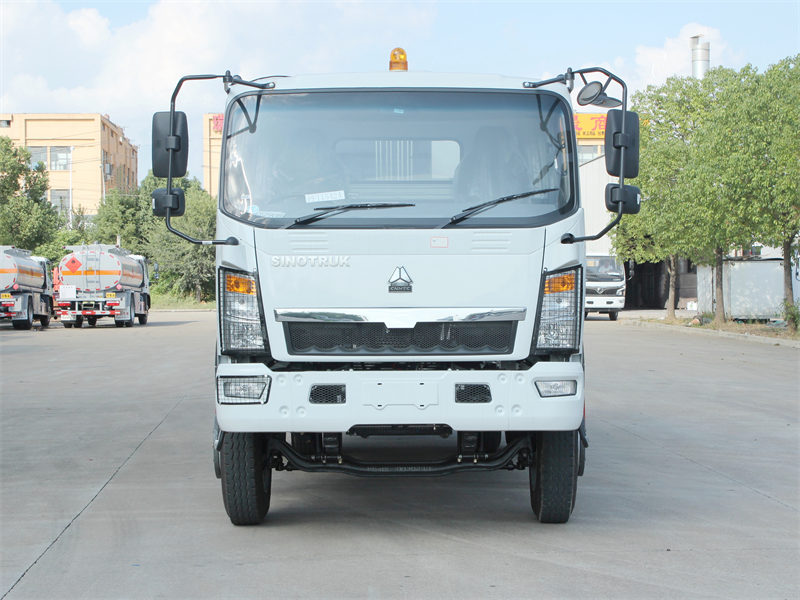

Howo garbage compactor truck



Howo garbage compactor truck

1.Chassis Configuration:

►Engineered with a heavy-duty frame structure

The chassis supports a maximum authorized weight of 10,300 kg

The unladen weight of  4,350 kg, providing dependable load-handling capability for compaction-based waste transport duties.

►6-speed manual gearbox with 3,800 mm wheelbase ensures stable power delivery during compaction cycles.

Howo garbage compactor truck

2. Efficient compactor system:

►Two-stage spiral compactor mechanism (compactor ratio ≥3:1) with intelligent pressure sensor

►Modular hydraulic power unit (working pressure ≥18MPa) + energy-saving start-stop control

►Sealed push plate structure (leakage rate ≤0.1%), standard sewage diversion trough

Howo garbage compactor truck

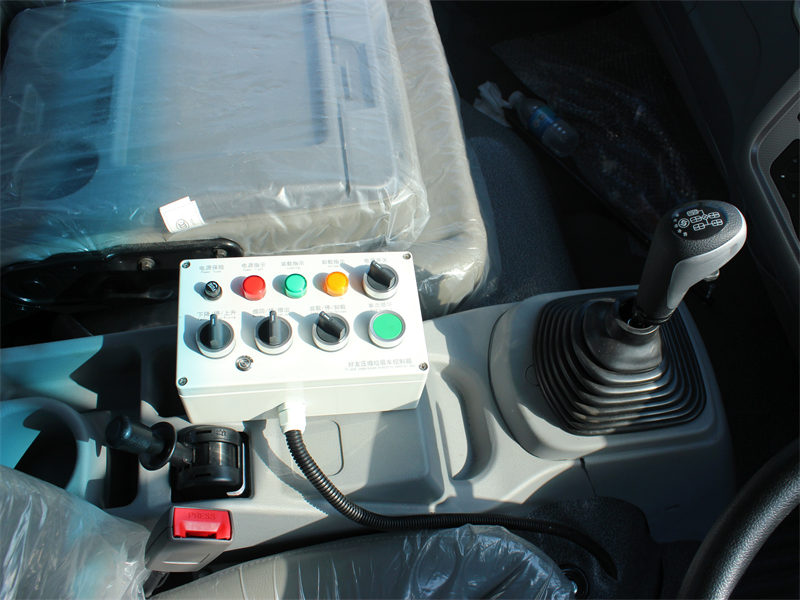

3. Intelligent operation system:

►CAN bus integrated control system (including load monitoring/fault self-diagnosis)

►Reversing radar + 360° surround image (IP69K protection level)

►Remote monitoring module (4G transmission + GPS trajectory tracking)

Howo garbage compactor truck

4. Enhanced scene adaptability:

►Two-way side-mounted/rear-mounted compatible mechanism (adaptable to 240-660L standard barrels)

►Wear-resistant composite steel plate carriage (HB400 hardness + anti-corrosion coating)

►Anti-slip working platform (friction coefficient ≥0.8) + LED warning light set



✦Ⅳ.Core Funcations and Working Principles:

1.Loading and Collection:

    Workers empty waste from garbage bags or bins into the rear hopper





Howo light garbage compactor truck

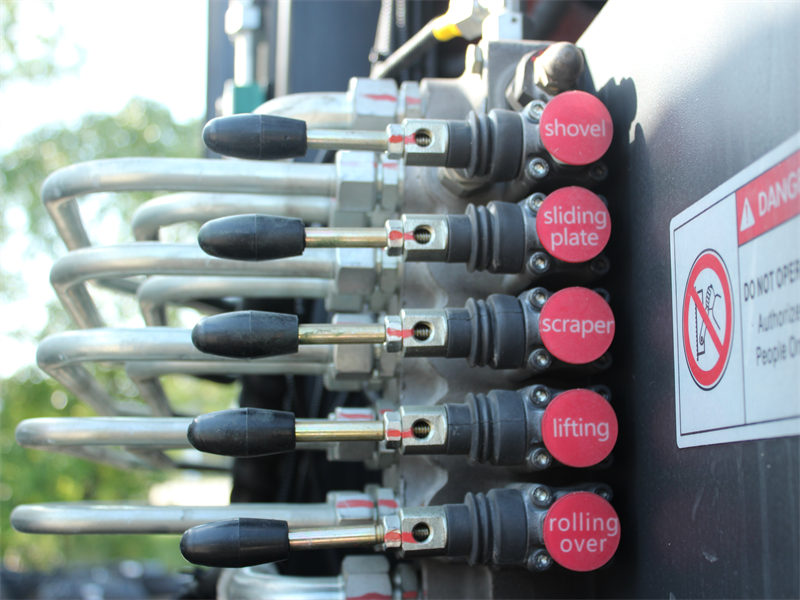

2.Hydraulic Compaction:

    Powerful hydraulic slides and scrapers (pressure up to 80,000 lbs) push the waste from the hopper into the truck bed and compress it forcefully.

    This compaction ratio is typically between 5:1 and 6:1, significantly increasing the capacity of a single transport.



Howo light garbage compactor truck

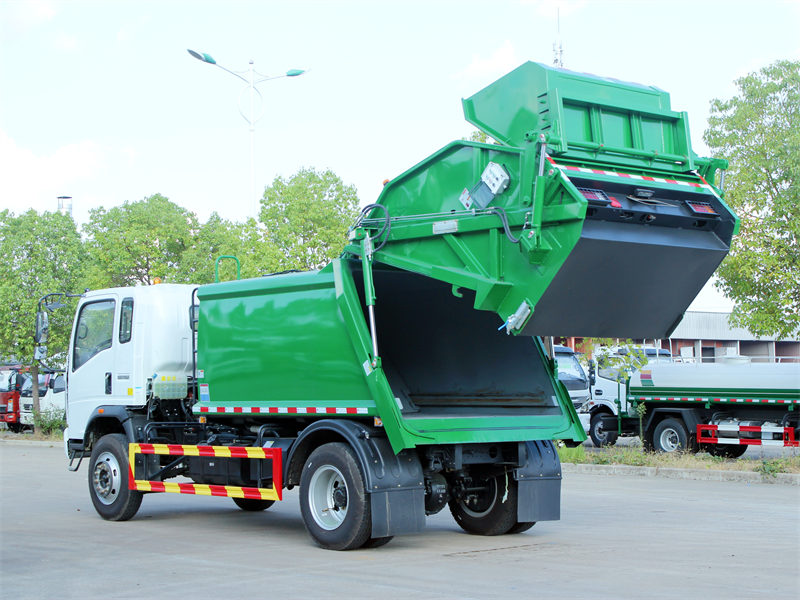

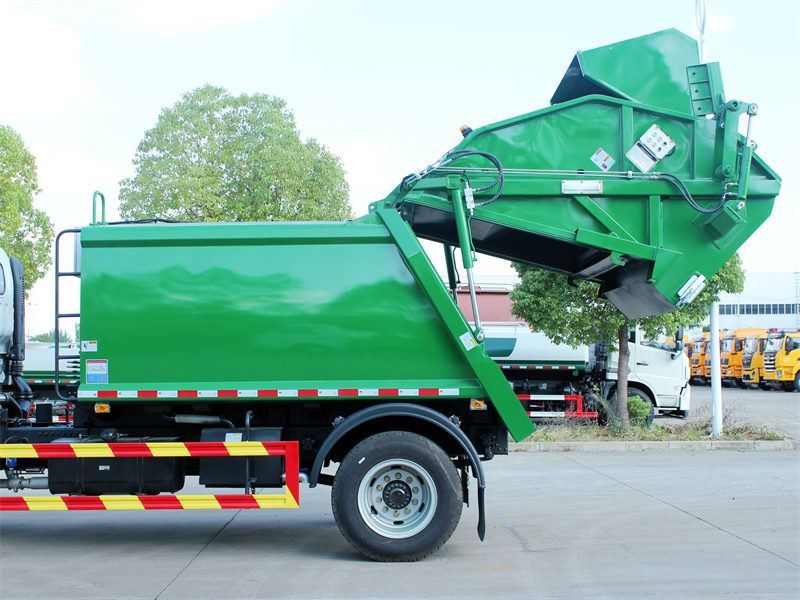

3. Unloading:

     Upon arrival at the landfill, the rear of the truck rises, and pushers inside the truck bed eject the compressed waste as a whole.

  • Howo light garbage compactor truck

  • Howo light garbage compactor truck

  • Howo light garbage compactor truck







⇒ Products--100% China HOWO factory trucks!

⇒ Shipping--100% fast,Convenient, Efficient!

⇒ Guarantee--7 days + 24 hours Safety Service!



China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

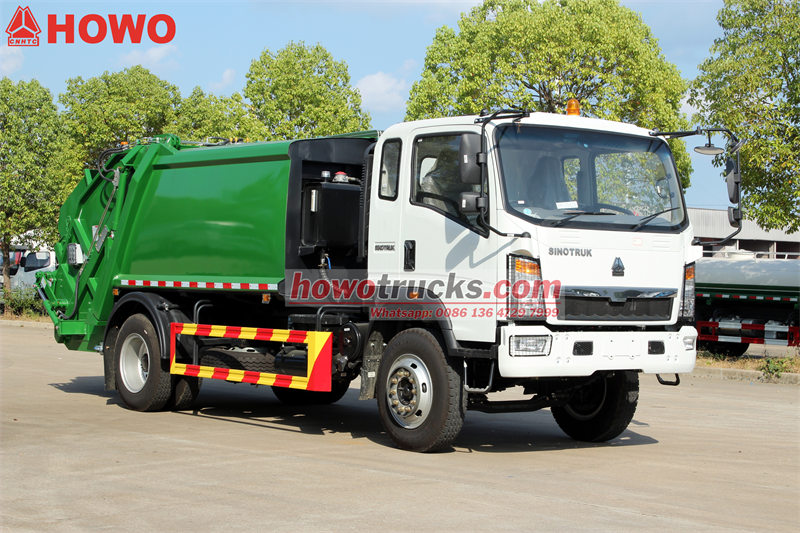

HOWO rear loader truck



HOWO rear loader truck
