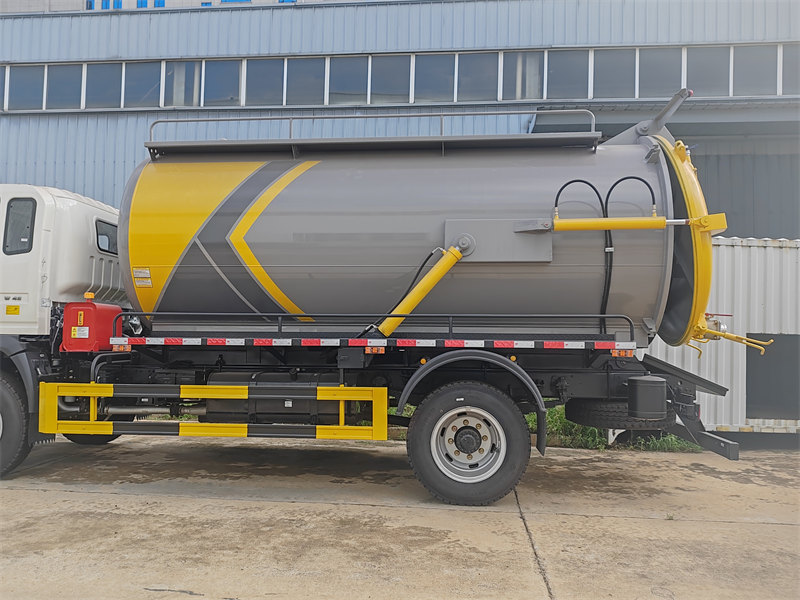

HOWO 8000L vacuum tank pump truck

HOWO 8000L vacuum tank pump truck

The HOWO 8000L vacuum suction truck is a specialized vehicle designed for collecting and transporting sewage and sludge using the principle of vacuum negative pressure. Equipped with a high-power vacuum pump, it delivers strong suction power and efficiently cleans sludge, solid debris, and other waste from septic tanks and sewer systems. Its 8000-liter capacity tank, combined with a hydraulic lifting system, enables rapid self-discharging. This vehicle is widely used in municipal sanitation and industrial applications.

  • Working capacity :

    8000 liters
  • Cabin type :

    HOWO 2080
  • Drive system :

    4×2
  • Wheelbase ( mm) :

    3800
  • Engine specific :

    160HP/YC4E160-33
  • Gear box :

    WLY 6-speed
  • Front axle ( Kg ) :

    2700
  • Rear axle ( Kg ) :

    7200
New Products

The HOWO 8000L sewage tank truck is a specialized sanitation vehicle used for cleaning and transporting sludge and sewage. It operates on the principle of vacuum negative pressure to achieve containerized collection of waste, effectively preventing secondary pollution. Built on a HOWO 4×2 light-duty chassis, it is powered by a YC4E160-33 diesel engine and features an SK-15 water circulation vacuum pump. With an 8-meter suction hose and a maximum vacuum degree of 95%, it can quickly extract sludge, stones, and other solid materials from sewer systems within a 7-meter suction range, completing a single operation cycle in just 5 minutes.

This HOWO vacuum pump truck features an 8000-liter tank made of 6mm carbon steel, along with a hydraulic lifting system and a hydraulic rear cover opening/closing mechanism. The tank can be lifted at an angle of ≥45°, and the rear cover opens at an angle of ≥75°, significantly improving discharge efficiency. It is particularly suitable for municipal sanitation tasks such as cleaning septic tanks and storm drains, while also performing efficiently in sewage collection and transportation tasks at construction sites, farms, and other industrial settings.

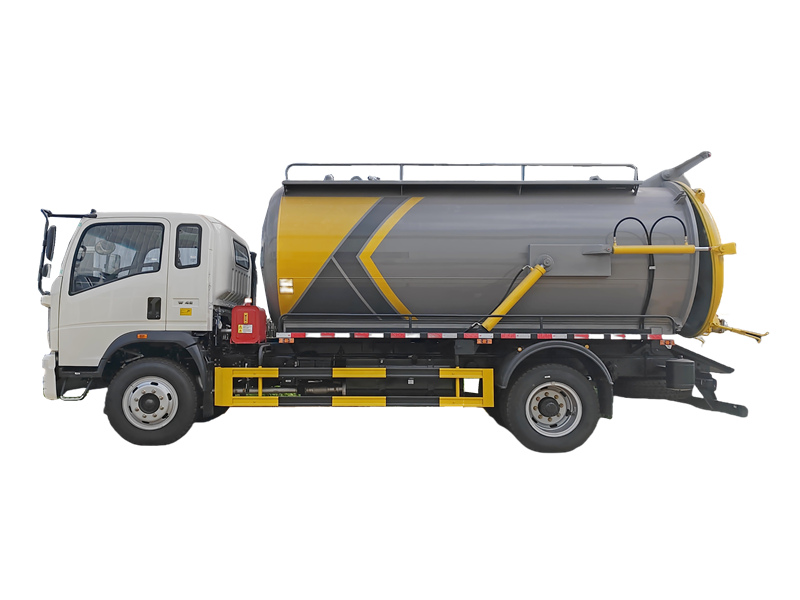

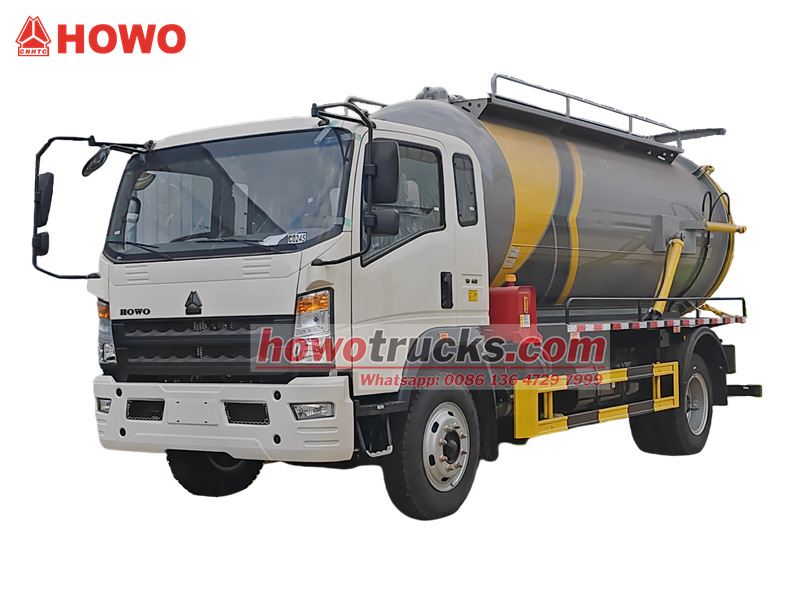

HOWO 4×2 vacuum tank truck



*HOWO 4×2 8000L Vacuum Truck

HOWO 6 wheeler Septic Tank Pump Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

★ Based on HOWO 4×2 light duty chassis, with YUCHAI 160HP diesel engine and WLY 6-speed gearbox.

★ Tank body made of high quality carbon steel, 6mm thickness, with 8000L capacity.

★ Equipped with water circulation type vacuum pump, which has large suction volume.

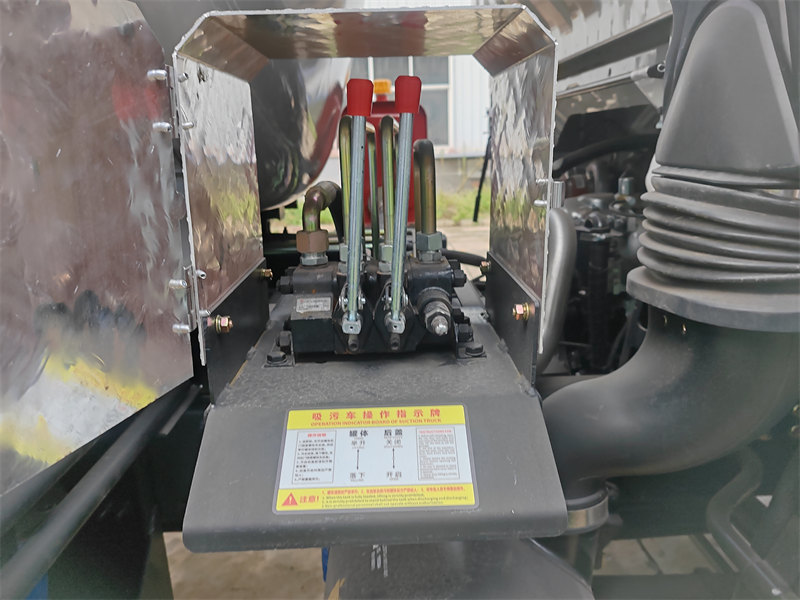

★ The tank features hydraulic lifting and a hydraulically operated rear cover for efficient waste discharge.



Ⅱ. Product Parameter for HOWO 4×2 sewer vacuum truck:



SINOTRUK HOWO 8,000L Sewage Suction Truck

Chassis

Chassis brand

HOWO

Overall dimensions(mm)

 6995×2400×2650

Wheel base(mm)

3800

Driving type

4×2

Steering

Left drive hand

Approach/departure angle(°)

27/22

Front /rear overhang(mm)

1240/1955

Axle (front/rear)

2700/7200 kg

Wheel track(front/rear)(mm)

1760 /1595

Tyre size

8.25R16

Tyre number

(6+1)one spare tire

Max driving speed(km/h)

95

Engine

Model

YC4E160-33

Cylinder

4-cylinder

Engine manufacturer

YUCHAI

Engine type

Diesel

Engine power

160HP/118KW

Engine displacement

4257 ml

Engine emission

Euro 3

Max. torque

600 N.m

Rated speed

2600 rpm

Transmission

Model

WLY646

Gears

6-speed forward and 1 reverse

Tank Body

Tank capacity

8000 liters

Tank material

High quality carbon steel Q235

Tank thickness

6mm thickness

Structure

Vacuum tank, Cylindrical

Special function

Self-priming height

7 meter

Suction time and drainage time

≤5min

Lifting Angle of tank body

≥45°

Maximum vacuum

95%

Lifting time

≤45 S

Rear cover opening Angle

≥75°

Rear cover opening time

≤25 S

Suction hose

High quality PVC suction hose 8 meter

Vacuum pump

Model

SK-15

Pump type

Water circulation pump

Flow

15m3/h

Ultimate pressure

-0.093 Mpa

Rotating speed

970 rpm

Pump shaft power

30 kW

Standard configuration

View window, a self-flow port, hand-washing device, Water Vapor Separator, Oil Vapor separator, anti-overflow Valve, a sealed manhole on the top of the tank, blow down ball valve, door locking device.

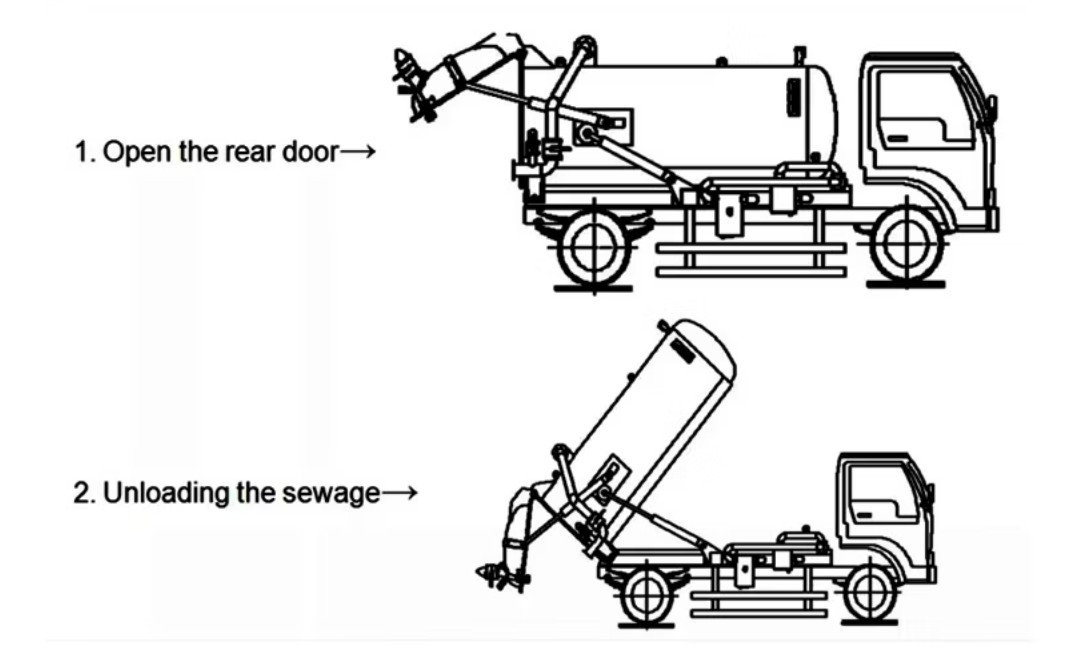

The vacuum tank body can be hydraulically lifted to 40-45 degrees.

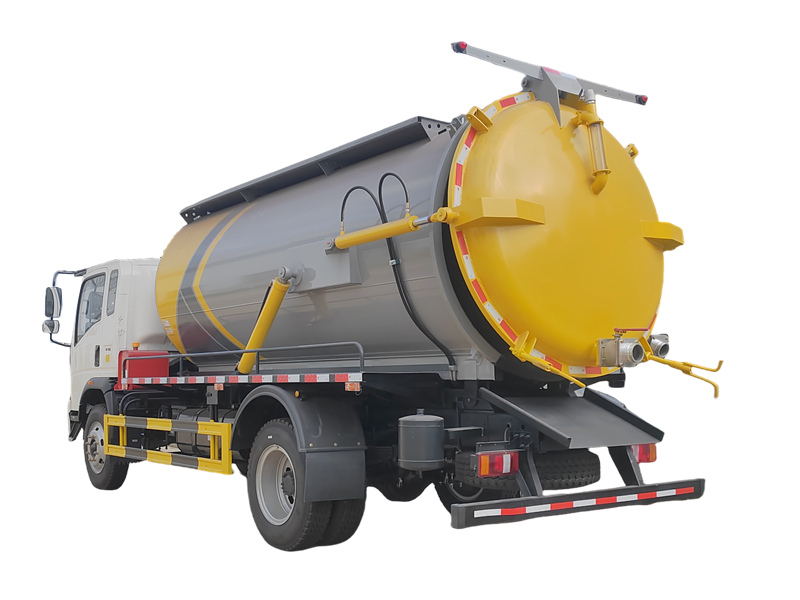

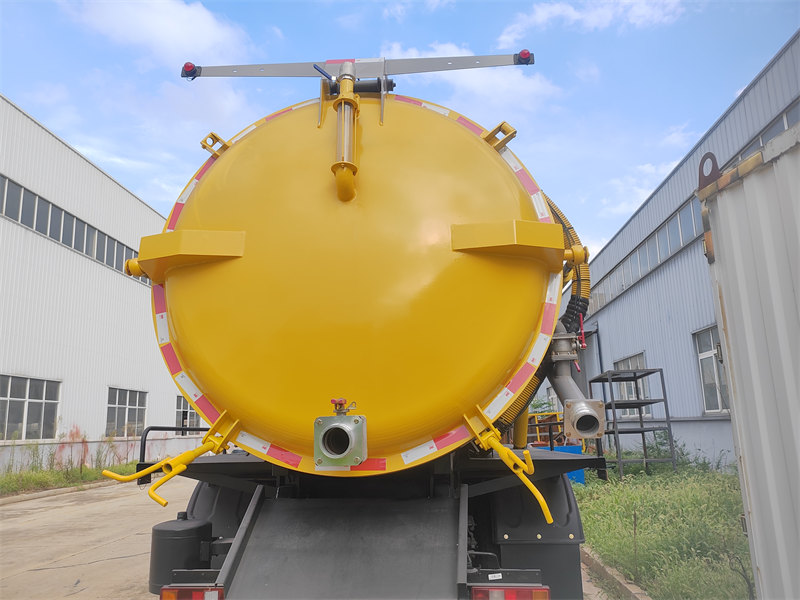

The rear door of the tank can be opened and closed hydraulically.

Optional configuration

Tank material could be stainless steel.

Anti-rust coating inside tank.

Vacuum pump could be imported brand: Italy or Spain vacuum pumps.

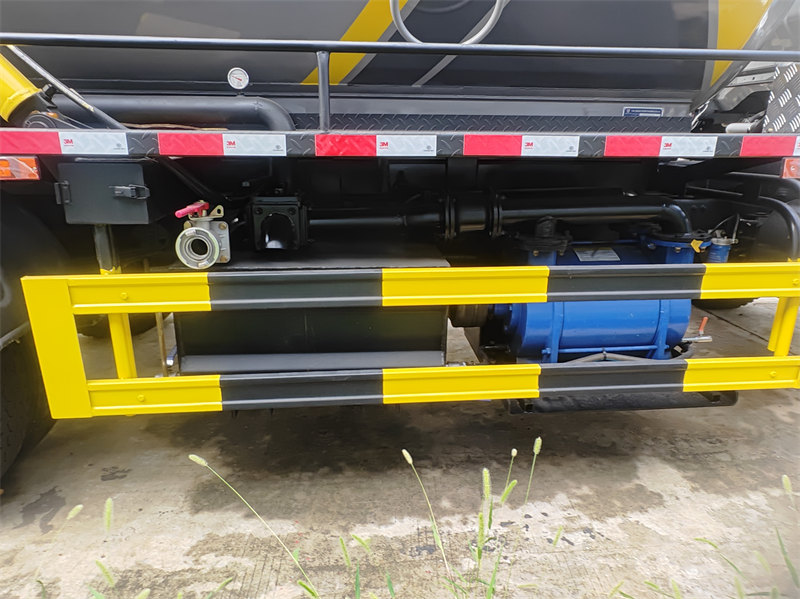

HOWO 8000L sewage tank truck

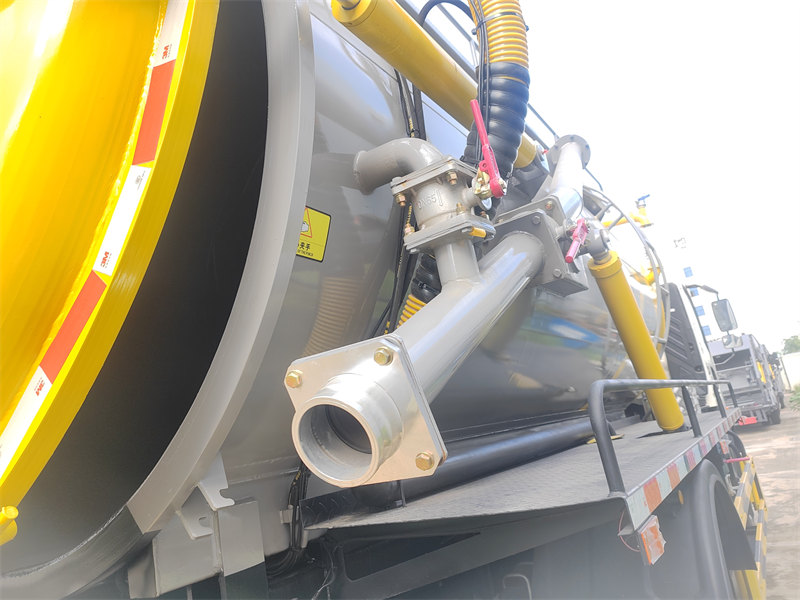

Ⅲ. Product Details & Features:





※ Ⅳ Vacuum Pump SK-15 Parameters

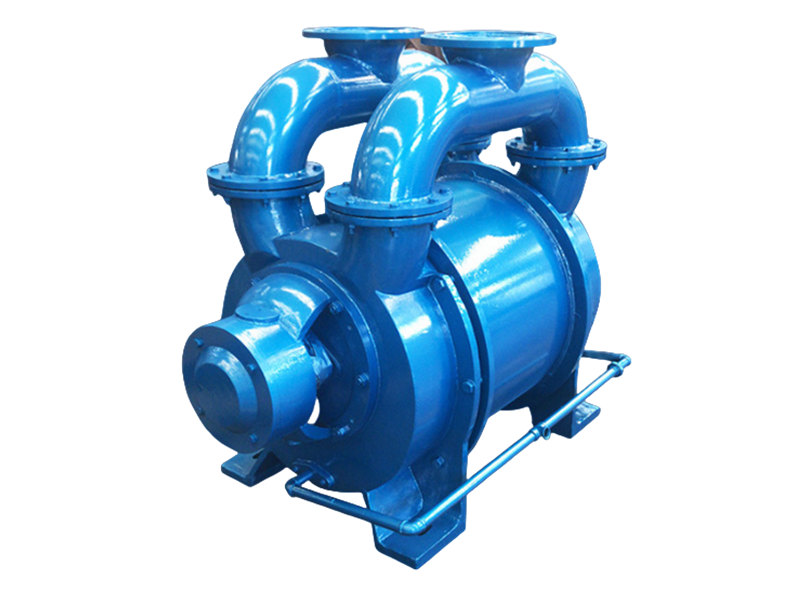

SK-15 Vacuum Pump for HOWO septic tank truck



Model Suction capacity(m3/min) Ultimate vacuum Power(kW) Speed
(r/min)
Compressor pressure
Mpa
Diameter Water consumption
(l/min)
Atmosphere volume Vacuum degree-450mmHg mmHg MPa Vacuum pump Compressor
Inlet Outlet
SK-1.5 1.5 1.35 -680 -0.091 3 4 1450 0-1 70 70 10~15
SK-3 3 2.8 -710 -0.093 5.5 7.5 1450 0-1 70 70 15~20
SK-6 6 5.4 -710 -0.093 11 15 1450 0-1 80 80 20~30
SK-9 9 8.1 -710 -0.093 15 22 970 0-1 80 80 30~40
SK-12 12 11 -710 -0.093 18.5 30 970 0-1 80 80 40~50
SK-15 15 13.5 -710 -0.093 30 45 970 0-1 80 80 50~60
SK-20 20 18 -710 -0.093 37 55 740 0-1 150 150 60~80
SK-30 30 28 -710 -0.093 55 75 740 0-1 150 150 70~100
SK-42 42 37.2 -710 -0.093 75 - 740 - 150 150 95~130
SK-60 60 54 -710 -0.093 95 - 590 - 250 250 140~180
SK-85 85 76.5 -710 -0.093 132 - 590 - 250 250 180~220
SK-120 120 110 -710 -0.093 185 - 590 - 300 300 220~260




Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

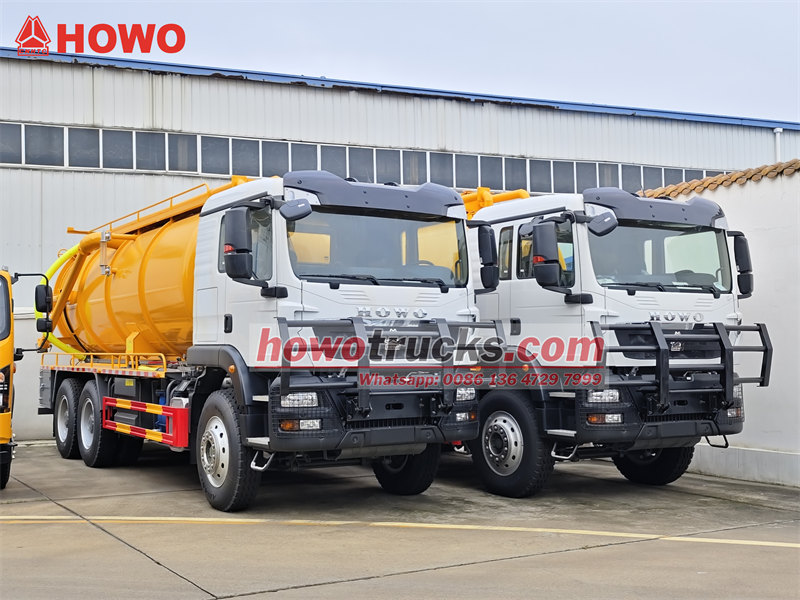

HOWO heavy duty vacuum tank trucks for export

SINOTRUK HOWO 6×4 vacuum tank trucks for export

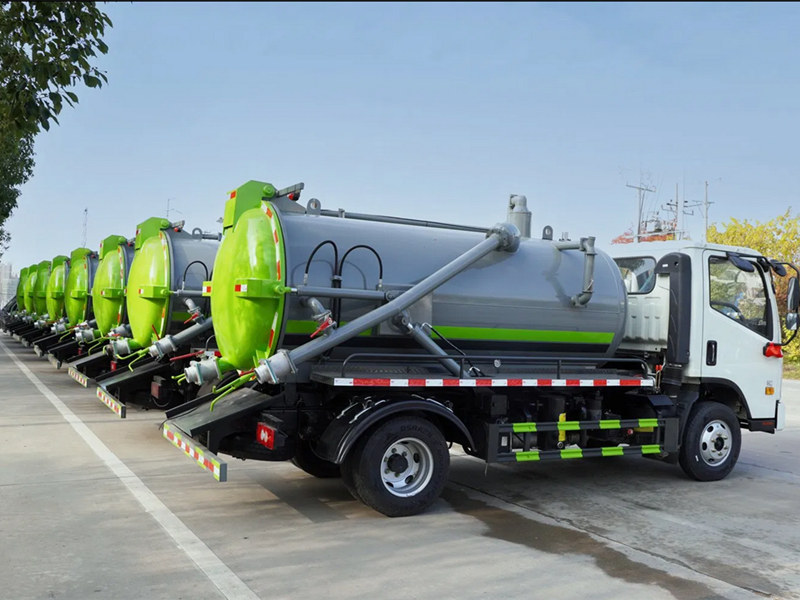

SINOTRUK HOWO vacuum tank trucks for export

SINOTRUK HOWO light duty septic tank pump trucks ready for delivery
