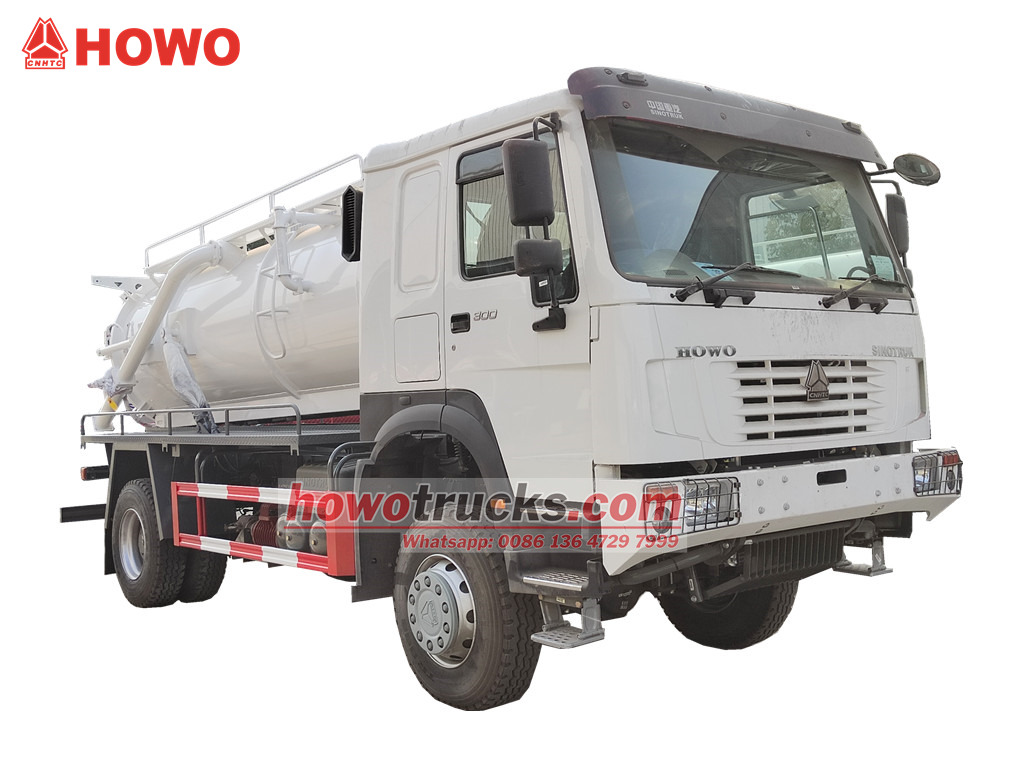

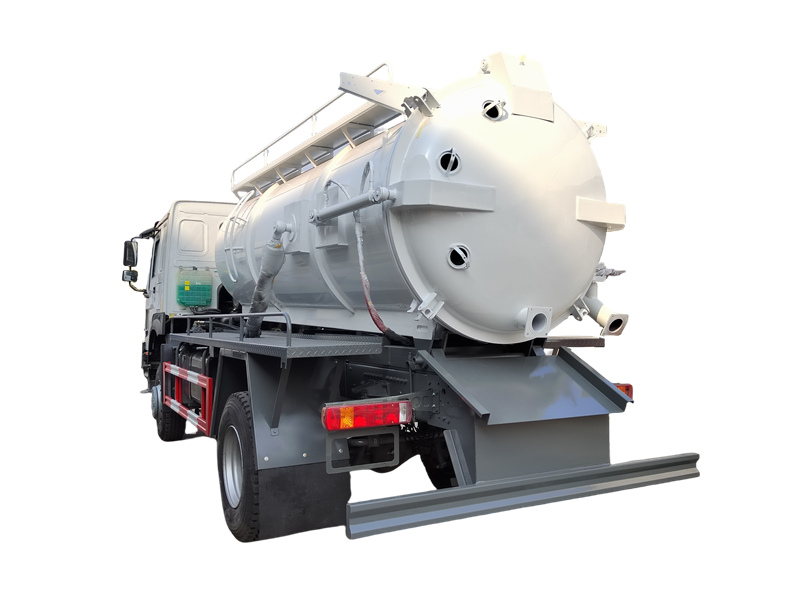

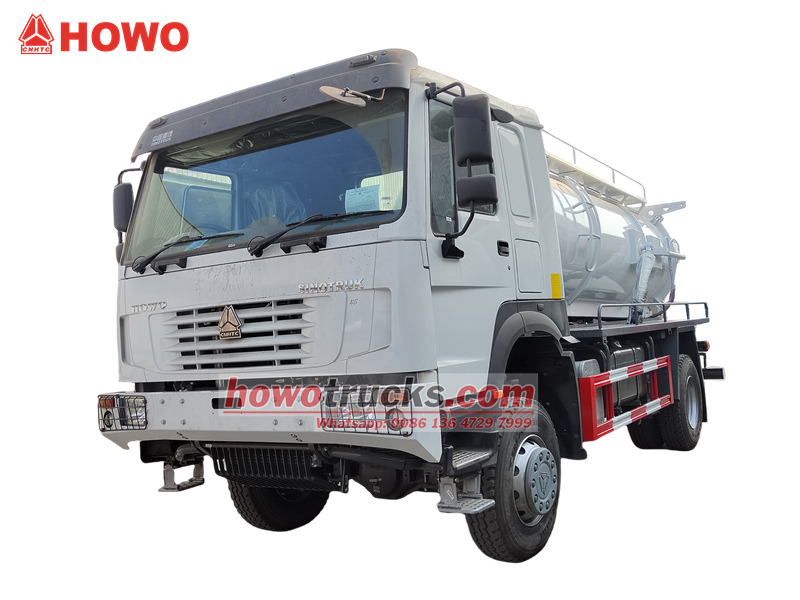

Kenya HOWO 4x4 off road vacuum truck

Kenya HOWO 4x4 off road vacuum truck

The HOWO 4×4 all-wheel drive sewage suction truck is custom-designed for clients in Kenya. Built on the robust HOWO 4×4 off-road chassis, it offers exceptional off-road capability and load-bearing performance. Equipped with a high-efficiency Jurop vacuum pump from Italy, the vehicle can rapidly extract high-viscosity sludge. Its 10-cubic-meter tank features hydraulic lifting and a rear door with quick-opening functionality, enabling complete unloading in just 45 seconds. With outstanding off-road maneuverability and sealed transportation, this truck provides an ideal solution for tackling complex local road conditions while ensuring efficient and environmentally friendly operations.

  • Working capacity :

    10000 liters
  • Cabin type :

    HOWO HW76
  • Dimension (mm ) :

    8500×2500×3250
  • Drive system :

    4×4
  • Wheelbase ( mm) :

    4600
  • Engine specific :

    300HP/WP10.300E22
  • Gear box :

    HW15710
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    16000
  • Remark :

    MORO pump, 6×6 drive is optional
New Products

The HOWO 4×4 all-wheel drive sewage truck is a high-efficiency utility vehicle specially customized to meet the sanitation needs and challenging road conditions in Kenya. Built on the reliable HOWO 4×4 off-road chassis, it delivers superior off-road performance and excellent load capacity, allowing it to navigate Kenya’s diverse and unpredictable terrains with ease. Powered by an Italian Jurop PN84D vacuum pump, the truck achieves a maximum vacuum degree of 92%, enabling rapid and efficient extraction of high-density sewage, sludge, and other viscous materials. The 10-cubic-meter large-capacity carbon steel tank significantly reduces the frequency of transport trips, greatly enhancing operational efficiency per cycle.

Designed with practicality and productivity in mind, the HOWO 4WD vacuum tank truck is capable of self-suction and self-discharge, requiring no external power source to complete its workflow. The tank is equipped with a hydraulic lifting system that allows for full unloading within 45 seconds, while the rear door features a hydraulic opening mechanism that fully opens in just 25 seconds, substantially improving operational efficiency and user convenience. Whether it is for septic tank cleaning, industrial waste liquid transportation, or municipal pipeline maintenance, this vehicle ensures a fully sealed, leak-free process, effectively preventing secondary pollution and fully meeting the sanitation and industrial cleaning demands in Kenya.

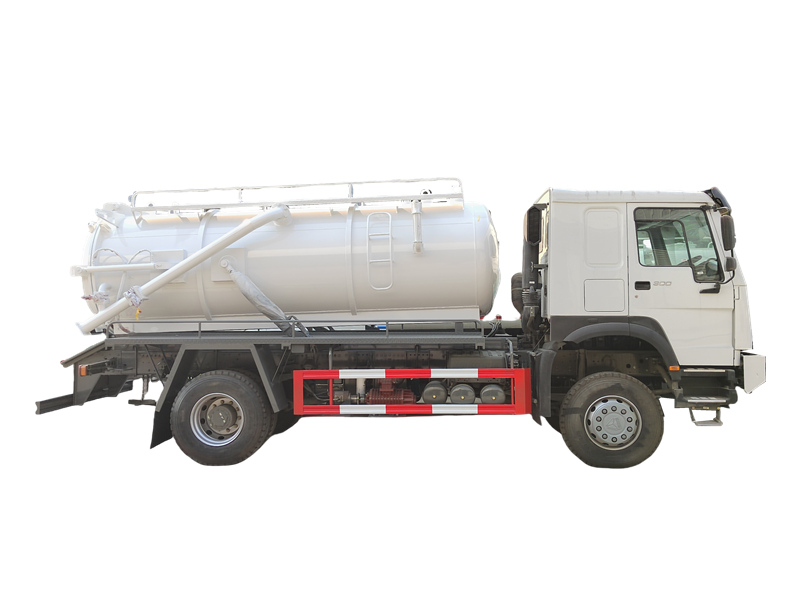

HOWO 4×4 vacuum pump truck

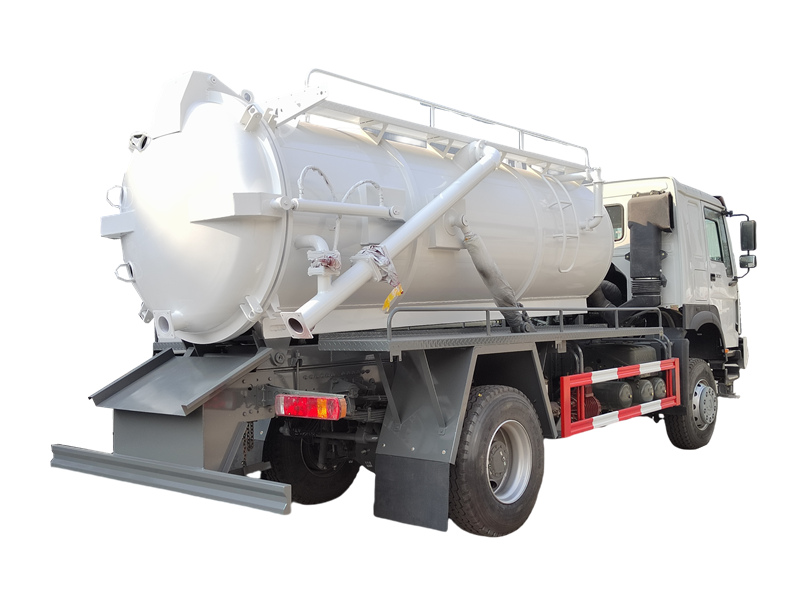

*HOWO 4×4 Sewage Tank Truck

HOWO 4WD Off-road Sewer Vacuum Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

• Outstanding Off-Road Performance: Built on the specialized HOWO 4×4 off-road chassis, it offers strong load-bearing capacity and easily tackles various complex road conditions, reaching worksites inaccessible to traditional equipment.

• Efficient Suction and Transport: Equipped with a powerful Italian Jurop vacuum pump for rapid extraction of high-viscosity sludge, paired with a large 10,000-liter tank that significantly reduces transport cycles and greatly enhances operational efficiency.

• Flexible and Independent Operation: Features self-priming and self-discharging capabilities, enabling it to independently complete the entire workflow—from suction and temporary storage to discharge—without external power sources, ensuring high mobility.

• Safe, Eco-Friendly & Versatile: The fully sealed tank design effectively prevents leaks and contamination during transport, allowing for the safe handling of various challenging materials, including sludge with solid particles and industrial waste liquids.





Ⅱ. Product Parameter for HOWO 4WD 10000L sewage truck:





Chassis Specification

Brand

SINOTRUK HOWO

Cab

Flat-top single row cab, with power steering. Electronic flameout, A/C

Driving Type

4×4, right hand drive

Max Speed (km/h)

76

Overall dimension(mm)

8500×2500×3250

GVW( kg)

16000

Mass in working order ( kg)

9800

Wheelbase(mm)

4600

F/R track base (mm)

2022/1830

F/R overhang (mm)

1230/2130

Approach/Departure Angel

32/30

Tire

12.00R20 (6+1 pcs)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

HW15710C, 10-speed

Bridge

Front axle

7 ton

Rear axle

16 ton

Engine

Model

WP10.300E22

Brand

WEICHAI

Fuel Type

Diesel fuel

Type

Water-cooled 4-stroke, direct injection, turbocharged

Exhaust(ml)

9726

Max. hose power (HP)

300

Max output power/rotate speed (kw /rpm )

220/2200

Max torque/rotate speed(N.m/rpm)

1390/1200~1500

Braking system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

Engine exhaust brake

Electric system

24v

Upper-body specification

Volume of tank

10000 liters

Material of tanker

Carbon steel, 6mm thick

Special function

Suction height

7 (m)

Suction time

8 min.

Maximum Inclination Angle

≥45°

Maximum vacuum

92%

Lifting time

≤45 S

Rear cover opening Angle

≥75°

Rear cover opening time

≤25 S

Suction pipe

10 m length and 100 mm in diameter

Hose Racks

Fitted on both sides of tank

Fittings

Four-way change valve fitted to pump
Drain separator
vacuum pump
Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete with cat walk on top of tank

vacuum pump

Pump model

Italy Jurop PN84D

Maximum speed

1300 rpm

Air flow at free air condition

9000 l/min

Maximum vacuum

92%

Max relative pressure

0.5 bar

Pump weight

115kg





HOWO 4×4 sewer cleaner truck





Ⅲ. Product Details & Fucntions:



HOWO 4WD off-road vacuum tank truck

HOWO Off-road Chassis

HW76 Cab: HOWO HW76 cab with 2 seats, with A/C.

Powerful Engine: Weichai 300HP diesel engine, it features high torque and sufficient power reserve.

Gear box: HW15710 gear box, 10 forward speed and 2 reverses.

4×4 Chassis: All wheel drive chassis, suitable for bad road conditaions

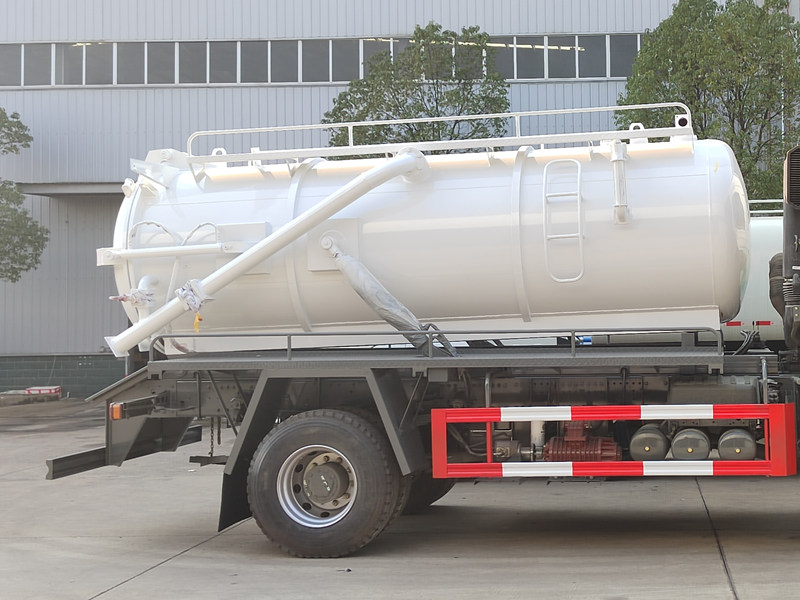

HOWO 4×4 AWD septic tank truck

Large vacuum tank

The large-capacity tank, with a volume of 10,000 liters, significantly reduces the number of transport cycles required and enhances operational efficiency per trip.

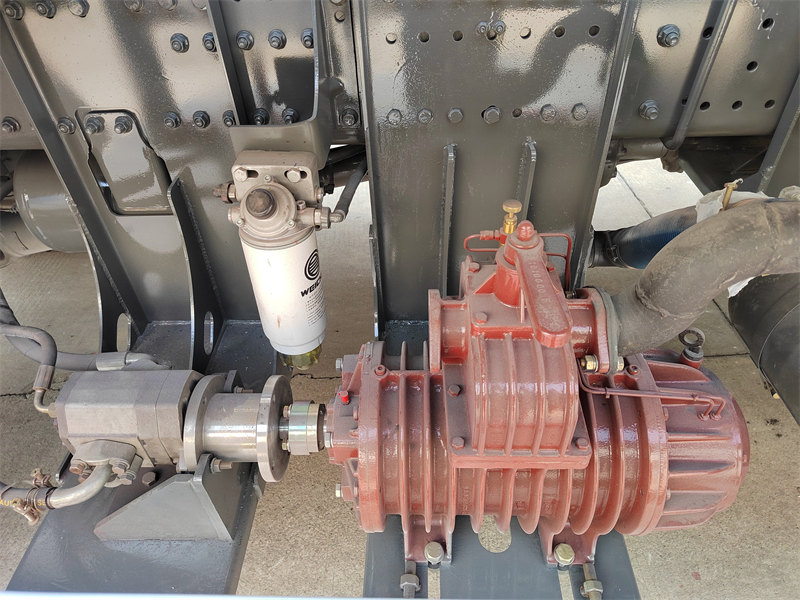

HOWO 4×4 vacuum tank pump truck

Italy Jurop Vacuum Pump

Equipped with Jurop vacuum pump PN84D, imported from Italy. it features high efficiency and low noise, enabling rapid suction of highly concentrated sewage, sludge, oil stains, and other viscous media.

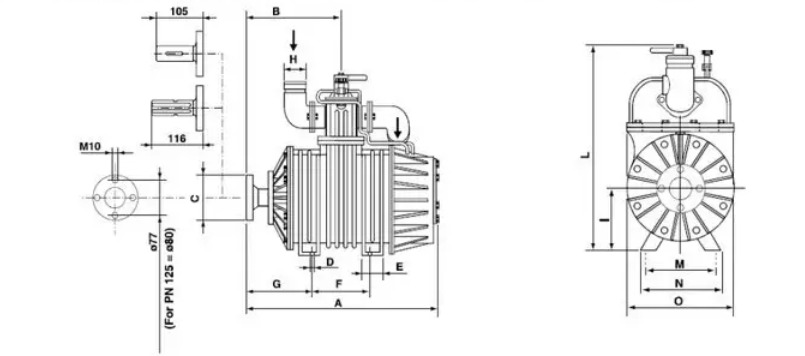

Ⅳ. Jurop PN84D vacuum pump specifications:

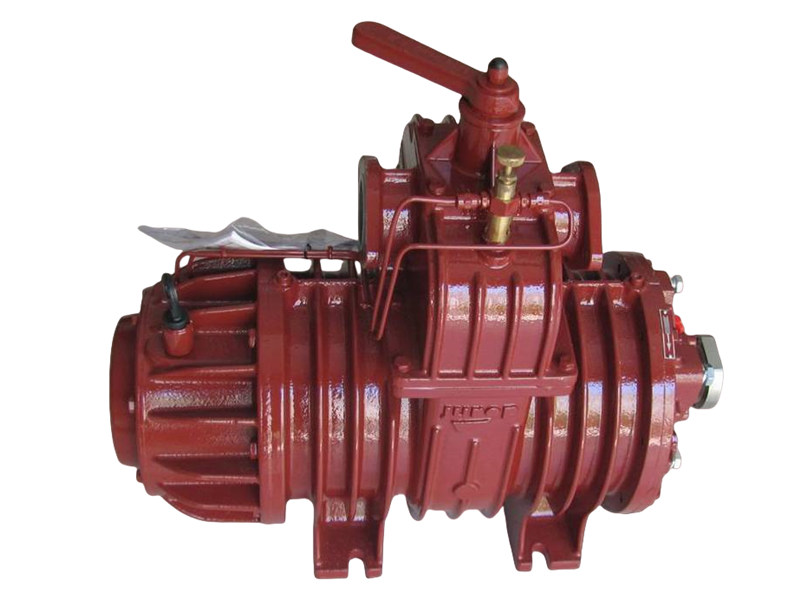

Jurop PN84D vacuum pump Jurop PN84D vacuum pump



Jurop PN84D vacuum pump



         Jurop PN series vacuum pump parameters

Model

Flow

Rotation speed

Vacuum

Continuous vacuum

Pressure max abs

Max Power vacuum

Weight

m3/h

l/min

cfm

rpm

rpm

rpm

%

Hg

%

Hg

bar

psi

kW

hp

kg

lbs

23

156

2600

92

D1300

M540

-

90

27

60

18

1,5

21,8

3,3

4,5

53

117

33

216

3600

127

D1300

M540

-

90

27

60

18

1,5

21,8

4,5

6,1

63

139

45

318

5300

187

D1300

M540

M1000

92

27,5

60

18

1,5

21,8

5,8

7,8

90

198

58

390

6500

230

D1300

M540

M1000

92

27,5

60

18

1,5

21,8

6,6

8,9

102

225

84

540

9000

317

D1300

M540

M1000

92

27,5

60

18

1,5

21,8

11,2

15,2

115

254

106

660

11000

388

D1300

M540

M1000

92

27,5

60

18

1,5

21,8

13,6

18,4

143

315

130

774

12900

456

D1350

M540

M1000

94

28,1

60

18

2

29

19

25,5

165

364

140

830

13850

490

D1350

M540

M1000

92

27,5

60

18

2

29

19

25,5

173

381

155

910

15200

536

D1150

M540

M1000

93

28

60

18

2

29

19

25,5

194

428

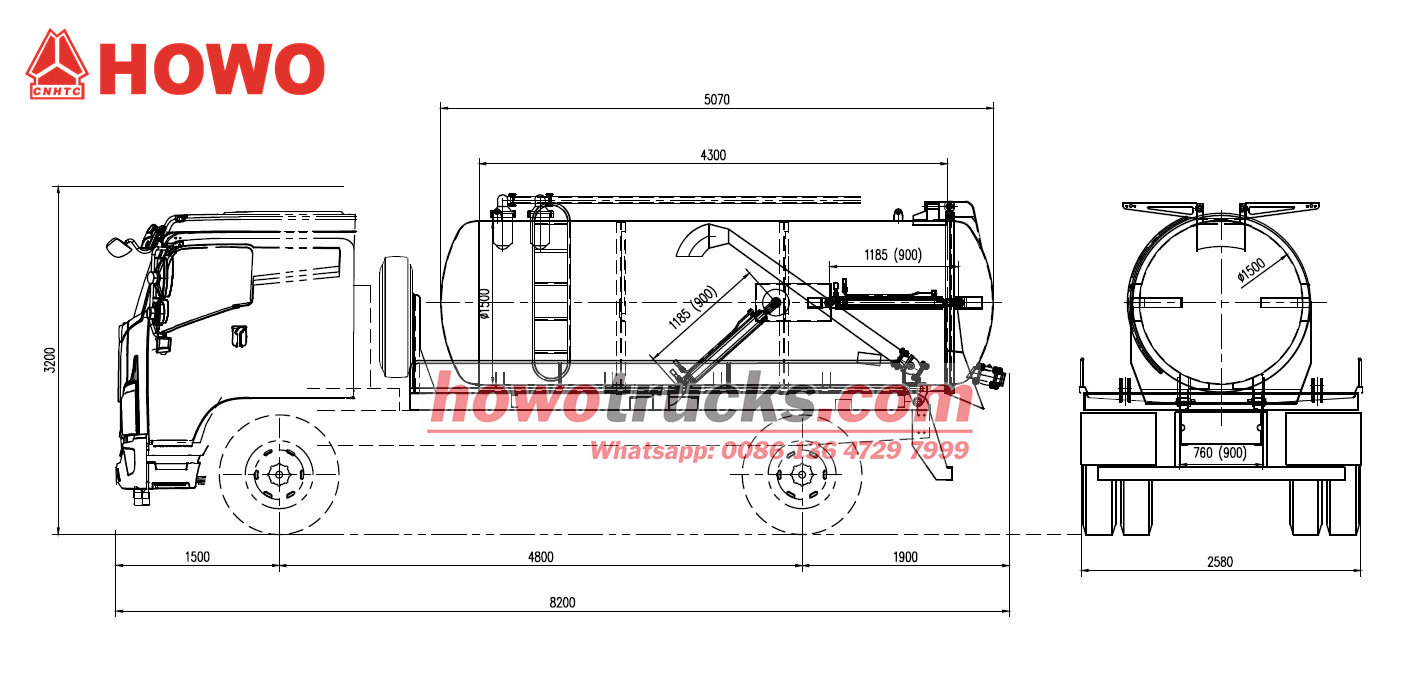

Ⅴ. Product Drawing:



HOWO 4WD sewage tank truck drawing




Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

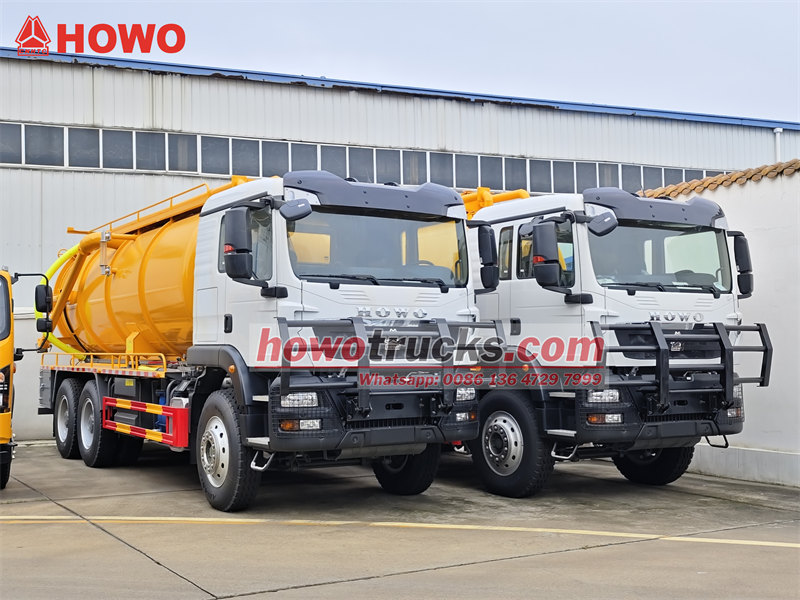

HOWO vacuum septic tank trucks for export

SINOTRUK HOWO vacuum tank trucks for export

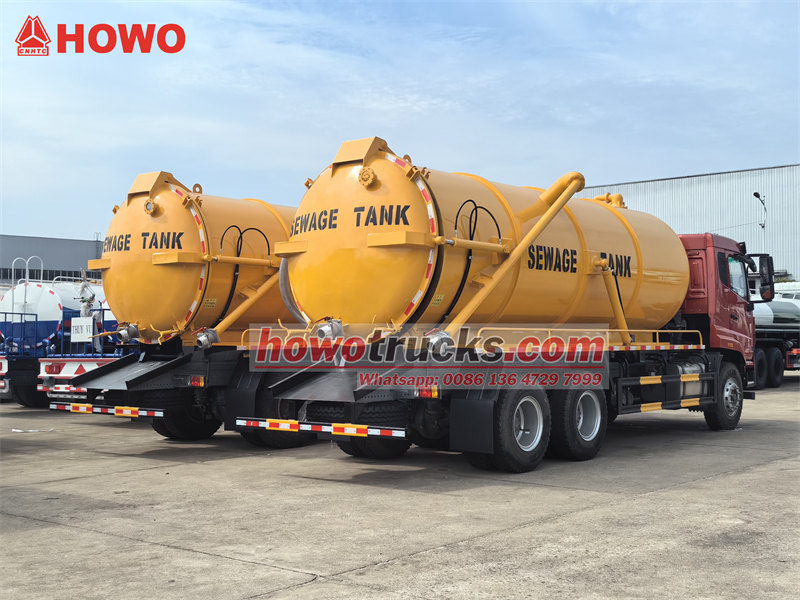

SINOTRUK HOWO sewage tank trucks for export

SINOTRUK HOWO sewer vacuum trucks ready for delivery





Leave A Message
If you are interested in howo trucks and want to know more details,please leave a message here,we will reply you withine 8 hours.

Related Products

Howo 10,000 liters single axle septic truck
300HP Howo waste water suction truck

The 300HP howo waste water suction truck uses a Howo 4×2 chassis with a wheelbase of 4600 mm. It is equipped with a 300 hp WP10.300E22 diesel engine with a displacement of 9.726L, matched with an HW13710 gearbox and ZF8198 steering system, and 7 unit 295/80R22.5 tires, providing strong power and stability. The tank body is made of high-quality carbon steel, making it sturdy and durable, and is equipped with a high-efficiency vacuum pump system, featuring self-priming, self-draining, and self-unloading functions.

Read More

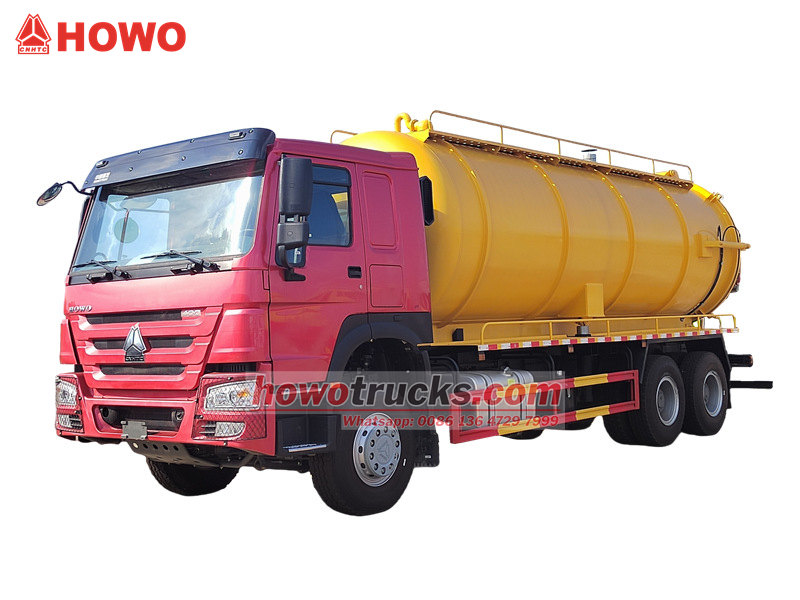

HOWO 6×4 vacuum tank truck
HOWO 20 cubic vacuum cleaner truck

The HOWO vacuum sewer cleaner is built on SINOTRUK HOWO 6×4 chassis and features a 20-cubic-meter carbon steel tank paired with an Italian Jurop vacuum pump, capable of generating a 93% high vacuum level. Powered by a Weichai 400 hp engine and a 10-speed gearbox, the vehicle is equipped with a hydraulically locked rear cover, an anti-overflow alarm system, and a 10-meter suction hose. It is specifically designed for large-scale waste transport operations in river channels and municipal pipe networks.

Read More

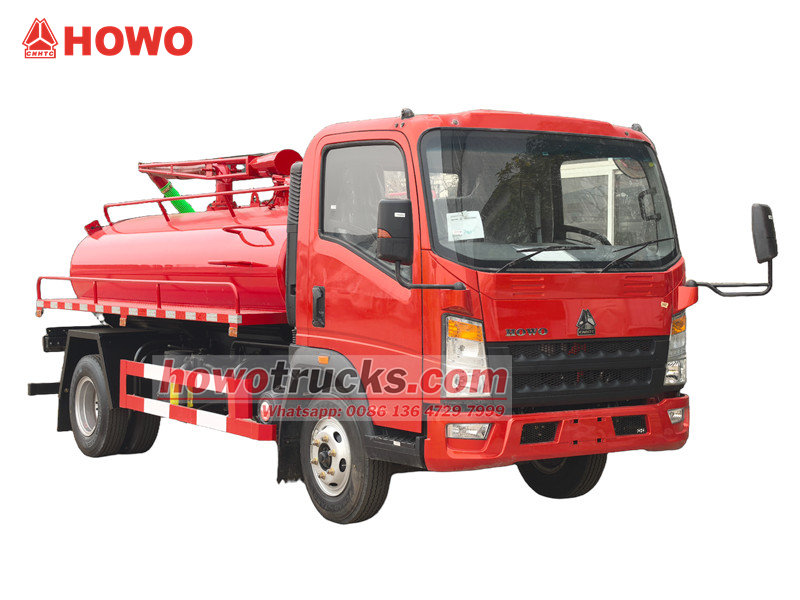

Howo toilet suction truck 6 wheeler 5000L
Howo toilet suction truck 6 wheeler 5000L

Howo toilet suction truck 6 wheeler 5000L is a special vehicle used to collect, transfer and transport feces, sewage and other wastes. which is modified on the Howo RHD light chassis,3360mm wheelbase, Equipped with WLY6TS55 transmission, 7.50R16 tires with totally 7 pcs, A/C,USB,direction assistance.Equipped with Cummins ISF3.8S3141 141HPdiesel engine. It is widely used in sanitation, municipal and rural sewage treatment.

Read More

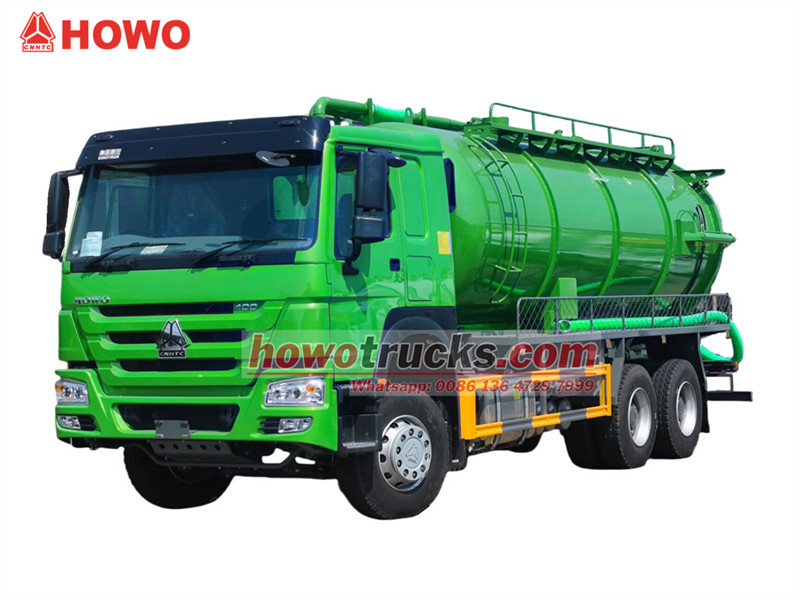

HOWO 20000 liters sewer sucker truck
HOWO 20000 liters heavy sewer sucker truck

The SINOTRUK HOWO 20000L sewer cleaner truck is a specialized vehicle built on a 6x4 heavy-duty chassis, equipped with a large-capacity sealed tank and a vacuum pump system for sucking and transporting liquid waste such as feces and sludge. Powered by a high-horsepower Weichai engine and an Italian MORO PM110W vacuum pump, it delivers robust suction performance and exceptional vertical suction depth. The tank features hydraulic self-unloading and a hydraulically operated rear cover, ensuring highly automated operations. This heavy-duty sanitation equipment combines powerful performance with outstanding efficiency.

Read More

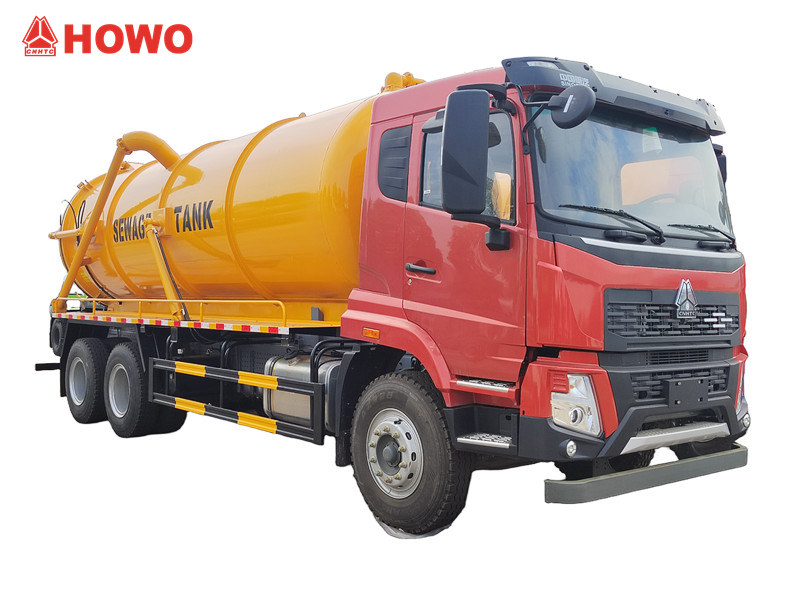

Howo 20 cbm vacuum suction pump truck
Congo howo 10 wheeler sewage tank truck

The Congo Howo 10-wheeler sewage tank truck is based on a Howo 6×4 chassis, with a wheelbase of 4325+1350mm and 295/80R22.5 tires with a total of 11 pcs. The vehicle is equipped with a WP10.340E32 340hp diesel engine, matched with an HW19710 gearbox (10 forward gears, 2 reverse gears) and a ZF8198 steering system, providing strong power output and agile handling. The tank body is made of high-strength, high-quality carbon steel, with a robust structure, and is equipped with a high-efficiency vacuum pump, enabling multiple operating functions such as self-priming, self-draining, and self-unloading.

Read More

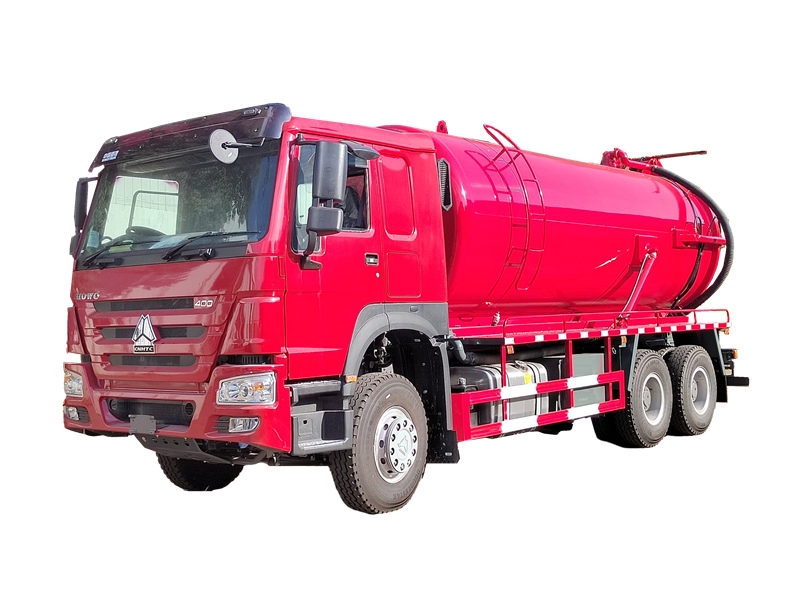

Howo vacuum tank truck
HOWO 6x4 heavy sewer sucker truck

The HOWO heavy 20000L sewer cleaner truck is a specialized vehicle built on a 6x4 heavy duty chassis, equipped with a large capacity sealed tank and a vacuum pump system for sucking and transporting liquid waste such as feces and sludge. Powered by a high power Weichai engine and an China Top brand vacuum pump, it delivers robust suction performance and exceptional vertical suction depth. The tank features hydraulic self-unloading and a hydraulically operated rear cover, ensuring highly automated operations. This heavy duty sanitation equipment combines powerful performance with outstanding efficiency.

Read More

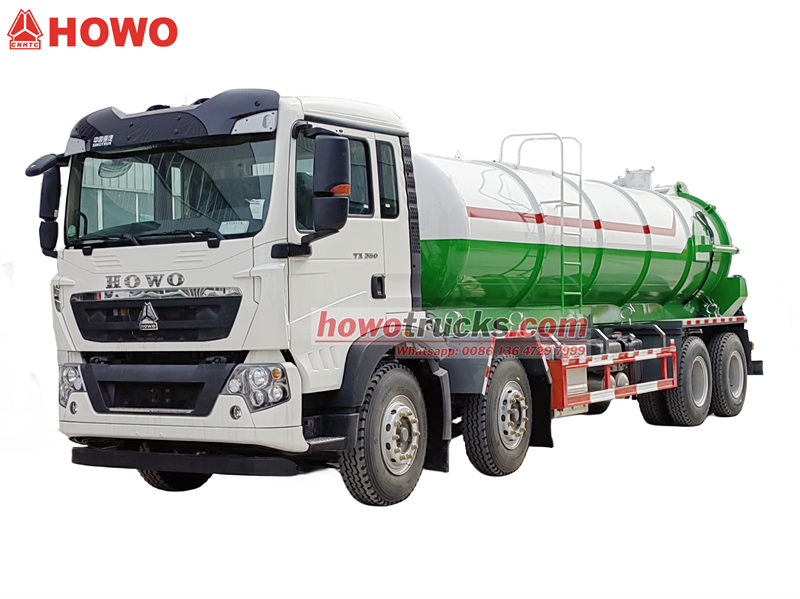

Howo 8x4 vacuum sewage tank truck
HOWO 8x4 heavy sewer sucker truck

The Howo Heavy 8x4 Vacuum Sewer Truck is a high-performance, multi-functional special-purpose vehicle designed specifically for heavy-duty operations. Built on Sinotruk's mature HOWO heavy-duty truck technology platform, it balances power, durability, and operational efficiency, with a core focus on large-scale liquid waste treatment equipment for municipal, sanitation, and industrial sectors. The Howo Heavy 30000L Vacuum Tank Truck is equipped with an MC07H.35-60 model 350hp engine with a displacement of 7360ml and an output power of 257kW.

Read More

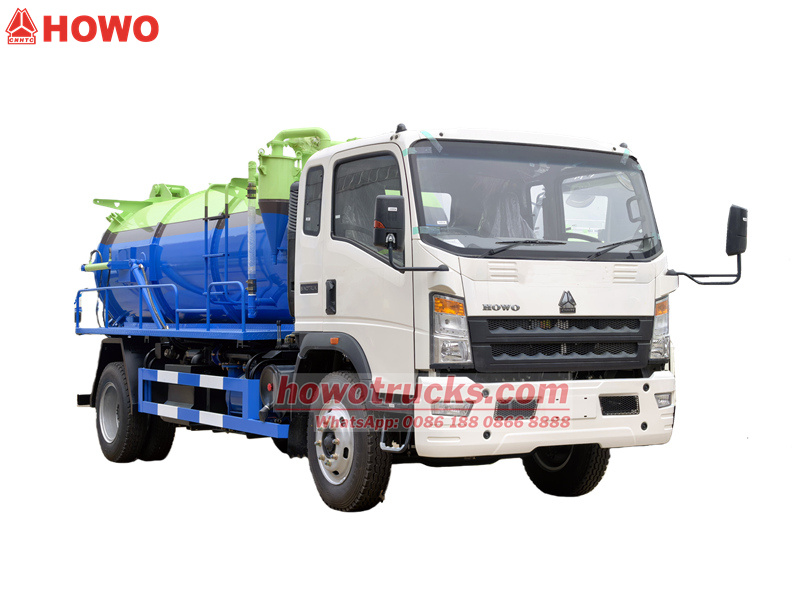

Howo light sewage tank truck
