HOWO 20000L vacuum pump truck

HOWO 20000L vacuum pump truck

The HOWO 20000L vacuum pump truck is built on a robust HOWO 6×4 chassis, equipped with a 400HP Weichai engine and an Italian MORO vacuum pump. It can rapidly generate a high vacuum level of 95%, delivering exceptional suction efficiency. Its 20-cubic-meter carbon steel tank features a hydraulic lifting system and a hydraulically operated rear cover, enabling convenient and efficient waste discharge. The vehicle also includes a secondary anti-overflow safety device, making it a reliable and professional cleaning equipment for municipal sanitation operations.

  • Working capacity :

    20000 liters
  • Cabin type :

    HOWO HW76
  • Drive system :

    6×4
  • Wheelbase ( mm) :

    4300+1350
  • Engine specific :

    400HP/WP12S400E201
  • Gear box :

    HW19710 10-speed
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    18000
New Products

The HOWO 20000L vacuum sewage truck is a high-efficiency sanitation vehicle modified on the basis of the HOWO 6×4 heavy-duty chassis, specifically designed for the suction and transportation of sewer sludge. Powered by a high-output Weichai WP12S400 400-horsepower diesel engine, coupled with an HW19710 10-speed transmission and an 18-ton rear axle, it has strong power and excellent off-road capability. Its core operational system utilizes an Italian MORO PM110W vacuum pump, capable of achieving an ultimate vacuum level of 95% and an air extraction capacity of 984 m³/h. Paired with a 6mm thick carbon steel tank and DN65/100 dual-specification pipelines, it can complete rapid suction of the 20-cubic-meter capacity within 10 minutes.

In terms of functional design, the HOWO septic tank pump truck fully considers operational safety and convenience. The tank interior adopts a corrugated anti-surge baffle structure to effectively mitigate liquid impact. A secondary anti-overflow valve and a liquid-full alarm device installed on the top prevent sewage from entering the pump. The hydraulic system simultaneously drives the front lifting cylinder and the rear cover opening mechanism. Combined with a 45-degree tank lifting angle and a large self-draining outlet, it achieves highly automated and efficient sludge discharge. These professional configurations make it a reliable operational equipment in the field of municipal sanitation, integrating large capacity, high vacuum level, and intelligent protection.

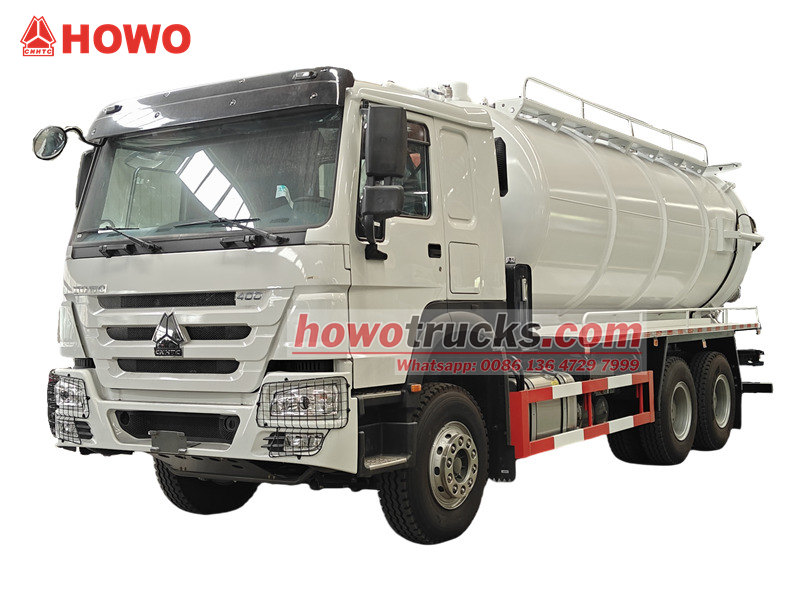

HOWO 6×4 vacuum tank truck



*HOWO 6×4 20000L Vacuum Truck

HOWO Heavy-duty Vacuum Tank Pump Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

★ Built on HOWO 6×4 heavy duty chassis, with 400HP powerful diesel engine and HW19710 10-speed gearbox.

★ Tank body made of high quality carbon steel, with large volume up to 20000 liters.

★ Equipped with Italy MORO vacuum pump, which has high vacuum degree.

★ A secondary protection system is installed for the vacuum pump to prevent sewage from entering the pump body.

★ The tank features hydraulic lifting and a hydraulically operated rear cover for efficient waste discharge.



Ⅱ. Product Parameter for HOWO 6×4 vacuum tanker truck:



HOWO 6×4 Vacuum Truck Technical Specifications

Product Name

HOWO 20000L vacuum tank pump truck

Chassis Model

ZZ1250

Fuel type

Diesel

Emission Standard

Euro 2

Cabin

HW76

Vehicle main dimensions (mm)

Overall dimensions

9500*2500*3850

Wheel base

4300+1350

Front/rear overhang

1430/2110

Weight (kg)

G.V.W

25000

Curb weight

12800

Max payload

20000

Vehicle main performance

Max. speed (km/h)

110

Max. slope of climb (%)

30

Engine

Brand

WEICHAI

Model

WP12S400201

Maximum power

400HP(394kW)

Number of cylinders

6

Displacement (ml)

11596 ml

Rated speed (rpm)

2100

Max. torque (N.m)

1780

Gear box

Model

HW19710

Number of gears

10 forward gears & 2 reverse

Axle

Front Load capacity (ton)

7

Rear Load capacity (ton)

18

Steering Wheel

left/right hand drive

LHD

Brake system

Service brake

Air braking

Electric device

Rated voltage

24V

Tyres&Quantity

 10.00R20, 10+1 pcs

Upper body specifications

Tanker body

Material

Carbon steel

Thickness

6mm

Capacity(L)

20000

Vacuum pump

Brand

Italy MORO

Model

PM110W

Free air flow

984 m3/h

Continuous duty vacuum

80%

Max. vacuum

95%

Max. pressure

3 bar abs

Suction hose

DN65 suction hose and DN100 discharge hose

Special function

Suction time ≤ 10 min,
Effective suction range ≥ 8,
Max vacuum: 95%,
Tank lifting angle ≥ 45

Other configurations

Equipped with power take off, transmission shaft, pipe network, secondary anti-overflow device, liquid level alarm, pressure meter, etc.

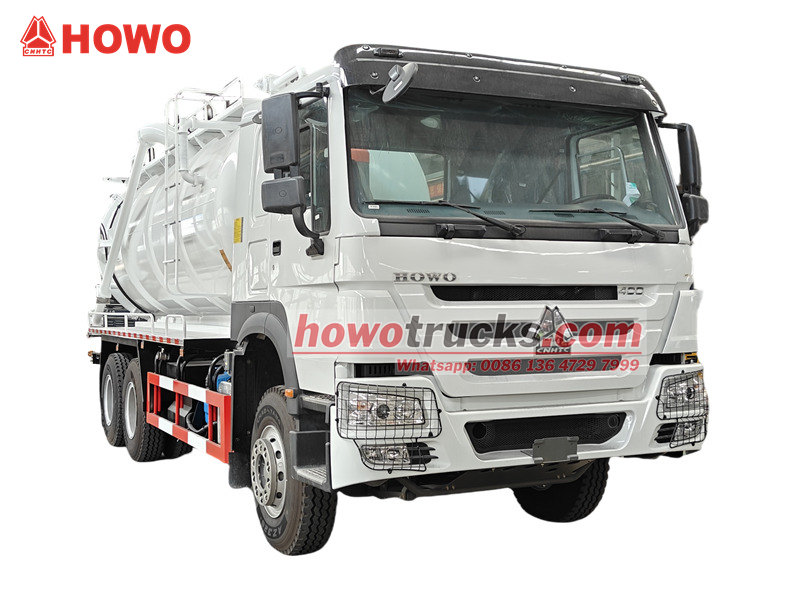

HOWO 20CBM sewage tank truck





Ⅲ. Product Details & Features:



HOWO 10 wheeler sewer vacuum truck

HOWO 6×4 Chassis

HOWO HW76 Cabin

HOWO classic HW76 cabin, with 2 seats and one sleeper berth, with A/C.

Powerful Engine

Equipped with a 400-horsepower engine and paired with an HW19710 transmission, it ensures stable power output and excellent fuel economy.

High Load Capacity

With a maximum load capacity of 25 tons, it is fitted with a 7,000 kg front axle and an 18,000 kg rear axle, combined with a 5.33 gear ratio, to enhance stability under heavy-load conditions.

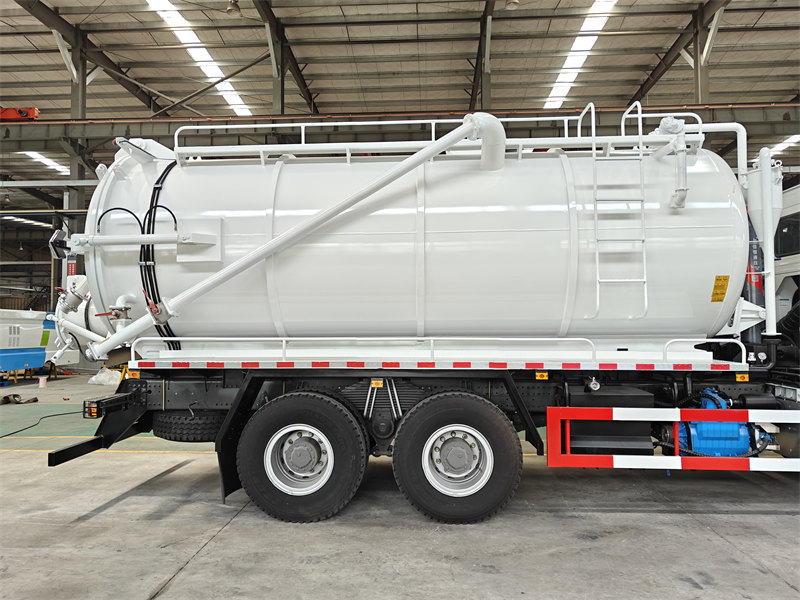

HOWO 20000L sewage pump truck

Premium Tank Body

The tank is made of high-quality Q235 carbon steel plate with a thickness of 6mm. The interior is designed with corrugated anti-surge baffles to reduce the impact of sewage during vehicle transit.



HOWO 6×4 vacuum septic tank truck for sale

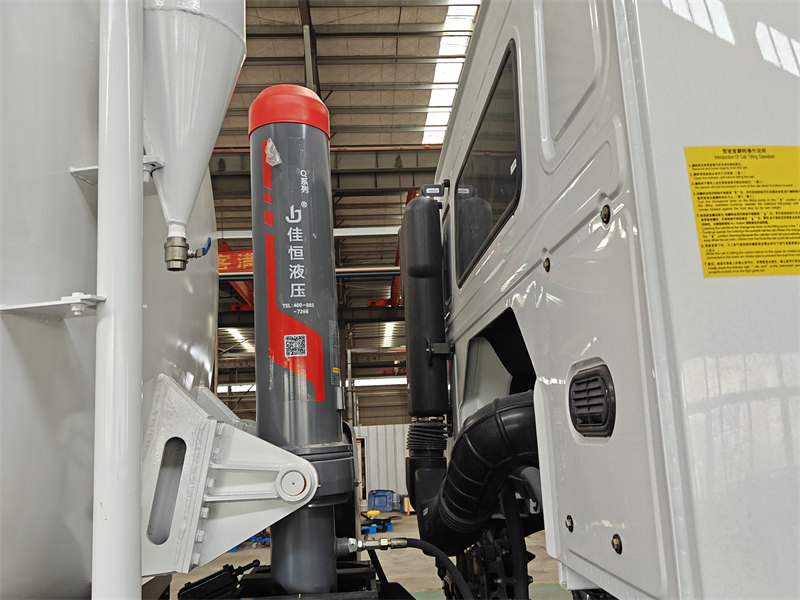

Tank Self-Unloading

The sewage tank utilizes a front lifting cylinder for self-dumping, complemented by a hydraulically operated rear cover and an added self-draining outlet. This design ensures more convenient and faster sewage discharge.

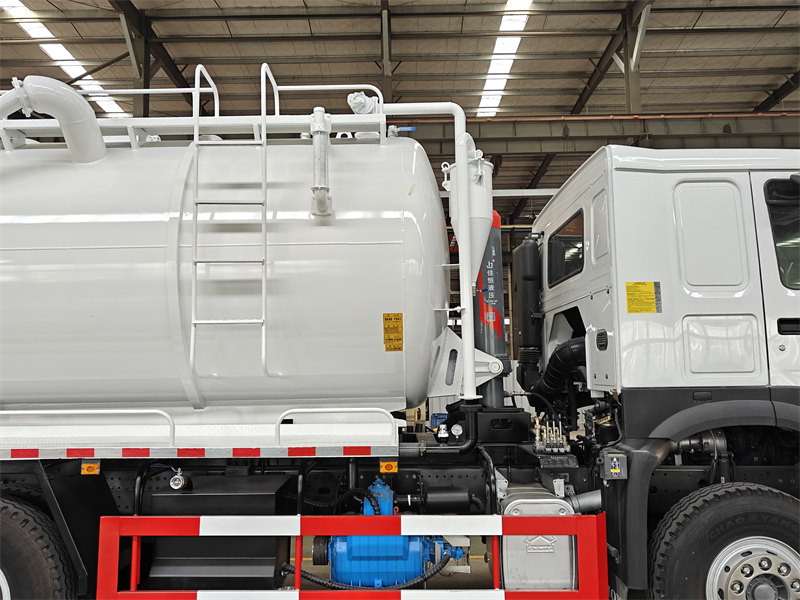

HOWO 10 wheels septic tank truck for sale

Safety Devices

The top of the tank is equipped with an anti-overflow valve and a secondary anti-overflow device, effectively preventing liquid from entering the vacuum pump. A liquid-full alarm is also installed for added safety.

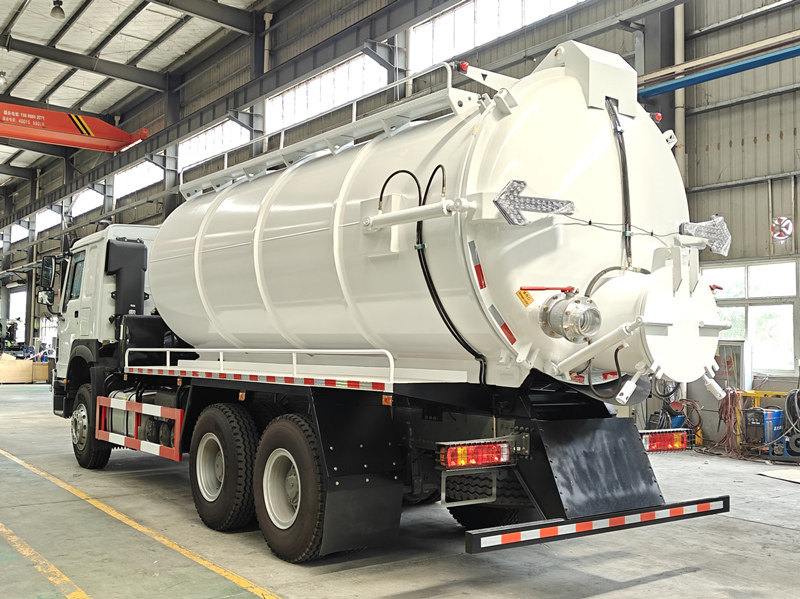

SINOTRUK HOWO septic pump truck

Rear Self-Draining Outlet

The rear self-draining outlet features a large diameter for rapid drainage and is operated hydraulically, enabling effortless and efficient waste disposal.



※ Ⅳ Vacuum Pump MORO PM110W Parameters

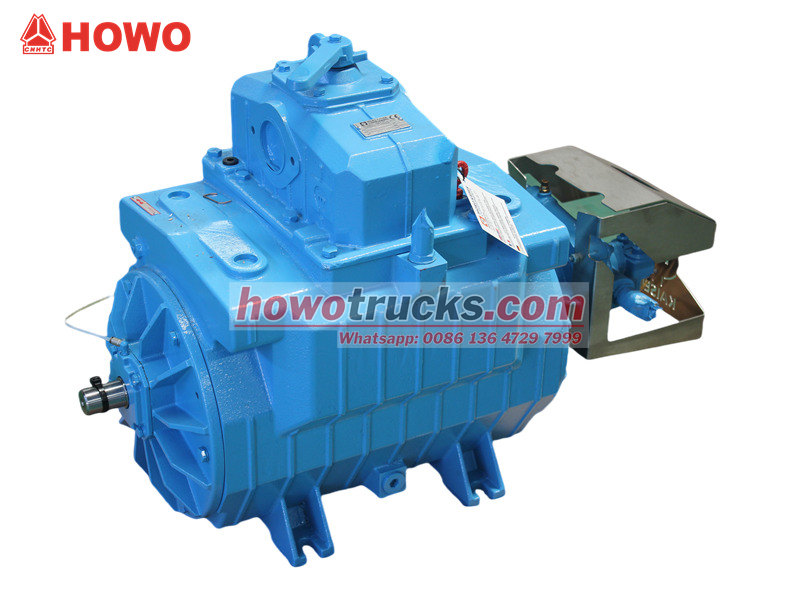

Italy MORO PM110W vacuum pump

MORO vacuum pump PM110W specifications

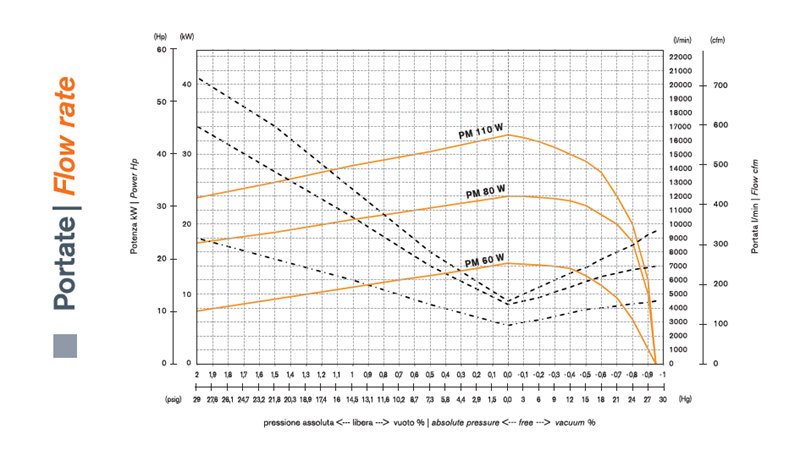

MORO pump PM110W working chart

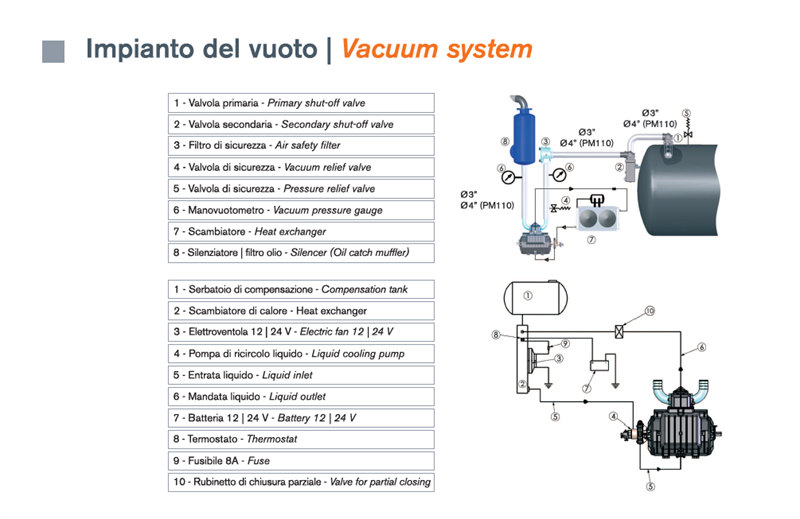

MORO pump fittings



  •



※ Ⅴ. Product Drawing:

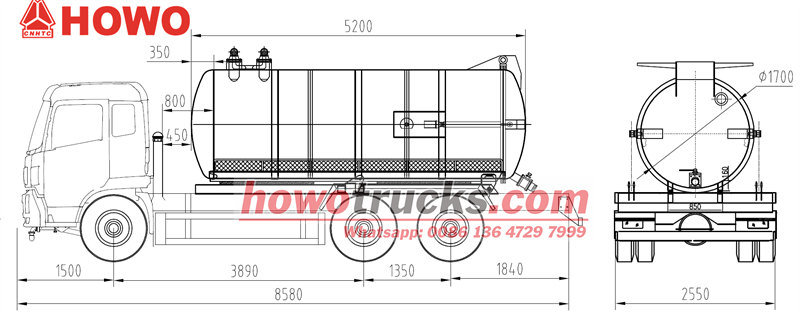

HOWO 6×4 vacuum tank truck drawing




Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

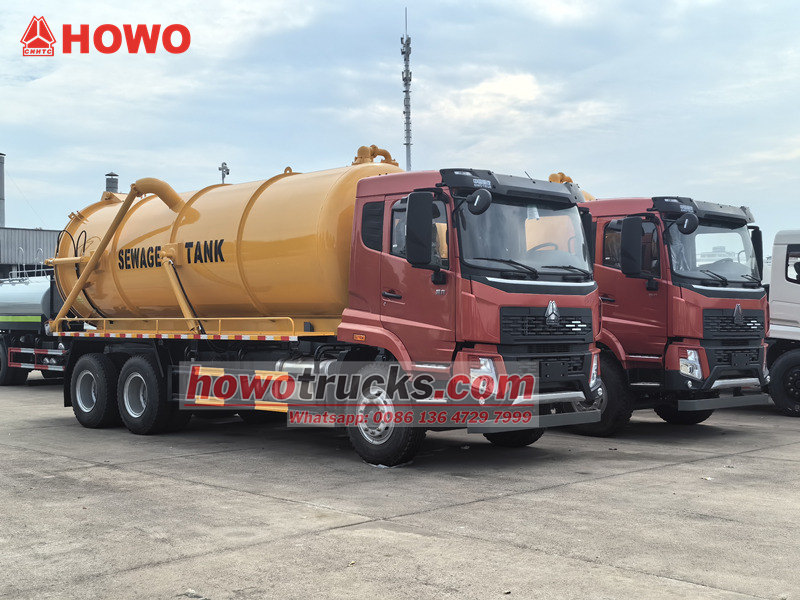

HOWO heavy duty vacuum tank trucks for export

SINOTRUK HOWO 6×4 vacuum trucks for export

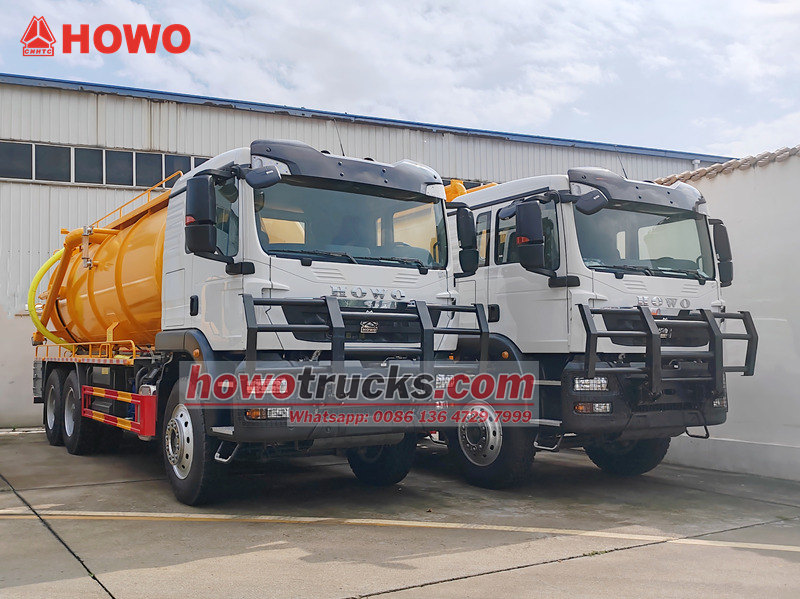

SINOTRUK HOWO 6×6 vacuum tank for export

SINOTRUK HOWO 6×6 septic tank trucks ready for delivery
