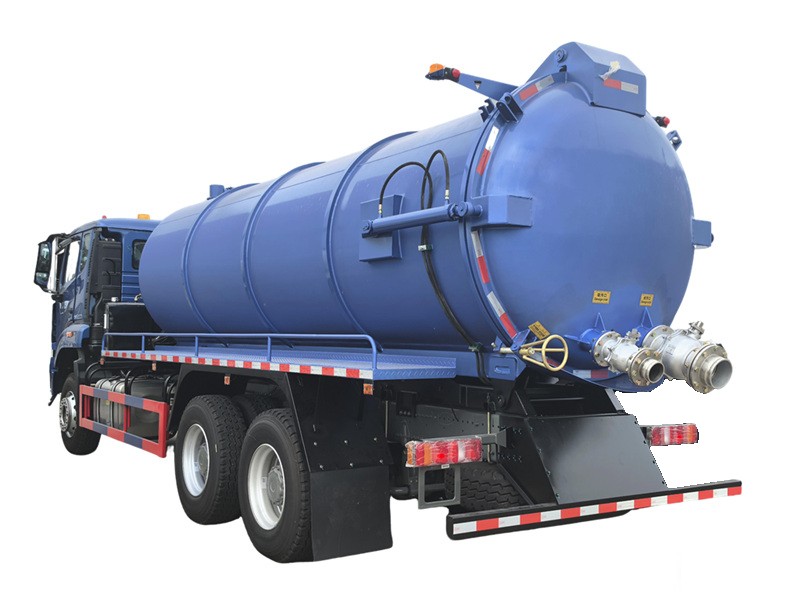

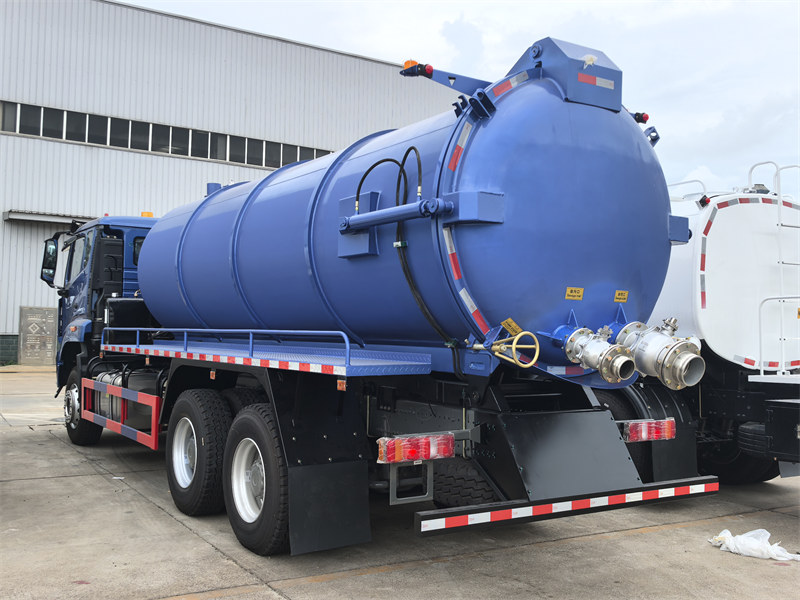

HOWO NX 16000L sucker pumper truck

HOWO NX 16000L sucker pumper truck

HOWO NX series supersucker vacuum truck is sewage tanker truck manufactured by CS TRUCKS and designed based on HOWO NX new cabin truck chassis, and mounted with customized 16000L round shape sewage tanker, matched with vacuum pump system, then can working as a specialized sanitation vehicle designed for sucking and transporting waste water, sewage, sludge, and other liquid waste. Equipped with hydraulic system, the front mounted super hydraulic cylinder for vacuum tanker lifting up and falling down, and smaller hydraulic cylinder with balance valve mounted on two sides to make rear cover hydraulic open and closed. Moreover, this cesspit emptier also equipped with positive and negative pressure relief for safety working, and is suitable for urban sewage management and life waste liquid transportation.

  • Working capacity :

    16000 liters
  • Cabin type :

    HOWO NX New cabin
  • Drive system :

    6×4
  • Wheelbase ( mm) :

    4625+1350
  • Engine specific :

    371HP / WD615.47
  • Gear box :

    HW19710
  • Front axle ( Kg ) :

    9000
  • Rear axle ( Kg ) :

    16000+16000
  • Remark :

    Customized JUROP PN155D vacuum pump
New Products

Sinotruk HOWO 16000L vac tanker truck is designed and produced by CS TRUCKS, which is a sanitation vehicle designed for suction and transporting liquid waste. Howo NX 16000L sucker pumper truck is built on a robust HOWO 6×4 heavy duty truck chassis, equipped with WEICHAI diesel engine WD615.47 model, efficiently horse power 371HP and emission 9726cc, matched with HOWO brand HW19710 manual gearbox with 10 forward and 2 reverse, all make the HOWO cesspit emptier very lower fuel consumption. Customized 16000L round shape sewage tanker based on Q355 material, thickness for body 6mm and two side cover 8mm. Original Italy brand JUROP PN155D model vacuum pump installed, matched working with water gas separator and oil gas separator, all to guarantee the vacuum suction system efficiently and reliable. The complemented 10 meter suction hose pipeline can be connect with pump in valve and pump out valve, all to make the HOWO vacuum truck suitable for long distance working. Hydraulic control system is installed with a robust structure and strong adaptability, and can realize the function of lifting up and falling down, also rear tanker door open and close. This vehicle is widely used in urban sewage treatment, septic tank cleaning, and industrial waste liquid transportation.

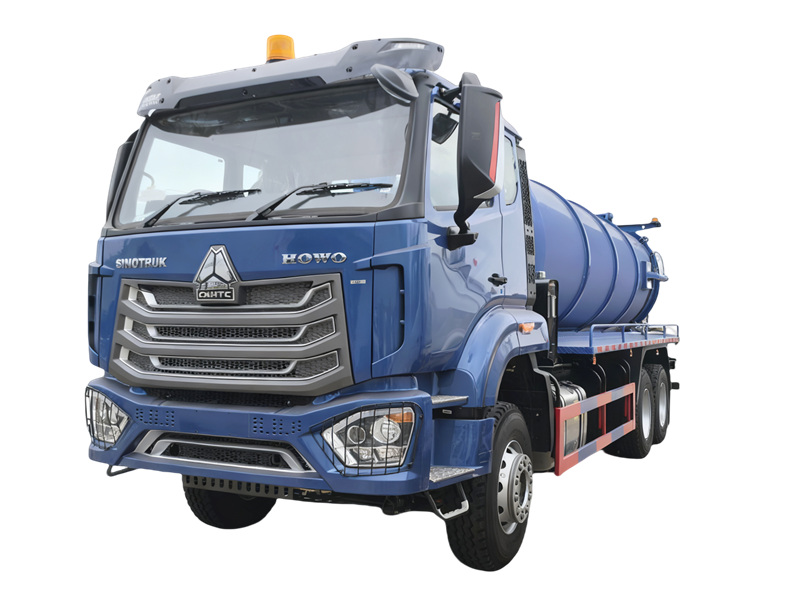

HOWO NX 16000L vacuum sewage truck



HOWO NX 16cbm cesspit emptier truck



*HOWO 6×4 Vacuum Tank Truck

HOWO NX series 16cbm Sucker Pumper Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS

Product Features

★ Based on HOWO NX 6×4 heavy duty chassis, right hand drive model for Kenya Mombasa, WEICHAI WD615.47 model 371HP diesel engine

★ Howo HW19710 transmission gearbox, Manual type, 10 forward and 2 reverse back

★ Round shape vacuum tanker body kit made of 6mm Q355 material, with multiple baffle walls inside

★ The tanker capacity is up to 16000 liters, suitable for large-scale sewage collection and transportation.

★ Equipped with Italy brand JUROP PN155D vacuum pump, with high air pumping efficiency.



Ⅱ. Product Parameter for HOWO sewer pumper truck:

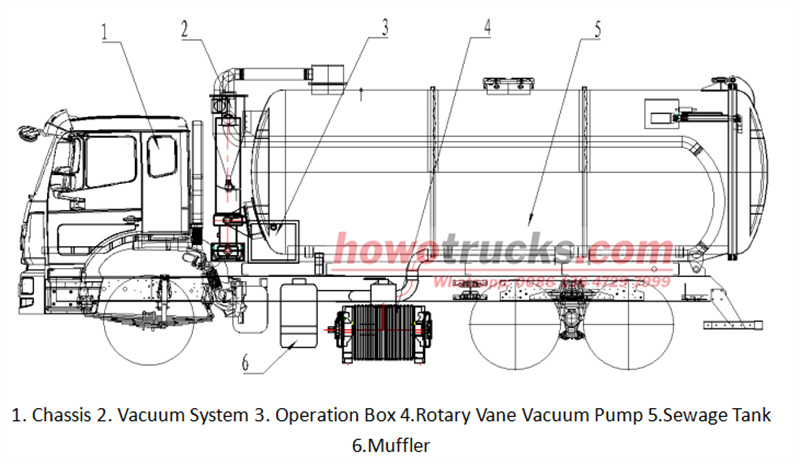

HOWO vacuum trucks detailed component



Technical Parameters of 16CBM HOWO NX  Sewage Suction Truck

Overview

Name

Sewage Suction Truck

Dimension(LxWxH)

9960× 2750× 3800(mm)

Total Mass

25000Kg

Rated Payload

11200 kg

Kerb Weight

16000 Kg

Passenger

2+1

Approach/Departure Angle

20/16°

The Parameters of Chassis

Model

HOWO NX series

Driving Type

6×4 right hand drive

Wheel Base

4325+1350mm

Gearbox

Seven/Eight speed lever with six/seven speed forward and one reverse, manual

Axle load

9000/16000+16000 (kg)

Tyre

12.00R20

The Number of Tyre

10+1(spare tyre)

Front/Rear Suspension

1500/1600(mm)

Leaf Spring Number

20/16

The Paremeters of Engine

Manufacturer/Model

WD615.47

Rated Power

371HP (272KW)

Fuel Type

Diesel oil

Displacement/Capacity

9726 ml

Emission Standard

Euro 3

Cylinder

6 cylinders, straight in line, intercooling

Max. torque

1500N.m

Velocity

2200rpm

The Parameters of Equipment

Sewage Tank/Clean water tank

16 m³ (the clean & sewage tank ratio can be customer request)

Vacuum Pump

JUROP PN155D model

Max. Suction Lift

>7m

Vacuum

>500mmHg

Rotation Direction

Clockwise

Time for full suction

<5min

Common Accessories

Vacuum pump,ball valve,oil cylinder for rear cap,oil cylinder for dumping,pressure meter,window for showing liquid level,lock system for rear cap,four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional).



Ⅲ. JUROP Vacuum Pump Details & Fucntions:

HOWO cesspool emptier trucks can be customized to be mounted with Italy brand JUROP brand vacuum pumps. The JUROP pumps are designed to meet any specific requirement and have a wide range of applications. While developing a new sewage pump, the feedback and requirement are adopted, so can guarantee the JUROP pump very suitable vacuum tanker trucks performance. And air flow rate range from 156m3/h to 1200m3/h, mainly classify as below:

PN Series JUROP pump: PN23, PN33, PN40, PN45, PN58, PN84, PM106, PN130, PN140, PN155.

LC Series JUROP pump: LC300, LC420, LC580, LC750.

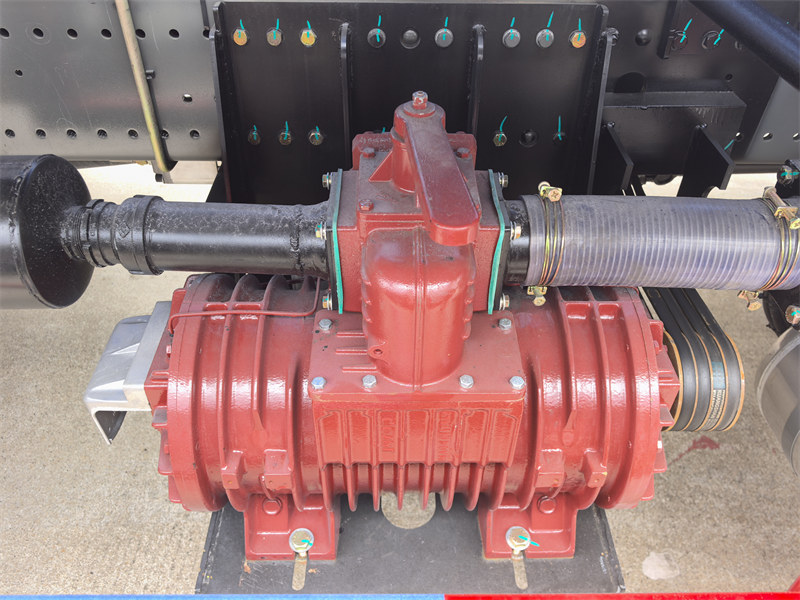

JUROP PN155D vacuum pump

Performance specifications:
    Max flow rate: 15,200 l/min
    Maximum vacuum: 27.5 in of Hg
    Maximum pressure: 2 bar (absolute)
    Max power vacuum: 19 kW

PN155D vacuum pump Features:

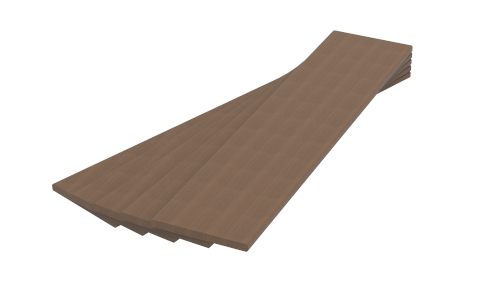

Type: Rotary vacuum pump with sliding vanes
Cooling: Air-cooled system
Lubrication: Forced lubrication with a volumetric pump and a side-mounted oil tank
Valve: Built-in vacuum/pressure change-over valve

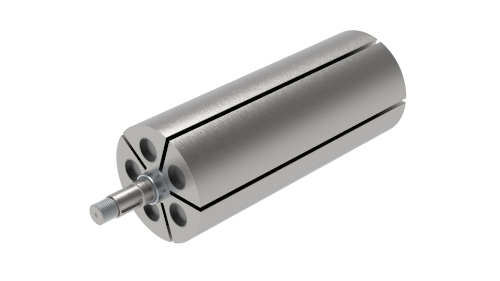

Rotation: Direct drive with smooth shaft (right or left rotation) or via gearbox with splined shaft (ASAE 1 3/8)

 . Product Details & Functions:

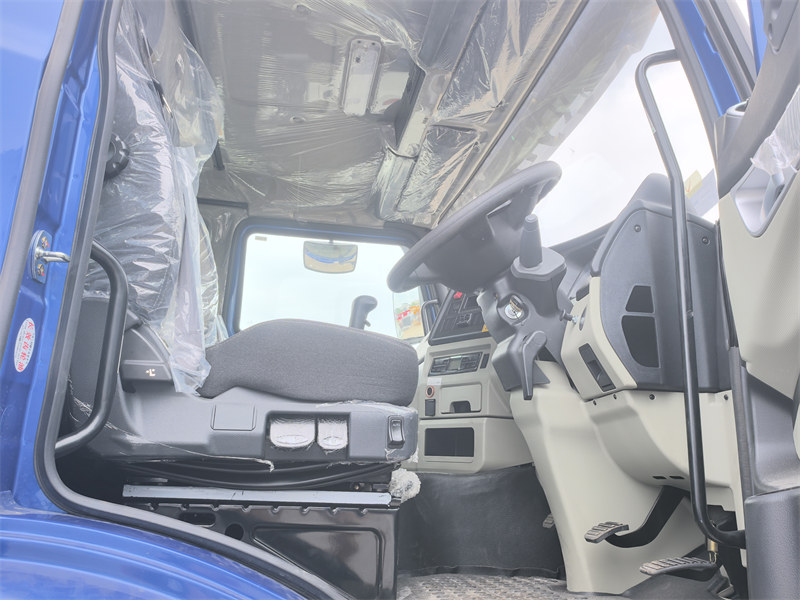

HOWO NX cabin with RHD model for Kenya

HOWO NX cabin with RHD model for Kenya

Customized HOWO NX series vacuum truck, NX new cabin with right hand drive system, Air conditional for cooing and warm process. Air suspension seats equipped suitable for long distance driving. Rear part of the cabinet equipped with sleeper bed for short rest.

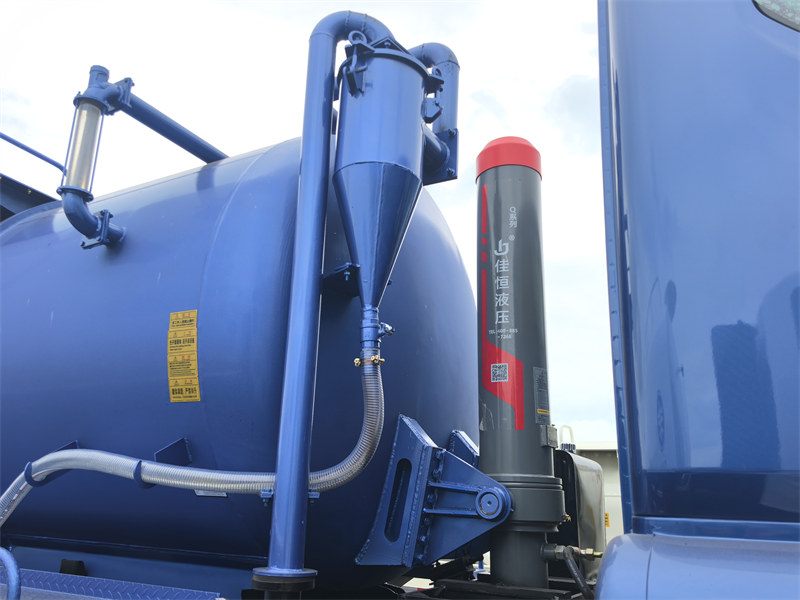

First and Second overflow valves for safety guarantee

First and Second overflow valves for safety guarantee

HOWO vacuum tank truck can be equipped with safety device to guarantee the working more efficiency and safety. First overflow valve equipped on the top of vacuum tanker, with filter inside to avoid over suction. The Second overflow valve is the additional guarantee to avoid over suction and sewage liquid into the vacuum pump and damage.

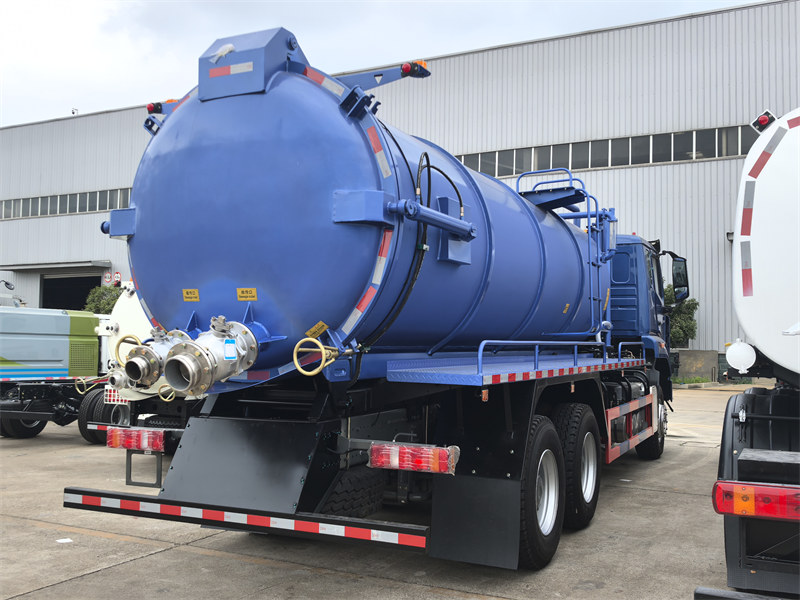

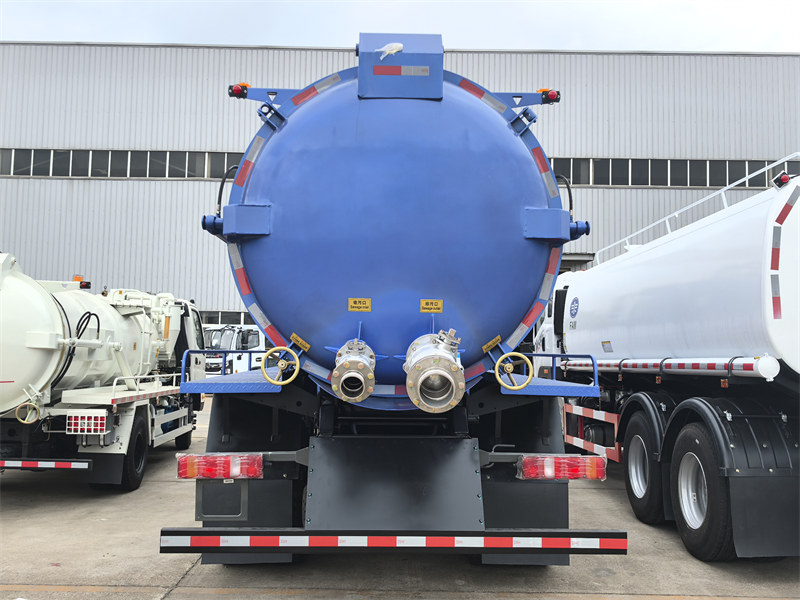

cesspit emptier rear discharge valve

Cesspit emptier rear pump inlet and discharge valve

The HOWO cesspit emptier equipped with vacuum pump, so can have function of pump in and pump out work.The rear cover can be hydraulically operated for opening and closing, ensuring convenient and efficient discharging of the waste water in the tank.

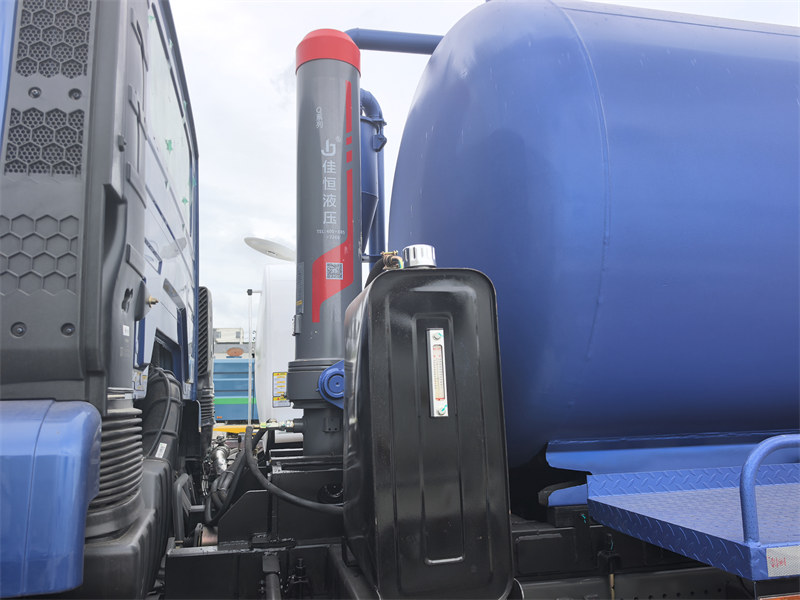

Powerful hydraulic cylinder for tanker lifting

Powerful hydraulic cylinder for tanker lifting

In the front the vacuum tanker kit equipped with famous brand hydraulic cylinder, which is powerful and lifting up the tanker body to discharge sewage.



  • Hydraulic control valve for safety operation
    Hydraulic control valve for safety operation

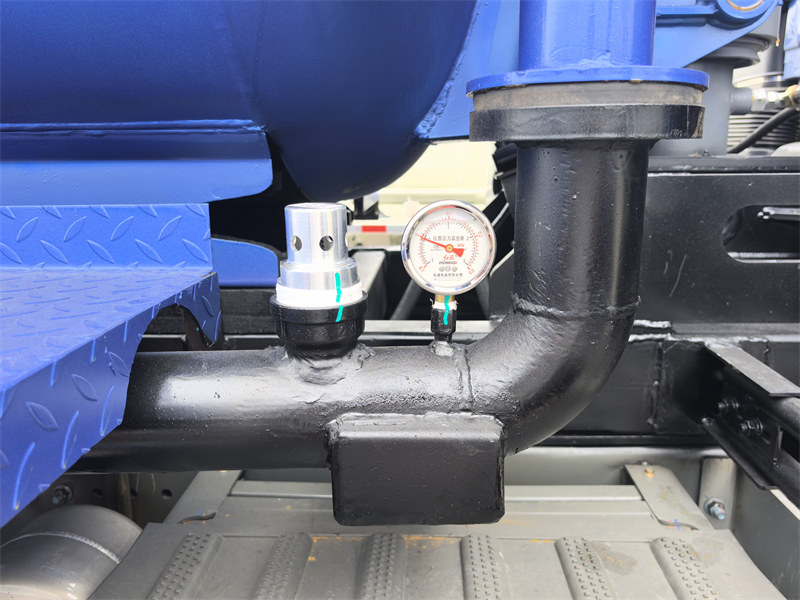

  • Positive and Negative pressure relief valve
    Positive and Negative pressure relief valve

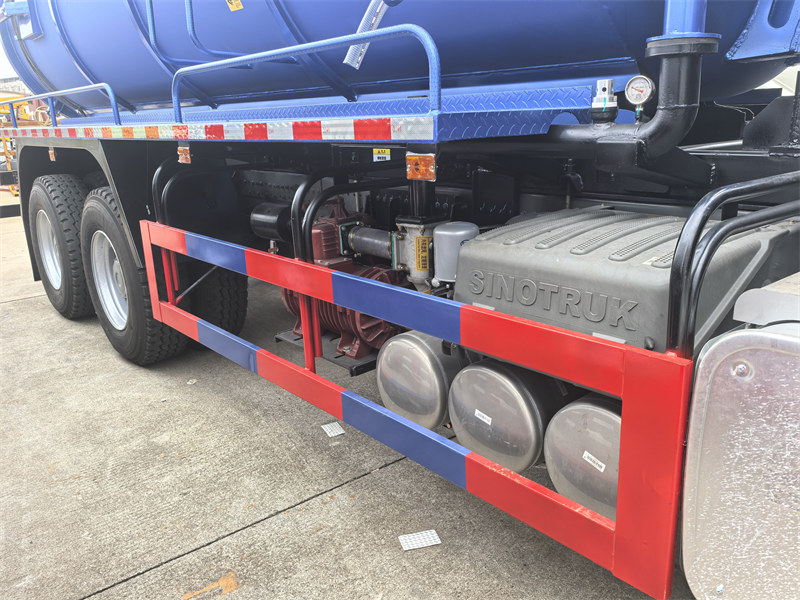

  • Side platform and safety fence
    Side platform and safety fence

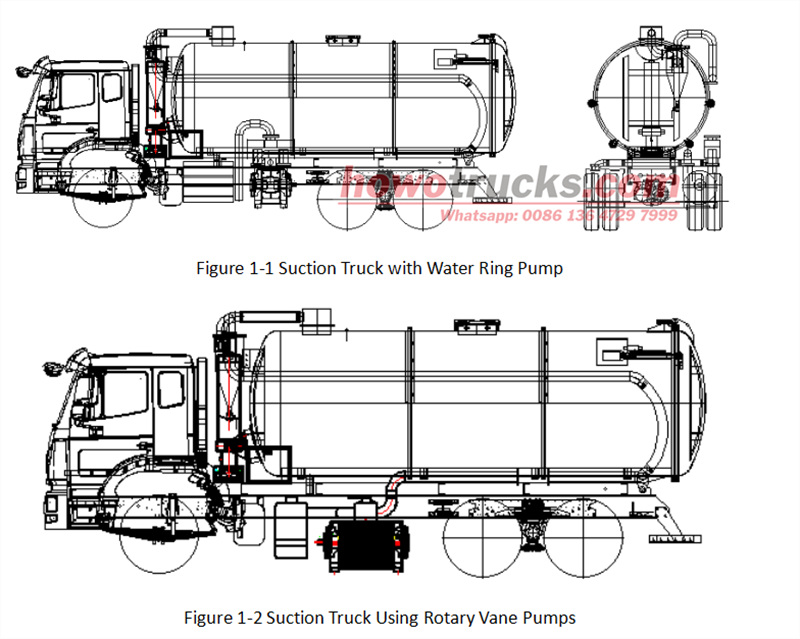

Ⅳ. Product Structure Drawing:



HOWO vacuum trucks technical drawing



Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

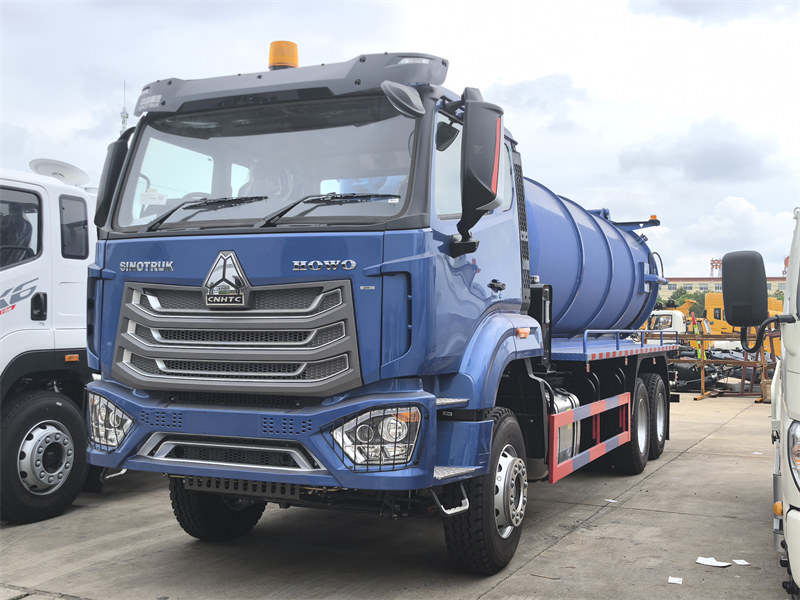

HOWO NX honey sucker truck



16cbm vacuum pumper tanker

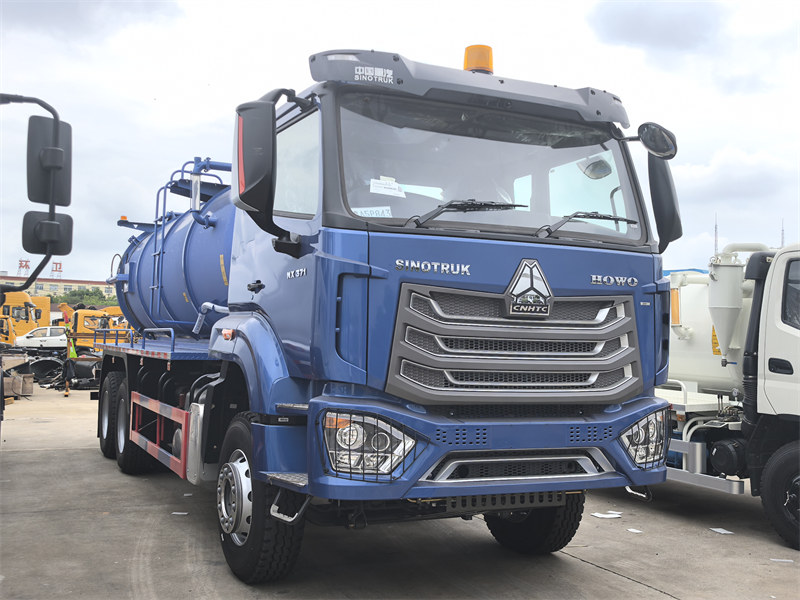

HOWO septic tank truck for export

SINOTRUK HOWO septic tank trucks for export



SINOTRUK HOWO vacuum trucks for export

SINOTRUK HOWO vacuum sewage trucks ready for shipment
