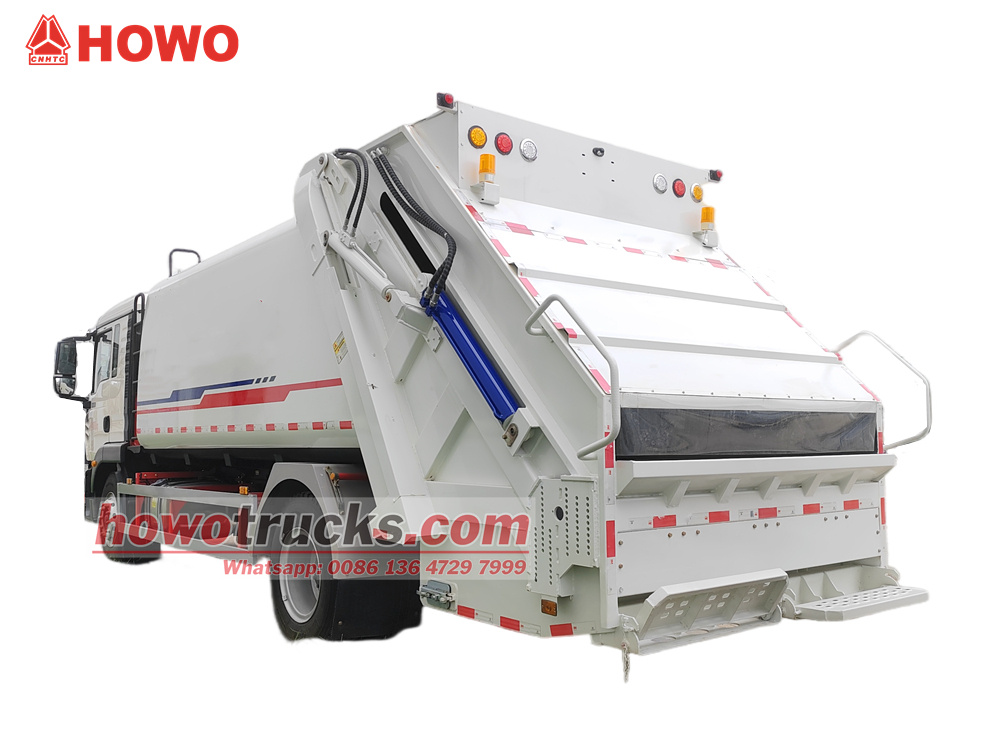

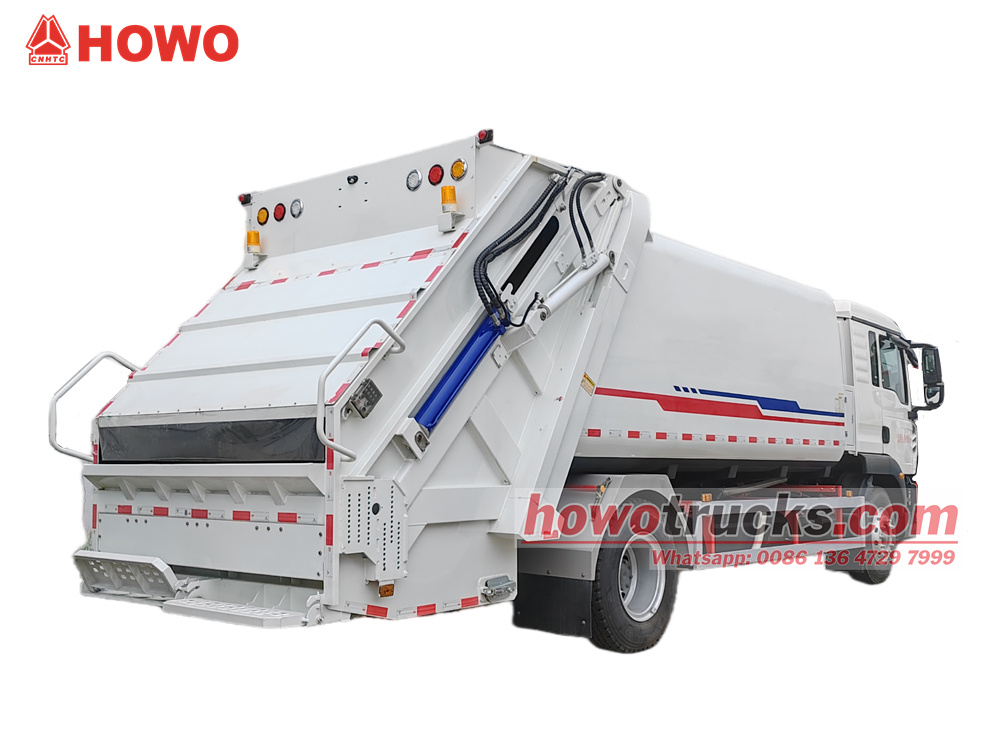

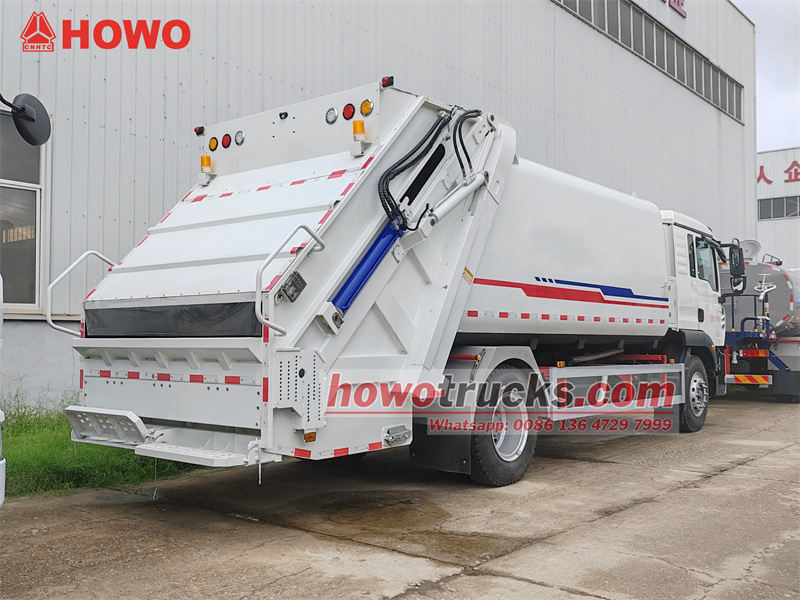

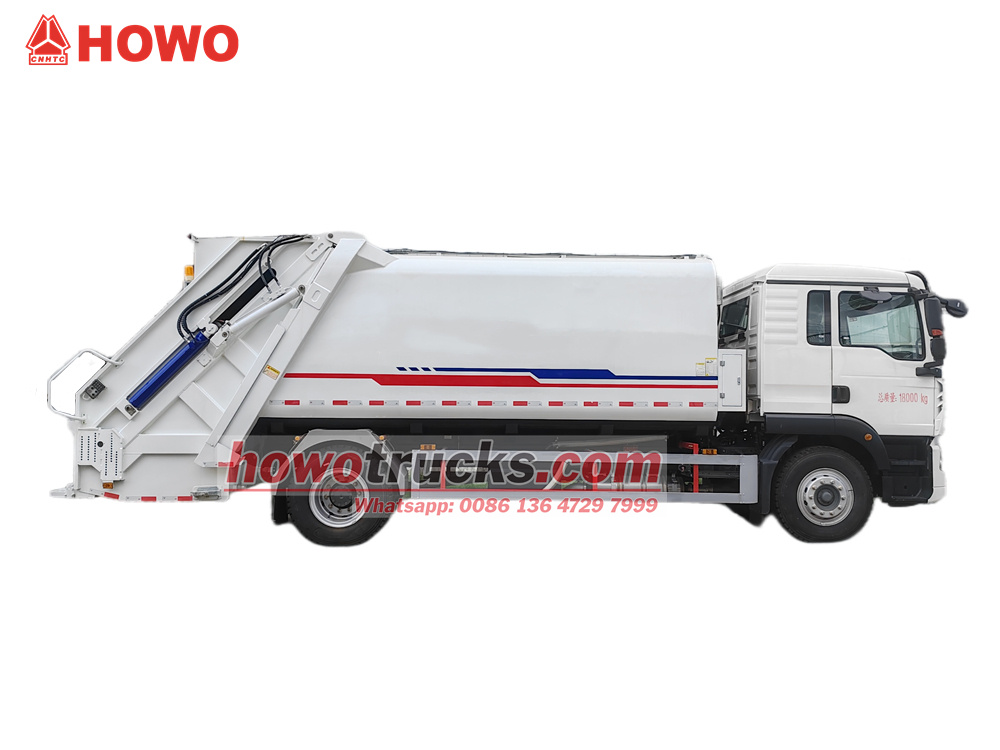

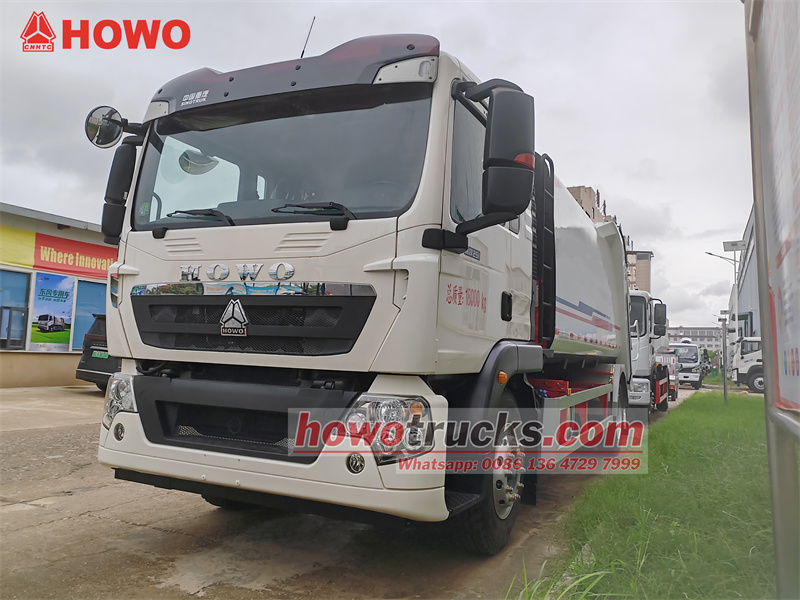

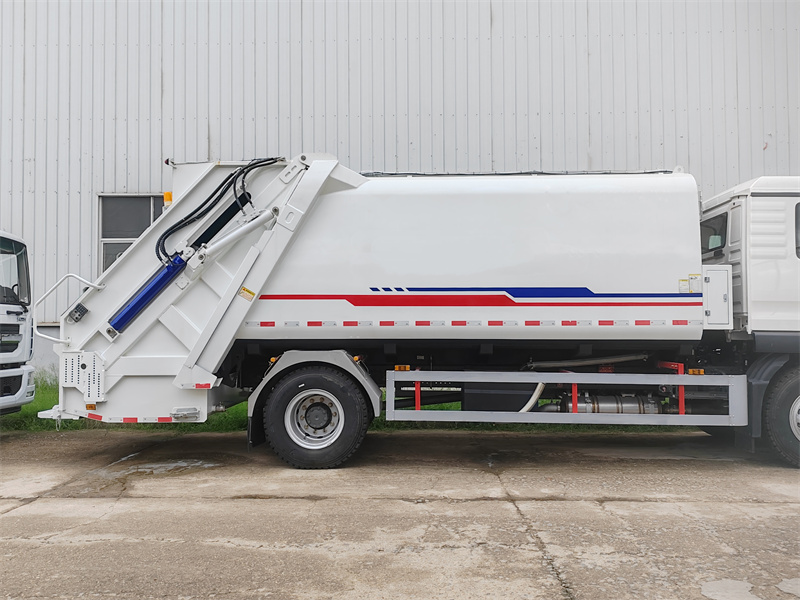

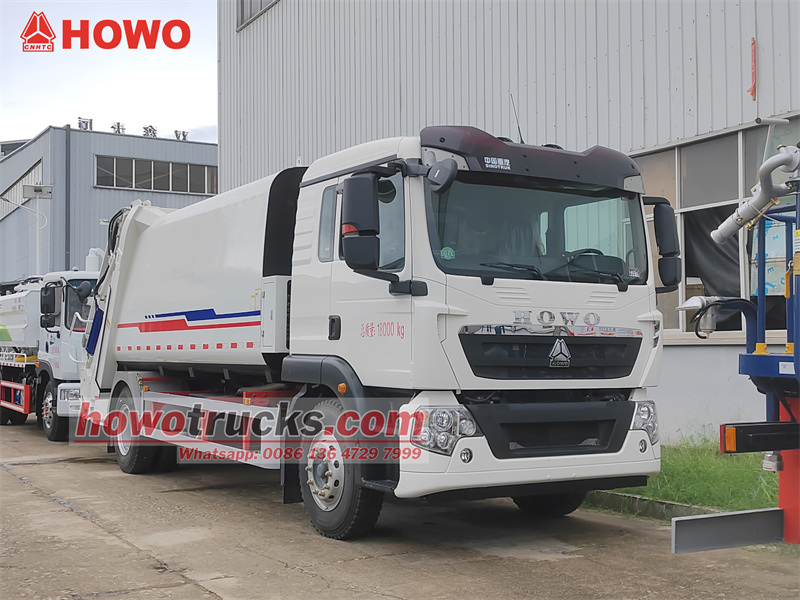

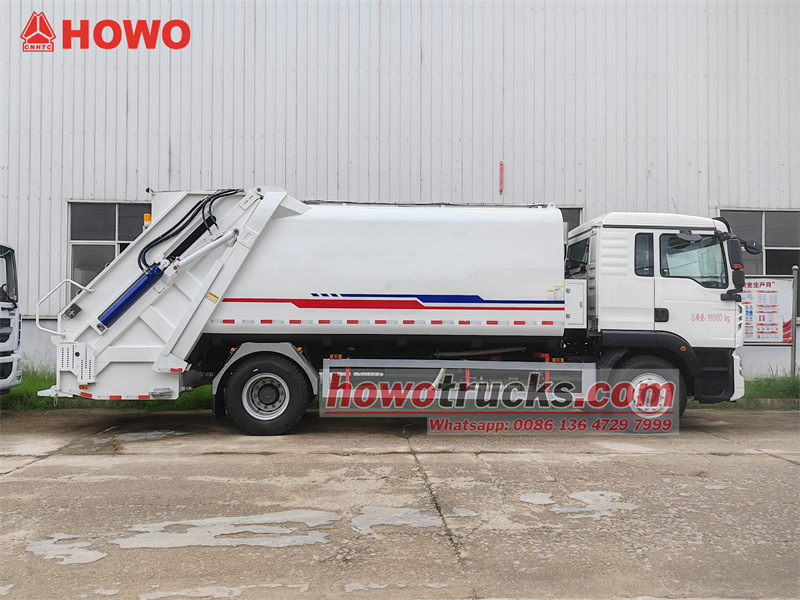

The HOWO 4x2 16 cbm garbage compactor truck adopts the Sinotruk HOWO TX 2280 one and half-row cab chassis with a 4700mm wheelbase, and is equipped with a Sinotruk MC07.25-60 Euro 6 250 horsepower engine and an HW95508STCL 8-speed gearbox. It has a maximum speed of 101km/h. The upper body is a 16 cbm compactor garbage box made of carbon steel with a curved tank body and anti-corrosion and rust-proof treatment.,side 5mm bottom 6mm thickness. It is equipped with a 200L sewage tank and a hydraulic oil tank. There is no flip mechanism at the rear, but with two foldable pedals for easy dumping of garbage. the filler is equipped with a cover. The truck with CAN-BUS electronic control system, pneumatic system, and hydraulic system control, and a compactor ratio of 3.4:1.
Working capacity :
16CBMCabin type :
HOWO TX flat roof cabin, with sleeperDrive system :
4x2Wheelbase ( mm) :
4700 mmEngine specific :
250HP / SINOTRUK MC07.25-60Gear box :
HW95508STCL, manual 8F and 2RFront axle ( Kg ) :
6500Rear axle ( Kg ) :

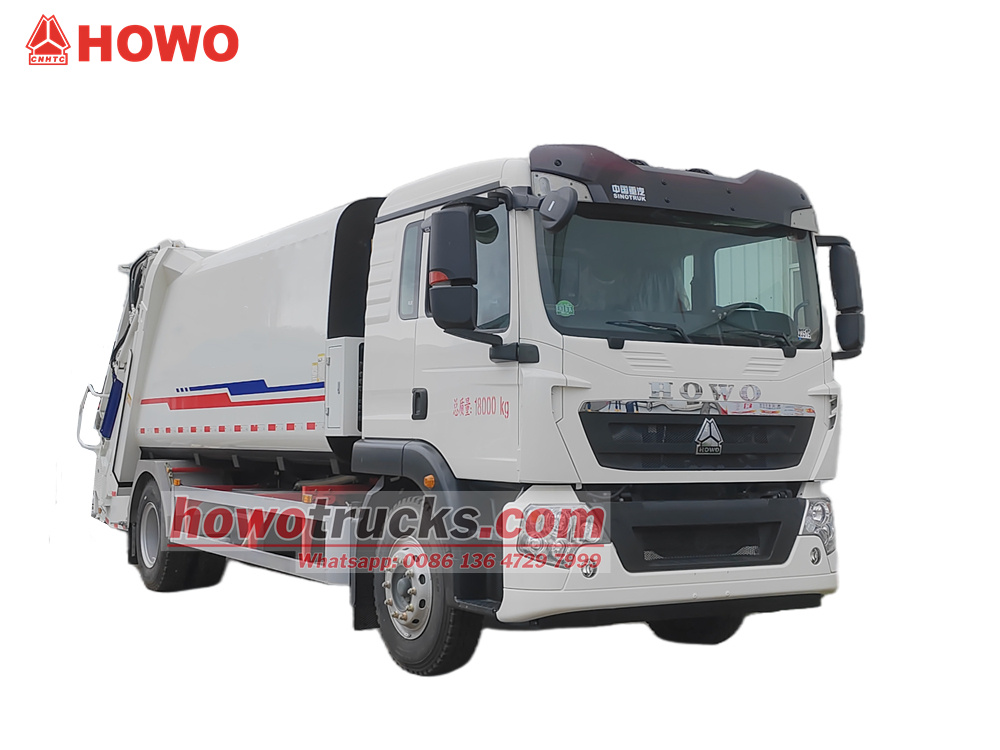

11500The HOWO TX 16cbm Refuse Collection Truck is designed for efficient urban sanitation. It utilizes a Sinotruk HOWO TX chassis, a Sinotruk 250-horsepower engine, and an 8-speed transmission, delivering powerful power and maneuverability. Its core advantage lies in its large 16-cubic-meter carbon steel container. Equipped with an advanced CAN bus electronic control system and bidirectional compression technology (compression ratio 3.4:1), the truck can handle the equivalent of four to five truckloads of regular garbage in a single trip. Operation is convenient, with multiple control modes available: in-cab electronic, manual hydraulic, and rear-mounted electronic.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Key Features
1. High loading capacity: It employs bidirectional compression technology, enabling compressed domestic waste to achieve a density of 600–800 kg/m³ or higher.
2. Integrated electro-pneumatic-hydraulic control: Leveraging the strengths of electric, pneumatic, and hydraulic controls, the system ensures precise and reliable operation of all mechanisms through seamless control switching, enhancing both reliability and efficiency.
3. Advanced electronic control system: Utilizing electrical components from renowned domestic and international manufacturers, the system integrates CAN-BUS control to minimize failure rates and prevent accidents caused by misoperation.
4. Multi-location operation: Equipped with a cab-mounted electric control panel, a driver-side manual hydraulic lever, and a rear-door electric control box, the vehicle offers convenient operation from multiple positions.
» Ⅱ. Product Parameters for HOWO 16CBM rear loader truck:
|
HOWO 4X2 16cbm waste compactor truck |
||
|
Truck model |
CS5180ZYS |
|
|
Cabin |
HOWO TX 2280 one and cabin,one and half row,3 passengers, air conditioner,USB |
|
|
Overall Size |
9250 x 2500 x 3300 mm |
|
|
Bin capacity |
16CBM |
|
|
Wheel base |
4700mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
9980kg |
|
|
Axle loading |
6500/11500kg |
|
|
Engine |
Model |
SINOTRUK MC07.25-60 |
|
Type |
4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling, high-pressure common rail |
|
|
Hose Power(HP) |
250HP/188kW |
|
|
Displacement |
6.87L |
|
|
Max torque |
925N.m |
|
|
Rated speed |
2200rpm |
|
|
Max torque speed |
1200-1800rpm |
|
|
Emission standard |
Euro 6 |
|
|
Gearbox |
SINOTRUK HW95508STCL, 8-speed,manual |
|
|
Max speed |
101km/h |
|
|
Tire |
275/80R22.5 (6+1 tire) |
|
|
Superstructure |
Body capacity |
16cbm |
|
Box material |
Side 5mm,bottom 6mm,carbon steel |
|
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
45~60 s |
|
|
Garbage Compact Ratio |
≥3:1 |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
CAN electric automatic control, pneumatic system, and hydraulic system control |
|
|
4 operate modes |
Cab electric control box,drive side manual joystick,tailgate electric control box |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual... |
||
|
Electrics |
Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
» Ⅲ. Product Details

Chassis Configuration

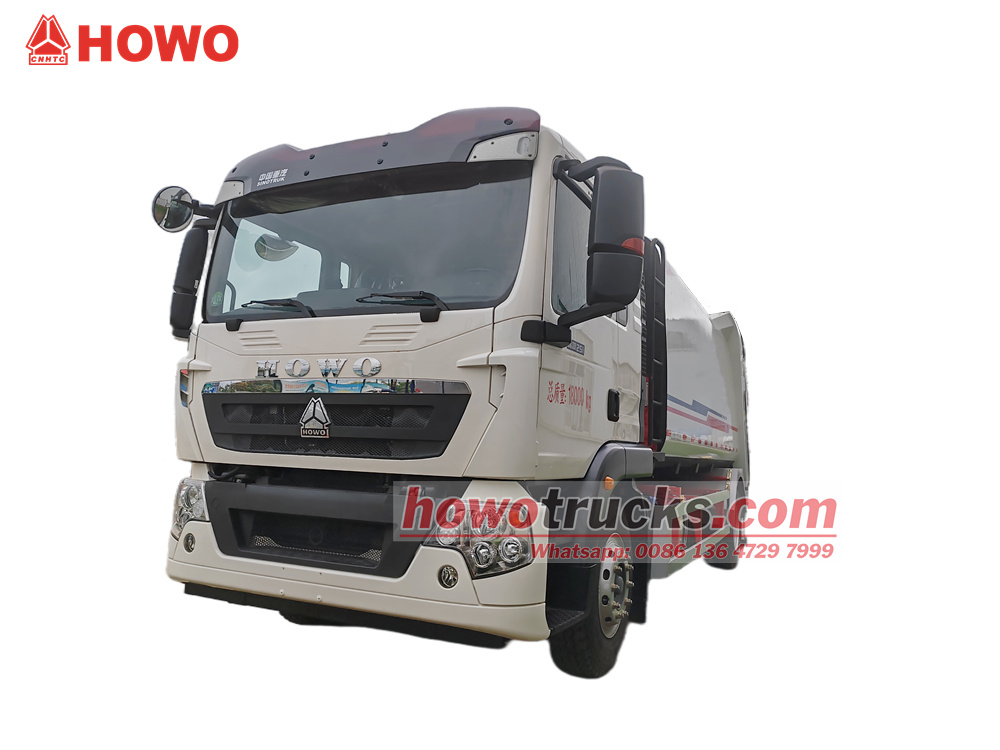

• Brand and Model: Sinotruk HOWO TX 2280 semi-cab chassis, 4x2 rear-wheel drive, 4700mm wheelbase
• Engine: Equipped with the Sinotruk MC07.25-60 engine, with 250 horsepower/188kW and peak torque of 925Nm at 1200-1800rpm, and Euro VI emissions of 6.87L/L, it offers powerful power and is environmentally friendly and energy-efficient.
• Transmission: Utilizes the HW95508STCL 8-speed manual transmission, offering clear gear positions and high transmission efficiency, adapting to various load conditions.
• Max Speed: 101km/h, meeting rapid transition requirements.

Upper Structure and Function
1. Compactor Waste Bin
o Large 16 cubic meter capacity, featuring a curved tank design made of high-strength carbon steel, 5mm thick side panels, and a 6mm thick bottom panel. Anti-corrosion and rust-resistant treatment ensures a long service life.
o Compactor ratio 3.4:1. Using bidirectional compression technology, it significantly reduces waste volume and extends collection cycles.

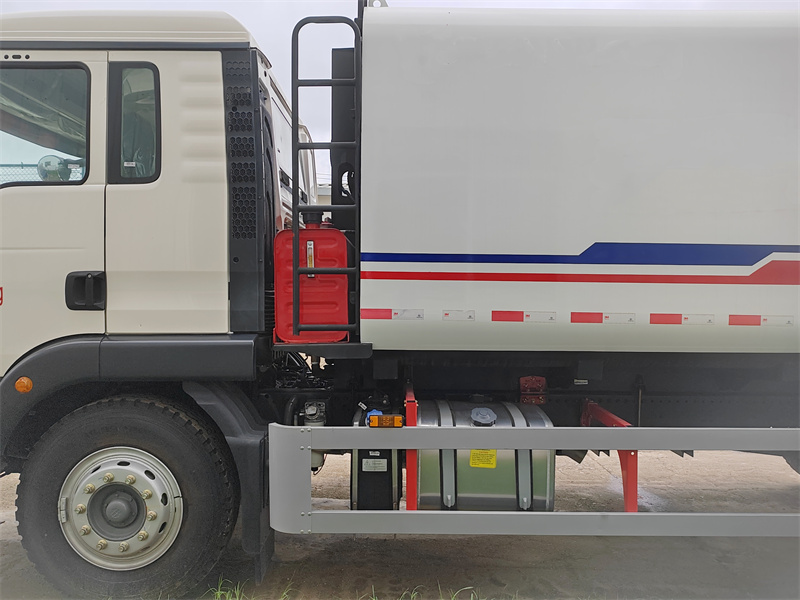

o Sewage Treatment: Equipped with a large 200L sewage tank, it effectively collects wastewater generated during operation, preventing secondary contamination.

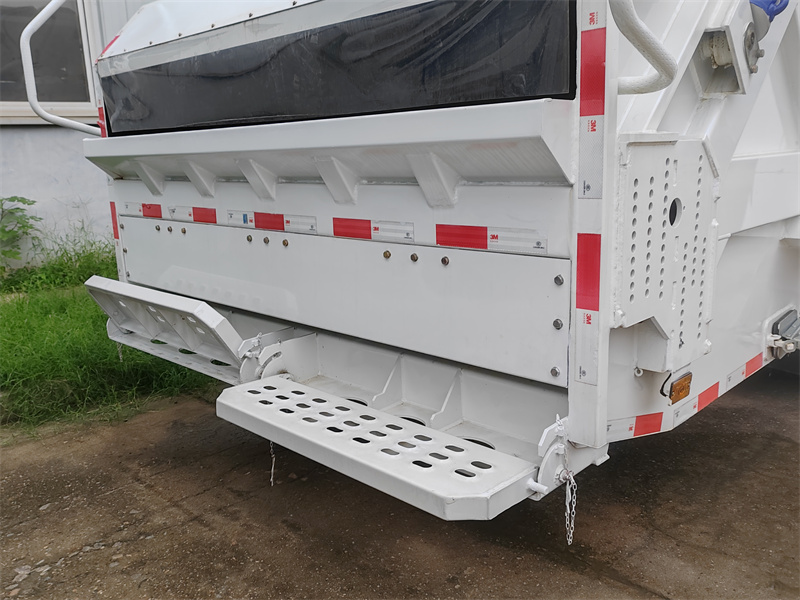

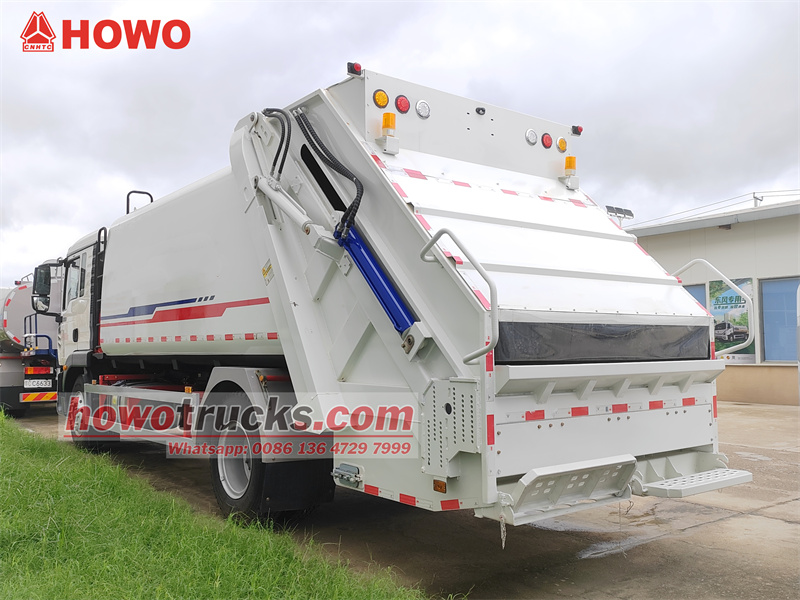

o Tail Design: No tilt mechanism; two foldable pedals facilitate direct emptying of the bin. The loader features a cover to prevent waste from drifting.

Control System:
• Control System: Advanced CAN-BUS electronic control system, pneumatic control, and hydraulic control provide high integration, low failure rate, and precise operational response.
• Operation: Multiple control points are provided for flexibility and convenience:
o Cabin Electric Control Box: The electric control box in the cab controls PTO, loading and unloading mode, tailgate raising and lowering, and dozer blade extension/retraction.

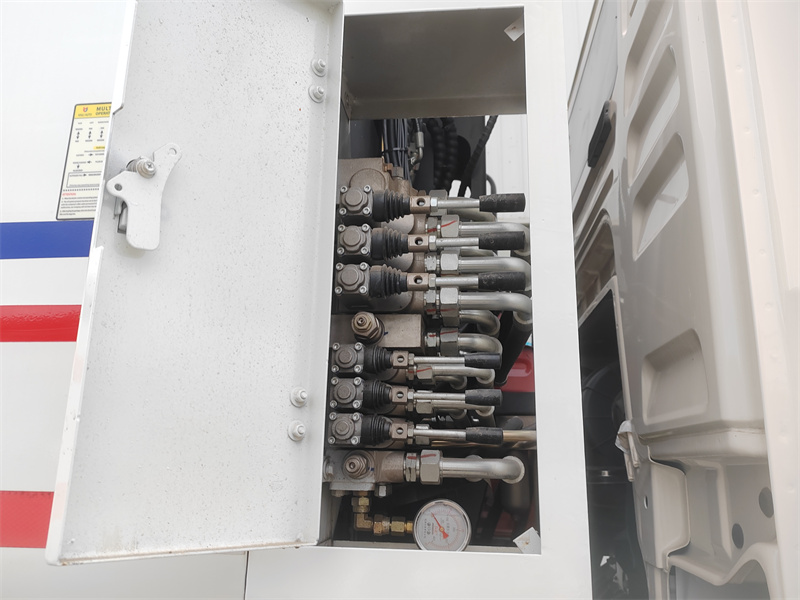

o Driver-side Manual Hydraulic Joystick: Ground-level manual control of tailgate lift/down, scraper lowering and raising, slide plate upward and downward, and dozer blade extension/retraction.

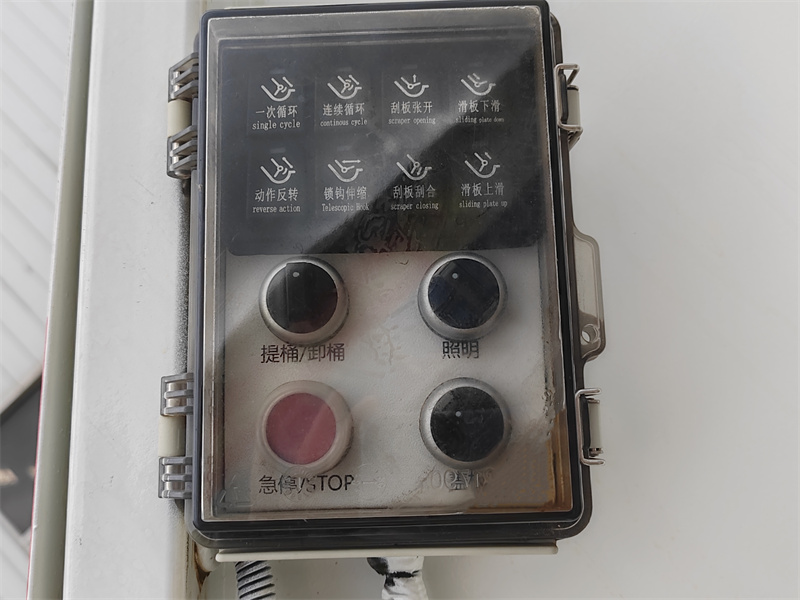

o Tailgate Right Electric Side Control Box: The electric control box on the right rear of the vehicle controls buttons for single/multiple cycles, scraper opening/closing, slide plate upward and downward movement, hook extension and retraction, and reverse operation, as well as knobs for lighting, emergency stop, and cover.

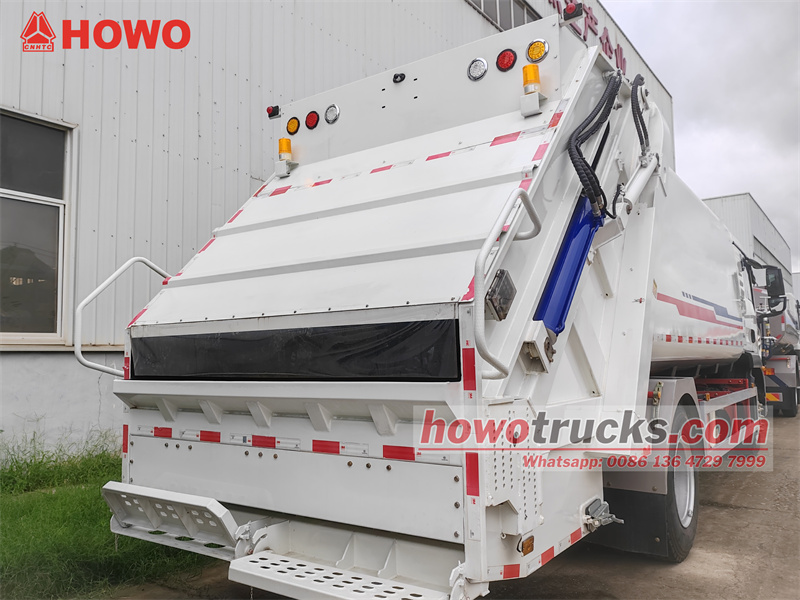

The HOWO 4X2 16CBM garbage truck with compactor adopts a rear-loading bidirectional compactor technology, enabling highly efficient coordination between waste collection and compression processes. During operation, waste is loaded into the container through the rear filler. After the filler closes, the slide plate descends and interacts with the scraper plate to perform an initial strong compaction. The scraper plate then rotates forward to further compress the waste, lifts, and pushes it into the container. Simultaneously, the push plate retracts under pressure, creating a bidirectional compression effect that enhances loading capacity. After the scraper plate retracts, additional waste can be loaded, and the cycle repeats. Through multiple cycles of horizontal compression and crushing inside the container, the waste volume is significantly reduced.
During compactor, leachate filters through the bottom screen into a 200L independent wastewater tank, preventing leakage and contamination. For unloading, the hydraulic system opens the rear door, and the highly compressed waste block is ejected by the push plate.
