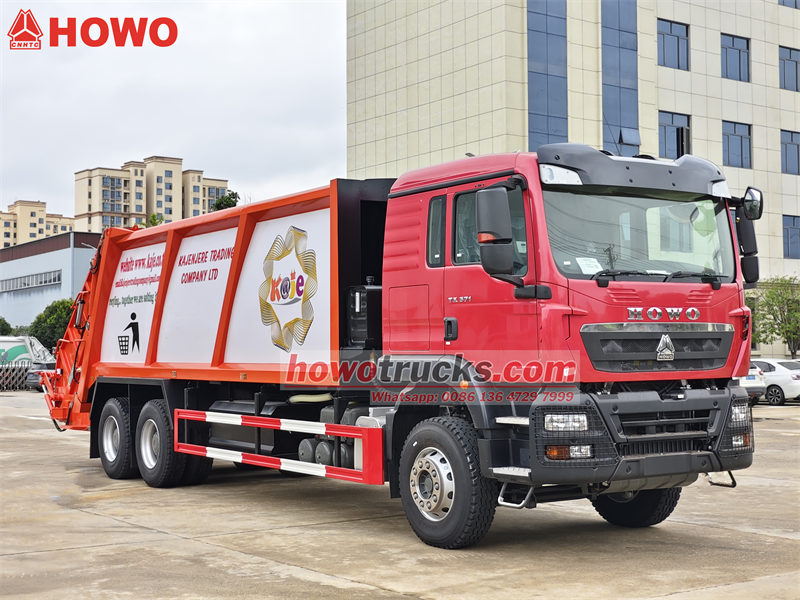

HOWO 25cbm garbage trash compactor truck

HOWO 25cbm garbage trash compactor truck

This Howo 6x4 heavy duty compactor garbage truck is an outstanding work in the field of sanitation engineering and a strategic weapon for urban cleaning. Equipped with a Wd615.47 engine, it has a powerful output of 371HP, a displacement of 9.726L, and turbocharging and intercooling technology. Its 33tons total weight configuration and 20tons load capacity can fully meet the daily garbage removal needs of large and medium-sized cities.



  • Working capacity :

    25CBM

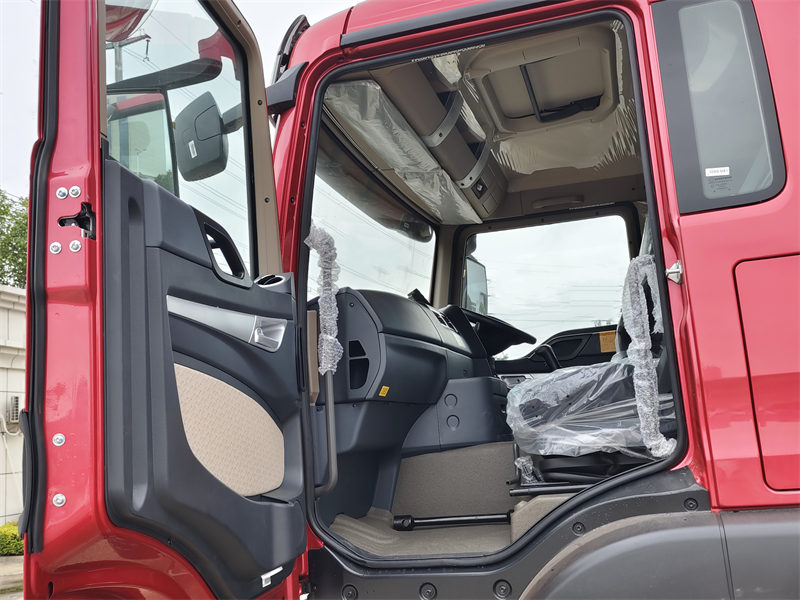

  • Cabin type :

    TX flat roof cabin, with sleeper
  • Drive system :

    6x4
  • Wheelbase ( mm) :

    4600+1350 mm
  • Engine specific :

    WD615.47 model 370HP, Euro 2
  • Gear box :

    HW19710, manual 10F and 2R
  • Front axle ( Kg ) :

    9000
  • Rear axle ( Kg ) :

    16000*2
New Products

This Howo 6x4 heavy duty compactor garbage truck is an outstanding work in the field of sanitation engineering and a strategic weapon for urban cleaning. Equipped with a Wd615.47 engine, it has a powerful output of 371HP, a displacement of 9.726L, and turbocharging and intercooling technology. Its 33tons total weight configuration and 20tons load capacity can fully meet the daily garbage removal needs of large and medium-sized cities.



The Howo garbage trash compactor truck adopts an advanced 12 front and 2 rear gearbox, combined with a 6*4 drive form to ensure stability and efficiency in complex road conditions. The 25CBM curved tank body is made of Q235 special steel, with a tank body thickness of 4mm and an overall molding process. The compactor ratio is as high as 1:3.4, ensuring the ultimate garbage compactor efficiency. The fully automatic hydraulic control system has a single loading and unloading cycle time as short as 40-45 seconds, and is equipped with PLC intelligent control, which is easy and fast to operate. In manual mode, the operator can use the operating lever and electric control buttons to complete operations such as compactor and unloading of the garbage compartment.

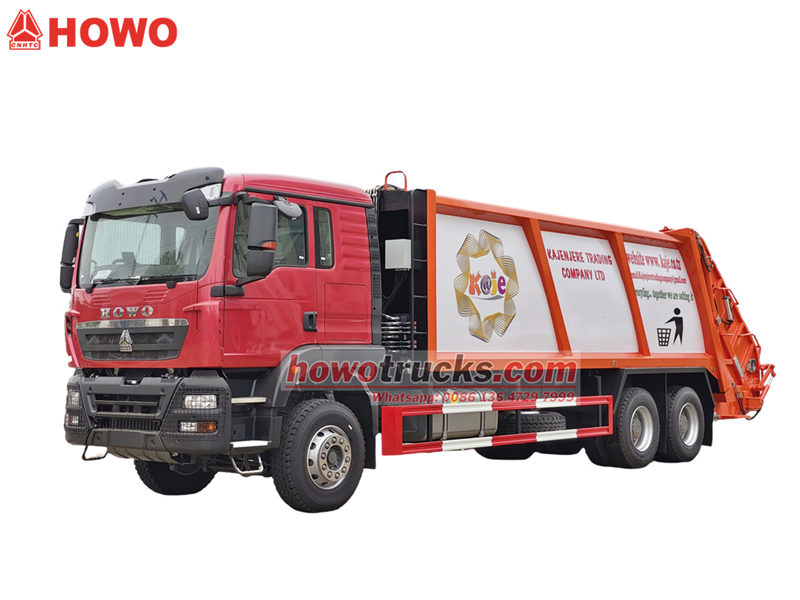

HOWO 20cbm rear loader truck




*SINOTRUK HOWO heavy duty Rear Loader Truck
20CBM Garbage Trash Compactor Truck
HOWO TX cabin compactor lorry*
-----------------------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

  • HOWO 20cbm garbage compactor vehicle

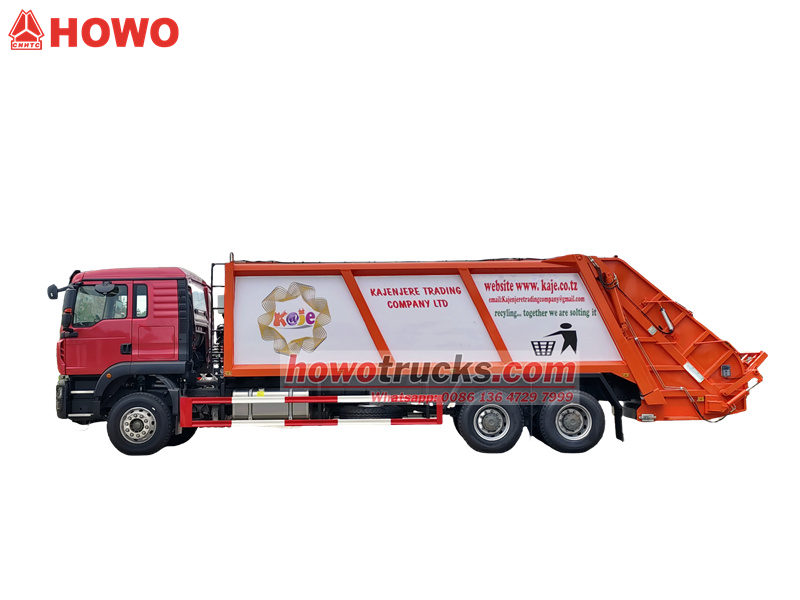

  • HOWO 20000L garbage compactor truck

  • HOWO 20cbm rear loader truck


Product Introduction

Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: SINOTRUK HOWO heavy truck chassis, 4x2, 6x4 and 8x4 model
                              WEICHAI model with 300HP, 340HP, 370HP or 400HP
                              Optional EURO 2/3/4/5/6 emission for different market


2. Tank material: St52 material 5mm thick carbon steel for durable service
                            Q355, T420, HARDOX material can be choose


3. Tanker body: Customized for 20CBM compactor body, curved shape, stronger

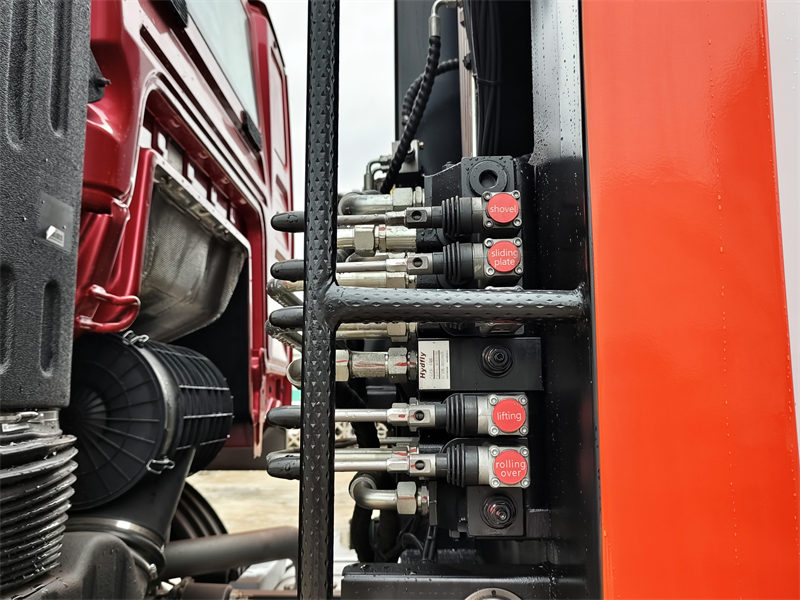

4. Control Box: CAN BUS control box with in cabin and rear hopper, convenient operation
                           Also matched hydraulic control valve for emergency usage



5. Rear Tilting Device: Standard 240L and 1100L bins, optional 360L, 660L, 770L, 1100L, 1200L bins


6. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m

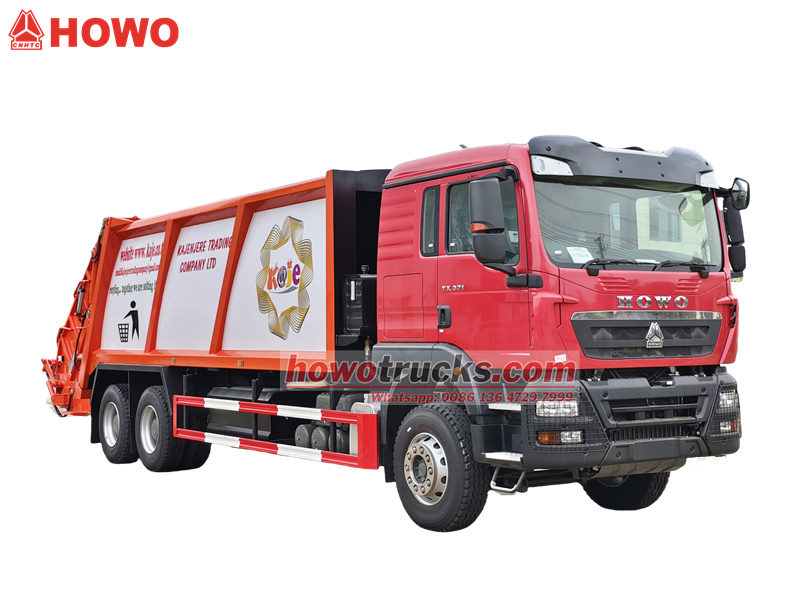

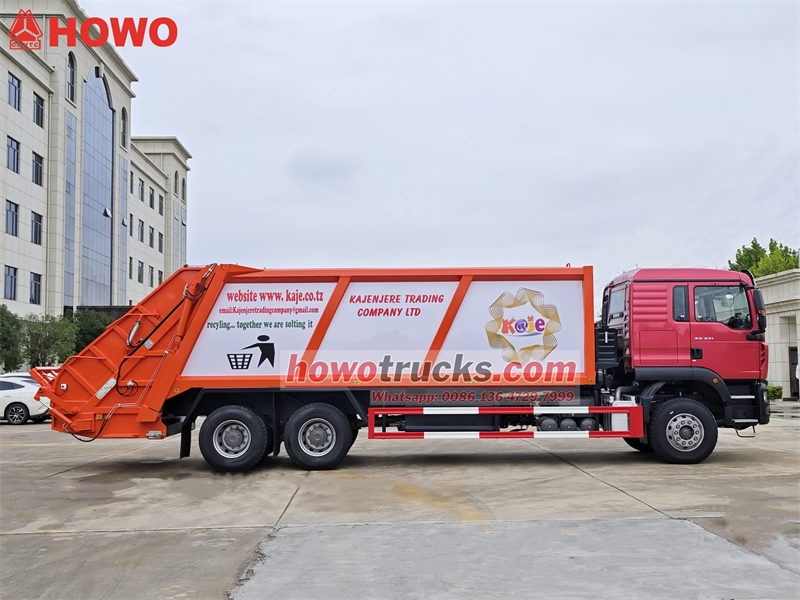

HOWO 20CBM garbage compactor vehicle

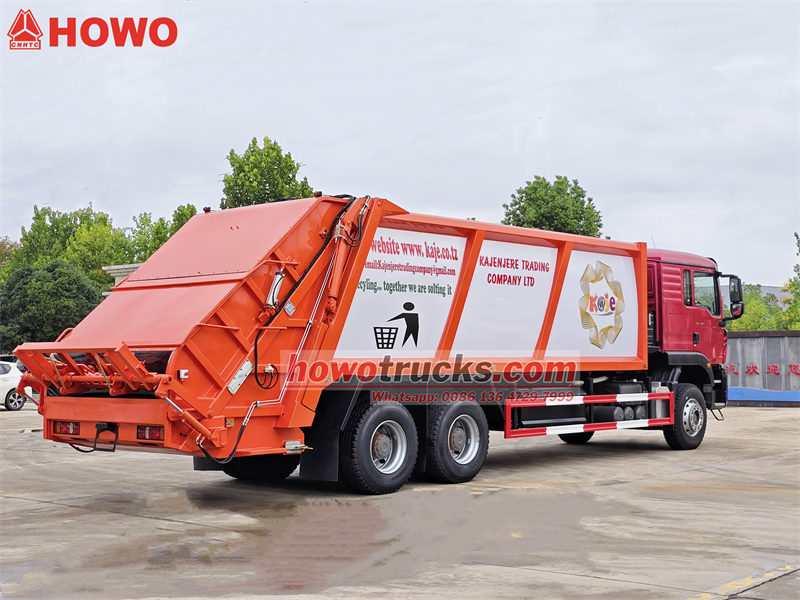

HOWO 20CBM garbage compactor truck



Product Parameter for How 20CBM Rear Loader



HOWO heavy duty 20CBM rear loader Truck

Model

CSC5256YSLJC

Driving Type

6*4

Gross Weight

25000kg

Related Loading Mass

12700kg

Curb Weight

11680kg

Dimension

10500*2380*3400mm

Wheelbase

4600+1350(mm)

Front Axle Loading Capacity

7000kg

Rear Axle Loading Capacity

13000kg x 2pcs

Approach angle

27°

Departure angle

14°

Front Suspension

1130mm

Rear Suspension

2140mm

Tire

12.00R20

Max Speed

90 (Km/h)

Fuel tank

400L

Engine Parameters

Model

WD615.47

Horse Power

371 HP

Displacement

9.726L

Emission Standard

Euro 3

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling)

Gear Box

Gear Box

HW19710 transmission, Manual, 10-speed forward, 1 reverse gears

Superstructure Parameter

Tank Volume

20 CBM

Tank Shape

Arc-shape

Tank Material thickness

Bottom:4mm Side:4mm

Tank manufacturing process

Whole board manufacturing

Tank Material

Q235 (Special Steel)

Compression Ratio

1 : 3.4

The effective volume of the bucket

≥0.8m³

Loading cycle time

≤40 s

unload garbage time

≤45s

control method

Automatic,Manual

Maximum pressure of hydraulic system

20MPa

Control System

PLC

Control panel

English or Your language

Engine power control

Fully automatic control

standard accessories

Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

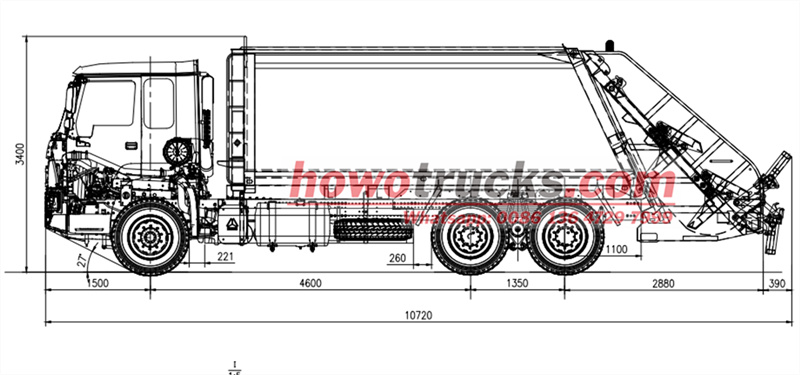

HOWO rear loader truck drawing





Product Details for Howo 20CBM garbage trash truck

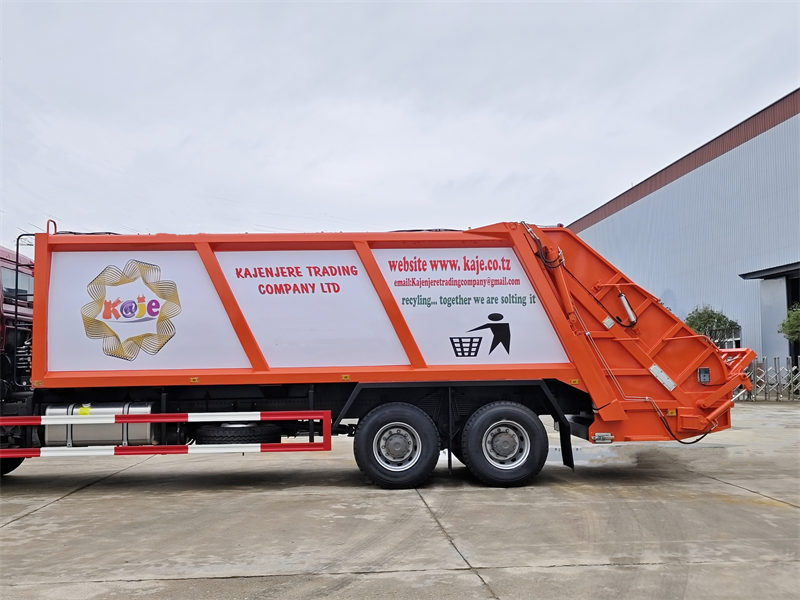

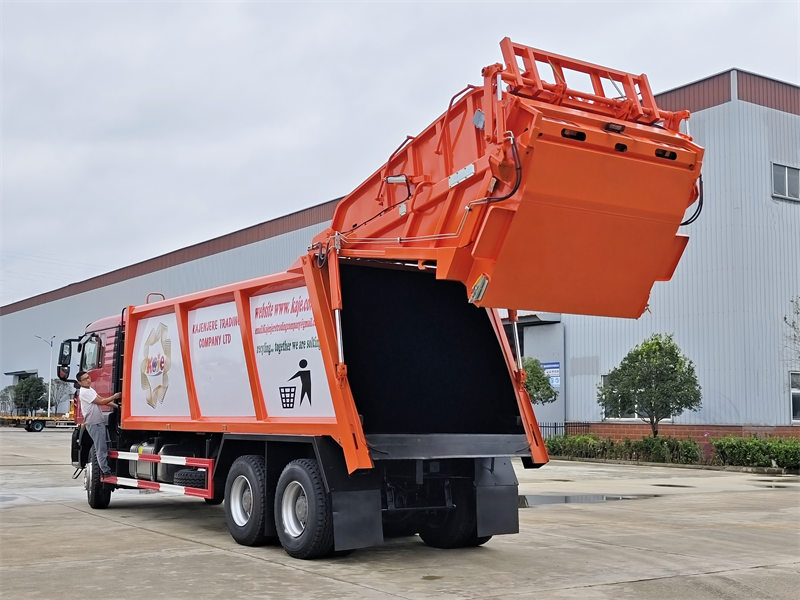

Howo garbage compactor truck



Howo garbage compactor truck

1.Powertrain:

Equipped with a Weichai inline six-cylinder diesel engine featuring a high-pressure common rail fuel injection system.

Combined with variable geometry turbocharging and intercooling technology, it achieves a maximum output of 370 HP at 1800 rpm.

It delivers a continuous peak torque of 1500 Nm between 900 and 1400 rpm.

This powertrain configuration is specifically optimized for the frequent start-stop conditions of garbage trucks, with its high torque at low rpm significantly improving acceleration from a standing start.

Howo garbage compactor truck

2.Drivetrain Architecture:

Adopting a 6x4 all-wheel drive layout, the vehicle boasts a front axle load capacity of 7.5 tons and a rear tandem drive axle load capacity of 18 tons (13 tons + 5 tons thrust configuration).

Equipped with 12.00R20 radial steel tires, the vehicle boasts a minimum turning radius of ≤10m, ensuring both heavy-load maneuverability and urban lane maneuverability.



3.Transmission System:

Matched to a Fast 12-speed transmission, the power take-off (PTO) is directly connected to the hydraulic pump, enabling dual-mode power distribution for both driving and working.

The PTO output reaches 180kW, ensuring vehicle mobility even when the hydraulic system is operating at full capacity.

Howo garbage compactor truck

4.Tank Structure:

 The curved tank body, designed using 3D parametric technology, is laser-welded from T420 high-strength alloy steel. Finite Element Analysis (FEA) has verified that it can withstand a working pressure of 0.35 MPa.

The volume utilization coefficient reaches 0.92, increasing the effective loading capacity by 15% compared to traditional square tanks.

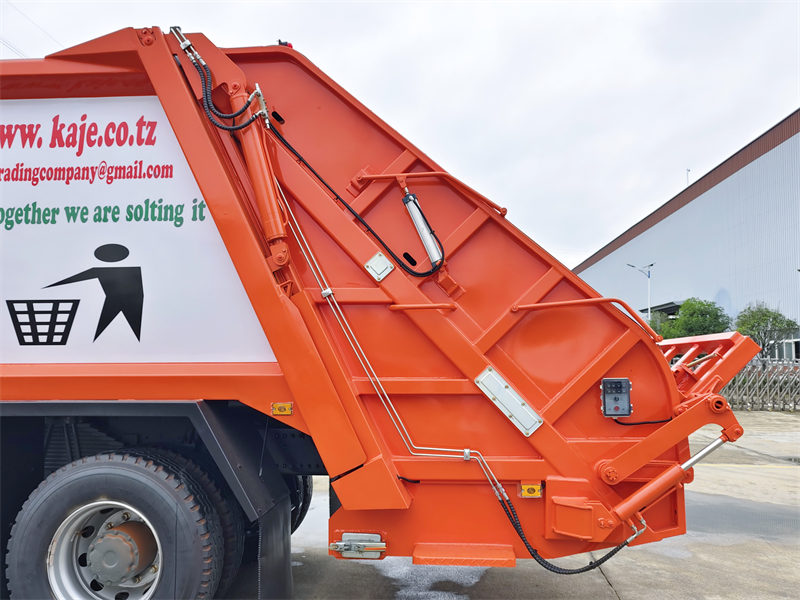

5.Compactor Mechanism:

The two-stage piston compression system features a 180mm x 3200mm main cylinder.

The compactor plate is constructed of 16MnCr5 case-hardened steel with a surface hardness of HRC 58-62.

The pressure compensating valve allows for dynamic compression force adjustment (adjustable from 50 to 120 kN).

At a compactor ratio of 1:3.4, the waste density per unit volume can reach 800 kg/m³.

Howo garbage compactor truck

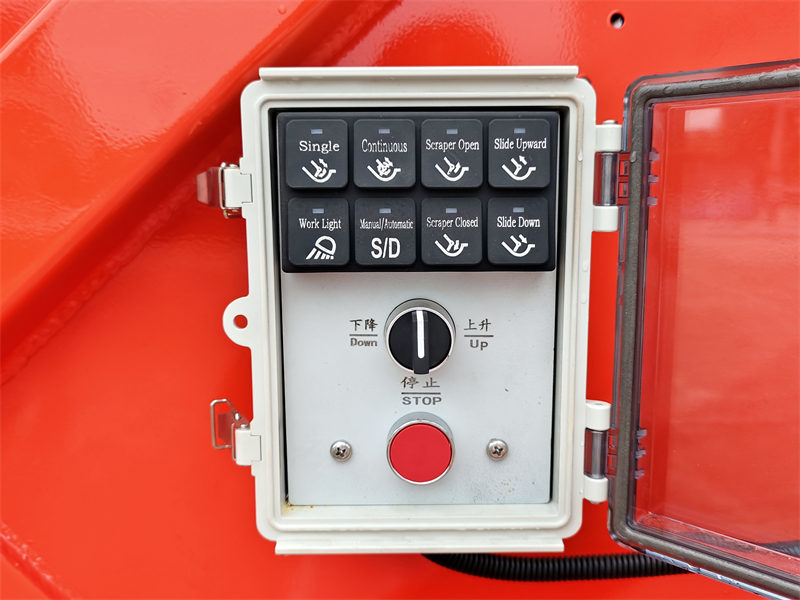

6.Intelligent Control Unit:

Utilizing a CAN bus architecture, the electronically controlled axial piston pump and proportional directional valve, along with a Siemens PLC controller, achieves closed-loop control of the dozer blade's motion trajectory (with a repeatability of ±2mm).

Eight preset operating modes can be switched with a single click via a simple control box, and the language can be set to suit different countries.



7.Energy Efficiency Management:

The unique load-sensing hydraulic system (LS system) distributes pump flow according to demand, saving 30% energy compared to traditional fixed-flow systems.

Measured energy consumption per single cycle (compression + discharge) is ≤ 1.2L of diesel, an 18% reduction compared to similar products.



Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!


We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



HOWO rear loader truck for export to Middle East country



27 units HOWO rear loader truck for export

HOWO 20cbm refuse compactor trucks ready for shipment to Africa
