The Howo 8x4 30 cubic meter garbage compactor truck uses a Sinotruk NX H77L cab chassis with a wheelbase of 1800+4600+1350mm. It is equipped with a Sinotruk WD615.47 371hp engine and an HW19710 transmission. The superstructure is a 30 cubic meter arc-shaped carbon steel compactor garbage container with a rear-mounted tilting bin that can accommodate 240L, 660L, and 1100L international standard garbage containers. It features a combined electric, pneumatic, and hydraulic control system, using electrical components from well-known domestic and international manufacturers and integrated control via CAN-BUS. It employs bidirectional compression technology with a compression ratio ≥3:1.
Working capacity :
30cbmCabin type :
HOWO NX371 cabin,with one bed, A/CDimension (mm ) :
12150 x 2550 x 3300mmDrive system :
8x4,LHDWheelbase ( mm) :
12150 x 2550 x 3300mmEngine specific :
371HP/ SINOTRUK WD615.47Gear box :
HW19710 10-speed,manualFront axle ( Kg ) :
HF9,2x9TRear axle ( Kg ) :
HC16, 2x16TRemark :

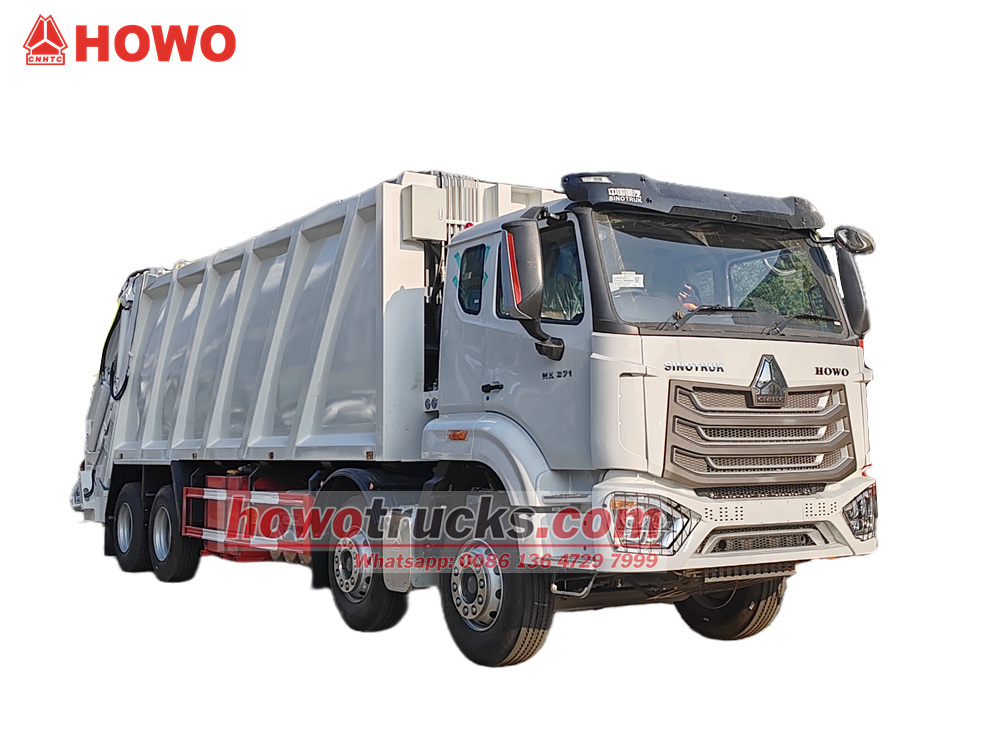

Garbage container capacity can be customizedThe Nigeria Sinotruk Howo 30cbm refuse compactor truck is a highly efficient heavy-duty sanitation equipment. Built on the Sinotruk NX H77L chassis, its core component is a 30-cubic-meter compactor box. It employs advanced electric, pneumatic, and hydraulic combined control and a CAN-BUS integrated electronic control system, supporting multi-point operation from the cab and rear. Through bidirectional compression technology, it achieves a high compression ratio of ≥3:1, processing over 15 tons of waste per trip. Significantly improving waste collection and transportation efficiency, it is an ideal solution for Nigeria to achieve waste volume reduction and efficient transfer.

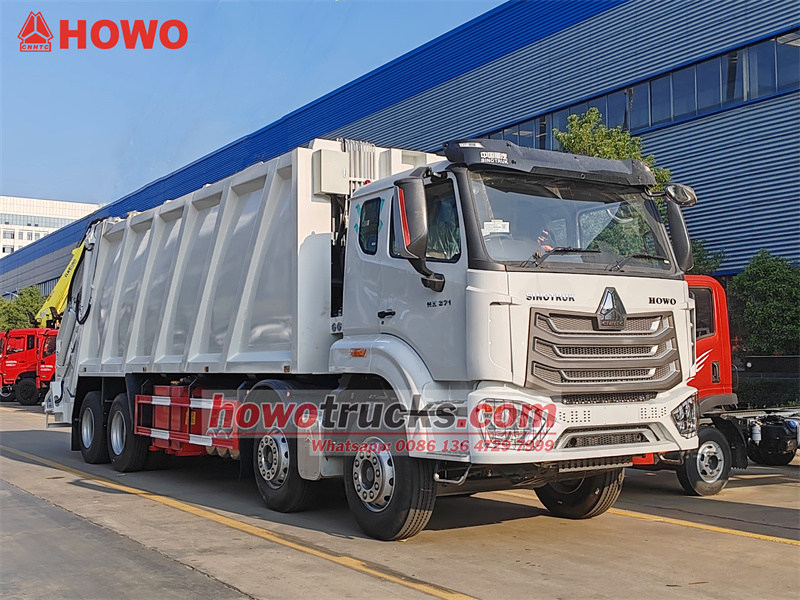

*HOWO 8X4 30CBM Refuse Compactor Truck
Rear Loading Garbage Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction
Manufacturer: CS Trucks Group
Features
1. High Loading Capacity: A large 30 cubic meter capacity combined with a high compression ratio results in extremely high single-trip transport efficiency.
2. Mature Powertrain: Utilizing Sinotruk's golden powertrain (WD615 engine + HW transmission), it is robust, durable, and easy to maintain.
3. High Operational Efficiency: Automated bin collection, bidirectional compression, multi-point control, and CAN bus technology enable fully automated waste collection, compression, and unloading.
4. Strong Adaptability: It can accommodate various standard waste bins to meet the needs of different waste collection points in different areas.
Product Parameter For Howo NX 8X4 371HP rear loader truck
|
HOWO 8X4 30cbm waste compactor truck |
||
|
Truck model |
CS5310GXH |
|
|
Cabin |
HOWO NX H77L standard cab,one and half row,3 passengers, air conditioner,USB |
|
|
Overall Size |
12150 x 2550 x 3300mm |
|
|
Bin capacity |
30CBM |
|
|
Wheel base |
1800+4600+1350mm |
|
|
GVW |
31000kg |
|
|
Curb weight |
14280kg |
|
|
Front Axle |
HF9, Steering with double T-cross section beam, Loading Capacity: 2X9,000kgs |
|
|
Rear Axle |
HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42 |
|
|
Engine |
Model |
SINOTRUK WD615.47 |
|
Type |
4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling, high-pressure common rail |
|
|
Hose Power(HP) |
371HP/273kW |
|
|
Displacement |
9.726L |
|
|
Max torque |
1500N.m |
|
|
Rated speed |
2200rpm |
|
|
Max torque speed |
1100-1600rpm |
|
|
Emission standard |
Euro 2 |
|
|
Gearbox |
SINOTRUK HW19710, 10F&2R,manual |
|
|
Max speed |
101km/h |
|
|
Tire |
12.00R22.5 (12+1 tire) |
|
|
Superstructure |
Body capacity |
30cbm |
|
Box material |
Side 5mm,bottom 6mm,carbon steel |
|
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
45~60 s |
|
|
Garbage Compact Ratio |
≥3:1 |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
CAN electric automatic control, pneumatic system, and hydraulic system control |
|
|
3 operate modes |
Cab electric control box,drive side manual joystick,tailgate electric control box |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual... |
||
|
Electrics |
Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|

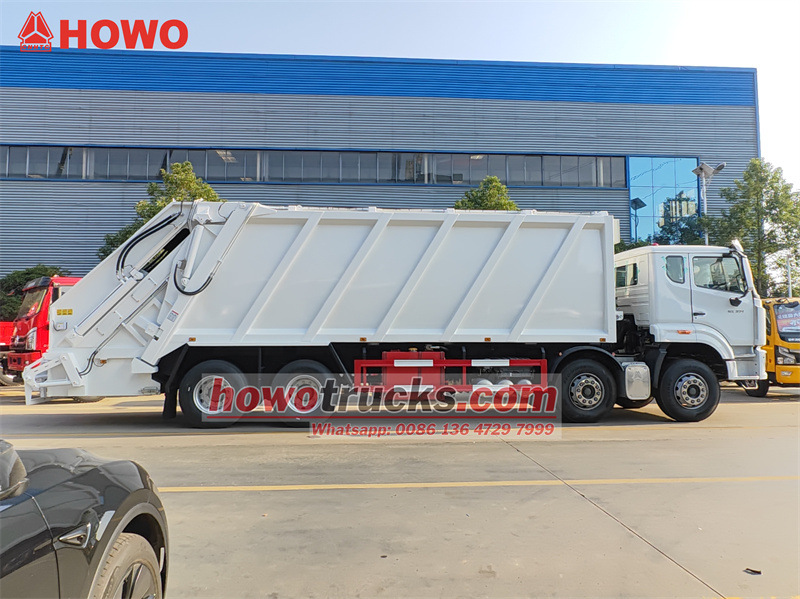

Main Details Of HOWO 8X4 30CBM waste collection truck

Chassis

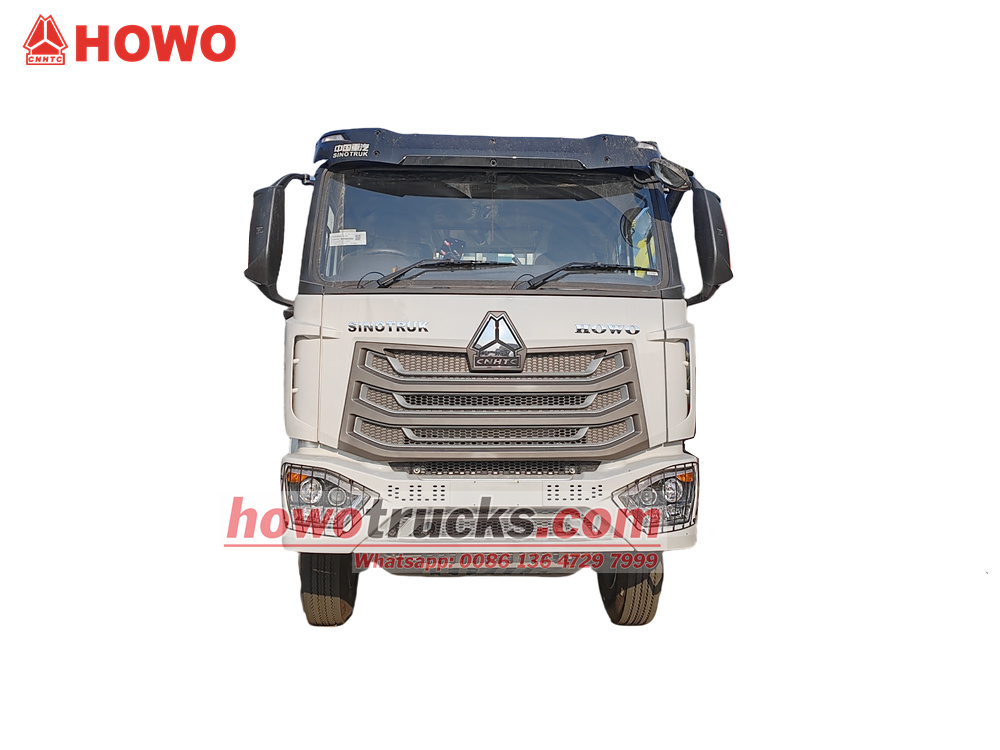

Cabin: Utilizes the Sinotruk NX H77L cab, offering a spacious and comfortable driving and riding environment with excellent visibility. The wheelbase is 1800+4600+1350mm, providing ample space for the superstructure.
Engine: Sinotruk WD615.47 inline six-cylinder diesel engine, 9.726 liters displacement, 371 horsepower (273kW), torque 1500 N·m (1100-1600rpm)
Transmission: Matched with a Sinotruk HW19710 manual transmission, featuring smooth gear shifts, a high first gear ratio, and strong heavy-load starting capability.

Upper Structure Design:

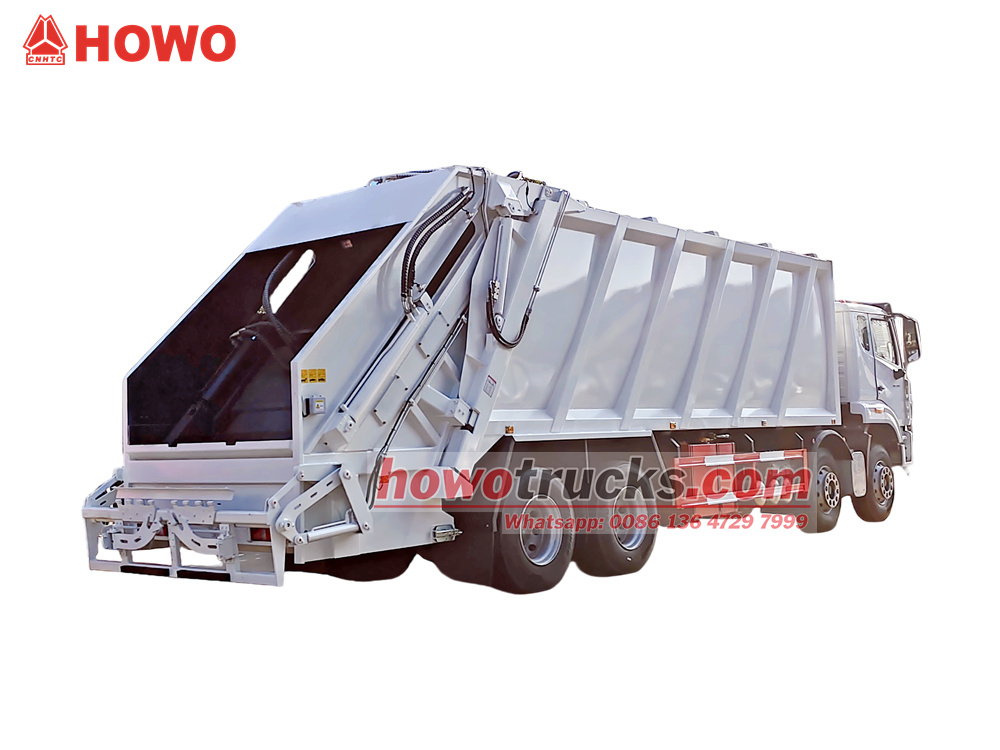

Waste Container: The upper structure features a 30 cubic meter arc-shaped compressed waste container made of high-strength carbon steel, treated with anti-corrosion and rust-proofing, with 5mm thick side plates and a 6mm thick bottom plate.
Two-Way Compact Technology: Utilizing a two-way compression cylinder design, the waste is powerfully compressed during both loading and pushing processes. The compression ratio is ≥3:1, significantly increasing the transport capacity per trip and reducing the frequency of round trips.
Sealing Design: The container adopts a fully sealed structure, coupled with a hydraulic locking device, to prevent waste leakage and odor diffusion during transportation, meeting environmental protection requirements.

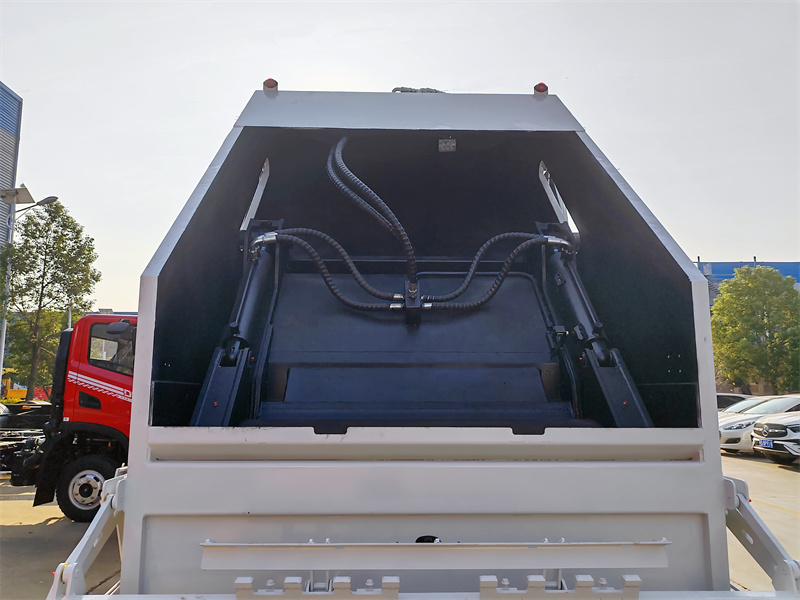

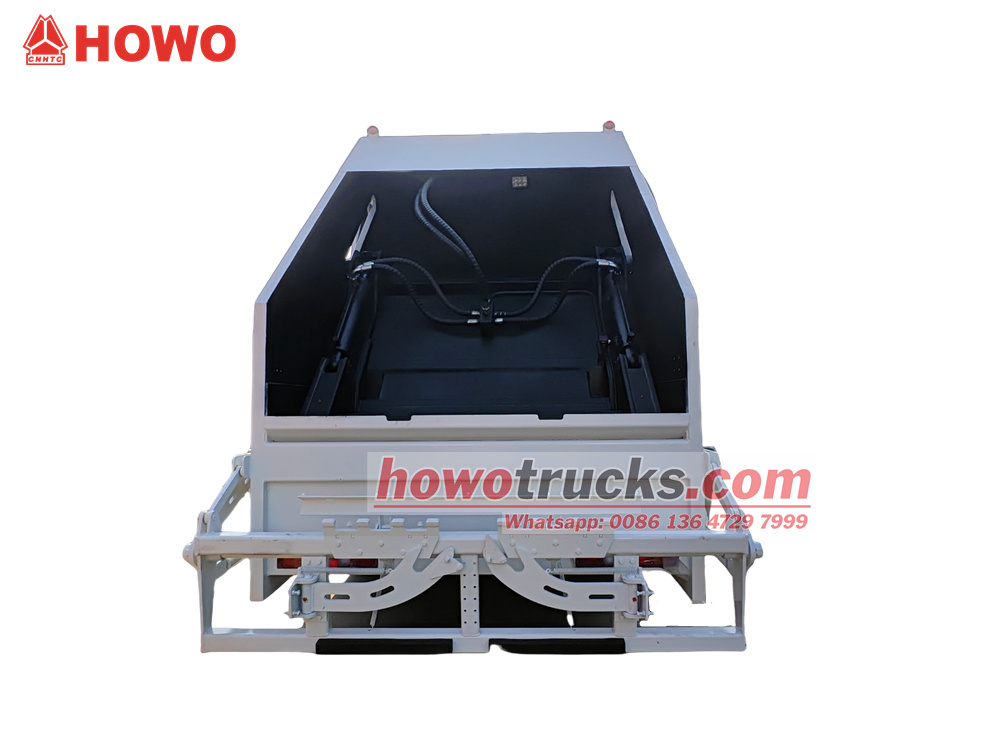

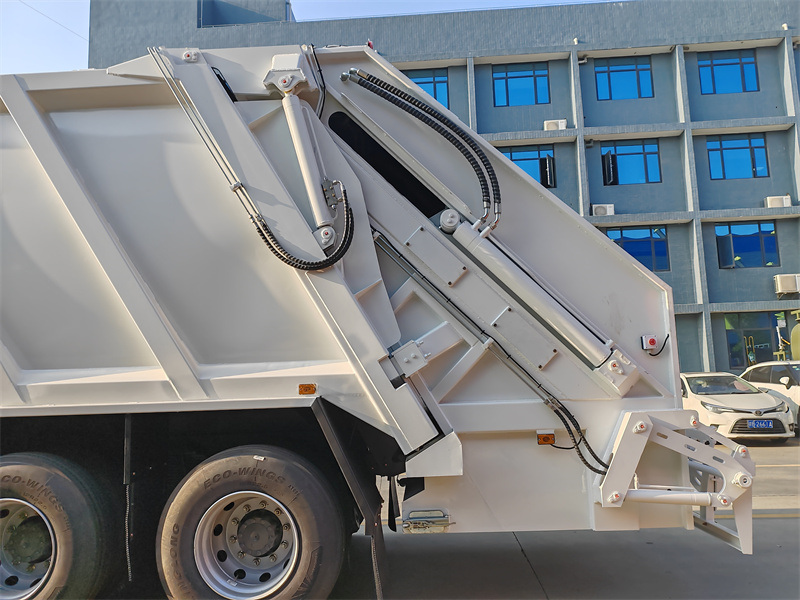

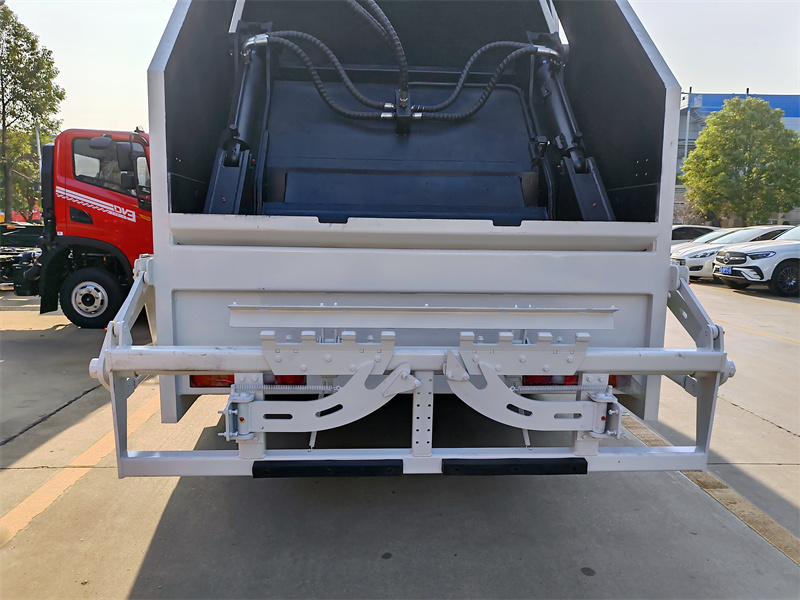

Loading Mechanism: The rear-mounted bin-tilting mechanism is highly compatible, adaptable to 240L, 660L, and 1100L international standard plastic waste bins, achieving standardized and automated waste collection.

Control System
Advanced Integration: Employs a combined "electric, pneumatic, and hydraulic" control mode. The core electronic control system is integrated based on CAN-BUS bus technology, ensuring high reliability and stable signal transmission.
Renowned Components: Key hydraulic and electrical components are sourced from well-known domestic and international brands, guaranteeing long-term stable system operation.

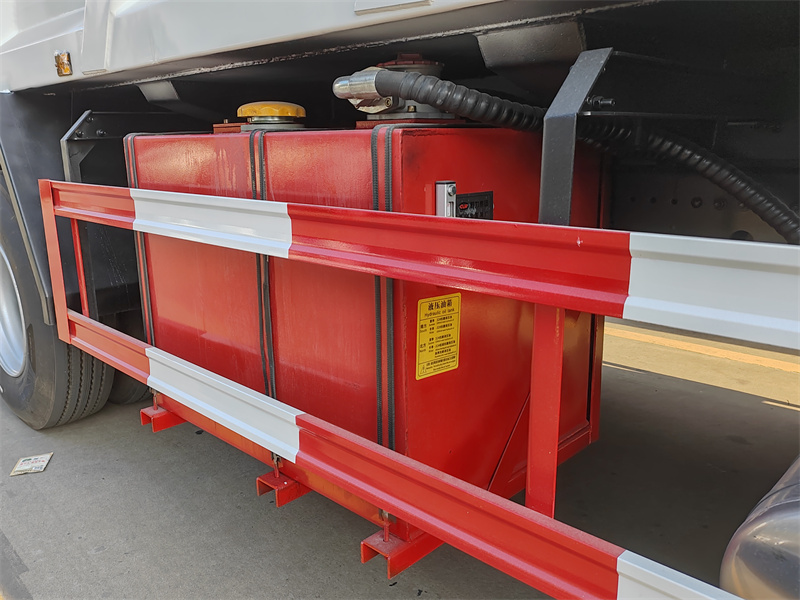

Hydraulic System: Provides powerful performance for major actions such as compression and unloading; core hydraulic components offer stable performance.

Multi-Point Operation:

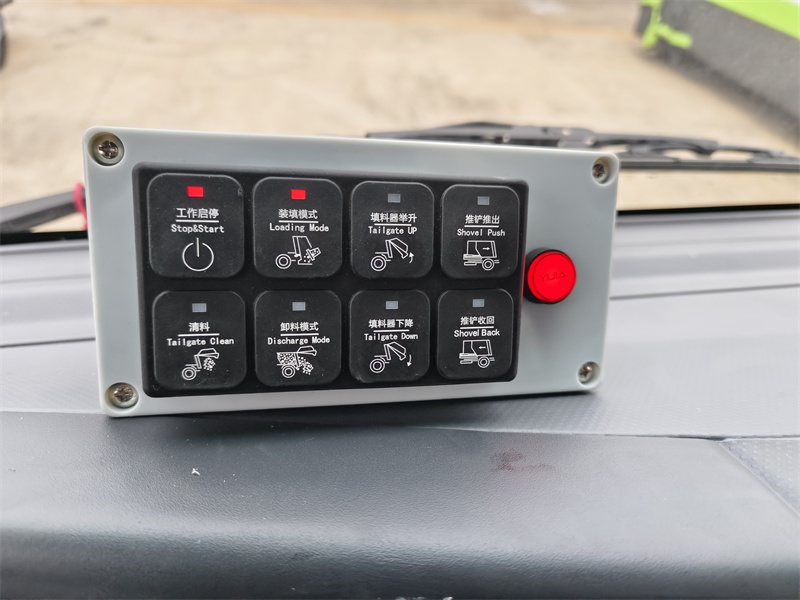

* Cab Electronic Control Box: The driver can control the pushing and unloading, and select self-loading/unloading modes from inside the vehicle.

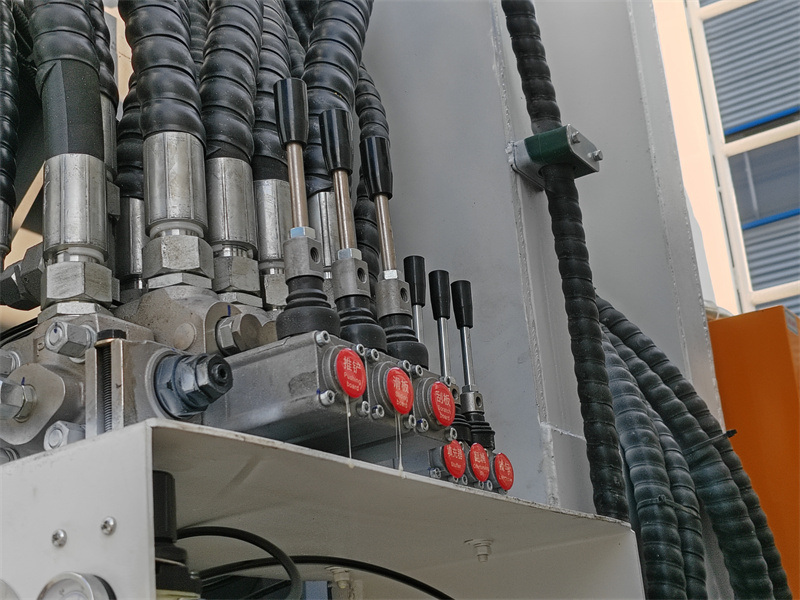

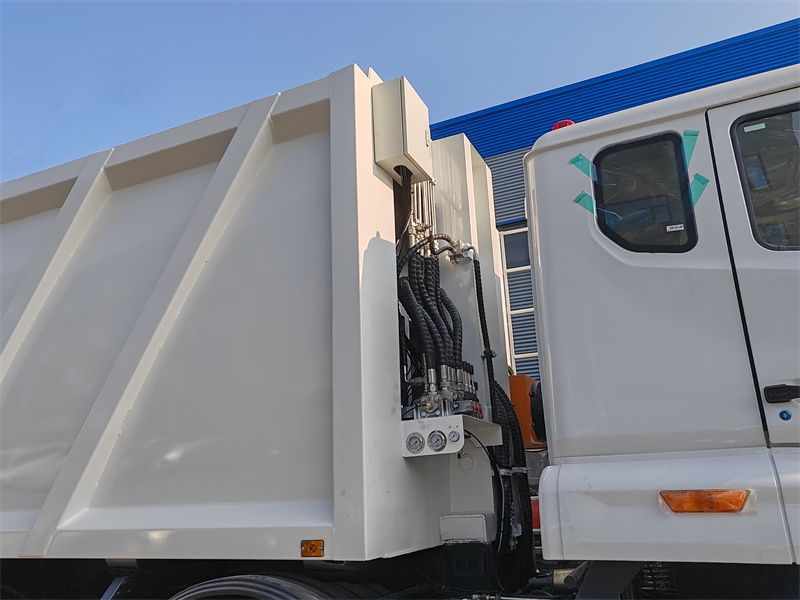

* Driver-Side Manual Operating Valve: Controls the operation of the pusher, slide plate, scraper, filler, bucket tipping, and locking hook.

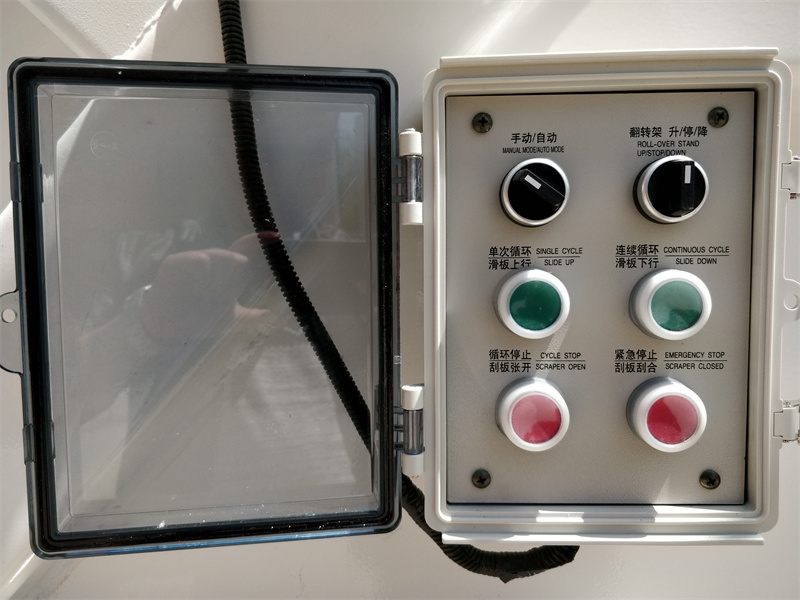

* Tailgate Electronic Control Box: Located on the right side of the rear of the vehicle, specifically for controlling the compaction and bucket lifting mechanisms, facilitating operation by accompanying personnel.
Applications
In the context of rapid urbanization in Nigeria, this Howo 8x4 30 cubic meter compactor garbage truck has become a key sanitation force due to its exceptional adaptability. Its powerful 371-horsepower engine and robust chassis easily handle local traffic congestion and complex road conditions. The highly efficient automated collection and bidirectional compression technology significantly improves garbage disposal efficiency in densely populated areas, with a single transport capacity far exceeding that of ordinary vehicles, effectively alleviating the pressure on urban sanitation. The mature Sinotruk chassis and globally renowned electrical components ensure high uptime and low maintenance costs even in high-temperature and high-humidity environments.

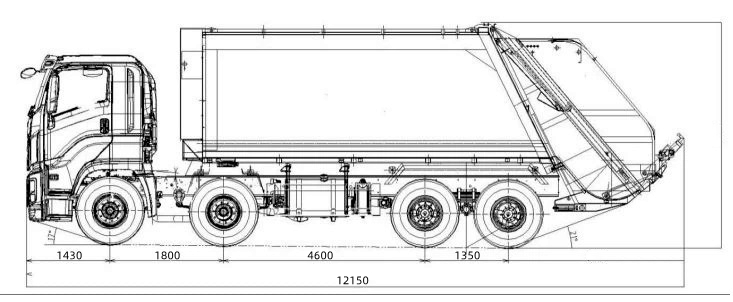

Technical drawing of Sinotruk Howo 30cbm refuse compactor truck
