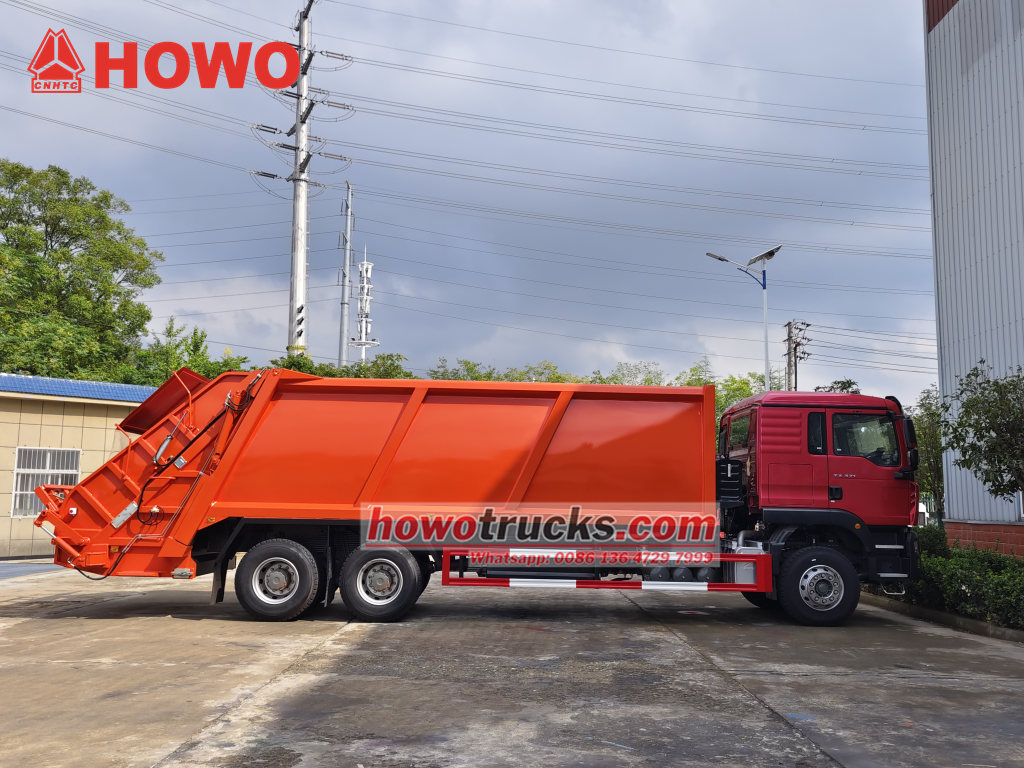

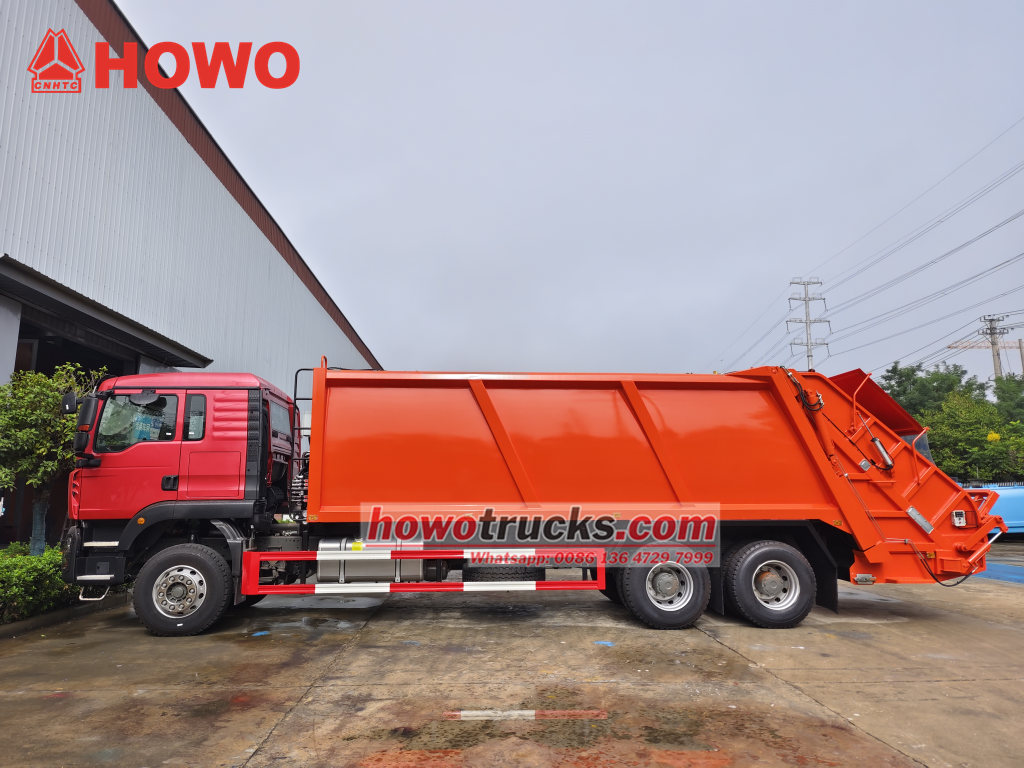

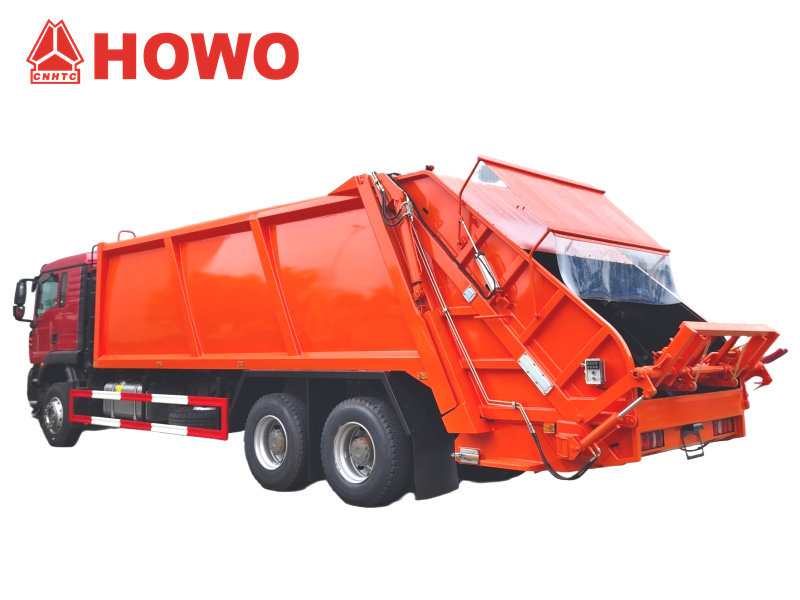

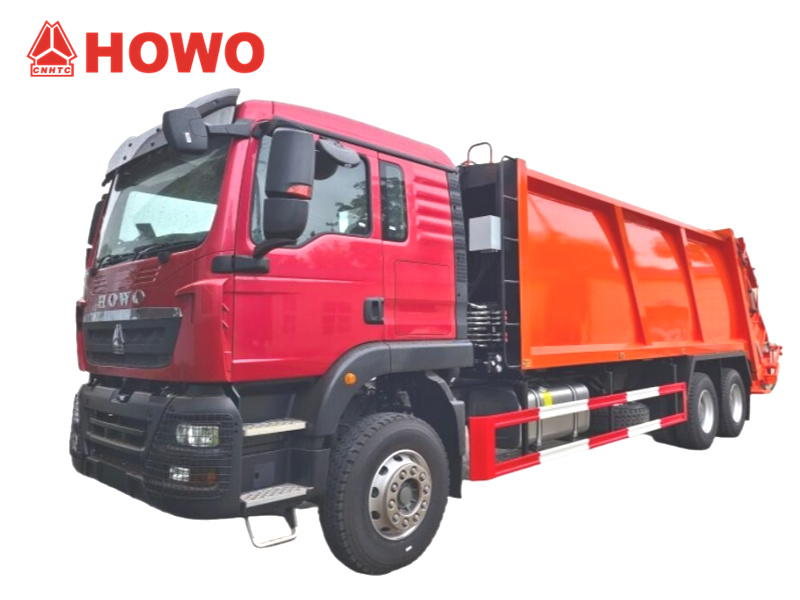

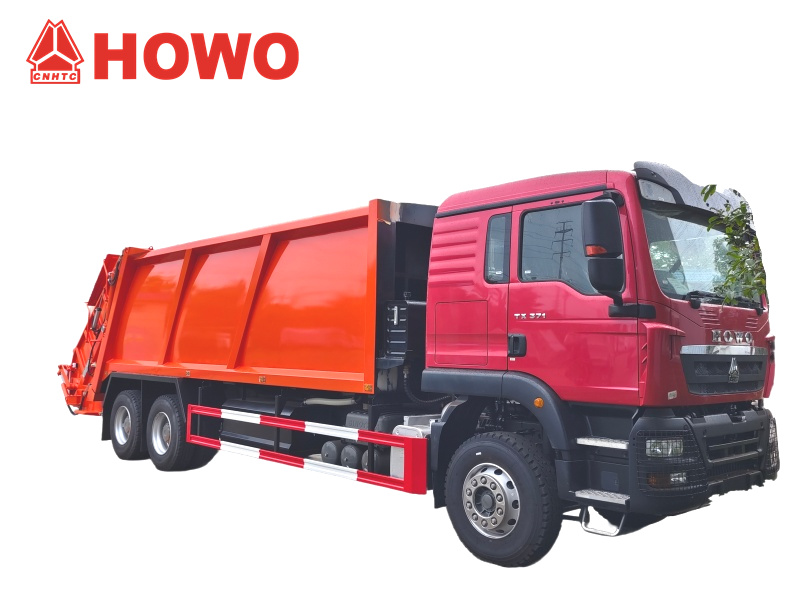

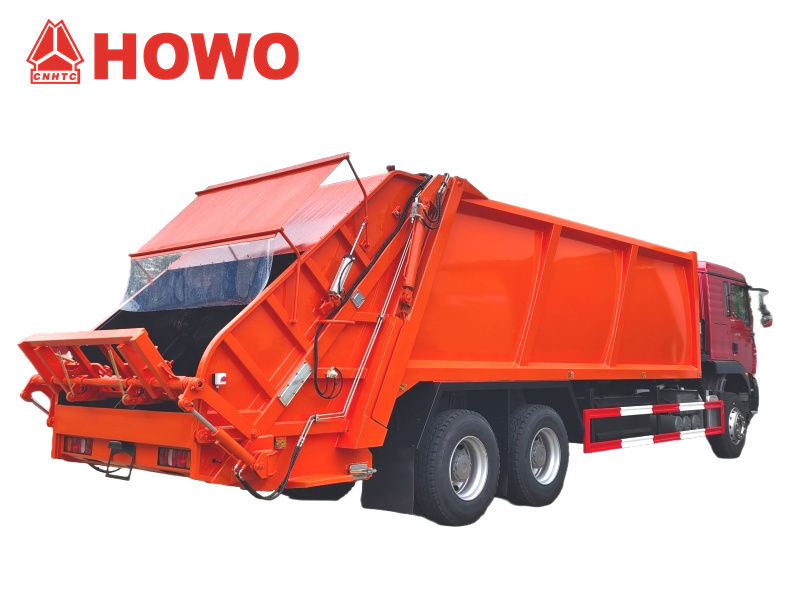

The Right drive RHD 20tons HOWO TX Garbage Trucks Compactor, also called HOWO TX series refuse compactor truck or HOWO tx Cabin rear loaders, it's equipped with a powerful 400-horsepower engine. Its 25-cubic-meter thickened and reinforced garbage bin offers large capacity and strong impact resistance, and is equipped with an efficient compression system to significantly improve transportation efficiency. Its intelligent hydraulic control and leak-proof sealing design ensure safe and environmentally friendly transportation, making it a reliable choice for urban sanitation operations.
Working capacity :
25cbmCabin type :
Howo TX one and half row cabinDrive system :
6x4,LHDWheelbase ( mm) :
4600+1350 mmEngine specific :
400HP / WEICHAI WP12.400Gear box :
HW19710, 10-speed, manualFront axle ( Kg ) :
7000Rear axle ( Kg ) :
18000(2 axles)The Right drive Sinotruk HOWO TX 25 CBM compression garbage truck is a highly efficient solution for urban sanitation operations. Equipped with a powerful 400-horsepower engine, it boasts powerful power, easily handling complex road conditions and heavy loads. Its 25-cubic-meter capacity trash bin utilizes thickened steel plates and a reinforced structure, ensuring strong impact resistance and durability. An optimized compression mechanism within the bin improves loading efficiency by over 30%, reducing hauling frequency. Equipped with an intelligent hydraulic control system and sealed leak-proof devices, the truck ensures safe and environmentally friendly transportation. It is particularly suitable for centralized waste processing in large communities, industrial parks, and other locations, contributing to the advancement of modern sanitation with its robust performance and reliable quality.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Key Features


» Ⅱ. Product Parameters for HOWO TX series 20~25cbm Compactor garbage truck:
![]() |
![]() |
|
SPECIFICATION
|
|||
|
Chassis parameters
|
|||
|
Vehicle model
|
CSC5250GYS
|
Vehicle brand
|
CS TRUCKS
|
|
Chassis brand
|
HOWO
|
Overall dimensions
|
8950X2500X2930mm
|
|
Wheel base/No.of axle
|
4800+1350mm /3
|
GVW/Kerb weight
|
25000/10900kg
|
|
Drive type
|
6x4,Right hand drive
|
Maximum speed
|
95km/h
|
|

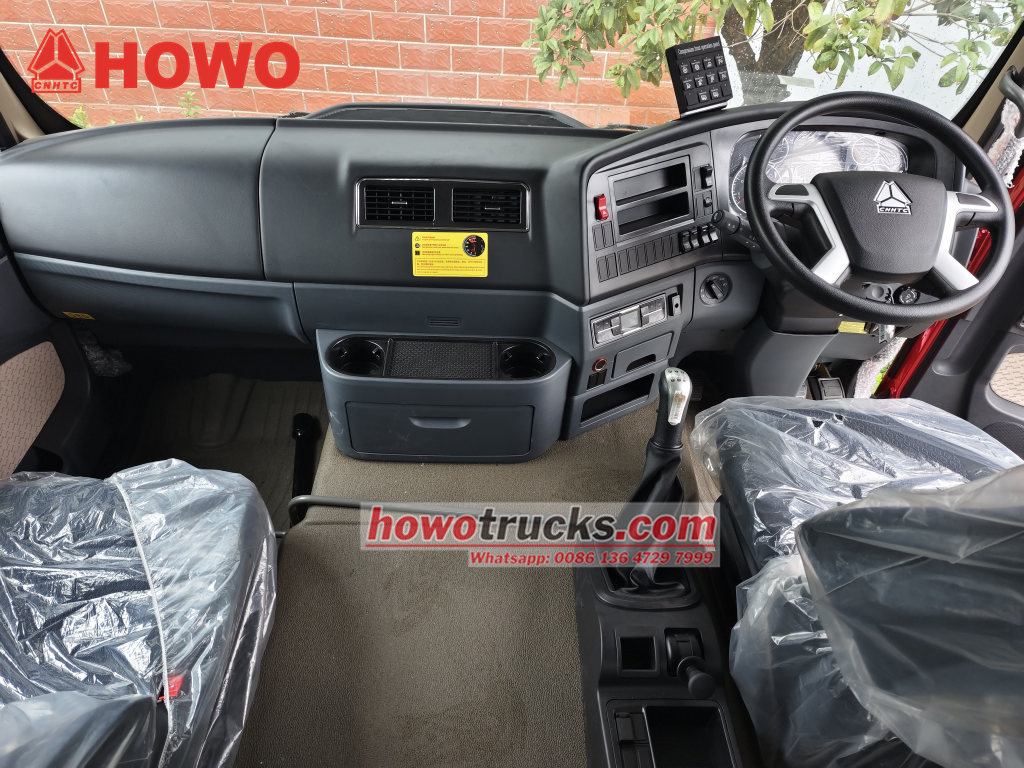

Cab
|
Configuration
|
TX Sleeper cab,hydraulic mechanical flip,channel type instrument panel,air conditioner,allowable 2 passengers
|
|
|
Color
|
Red,other color is optional
|
||
|
Engine
|
Model
|
WP12
|
|
|
Emission
|
Euro 2
|
||
|
Type
|
6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine
|
||
|
Rated power
|
400HP
|
||
|
Bore x stroke
|
115*125mm
|
||
|
Tire
|
Size
|
12.00R20
|
|
|
Number
|
10+1 nos
|
||
|
Front axle
|
7 tons
|
||
|
Rear axle
|
18tons
|
||
|
Rated voltage
|
24V,DC
|
||
|
Transmissions
|
12 speed transmission,manual
|
||
|
Steering device
|
Power assisted steering
|
||
|

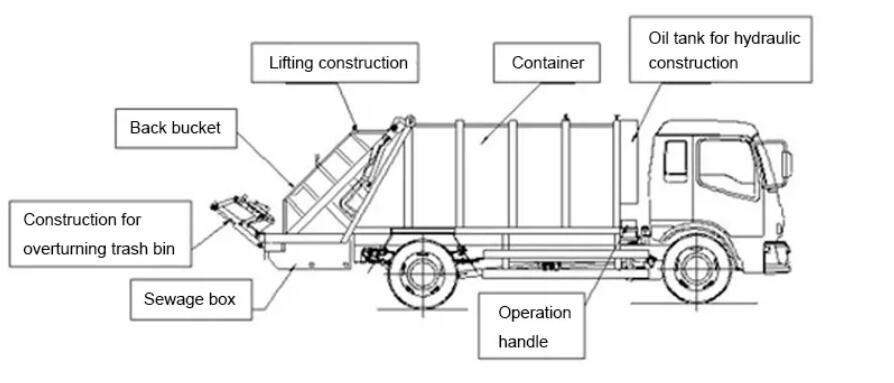

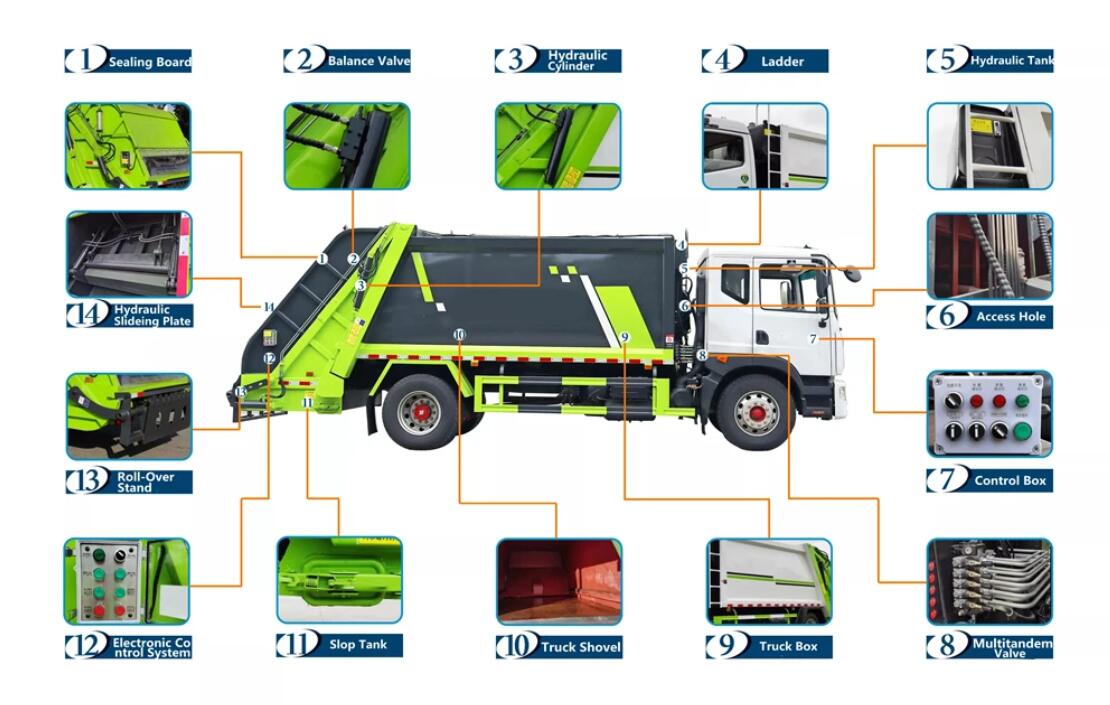

Refuse compactor structure parameters
|
|||
|
Equipment
|
|||
|
Loading capacity
|
25 m3
|
||
|
System of loading
|
Mechanized, rear loading
|
||
|

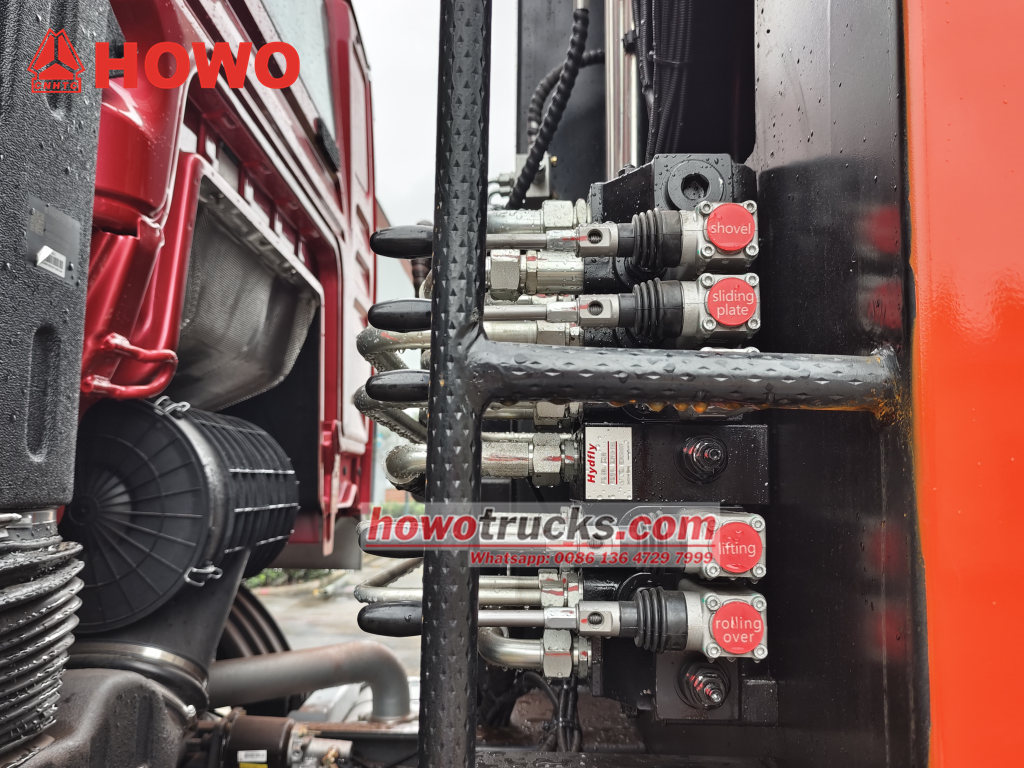

Hydraulic System
|
Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board.
|
||
|
Modes of the pressing
|
Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic
|
||
|
Body
|
|||
|
Version
|
All-metal
|
||
|
Sidewalls
|
Sheet carbon steel (thickness: 4 mm)
|
||
|
Bottom
|
Sheet carbon steel (thickness: 5 mm)
|
||
|
Cycle Time of Filling(S)
|
≤40
|
||
|
Lifting Time of Filler(S)
|
8 to 10s
|
||
|
Time of Discharging
|
≤60
|
||

» Ⅲ. Product Details


Right Drive 6x4 Chassis Configuration
• Utilizes Sinotruk's proven TX Right 6x4 heavy-duty chassis
• Large wheelbase of 4600mm + 1350mm
• Equipped with a Weichai WP10.340E22 engine, 340HP/250kW, peak torque of 1400Nm, 9.726L displacement, and Euro 2 emissions
• Equipped with a Sinotruk HW19710 10-speed manual transmission, featuring a wide first gear ratio, easy starting under heavy loads, and a well-balanced gear range.

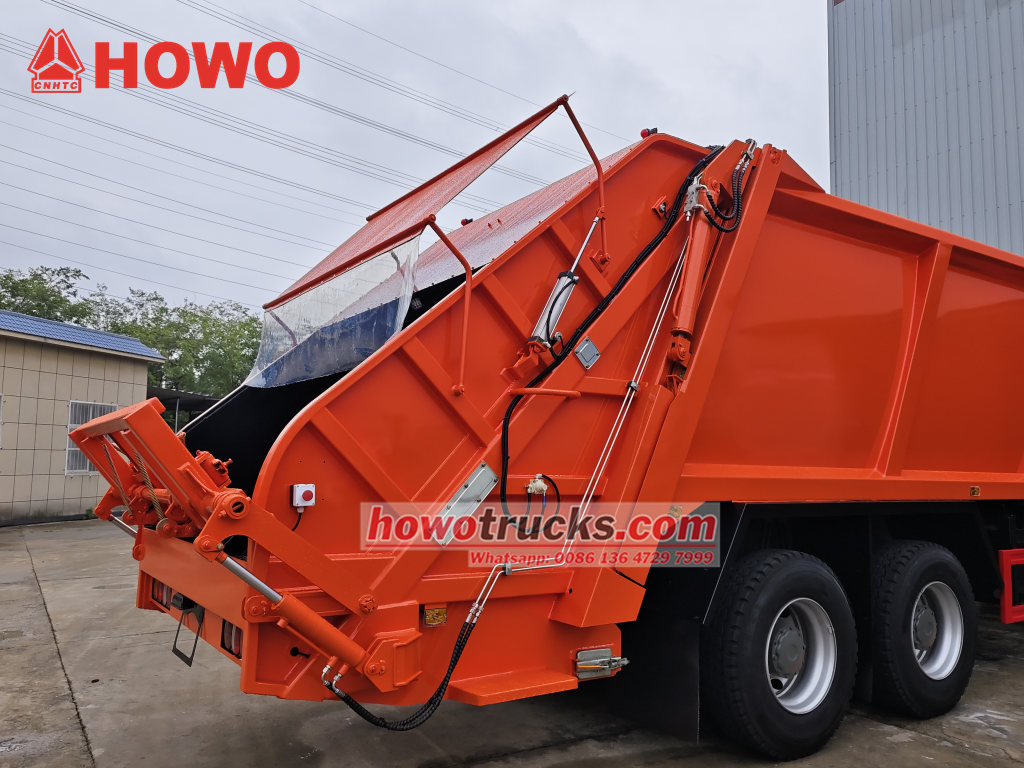

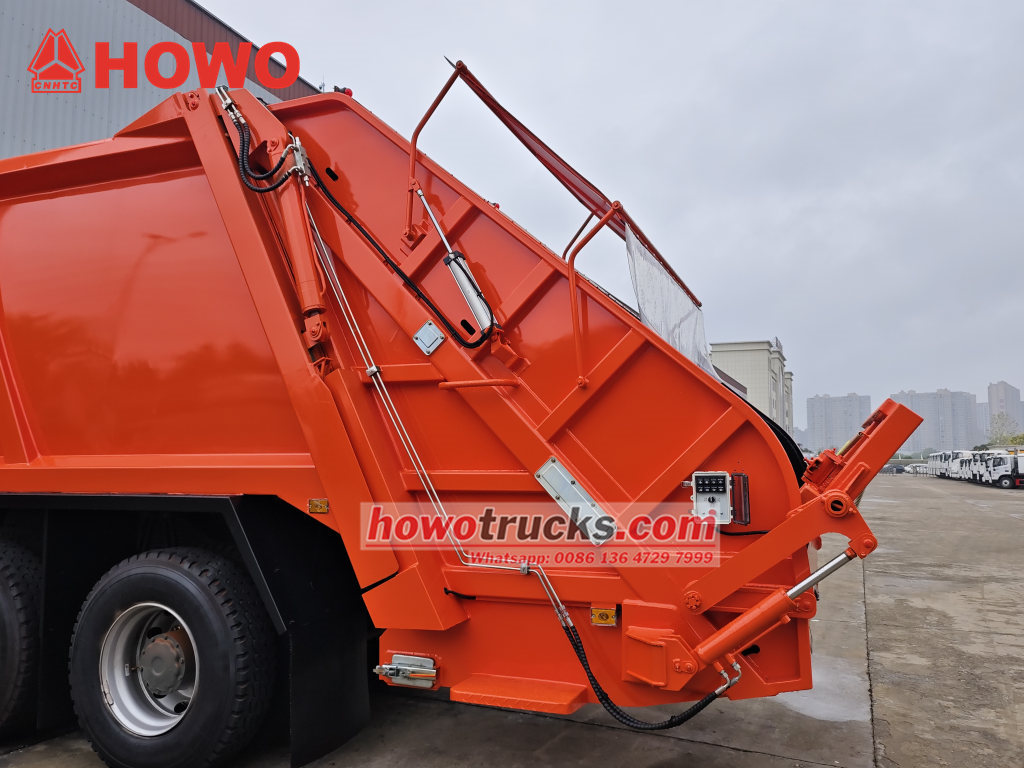

Upper System

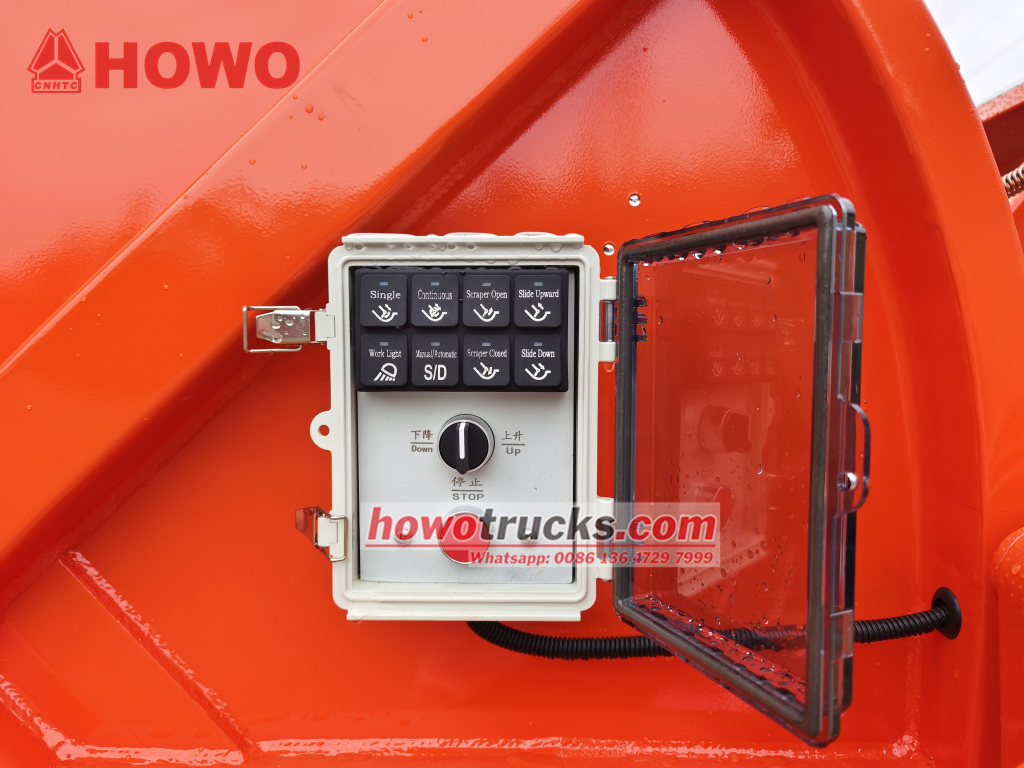

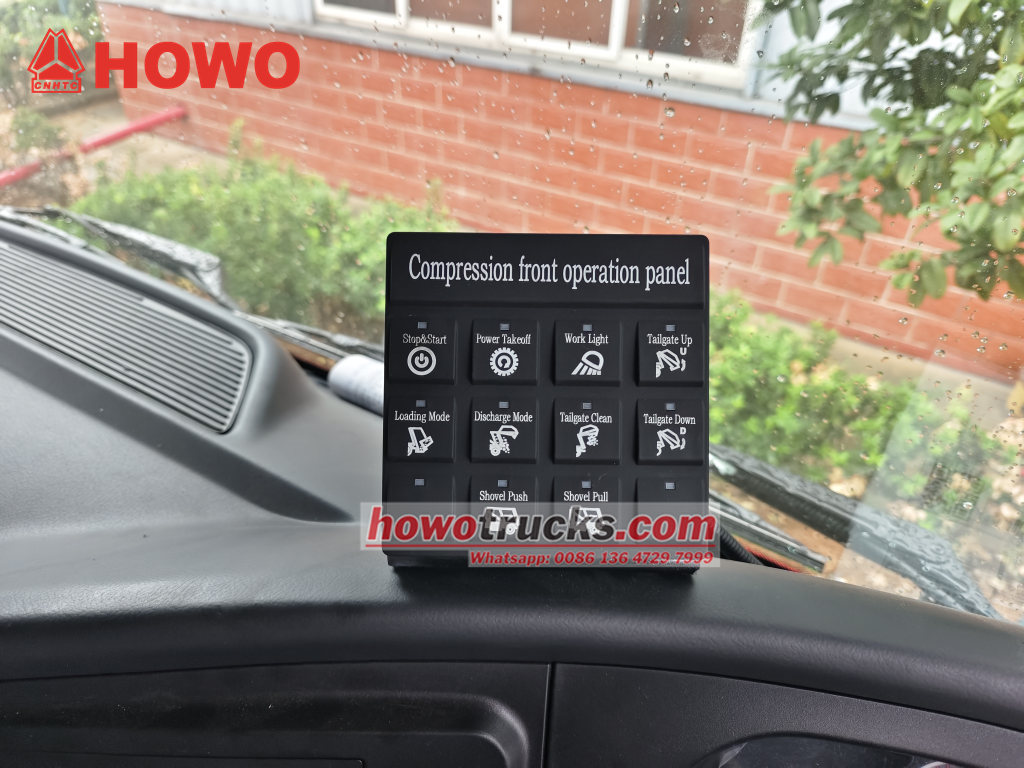

Automatic operation: It adopts electric and liquid integration, and the operation accuracy of the mechanism is high. Electric operation, no noise, no exhaust emissions, low cost of use. The use of computer control system, all filling and unloading work only one driver can operate, can be manual control, remote control and button control three control methods, convenient and simple.

Easy operation
The garbage collection method is simple, efficient, convenient, simple and fast to dump rubbish and prevent water leakage. can cooperate with small garbage collection car, garbage can, garbage bucket a variety of collection device operation, change the city full of garbage cans put dirty old appearance, eliminate secondary pollution.

» Ⅳ. Applicable Scenarios:
1, Efficient Urban Trunk Road Waste Collection System
This 25cbm HOWO TX Garbage Trucks Compactor, equipped with bidirectional compression technology (compression ratio 1:2.5), has a maximum load capacity of 25 tons per trip, precisely meeting the high-volume waste collection needs of commercial areas and transportation hubs. A CAN bus intelligent control system automatically optimizes engine operating conditions, reducing fuel consumption by over 30% compared to traditional models, significantly improving daily handling capacity for 50 tons of waste.
2,Environmentally Friendly Community Waste Transfer Solution
The innovative fully sealed container and dual wastewater tank redundancy design eliminates leakage and contamination during transportation. Equipped with a 12-ton hydraulic push-shovel system, it effectively handles mixed waste including hard waste such as branches and glass, making it particularly well-suited for the complex sanitation needs of renovating older residential communities.
3,pecialized Solid Waste Treatment in Industrial Parks
The reinforced manganese steel container (with a 40% increase in deformation resistance) combined with a corrosion-resistant coating ensures stable handling of hazardous acid and alkaline waste generated by the chemical and electronics industries. An optional fully electrically controlled valve module enables intelligent management of hazardous waste classification, compression, and isolated storage.
4, Emergency Response Rapid Disposal System of 25cbm HOWO TX Garbage Trucks Compactor
Integrated remote control functionality makes it suitable for high-risk environments such as epidemic quarantine areas and disaster sites. Its contactless operation (single cycle ≤ 20 seconds) significantly reduces personnel exposure and ensures rapid emergency response capabilities.
