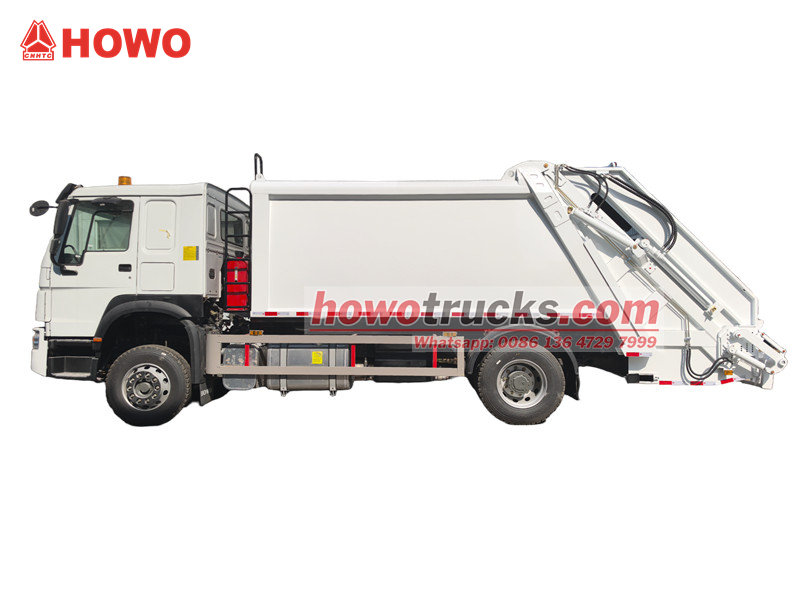

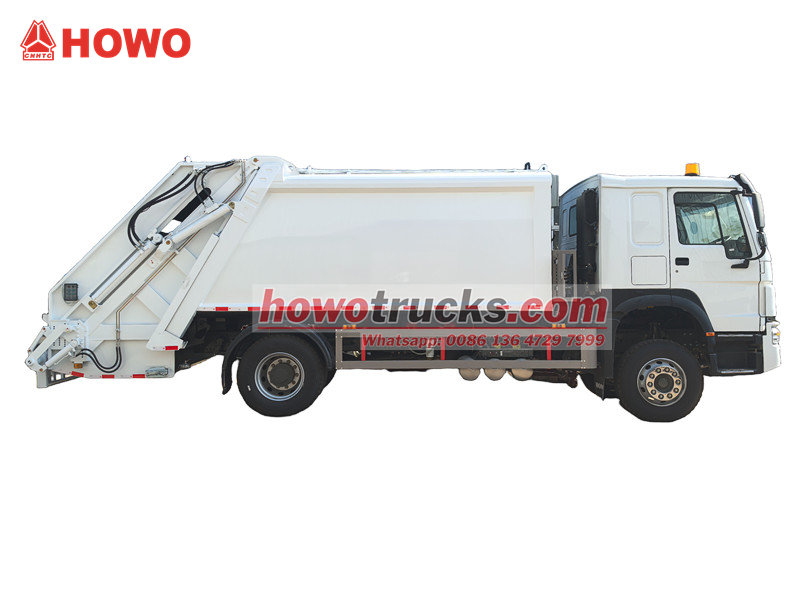

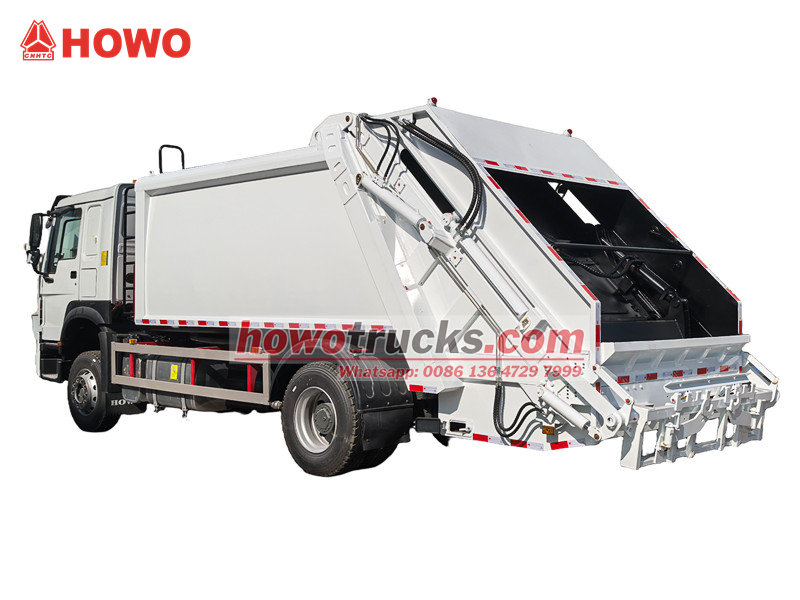

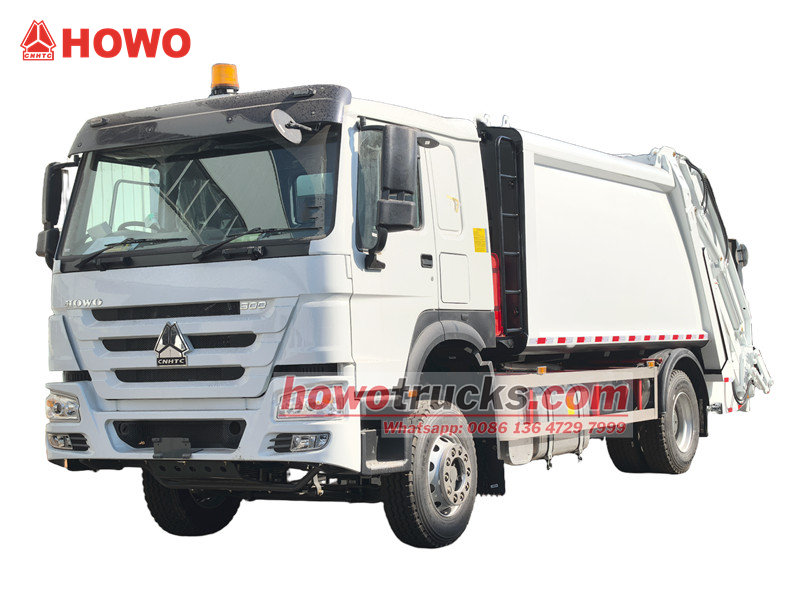

300Hp engine howo compactor garbage vehicle

300Hp engine howo compactor garbage vehicle

The 300Hp engine howo compactor garbage vehicle is a sanitation vehicle that integrates collection, compression, and transportation. With 4600mm wheelbase with WP10.300E22 300hp engine, 9.726L displacement, HW19710 -shiftgearbox, 295/80R22.5 tires with totally 7 pcs, with A/C,USB,direction assistance.The vehicle is equipped with a 14cbm garbage bin on the top and a tipping-type loading and unloading device at the rear, allowing for three different loading and unloading methods to be selected according to operational needs.



  • Working capacity :

    14 cbm
  • Cabin type :

    Howo HW76 cabin
  • Dimension (mm ) :

    9040 X 2520 X 3250
  • Drive system :

    4x2, RHD
  • Wheelbase ( mm) :

    4600
  • Engine specific :

    300HP / WP10.300E22
  • Gear box :

    HW13710, 10-speed, manual
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    16000
  • Remark :

    PLC control system
New Products

The 300HP engine Howo compactor garbage vehicle uses a hydraulic system to compress garbage into high-density blocks, significantly increasing loading capacity, reducing transport frequency, and lowering operating costs. Its airtight compartment effectively prevents sewage leakage and odor emission, maintaining environmental cleanliness.

The Howo compactor garbage vehicle is easy to operate, featuring automatic loading, compression, and unloading functions. It greatly improves garbage collection efficiency and is an indispensable piece of equipment in modern urban sanitation systems.

● China best compactor garbage vehicle factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service



*300Hp engine howo compactor garbage vehicle

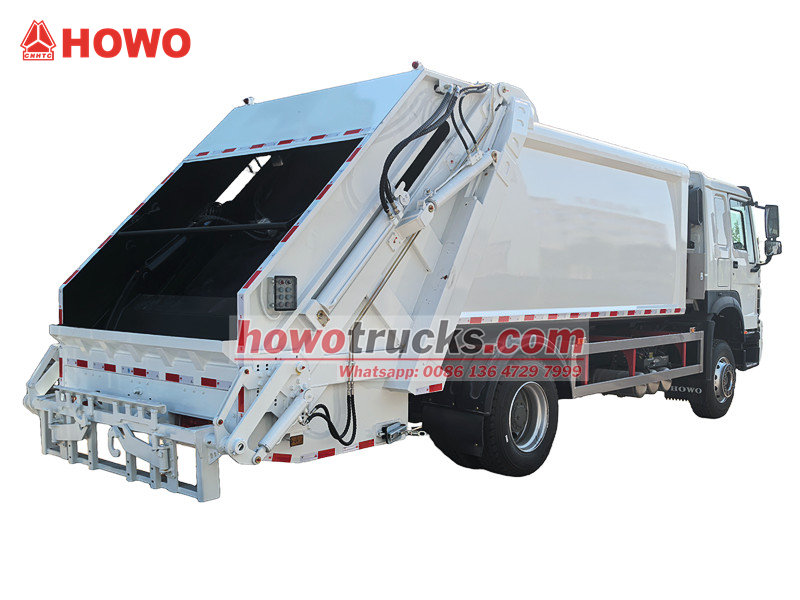

HOWO 14cbm rear loader garbage truck*

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED



Product Features

High-efficiency compression: Employs a hydraulic system, significantly increasing waste loading capacity.

Sealed and environmentally friendly: The compartment is well-sealed, preventing sewage leakage and odor spread.

Easy operation: Features automatic loading, compression, and unloading functions, making it simple to use.

Wide applicability: Suitable for various waste collection sites, including cities, residential areas, and factories.

300Hp engine howo compactor garbage vehicle (also called HOWO 14cbm rear loader garbage truck, HOWO 4x2 waste compaction truck, HOWO garbage compactor truck, HOWO 14cbm trash compactor truck, trash compactor truck, HOWO refuse compactor vehicle,etc.) is a new type of sanitation vehicle specially used for collecting, transferring and removing garbage.

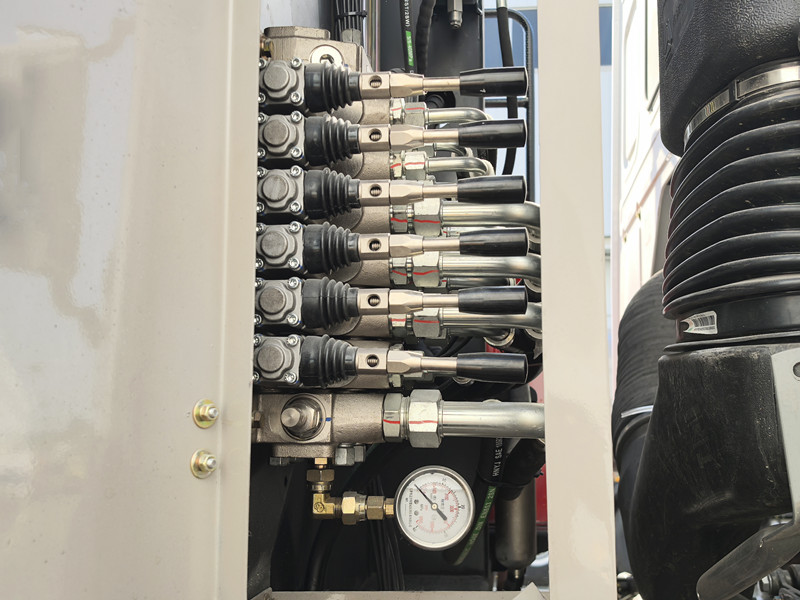

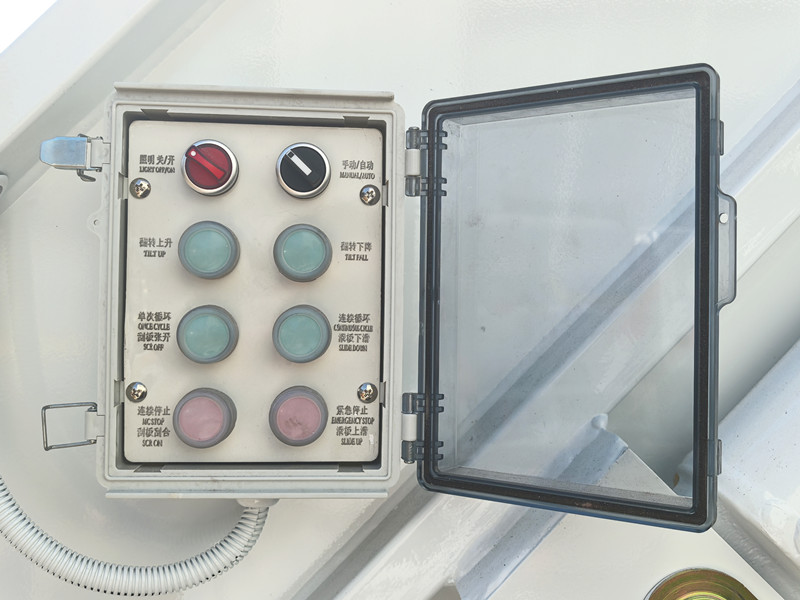

It adopts imported electro-hydraulic multi-way valves and PLC (Programmable Logic Controller) for integrated control, and uses logic loops to ensure that each operation command is executed in sequence, which reduces the failure rate, avoids accidents caused by misoperation, and improves reliability.







 Collection Principle: HOWO garbage removal trucks collect garbage through bins or containers. Workers empty these bins or containers into the truck's storage area. This process can be done manually or automatically.

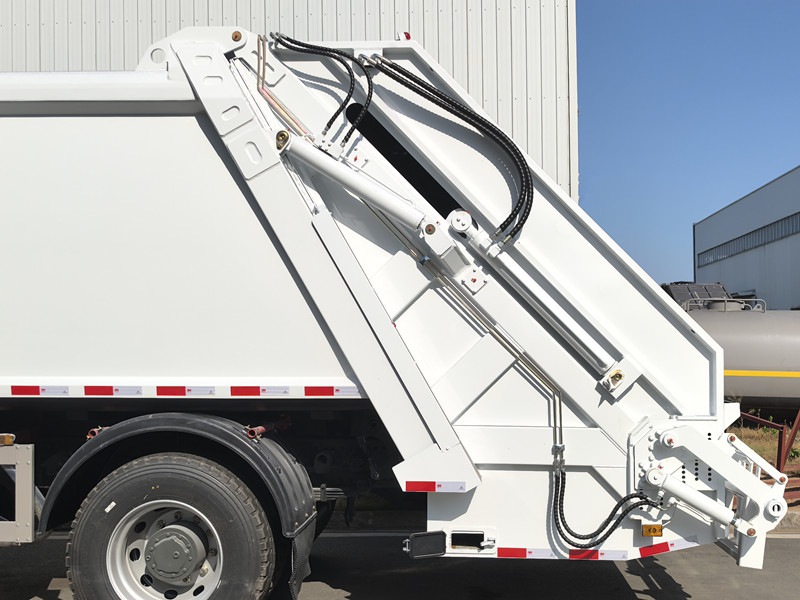

 Compaction Principle: To improve the efficiency of garbage transportation, HOWO garbage removal trucks use a compaction device to compact the garbage. The compaction device uses a hydraulic system or other pressure mechanism to compress the garbage in the pile into a smaller volume, allowing for more garbage to be stored during transportation.

Transportation Principle: The HOWO refuse compactor vehicle is powered by a fuel engine and controlled via a control panel in the cab. During waste transportation, the truck carries collected waste from the storage area to a waste treatment center or landfill.



Unloading Principle: Upon arrival at the waste treatment center or landfill, the HOWO refuse compactor vehicle uses an unloading mechanism to dump the waste from the storage area. This process is achieved through an automatic dumping device. After unloading, the truck can resume its waste collection operation.

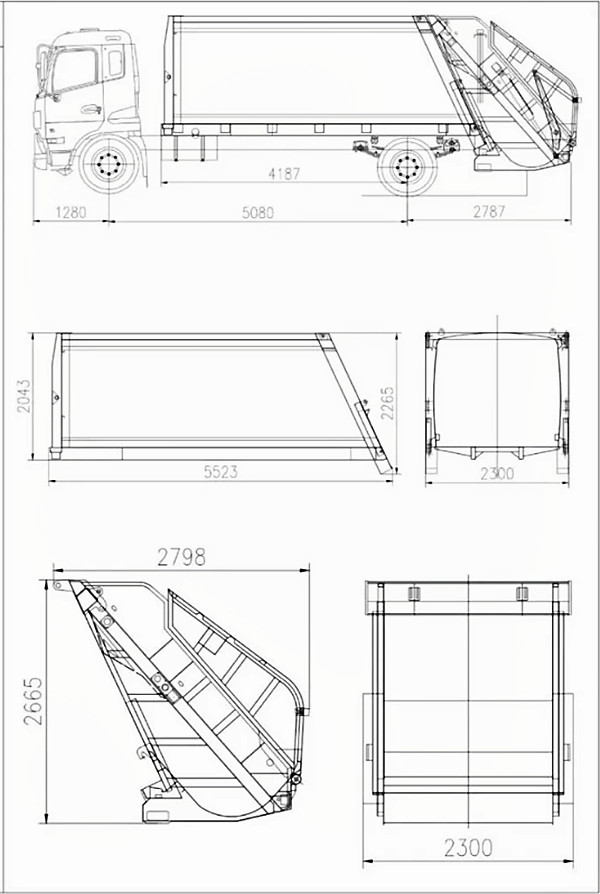

» Ⅱ. Product Parameter for 300Hp engine howo compactor garbage vehicle:



300Hp engine howo compactor garbage vehicle

Vehicle Description

Overall dimensions

9040 X 2520 X 3250mm

Curb weight

9850kg

Chassis brand

HOWO

Traction type

4x2; Right-hand drive

Up-parts Specification

Dustbin volume

14cbm

Sewage water tank

200L

Type of Rear garbage filler
(Rear Turnover device)

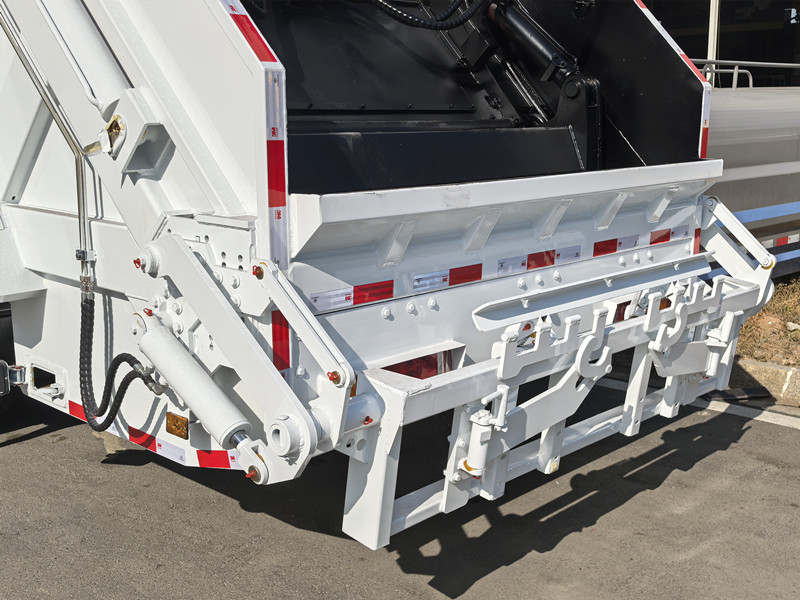

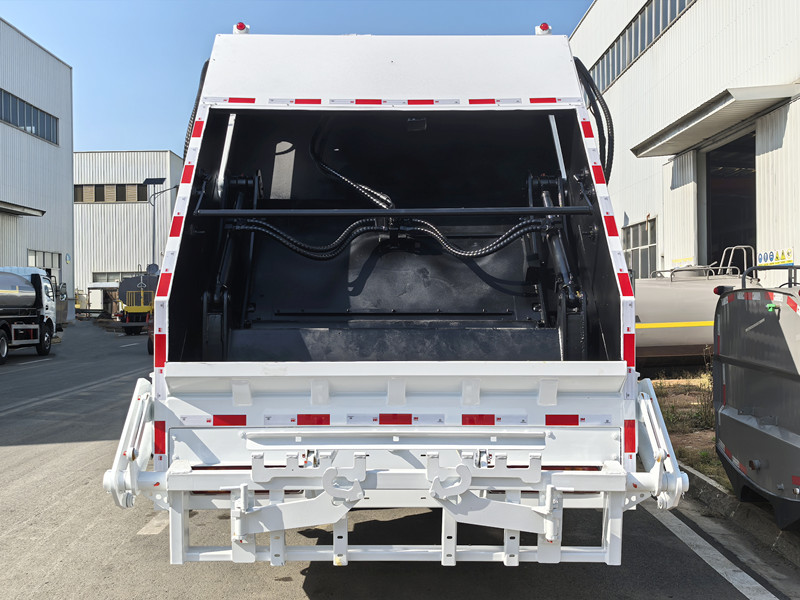

Hanging trash bin flip mechanism

Control system

Electrically Controlled Hydraulic + Manual Hydraulic

Type of compactor

Fill, push and compression

PLC

Importation PLC (Programmable controller)

Chassis Description

Wheelbase

4600mm

Tire specification

295/80R22.5

Tire quantity

6+1 units

Engine

Model

WP10.300E22

Emission level

Euro 3

Displacement/output

9.726L/220KW

Horse power

300HP

Gear box

Model

HW19710

Brake system

Full air brake

Color and Logo

According to wish

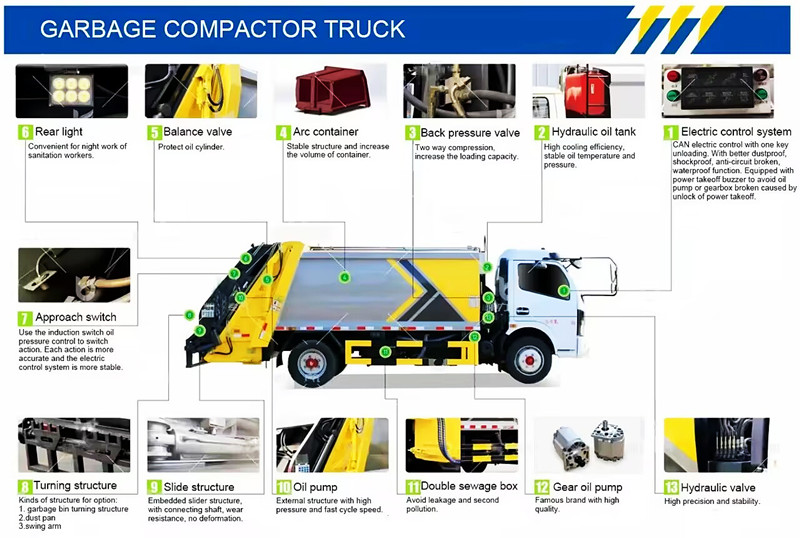

» Product Detailed introduction:

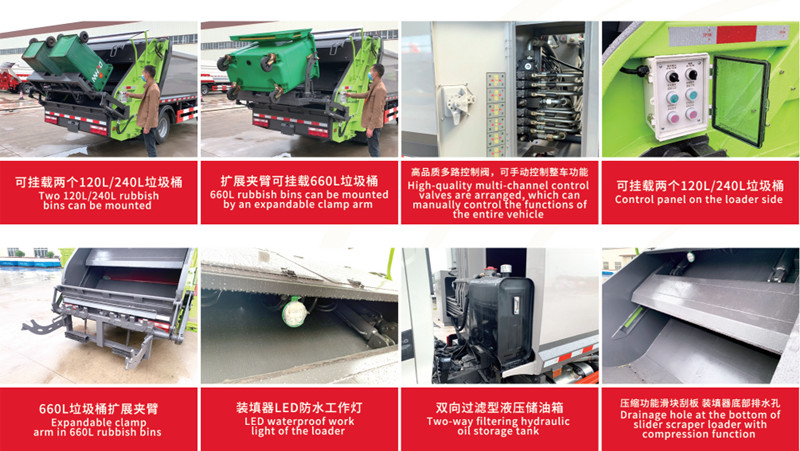

1. High-Efficiency Compression and Large-Capacity Design

The howo compactor garbage vehicle is equipped with a powerful hydraulic compression unit, achieving a high garbage compression ratio and enabling multiple times the loading capacity, thus improving transportation efficiency.

The large cargo box volume is suitable for various types of garbage collection needs, significantly reducing collection frequency.

2. Enclosed and Environmentally Friendly

The entire vehicle features a fully enclosed design, effectively preventing sewage leakage and odor spread, maintaining road cleanliness.

The vehicle body is made of robust and corrosion-resistant materials, adaptable to various complex environments, and meets urban environmental protection requirements.

3. Safe and Convenient

The loading, compression, and unloading processes of the vehicle are all controlled by a combination of electro-hydraulic mechanisms, making operation simple and highly automated.

Equipped with multiple safety protection devices, it ensures stable and reliable operation and reduces operational risks.

With its compact structure and superior performance, it is an ideal choice for improving sanitation efficiency and enhancing the urban environment.







Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

howotrucks is a leading exporter of compactor garbage vehicle in China. We possess over 10-year export experience of compactor garbage vehicle. We can ensure the fast delivery time and 12 months guarantee for our compactor garbage vehicle. Our compactor garbage vehicle are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safety, Quickly, Timely
