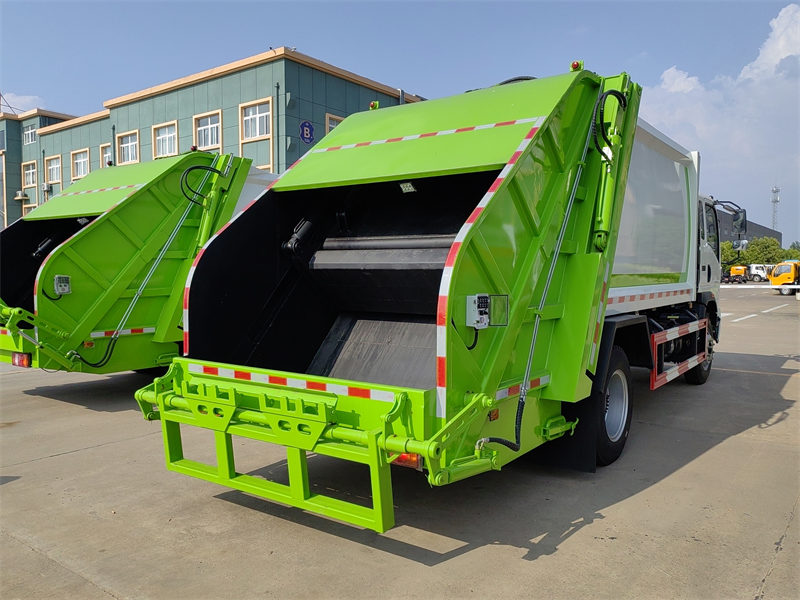

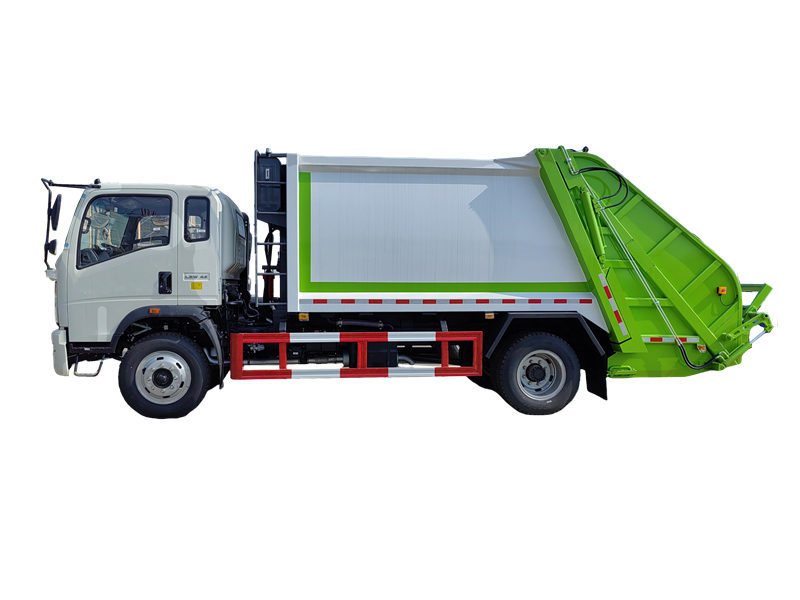

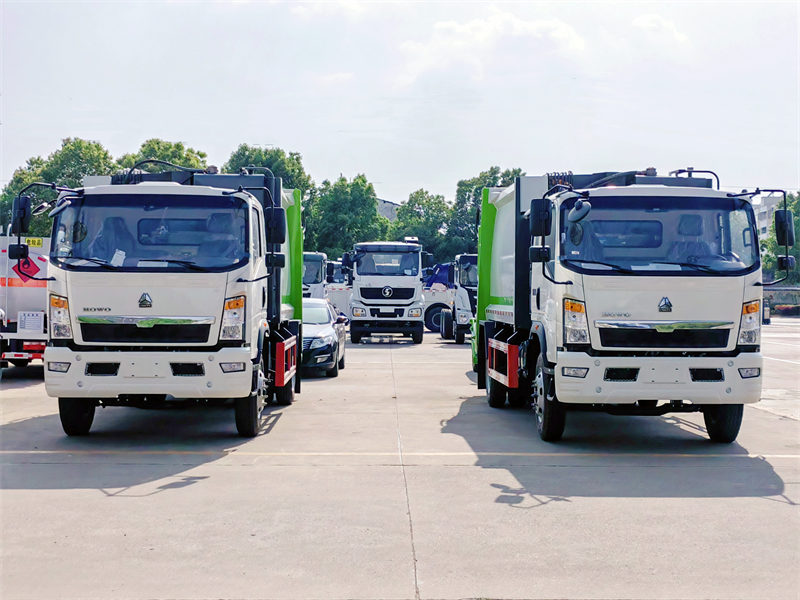

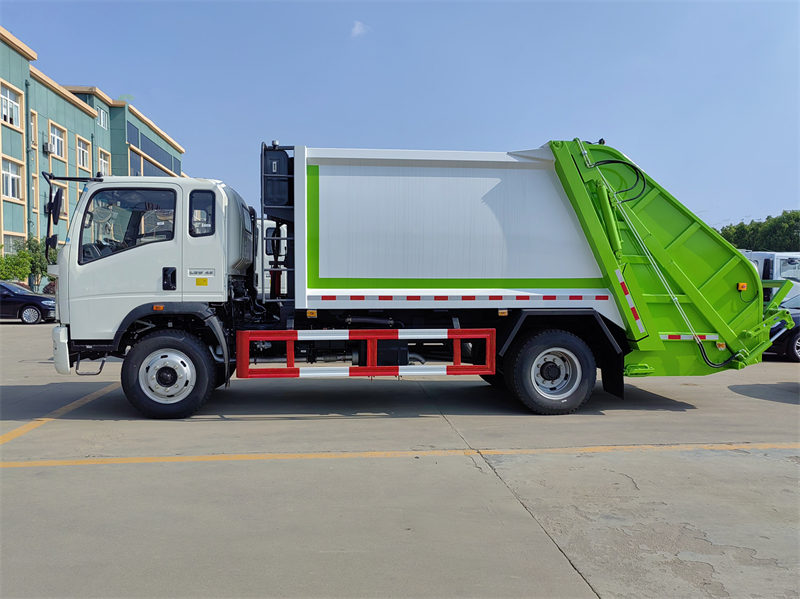

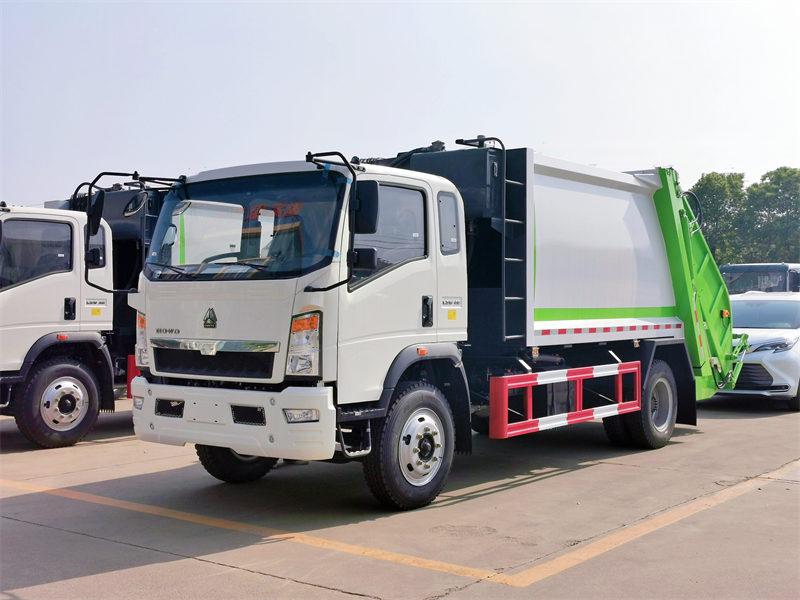

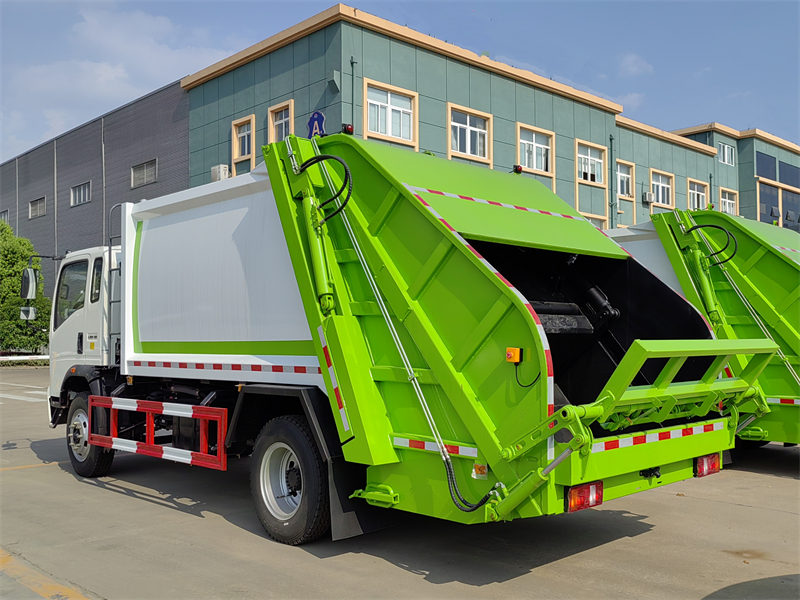

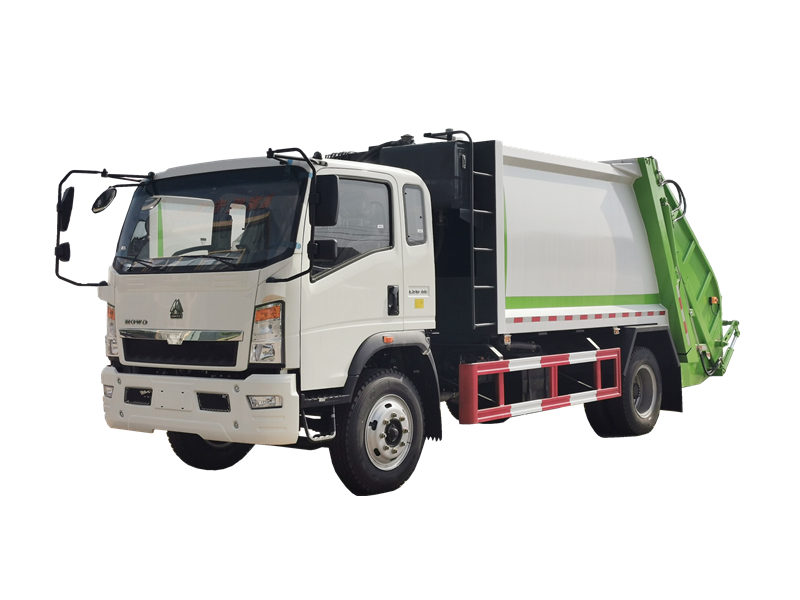

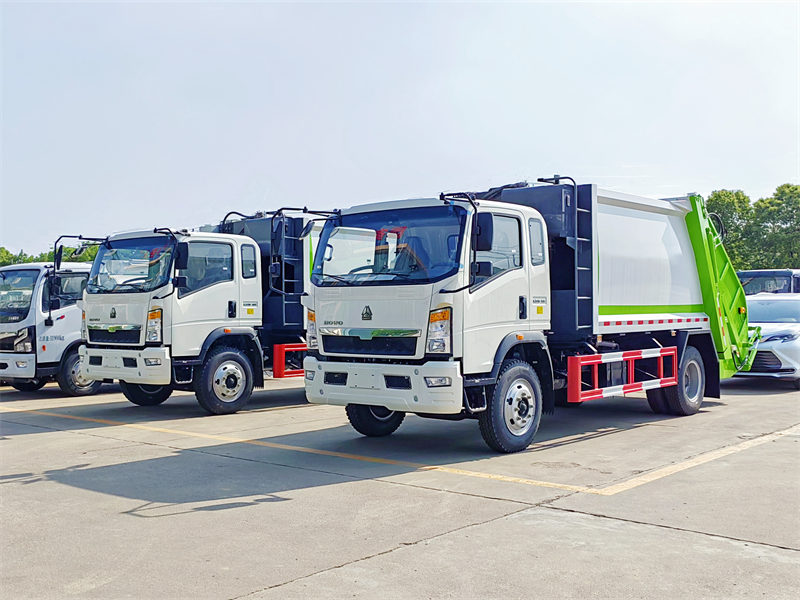

The Howo 6CBM garbage compactor truck is a high efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo 4x2 chassis, the garbage rear loader is equipped with a 116HP engine and a 5 speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo light 6CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.
Working capacity :
6CBMCabin type :
Light duty single cabin, with sleeperDrive system :
4x2Wheelbase ( mm) :
3360 mmEngine specific :
YN4102QBZL model 116HP, Euro 2Gear box :
WLY, manual 5F and 1RFront axle ( Kg ) :
3600Rear axle ( Kg ) :
7000The Howo 6CBM garbage compactor truck is a high efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo 4x2 chassis, the garbage rear loader is equipped with a 116HP engine and a 5 speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo light 6CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.

*SINOTRUK HOWO Light Duty Rear Loader Truck
6CBM Garbage Trash Compactor Truck
HOWO Light Duty compactor lorry*
-----------------------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Product Introduction
Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: SINOTRUK HOWO light truck chassis, 4x2and 4x4 model
WEICHAI model with 116HP, 140HP, 160HP or 180HP
Optional EURO 2/3/4/5 emission for different market
2. Tank material: St52 material 5mm thick carbon steel for durable service
Q355, T420, HARDOX material can be choose
3. Tanker body: Customized for light duty 3-10CBM compactor body, curved shape, stronger

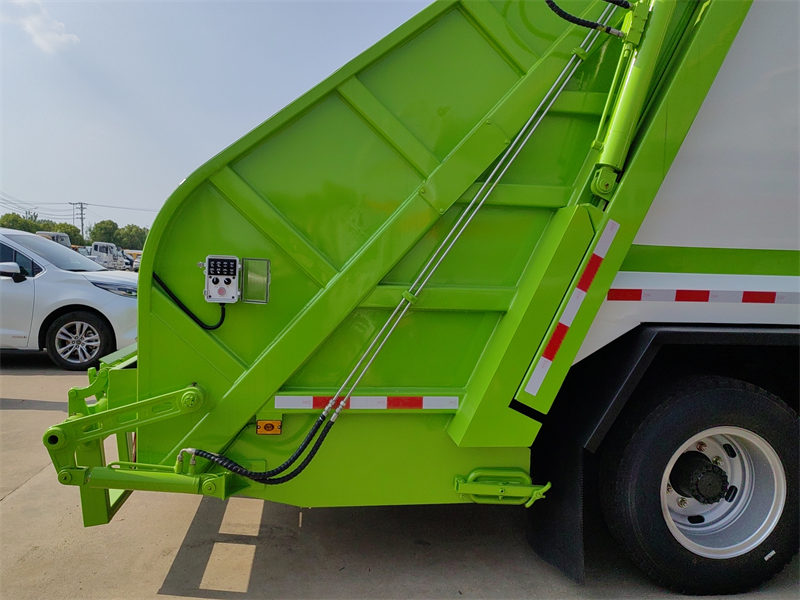

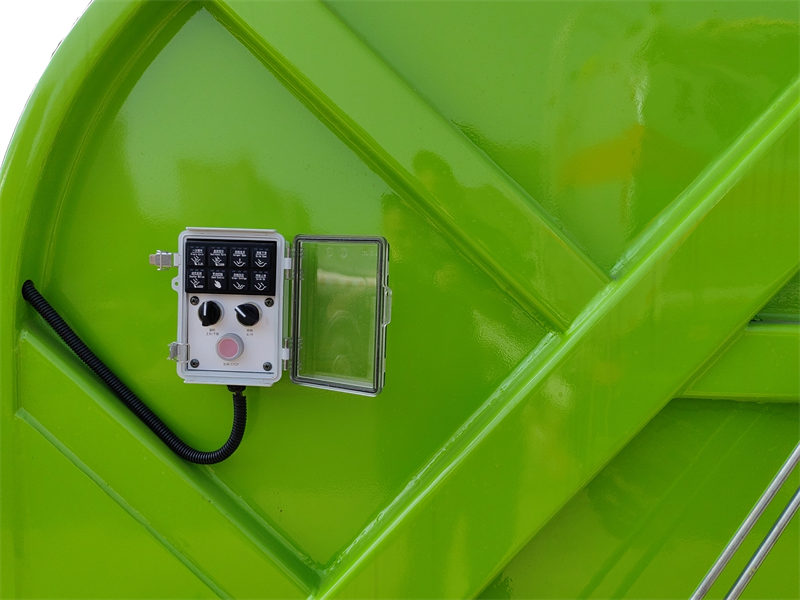

4. Control Box: CAN BUS control box with in cabin and rear hopper, convenient operation
Also matched hydraulic control valve for emergency usage

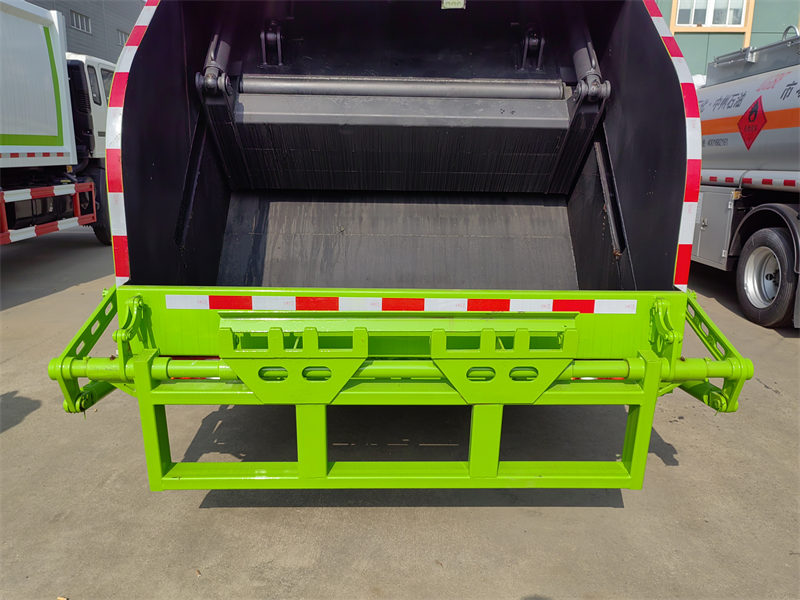

5. Rear Tilting Device: Standard 240L and 1100L bins, optional 360L, 660L, 770L, 1100L bins
6. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m

Product Parameter for How 6CBM Rear Loader

|
Howo 6CBM REAR LOAD GARBAGE TRUCK |
||
|
Chassis Model |
Howo light |
|
|
Engine |
Make: Howo |
|
|
Diesel 4-stroke direct injection diesel engine |
||
|
Engine model:YN4102QBZL, Euro 3 emission standard |
||
|
4-cylinder in-line with water cooled, turbocharged and intercooler |
||
|
Maximum output: 116HP/85KW |
||
|
Maximum torque: 290 N.m |
||
|
Displacement: 3.76 L |
||
|
Transmission |
WLY6TS55C, 5 forwards and 1 reverse, manual |
|
|
Drive system |
Left/Right hand 4x2 drive |
|
|
Chassis |
Frame: U-profile parallel ladder frame and reinforced subframe |
|
|
Front suspension:6 pcs semi-elliptic leaf spring |
||
|
Rear suspension:8+4 pcs semi-elliptic lea spring |
||
|
Fuel tank: 100 L capacity with locking fuel cap |
||
|
Steering |
Power steering, hydraulic steering with power assitance |
|
|
Brakes |
Service brake: dual circuit compressed air brake |
|
|
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels |
||
|
ABS |
||
|
Wheels & Tyres |
Tire: 7 pcs 7.00R16 |
|
|
Driver's Cab |
Howo 1880 wide cab, with three seats, A/C, electric glass, central lock |
|
|
Dimensions mm |
Wheel base |
3360 MM |
|
Overall length |
6400 MM |
|
|
Overall width |
2300 MM |
|
|
Overall height |
2640 MM |
|
|
Weight kg |
Curb weight |
6900 KG |
|
Rated Loading Capacity |
4000 KG |
|
|
Gross vehicle weight(GVW) |
9000 KG |
|
|
Front axle loading capacity |
4000 KG |
|
|
Rear axle loading capacity |
7000 KG |
|
|
Compactor Body |
Volume of body(m3) |
6 |
|
Volume of filler(m3) |
2 |
|
|
Time of one filling cycle(s) |
≤25 |
|
|
Lifting time of filler (s) |
8-10 |
|
|
Time of discharge (s) |
≤40 |
|
|
Pressure of hydraulic system (Mpa) |
18 |
|
|
Front/rear sewage capacity (L) |
250+150 |
|
|
Control system |
CAN-bus (electrical) and manual (hydraulic) |
|

Feature for Howo Light 6CBM Garbage Trash Truck


1. Highly Efficient and Reliable Hydraulic System Integration:
► CS Trucks Group requires equipment matching based on waste composition, compactor curve, and work cycle time.
► Precise calculations are performed on pump displacement, cylinder size, valve assembly flow rate, and pipeline pressure loss.
► This enables smooth switching between "low-speed, high-torque" and "high-speed, light-load" modes for the Howo rear loader truck, avoiding power waste and system shock.

2. Body Structure and Material Durability:
Finite Element Analysis (FEA) and Topology Optimization:
► CS Trucks Group simulates the entire process of waste compression and unloading, accurately identifying areas of concentrated stress.
► Based on this, topology optimization is performed to achieve light weighting while maintaining strength.

High-Strength Steel Plates and Wear-Resistant Materials:
► High-strength wear-resistant steel plate T420 is used in key load-bearing areas, with a Brinell hardness (HB) of 400 or higher.
► The main body plates should be made of high-strength weather-resistant steel or galvanized steel, and the design avoids areas prone to water accumulation.
Welding Process and Corrosion Protection:
► Welding must be automated using robotic welding to ensure weld penetration, strength, and consistency.
► Key load-bearing welds require non-destructive testing (e.g magnetic particle or ultrasonic testing).
► CS Trucks Group uses cathodic electrophoretic primer to enhance corrosion resistance.

3. Structural Optimization of the Loader and Compactor Mechanism:
► Integrated streamlined design of the "loading-crushing-compactor" system: Optimize the contact gap between the scraper and the curved plate to prevent waste clogging and reduce movement resistance.
► Wear Resistance and Lubrication of Key Moving Parts: Utilize high-molecular-weight polyethylene or self-lubricating composite materials to ensure continuous and quantitative lubrication at key friction points, significantly reducing wear.
► Sealing System Design: Employ a multi-stage sealing design to ensure effective sealing and diversion of wastewater even under vehicle tilting and vibration conditions.
Howo Light 8CBM Garbage Trash Truck Application
1. Urban residential areas Scenario characteristics: large garbage production and concentrated distribution require high frequency collection.
Adaptability: The light duty can operate flexibly on narrow roads or slippery roads, and the compactor function increases the single load capacity and reduces the number of transportation times.

2. Commercial areas and public places Scenario characteristics: shopping malls, office buildings, scenic spots and other places have complex types of garbage (such as packaging, kitchen waste), which need to be cleaned quickly.
Adaptability: The compactor function can efficiently handle large-volume garbage (such as cartons, foam), and the light rear loader adapts to urban congested road conditions.

3. Townships and rural areas Scenario characteristics: poor road conditions (dirt roads, steep slopes), and scattered garbage.
Adaptability: It can be modified to have all drive to improve its passability, and its compactor technology reduces transportation costs, making it suitable for long distance, low density waste collection.
