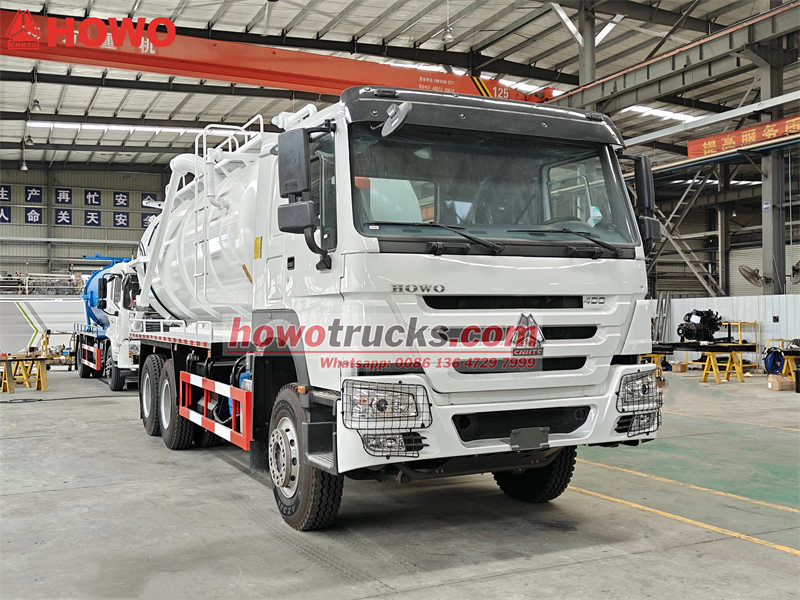

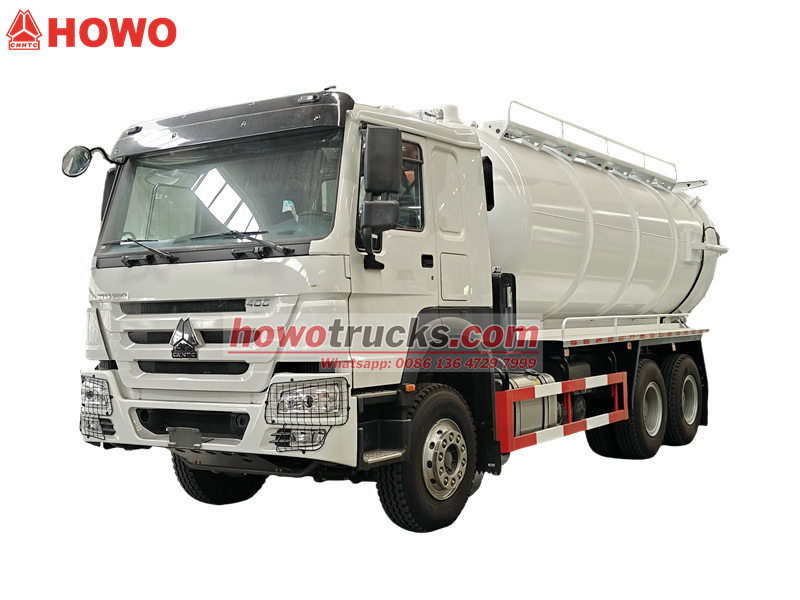

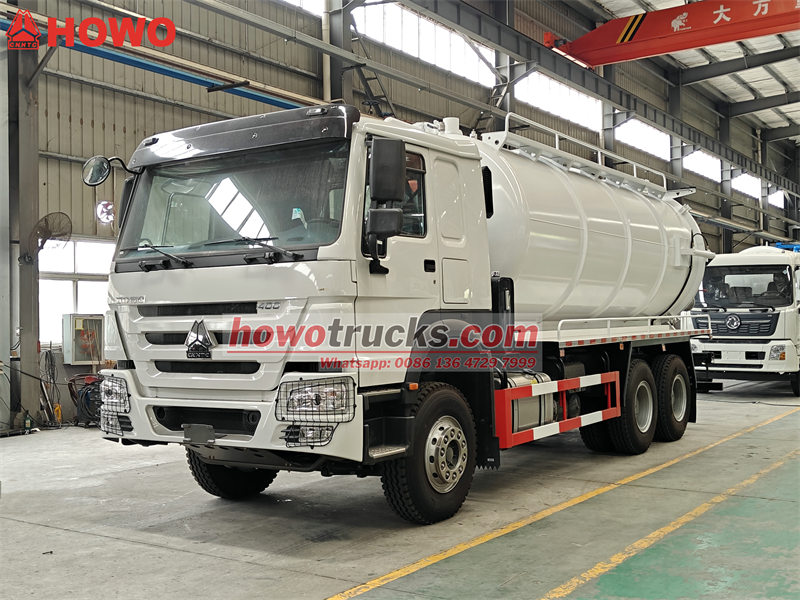

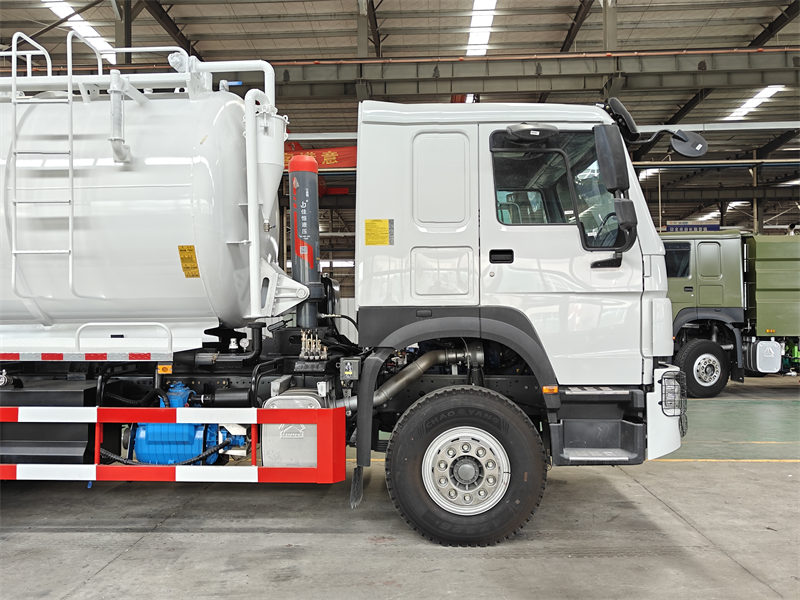

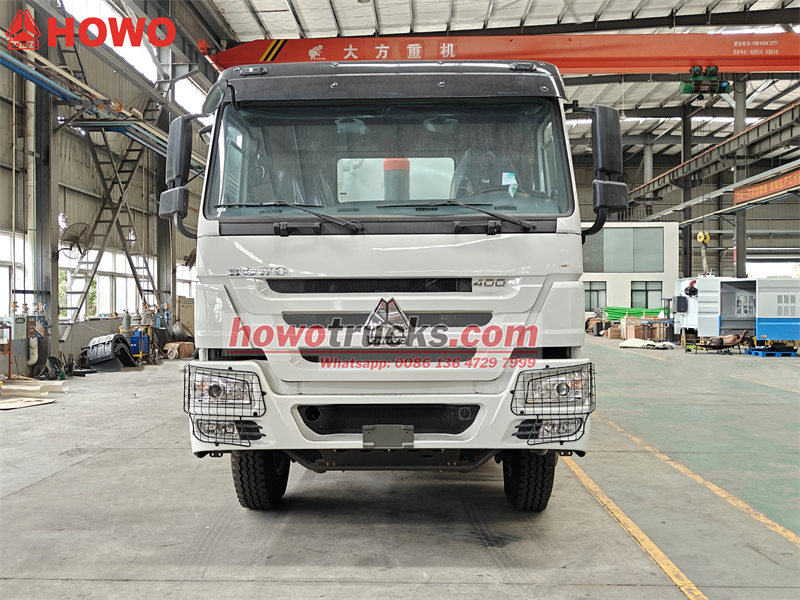

In the field of municipal sanitation, Howo heavy duty 20000L septic tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a high-quality WP12S400E201 engine with a maximum horsepower of 400HP, and a powerful vacuum suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 20CBM, and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.
Working capacity :
20cbmCabin type :
Howo one and half cabinDrive system :
6x4,LHD/RHDWheelbase ( mm) :
4757+1400Engine specific :
400HP/WP12S400E201Gear box :
HW 19710 10-speed,manualFront axle ( Kg ) :
7500Rear axle ( Kg ) :
13000*2In the field of municipal sanitation, Howo heavy duty 20000L septic tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a high-quality WP12S400E201 engine with a maximum horsepower of 400HP, and a powerful vacuum suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 20CBM, and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Product Features:
☛ Howo heavy 6x4 chassis with stronger power WP12S400E201 400HP engine.
☛ Suctioning,displacing(option),transporting and dischargeing dry,wet and hazardous substsnces, such as sluge sand,(roof) gravel, fly ash, powders and various types of liquids.
☛ The powerful tri-lobe blower gives the vacuum tanker with cyclone separator a very high suction and displacement capacity.
☛ Self-cleaning cyclone separation keeps the cyclones dust free at all times.

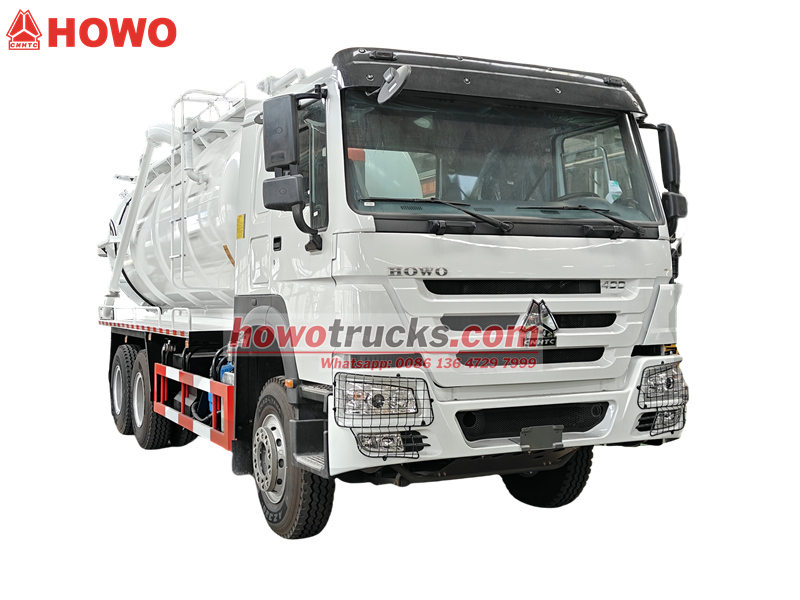

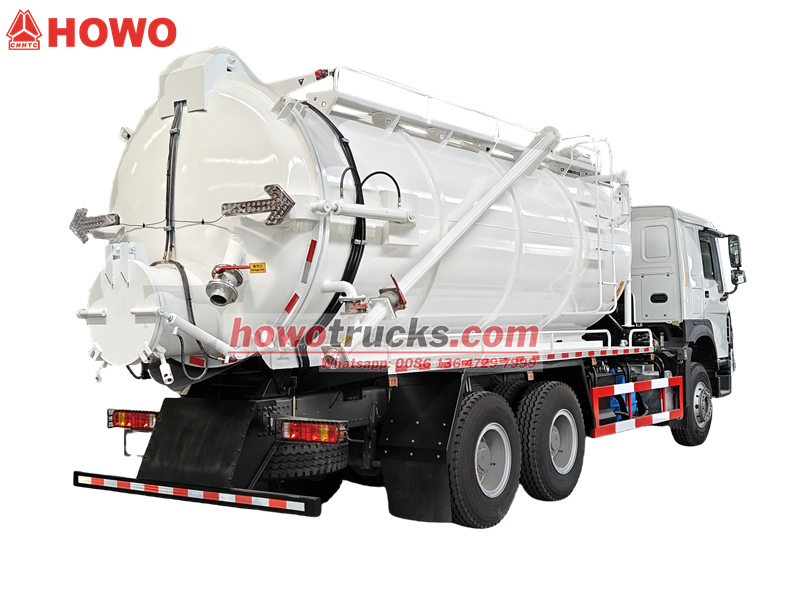

Product Parameter for Howo 20CBM Sewage Vacuum truck:

|

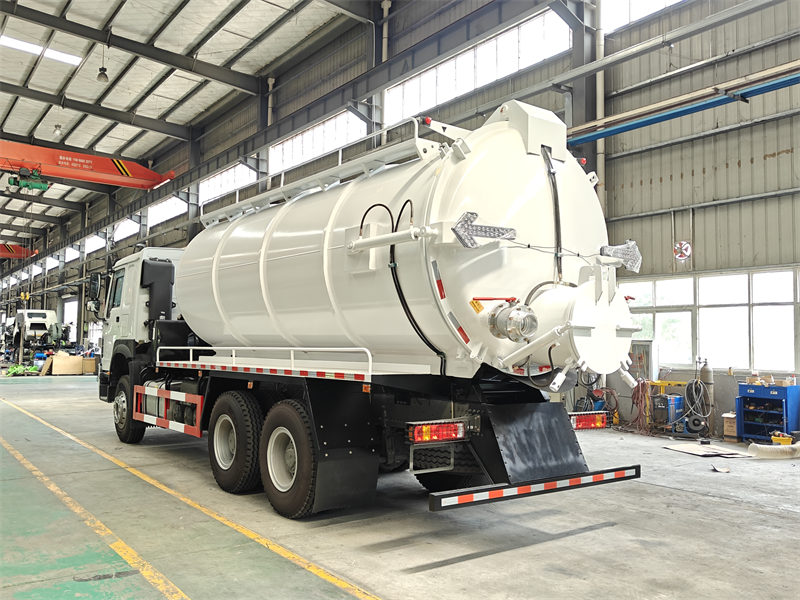

Howo heavy 20000L septic tanker truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
10300*2530*3150mm |
|
|
GVW |
2500kg |
|
|
Curb weight |
12350kg |
|
|
Sewage tank (m3) |
20 |
|
|
Drive system |
6*4 |
|
|
Chassis Description |
||
|
Chassis brand |
Howo |
|
|
Steering |
LHD |
|
|
Cab |
Howo,single row, 2 seats,with A/C |
|
|
Wheelbase |
5200+1350 mm |
|
|
Tire specification |
12.00 R 20 |
|
|
Tire quantity |
10 tires and 1 spare tire |
|
|
Engine |
Engine model |
WP12S400E201 |
|
Emission level |
EURO 3 |
|
|
Displacement |
9.85L |
|
|
Horse power |
400HP |
|
|
Weight |
1360Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
HW19710 |
|
Number of gears |
10-speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
7.5T |
|
Rear |
16T*2 |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
400L |
|
|

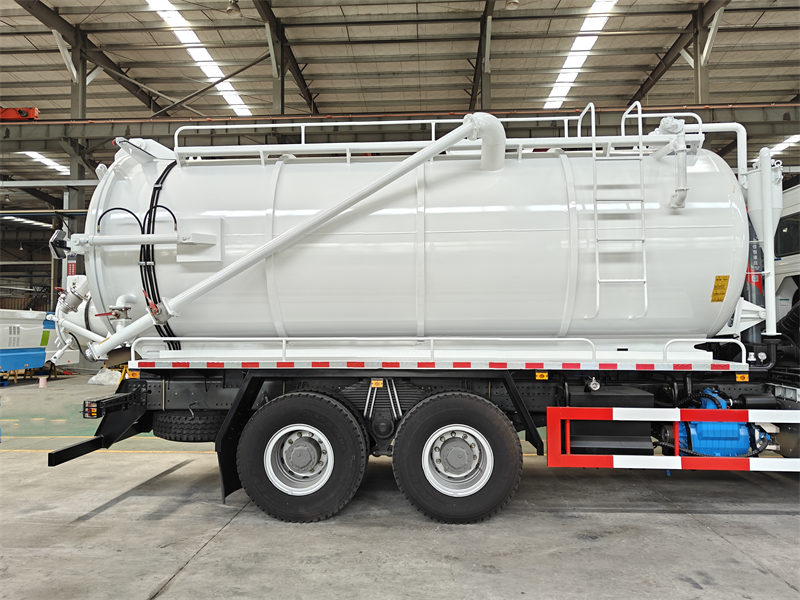

Tanker Description |
||
|
Tanker
|
Capacity |
20000 Liters |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump
|
Type |
Water circulation pump |
|
Flux |
68(L/S) |
|
|
Rating speed |
800~1000(r/min) |
|
|
Shaft power |
5(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|
Standard configuration |

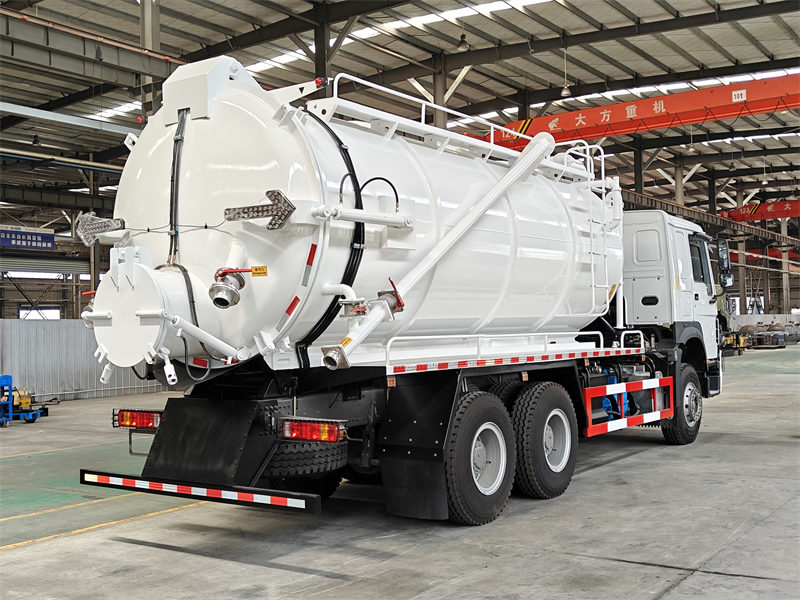

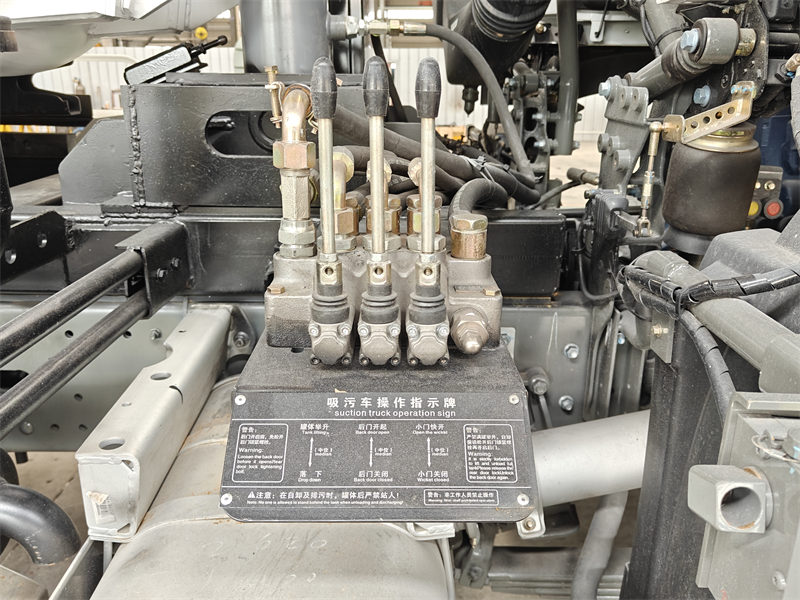

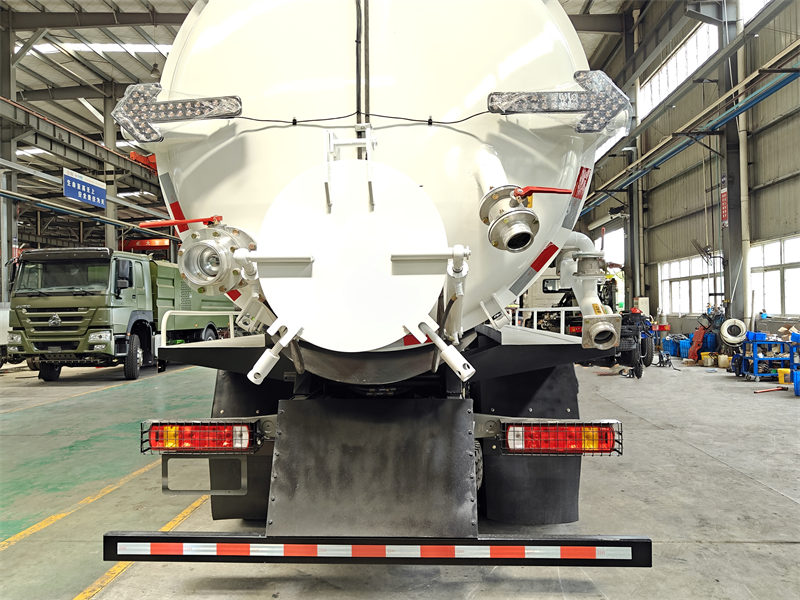

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|
The Advantage of Howo 20CBM Sewage Tank Truck:

♦ Tank design Use corrosion-resistant materials (such as stainless steel, carbon steel + anti-corrosion coating).
♦ Inner wall treatment, spray epoxy resin or polyurethane coating, thickness ≥ 200μm, acid and alkali corrosion resistance.
♦ Sandblasting and rust removal, spray anti-rust primer + polyurethane topcoat, suitable for complex outdoor environments.

♦ The tank body welding must use argon arc welding or laser welding to ensure that the weld is uniform and free of pores.
♦ Annealing treatment is required after welding to eliminate welding stress and avoid deformation and cracking.
♦ For tank body welding, the weld must pass flaw detection (such as X-ray or ultrasonic testing).
♦ Wave-breaking plates (bulkheads) are installed to reduce the impact of liquid sloshing on the stability of the Howo sewage tank truck.

♦ The vacuum level and flow rate must reach above 0.1MPa, and the suction range must be no less than 8 meters.
♦ Anti-clogging design, equipped with filtering device or crushing system to prevent debris from clogging the pipeline.
♦ The pipeline is pressure-resistant and corrosion-resistant, the interface sealing must meet the Chinese protection level.
♦ Quick-opening and closing valves reduce operation time and prevent leakage.
♦ The tank body must pass a water pressure test of 1.5 times the working pressure to ensure no leakage.
♦ Equipped with an anti-overflow alarm device to automatically cut off the power supply of the vacuum pump when the liquid level in the tank is too high.

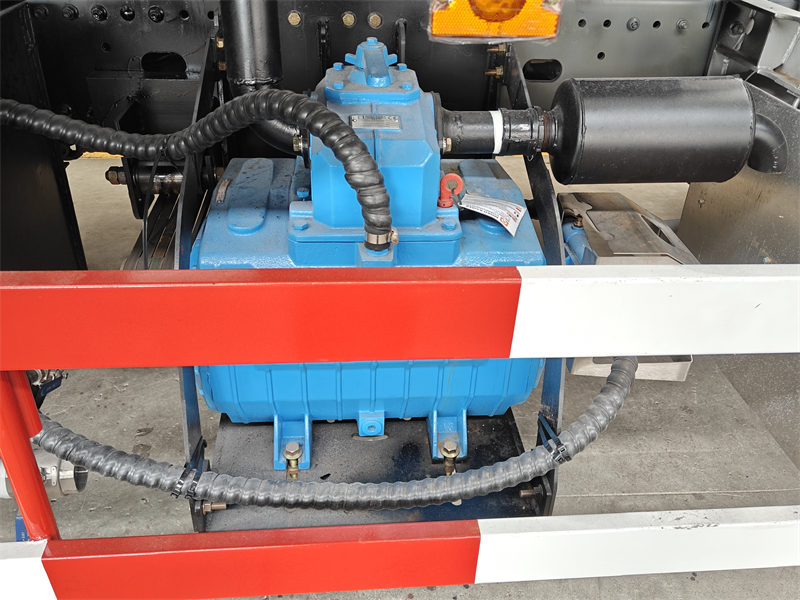

Select Moro Pump PM80A:
1. Moro pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.
2. Key components of Moro pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.
3. Moro pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.
|

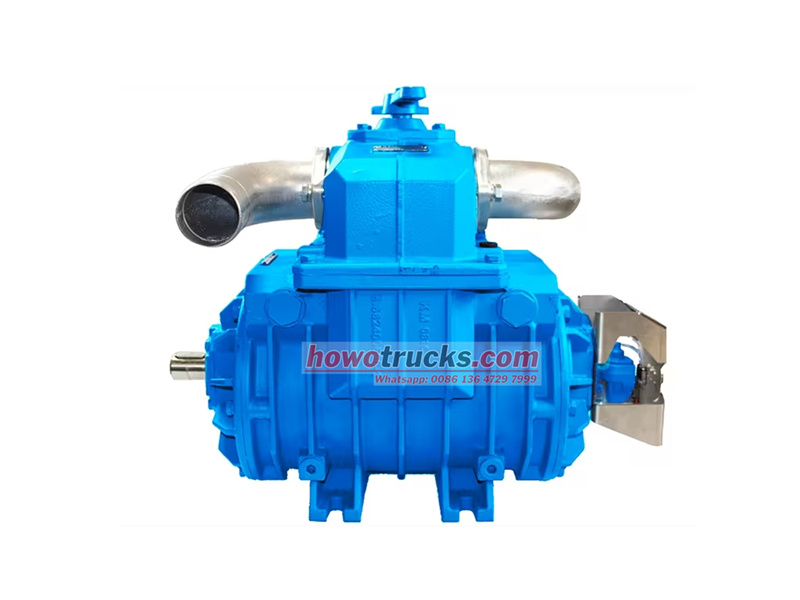

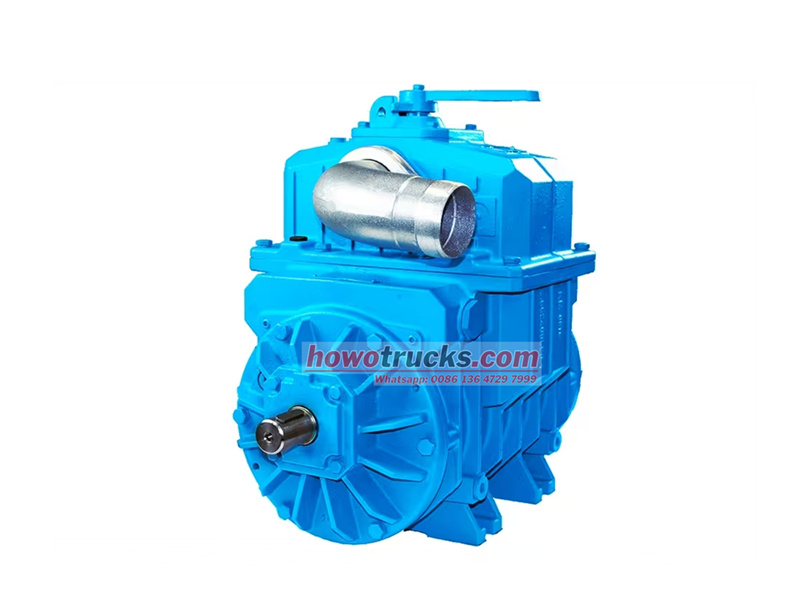

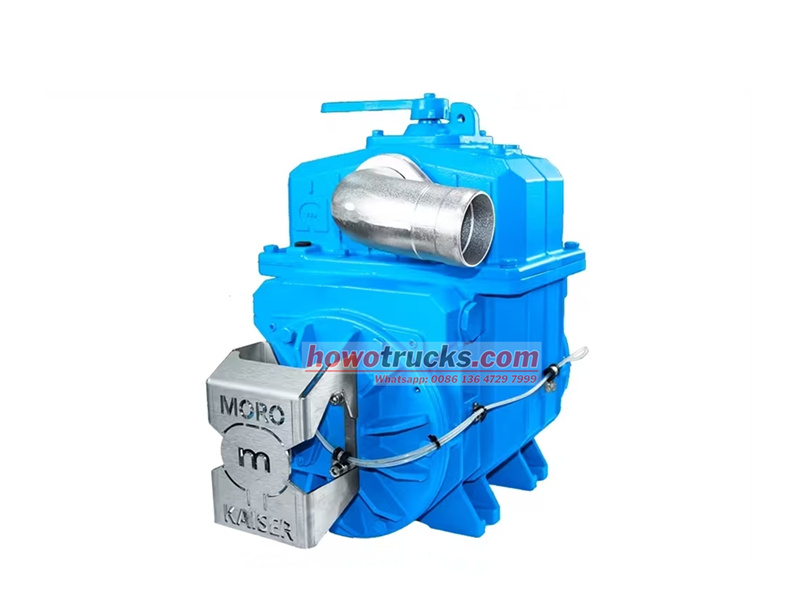

Moro PM80A rotary vacuum pump |
||
|
Specification |
Unit |
Value |
|
Free air capacity |
cfm |
424 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
312 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Continuous Duty Vacuum |
Hg (in.) |
18 |
|
Max. Pressure |
psig |
29 |
|
Power required at 15" of vacuum |
hp |
15.5 |
|
Power required at max. pressure |
hp |
41 |
|
Rotation speed |
rpm |
1100 |
|
Oil tank capacity |
quart(us) |
4 |
|
Suggested Tank Size |
Gallons |
1000-4000 |
|
Oil consumption |
gal (US)/Hr |
0.05 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
79 |
|
Hose |
in |
3 |
|
Flange |
in |
- |
|
Weight |
lbs |
357 |

-----------------------------------------------------------------------------------------------------------
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
