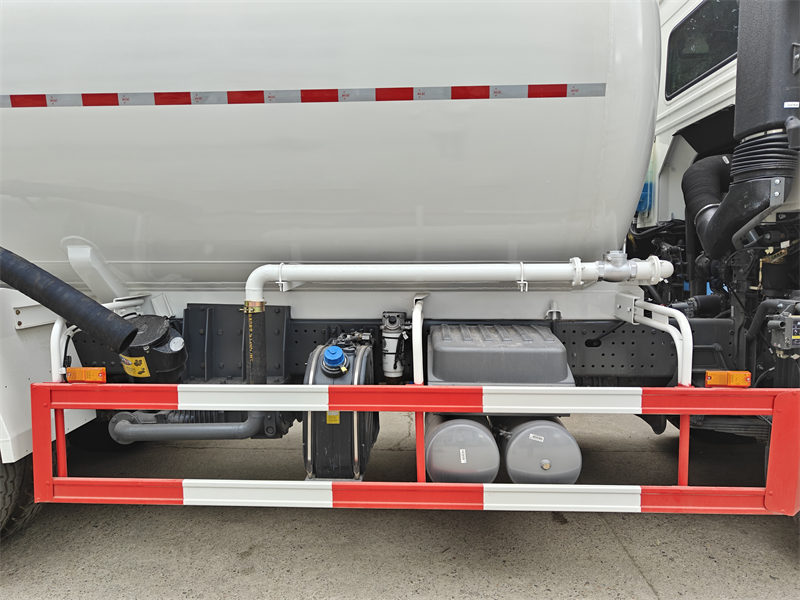

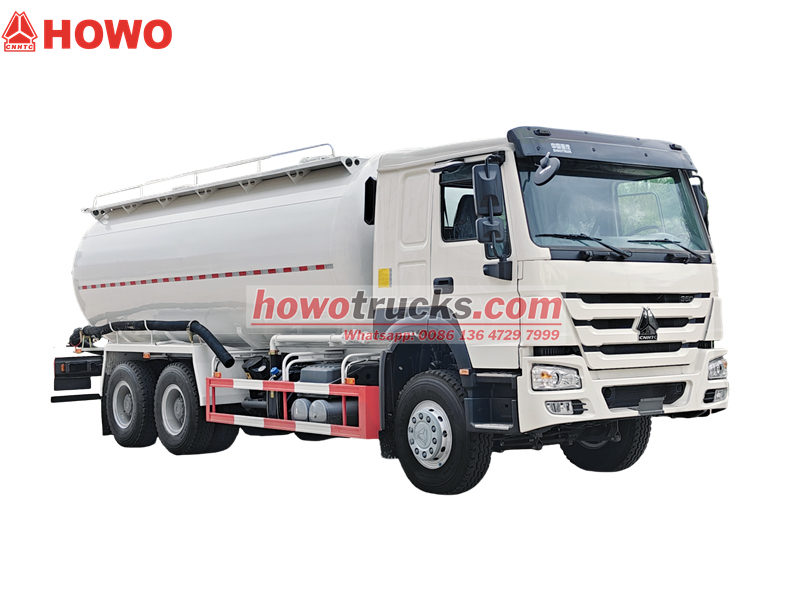

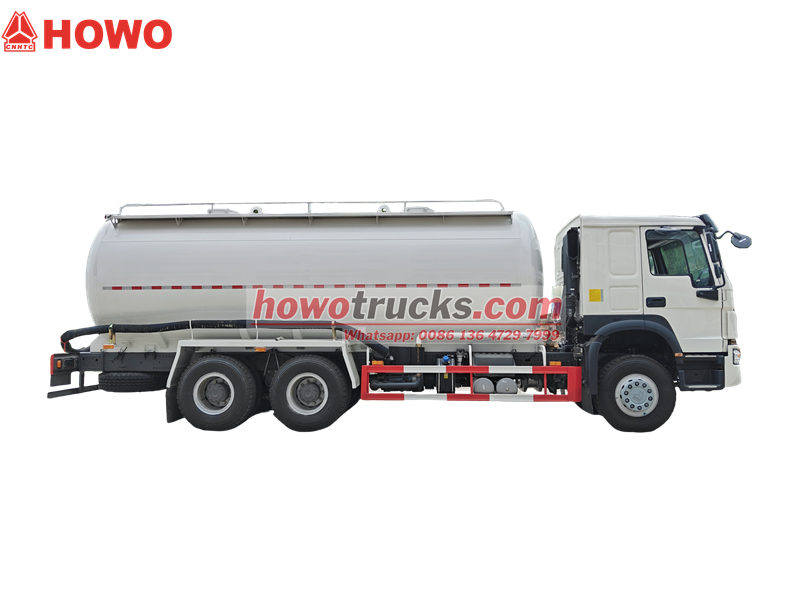

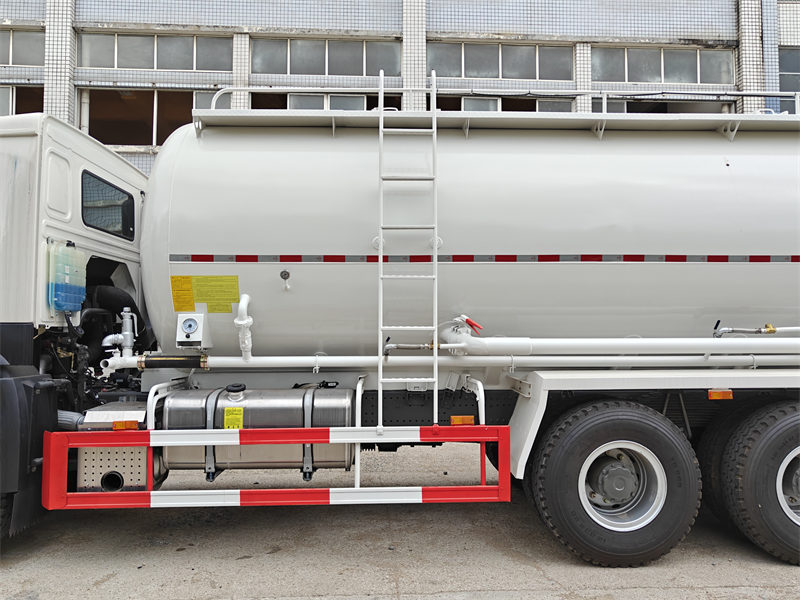

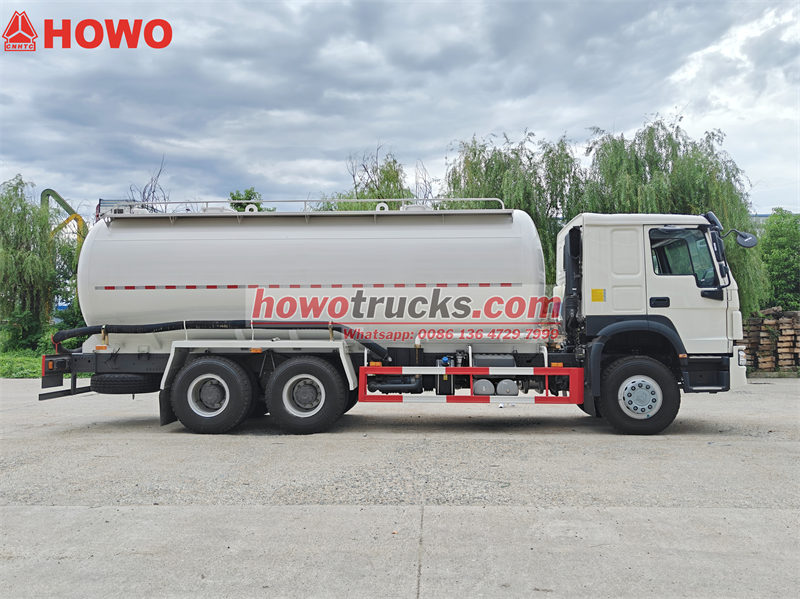

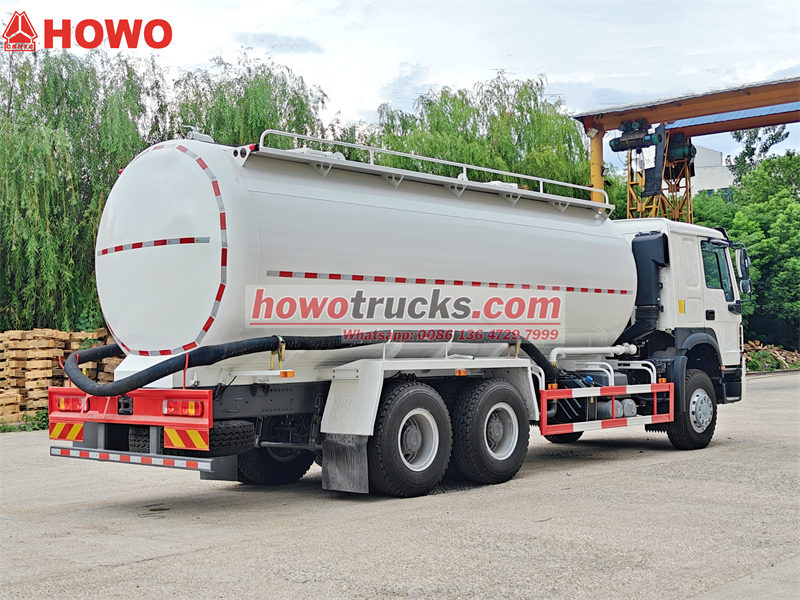

In the field of municipal sanitation, the Howo 6x4 heavy Solid Substances Vacuum Truck has become an industry benchmark with its outstanding performance and versatile design. Equipped with a powerful Weichai series engine with a maximum horsepower of 350HP, it is equipped with a separation tank with a vacuum return system, and an air cleaning system for cleaning cyclone separators and filter elements. It can quickly clean up deposited fixed dust.
Working capacity :
20cbmCabin type :
Howo one and half cabinDrive system :
6x4,LHD/RHDWheelbase ( mm) :
4757+1400Engine specific :
350HP/WP10.350E53Gear box :
HW 19710 10-speed,manualFront axle ( Kg ) :
6500Rear axle ( Kg ) :
13000*2In the field of municipal sanitation, the Howo 6x4 heavy Solid Substances Vacuum Truck has become an industry benchmark with its outstanding performance and versatile design. Equipped with a powerful Weichai series engine with a maximum horsepower of 350HP, it is equipped with a separation tank with a vacuum return system, and an air cleaning system for cleaning cyclone separators and filter elements. It can quickly clean up deposited fixed dust.
The tank volume is up to 20 cubic meters, with large capacity and extremely high efficiency per operation. The Howo 6x4 chassis has a sturdy structure and strong passability, and is optimized for the harsh environments of urban blocks. Whether it is daily maintenance or emergency vacuuming, the Howo 6x4 dusty vacuum truck provides solid protection for the healthy operation of the city with its low noise, high reliability and comprehensive after-sales network.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Product Features:
☛ Howo heavy 6x4 chassis with stronger power WP.350HP engine.
☛ Suctioning,displacing(option),transporting and dischargeing dry,wet and hazardous substsnces, such as sluge sand,(roof) gravel, fly ash, powders and various types of liquids.
☛ The powerful tri-lobe blower gives the vacuum tanker with cyclone separator a very high suction and displacement capacity.
☛ Self-cleaning cyclone separation keeps the cyclones dust free at all times.

Product Parameter for Howo 20CBM Solid Substances Vacuum truck:

|
Howo 6x4 Solid Substances Vacuum Truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
10300*2550*3350mm |
|
|
GVW |
28000kg |
|
|
Curb weight |
15800kg |
|
|
Sewage tank (m3) |
20 |
|
|
Drive system |
6*4 |
|
|
Chassis Description |
||
|
Chassis brand |
Howo |
|
|
Steering |
LHD/RHD |
|
|
Cab |
Howo single row, 2 seats+sleeper,with A/C |
|
|
Wheelbase |
1800+4757mm |
|
|
Tire specification |
12.00R20 |
|
|
Tire quantity |
10 tires and 1 spare tire |
|
|
Engine |
Engine model |
WP10.350E53 |
|
Emission level |
EURO 3 |
|
|
Displacement |
9.726L |
|
|
Horse power |
350HP |
|
|
Maximum torque |
1400N·m |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
HW19710 |
|
Number of gears |
9-speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
7.5T |
|
Rear |
16T*2 |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
400L |
|
|

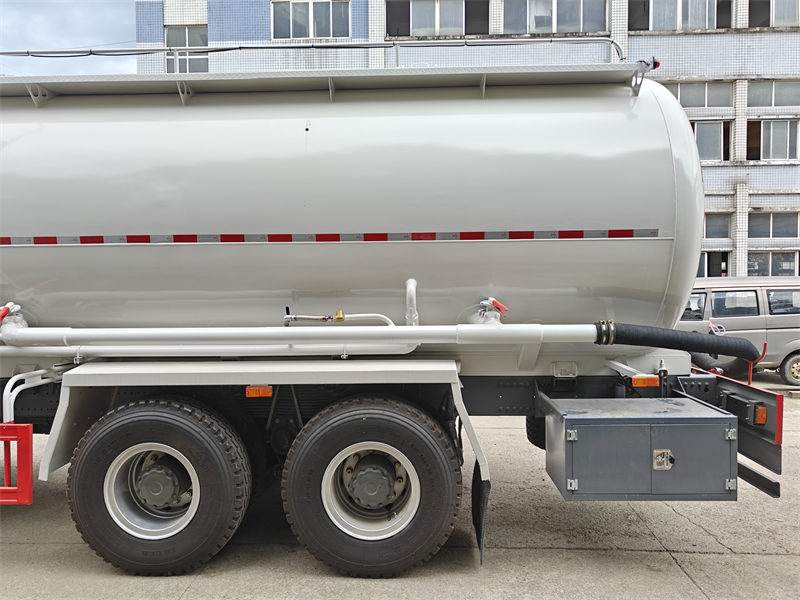

Tanker Description |
||
|
Tanker
|
Capacity |
20000 L |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Surface treated |
Both side spray Painted |
|
|

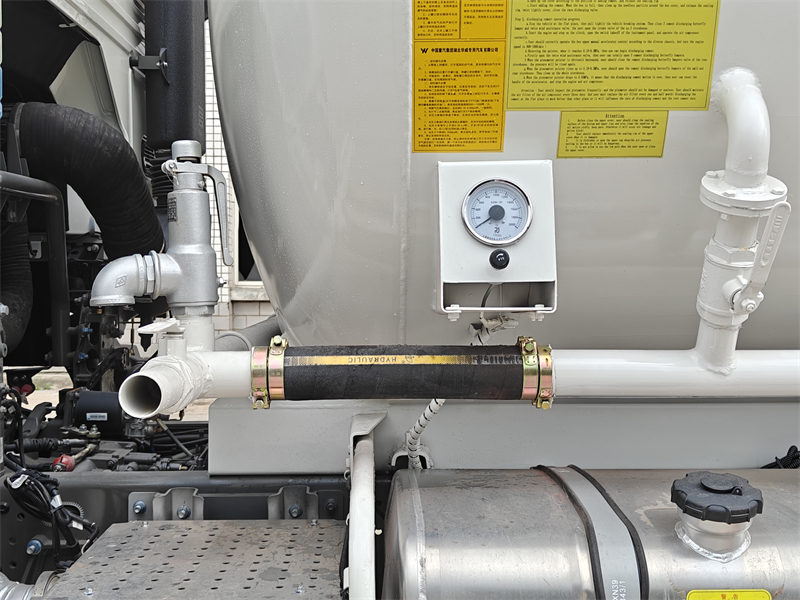

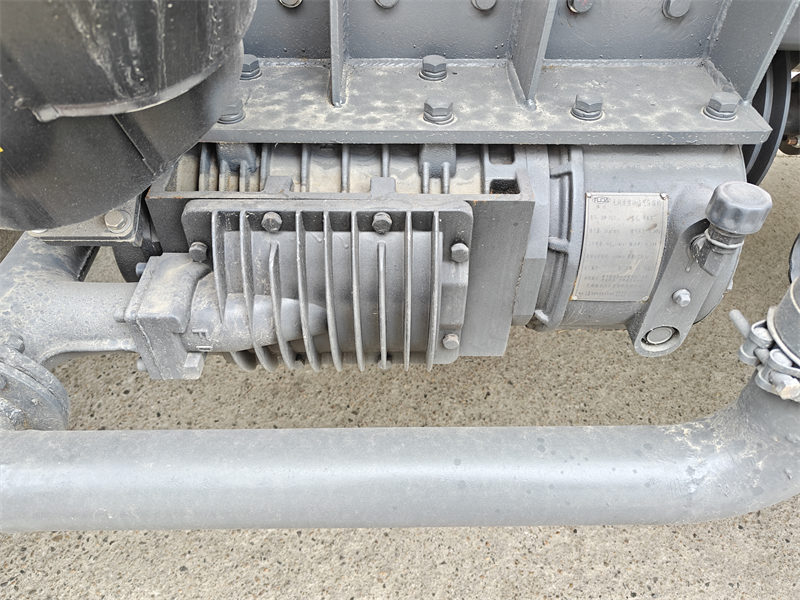

Vacuum blower |
Type |
Air compressor (Hanging sitting) |
|
Model |
DBW-10/2 |
|
|
Exhaust volume |
10m³/min |
|
|
Exhaust pressure |
0.2 MPa |
|
|
Working speed |
950r/min |
|
|

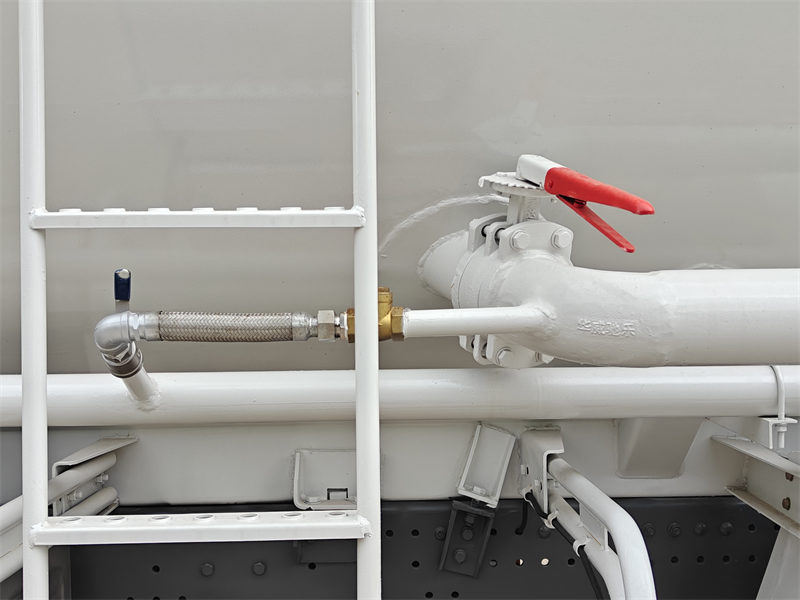

Pipe |
Suction and discharge pipe |
|
|
Suction Position |
Rear manhole Down, over Camel Neck (5" up) |
|
|
Special function |
Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|
Standard configuration |
consisting of rupture disc, hose rupture safety vavles on behalf of the rear door and tipping cylinder,beacon light, emergency stop, tip unbolting protection, repair cross beam,catwalk, rear door clamp protection, earth reel,emergency stop reel, rear door protection, tipping protection and power extinguisher. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|
Product Detailed Introduction:

1. High load capacity and passability:
♦ The Howo heavy 10tons crane truck has a 6x4 drive system, rear double-axle drive + front axle steering.
♦ Reasonable axle load distribution, strong load capacity, usually 30-35 tons, suitable for heavy load transportation.
♦ Excellent ability to escape from complex road conditions such as mud and ramps.
♦ It adopts high-strength steel beams with strong torsion resistance, and is equipped with multi-leaf spring suspension, with high load-bearing stability.

2.Vacuum cleaning system:
♦ Provisions separator tank with a vacuum return system in combination with an air cleaning system (air shock system/air return current) on behalf of cleaning the cyclones and filter elements.
♦ Including cyclone,flter cleaning by means of a pogrammed 3 positions pulse time,interval switch, adjustable from the control panel.
♦ Safety filter each cyclone is equipped with its own fine dust safety filter with a standard filter.

3. Adaptability and Reliability:
♦ The 6x4 heavy-duty chassis offers a large load capacity and ample space. Optional front reels, level gauges, and sprinklers are available to meet diverse needs.
♦ The tank and piping are constructed of stainless steel or 6mm carbon steel, and the exterior is protected by a frame-type protective structure, providing strong corrosion resistance and extending equipment life.
♦ Key components such as hydraulic pumps and solenoid valves can be imported based on customer requirements, ensuring stable system operation and reducing maintenance frequency.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
