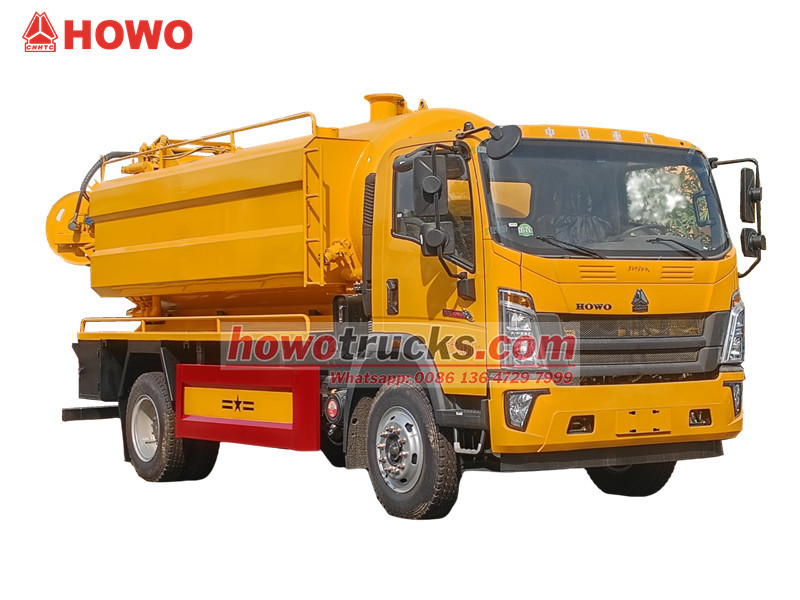

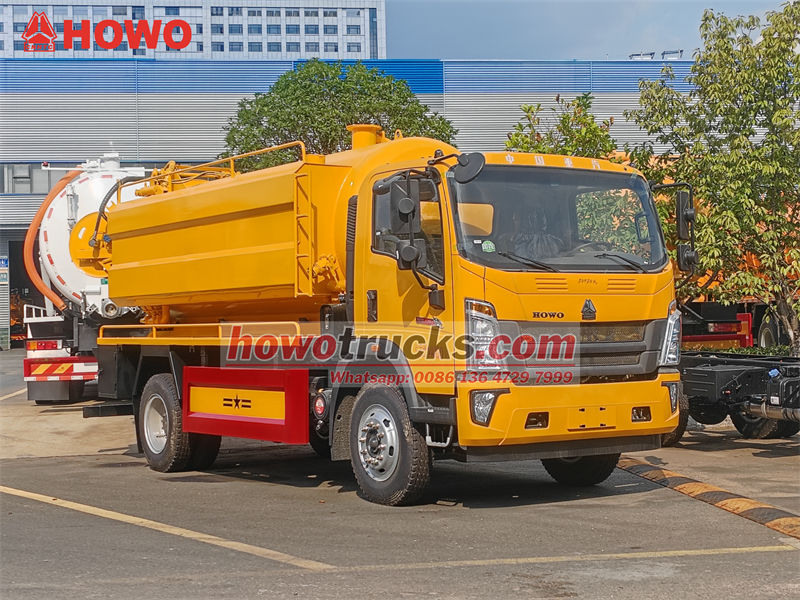

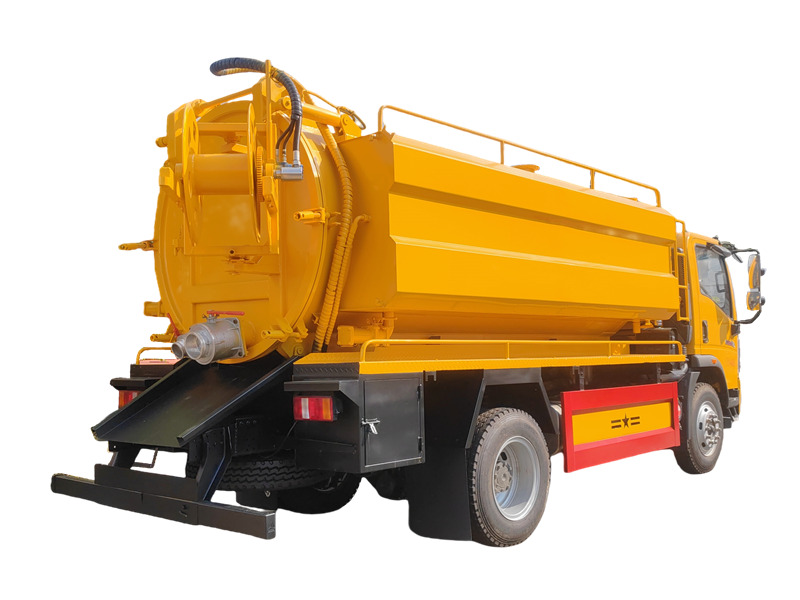

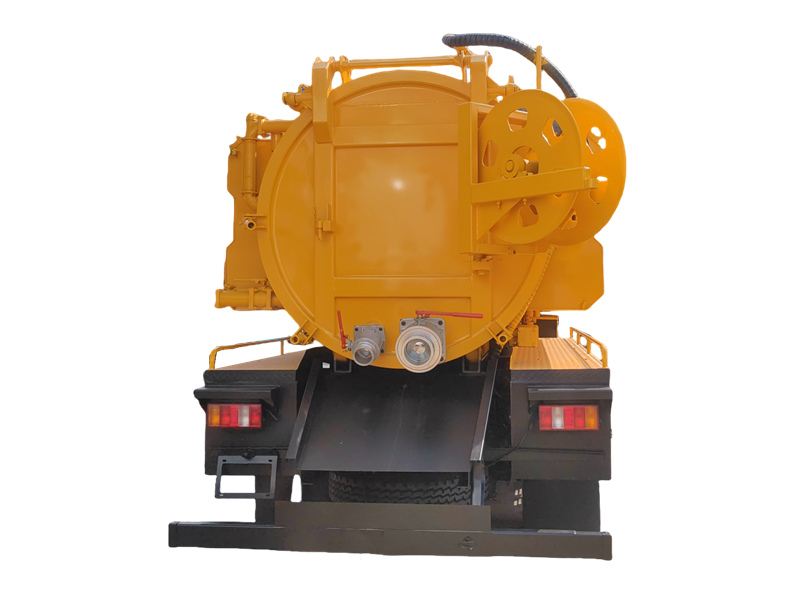

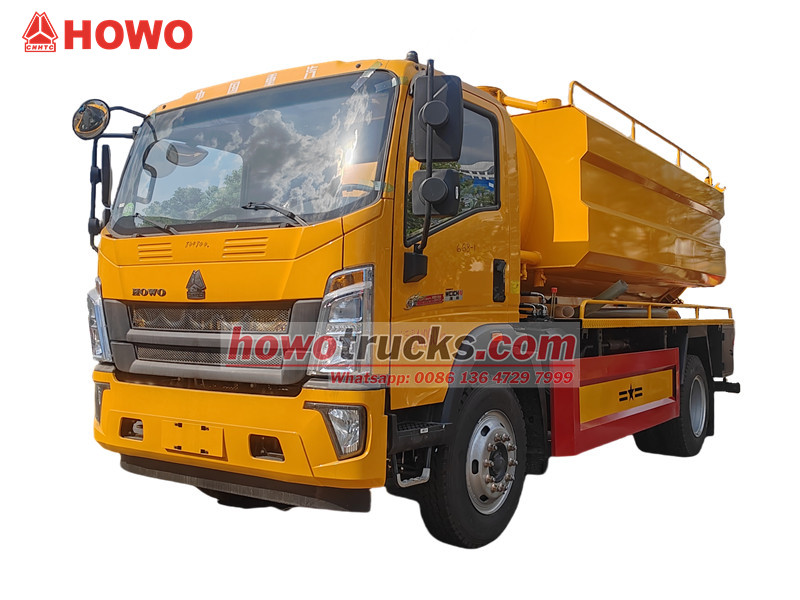

The HOWO 10000L Vacuum Sewer Jetting Truck is a high-efficiency sanitation vehicle that integrates high-pressure cleaning and vacuum sewage suction functions. Built on a HOWO 4×2 heavy-duty chassis, it leverages the powerful performance of the German PINFL high-pressure water pump and SK-12 water circulation vacuum pump, combined with a 7000L + 3000L split-type dual tank, to efficiently execute tasks such as pipeline dredging and sludge suction. It is a comprehensive and versatile piece of sanitation equipment.
Working capacity :
10000 litersCabin type :
HOWO 2080Dimension (mm ) :
7450×2370×3200 mmDrive system :
4×2Wheelbase ( mm) :
4200Engine specific :
160HP/WP3NQ160E50Gear box :
WLY 6-speedFront axle ( Kg ) :
4860Rear axle ( Kg ) :
9200Remark :
Stainless steel tank, right hand drive is optionalThe HOWO 10000L Sewer Jetting Truck is a highly efficient sanitation vehicle that integrates high-pressure cleaning and vacuum sewage suction functions. Built on a reinforced HOWO 4×2 heavy-duty chassis, it is powered by a Weichai 160 hp engine, matched with a WLY six-gear transmission, providing reliable power support for various complex working conditions. Its core operating system features the German PINFL PF36 high-pressure plunger pump, with a working pressure of 16 MPa, and an SK-12 water ring vacuum pump, offering a pumping speed of 12 cubic meters per minute. Through the coordinated operation of a 20-meter high-pressure hose and a 100 mm diameter sewage suction pipe, it efficiently performs pipeline cleaning and sediment suction tasks.
This HOWO combination vacuum jetter truck utilizes a split tank design, with both the 7000-liter sewage tank and 3000-liter clean water tank constructed from carbon steel. The internal anti-wave baffle structure enhances driving stability by 30%. The vehicle is equipped with a hydraulic reel, 10 carbon steel nozzles, and an LCD control panel, supporting hydraulic lift self-dumping (angle ≥45°) and electro-hydraulic dual control operation. This professional configuration makes the model an ideal choice for handling urban pipeline siltation, industrial pipeline cleaning, and similar conditions, fully demonstrating its technical advantages integrating cleaning, suction, and transfer capabilities.
CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Product Features
★ Based on HOWO 4×2 reinforce heavy duty chassis, with WEICHAI 160HP diesel engine and WLY 6-speed gearbox.
★ Large volume tank body, includes 7000 liters sewage tank and 3000 liters water tank.
★ Equipped with powerful SK-12 water circulation type vacuum pump.
★ Equipped with PINFL PL36 high pressure plunger pump, imported from Germany.
※ Ⅱ. Product Parameter for HOWO 4×2 combined vacuum truck:
|
Chassis Specifications |
|
|
Chassis brand |
SINOTRUK HOWO |
|
Cabin |
HOWO 2080 cabin, single row, 2 seats, with A/C |
|
Driving type |
4×2, left hand drive |
|
Overall dimensions |
7450×2370×3200 mm |
|
Gross vehicle weight |
14060 kg |
|
Curb weight |
8100 kg |
|
Wheelbase |
4200 |
|
Front/Rear wheel track |
1815/1870 mm |
|
Front/Rear overhang (mm) |
1240/2260 mm |
|
Tires |
8.25R20 |
|
Tire number |
6+1 (one spare tire) |
|
Transmissions |
WLY6TS55, 6 speed forward 1 reverse. |
|
Front/rear axle load |
4860/9200 kg |
|
Max speed |
90 km/h |
|
Engine Specifications |
|
|
Manufacturer |
WEICHAI |
|
Model |
WP3NQ160E50 |
|
Rated Power |
160HP/118KW |
|
Engine type |
4 cylinders, in-line, turbo inter-cooling |
|
Displacement |
2.97L |
|
Fuel type |
Diesel |
|
Emission standard |
Euro 5 |
|
Rated speed |
3000 rpm |
|
Max. torque |
480 N.m |
|
Tank Specifications |
|
|
Sewage tank volume |
7,000 |
|
Sewage tank material |
Carbon steel Q235B |
|
Sewage tank thickness |
6 |
|
Water tank volume |
3,000 |
|
Water tank material |
Carbon steel Q235B |
|
Water tank thickness |
4 |
|
Water jetting pump |
|
|
Brand |
PINFL (imported from Germany) |
|
Model |
PF36 |
|
Type |
High pressure plunger pump |
|
Rated flow |
122 L/min |
|
Rated pressure |
16 Mpa |
|
Speed |
1000 r/min |
|
Power |
37 kw |
|

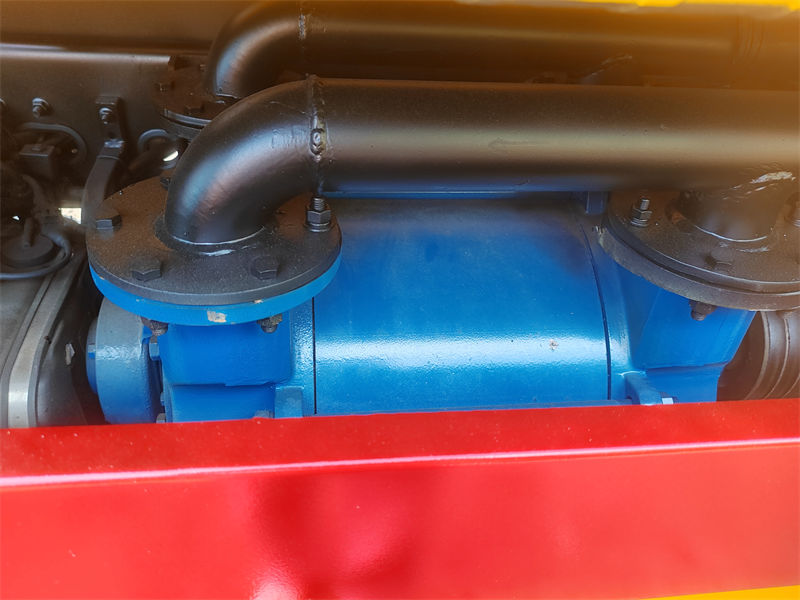

Vacuum pump |
|
|
Model |
Chinese brand Yifeng |
|
Model |
SK-12 |
|
Type |
Water circulation pump |
|
RPM |
970 r/min |
|
Pumping speed |
12 m3/min |
|
Max. pressure |
8000Pa |
|
Motor power |
18.5 kw |
|
Other configurations |
|
|
Sewage tank lifting |

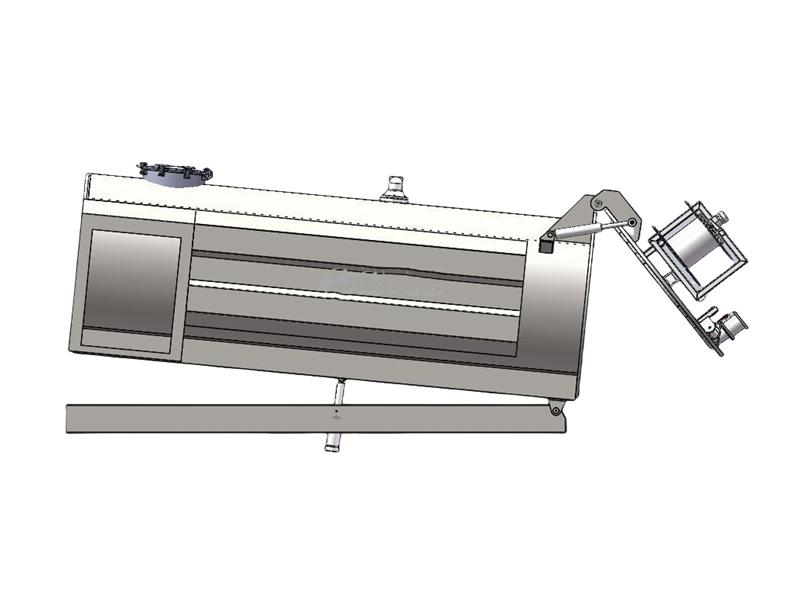

Hydraulic lifting dumping |
|
Tank lifting angle |
≥45 |
|
High pressure water pipe |
20 m |
|
Jetting spraying nozzles |
10 pcs carbon steel spraying nozzles |
|
Control way |
Manual and electronic control |

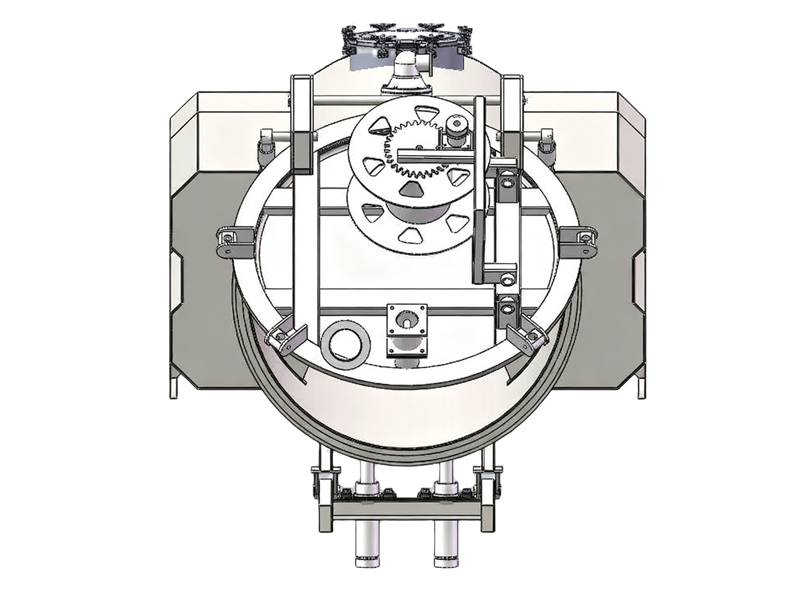

※ Ⅲ. Product Details & Features:

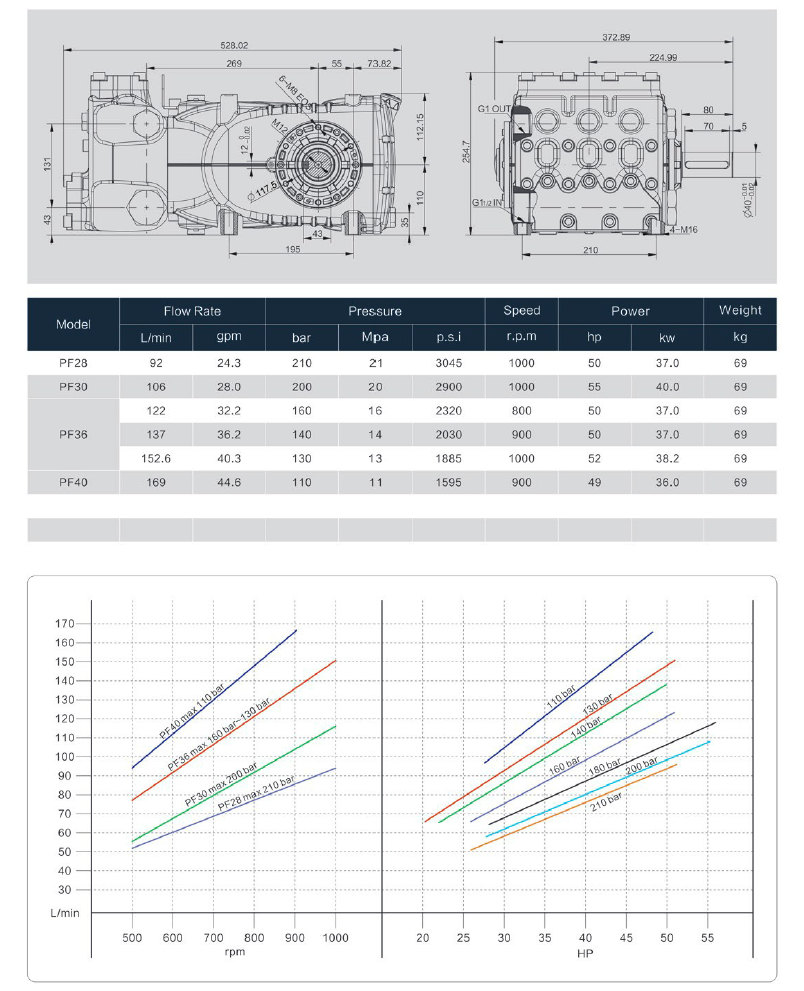

※ Ⅳ Water Pump PL36 Parameters

1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

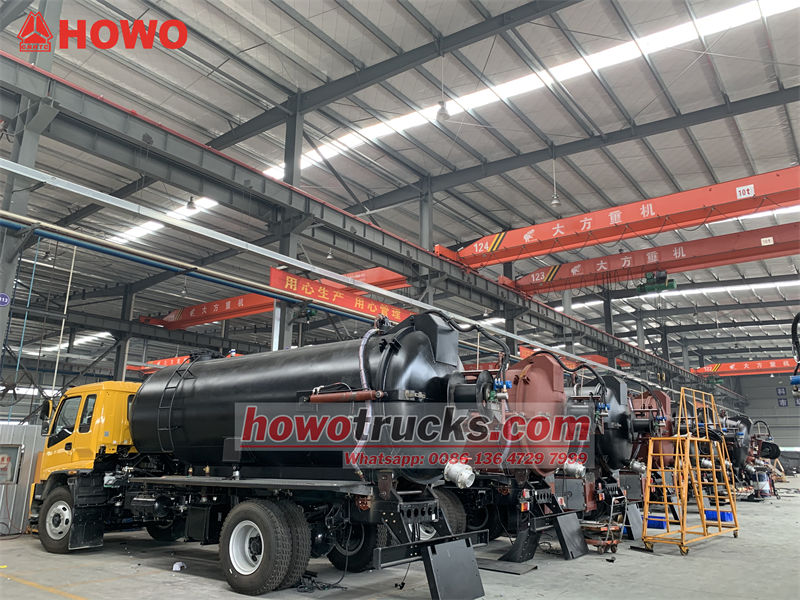

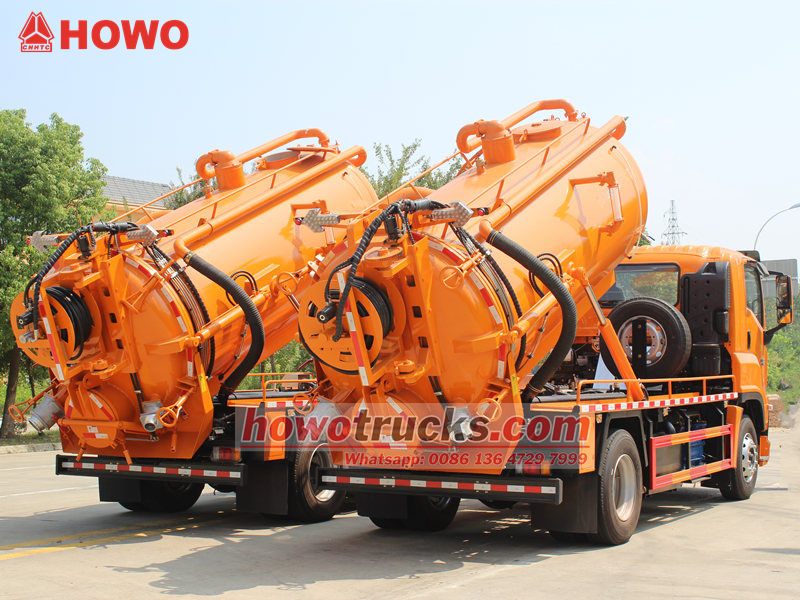

SINOTRUK HOWO combination vacuum trucks on production

SINOTRUK HOWO combination jetting vacuum trucks ready for delivery
