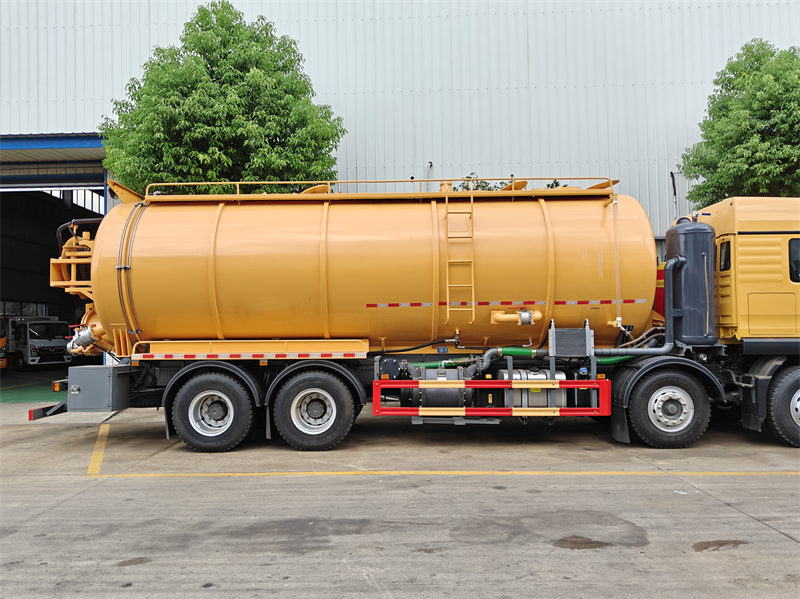

Howo 8x4 heavy cleaning vacuum sewage tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a powerful Weichai series engine with a maximum horsepower of 350HP, combined with a high-pressure cleaning pump (pressure 16-19Mpa) and a sewage suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The sewage tank volume is up to 20 cubic meters, with large capacity and extremely high efficiency in a single operation. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.
Working capacity :
18+6cbmCabin type :
Howo C5H cabinDrive system :
8x4,LHD/RHDWheelbase ( mm) :
1800+4757+1400 mmEngine specific :
350HP / MC07H.35-60Gear box :
HW13709XSTC2 transmission, 9 forward and 2 reverseFront axle ( Kg ) :
7500 KG*2Rear axle ( Kg ) :
18000KG*2In the field of municipal sanitation, Howo 8x4 heavy cleaning vacuum sewage tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a powerful Weichai series engine with a maximum horsepower of 350HP, combined with a high-pressure cleaning pump (pressure 16-19Mpa) and a sewage suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The sewage tank volume is up to 20 cubic meters, with large capacity and extremely high efficiency in a single operation. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.

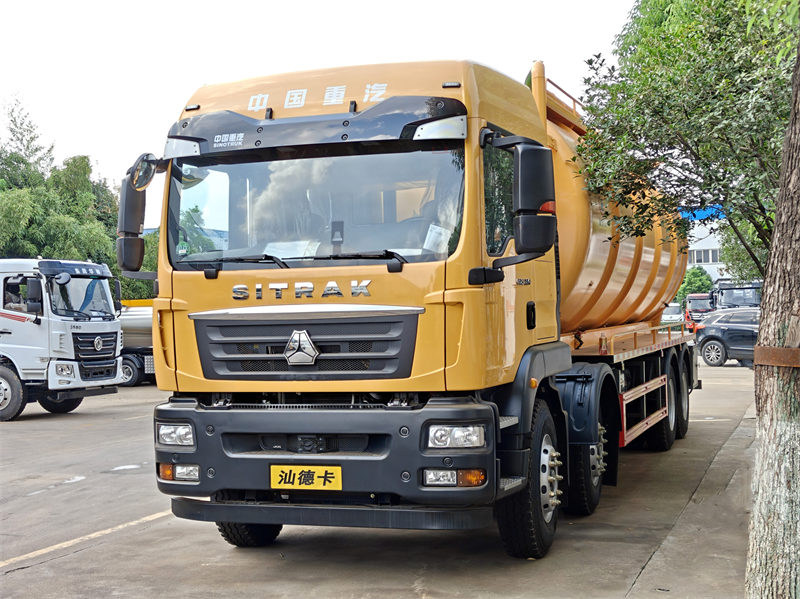

The Howo C5H 8x4 chassis has a sturdy structure and strong passability, and is optimized for narrow urban roads and harsh environments. Whether it is daily maintenance or emergency dredging, the Howo 8x4 Combined Sewage Clean truck provides solid protection for the healthy operation of urban underground pipe networks with its low noise, high reliability and complete after-sales network.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Product Defination and Introduction
Manufacturer: CS TRUCKS GROUP LIMITED
Product Features
1. Proven Powertrain: Weichai engine + Sinotruk transmission + HOWO chassis – a golden combination with stable performance and extensive nationwide service network.
2. Powerful Suction: High-flow vacuum pump delivers high efficiency and can handle a variety of complex working conditions.

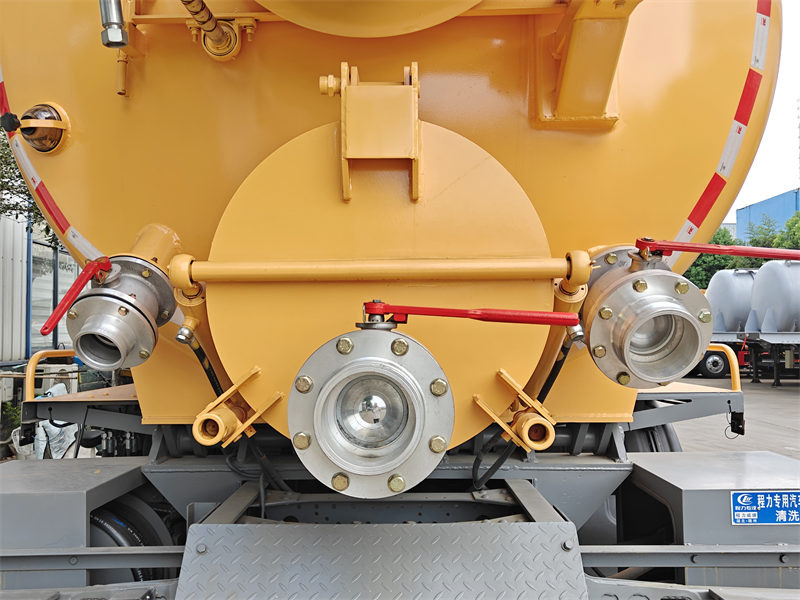

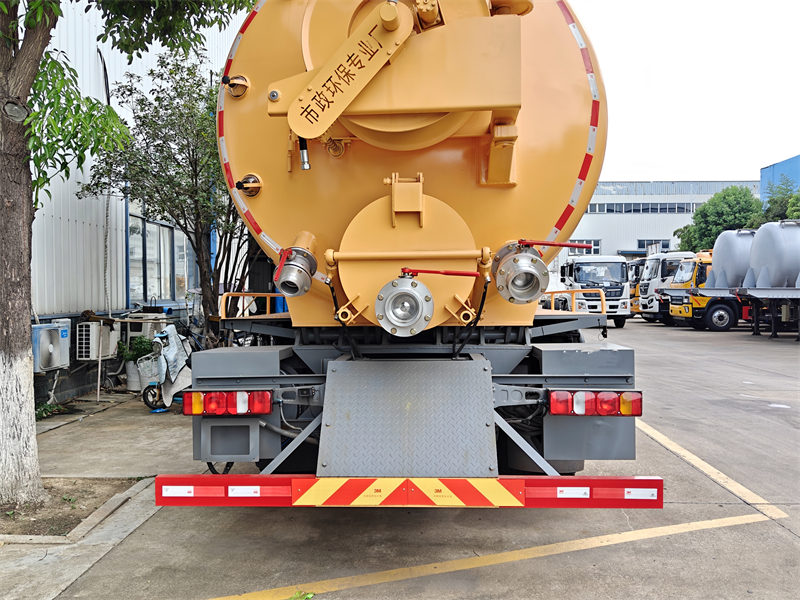

3. Convenient Unloading: Dual-mode unloading (lift dump + tailgate direct discharge) accommodates waste of varying viscosities.

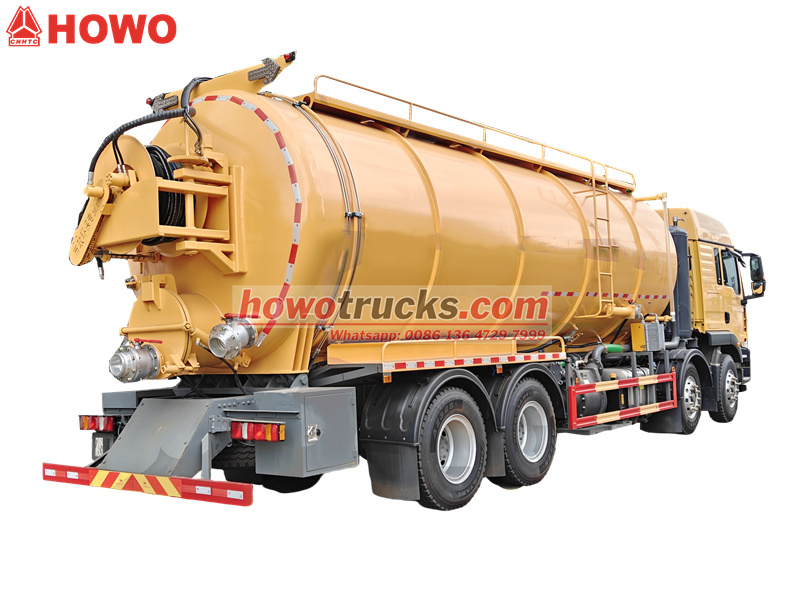

4. Large-Capacity Tank: 20 cubic meter large-capacity suction tank offers a large loading capacity and high operating efficiency.
5. Easy Operation: Equipped with a ground-level manual hydraulic control lever for simple and user-friendly handling.

Product Parameter for Howo 20CBM septic tanker truck

|
Howo 8x4 septic tanker truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
11300*2500*3150mm |
|
|
GVW |
31000kg |
|
|
Curb weight |
16800kg |
|
|
Sewage tank (m3) |
18+6 |
|
|
Drive system |
8*4 |
|
|
Chassis Description |
||
|
Chassis brand |
Howo |
|
|
Steering |
LHD/RHD |
|
|
Cab |
Howo C5H,single row, 2 seats,with A/C |
|
|
Wheelbase |
1800+4757+1400mm |
|
|
Tire specification |
295/80R22.5 |
|
|
Tire quantity |
12 tires and 1 spare tire |
|
|
Engine |
Engine model |
MC07H.35-60 |
|
Emission level |
EURO 6 |
|
|
Displacement |
7.36L |
|
|
Horse power |
350HP |
|
|
Maximum torque |
1400N·m |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
HW13709XSTC2 |
|
Number of gears |
9-speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
7.5T*2 |
|
Rear |
18T*2 |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
400L |
|
|
Tanker Description |
||
|
Tanker
|
Capacity |
18000+6000 Liters |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|

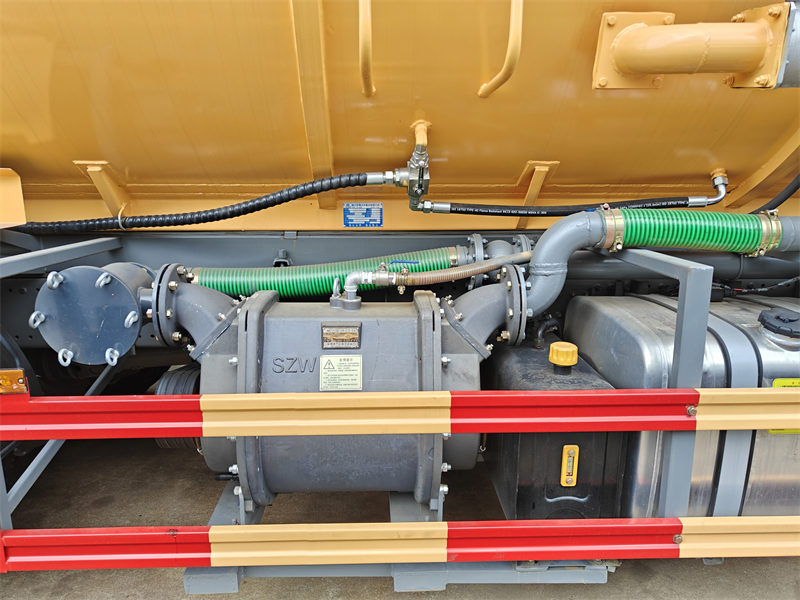

Pump
|
Type |
Water circulation pump |
|
Flux |
68(L/S) |
|
|
Rating speed |
800~1000(r/min) |
|
|
Shaft power |
5(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|
Standard configuration |

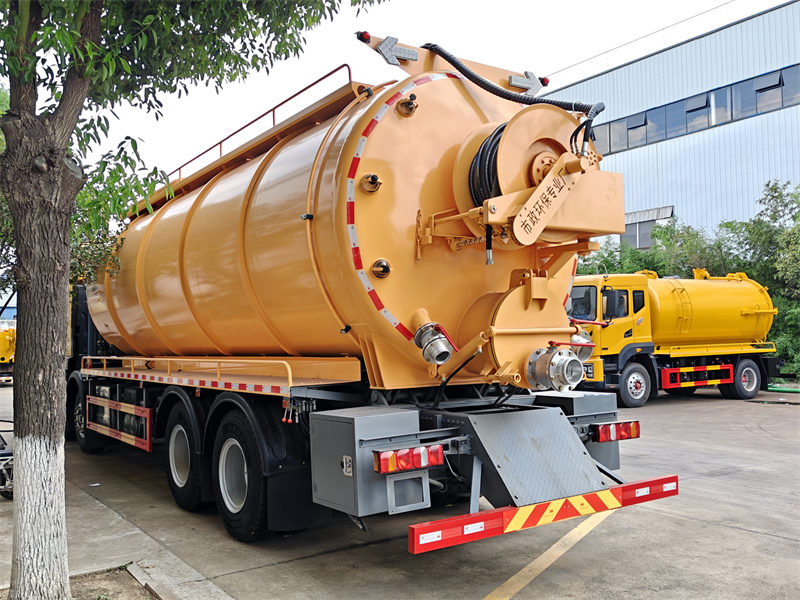

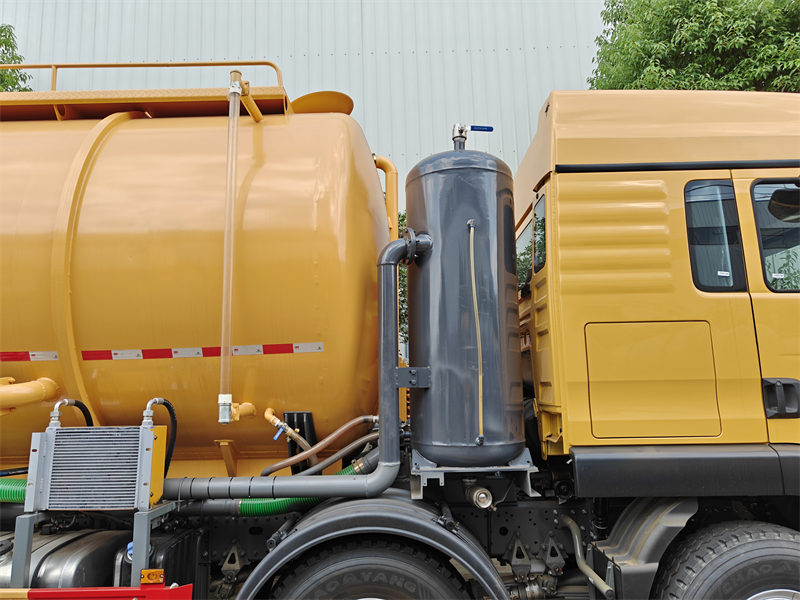

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|
Product Detailed Introduction

1.Efficient Operation Capacity and Multifunctional Integration

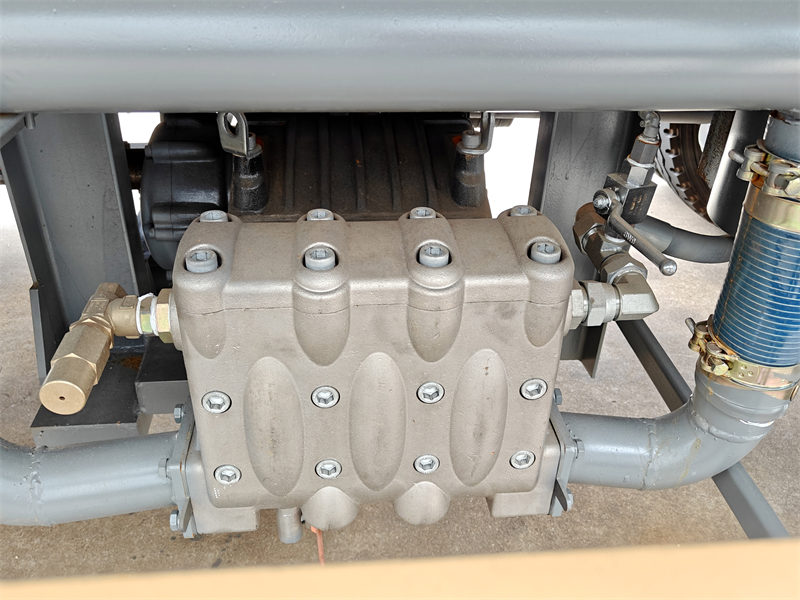

♦ Combining the functions of high-pressure cleaning and sewage suction, this system utilizes 16-19 MPa high-pressure water jet technology to powerfully remove stubborn dirt from pipes.
♦ A vacuum suction system also rapidly extracts waste, achieving seamless "flushing + suction" operations and significantly improving unclogging efficiency.
♦ With a tank capacity of 20,000 liters, it can fully pump out waste in 5 minutes or less, enabling rapid processing in septic tanks, sewers, and other applications, reducing time costs.
♦ Equipped with a multi-stage water circulation system, it allows for simultaneous high-pressure flushing and suction functions, ensuring operational continuity.

2.Environmental protection and economic optimization
♦ The source factory customization can support the cylindrical filter plus the shaftless spiral structure to achieve solid-liquid separation of pollutants.
♦ Sewage can be directly discharged into the municipal pipe network, and solid waste can be packaged and processed to avoid secondary pollution caused by transportation.
♦ Mechanized operation efficiency far exceeds manual labor, a large single processing area, and reduced unit cleaning costs.
♦ Modular design reduces repeated equipment purchases and extends service life.

3.Adaptability and reliability

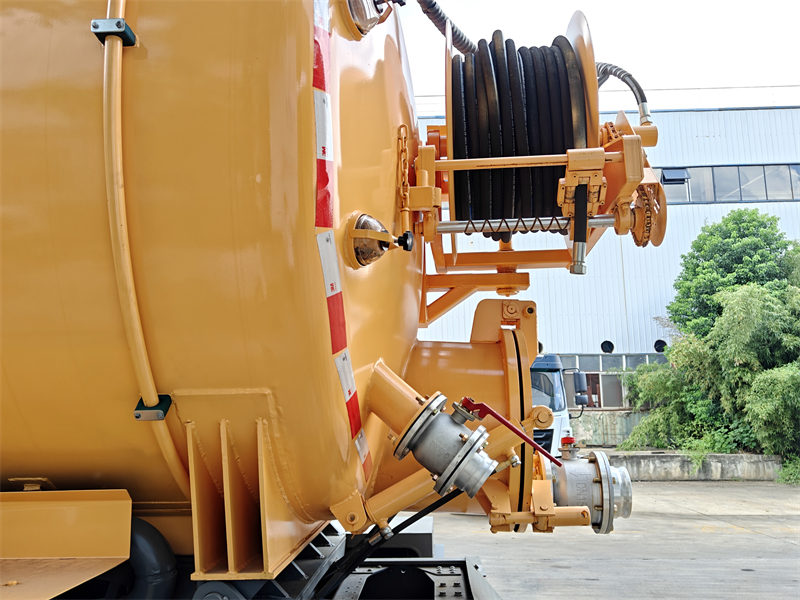

♦ The 8x4 heavy-duty chassis has a large load capacity and ample space. It can be equipped with an optional front reel, liquid level gauge, and sprinkler to meet diverse needs, such as winter snow shoveling, landscaping spraying, and other extended functions.
♦ The tank and pipeline are made of stainless steel or 4mm carbon steel, and the external frame-type protective structure is highly corrosion-resistant and extends the service life of the equipment.
♦ Key components such as hydraulic pumps and solenoid valves can use imported brands (such as Italian hydraulic pumps and German solenoid valves) according to customer needs to ensure stable operation of the system and reduce maintenance frequency.
