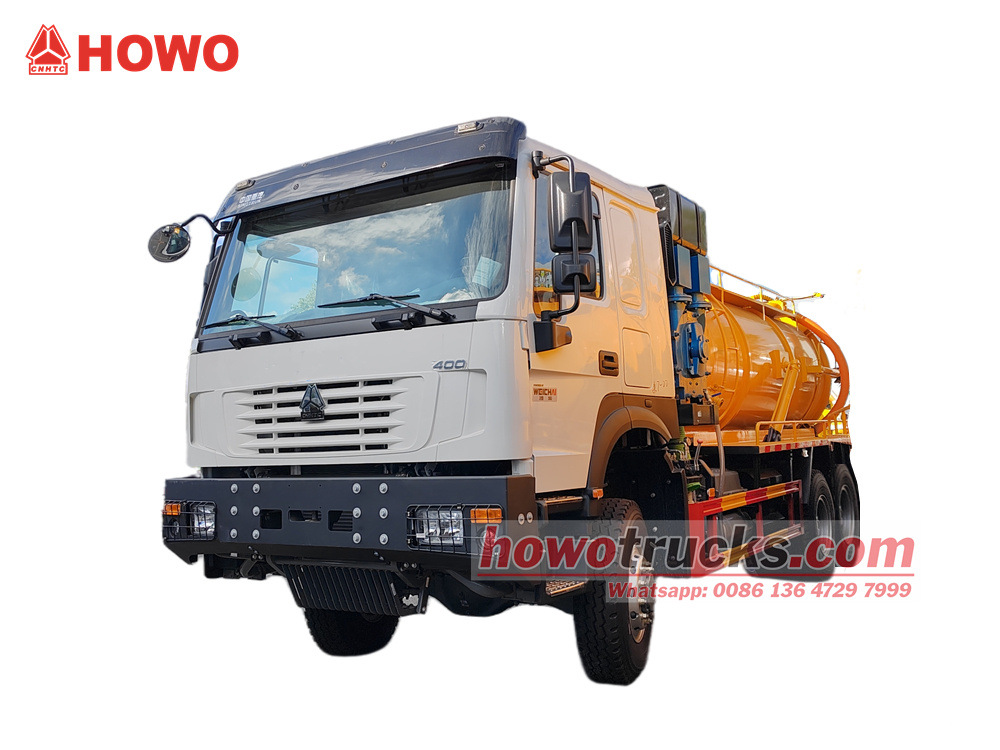

Howo 6x6 Combined Vacuum Jetting Vehicle

Howo 6x6 Combined Vacuum Jetting Vehicle

The HOWO 6X6 12cbm combined dredging vehicle is modified based on the Sinotruk HOWO 6x6 all-wheel drive chassis. It features a half-cab, 4300mm + 1400mm wheelbase, and is equipped with a Weichai WP10H400E62 Euro 6 400hp engine and an HW19710 10-speed transmission. The vehicle is equipped with a 10-cubic-meter wastewater tank and a 2-cubic-meter cleaning water tank, each with separate compartments.

Howo sewage suction vehicle is equipped with a hydraulic oil tank, a discharge valve, an SK-15 water circulation vacuum pump, a sewage suction and discharge pipe, a high-pressure cleaning pump, a high-pressure cleaning reel, a water vapor separator, an oil-gas separator, a liquid level view window, and a ladder.

  • Working capacity :

    12cbm
  • Cabin type :

    Howo one and half cabin
  • Drive system :

    6x6,LHD
  • Wheelbase ( mm) :

    4300+1400
  • Engine specific :

    400HP/WP10H400E62
  • Gear box :

    HW 19710 10-speed,manual
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    1800(2 axles)
New Products

*Howo 6x6 Combined Vacuum Jetting Vehicle



Sewer Jetting And Vacuum Truck*

-----------------------------------------------------------------



Manufacturer:CS TRUCKS GROUP LIMITED.



We are a professional manufacturer of special vehicles,
 Brand-New and 100% Quality
guaranteed.

Ⅰ. Product Introduction:

The Howo 6x6 Combined Vacuum Jetting Vehicle is designed for urban pipe dredging, sewage removal, and high-pressure cleaning operations. Equipped with a Weichai 400-horsepower engine and a 10-speed transmission, it offers powerful power. The vehicle features an integrated 10m³ sewage tank and a 2m³ clean water tank, each with separate compartments. Equipped with an SK-15 water circulation vacuum pump, a high-pressure cleaning pump, and a reel, it efficiently completes sewage suction, drainage, and pipe flushing operations. This vehicle integrates sewage suction, drainage, and high-pressure flushing functions, making it suitable for complex road conditions and high-intensity operations, offering all-terrain capability and efficient performance.



Howo 6x6 Combined Vacuum Jetting VehicleⅡ. Product Features:



1. All-terrain adaptability: 6x6 drive + high-ground-clearance chassis easily handles complex scenarios such as urban flooding and mountainous roads.



2. Multi-purpose vehicle: Integrated sewage suction, drainage, and high-pressure flushing functions reduce equipment investment costs.



3. Efficient operation: The compartment design + high-power vacuum pump and high-pressure cleaning pump shorten operation cycles and improve single-trip efficiency.



4. Reliable and durable: The Sinotruk HOWO chassis + Weichai engine golden powertrain ensures low failure rate and easy maintenance.



Ⅱ. Product Specifications:



Howo 6x6 Hydro Jetting Drain Cleaning truck

General

Vehicle Brand

CS TRUCKS

Vehicle Model

CS5250GXH

Chassis Brand

ISUZU

Overall Dimension

9350 * 2550 * 3930 mm

GVW / Kerb Weight

25000 kg / 12500 kg

Axle loads

7000/18000(Two-axle group)

Cab

Cab Capacity

SINOTRUK HOWO 6X6 chassis cab, one and half row, with A/C,USB,dirfection assistance

Engine

Fuel Type

Inline 6-cylinder, direct injection, water-cooled, four-stroke, turbocharged and intercooled, electronically controlled high-pressure common rail, Hi+SC

Brand

WEICHAI

Model

WP10H400E62

Power

400HP/ 294kW

Rated speed

1900rpm

Max torque

1900N.m

Max torque speed

1200-1300rpm

Displacement

9.5L

Emission Standard

Euro 2

Chassis

Drive Type

6x6, left hand drive

Transmission

HW19710 10-speed,manual

Wheelbase

4300+1400mm

Number of axle

3

Tyre Specification

12.00R20

Tyre Number

10 tyres and 1 spare tyre

Max Speed

85km/h

Paint

Metallic paint

Superstructure

Tank

Tank Capacity

10000 liters sewage tank,2000 liters cleaning water tank

Tank Material

Carbon steel

Vacuum Pump

High Pressure Vacuum Pump

SK-15 YIFENG Water circulation vacuum pump

Max pressure

8000Pa

Pumping rate

15m³/min

vacuum level(-450mmHg) pumping rate

13.5 m³/min

Tank lifting angle

45 degree

Rated speed

970r/min

Power

Vacuum pump

30Kw

Compressor

37Kw

Suction Head

7m

Nozzles

A cluster of nozzles included

Vacuum Pump

Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.

High-Pressure Pump

Type

SYLT/SY90-56

Flow

350L/min

Pressure

17MPa

High Pressure Pipe

30m high pressure water pipeline with diameter φ19

Jetting Nozzle

Standard 10 units with different models

Rear door can be hydraulic opened for complete discharge of solid stuff.

All standard accessories: manhole, tool kit, English manual.....

Optional

** Tank material could be stainless steel.
** High pressure hose length could be customized.

HOWO 6X6 12cbm Vacuum truck Combined Jetting. Product Details:

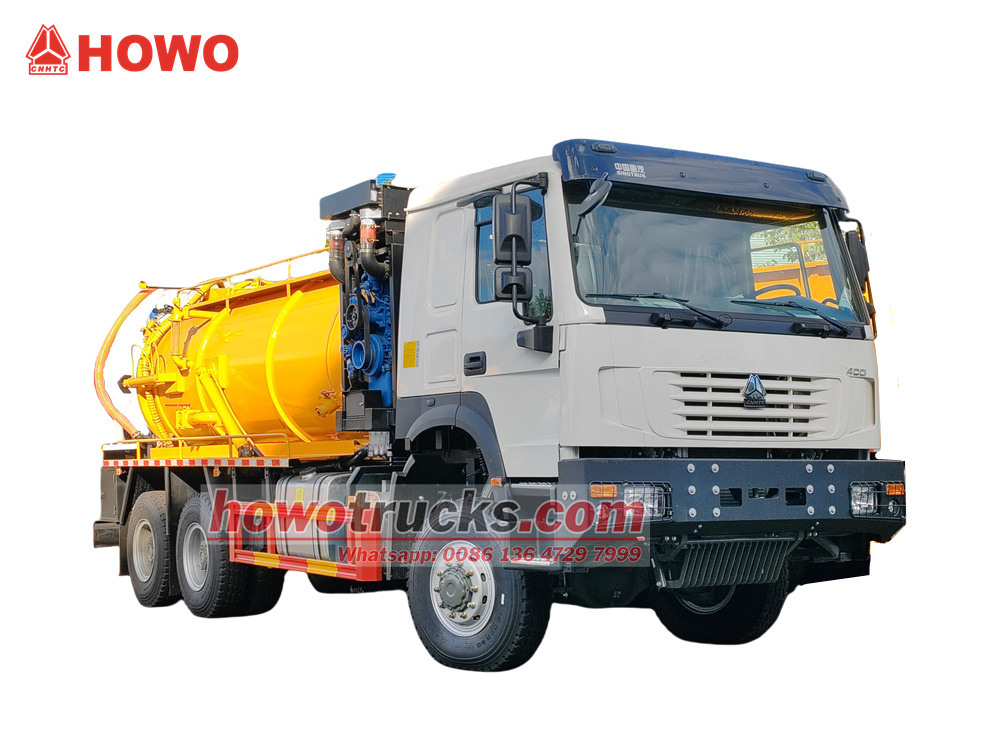

12CBM HOWO 6x6 Sewage Suction Jetting Truck

Core Chassis Configuration

1. Drive Type: 6x6 all-wheel drive, suitable for harsh conditions such as mud, slopes, and unpaved roads.

2. Cab: One and half row cab, seating three.

3. Wheelbase: 4300 + 1400mm dual-wheelbase layout.

4. Powertrain:

o Engine: Weichai WP10H400E62, meeting Euro 6 emission standards, boasts a powerful 400 horsepower and high low-speed torque, suitable for heavy-load climbing.

o Transmission: HW19710 10-speed manual transmission, offering a wide range of gears and ratios.

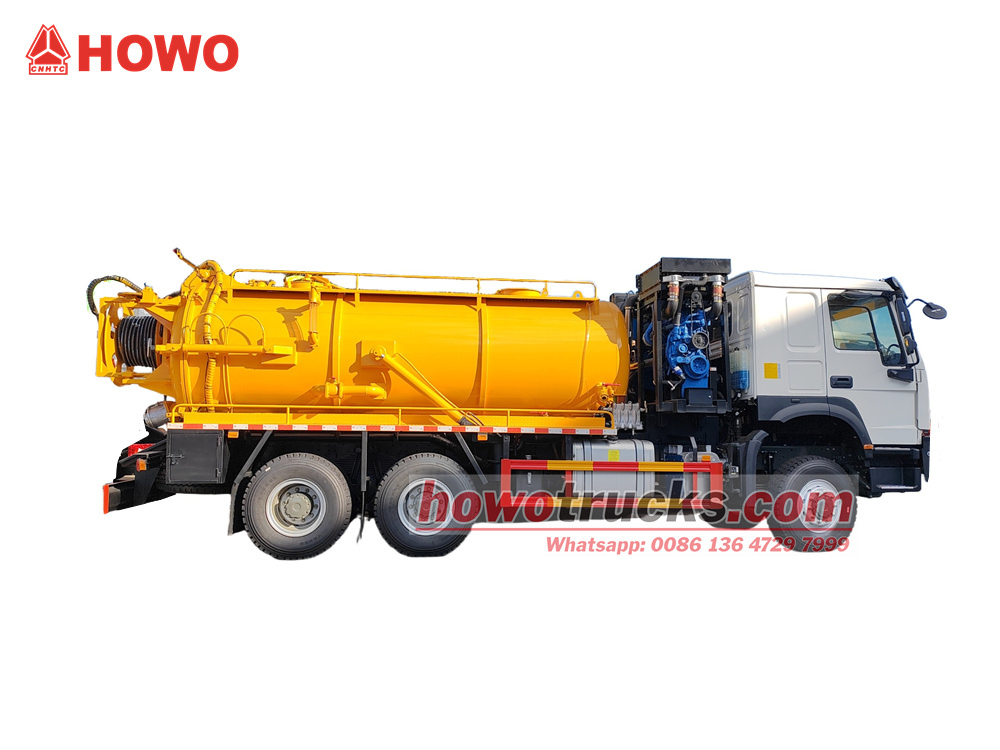

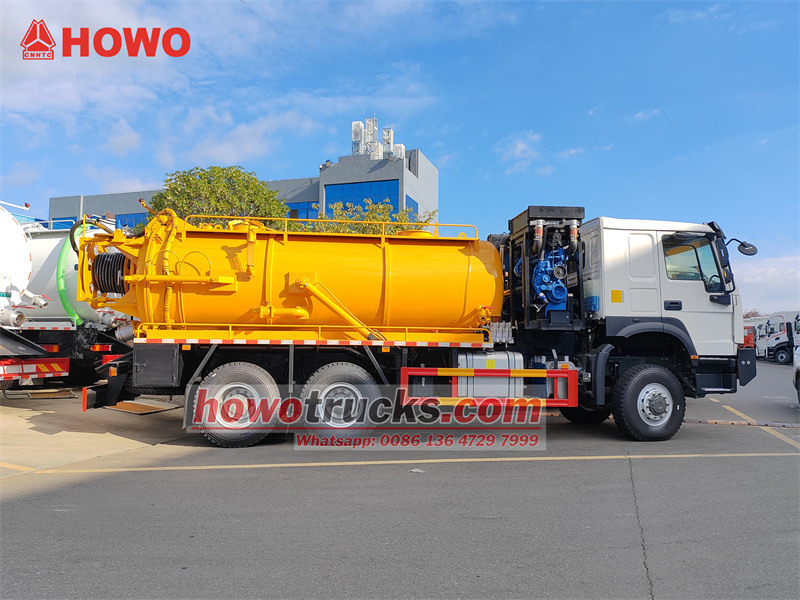

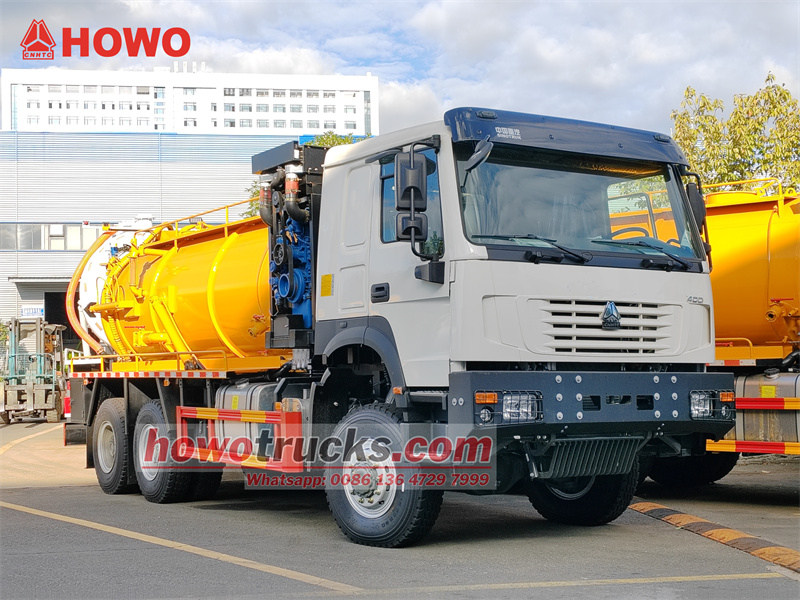

HOWO 6X6 off road 12cbm combined jetter truck

Upper Body System:

The upper body is the core of the combined dredging vehicle, integrating a 12-cubic-meter tank and various specialized operating equipment.



Tank Assembly:

o Total Capacity: 12 cubic meters.



o Separate Compartment Design: Utilizes a 10-cubic-meter wastewater tank + a 2-cubic-meter clean water tank. This design ensures strict separation of clean and dirty media. The clean water tank provides clean water for the high-pressure cleaning system, while the wastewater tank stores recovered waste. These separate compartments prevent interference between the two, significantly improving operational efficiency and convenience.

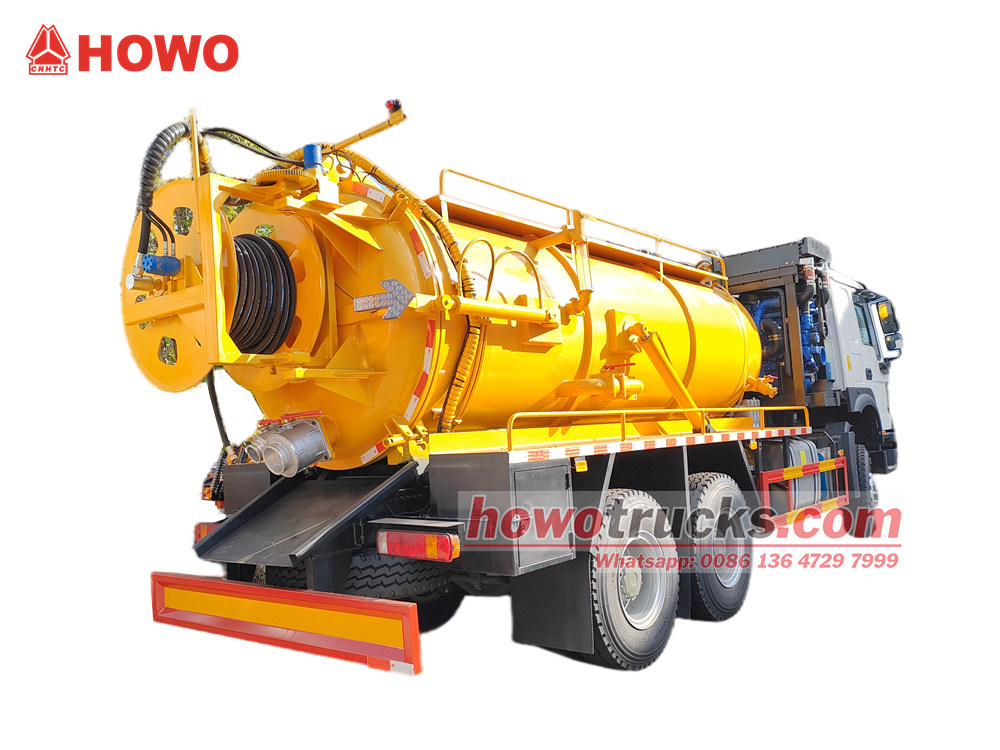

HOWO 12CBM sewer jetting and vacuum truck

Core Operating Components:

1. Vacuum Suction System:

Core Equipment: Yifeng SK-15 water circulation vacuum pump. With a maximum suction capacity of 15 m³/min and a maximum vacuum of -0.093 MPa, this pump offers fast pumping speed, high vacuum, and the ability to tolerate small amounts of liquid, making it the key to efficient wastewater extraction.



Auxiliary Systems: Equipped with a water vapor separator and an oil-gas separator, these effectively separate moisture and oil mist from the suctioned air, protecting the vacuum pump and preventing environmental pollution.



Suction Pipeline: Equipped with large-diameter suction and discharge pipes for quick and reliable connection, ensuring efficient extraction.

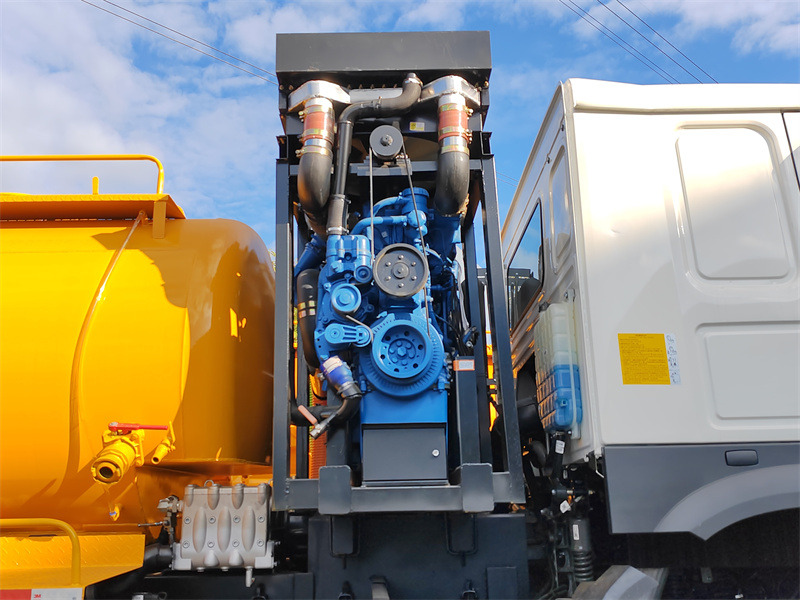

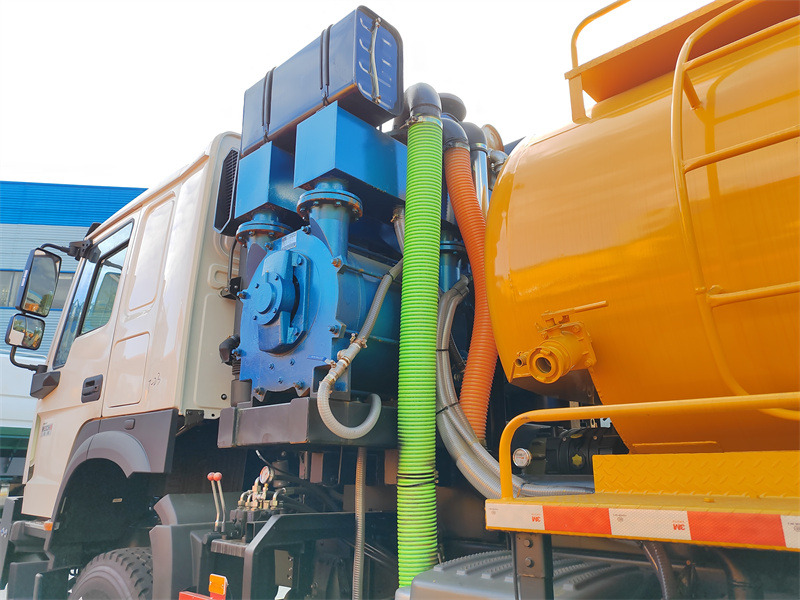

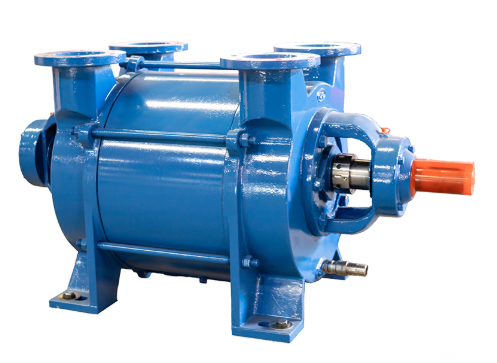

Yifeng SK-15 water circulation vacuum pump

Yifeng SK-15 water circulation vacuum pump.

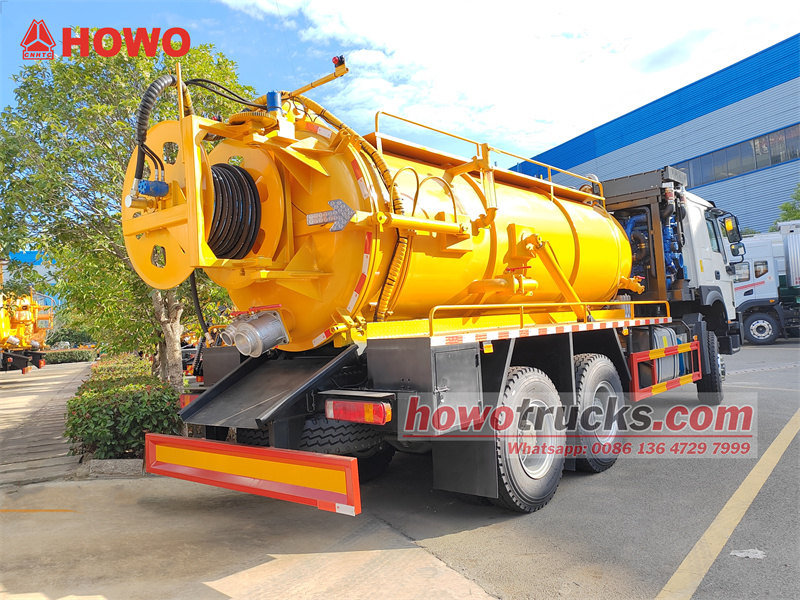

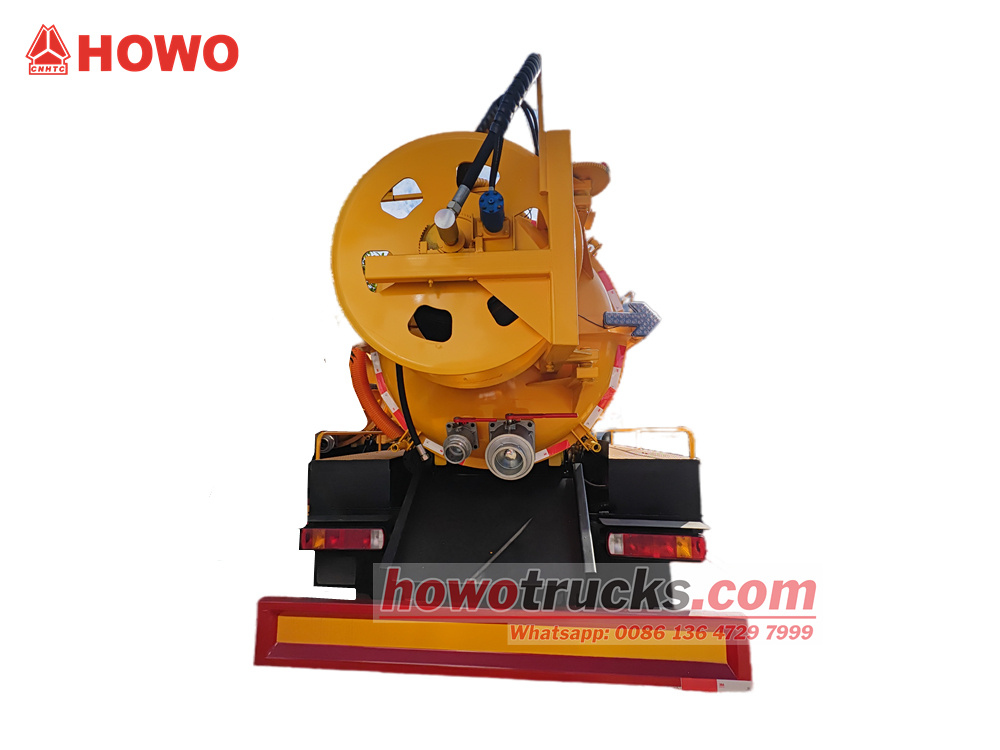

HOWO 6X6 12000 liters hydro jet drain cleaning truck

2. High-Pressure Cleaning System:

Core Equipment: SYLT/SY90-56 high-pressure cleaning pump, with a flow rate of 350 L/min, generates extremely high-pressure water flow for cutting blockages and flushing pipe walls.



Operating Device: High-pressure cleaning reel, typically equipped with a high-pressure hose several dozen meters long and a specialized cleaning nozzle, offers flexible operation and can penetrate deep into pipes.



3. Hydraulic System:

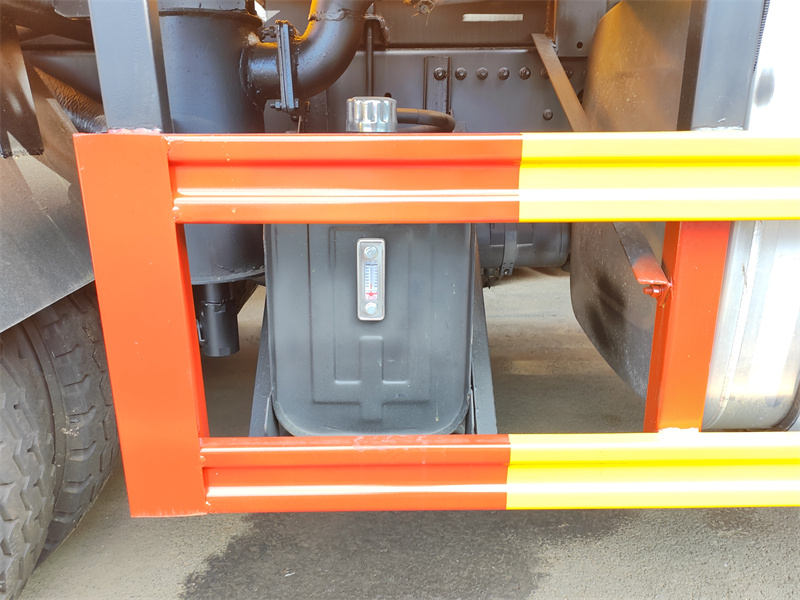

Power Source: An independent hydraulic oil tank and hydraulic pump unit provide stable and reliable hydraulic power for the vacuum pump, reel, and other equipment.

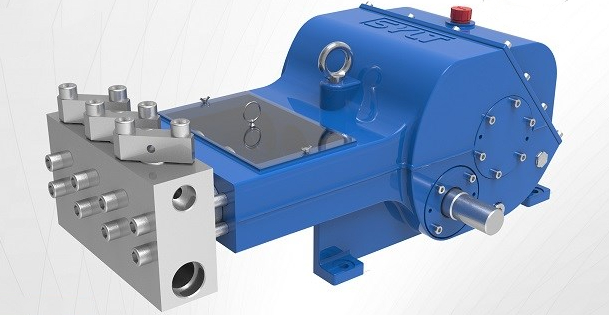

SYLT/SY90-56 high-pressure cleaning pump

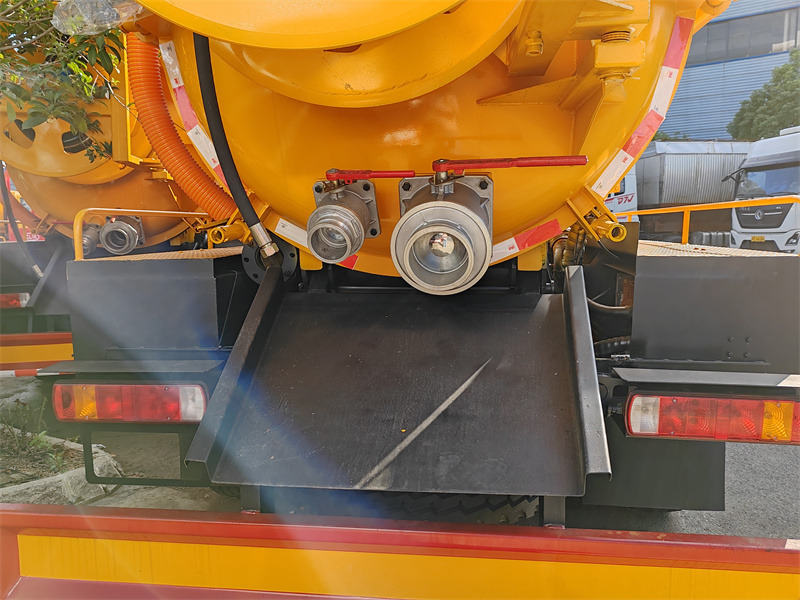

Drain Valve

4. Other Devices:

o Liquid Level Observation Device: Allows the operator to monitor the liquid level in the tank in real time to prevent overloading.



o Drain Valve: Provides for rapid and controlled discharge of wastewater from the tank.



o Ladder: A ladder is installed on the left side of the tank for easy access to the tank for inspection or maintenance.

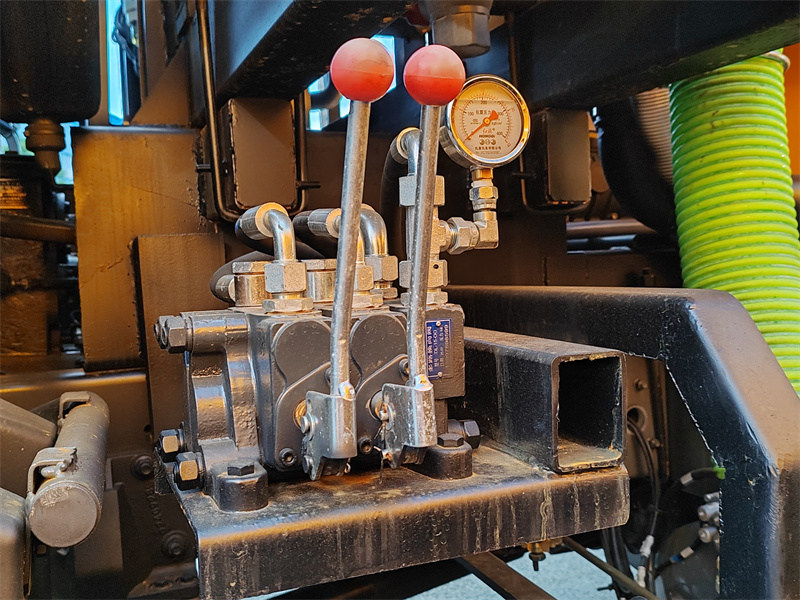

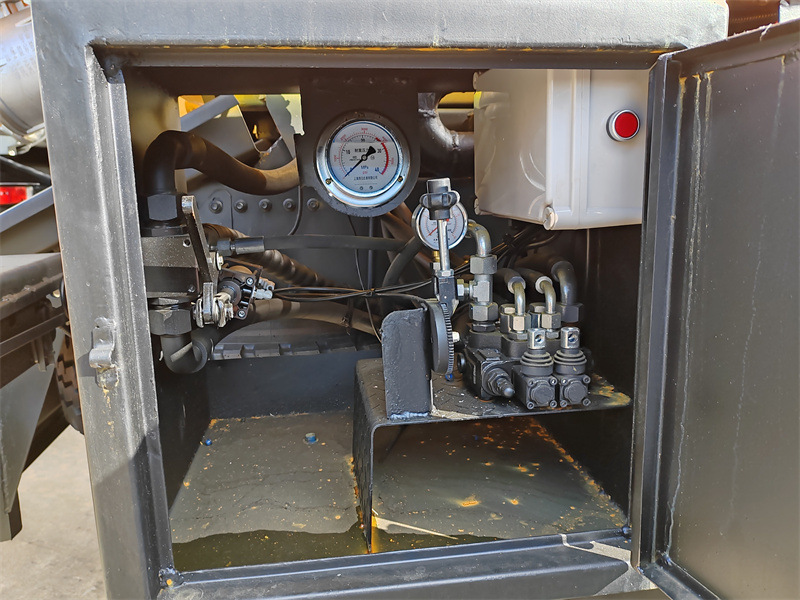

o Operating Valve: Located on the driver's side and the tailgate, this valve manually controls the raising and lowering of the tank and the opening and closing of the tailgate.



Working Principle:

When the HOWO 6X6 12cbm combined dredging vehicle is in operation, the vacuum pump first activates to create negative pressure. This suction pipe draws sewage and sludge from the pipeline or pit into the sewage tank. A water vapor separator prevents water from entering the pump, ensuring system stability. When the sewage tank is full or needs cleaning, the discharge valve opens to discharge the waste. During the high-pressure cleaning phase, the clean water tank supplies water to the high-pressure pump. After pressurization, a high-pressure water stream is sprayed through a reel hose, impacting the blockage and clearing the pipe. The vehicle's hydraulic system controls the coordinated operation of various components, while the 6X6 all-wheel drive chassis provides stable power support, ensuring efficient completion of integrated suction, drainage, and flushing operations in complex terrain, completing the entire pipeline maintenance process.

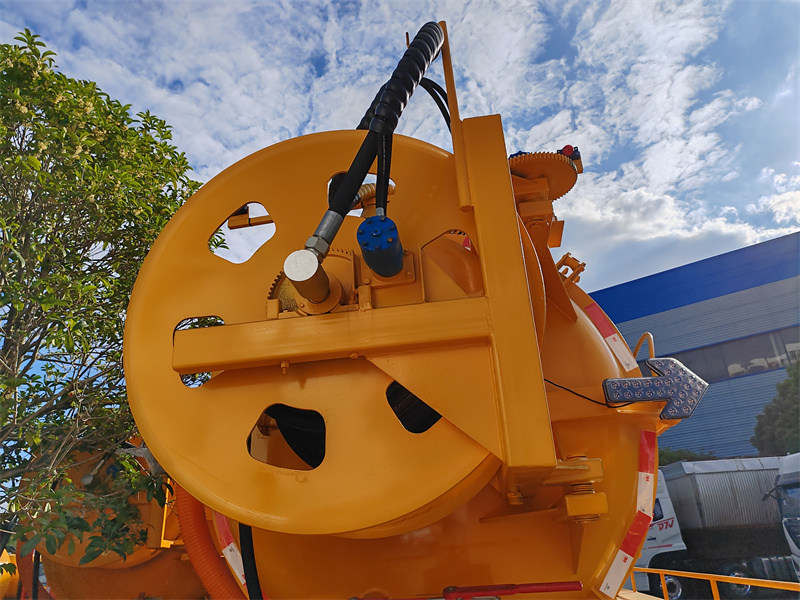

  • Reel
  • Operating valve
  • Operating valve

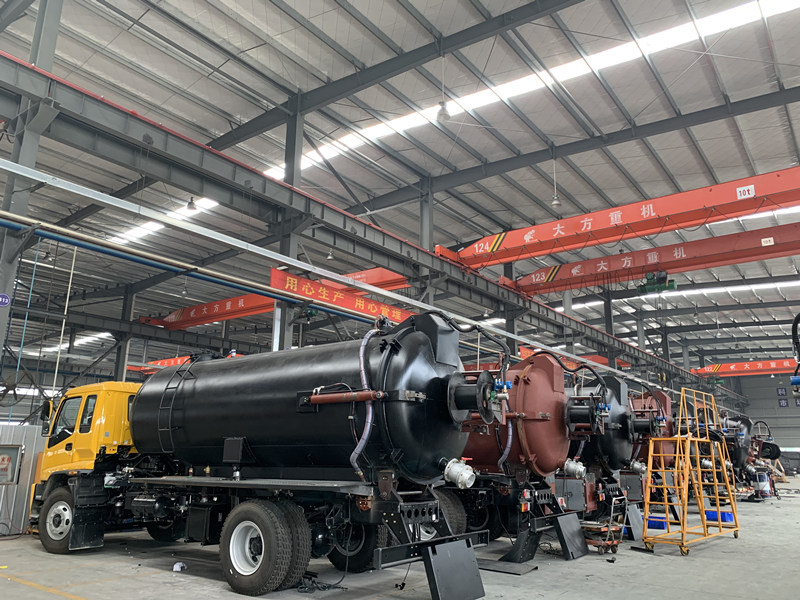

CS trucks 5000 square meters workshop for vacuum tank trucks.china best vacuum jetting truck manufacturer. We are China best sanitation trucks plant and professional upper structure manufacturer. established in 1983 , we specialized in customized garbage compactor truck, road sweeper truck, sewage tanker trucks, crane truck, fire trucks. and other special purpose vehicles.



sewage suction truck

Leave A Message
If you are interested in howo trucks and want to know more details,please leave a message here,we will reply you withine 8 hours.

Related Products

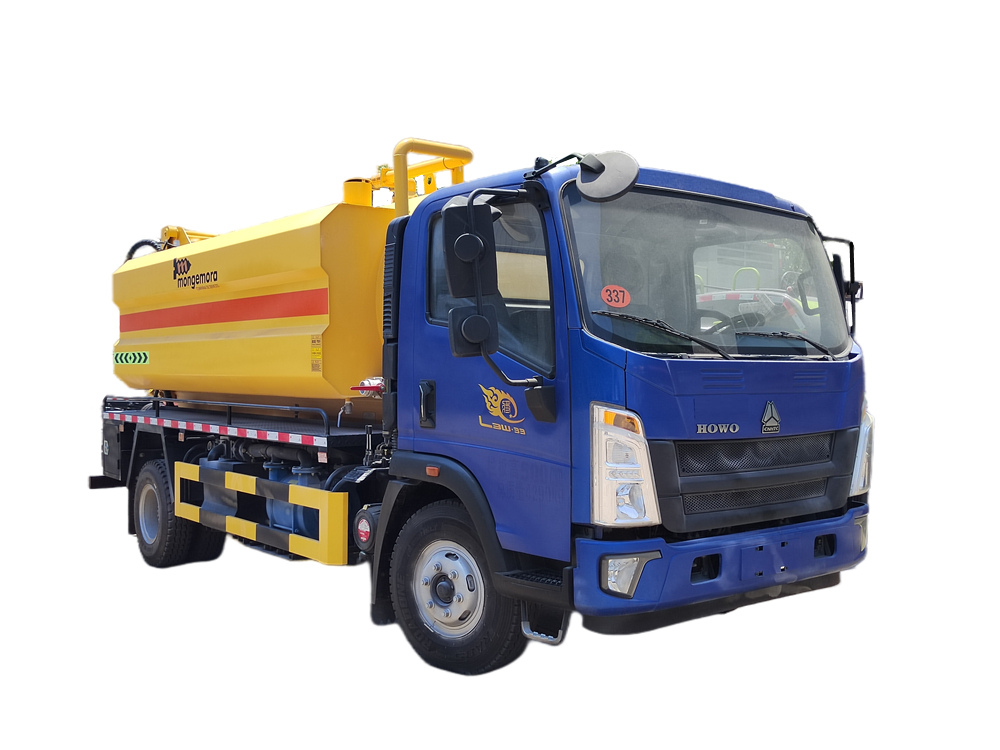

howo septic pump truck manufacturers
HOWO Sewer Vacuum Jetter Truck 8,000L

The HOWO 4x2 8cbm combined dredging truck is modified based on the HOWO light chassis. 4500mm wheelbase and equipped with a WP4.1NQ190E61 190HP Euro 6 engine and a Sinotruk 8-speed gearbox. The upper body is equipped with a 6-cubic-meter suction tank and a 2-cubic-meter clean water tank. The carbon steel material is 5mm thick and is equipped with a Yifeng SK-12 water circulation pump and a 3N2-SZ high-pressure cleaning pump. The manual hydraulic operating valve controls the lifting and lowering of the tank, the opening and closing of the tailgate, a ladder, a sight tube, a sewage tank, a high-pressure cleaning reel on the tailgate, and a discharge valve.

Read More

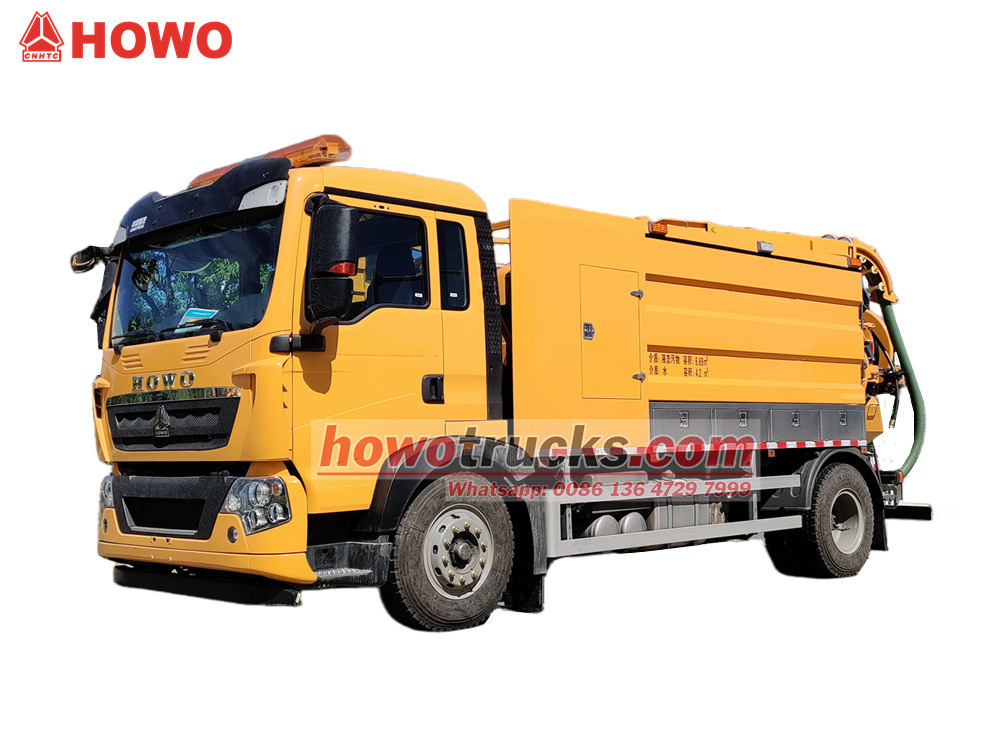

howo combination sewer cleaning truck
Industrial Wet Vacuum Cleaner Trucks HOWO

The HOWO 4x2 11cbm combined dredging truck is modified based on the HOWO TX 2280 semi-cab chassis. It has a 4500mm wheelbase and is equipped with a Sinotruk MC07.31-60 engine and a 6-speed gearbox. It is equipped with a 6.7cbm sewage tank and a 4.2cbm clean water tank made of 5mm thick carbon steel. There are tool boxes on both sides of the tank body, and one side is equipped with a control box, tailgate reel, discharge valve, ladder, sight tube, etc. It is equipped with a Jurop PVT400 vacuum pump and a 3N2-SZ high-pressure cleaning pump.

Read More

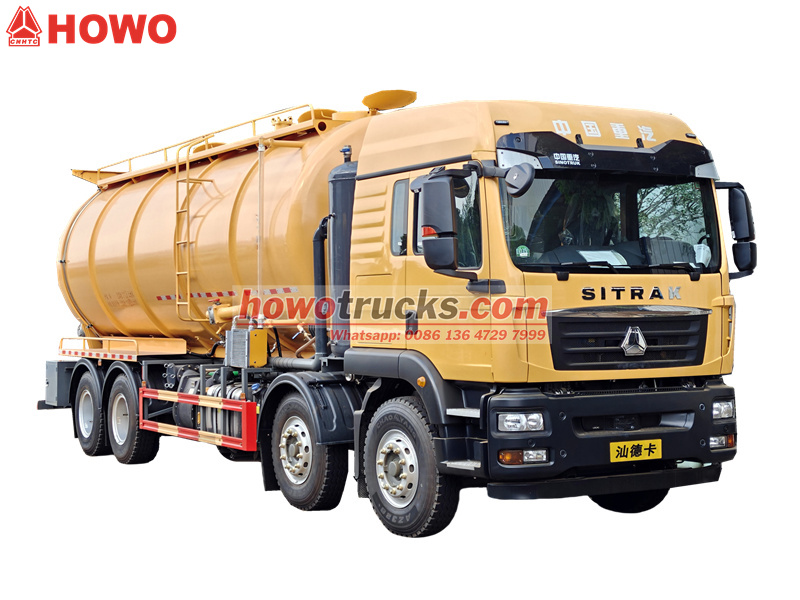

howo second hand septic tanker truck
Howo heavy 8x4 septic tank truck

Howo 8x4 heavy cleaning vacuum sewage tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a powerful Weichai series engine with a maximum horsepower of 350HP, combined with a high-pressure cleaning pump (pressure 16-19Mpa) and a sewage suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The sewage tank volume is up to 20 cubic meters, with large capacity and extremely high efficiency in a single operation. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.

Read More

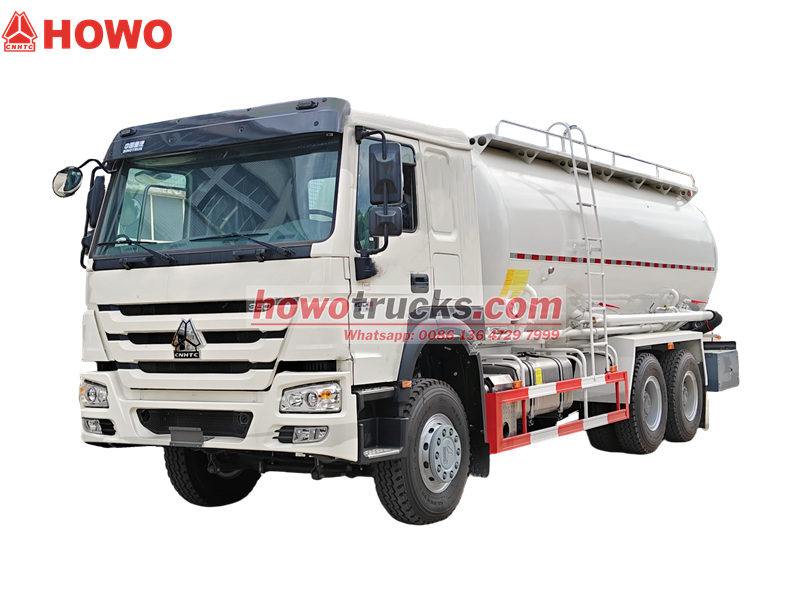

Howo 6x4 Solid Substances Vacuum Truck
Howo 350HP solid substances vacuum truck

In the field of municipal sanitation, the Howo 6x4 heavy Solid Substances Vacuum Truck has become an industry benchmark with its outstanding performance and versatile design. Equipped with a powerful Weichai series engine with a maximum horsepower of 350HP, it is equipped with a separation tank with a vacuum return system, and an air cleaning system for cleaning cyclone separators and filter elements. It can quickly clean up deposited fixed dust.

Read More

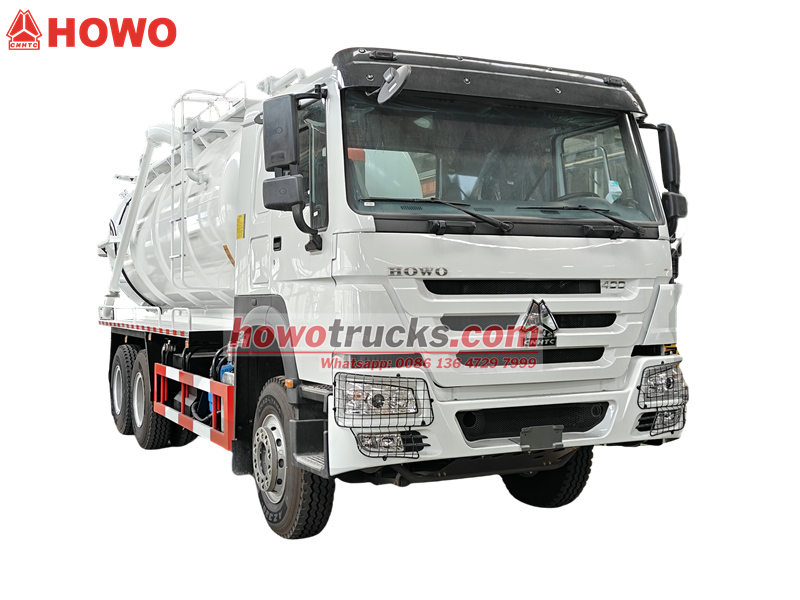

Howo heavy 20000L septic tanker truck
Africa Howo 400HP sewage vacuum tanker

In the field of municipal sanitation, Howo heavy duty 20000L septic tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a high-quality WP12S400E201 engine with a maximum horsepower of 400HP, and a powerful vacuum suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 20CBM, and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.

Read More
Howo 6x6 Combined Vacuum Jetting Vehicle
Howo 6x6 Combined Vacuum Jetting Vehicle

The HOWO 6X6 12cbm combined dredging vehicle is modified based on the Sinotruk HOWO 6x6 all-wheel drive chassis. It features a half-cab, 4300mm + 1400mm wheelbase, and is equipped with a Weichai WP10H400E62 Euro 6 400hp engine and an HW19710 10-speed transmission. The vehicle is equipped with a 10-cubic-meter wastewater tank and a 2-cubic-meter cleaning water tank, each with separate compartments. Howo sewage suction vehicle is equipped with a hydraulic oil tank, a discharge valve, an SK-15 water circulation vacuum pump, a sewage suction and discharge pipe, a high-pressure cleaning pump, a high-pressure cleaning reel, a water vapor separator, an oil-gas separator, a liquid level view window, and a ladder.

Read More

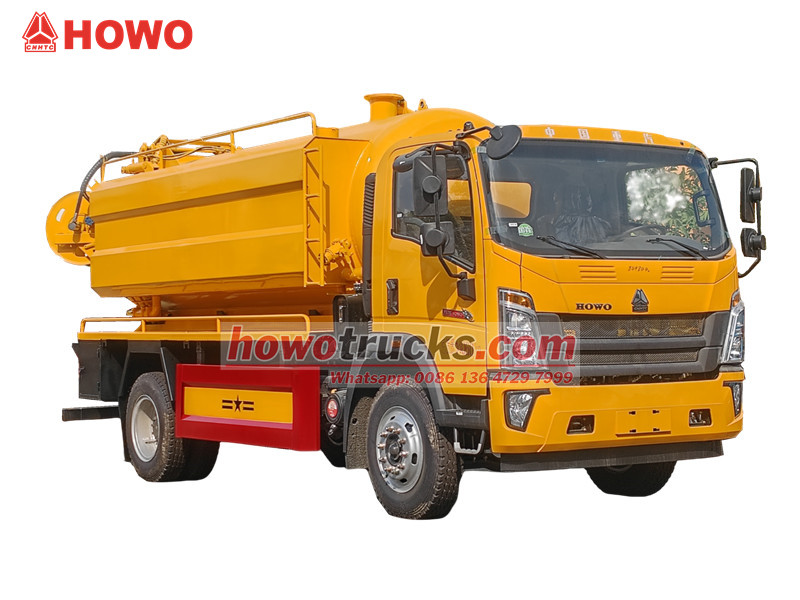

HOWO combination vacuum truck
