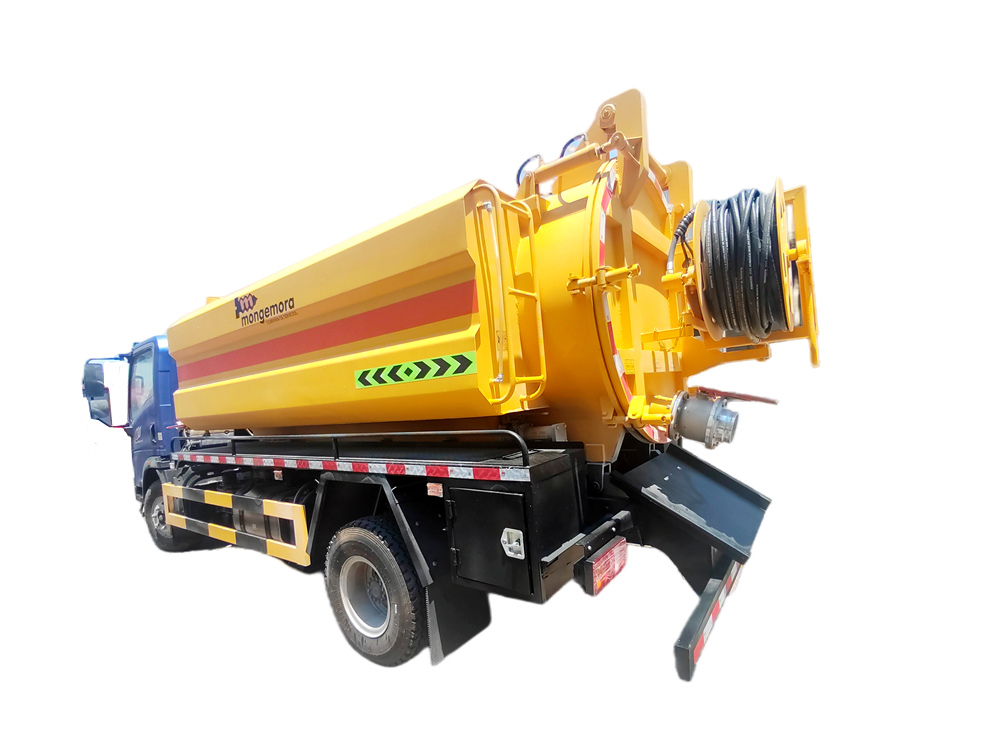

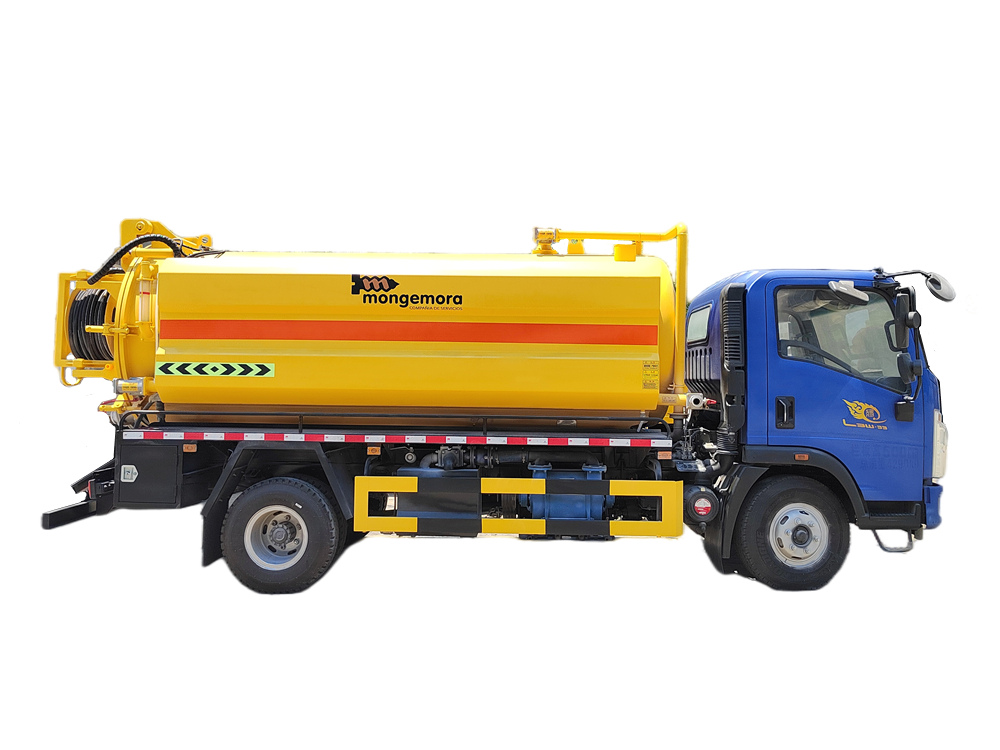

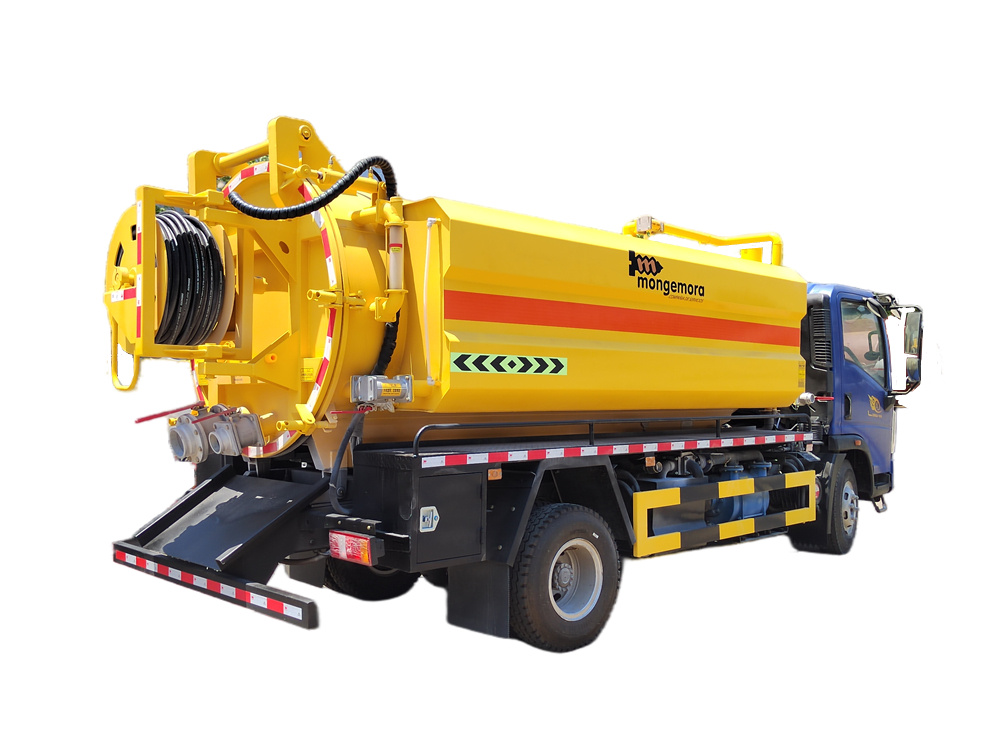

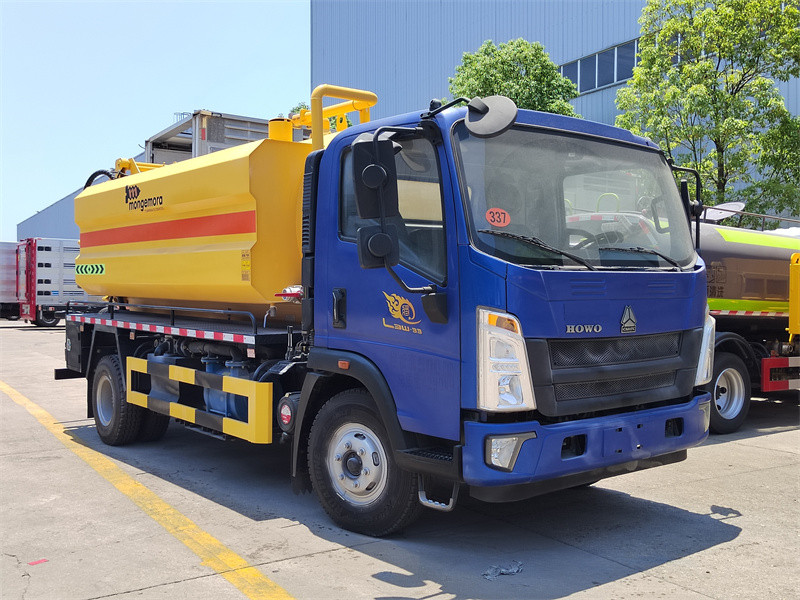

The HOWO 4x2 8cbm combined dredging truck is modified based on the HOWO light chassis. 4500mm wheelbase and equipped with a WP4.1NQ190E61 190HP Euro 6 engine and a Sinotruk 8-speed gearbox. The upper body is equipped with a 6-cubic-meter suction tank and a 2-cubic-meter clean water tank. The carbon steel material is 5mm thick and is equipped with a Yifeng SK-12 water circulation pump and a 3N2-SZ high-pressure cleaning pump. The manual hydraulic operating valve controls the lifting and lowering of the tank, the opening and closing of the tailgate, a ladder, a sight tube, a sewage tank, a high-pressure cleaning reel on the tailgate, and a discharge valve.
Working capacity :
8cbmCabin type :
Howo light 2080 single cabinDrive system :
4x2,LHDWheelbase ( mm) :
4500Engine specific :
190HP /WEICHAI WP4.1NQ190E61Gear box :
Sinotruk HW95508STC 8-speed,manualFront axle ( Kg ) :
5600Rear axle ( Kg ) :

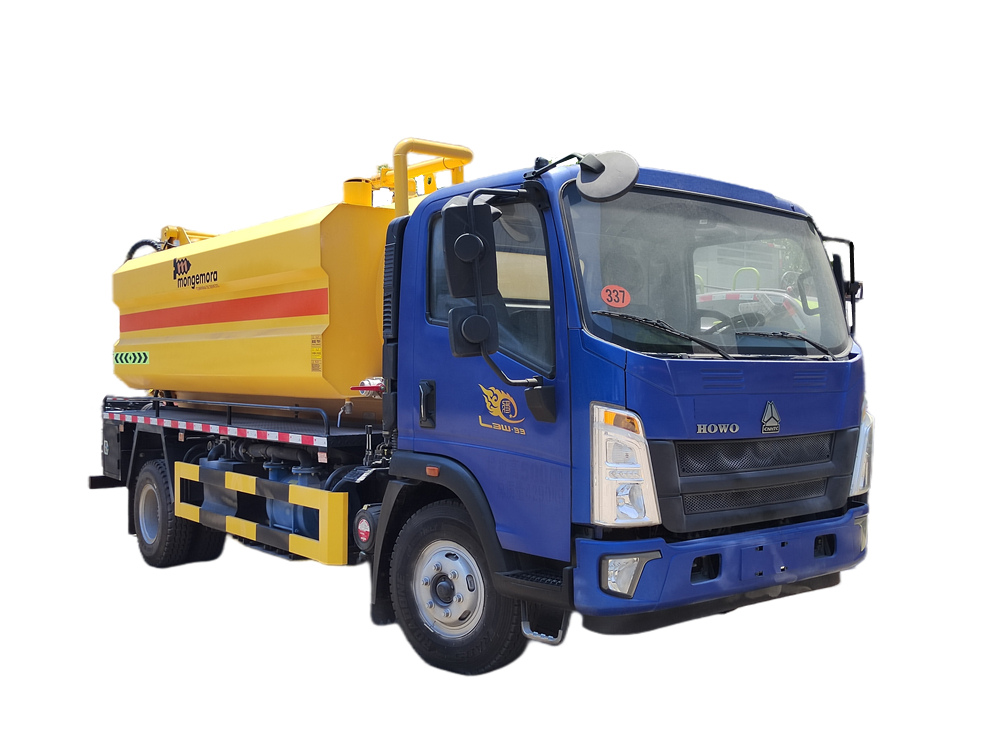

10195The HOWO Sewer Vacuum Jetter Truck 8,000L is a multi-purpose vehicle designed specifically for urban pipe network maintenance. Equipped with a 190-horsepower Weichai engine and a Sinotruk 8-speed transmission, it boasts powerful power and excellent fuel efficiency. Its superstructure features a split 6cbm suction tank and 2cbm clean water tank. Equipped with a Yifeng SK-12 water circulation pump and a 3N2-SZ high-pressure cleaning pump, it integrates suction, cleaning, and drainage, improving dredging efficiency by over 50%. The tank is constructed of 5mm-thick carbon steel for corrosion resistance and durability. A manual hydraulic valve allows for convenient control of the tank's lifting and tailgate opening and closing, ensuring ease of operation and low maintenance. A high-pressure cleaning reel and visible level gauge at the rear further enhance operational convenience. The vehicle is suitable for a variety of applications, including municipal pipe unblocking, septic tank cleaning, and industrial wastewater treatment.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Product Features
1. Powerful & Energy-Efficient: Equipped with Weichai Euro VI engine and Sinotruk 8-speed transmission for strong performance and fuel efficiency.
2. Multi-Functional Integration: Combines sewage suction + high-pressure cleaning in one system, with dual-pump coordination for efficient operations.
3. Durable & Heavy-Duty: Reinforced chassis design and corrosion-resistant, deformation-proof tank for intensive workloads.
4. User-Friendly Operation: Manual hydraulic control valves + auto-retractable high-pressure hose reel for convenient handling.
» Ⅱ. Product Parameter for HOWO 8CBM vacuum jetter truck:
|
HOWO 8CBM Hydro Jetting Drain Cleaning truck |
||||
|
General |
Vehicle Brand |
CS TRUCKS |
||
|
Vehicle Model |
CS5160GXH |
|||
|
Chassis Brand |
HOWO |
|||
|
Overall Dimension |
8250 * 2500 * 3650 mm |
|||
|
GVW / Kerb Weight |
15795 kg / 7650 kg |
|||
|
Axle loads |
5600/10195 kg |
|||
|
Cab |
Cab Capacity |
HOWO 2080 single row, with A/C,USB,dirfection assistance |
||
|
Engine |
Fuel Type |
Diesel, 4 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled |
||
|
Brand |
WEICHAI |
|||
|
Model |
WP4.1NQ190E61 |
|||
|
Power |
190 HP/ 140kW |
|||
|
Rated speed |
2600rpm |
|||
|
Max torque |
680N.m |
|||
|
Max torque speed |
1300-1900rpm |
|||
|
Displacement |
4.088L |
|||
|
Emission Standard |
Euro VI |
|||
|
Chassis |
Drive Type |
4x2, left hand drive |
||
|
Transmission |
Sinotruk HW95508STC 8-speed,manual |
|||
|
Wheelbase |
4500mm |
|||
|
Number of axle |
2 |
|||
|
Tyre Specification |
9.00R20 |
|||
|
Tyre Number |
6 tyres and 1 spare tyre |
|||
|
Max Speed |
95km/h |
|||
|
Fuel consumption |
23.2(L/100Km) |
|||
|
Paint |
Metallic paint |
|||
|
Superstructure |
Tank |
Tank Capacity |
6000 liters sewage tank,2000 liters cleaning water tank |
|
|
Tank Material |
5mm carbon steel with antiseptic treatment |
|||
|
Tank lifting angle |
≥45° |
|||
|
Vacuum Pump |
High Pressure Vacuum Pump |
SK-12 YIFENG Water circulation vacuum pump |
||
|
Max pumping rate |
12m³/min |
|||
|
vacuum level(-450mmHg) pumping rate |
11 m³/min |
|||
|
Ultimate vacuum |
-710 mmHg/ -0.093 MPa |
|||
|
Tank lifting angle |
45 degree |
|||
|
Rated speed |
970r/min |
|||
|
Power |
Vacuum pump |
18.5Kw |
||
|
Compressor |
30Kw |
|||
|
Pressure |
0-0.1 kg/ cm³ |
|||
|
Water consumption |
40~50 L/min |
|||
|
Suction Head |
7m length with DN 100 mm |
|||
|
Suction time |
250 s |
|||
|
Nozzles |
A cluster of nozzles included |
|||
|
Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |
|||
|
High-pressure cleaning pump |
Type |
3N2-SZ |
||
|
Flow |
102-200L/min |
|||
|
Pressure |
6-43MPa |
|||
|
High Pressure Pipe |
30m high pressure water pipeline with diameter φ19 |
|||
|
Jetting Nozzle |
Standard 10 units with different models |
|||
|
Rear door can be hydraulic opened for complete discharge of solid stuff. |
||||
|
All standard accessories: manhole, tool kit, English manual..... |
||||
|
Optional |
** Tank material could be stainless steel. |
|||
» Ⅲ. Product Detailed introduction

Core Chassis Configuration

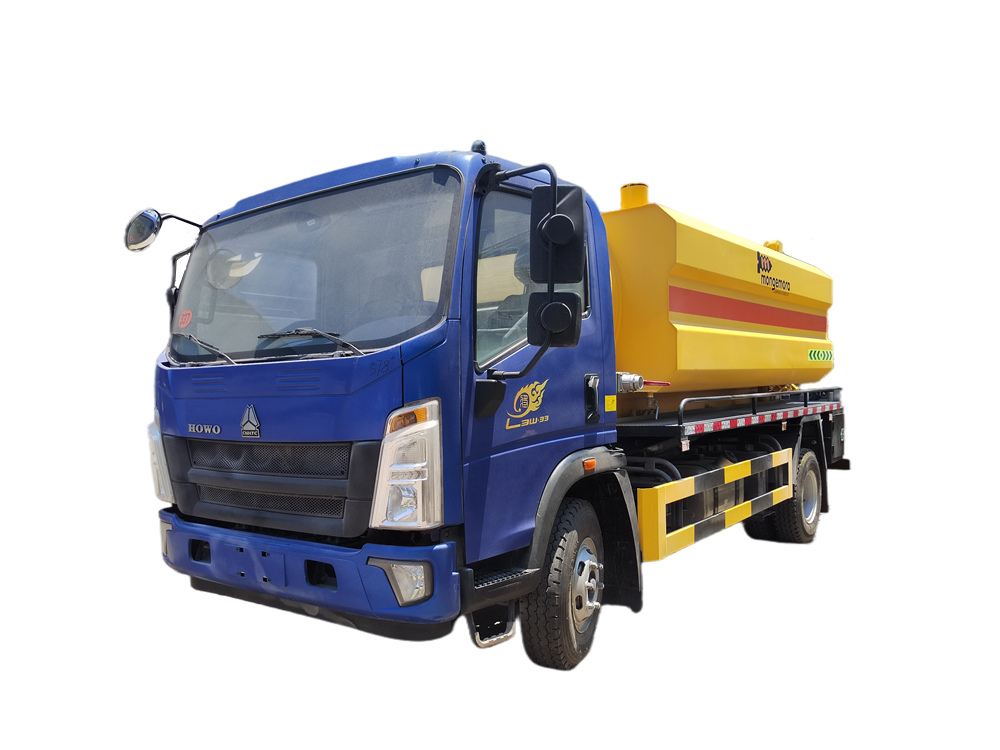

The HOWO 4x2 8-cubic-meter combined dredging vehicle is based on an upgraded HOWO Hanjiang series light truck chassis. It's designed specifically for urban pipe dredging and septic tank cleaning, balancing power and economy.
• Wheelbase and Load Capacity: 4500mm wheelbase, 5.6 tons front axle/10.2 tons rear axle.
• Powertrain: Equipped with the Weichai WP4.1NQ190E61 Euro 6 engine, delivering a powerful 190 horsepower output, meeting China VI emission standards. Its low-speed, high-torque characteristics significantly reduce fuel consumption.
• Transmission: Equipped with the Sinotruk HW95508STC 8-speed transmission, it offers smooth shifting and a wide ratio range, easily navigating complex road conditions.

Upper Structure Functional Design

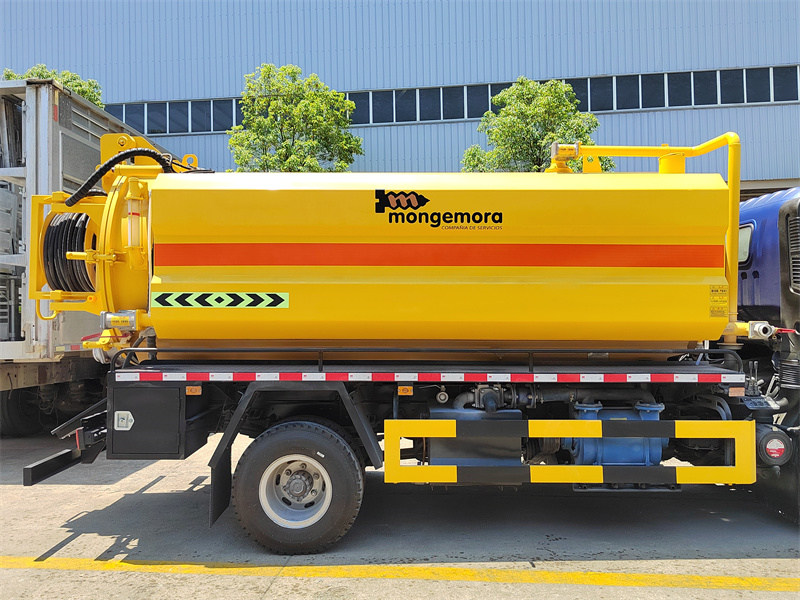

The upper structure adopts a split-type dual-tank configuration, integrating sewage suction and high-pressure cleaning functions to achieve "multi-purpose use in one vehicle":
1.Tank Configuration

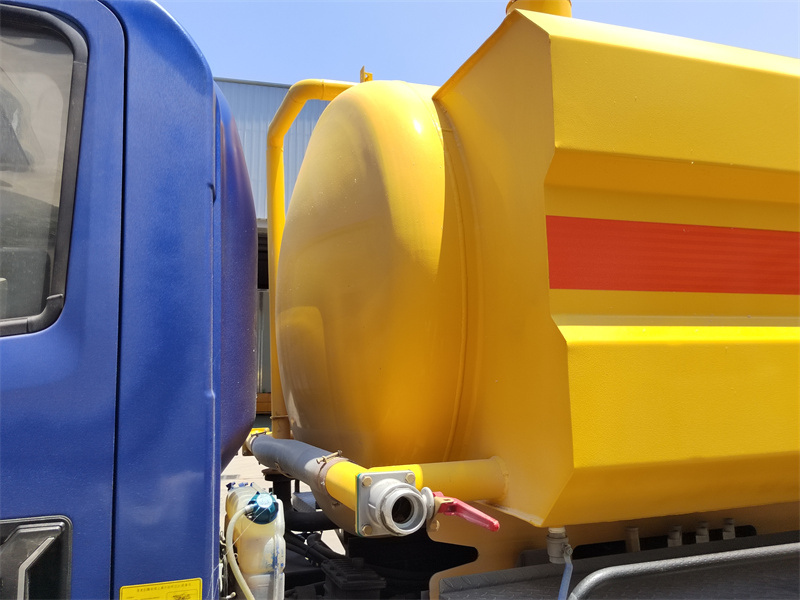

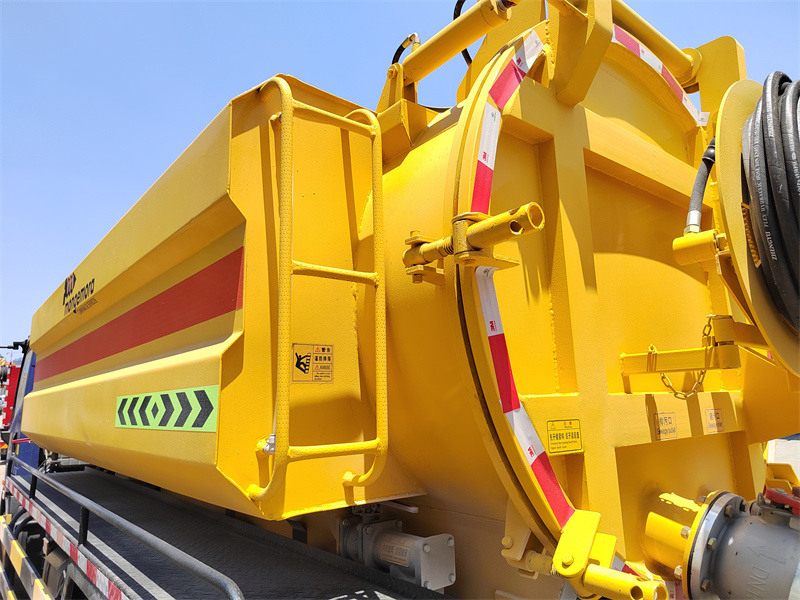

• Sewage Tank: 6 m³ carbon steel tank with strong corrosion resistance, equipped with anti-sloshing baffles to minimize liquid movement during transportation.
• Freshwater Tank: 2 m³ independent freshwater tank for supplying water during high-pressure cleaning operations, enabling prolonged continuous work.
• Material & Process: The tanks are fabricated using fully automated welding technology, followed by sandblasting for rust removal and coated with anti-corrosion paint to extend service life.

2.Core Pump Systems

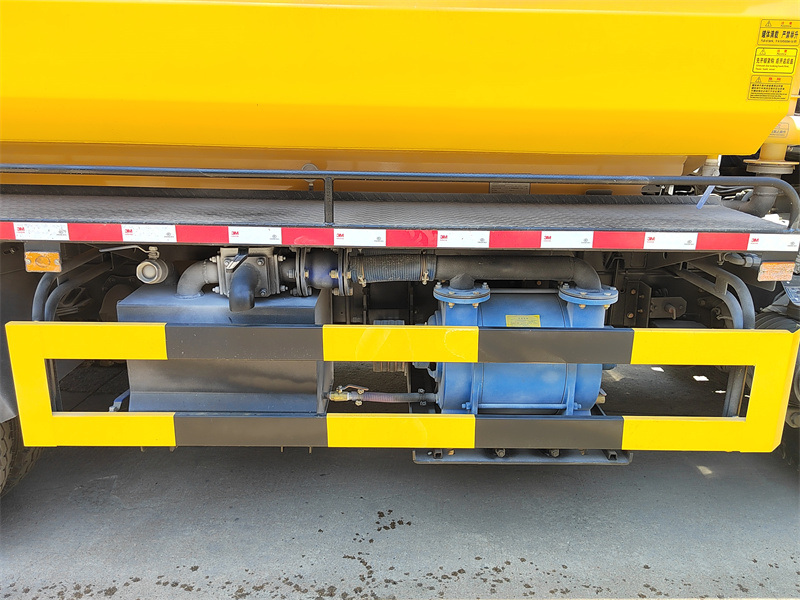

• Sewage Suction System: Features a Yifeng SK-12 water circulation vacuum pump with high suction efficiency and a vacuum level of up to -0.093 MPa, capable of rapidly evacuating contaminants from depths of 7 meters.
• Cleaning System: Equipped with a 3N2-SZ high-pressure plunger pump delivering adjustable pressure (6–43 MPa) and flow rate (102–200 L/min), effortlessly clearing blocked pipelines.

3. Operation & Safety

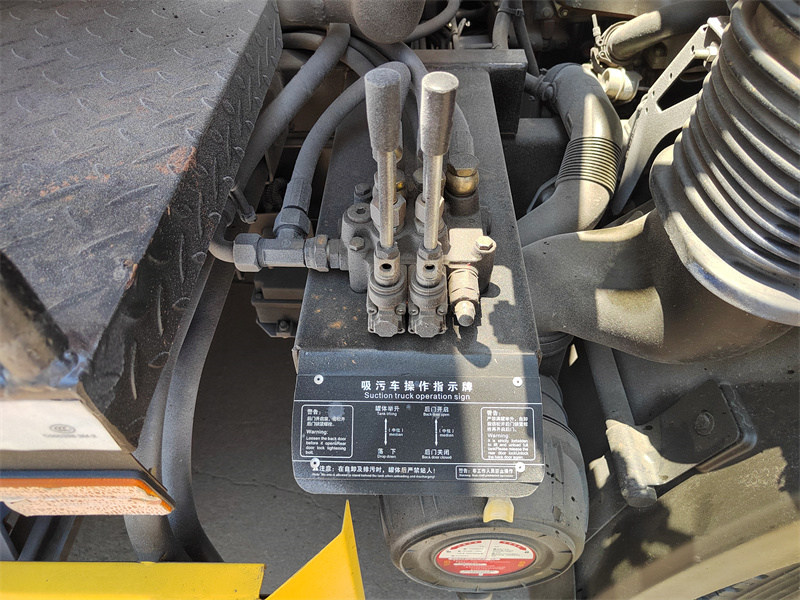

• Hydraulic Control System: Manual hydraulic control valves integrate functions such as tank lifting/lowering and rear door opening/closing, offering easy operation and low maintenance costs.
• Monitoring & Protection: The tanks are fitted with liquid level sight glasses for real-time monitoring; a sewage collection box beneath the tank prevents secondary pollution. Additional features include a rear ladder, real-time liquid level monitoring via sight glasses, and a quick-drain valve for efficient emptying.

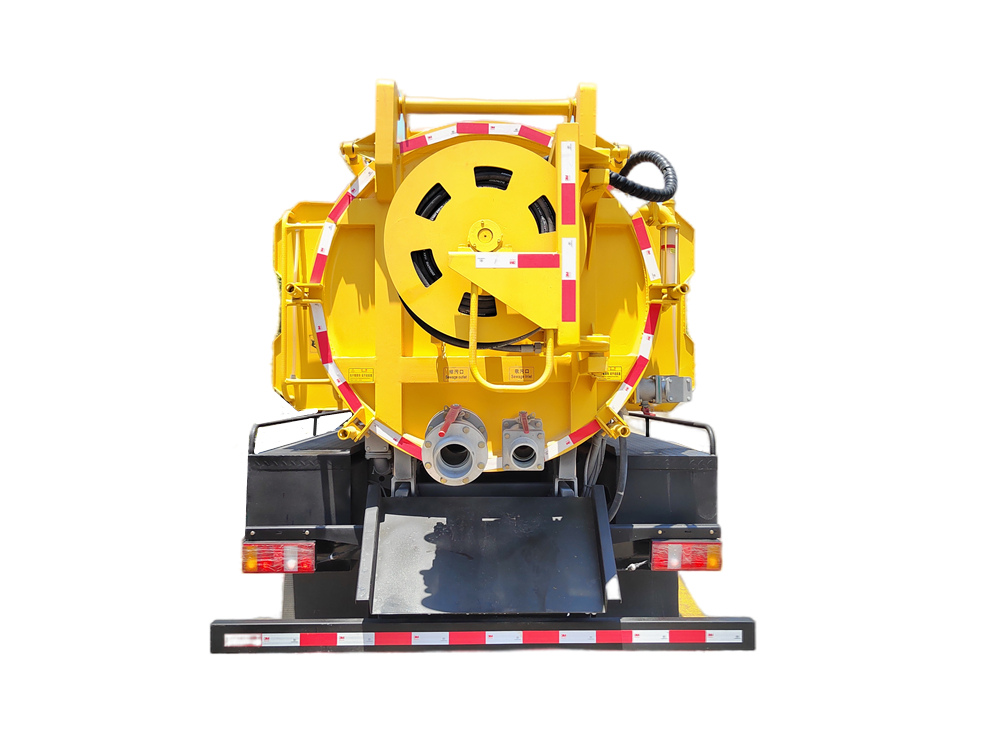

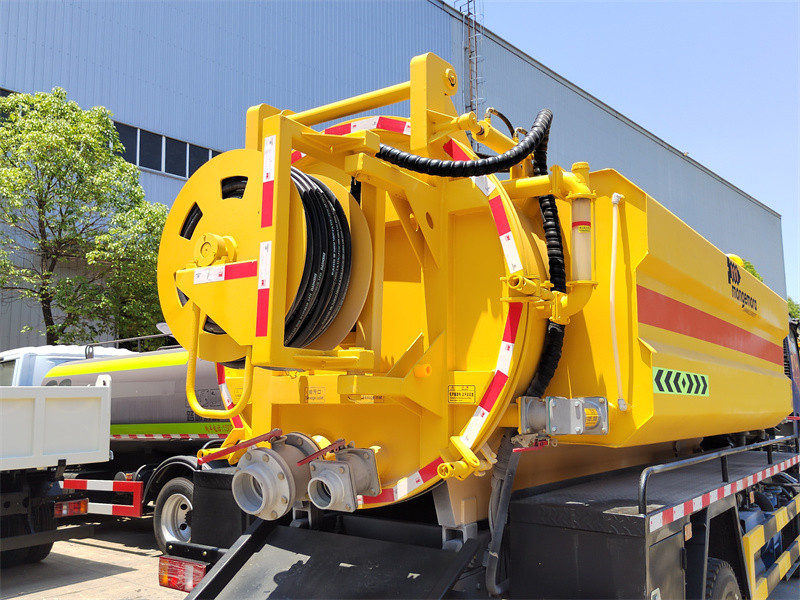

• Cleaning Assistance: The rear door incorporates a high-pressure cleaning hose reel with a 30-meter hose, providing extensive coverage for diverse cleaning tasks.
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ. Operation Process
1. Suction Mode: A water circulation pump draws sewage/sludge into the tank, and the level is monitored via a sight tube.
2. Cleaning Mode: A high-pressure pump draws water from the clean water tank and, in conjunction with a reel, flushes the pipe or work surface.
3. Discharge Mode: The tailgate is hydraulically opened, the tank is tilted to discharge waste, and high-pressure assisted cleaning is used to remove any remaining waste.
» Ⅴ. Application Scenarios
• Municipal sanitation: Regular desilting of urban sewers and stormwater grates, and emergency clearing of sudden blockages.
• Property cleaning: Cleaning septic tanks and sewage wells in residential communities, and maintaining drainage pipes in underground garages.
• Industrial: Cleaning factory sewage pipes and sedimentation tanks, and assisting with hazardous waste transportation in chemical parks.
• Engineering emergency services: Temporary operations such as tunnel water drainage and foundation pit sludge removal.
