Industrial Wet Vacuum Cleaner Trucks HOWO

Industrial Wet Vacuum Cleaner Trucks HOWO

The HOWO 4x2 11cbm combined dredging truck is modified based on the HOWO TX 2280 semi-cab chassis. It has a 4500mm wheelbase and is equipped with a Sinotruk MC07.31-60 engine and a 6-speed gearbox. It is equipped with a 6.7cbm sewage tank and a 4.2cbm clean water tank made of 5mm thick carbon steel. There are tool boxes on both sides of the tank body, and one side is equipped with a control box, tailgate reel, discharge valve, ladder, sight tube, etc. It is equipped with a Jurop PVT400 vacuum pump and a 3N2-SZ high-pressure cleaning pump.

  • Working capacity :

    11cbm
  • Cabin type :

    Howo TX 2280 one and half cabin
  • Drive system :

    4x2,LHD
  • Wheelbase ( mm) :

    4500
  • Engine specific :

    310HP /Sinotruk MC07.31-60
  • Gear box :

    Sinotruk 6-speed,manual
  • Front axle ( Kg ) :

    6500
  • Rear axle ( Kg ) :

    11500
New Products

The HOWO Industrial Wet Vacuum Cleaner Trucks are highly efficient vehicles designed specifically for municipal pipeline maintenance. Equipped with a powerful Sinotruk MC07.31-60 engine and a 6-speed transmission, they utilize a dual high-pressure cleaning and vacuum suction system, integrating suction, unclogging, and cleaning functions. The high-pressure cleaning system uses a 3N2-SZ pump to pressurize clean water to flush out stains and blockages in sewers, while the vacuum suction system relies on a Jurop PVT400 pump to rapidly extract sludge through suction boom.

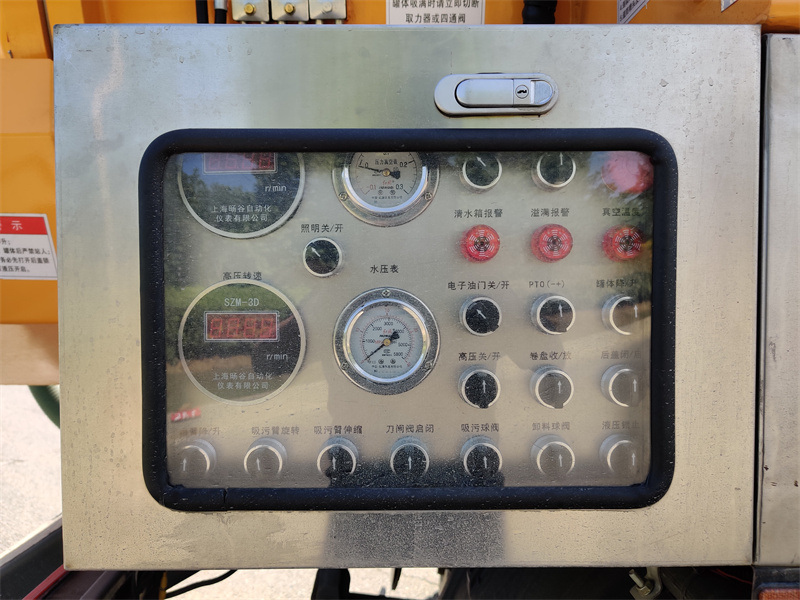

The vehicle is equipped with an intelligent control box with integrated instrumentation monitoring, including overflow and vacuum temperature alarms for the clean water and wastewater tanks, as well as electronic throttle, PTO, high pressure, and lighting control knobs. These knobs also control the tank lift, rear lid opening and closing, reel retraction, and suction arm control, providing convenient operation.

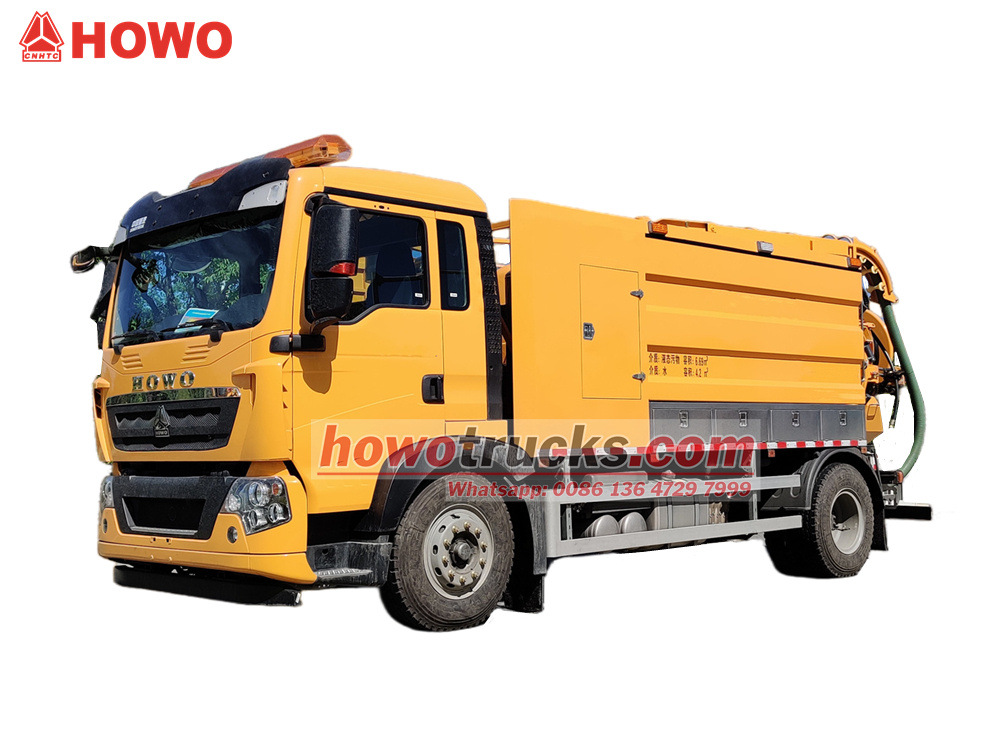

 HOWO Industrial Wet Vacuum Cleaner Trucks

*HOWO 4X2 11000L Sewer Vacuum Jetter Truck

Hydro Jetting Drain Cleaning truck*

-----------------------------------------------------------------



Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



» Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS GROUP LIMITED



Product Features

1. Efficient Operation: The large 11-cubic-meter tank reduces frequent irrigation and drainage, increasing single-operation time.



2. Intelligent Control: The integrated control box allows one-touch operation of multiple systems, simplifying operation.



3. Reliable and Durable: The carbon steel tank with anti-corrosion treatment withstands harsh operating conditions; the high-quality vacuum pump/high-pressure cleaning pump has a low failure rate.



4. Safety Design: Multiple alarm systems and hydraulic locks prevent accidents caused by misoperation.



» Ⅱ. Product Parameter for HOWO 11CBM vacuum jetter truck:



HOWO 11CBM Combined Sewer Jetting Truck

General

Vehicle Brand

CS TRUCKS

Vehicle Model

CS5180GXH

Chassis Brand

HOWO

Overall Dimension

8980 * 2550 * 3250 mm

GVW / Kerb Weight

18000 kg / 12700 kg

Axle loads

6500/11500 kg

Cab

Cab Capacity

HOWO TX 2280 one and half row, with A/C,USB, direction assistance

Engine

Fuel Type

Diesel, 6 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled

Brand

Sinotruk

Model

MC07.31-60

Power

310 HP/ 225kW

Rated speed

2200rpm

Max torque

1230N·m

Max torque speed

1200-1800rpm

Displacement

6.87L

Emission Standard

Euro VI

Chassis

Drive Type

4x2, left hand drive

Transmission

Sinotruk 6-speed,manual

Wheelbase

4500mm

Number of axle

2

Tyre Specification

10.00R20 18PR

Tyre Number

6 tyres and 1 spare tyre

Max Speed

89km/h

Paint

Metallic paint

Superstructure

Tank

Tank Capacity

6700 liters sewage tank,4200 liters cleaning water tank

Tank Material

5mm carbon steel with antiseptic treatment

Tank lifting angle

45°

Vacuum Pump

Vacuum Pump

Jurop PVT400

Flow

2600m³/h,43300L/min,1530cfm

Rotation speed

3400 rpm

Max speed at max vacuum

2900rpm

Vacuum

27.8 Hg,93%

Continuous vacuum

45 degree

Max pressure

2bar, 29 psi

Maximum no-load power.

100HP/ 74 kW

Weight

240kg

Suction boom

Equipped

Suction Head

7m length with DN 100 mm

Suction time

250 s

Nozzles

A cluster of nozzles included

Vacuum Pump

Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.

High-pressure cleaning pump

Type

3N2-SZ

Flow

102-200L/min

Pressure

6-43MPa

High Pressure Pipe

30m high pressure water pipeline with diameter φ19

Jetting Nozzle

Standard 10 units with different models

Rear door can be hydraulic opened for complete discharge of solid stuff.

All standard accessories: manhole, tool kit, English manual.....

Optional

** Tank material could be stainless steel.
** High pressure hose length could be customized.



» Product Detailed introduction

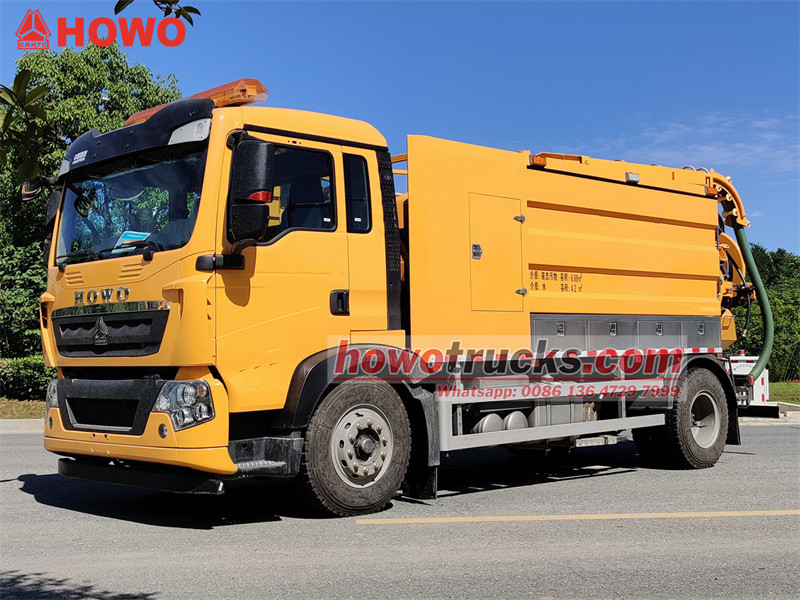

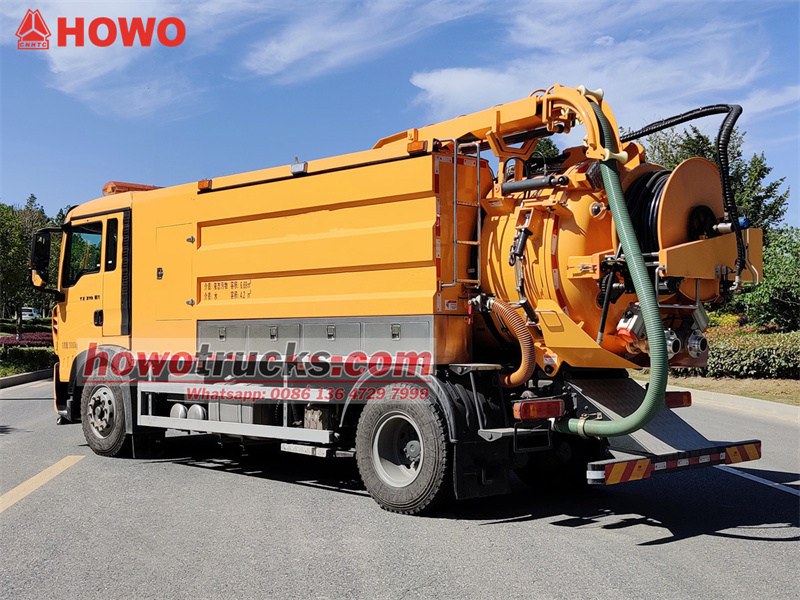

HOWO 11CBM Combined Sewer Jetting Truck



Core Chassis Configuration

The HOWO 4x2 11cbm combined jetter vehicle is built on the HOWO TX 2280 one and half row chassis, balancing comfort and maneuverability, making it suitable for urban and complex road operations.



Wheelbase: 4500mm, optimizing vehicle stability and turning radius.



Powertrain: Equipped with a Sinotruk MC07.31-60 engine, delivering a maximum power of 310 horsepower and a torque of 1200 Nm, meeting the demands of efficient operations. It is paired with a 6-speed transmission for smooth shifting and excellent fuel economy.

SINOTRUK 6x4 11m3 Sewer Cleaning Truck

Core Upper Body Specifications

1. Tank Design

Sewage tank: 6.7 cubic meters, fresh water tank: 4.2 cubic meters, for a total capacity of 11 cubic meters, meeting the needs of large-capacity operations.



Material and Craftsmanship: Made of 5mm thick carbon steel with anti-corrosion treatment, it offers strong impact resistance and a long service life.



Structural Optimization: The tank features an internal wave-breaking plate to reduce liquid sloshing and enhance driving safety.

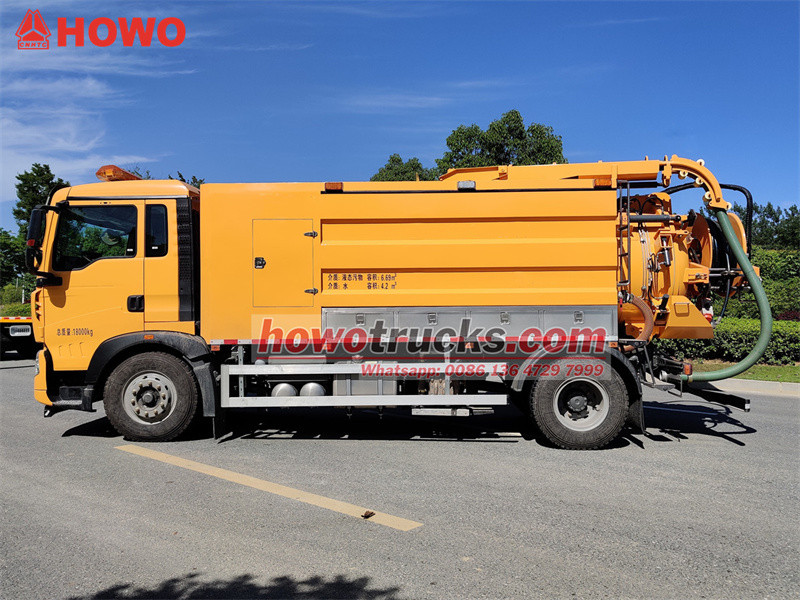

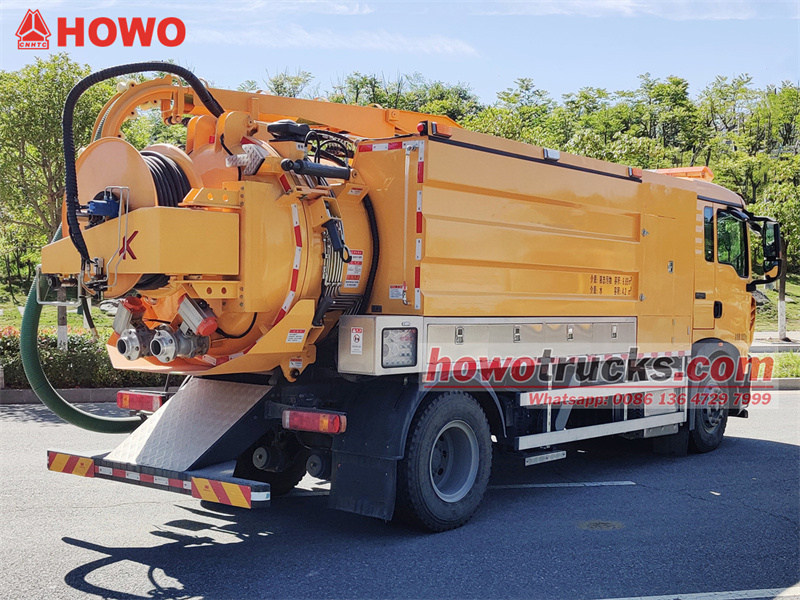

HOWO combined vacuum jetting vehicle

2. High-Pressure Cleaning System

High-Pressure Pump: Utilizes a 3N2-SZ high-pressure cleaning pump with a pressure range of 6-43 MPa and a flow rate of 102-200 L/min, easily clearing clogged pipes.



Nozzle Configuration: Interchangeable nozzles with different angles accommodate various cleaning modes, including straight-on and rotary.



Reel Linkage: The 30-meter high-pressure cleaning reel can be retracted and deployed for convenient operation.

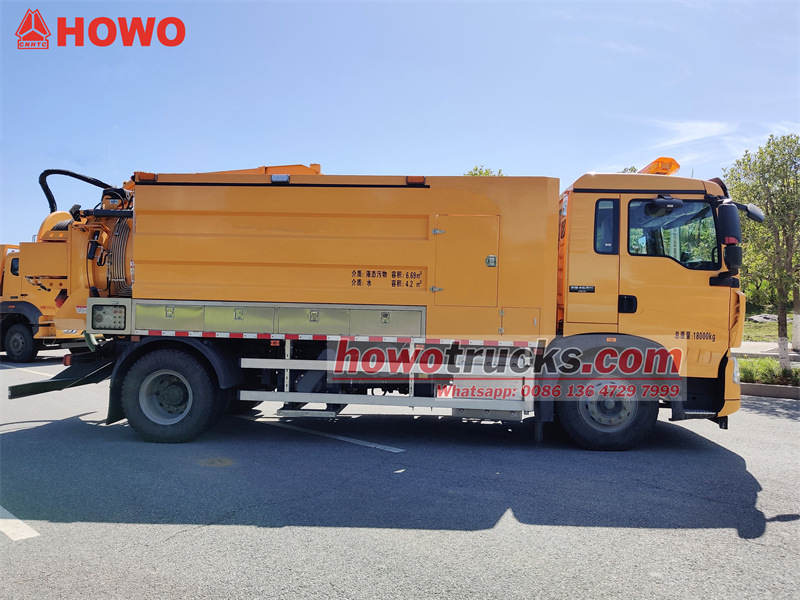

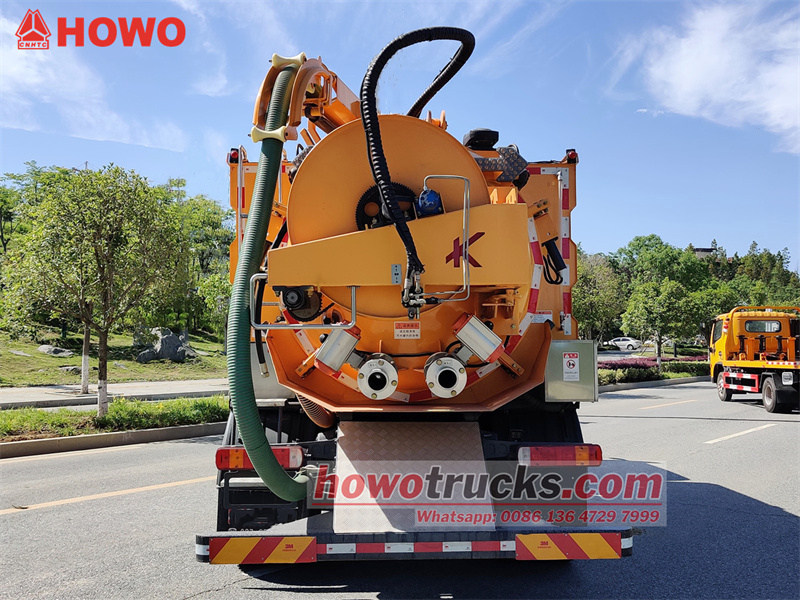

HOWO 11000 Liters Combined Sewer Jetting Truck

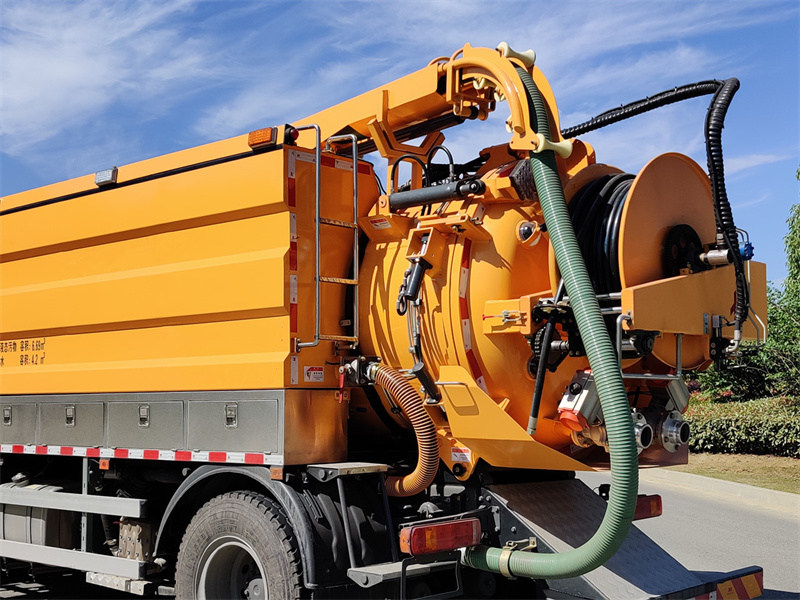

3. Tailgate Functional Components

Tailgate Reel: Equipped with a high-pressure cleaning reel, it allows for quick retraction and extension, facilitating cleaning operations.



Drain Valve: Provides rapid wastewater discharge, supporting gravity or pressurized emptying. Ladder and sight tube: The rear ladder allows for easy maintenance and the sight tube provides a visual display of the liquid level in the tank.

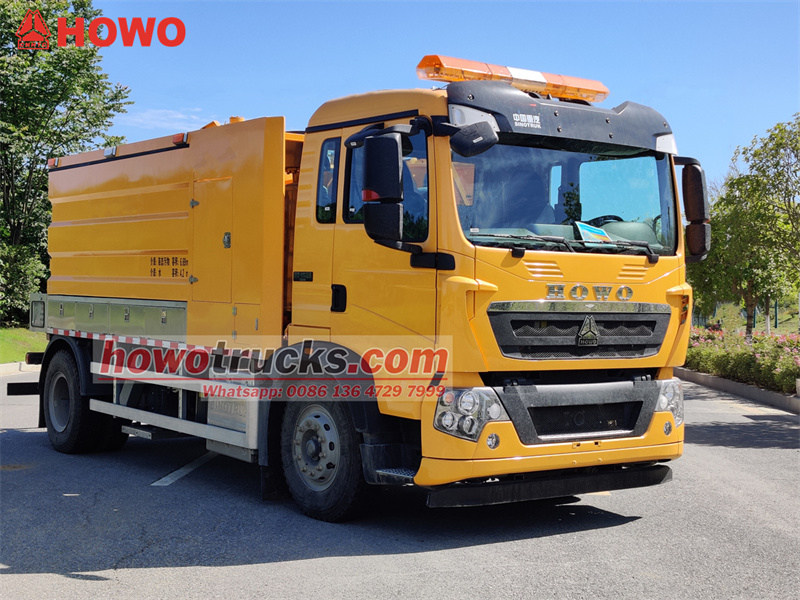

HOWO 6x4 11cbm combination vacuum jetter truck

Core Operating Systems

1. Vacuum Suction System

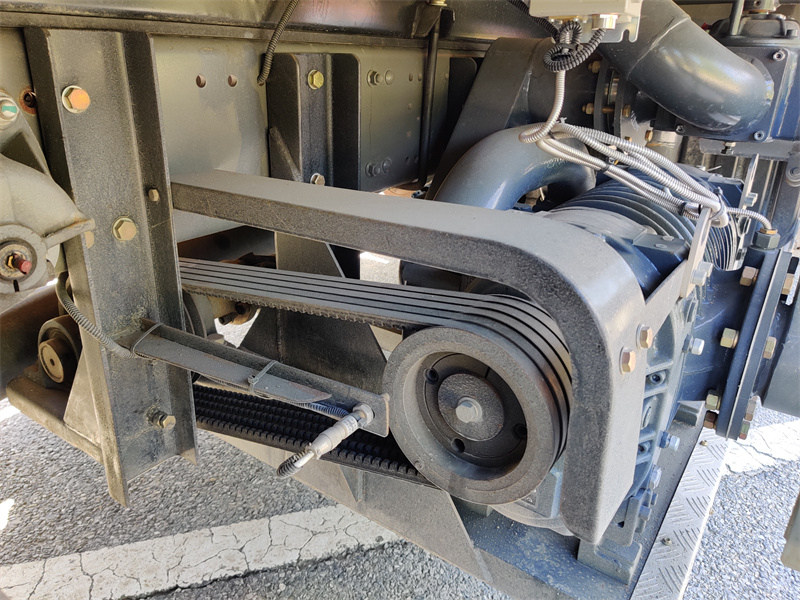

Vacuum Pump: Equipped with an Italian Jurop PVT400 vacuum pump, it offers fast suction speeds and high vacuum levels, increasing suction efficiency by 30%.



Suction boom: 360° rotating design allows for lift, extension, and rotation, enabling deep penetration into narrow spaces like sewers and septic tanks.



Knife Gate Valve, Suction Ball Valve, and Discharge Ball Valve: Ball valves with on/off control provide excellent sealing.

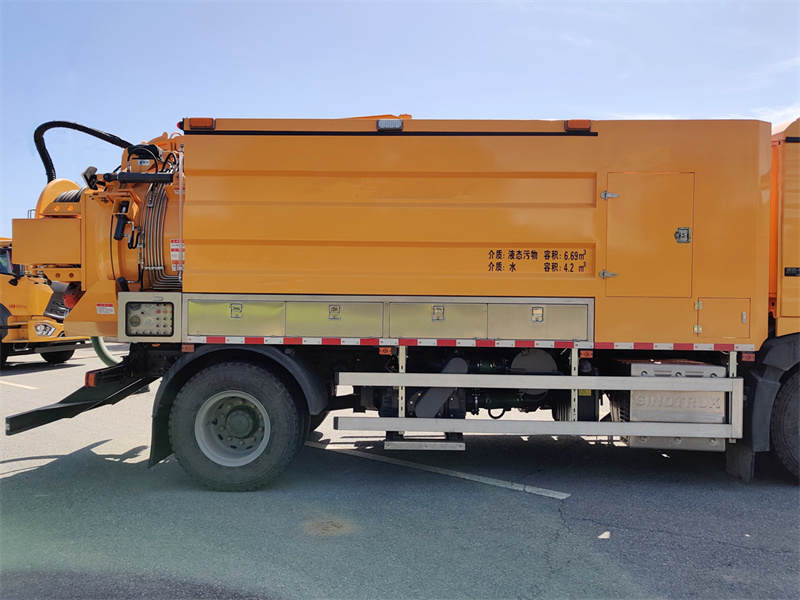

HOWO 6x4 combined jetter truck

2. High-Pressure Cleaning System

High-Pressure Pump: Utilizes a 3N2-SZ high-pressure cleaning pump with a pressure range of 6-43 MPa and a flow rate of 102-200 L/min, easily clearing clogged pipes.



Nozzle Configuration: Interchangeable nozzles with different angles accommodate various cleaning modes, including straight-on and rotary.



Reel Linkage: The 30-meter high-pressure cleaning reel can be retracted and deployed for convenient operation.

-



Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



» Ⅳ. Operation Principle

1. Vacuum Suction System: A Jurop PVT400 vacuum pump generates negative pressure, which is then sucked into a 6.7-cubic-meter carbon steel tank via a suction arm. An overflow valve is installed on the tank top, automatically providing an overflow alarm and closing the suction port to prevent backflow. The suction arm is hydraulically adjustable for lifting, retracting, and rotating to accommodate various operating positions.



2. High-Pressure Cleaning System: During operation, the chassis power take-off drives a 3N2-SZ high-pressure cleaning pump, pressurizing clean water from the clean water tank and discharging it through the reel nozzles to flush the inner walls of the pipe. The high-speed water flow creates a powerful impact force, removing stubborn stains.


During operation, the operator centrally controls the system through a control panel: the PTO activates the pump unit, the electronic throttle adjusts the speed, and the hydraulic system controls the tank lift, tailgate opening and closing, and the suction arm movement. The system monitors vacuum pressure, water pressure, and liquid level in real time, and features multiple alarms for low clean water levels and overflowing wastewater.


» ⅤApplication Scenarios



It is suitable for unblocking, cleaning, and waste transfer in municipal drainage networks, industrial sewage tanks, septic tanks, and pipelines, integrating efficient suction and flushing functions.

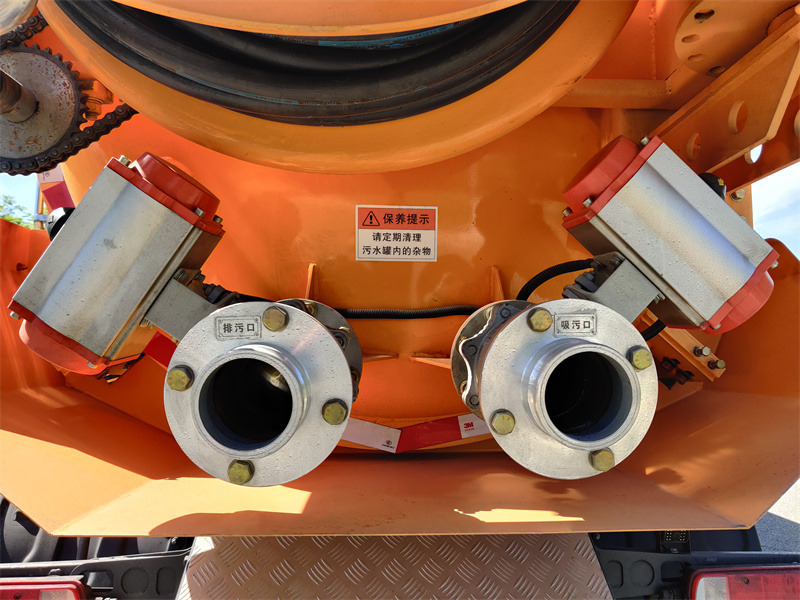

discharge valve

CS trucks 5000 square meters workshop for vacuum tank trucks.china best vacuum jetting truck manufacturer. We are China best sanitation trucks plant and professional upper structure manufacturer. established in 1983 , we specialized in customized garbage compactor truck, road sweeper truck, sewage tanker trucks, crane truck, fire trucks. and other special purpose vehicles.
