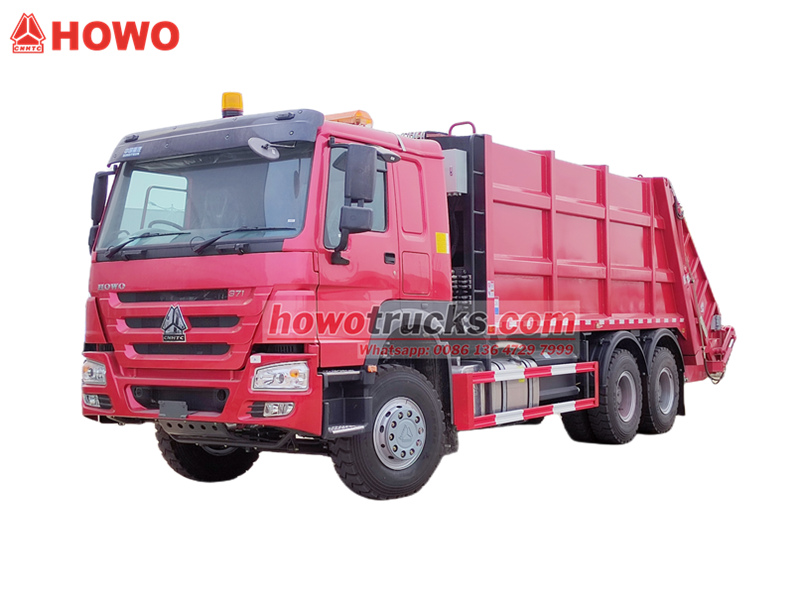

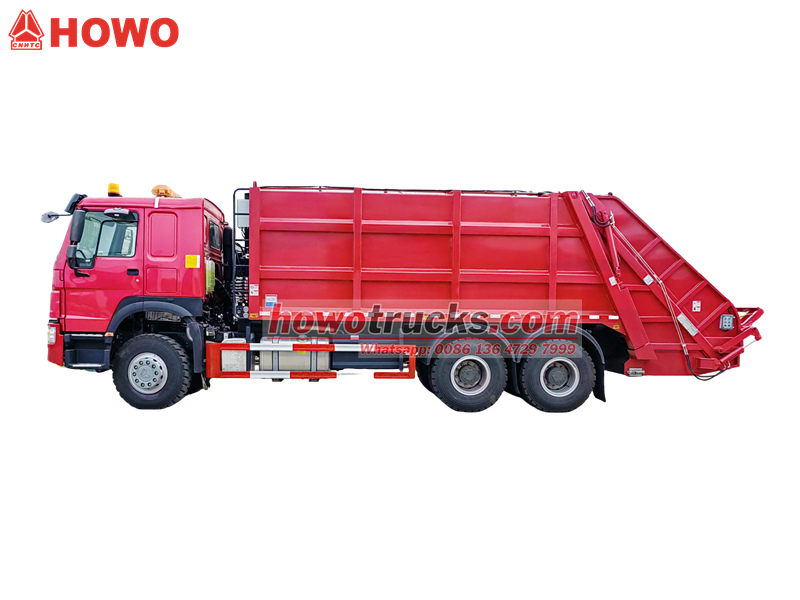

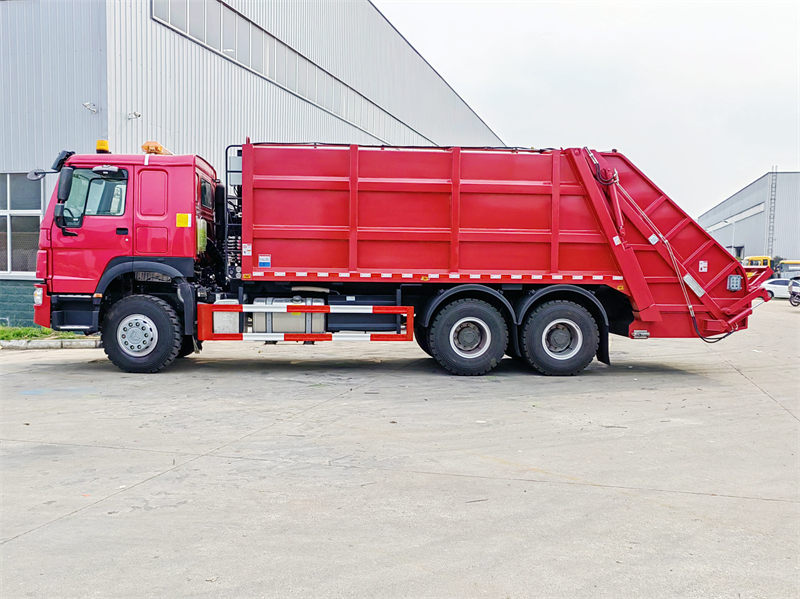

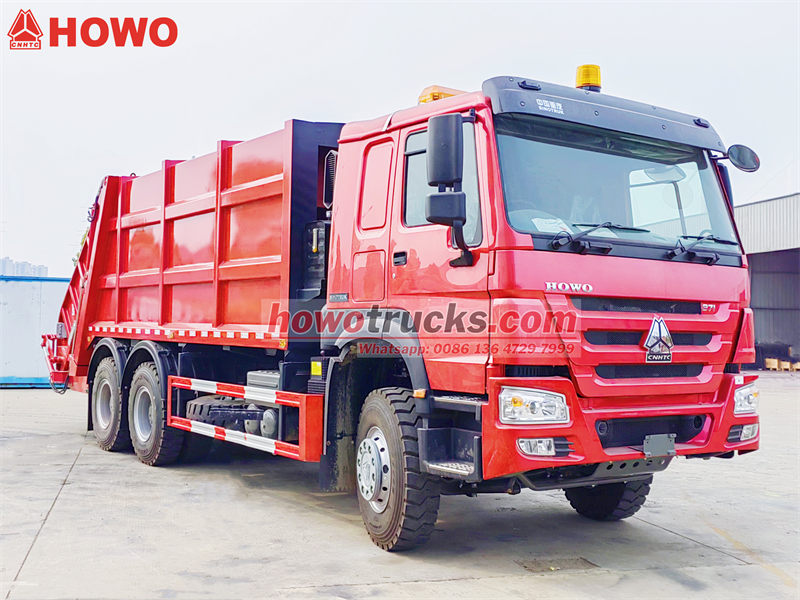

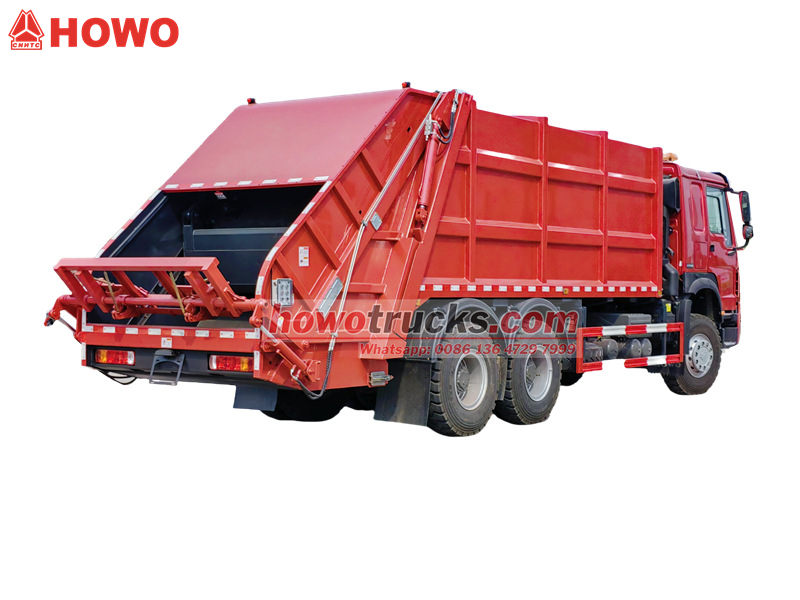

Africa HOWO heavy 20CBM rear loader truck

Africa HOWO heavy 20CBM rear loader truck

This Howo 6x4 heavy duty compactor garbage loader truck is an outstanding work in the field of urban cleaning. Equipped with a WP10.340 engine, it has a powerful output of 340HP, a displacement of 9.726L, and turbocharging and intercooling technology. It is not only powerful, but also meets the stringent Euro 6 emission standards. Its 33tons total weight configuration and 20tons load capacity can fully meet the daily garbage removal needs of large and medium sized cities.

  • Working capacity :

    20CBM
  • Cabin type :

    Heavy duty single cabin, with sleeper
  • Drive system :

    6*4
  • Wheelbase ( mm) :

    4600+1350 mm
  • Engine specific :

    WP10.340E32 model 340HP, Euro 2
  • Gear box :

    HW19710, manual 10F and 2R
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    16000*2
New Products

This Howo 6x4 heavy duty compactor garbage loader truck is an outstanding work in the field of urban cleaning. Equipped with a WP10.340 engine, it has a powerful output of 340HP, a displacement of 9.726L, and turbocharging and intercooling technology. It is not only powerful, but also meets the stringent Euro 6 emission standards. Its 33tons total weight configuration and 20tons load capacity can fully meet the daily garbage removal needs of large and medium sized cities.



Howo garbage compactor truck

The Howo garbage trash compactor truck adopts an advanced HW19710 gearbox, combined with heavy 6*4 drive system to ensure stability and efficiency in complex road conditions. The 20CBM curved tank body is made of T420 special steel, with a tank body thickness of 5mm and an overall molding process. The compactor ratio is as high as 1:3.4, ensuring the ultimate garbage compactor efficiency.



Howo garbage compactor truck

The fully automatic control system has a single loading and unloading cycle time as short as 40-45 seconds, and is equipped with PLC intelligent control, which is easy and fast to operate. In manual mode, the operator can use the operating lever and electric control buttons to complete operations such as compactor and unloading of the garbage compartment.

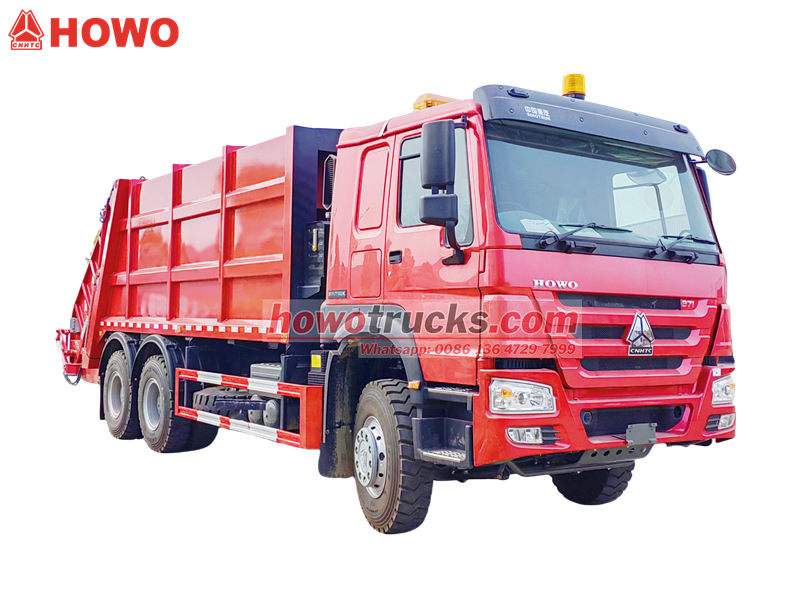

HOWO 8cbm rear loader truck




*SINOTRUK HOWO Heavy Duty Rear Loader Truck
20CBM Garbage Trash Compactor Truck
HOWO Heavy Duty compactor lorry*
-----------------------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

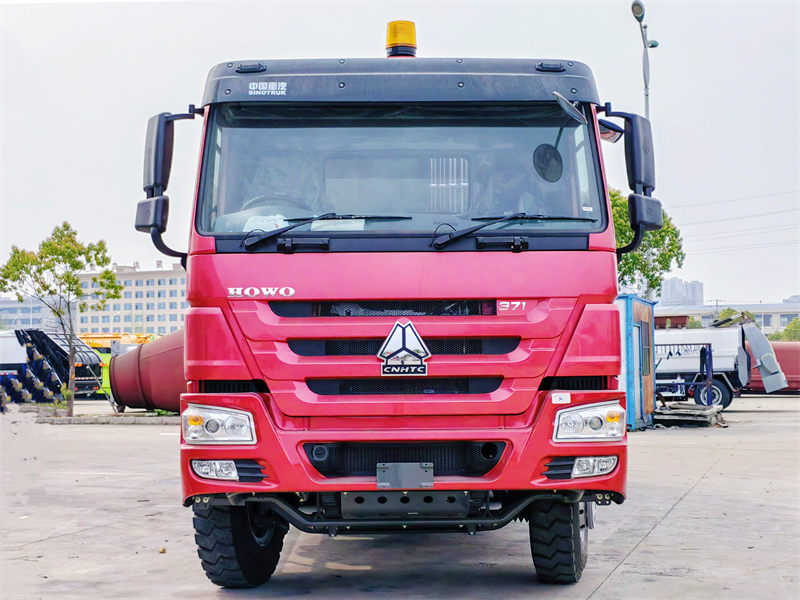

  • HOWO 20cbm garbage compactor vehicle
  • HOWO 20cbm garbage compactor vehicle

  • HOWO 20cbm garbage compactor vehicle




✦Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS Group
Features:

Chassis: Based on SINOTRUK 6x4 chassis, with 300HP diesel engine

Tank Volume: Garbage compactor tank capacity 20 CBM

Tank construction: Tank made of 4-5mm thick reinforced steel (side 4mm, bottom 5mm)

Compression System: Hydraulic compression mechanism, electrically controlled with manual override

Operation Scope: Suitable for municipal solid waste collection, commercial refuse compaction, and urban sanitation operations

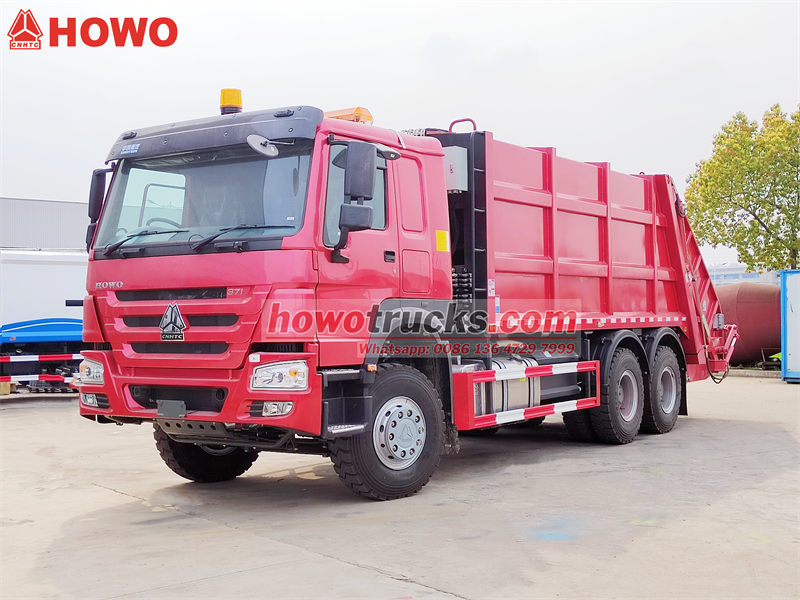

HOWO 20cbm garbage compactor vehicle



HOWO 20CBM garbage compactor truck



✦Ⅲ.Product Parameter For Howo Heavy Rear Loader Truck:
HOWO 20cbm garbage compactor vehicle

Basic Information

Chassis brand

HOWO Brand

Product

HOWO 6x4 heavy garbage compactor truck

Overall Dimension

Cab

Single Row

Driver position

Left hand drive

Drive Model

6X4

Overall Parameter: L×W×H

10300×2500×3160mm

Wheel Base

4600+1350mm

Curb Weight

13600 kg

Max Speed

95Km/h

Engine and Chassis

Engine manufacturer

Weichai

Engine type

Diesel

Model

WP10.340E201

Power

340HP

Displacement

9.7L

Emission Standard

Euro 2

Transmission

Fast, 12 forwards and 2 reverse, manual transmission

Front axle

7.5Tons

Rear axle

13Tons double axle

Suspension System

Leaf spring,10/12

Tyre

12.00R20 7 pcs

Usage Parameter

Container Volume

20m3

Sewage tanker

200L

Steel and thickness

5mm/Q345

Unloading Model

Push out

Feed in one cycle working time

≤10s

Feed out one cycle working time

≤35s

Hydraulic system pressure

18Mpa

Control method

Both manual and electric control

Color + customer logo

As requirement

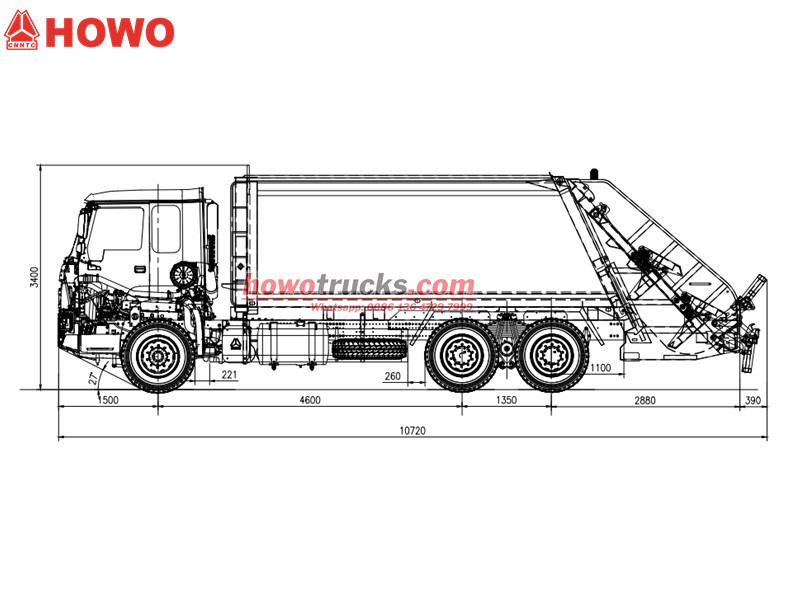

HOWO rear loader truck drawing

✦Ⅳ.Feature For Howo Garbage Trash Truck:



Howo garbage compactor truck

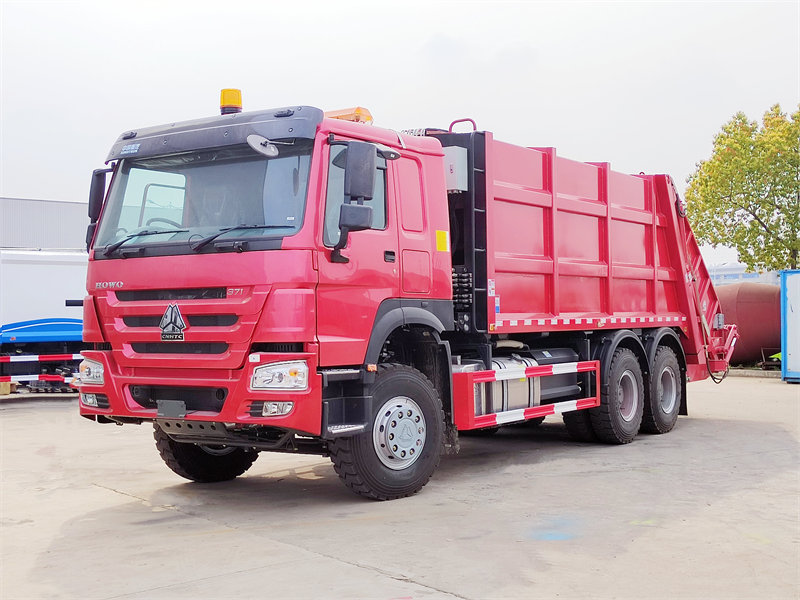

Howo 20CBM garbage compactor truck

1.Chassis Configuration:



Engineered with a heavy-duty frame structure

The chassis supports a maximum authorized weight of 25,000 kg

The unladen weight of 13,820 kg, providing dependable load-handling capability for compaction-based waste transport duties.

10-speed manual gearbox with 4,500 mm wheelbase ensures stable power delivery during compaction cycles.

Howo garbage compactor truck

2. Body Structure and Material Durability



Finite Element Analysis (FEA) and Topology Optimization:

CS Trucks Group simulates the entire process of waste compression and unloading, accurately identifying areas of concentrated stress.

Based on this, topology optimization is performed to achieve light weighting while maintaining strength.

High-Strength Steel Plates and Wear-Resistant Materials:

High-strength wear-resistant steel plate T420 is used in key load-bearing areas, with a Brinell hardness (HB) of 400 or higher.

The main body plates should be made of high-strength weather-resistant steel or galvanized steel, and the design avoids areas prone to water accumulation.



Howo garbage compactor truck

 Welding Process and Corrosion Protection:

Welding must be automated using robotic welding to ensure weld penetration, strength, and consistency.

Key load-bearing welds require non-destructive testing (e.g magnetic particle or ultrasonic testing).

CS Trucks Group uses cathodic electrophoretic primer to enhance corrosion resistance.

Howo garbage compactor truck

3. Structural Optimization of the Loader and Compactor Mechanism:



Integrated streamlined design of the "loading-crushing-compactor" system:

Optimize the contact gap between the scraper and the curved plate to prevent waste clogging and reduce movement resistance.



Wear Resistance and Lubrication of Key Moving Parts:

Utilize high-molecular-weight polyethylene or self-lubricating composite materials to ensure continuous and quantitative lubrication at key friction points, significantly reducing wear.



Sealing System Design:

Employ a multi-stage sealing design to ensure effective sealing and diversion of wastewater even under vehicle tilting and vibration conditions.



✦Ⅴ.Feature For Howo Garbage Trash Truck:

1. Urban residential areas Scenario characteristics: large garbage production and concentrated distribution require high frequency collection.

Adaptability: The light duty can operate flexibly on narrow roads or slippery roads, and the compactor function increases the single load capacity and reduces the number of transportation times.

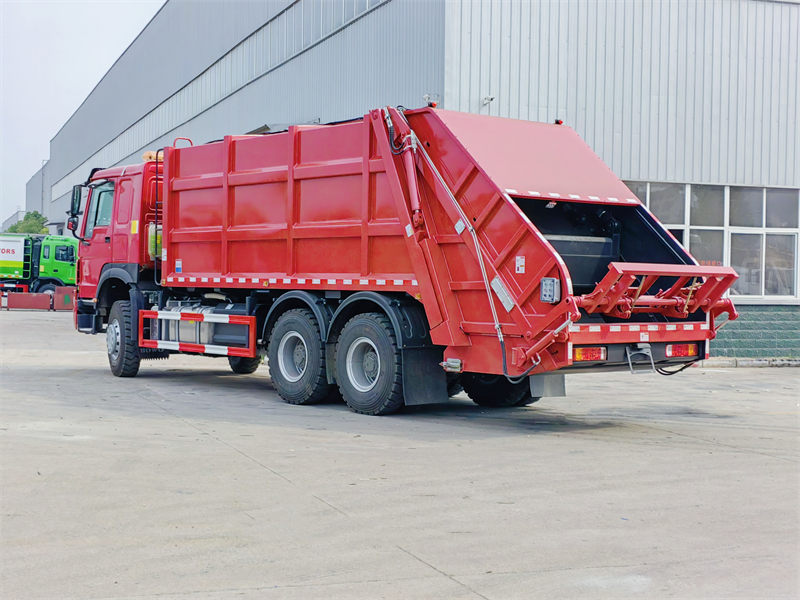

Howo heavy garbage compactor truck



2. Commercial areas and public places Scenario characteristics: shopping malls, office buildings, scenic spots and other places have complex types of garbage (such as packaging, kitchen waste), which need to be cleaned quickly.

Adaptability: The compactor function can efficiently handle large-volume garbage (such as cartons, foam), and the light rear loader adapts to urban congested road conditions.



Howo heavy garbage compactor truck



3. Townships and rural areas Scenario characteristics: poor road conditions (dirt roads, steep slopes), and scattered garbage.

Adaptability: It can be modified to have all drive to improve its passability, and its compactor technology reduces transportation costs, making it suitable for long distance, low density waste collection.

  • Howo light garbage compactor truck

  • Howo light garbage compactor truck

  • Howo light garbage compactor truck







⇒ Products--100% China HOWO factory trucks!

Shipping--100% fast,Convenient, Efficient!

Guarantee--7 days + 24 hours Safety Service!



China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

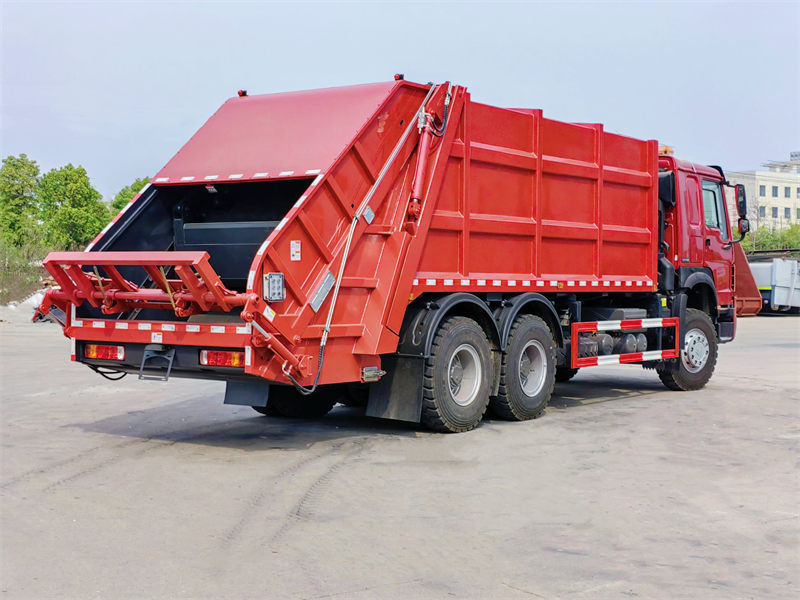

HOWO rear loader truck
