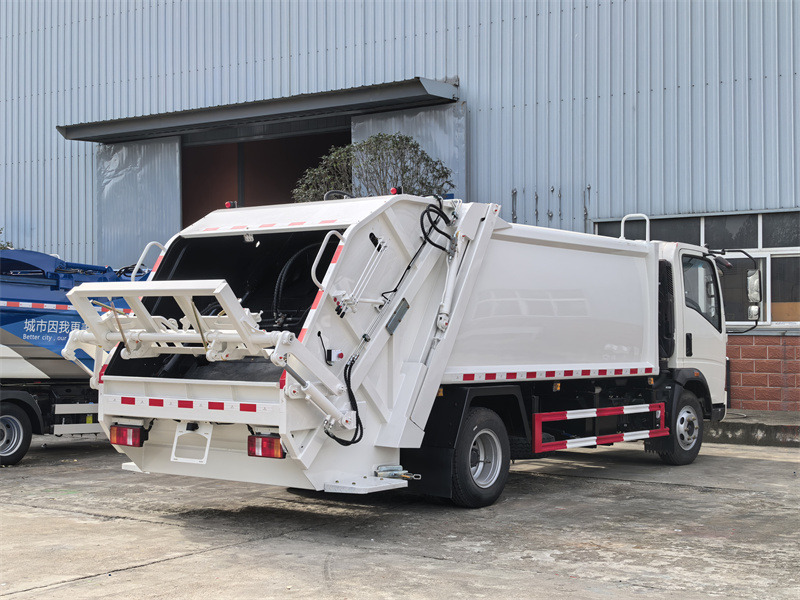

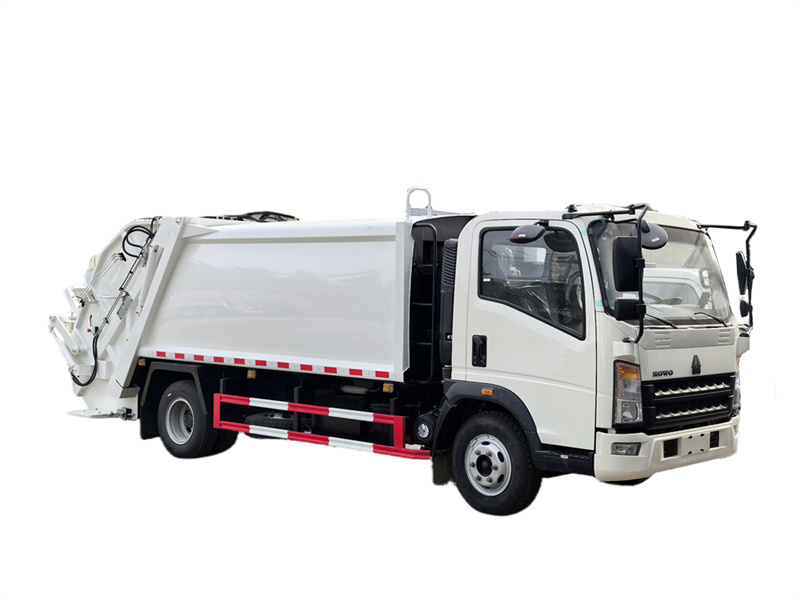

Howo 6wheeler 8cbm Refuse Compactor

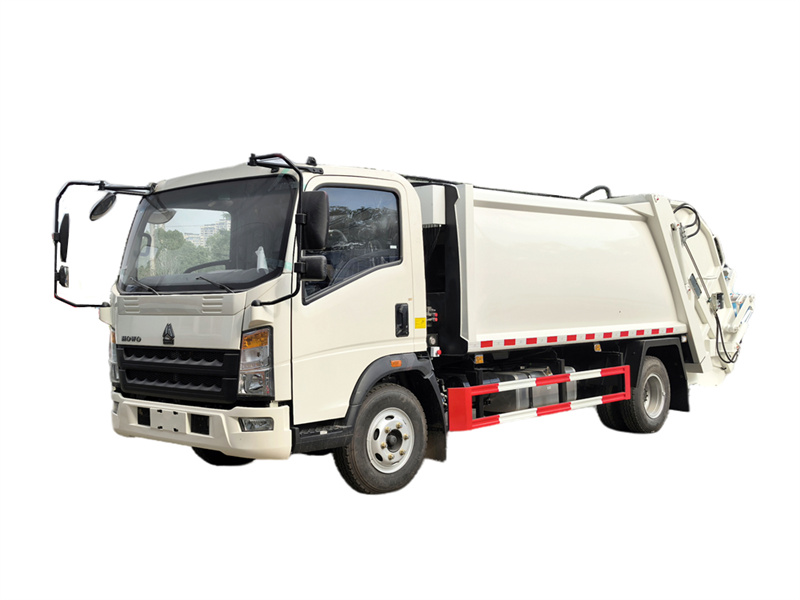

Howo 6wheeler 8cbm Refuse Compactor

The Howo 4x2 8 cubic meter garbage compactor truck uses a Sinotruk Howo light truck chassis with a 3800mm wheelbase. It is equipped with a Cummins ISF3.8s3141 engine and a WLY6TS55 gearbox. The upper garbage container features an arc-shaped design, is made of carbon steel with 4mm thick sides and a 5mm thick bottom, and is treated for corrosion and rust prevention. It has a rear-mounted tilting bin and can be fitted with standard 110L and 240L garbage bins. The CAN-BUS control system allows for the collection, compression, and unloading of garbage via an electrical control box in the cab, a hydraulic control valve on the driver's side, an electrical control box on the left side of the tailgate, and a manual operating lever on the right side.

  • Working capacity :

    8CBM
  • Cabin type :

    HOWO light cabin,3 seats, A/C
  • Dimension (mm ) :

    7150 x 2300 x 2650 mm
  • Drive system :

    4x2,LHD
  • Wheelbase ( mm) :

    3800mm
  • Engine specific :

    141HP / Cummins ISF3.8s3141
  • Gear box :

    WLY6TS55, 6-speed,manual
  • Front axle ( Kg ) :

    2870
  • Rear axle ( Kg ) :

    5410kg
  • Remark :

    Tank capacity can be customized
New Products

The Howo 6wheeler 8cbm Refuse Compactor is a high-efficiency special-purpose vehicle designed specifically for urban sanitation. Its professionally designed superstructure boasts an 8-cubic-meter capacity and is compatible with 110L and 240L standard garbage bins via a rear-mounted bin-loading mechanism, enabling automatic loading. Operation is a significant advantage; the integrated CAN-BUS control system allows the driver to easily complete the entire process of loading, compressing, and unloading safely and efficiently from inside the vehicle, on the driver's side, or at the rear, via an electronic control box and hydraulic valves. It is suitable for daily garbage collection in city streets, residential areas, commercial areas, schools, and other locations, and is particularly well-suited for narrow roads and densely populated work sites.

Howo 6wheeler 8cbm Refuse Compactor

*HOWO 4X2 Light Rear Loader Compactor Truck

 8CBM  Rear Lifting Garbage Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.



Product Definition and Introduction

Manufacturer: CS Trucks Group



Features

High Efficiency: 8 cubic meter capacity + high compression ratio increases single-trip transport capacity by 30%, reducing operating costs.



Intelligent Control: CAN-BUS system integrates multi-channel control, reducing manual operation intensity.



Durable and Reliable: Sinotruk chassis + Cummins powertrain + corrosion-resistant body, adaptable to high-intensity, high-frequency operation requirements.



Product Parameter For Howo 6wheeler 8cbm Refuse Compactor





HOWO 4X2 8cbm waste compactor truck

Truck model

CS5080ZXS

Cabin

HOWO light cabin, single row,3 passengers, air conditioner,USB

 Overall Size

7150 x 2300 x 2650 mm

 Bin capacity

8CBM

 Wheel base

3800mm

 GVW

8280kg

Curb weight

5400kg

Axle loading

2870/5410kg

 Engine

 Model

Cummins ISF3.8s3141

Type

4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling, high-pressure common rail

 Hose Power(HP)

141HP/ 105kW

Displacement

3.76L

Max torque

450N.m

Rated speed

2600rpm

Max torque speed

1200-2200rpm

Emission  standard

 Euro 3

Gearbox

WLY6TS55, 6-speed,manual

Max speed

95km/h

Tire

7.50R16LT (6+1 tire)













Superstructure

Body capacity

8cbm

Box material

Side 4mm,bottom 5mm,carbon steel

Design

Whole unit with Leakage Proof Design

Sewage tank

200 liters

Filling work cycling time

 40~50 s

Garbage Compact Ratio

≥3:1

Discharge model

Horizontal Ejection

Control system

CAN electric automatic control, pneumatic system, and hydraulic system control

4 operate modes

Cab electric control box,drive side manual joystick,tailgate electric control box,tailgate manual operate lever

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual...



 Electrics

 Operating voltage:24V,negative grounded

 Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light

HOWO 4X2 141HP garbage compactor truck

Main Advantage Of HOWO 4X2 141HP garbage compactor truck

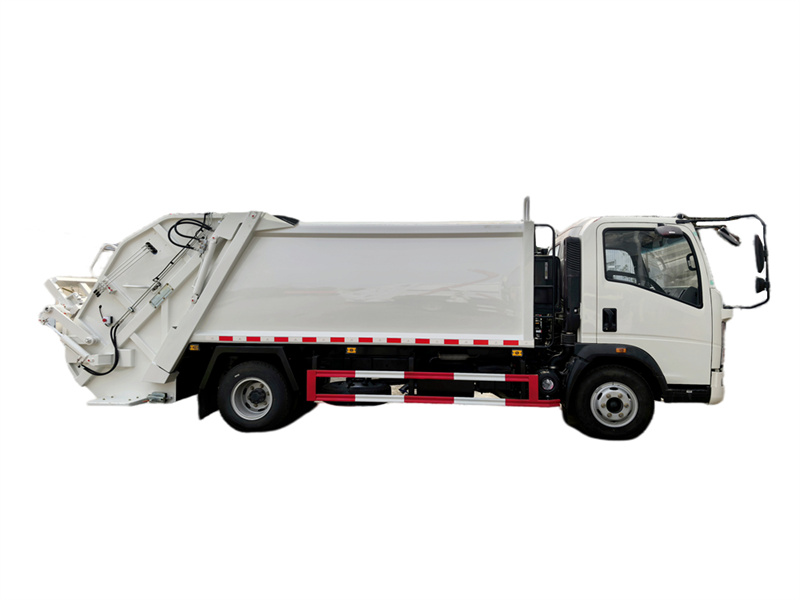

HOWO 4X2 8cbm rear lifting garbage truck

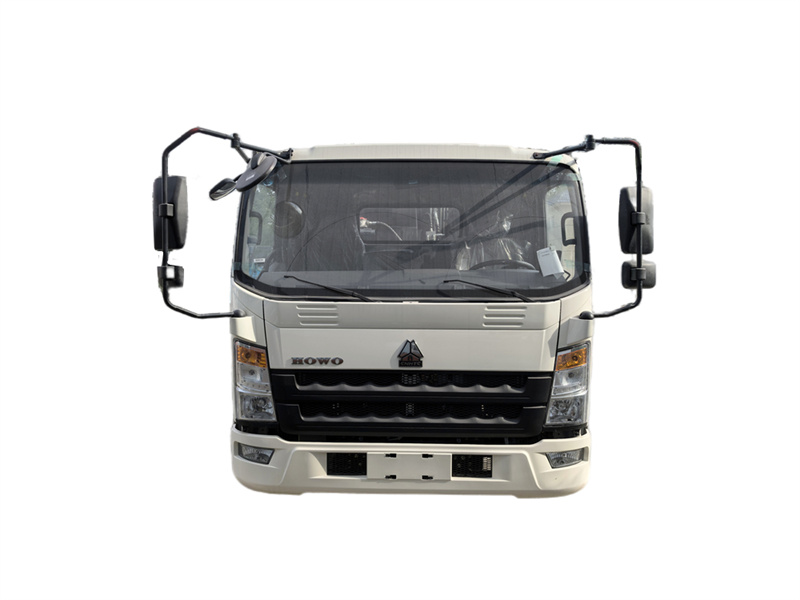

Cab and Chassis

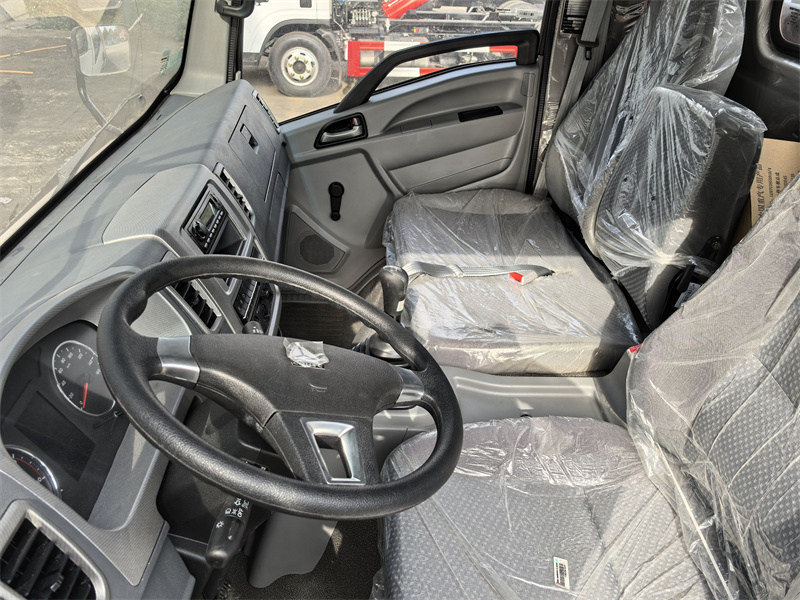

o Sinotruk Howo Light Truck Cab: Equipped with shock-absorbing seat, multi-function steering wheel, and power windows; 3800mm wheelbase.



Powertrain Matching

o Cummins ISF3.8s3141 Engine: 3.76L displacement, maximum power 141 hp (105kW), peak torque 450 N·m; low-speed high torque characteristics meet the needs of frequent start-stop garbage collection.



o WLY6TS55 Transmission: 6-speed manual transmission; smooth shifting.

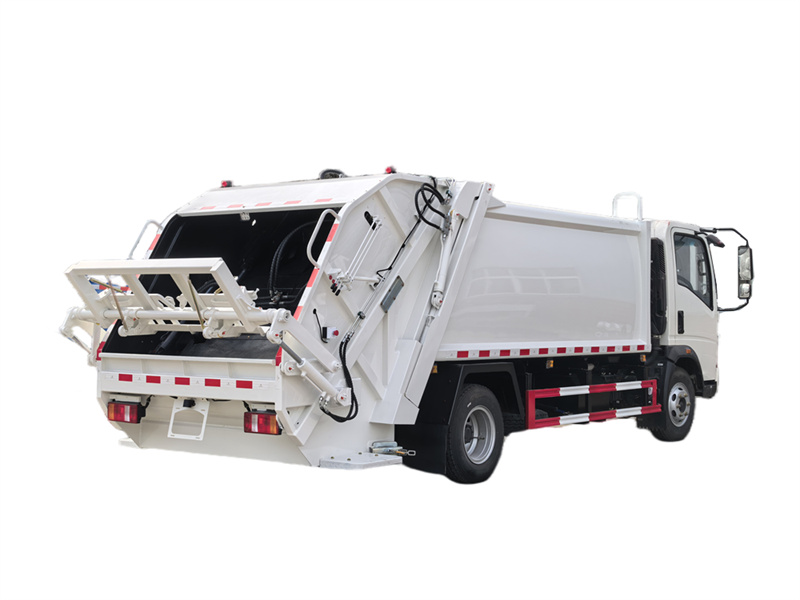

HOWO 8cbm rear loader compactor

Upper Structure and Performance

• Bin Capacity: 8 cubic meters, suitable for waste collection in small to medium-sized communities and streets.



• Bin Design:

o Material: High-strength carbon steel.



o Structure: Innovative arc-shaped design, not only with a smooth appearance but also facilitating waste sliding and compaction, reducing residue.



o Plate Thickness: Side plates are 4mm thick, bottom plates are 5mm thick, sturdy, wear-resistant, and impact-resistant.



o Processing Technology: Professional anti-corrosion and rust-proofing treatment effectively extends the service life of the bin and adapts to various harsh environments.



• Collection Method: Tail-mounted bin-tilting mechanism, compatible with 110L, 240L, and other domestic and international standard plastic waste bins, enabling automatic and efficient waste disposal and reducing the workload of sanitation workers.

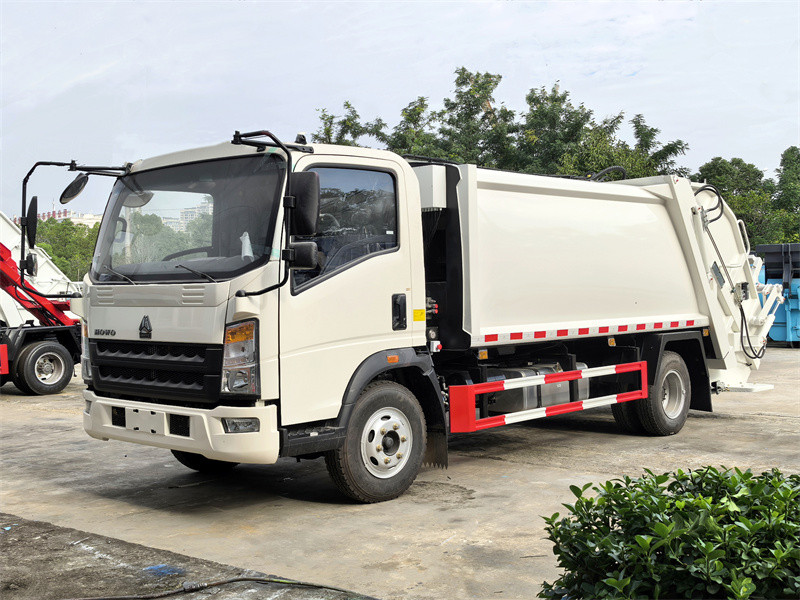

Sinotruk HOWO 8cbm waste compactor truck

Operating Control System: CAN-BUS Technology

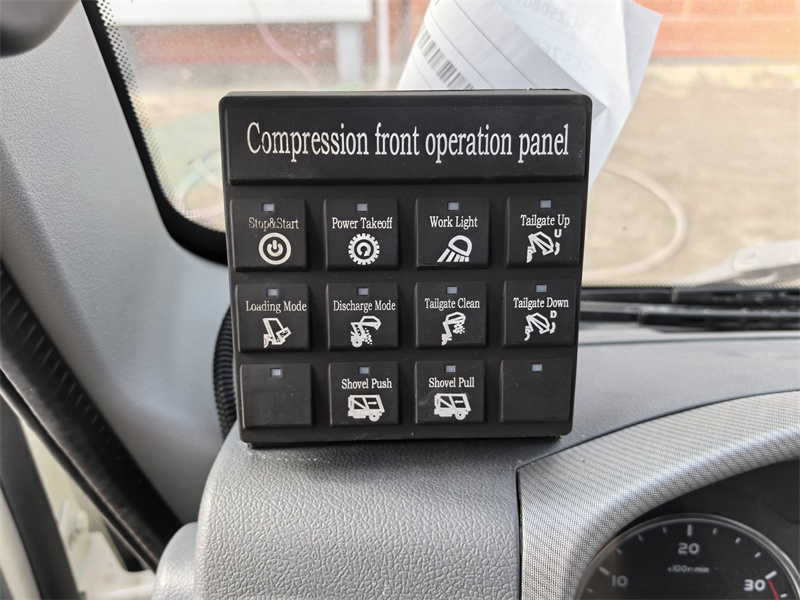

1. Cab Electrical Control Box

Located within easy reach of the driver, it integrates multiple function buttons (Stop & Start, PTO, Work light, Loading Mode, Discharge Mode, Tailgate Up/Down, Shovel Push/Pull, Tailgate Clean, etc.), enabling seamless switching between driving and operation.

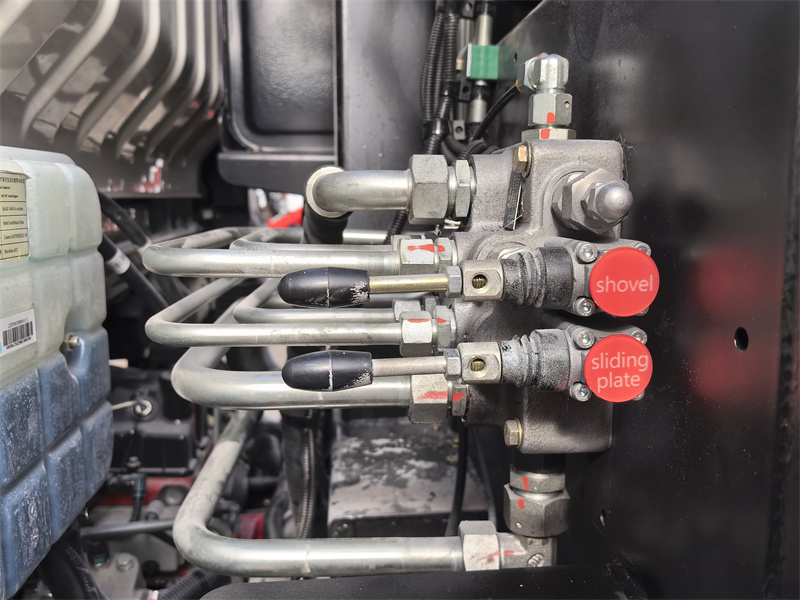

2. Driver-Side Hydraulic Operating Valve

Manual operation of the shovel and sliding plate (shovel, sliding plate) can be performed from the driver's side.

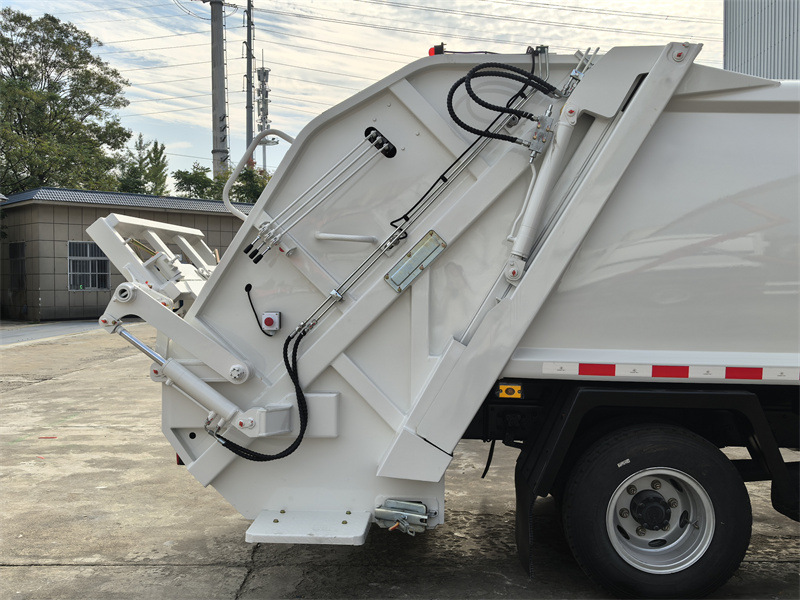

HOWO 4X2 8CBM garbage truck with compactor

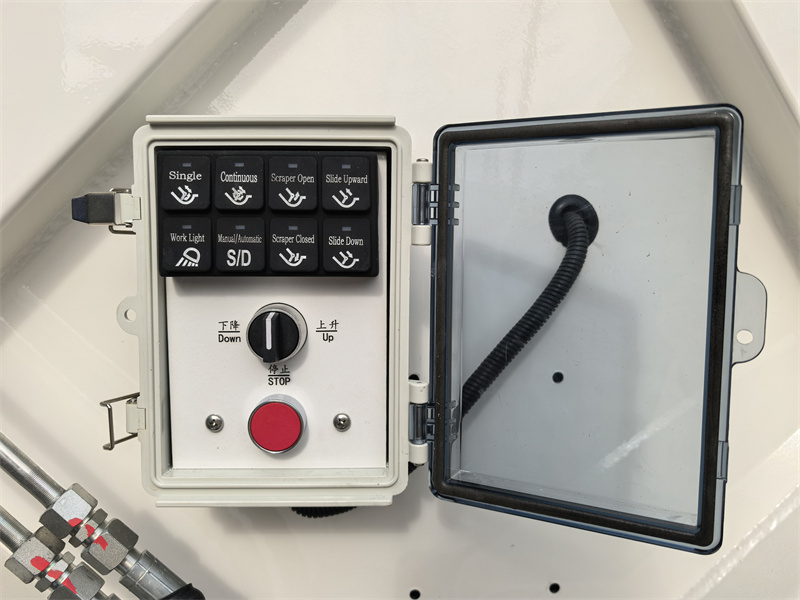

3. Tailgate Left Side Electrical Control Box

Provides complete operational control at the rear of the vehicle, facilitating on-site observation and operation by staff (Single, Continuous, Scraper open/closed, Slide Upward/Down, Work light, Manual/Automatic, etc., tilting mechanism tilting, emergency stop, etc.).

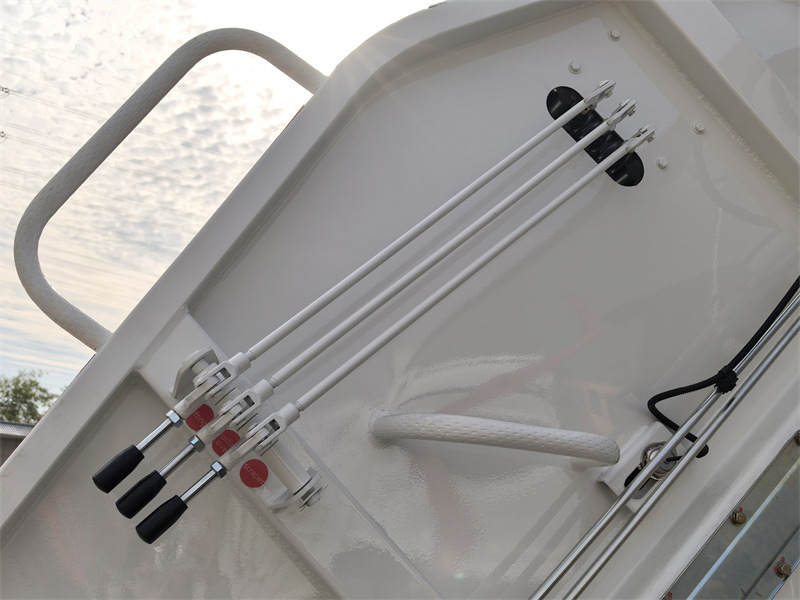

4. Tailgate Right Side Manual Lever

Manually controls the tailgate lifting, tilting mechanism tilting, and scraper rotation/closing.





-------------------------------------------------------------------------------------------------------
  • Cab Electrical Control Box
  • Cab Electrical Control Box
  • Tailgate Left Side Electrical Control Box

Tailgate Right Side Manual Lever


 Working Principle

The Howo 4x2 8-cubic-meter compactor garbage truck operates on an electro-hydraulic linkage control principle. Its core is a CAN-BUS system that integrates multiple control buttons and valves in the cab, driver's side, and rear, uniformly commanding the hydraulic mechanism to complete operations.



During operation, the rear-mounted bin lifting mechanism lifts and tilts the standard garbage bin, dumping the garbage into the curved garbage container. Subsequently, the control system activates the "loading/compressing" mode, driving the sliding plate and scraper to circulate, pushing and forcefully compressing the loose garbage forward for efficient compression. After operation, it switches to "unloading" mode, where a high-thrust pusher inside the container smoothly pushes out the compressed garbage in one piece.

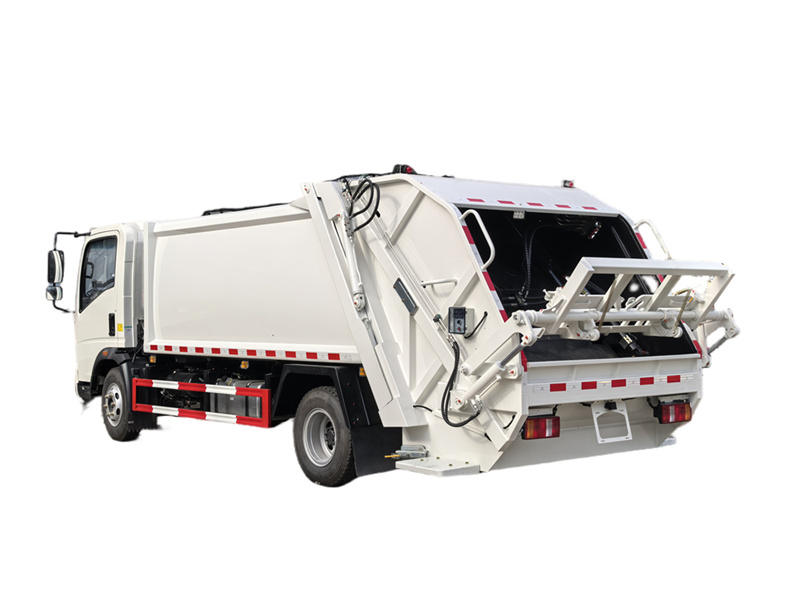

HOWO 4X2 8CBM garbage truck with compactor





China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our vacuum suction trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

Sinotruk HOWO 8cbm waste compactor truck
