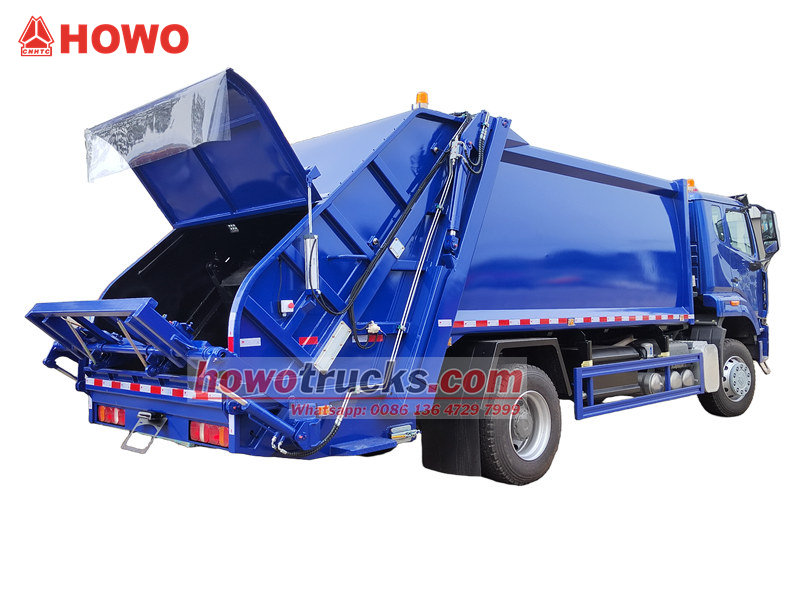

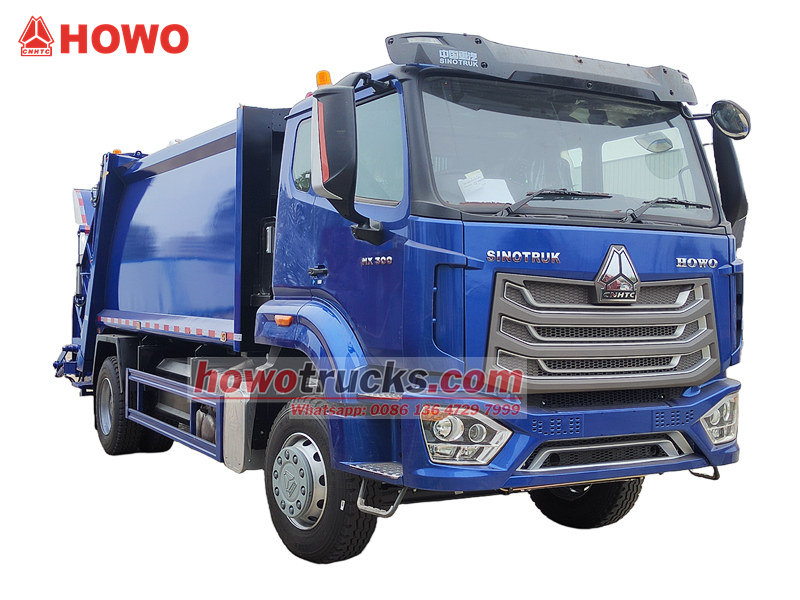

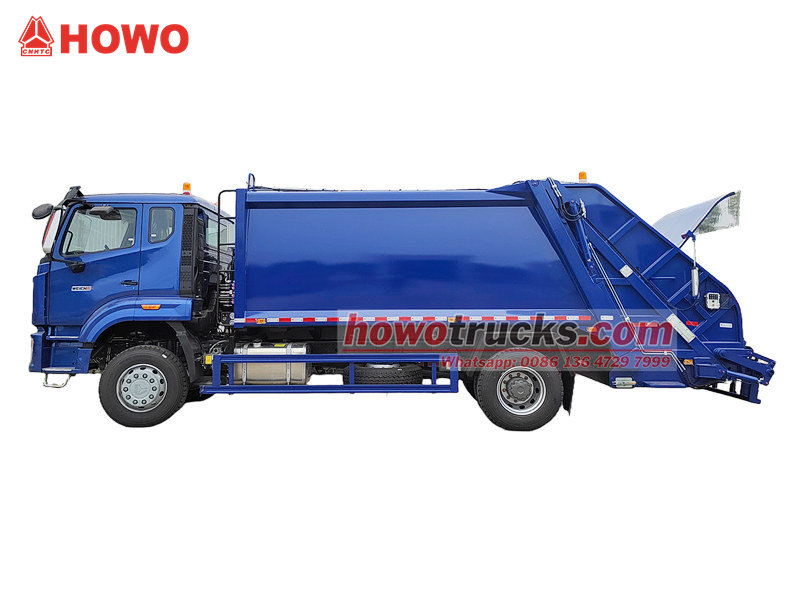

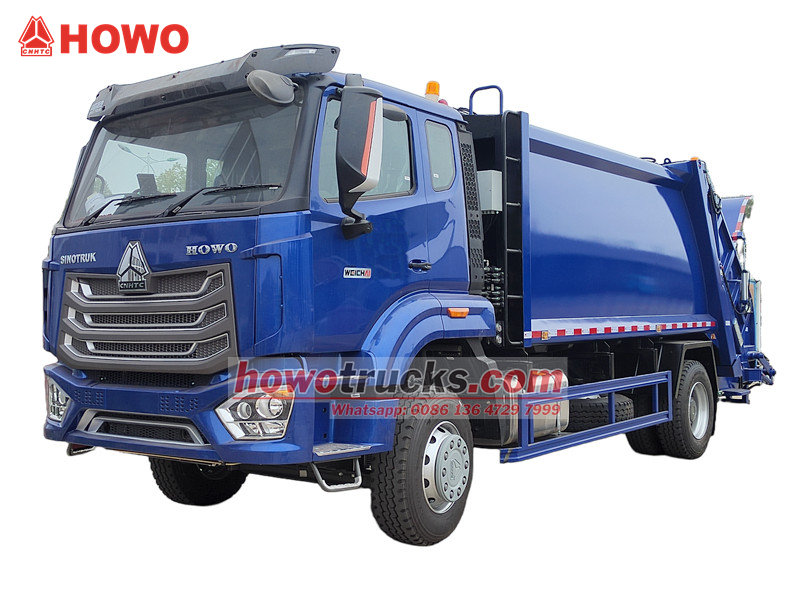

Howo 15cbm rear compaction garbage truck

Howo 15cbm rear compaction garbage truck

The Howo 15cbm rear compaction garbage truck is equipped with a WP10.300E22 300hp engine (6.8L displacement), offering powerful performance while being fuel-efficient and environmentally friendly. The vehicle has a 4600mm wheelbase, an HW13710 transmission, and seven 295/80R22.5 tires, ensuring stable and reliable driving. The cab features air conditioning, a USB port, power steering, and a three-seat configuration for comfortable and convenient operation. The cargo box has a volume of 15cbm and a rear tipping-type garbage loading and unloading structure, supporting three different loading and unloading methods.



  • Working capacity :

    15 cbm
  • Cabin type :

    Howo NX cabin
  • Dimension (mm ) :

    8850 X 2500 X 3200
  • Drive system :

    4x2, RHD
  • Wheelbase ( mm) :

    4600
  • Engine specific :

    300HP / WP10.300E22
  • Gear box :

    HW13710, 10-speed, manual
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    16000
  • Remark :

    PLC control system
New Products

The Howo 15cbm rear compaction garbage truck is a sanitation vehicle that integrates garbage collection, compression, and transportation. It uses a hydraulic system to compress and store garbage, maximizing carrying capacity and reducing the frequency of collection.

The garbage bin is made of high-strength weather-resistant steel plate, with side panels using a one-piece molding process. The compartment has excellent sealing performance, preventing sewage leakage and odor spread, making it environmentally friendly and efficient. The Howo rear compaction garbage truck is suitable for centralized collection and transportation of domestic waste in cities, residential areas, factories, and other locations. It is easy to operate and safe and reliable.

● China best rear compaction garbage truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service



*Howo 15cbm rear compaction garbage truck

Howo 15cbm trash compactor truck*

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED



Product Features

High-efficiency compression: Employs a hydraulic compression system, significantly increasing waste loading capacity.

Environmentally friendly and leak-proof: The enclosed compartment design effectively prevents wastewater overflow and odor spread.

Easy operation: Equipped with an automatic control system, loading and unloading waste is simple and safe.

Wide applicability: Suitable for various waste collection and transportation environments, including cities, residential areas, and factories.

Howo 15cbm rear compaction garbage truck (also called Howo 15cbm rear loader garbage truck, HOWO 300hp waste compaction truck, Howo 15cbm trash compactor truck, Howo 300hp garbage compactor truck, Howo rear load dumpster truck, Howo 15cbm back loader garbage truck, Howo rear loader compactor truck,etc.) is a new type of sanitation vehicle specially used for collecting, transferring and removing garbage.

The container body is made of high-strength weather-resistant steel plate, and the side panels are formed using an integrated process. It has an arc shape, a solid structure, beautiful appearance, light weight, good force resistance, and a large loading capacity.





Waste Compaction Principle

The Howo waste compaction truck uses a hydraulic system to drive pushers or scrapers, pushing loose waste into the compaction chamber and applying high pressure for compaction.

The waste is compressed into high-density blocks within the enclosed compartment, significantly reducing volume and increasing the truck's loading capacity.

The entire compression process is automatically controlled by an electronic system, ensuring smooth, safe, and reliable operation, effectively improving waste collection and transportation efficiency.

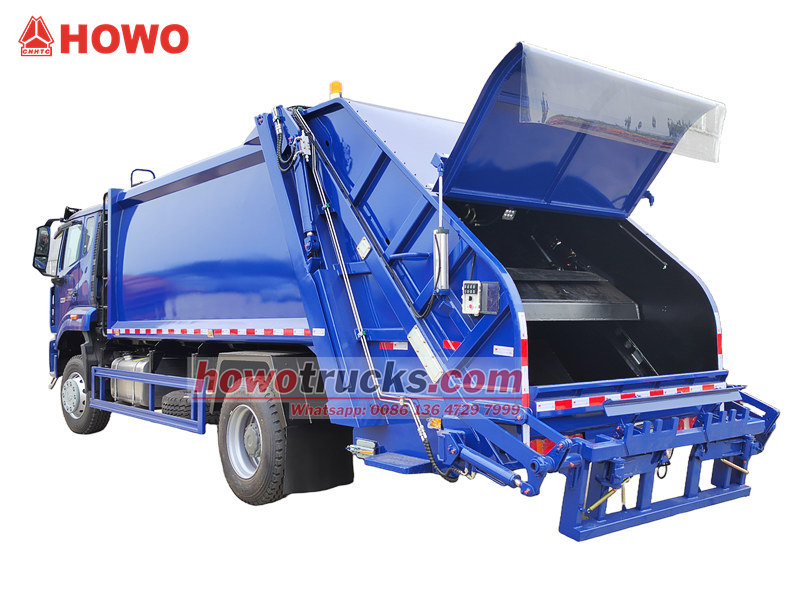

Waste Unloading Principle

When the vehicle arrives at the waste treatment plant, the hydraulic system reverses its operation, pushing the pusher to eject the compressed waste from the truck bed.

The tailgate is opened by a hydraulic cylinder, ensuring smooth and residue-free waste discharge.

The entire unloading process is fully automated, simple to operate, highly efficient, reduces manual labor intensity, and maintains a clean working environment.

» Ⅱ. Product Parameter for Howo 15cbm rear compaction garbage truck:

Howo 15cbm rear compaction garbage truck

Vehicle Description

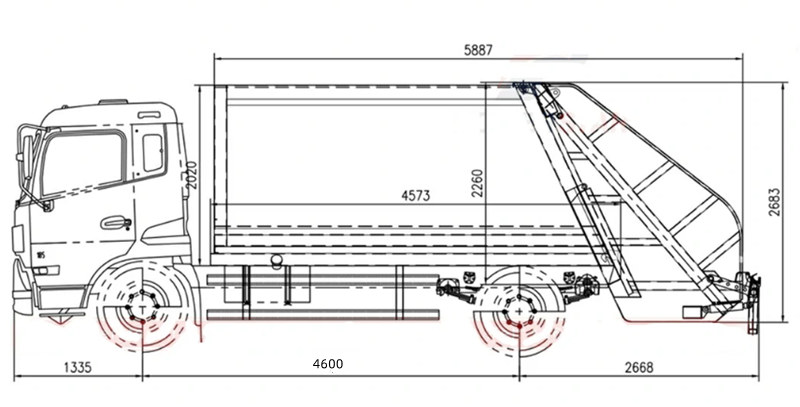

Overall dimensions

8850X2500X3200mm

Curb weight

9250kg

Chassis brand

HOWO

Traction type

4x2, Right-hand drive

Up-parts Specification

Dustbin volume

15 cbm

Sewage water tank

200L

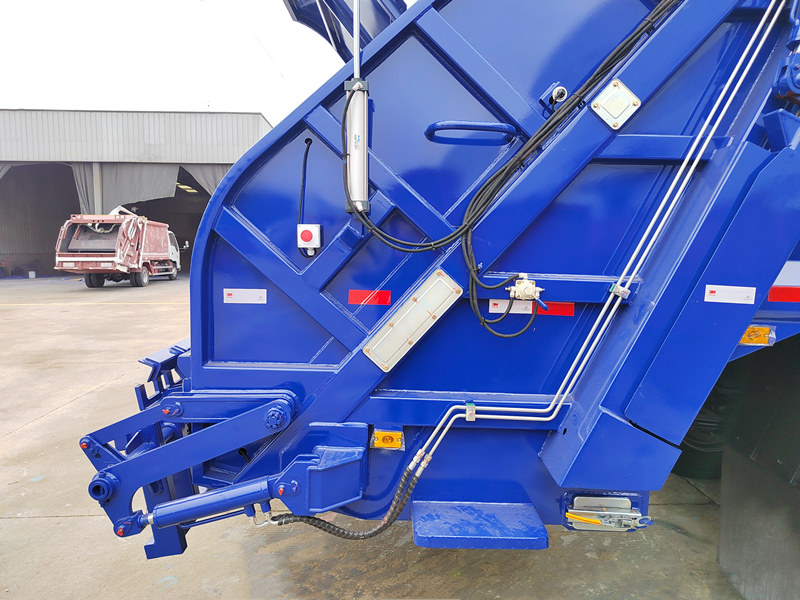

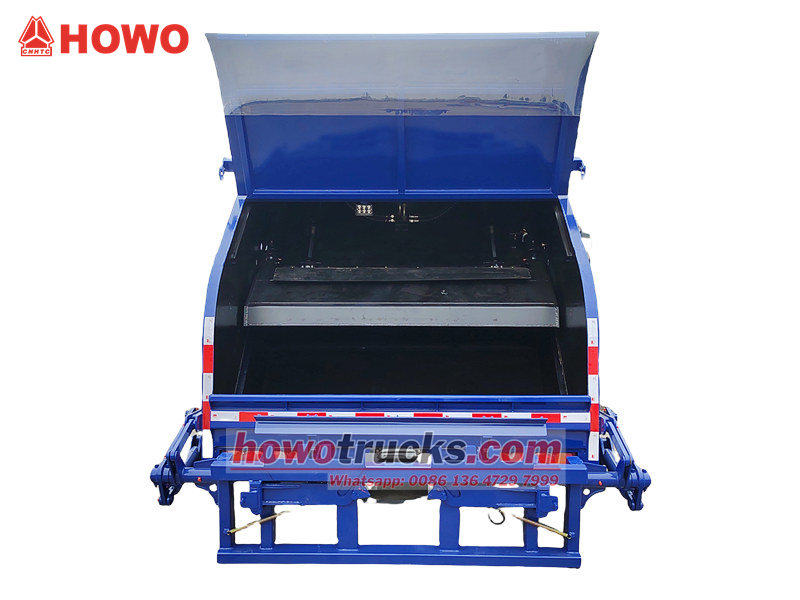

Type of Rear garbage filler
(Rear Turnover device)

Hanging trash bin flip mechanism

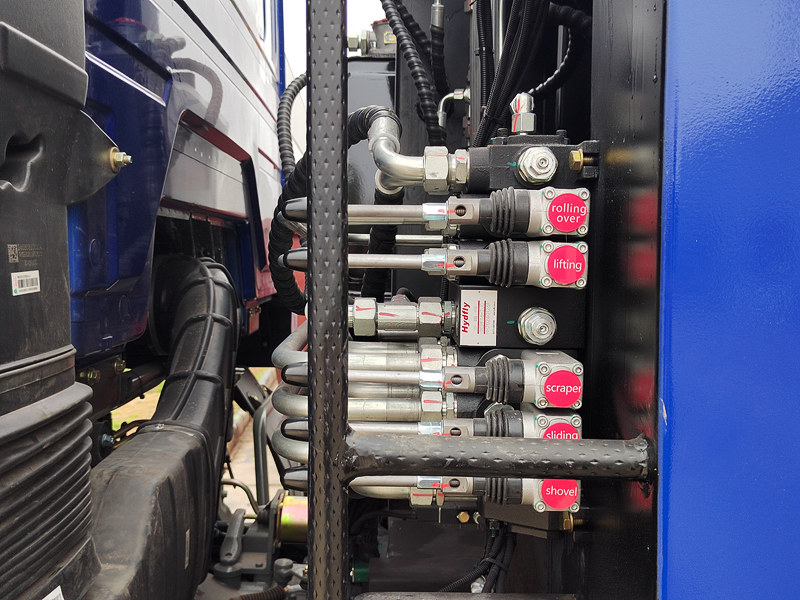

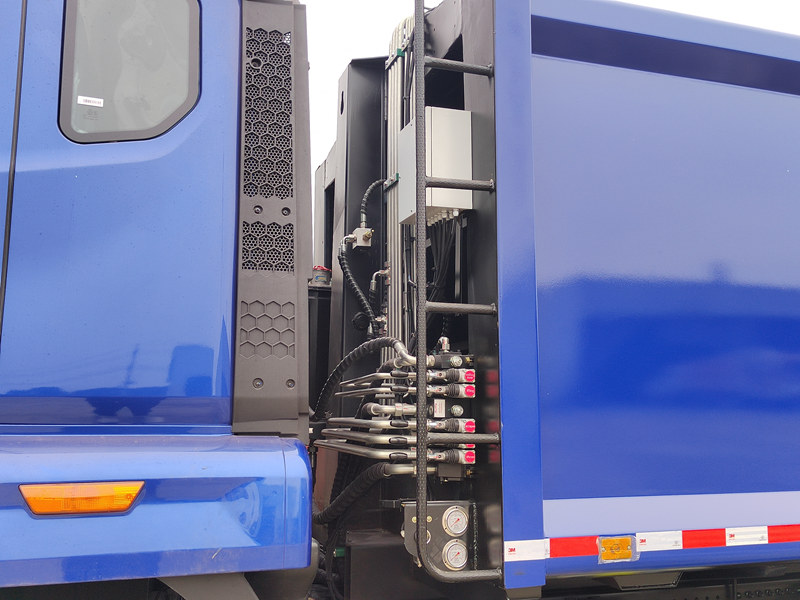

Control system

Electrically Controlled Hydraulic + Manual Hydraulic

Type of compactor

Fill, push and compression

PLC

Importation PLC (Programmable controller)

Chassis Description

Wheelbase

4600mm

Tire specification

295/80R22.5

Tire quantity

6+1 units

Engine

Model

WP10.300E22

Emission level

Euro 2

Displacement/output

6.8L/221KW

Horse power

300HP

Gear box

Model

HW13710

Brake system

Full air brake

Color and Logo

According to wish



» Product Detailed introduction:

1. Product Overview

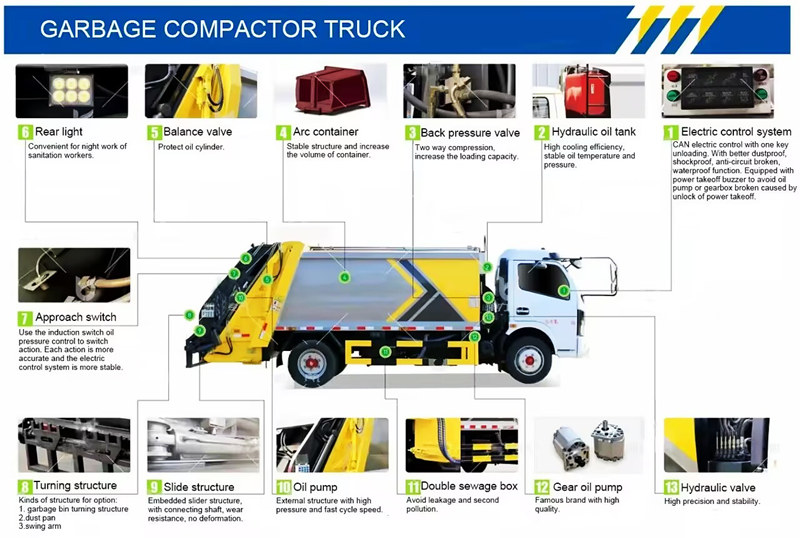

The Howo 15cbm rear compaction garbage truck consists of a chassis, a garbage compartment, a hydraulic system, an electrical control system, and operating devices.

It achieves automatic garbage compression and unloading through hydraulic transmission, significantly improving garbage collection and transportation efficiency.

The compartment features a fully enclosed design with excellent sealing performance, effectively preventing sewage leakage and odor diffusion, ensuring environmental hygiene.

2. Key Features

High-Efficiency Compression: The hydraulic compression mechanism compacts loose waste into high-density blocks, increasing waste loading capacity by over 60% and reducing the frequency of collection.

Environmentally Friendly and Energy-Saving: The fully enclosed structure prevents secondary pollution; the vehicle has low noise and low energy consumption, meeting modern environmental protection requirements.

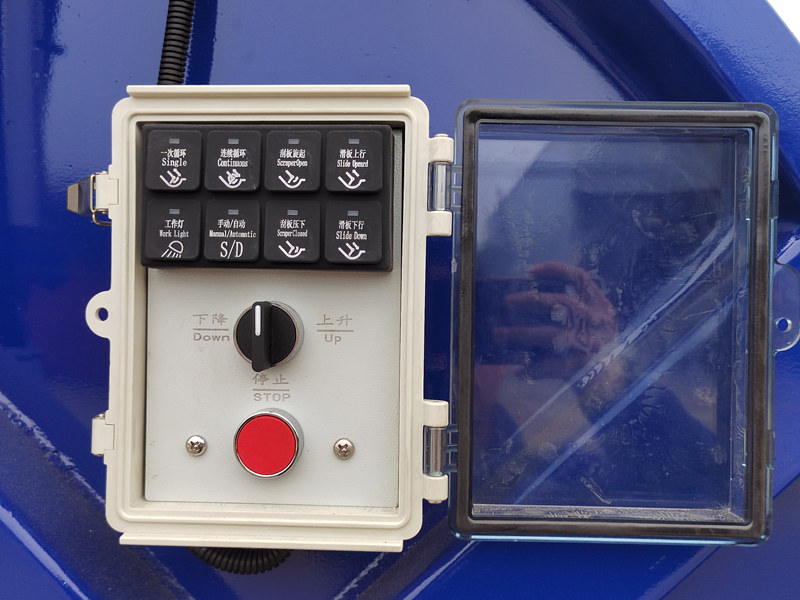

Intelligent Operating System: Equipped with an automatic and manual dual-mode operating system, controllable from the cab or rear of the vehicle, offering simple, safe, and reliable operation.

3. Performance Advantages and Applications

The Howo rear compaction garbage truck boasts advantages such as large loading capacity, robust structure, convenient operation, and simple maintenance.

Its efficient compression and automatic unloading functions significantly improve operational efficiency and reduce manual labor intensity, making it an indispensable core piece of equipment in modern urban sanitation systems.







Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

howotrucks is a leading exporter of rear compaction garbage truck in China. We possess over 10-year export experience of rear compaction garbage truck. We can ensure the fast delivery time and 12 months guarantee for our rear compaction garbage truck. Our rear compaction garbage truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safety, Quickly, Timely
