HOWO 10000L sewer vacuum truck

HOWO 10000L sewer vacuum truck

HOWO 10000L vacuum tank truck is a powerful sanitation vehicle built on a HOWO 4×2 chassis and equipped with a 160HP engine. It efficiently suctions and discharges sewage and sludge using negative pressure generated by a vacuum pump. With a additionally equipped fecal suction rod, it can clean septic tanks as well as remove blockages in sewer pipes, making it a versatile multi-purpose vehicle. This HOWO sewage truck operates with high efficiency and large capacity, making it an ideal choice for municipal sanitation, livestock farms, and other similar applications.

  • Working capacity :

    10000 liters
  • Cabin type :

    HOWO 2080
  • Drive system :

    4×2
  • Wheelbase ( mm) :

    4200
  • Engine specific :

    160HP/YC4E160-33
  • Gear box :

    WLY6TS55
  • Front axle ( Kg ) :

    3200
  • Rear axle ( Kg ) :

    8000
New Products

HOWO 10000L sewer vacuum truck is a large-capacity sanitation vehicle built on a SINOTRUK HOWO chassis, primarily used for the efficient collection and transportation of liquid waste such as sludge and sewage. Its core components include a 10,000-liter carbon steel tank, a PTO-driven vacuum pump, and a hydraulic lifting system. The vehicle operates by creating negative pressure inside the tank through the vacuum pump, utilizing atmospheric pressure to force waste into the tank for rapid self-suction. This HOWO septic tank truck features fast suction speed, excellent sealing, and user-friendly operation, effectively preventing secondary pollution during tasks.

This HOWO vacuum tank truck delivers high working efficiency, capable of filling a tank with waste water in less than 8 minutes, with a vertical suction depth of over 7 meters. The additionally installed suction rod significantly enhances its adaptability, enabling it to efficiently handle traditional tasks such as septic tank cleaning while also removing sediment from sewer pipes, achieving multi-functionality. The tank is treated with anti-corrosion coatings and equipped with multiple safety devices, ensuring high reliability. Thanks to its versatility, this HOWO vacuum pump truck is widely used in various scenarios, including municipal sanitation, livestock farms, and septic tank cleaning.

HOWO 10000L vacuum tank truck



*HOWO 4×2 Vacuum Sewage Truck

 SINOTRUK HOWO Septic Pump Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

★ Built on HOWO 4×2 chassis, with HOWO classic wide cabin, 2 seats and one sleeping berth

★ Vacuum tank made of 6mm thick high-quality steel material, with baffle walls and anti-rust coating inside

★
Equipped with 2 units China top brad vacuum pump, with high pumping speed.

★ Equipped with an additional fecal suction rod on top of the tank.



Ⅱ. Product Parameter for HOWO sewer vacuum truck:



HOWO 10000 liters Vacuum Sewage Truck Specifications



Chassis Parameters

Chassis Brand

Sinotruk Howo



Cabin

HOWO classic 2080 cabin, 2 seats and one sleeping berth, with A/C



Engine

Model

YC4E160-33



Power

160HP (118KW)



Emission standard

EURO 3



Displacement

4257 ml



Fuel type

Diesel



Rated speed

2600 rpm



Max. torque

600 N.m



Speed at max. torque

1200-1600 rpm



Gearbox

WLY6TS55, manual type, 6 Forwards and 1 Reverses



Overall dimension

7350*2360*2850mm



Front and Rear Axle load

3.2T/8T



Wheelbase

4200mm



Brake System

Air Brake



Steering Gear

Power Assistant



Tire

8.25R20, 6 Pieces with 1 Spare Tire



Maximum driving speed

90 (km/h)



Superstructure



Tank body

Capacity

10000 liters



Tank material

Q345 carbon steel



Thickness

6mm



Vacuum pump

China top brand pump

Brand: Wloong



Model: 50QZXDH-68/7000



Drive model: PTO



Ultimate pressure: 7000 pa



Pumping speed: 68 L/s



Rotating speed: 800 rpm



Tank lifting system

Lifting method

Lifted by hydraulic cylinders



Lifting angle

45°



Features

1. Suction time:  less than 8 mins
2.Discharge time: less than 5 mins
3. Horizontal suction distance: more than 100m
4. Vertical suction depth: more than 7m

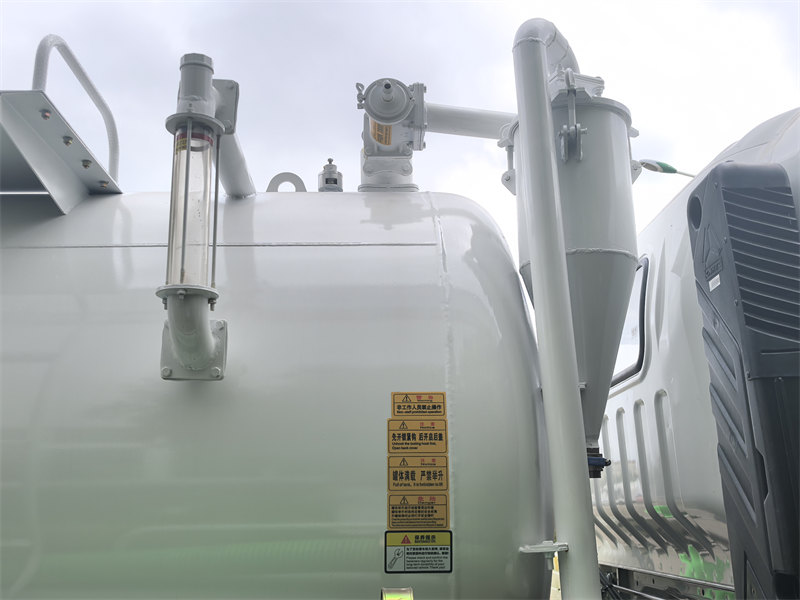

Safety device

1.Second anti-overflow device
2. Visible sewage level tube
3. Sewage level sensor and alarming system



Main parts

1.Hydraulic cylinder
2.Pressure meter
3.Liquid level gauge
4.Anti overflow valve
5.Hydraulic control rear cover
6.Tipping sewage tank body
7.Anti-rust metallic paint, or as your requirement

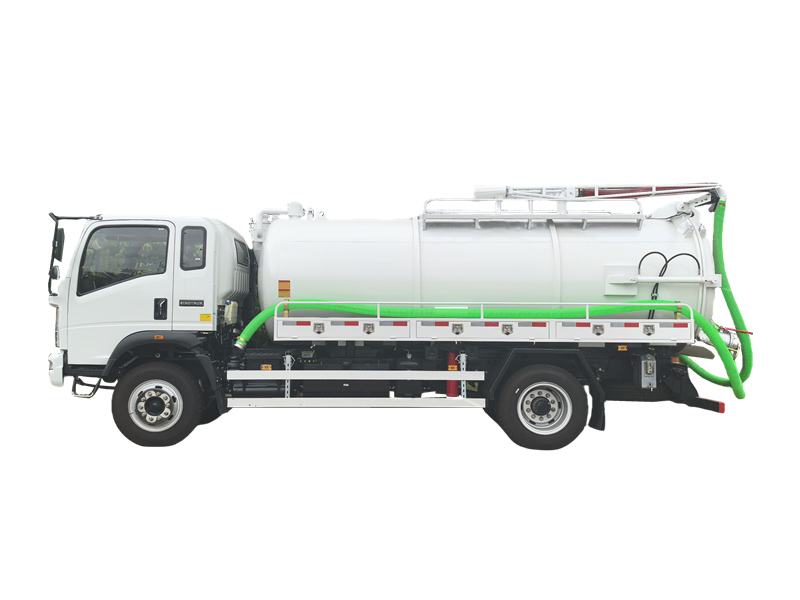

SINOTRUK HOWO sewer vacuum tank truck



Ⅲ. Product Details & Fucntions:

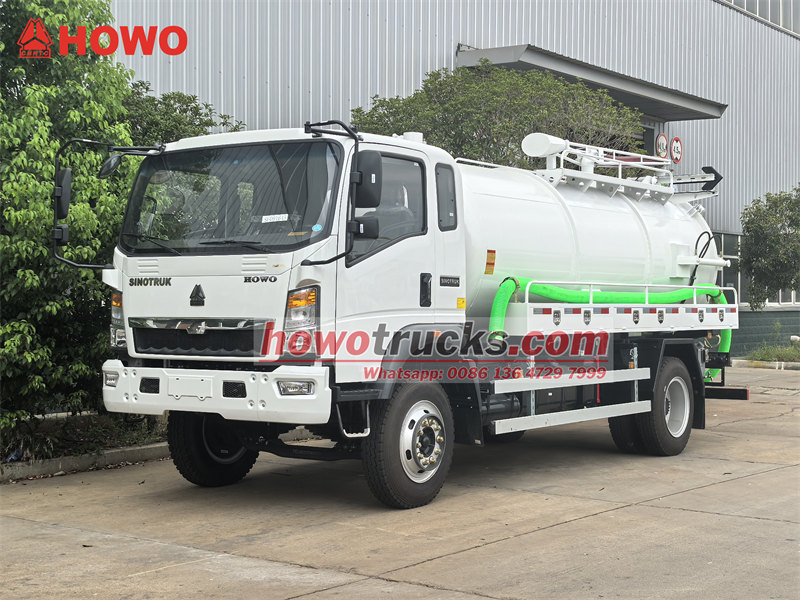

HOWO 6 wheeler vacuum tank truck

HOWO Chassis

Based on HOWO 4×2 chassis, 4200mm wheelbase, Yuchai 160hp Euro 3 diesel engine, also can choose Cummins brand engine, and it has LHD or RHD options.



HOWO 10 cubic sewage suction truck

Tank Body

Tank body is made of high quality steel Q345 with high strength, 6 mm thickness body and head cover, with baffle plates inside, back door hydraulically open and close; tank body can be lifted by hydraulic cylinder.



HOWO 4×2 sewage tank truck

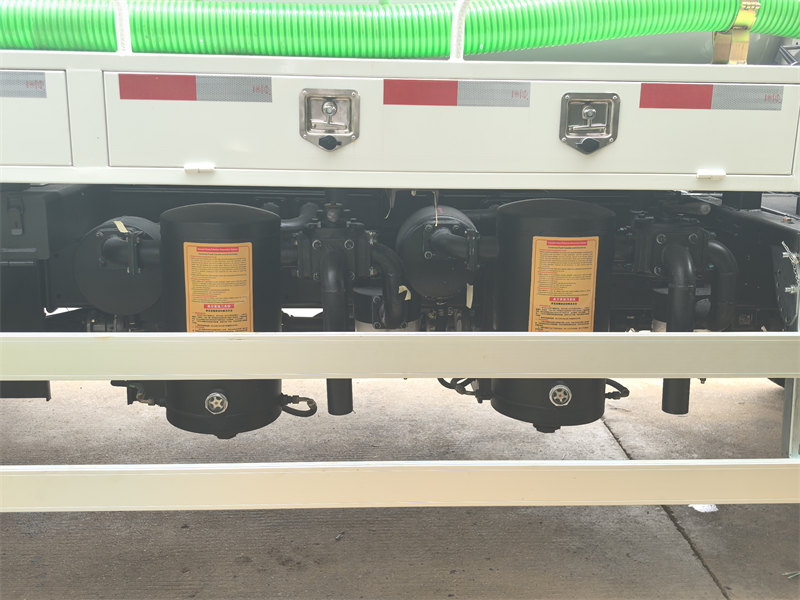

Vacuum Pump

Equipped with China famous brand Wloong vacuum pump with powerful vacuum capacity, simple structures, good performance, long running working hours, less maintenance, easy to maintain.









Ⅳ. Product Structure Drawing:

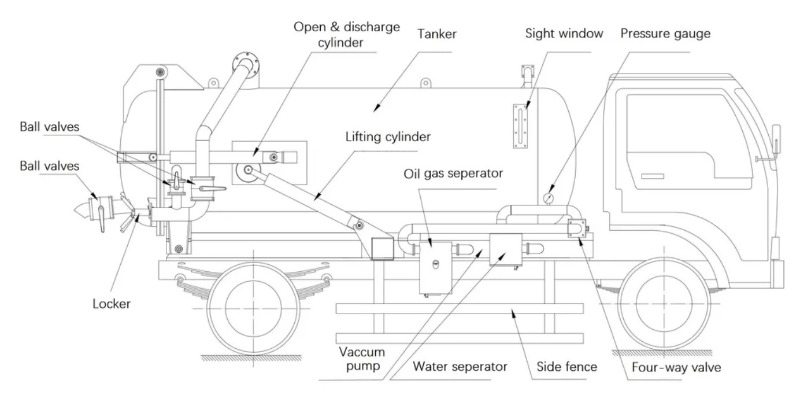

HOWO sewage tank truck drawing

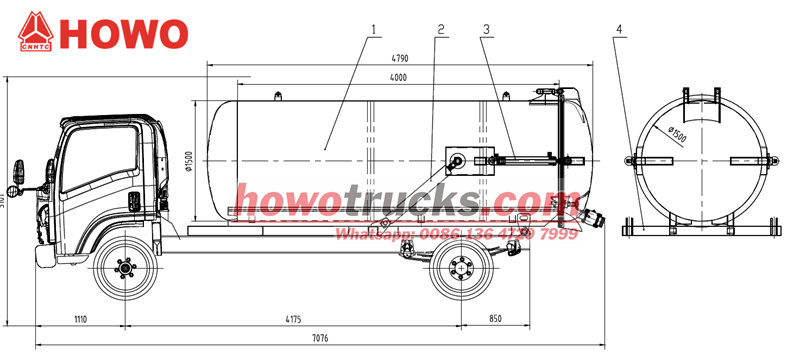

HOWO 10000L sewage suction truck drawing


Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

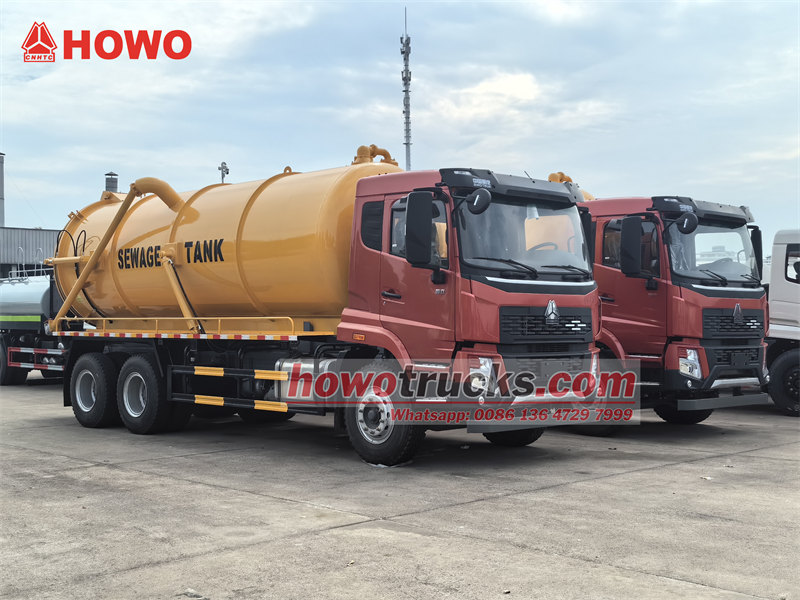

HOWO septic tank truck for export

SINOTRUK HOWO heavy duty vacuum tank trucks for export

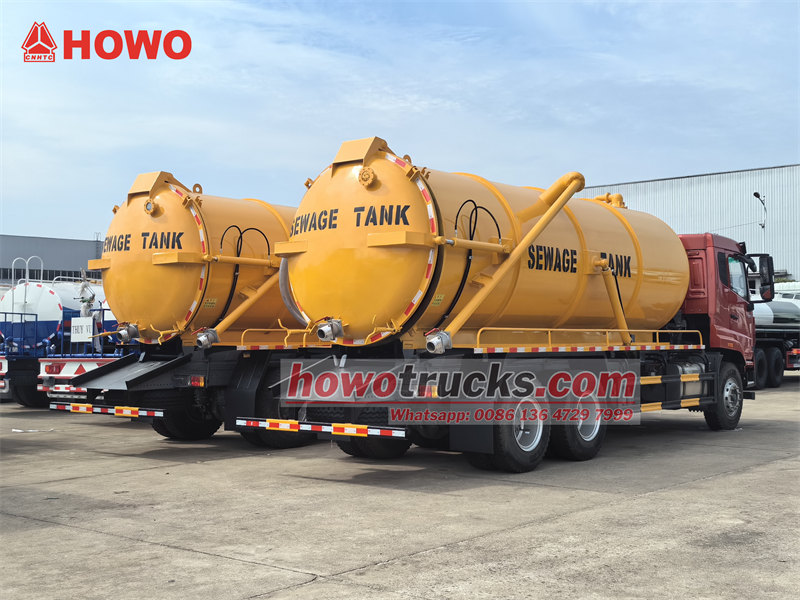

SINOTRUK HOWO vacuum trucks for export

SINOTRUK HOWO sewer vacuum trucks ready for shipment
