HOWO 20000L septic tank pump truck

HOWO 20000L septic tank pump truck

HOWO vacuum tank truck, manufactured by CS TRUCKS, is a specialized sanitation vehicle designed for cleaning and transporting wastewater, sewage, sludge, and other liquid waste. Built on the SINOTRUK HOWO 6×4 chassis, it features a 20,000-liter carbon steel tank and a highly efficient water-ring vacuum pump, which enables rapid suction with a depth exceeding 9 meters. Equipped with practical functions such as a liquid level alarm system, a quick-open/close rear cover, and observation mirrors, this vehicle is suitable for urban sewage management, septic tank cleaning, and industrial waste liquid transportation. It is a reliable and professional solution for sanitation operations.

  • Working capacity :

    20000 liters
  • Cabin type :

    HOWO HW76
  • Drive system :

    6×4
  • Wheelbase ( mm) :

    4625+1350
  • Engine specific :

    400HP/WP12.400E32
  • Gear box :

    HW19710
  • Front axle ( Kg ) :

    9500
  • Rear axle ( Kg ) :

    16000+16000
New Products

HOWO 20000L vacuum tank truck, produced by CS TRUCKS, is a sanitation vehicle designed for cleaning and transporting wastewater, sludge, and other liquid waste. Built on a robust HOWO 6×4 heavy-duty chassis, it is equipped with a vacuum suction system and a storage tank for efficient waste handling. Powered by a WP12.400E32 400-horsepower diesel engine, this HOWO septic tank truck is paired with a 10-speed manual transmission and an air braking system. Its core component includes a water-ring vacuum pump with a suction capacity of 20.5 m³/min, complemented by a 10-meter-long suction hose and a 6mm thick carbon steel tank. With a suction height of over 9 meters, it efficiently handles challenging sewage cleaning tasks.

The HOWO vacuum pump truck integrates multiple practical features, such as a liquid level alarm system, front and rear observation mirrors, and a hydraulically operated rear cover, ensuring both operational convenience and safety. The model 2BE-204N vacuum pump offers high air extraction efficiency, with a working pressure of 8000 Pa. The tank has an effective volume of 20,000 liters, and both suction and discharge times are optimized for efficiency. With a robust structure and strong adaptability, this vehicle is widely used in urban sewage treatment, septic tank cleaning, and industrial waste liquid transportation.

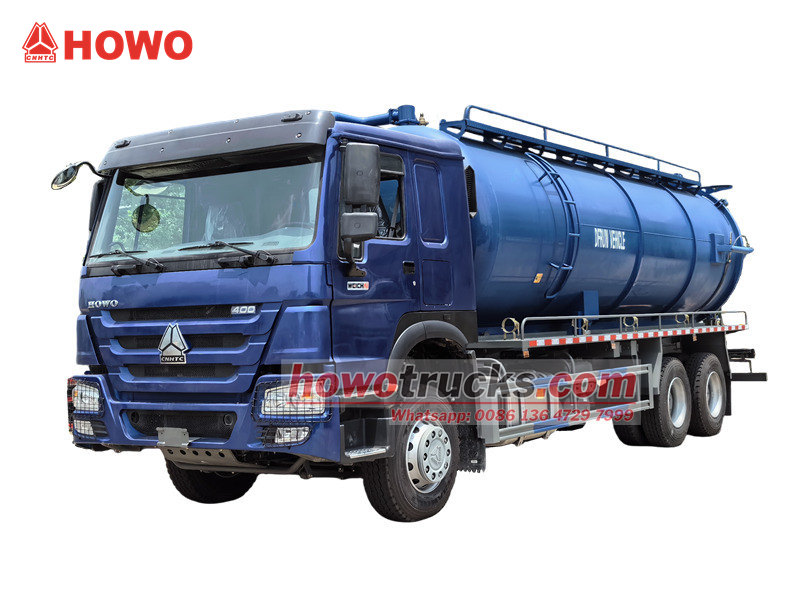

HOWO 20CBM vacuum tank truck



*HOWO 6×4 Vacuum Tank Truck

 SINOTRUK HOWO Septic Tank Pump Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

★ Based on HOWO 6×4 heavy duty chassis, with WEICHAI 400HP diesel engine, super powerful

★ Vacuum tank made of 6mm thick high-quality steel material, with baffle walls inside

★ The tank capacity is up to 20000 liters, suitable for large-scale sewage collection and transportation.

★ Equipped with a well-known brand water circulation vacuum pump, with high air pumping efficiency.



Ⅱ. Product Parameter for HOWO sewer vacuum truck:























HOWO 20000L Septic Tank Pump Truck Specifications
Vehicle model CS5253GXW
Cab HW76 single row cab, 2 seats, with sleeper, with power steering and A/C
Driving Type 6×4, Left hand driving
Max Speed (km/h) 90
Overall dimension(mm) 9420×2500×3455
GVW( kg) 25000
Curb weight ( kg) 13575
Wheelbase(mm) 4625+1350
F/R track base (mm) 2022/1830
F/R overhang (mm) 1500/2380
Approach/Departure Angel 16/14
Tire 295/80R22.5 (10+1)
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box 10-speed, manual
Axles Front axle load 9500 kg
Rear axle 16000kg+16000kg
Engine Model WP12.400E32
Fuel Type Diesel
Type 6 cylinders, water-cooled 4-stroke, direct injection, turbocharged
Displacement (ml) 11596
Max output power/rotate speed (hp /rpm ) 400/2100
Max torque/rotate speed(N.m/rpm) 1780/1200~1500
Braking system Service Brake Compressed air brake
Park Brake Spring energy
Auxiliary brake Engine exhaust brake
Electric system 24v
Upper-Body specifications
Volume of tank 20000 liters
Material of tank Carbon steel (Q235B), 6mm thickness
Special function Suction height ≥9(m)
Suction time 250(S)
Maximum Inclination Angle ≥45°
Lifting time ≤45 S
the Cover opening Angle ≥75°
The cover opening time ≤25 S
Suction hose 10 m length and 100 mm in diameter
Hose racks Installed on both sides of tank
Fittings Four-way valve fitted to pump

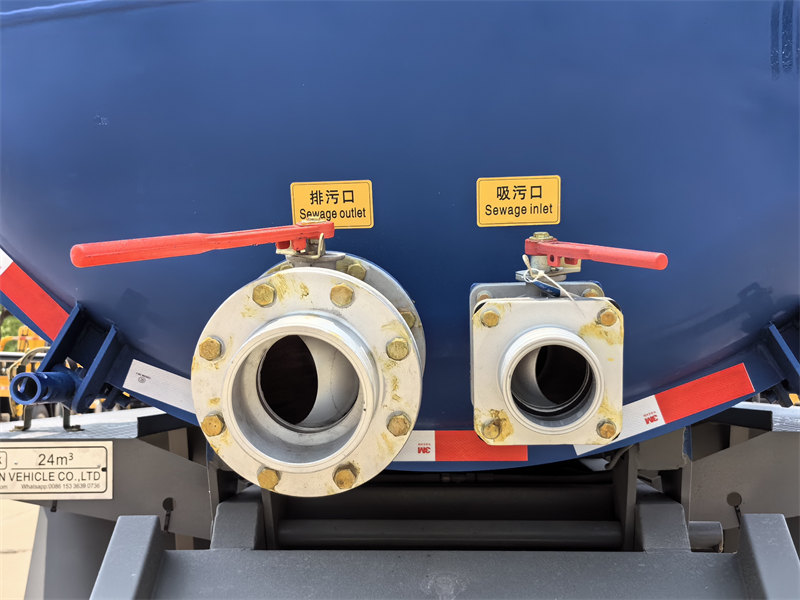

Discharge valves
Vacuum pump
Fully opening rear cover
Sight glasses at top and rear of tank
Ladder on one side of the tank
Liquid level alarm in cabin
vacuum pump Type Water circulation vacuum pump
Pump model 2BE-204N
Max. working pressure 8000 pa
Pumping speed 20.5m3/min
Rotation speed 980 rpm







Ⅲ. Product Details & Fucntions:

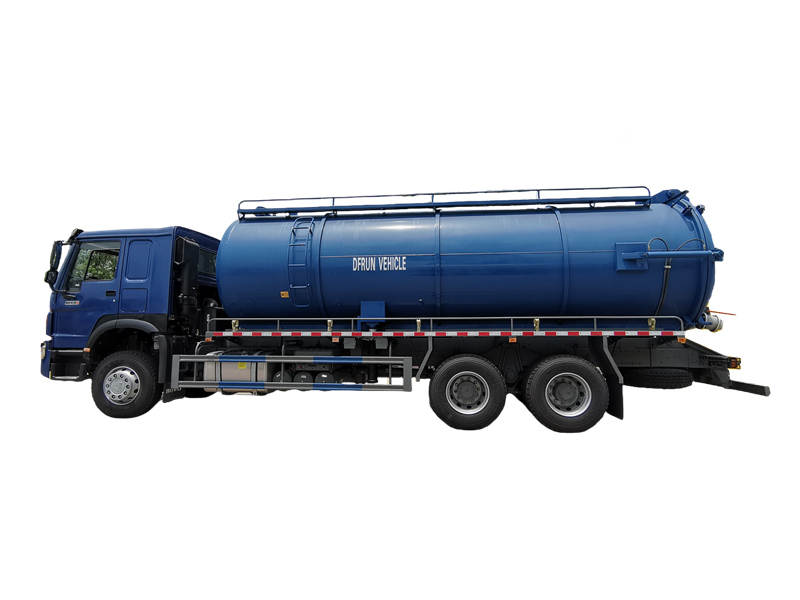

HOWO 10 wheeler vacuum tank truck

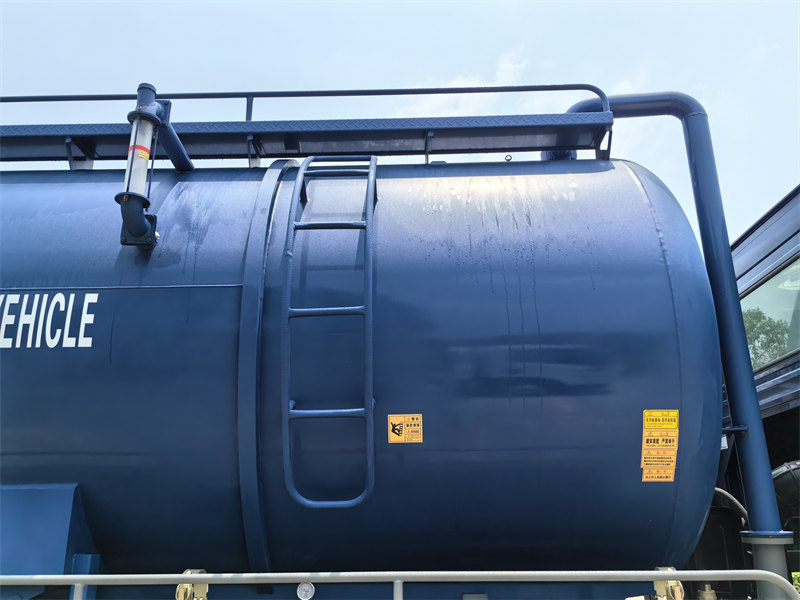

Vacuum Tank

The tank body is made of high quality carbon steel with 6mm thickness. Equipped with ladder on side, view window and walk way.



HOWO 20 cubic sewage suction truck

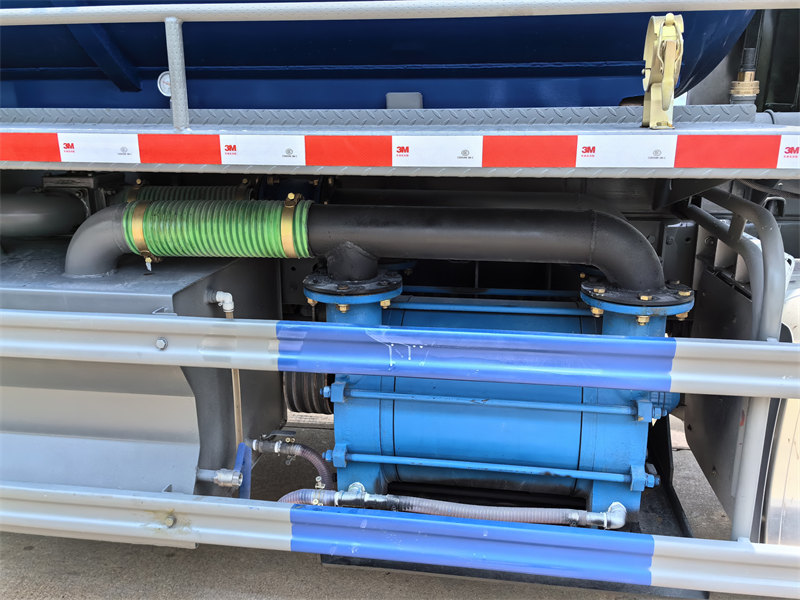

Vacuum Pump

Equipped with China famous brand water circulation vacuum pump, which has high air pumping speed, with a working pressure of 8000pa.

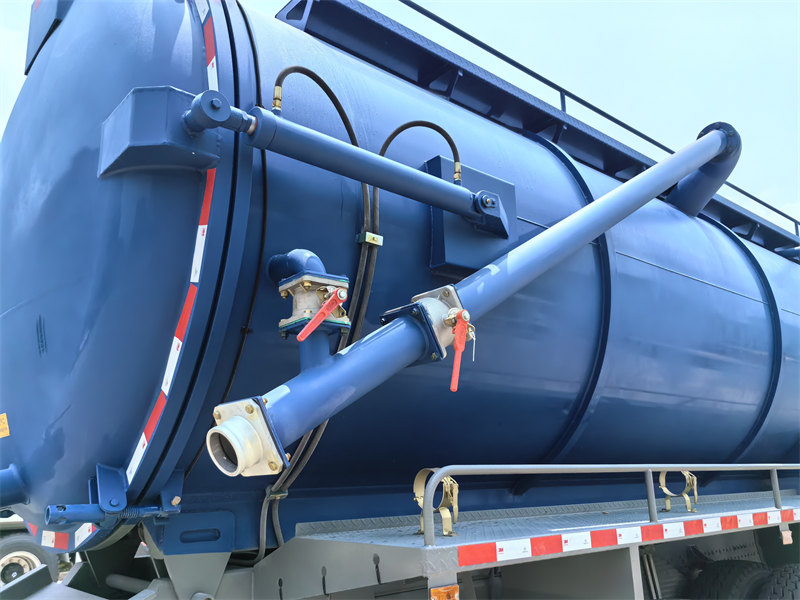

HOWO 6×4 sewage tank truck

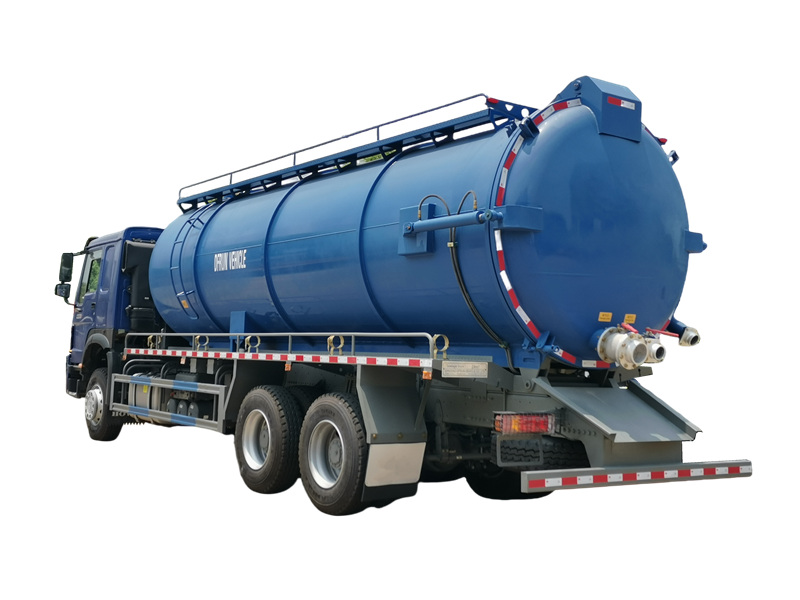

Rear Cover

The rear cover can be hydraulically operated for opening and closing, ensuring convenient and efficient discharging of the waste water in the tank.

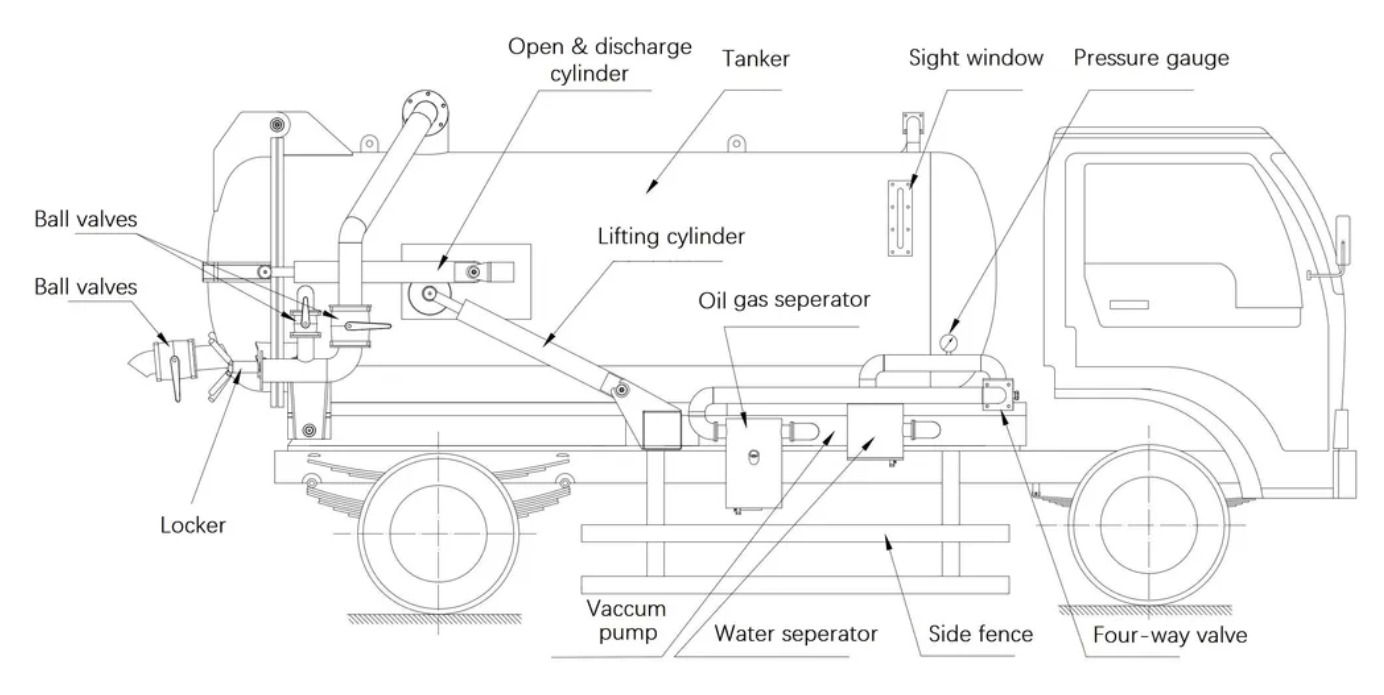

Ⅳ. Product Structure Drawing:



HOWO sewage tank truck drawing


Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.













HOWO septic tank truck for export

SINOTRUK HOWO septic tank trucks for export



SINOTRUK HOWO vacuum trucks for export

SINOTRUK HOWO vacuum sewage trucks ready for shipment
