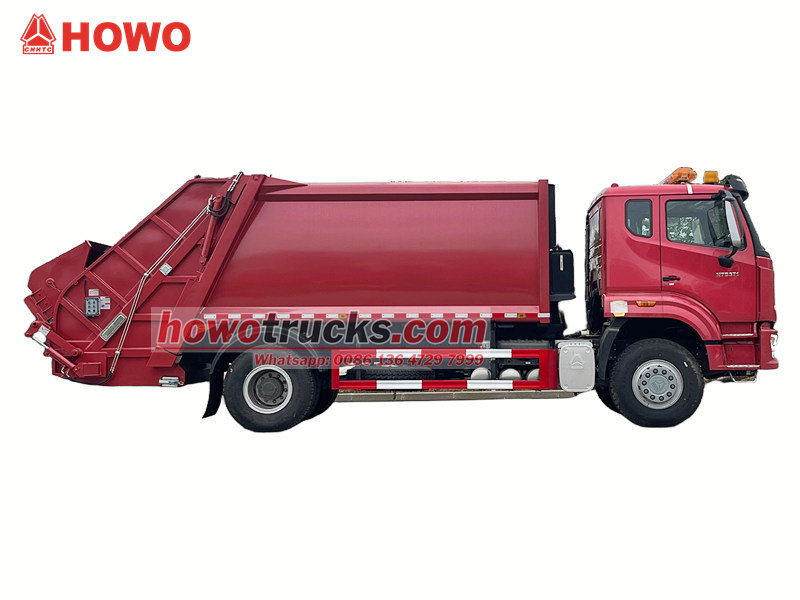

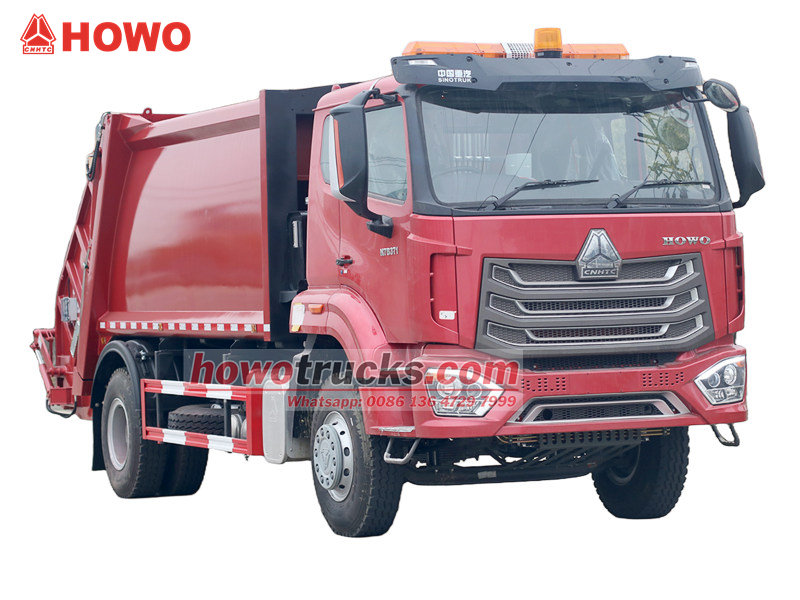

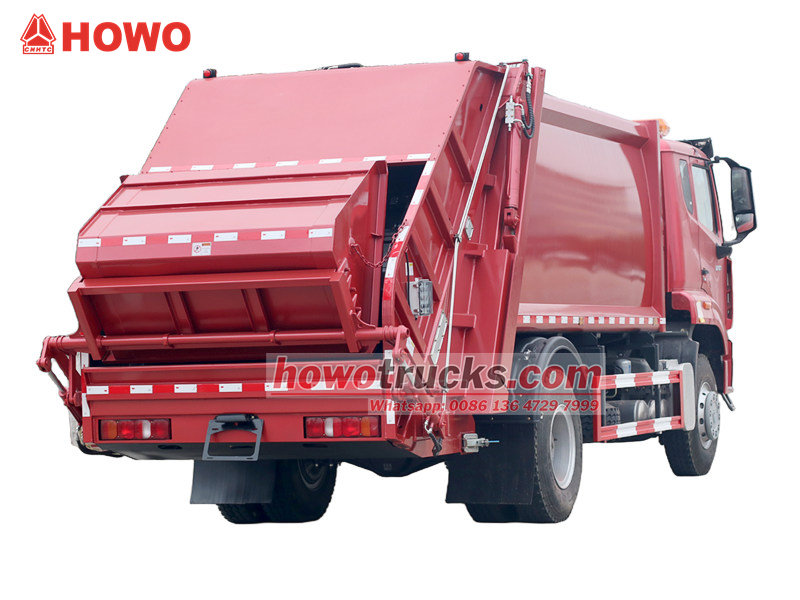

Nigeria howo rear loader waste compactor truck

Nigeria howo rear loader waste compactor truck

The Nigeria howo rear loader waste compactor truck is a highly efficient and reliable vehicle designed for urban and suburban waste management. With 4600mm wheelbase with WP10.300E22 300hp engine,Euro 3 diesel 9.726L emission, HW19710 -shiftgearbox, 295/80R22.5 tires with totally 7 pcs, with A/C,USB,direction assistance,3 seats.The body is made of high-strength weather-resistant steel plate, and the side panels are made with a one-piece forming process. The rounded shape makes the structure sturdy, the appearance beautiful, the weight light, the stress good, and the loading capacity large.



  • Working capacity :

    15 cbm
  • Cabin type :

    Howo NX cabin
  • Dimension (mm ) :

    8650 X 2520 X 3350
  • Drive system :

    4x2, RHD
  • Wheelbase ( mm) :

    4600
  • Engine specific :

    300HP / WP10.300E22
  • Gear box :

    HW13710, 10-speed, manual
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    16000
  • Remark :

    PLC control system
New Products

The Howo rear loader waste compactor truck features a sealed body constructed from high-strength steel, coupled with an advanced hydraulic compression system, which significantly compresses loose waste, greatly increasing the capacity of a single trip.

The Howo rear loader waste compactor truck is equipped with an automatic loading device at the rear, which quickly lifts, crushes, and compacts waste, saving time and labor. Simultaneously, the truck's excellent sealing performance effectively prevents waste spillage and leachate leakage during transportation, providing strong support for creating a clean and efficient urban environment.

● China best rear loader waste compactor truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service



*Nigeria howo rear loader waste compactor truck

HOWO loader watse collection truck*

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED



Product Features

High-efficiency compression: Equipped with a hydraulic system, it can significantly compress waste volume, increasing the amount loaded per load and reducing transportation frequency.

Excellent sealing: The container has a tight-fitting sealing structure, effectively preventing waste spillage and leachate leakage during transportation, avoiding secondary pollution.

Easy operation: The automatic loading device at the rear can quickly complete waste lifting, crushing, and compaction, saving time and labor.

High adaptability: Suitable for various waste collection scenarios, meeting the sanitation needs of different urban areas.

Nigeria howo rear loader waste compactor truck (also called HOWO 4x2 trash crusher truck, HOWO garbage truck with compactor, HOWO 300hp rear loader garbage truck, HOWO 15cbm waste compaction truck, HOWO 4x2 garbage compactor truck, HOWO 15cbm trash compactor truck, HOWO rear loader compactor truck,etc.) is a new type of sanitation vehicle specially used for collecting, transferring and removing garbage.

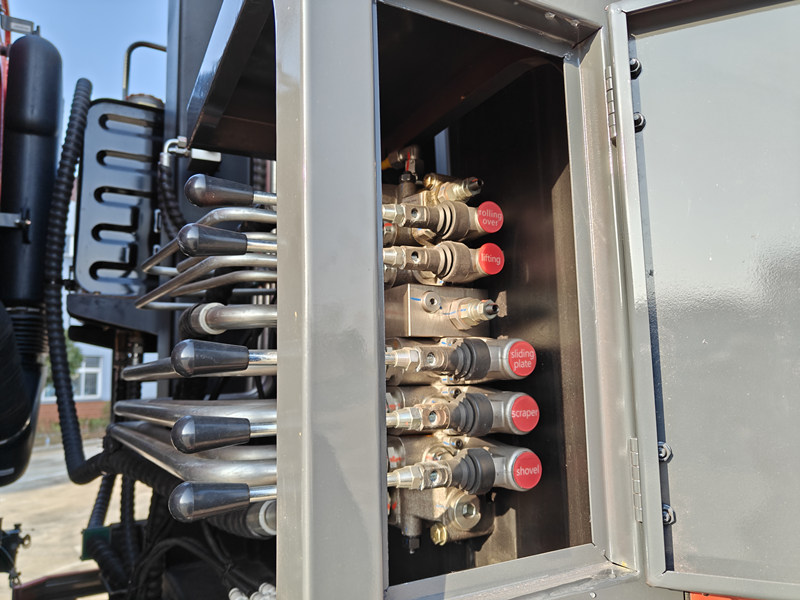

It adopts imported electro-hydraulic multi-way valves and PLC (Programmable Logic Controller) for integrated control, and uses logic loops to ensure that each operation command is executed in sequence, which reduces the failure rate, avoids accidents caused by misoperation, and improves reliability.







The vehicle boasts a sleek, streamlined exterior design, with the upper body constructed from specialized high-strength, corrosion-resistant steel plates, significantly extending its service life.

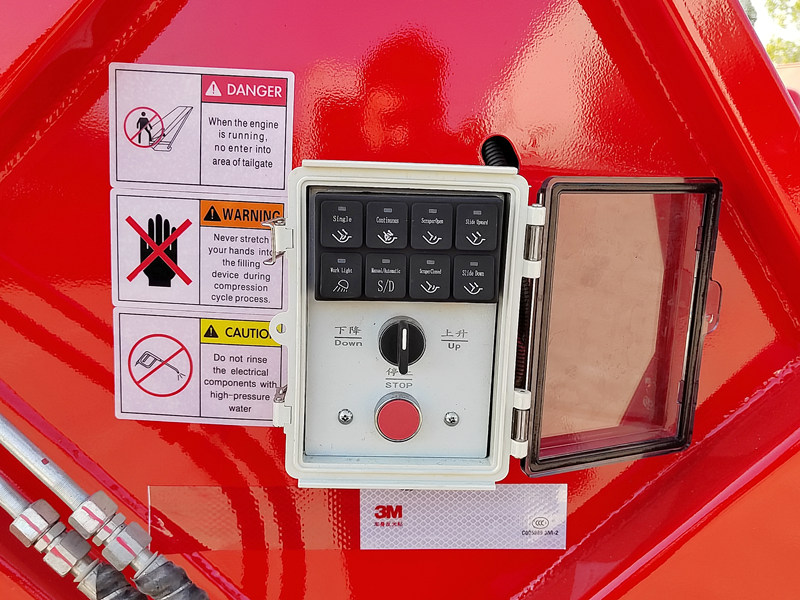

Convenient operation and control are provided. The control boxes are located in both the cab and rear of the vehicle. The cab control box manages the pushing and unloading process and allows selection of operating modes (automatic or manual), while the rear control box manages the compaction and tipping mechanisms. Operation is extremely convenient.

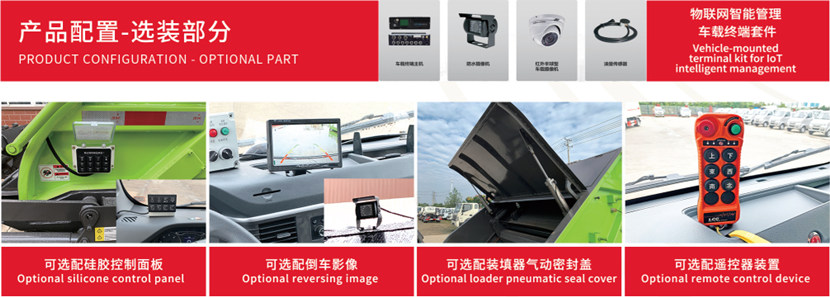

Optional rear monitoring system for convenient visual loading and unloading operations from the cab.



Dual safety system: The operating system features both automatic and manual control, greatly ensuring and improving vehicle utilization.

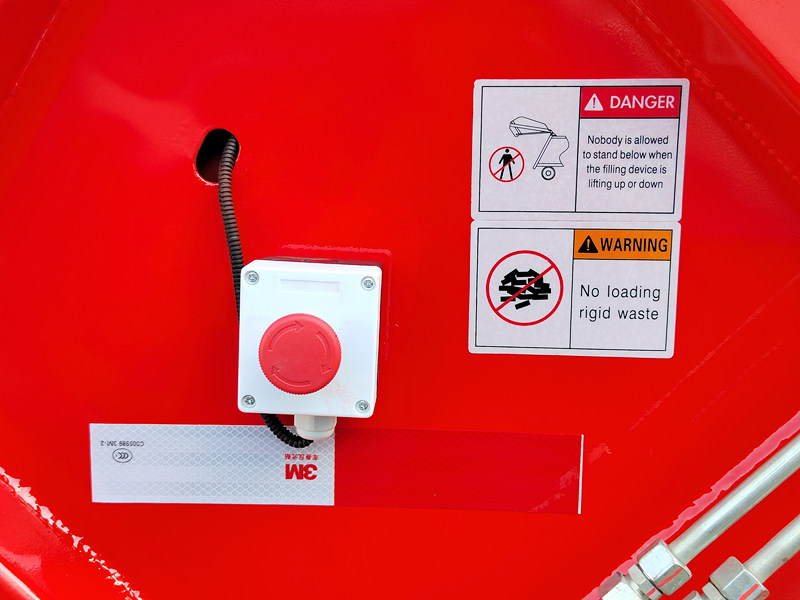

A specially designed emergency brake button allows the waste compaction mechanism to stop in any state or position, ensuring the safety of personnel and equipment.

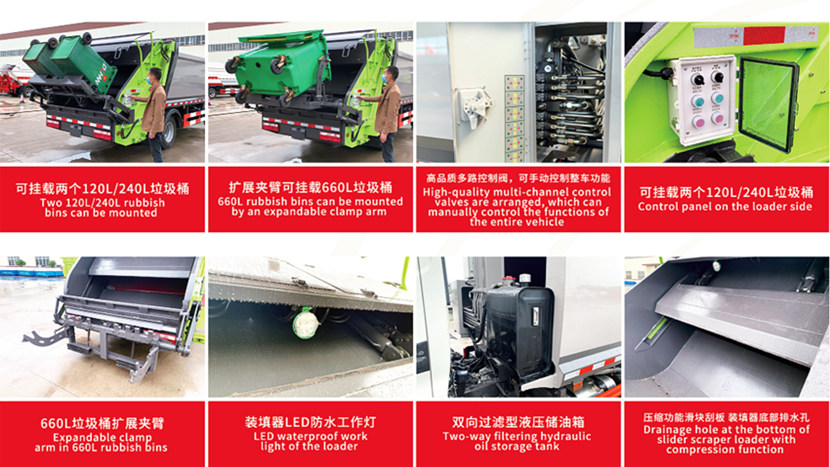

Equipped with tilting mechanisms suitable for square and round bins, and a bucket device for collecting bulk waste, users can choose different collection mechanisms according to different waste collection methods.

» Ⅱ. Product Parameter for Howo rear loader waste compactor truck:

Nigeria howo rear loader waste compactor truck

Vehicle Description

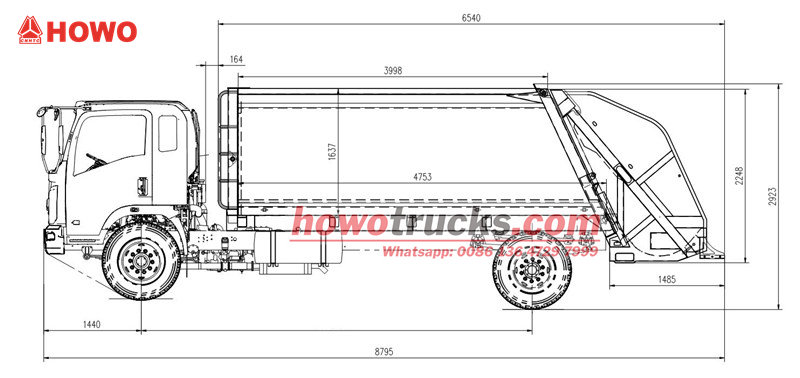

Overall dimensions

8650X2520X3350 mm

Curb weight

9360kg

Chassis brand

HOWO

Traction type

4x2; Right-hand drive

Up-parts Specification

Dustbin volume

15 cbm

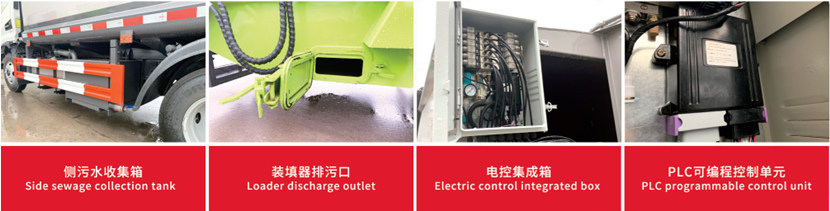

Sewage water tank

200L

Type of Rear garbage filler
(Rear Turnover device)

Hanging trash bin flip mechanism

Control system

Electrically Controlled Hydraulic + Manual Hydraulic

Type of compactor

Fill, push and compression

PLC

Importation PLC (Programmable controller)

Chassis Description

Wheelbase

4600mm

Tire specification

295/80R22.5

Tire quantity

6+1 units

Engine

Model

WP10.300E22

Emission level

Euro 2

Displacement/output

6.8L/221KW

Horse power

300HP

Gear box

Model

HW13710

Brake system

Full air brake

Color and Logo

According to wish



» Product Detailed introduction:

1.High-Efficiency Waste Compression

The Howo rear loader waste compactor truck utilizes an advanced compression system to effectively compress waste, reducing volume, increasing vehicle capacity, and maximizing transportation efficiency.

The compression system ensures that waste does not easily spill, effectively preventing secondary pollution.

2. Sealed Design

The vehicle features a fully sealed cargo box structure with all connections tightly sealed. During transportation, this effectively prevents garbage leakage and spillage, avoiding secondary pollution of the road environment.

The sealed design also blocks the emission of garbage odors, maintaining fresh air and providing strong protection for urban environmental quality.

3. Easy Operation and Multifunctionality

The Howo rear loader waste compactor truck is equipped with an automatic or semi-automatic operating system, simplifying the operation process. Drivers can choose the appropriate mode based on actual conditions.

The rear tipping-type waste unloading method, combined with a hydraulic lifting device, makes waste unloading faster and cleaner.







Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

howotrucks is a leading exporter of rear loader waste compactor truck in China. We possess over 10-year export experience of rear loader waste compactor truck. We can ensure the fast delivery time and 12 months guarantee for our rear loader waste compactor truck. Our rear loader waste compactor truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safety, Quickly, Timely
