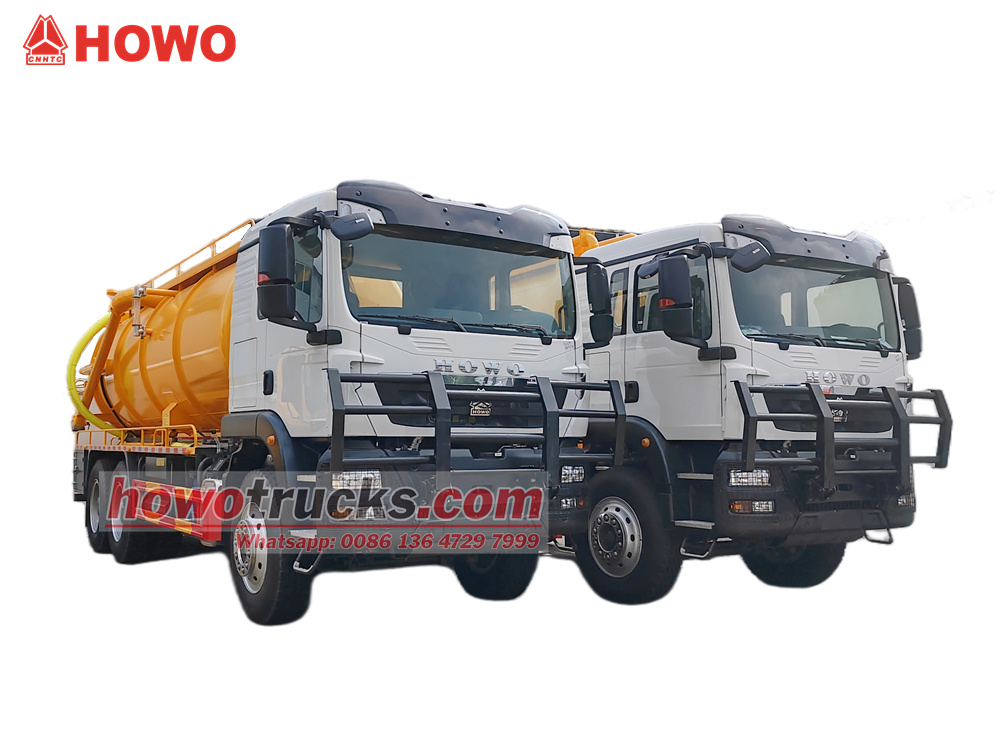

Howo 20 cbm commercial drainage cleaning truck

Howo 20 cbm commercial drainage cleaning truck

The HOWO 6x4 20 cbm sewage suction truck is modified based on the HOWO TX430 chassis, with a 4600+1350mm wheelbase, equipped with a Weichai WP12S430E201 engine and a Sinotruk HW19710 gearbox. The upper part is a 20 cubic meter sewage tank made of carbon steel with a thickness of 5mm. The vehicle is equipped with a 2BEA-204 water circulation vacuum pump with a capacity of 20 m³/min, a sight glass, a secondary filter, a discharge valve, a sewage pipe, a ladder, a toolbox, a vacuum pressure gauge, a left-side control valve, a control valve for opening and closing the tailgate, and a tank lift.

  • Working capacity :

    20 cbm
  • Cabin type :

    Howo TX430 cabin
  • Drive system :

    6x4, LHD
  • Wheelbase ( mm) :

    4600+1350
  • Engine specific :

    430HP / WP12S400E201
  • Gear box :

    HW19710, 10-speed, manual
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    2x13000
New Products

The Howo 20 cbm commercial drainage cleaning truck is an efficient and reliable vehicle designed for urban sanitation and industrial wastewater treatment. It houses a 20-cubic-meter suction tank. Its core operational capability comes from the 2BEA-204 water-circulating vacuum pump, whose high suction rate of 20 m³/min generates tremendous suction power, enabling rapid extraction of viscous waste. The vehicle is fully equipped with an integrated sight glass, vacuum pressure gauge, and secondary filter for monitoring and protection. The left-side control valve centrally controls the opening and closing of the tailgate and the raising and lowering of the tank, ensuring safe and convenient operation. Equipped with a sewage pipe, ladder, and toolbox, it is widely used for suction, removal, and disposal operations in municipal pipe networks, residential septic tanks, and industrial wastewater tanks.



Howo 20 cbm commercial drainage cleaning truck

● China best vacuum suction pump truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service



*Howo 20 cbm vacuum suction pump truck

Septic tank pump truck*

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED



Product Features

1. Powerful: A Weichai 430-horsepower engine and a Sinotruk 10-speed transmission provide optimal powertrain support.



2. High Suction: A 20 m³/min water circulation pump delivers fast suction and high efficiency.



3. Large-Capacity Tank: A 20-cubic-meter carbon steel tank with 5mm thickening provides strong load-bearing capacity and a long service life.



4. Convenient Operation: Left-side centralized control, pneumatic/hydraulic tailgate and lift operation, saves effort and is highly efficient.



5. Safe and Convenient: Equipped with a sight glass, pressure gauge, secondary filter, ladder, and tool box, practical and easy to access.



» Ⅱ. Product Parameter for Howo 20 cbm vacuum suction pump truck:



HOWO 6x4 20CBM vacuum suction truck

General

Vehicle Brand

CS TRUCKS

Vehicle Model

CS5250GXH

Chassis Brand

HOWO

Overall Dimension

9780 * 2550 * 3540 mm

GVW / Kerb Weight

25000 kg / 11500 kg

Axle loads

7000/18000 kg

Cab

Cab Capacity

HOWO TX430 cabin, one and half row, with A/C,USB, direction assistance

Engine

Fuel Type

Diesel, 6 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled

Brand

WEICHAI

Model

WP12S430E201

Power

430 HP/ 316kW

Rated speed

1900rpm

Max torque

2000N.m

Max torque speed

1000-1400rpm

Displacement

11.596L

Emission Standard

Euro 3

Chassis

Drive Type

6x4, left hand drive

Transmission

HW19710 transmission, 10 forward and 2 reverse

Wheelbase

4600+1350mm

Number of axle

3

Tyre Specification

12.00R20

Tyre Number

10 tyres and 1 spare tyre

Max Speed

89km/h

Fuel tank

400L Aluminum alloy fuel tank

Paint

Metallic paint

Superstructure

Tank

Tank Capacity

20000 liters

Tank Material

5mm carbon steel with antiseptic treatment

Tank lifting angle

45°

Vacuum Pump

Vacuum Pump

2BEA-204, water circulation vacuum pump

Maximum Pumping Speed

20 m³/min

Rotation speed

980 r/min

Ultimate Pressure

-0.098MPa

Min perssure

33MPa

Max power

31.8kW

Motor power

37 kW

Weight

430kg

Suction height

≥8(m)

Suction Head

7m length with DN 100 mm

Suction time

250 s

Nozzles

A cluster of nozzles included

Vacuum Pump

Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.

Rear door can be hydraulic opened for complete discharge of solid stuff.

All standard accessories: Sight glasses, Ladder, Secondary filter manhole, tool box, Vacuum pressure gauge,control valve,English manual.....

Optional

** Tank material could be stainless steel.
** High pressure hose length could be customized.

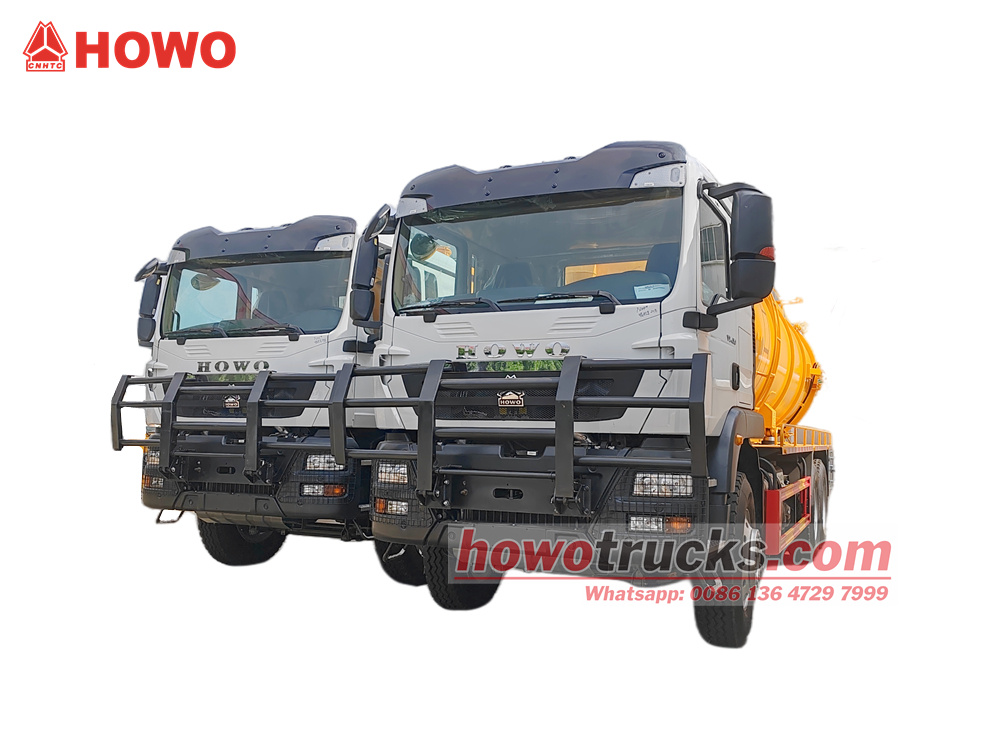

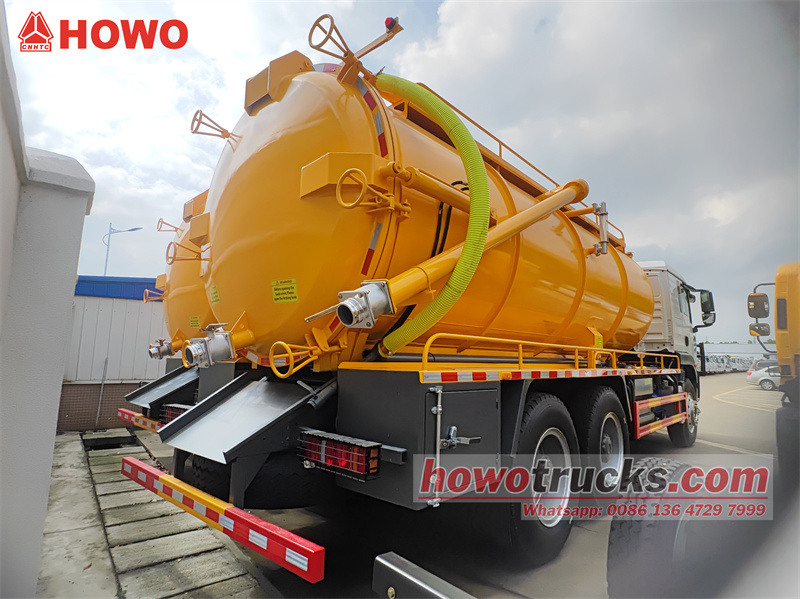

HOWO TX430 20000 liters sewage suction truck

» Product Detailed introduction:

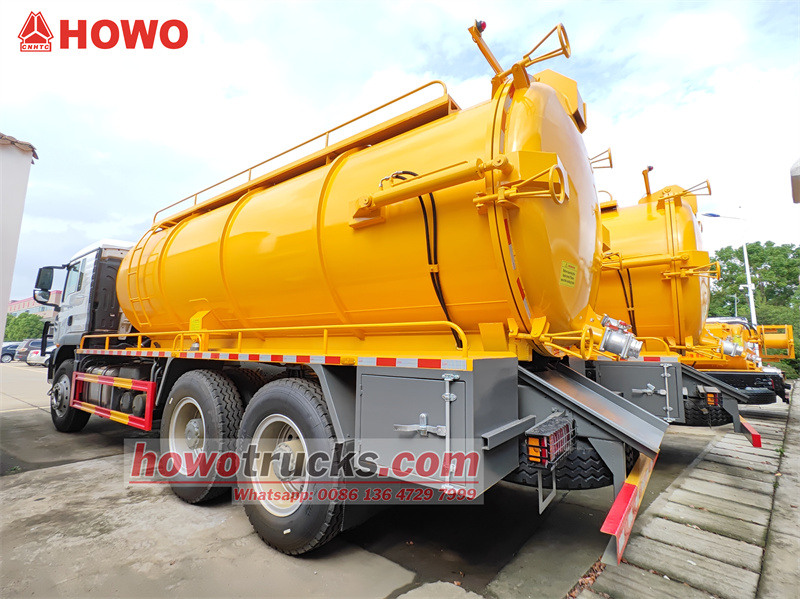

HOWO 6x4 20cbm sewage vacuum truck

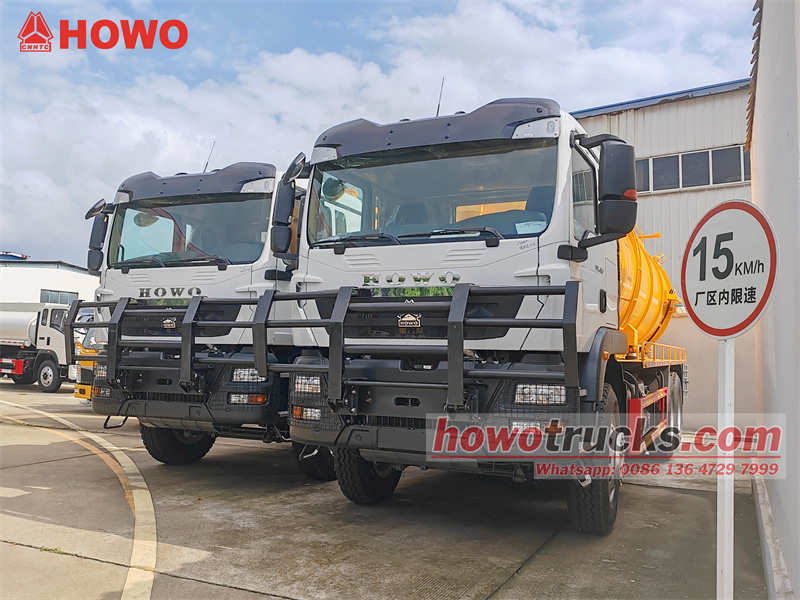

Chassis Configuration (Based on the Sinotruk HOWO TX430)

Chassis: HOWO TX430, 6x4 drive, 25-ton gross vehicle mass, 4,600+1,350mm wheelbase



Engine: Weichai WP12S430E201 engine.

Displacement: 11.6 liters

Power: 430 horsepower, 2,000 Nm peak torque

Advantages: Powerful power, large torque reserve, low fuel consumption, high reliability, meets Euro 3 emission standards, and is suitable for various operating conditions.



Transmission: Sinotruk HW19710 manual transmission.

Gears: 10 forward gears, 2 reverse gears

Advantages: Close gear ratios and smooth shifting perfectly match the high-horsepower engine, providing efficient power transmission and good economy.

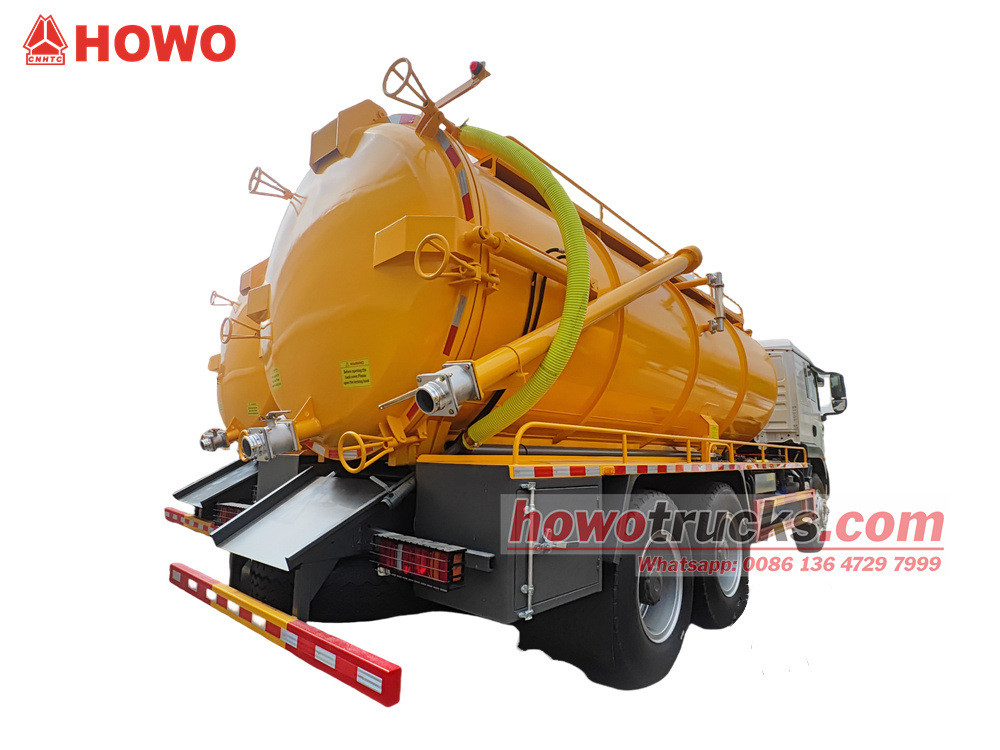

20cbm sewage cleaning truck HOWO

Upperbody Core Structure

• Tank Material: 20 cubic meters, 5mm thick, made of high-quality carbon steel (Q235), rust- and corrosion-resistant, for a long service life.

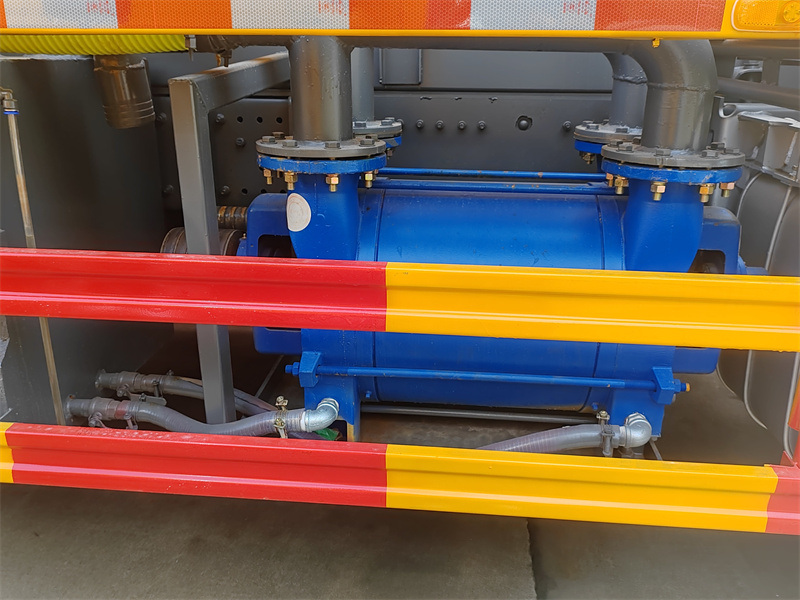

• Vacuum Pump: A core component, the 2BEA-204 water-circulating vacuum pump is used.

Pumping Rate: 20 m³/min. Speed: 980 rpm, ultimate pressure: -0.098 MPa. This pumping speed allows for rapid creation of an ultra-high vacuum, resulting in strong suction and effective extraction of viscous sludge, gravel, and other debris.



Advantages: Circulating water as the working medium effectively cools and lubricates the pump, resulting in relatively low noise levels, high efficiency, and low maintenance costs.

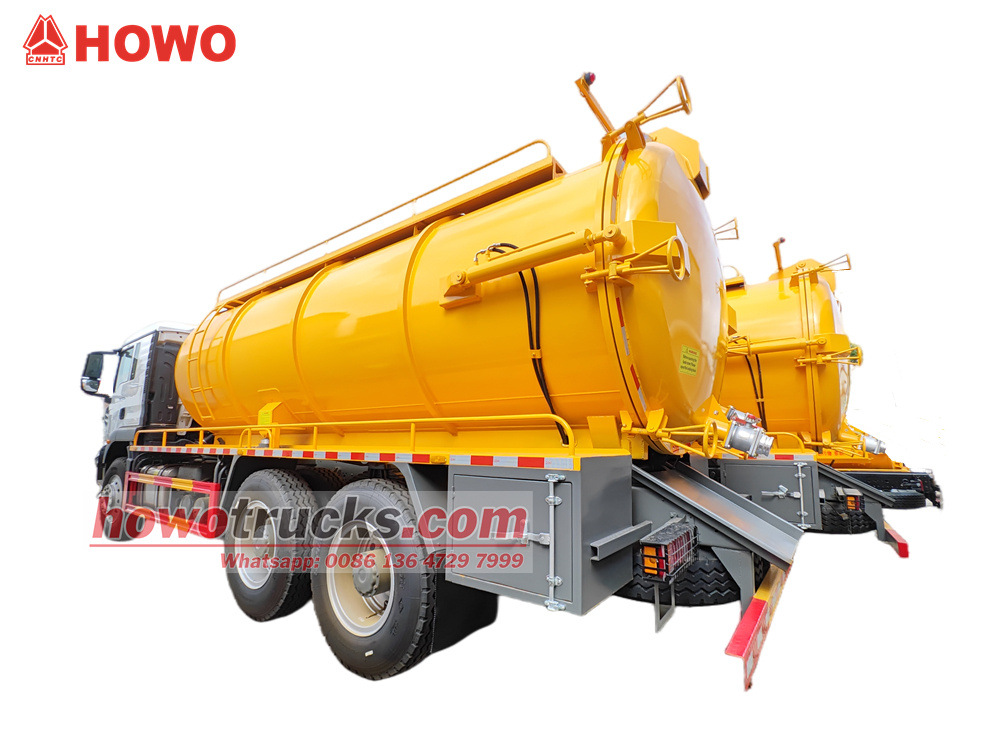

HOWO 20CBM vacuum pumper truck

Observation Devices:

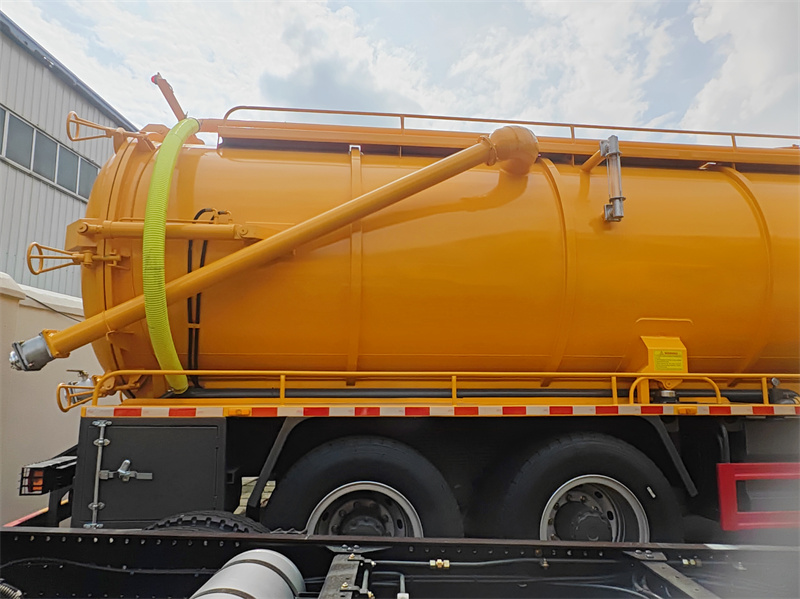

Sight Glass: Installed on the right side of the tank, it allows for visual inspection of the tank's liquid level and prevents overloading.



Vacuum Pressure Gauge: Installed on the underside of the tank, it monitors the vacuum pressure in real time to ensure safe operation.

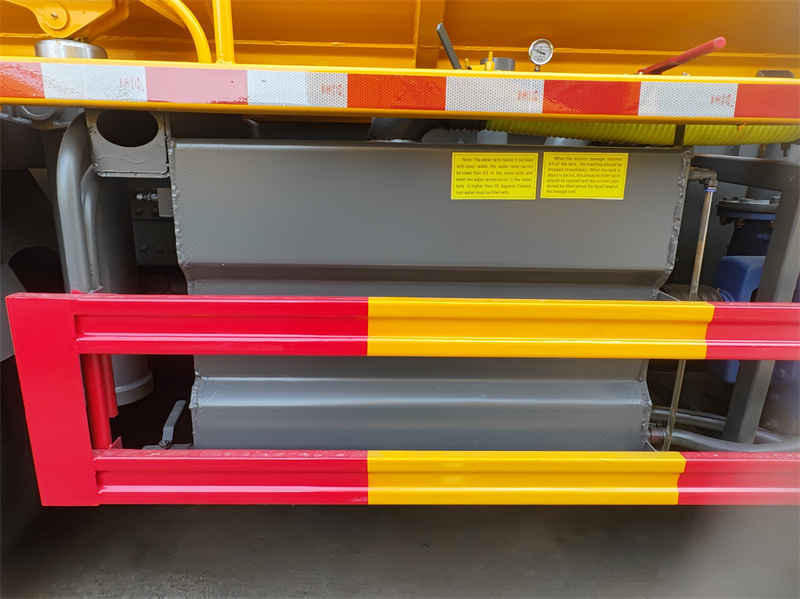

Filtration and Protection Devices:

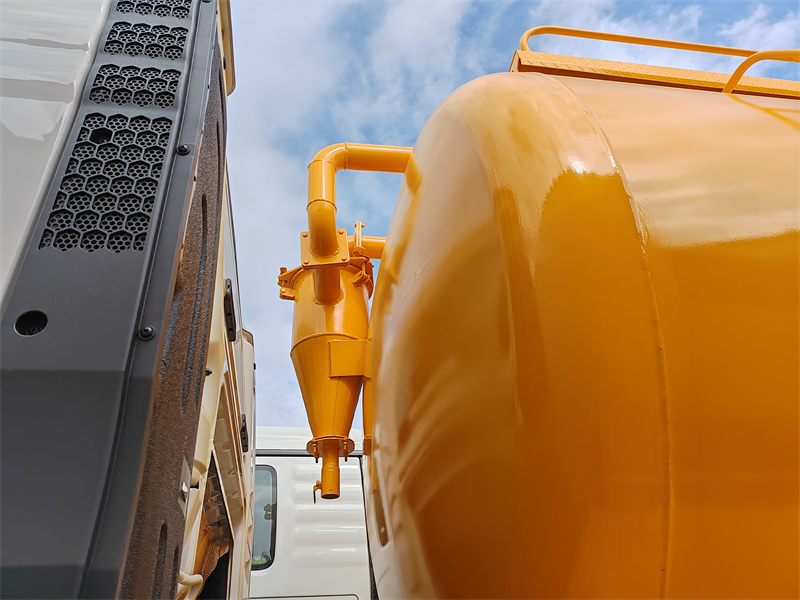

Secondary Filter: This oil-gas separation device effectively prevents inhaled oil, water vapor, and impurities from entering the vacuum pump and chassis engine, providing crucial protection for core systems.


Sinotruk HOWO 20cbm vacuum suction truck

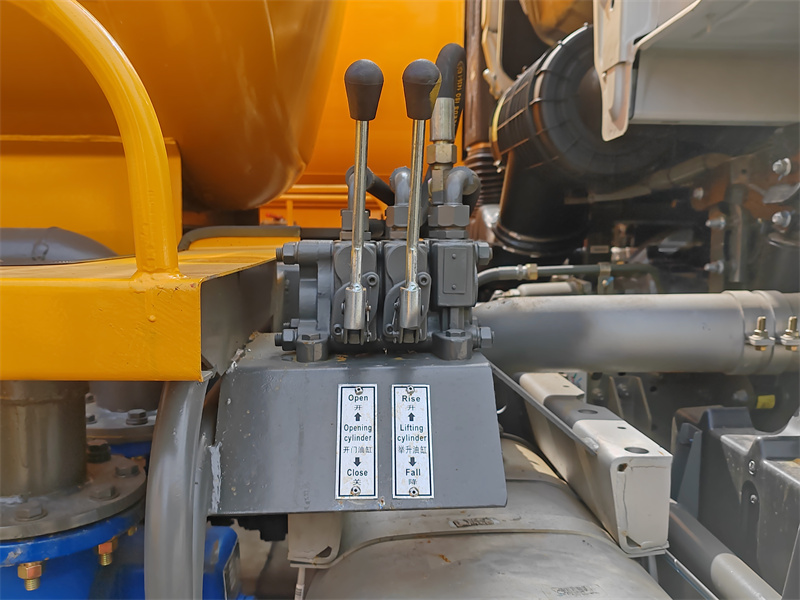

Operating System:

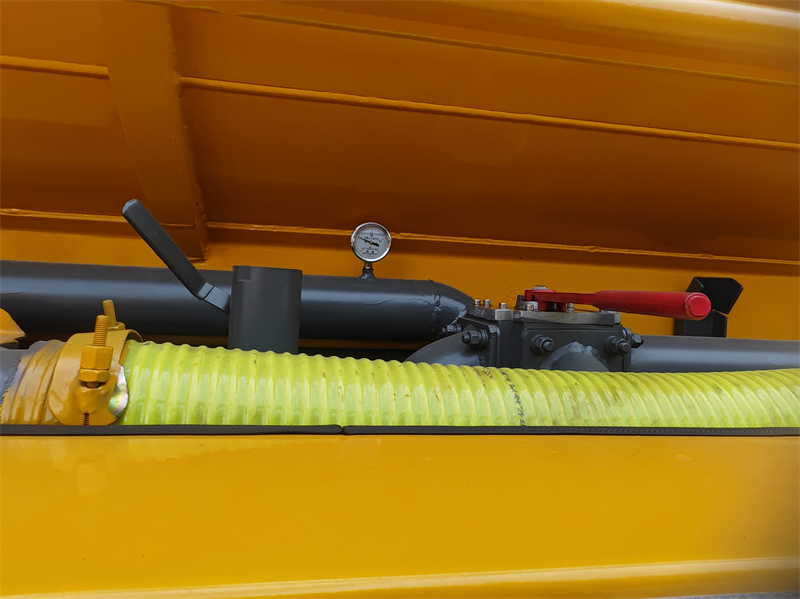

 Passenger-Side Control Valve: Centrally located in a dedicated operating box on the left side of the vehicle, it allows for convenient control of the tailgate opening and closing, as well as the tank raising and lowering, via pneumatic or manual valve stems.

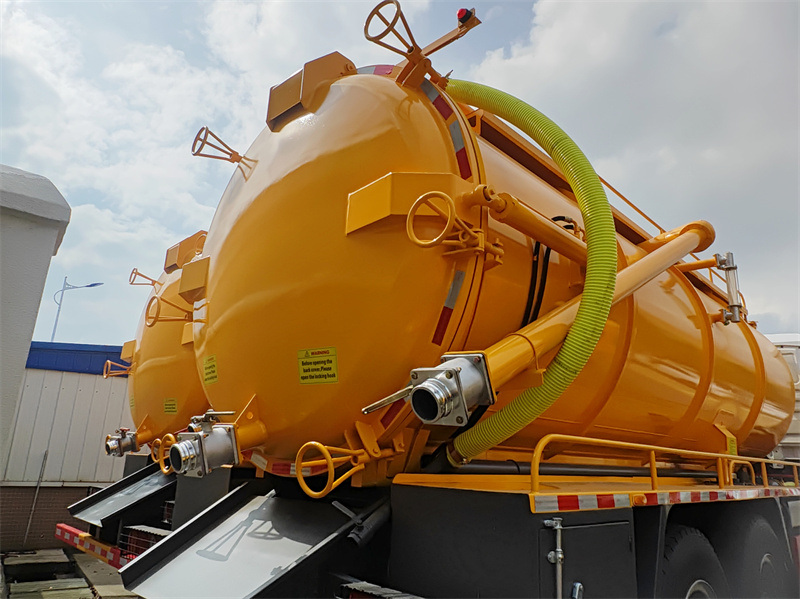

 Drain Valve: The tailgate drain port on the tank is easy to operate and provides a good seal, used for sewage unloading operations.



Auxiliary Equipment:

Sewage Hose: A 10-meter-long dedicated suction hose for deep suction at the work site.

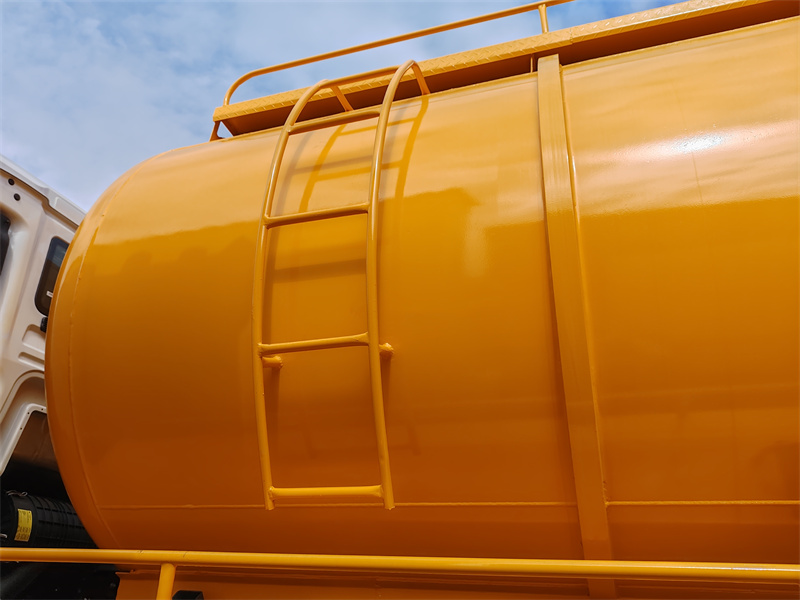

Ladder: Installed on the left side of the tank, it allows operators to easily access the tank roof for inspection or maintenance.

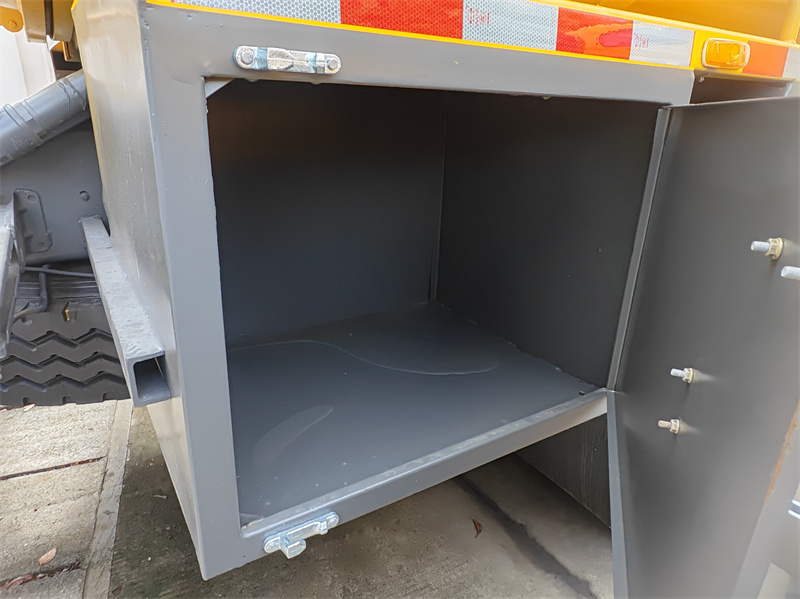

Tool Box: One on each side of the rear of the vehicle is used to store repair tools and spare parts.



Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.



» Ⅳ. Application Scenarios:



1. Municipal Pipeline Maintenance: Used to extract and remove silt and blockages from urban underground sewage pipes and stormwater wells, maintaining smooth drainage systems, it is a crucial piece of equipment for urban flood prevention and maintenance.



2. Community Sanitation: Specialized for cleaning septic tanks in residential communities and commercial buildings, efficiently extracting and transporting domestic sewage and fecal debris to ensure community hygiene and prevent pollution and blockages.



3. Industrial Wastewater Treatment: Suitable for cleaning industrial wastewater tanks, sedimentation tanks, and grease traps within factories and industrial parks, treating various wastewater and sludge generated during industrial production.



4. Emergency Rescue Services: In the event of emergencies such as flooding and pipe ruptures, it can be quickly deployed for pumping, drainage, and wastewater recovery, making it a key piece of equipment for emergency rescue teams.

howotrucks is a leading exporter of vacuum suction pump truck in China. We possess over 10-year export experience of vacuum suction pump truck. We can ensure the fast delivery time and 12 months guarantee for our vacuum suction pump truck. Our construction dump truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safety, Quickly, Timely
