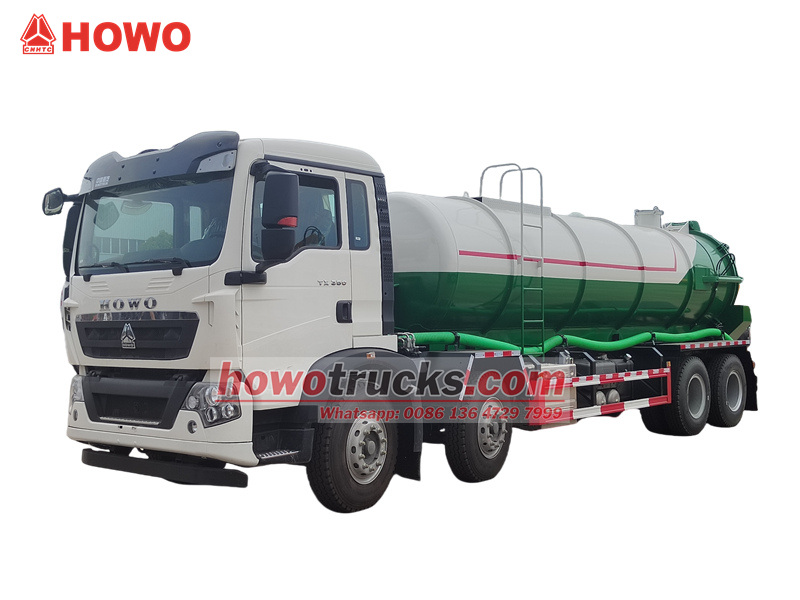

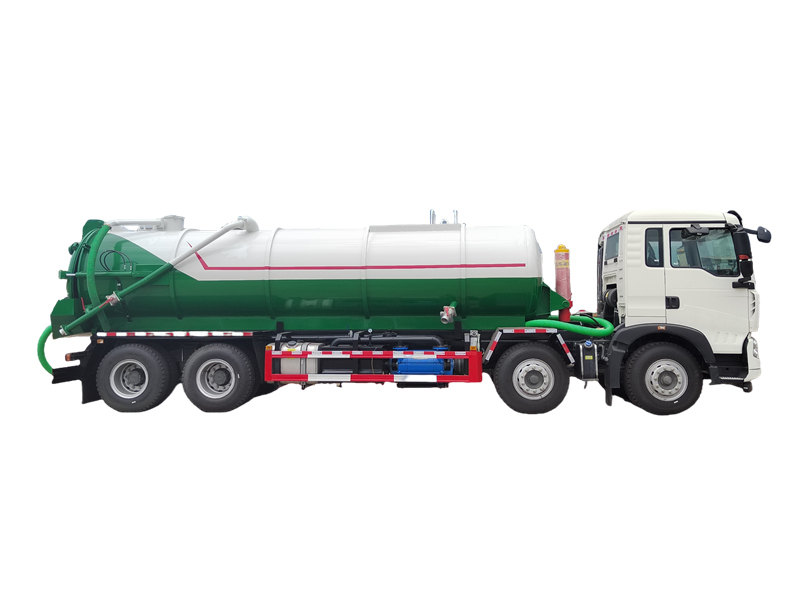

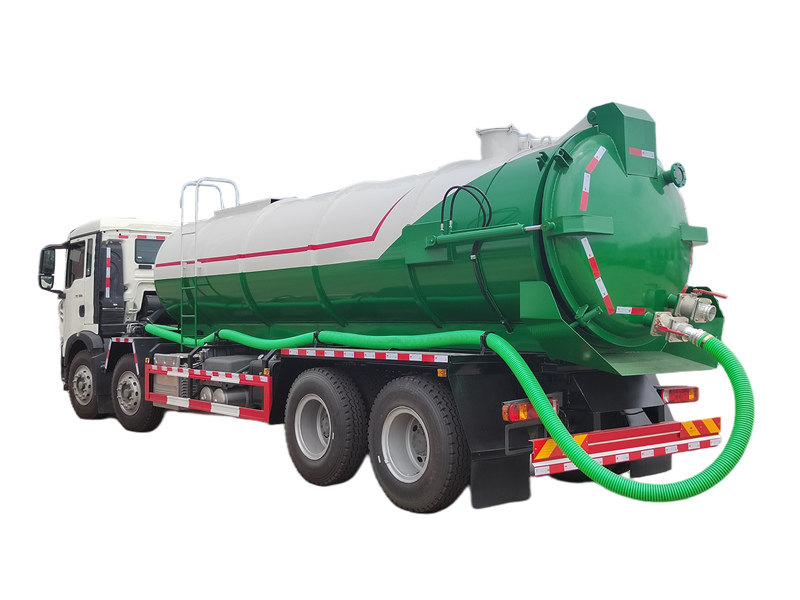

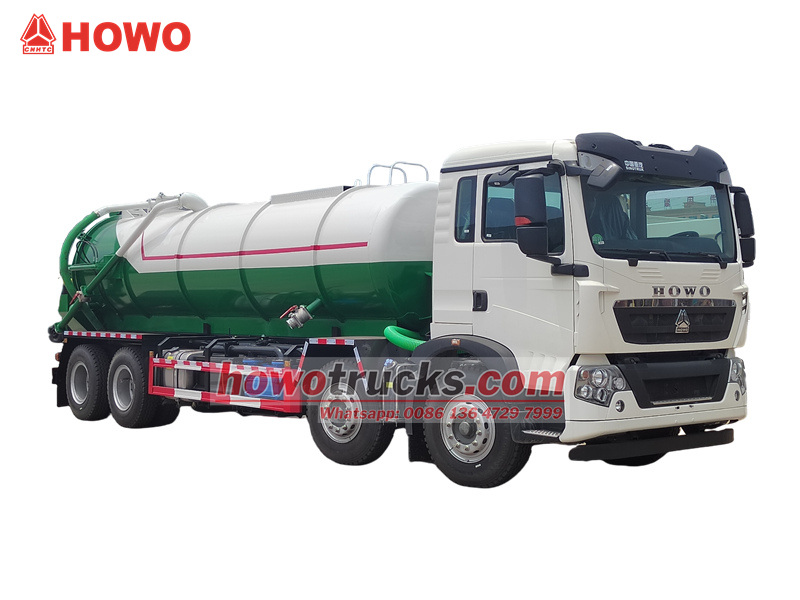

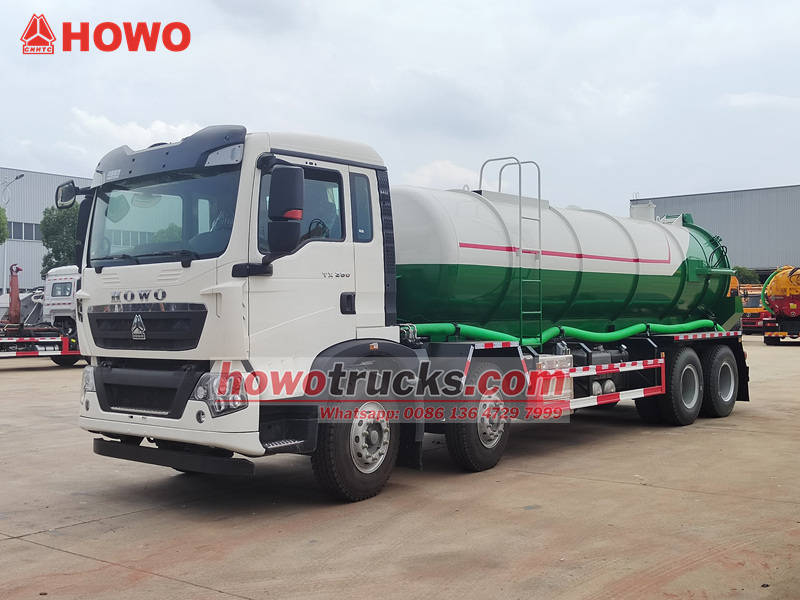

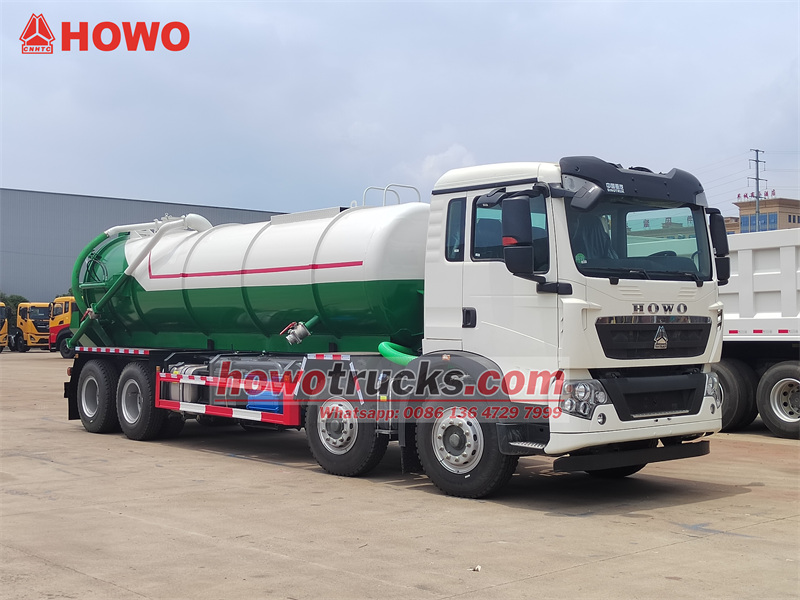

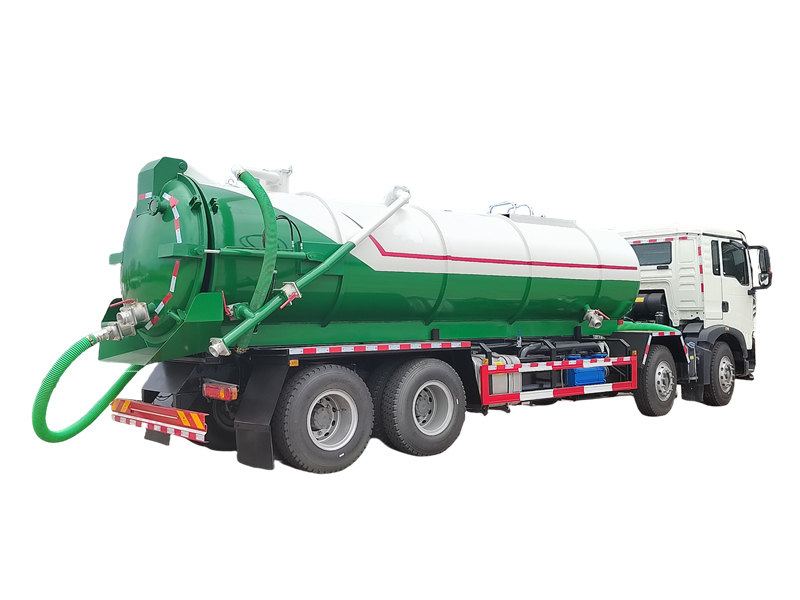

HOWO TX 25000L sewer vacuum truck is a professional sanitation vehicle built on the HOWO 8×4 chassis, equipped with a 350-horsepower engine and a large-capacity carbon steel vacuum tank. It features an efficient water-ring vacuum pump with high suction speed and strong vacuum pressure, enabling rapid cleanup of sludge and sewage from deep sources such as septic tanks and sewer lines. With hydraulic self-unloading and rear cover opening functions, it ensures efficient and reliable operation, making it an ideal choice for municipal and industrial cleaning applications.
Working capacity :
25000 litersCabin type :
HOWO TX cabinDrive system :
8×4Wheelbase ( mm) :
1800+3800+1350Engine specific :
350HP/WP10.350E53Gear box :
HW19710, 10 forwards and 2 reverseFront axle ( Kg ) :
6500kg/7000kgRear axle ( Kg ) :
17500HOWO TX 25000L vacuum tank truck is a specialized sanitation vehicle designed for efficient suction, transport, and disposal of liquid waste and sludge. Built on a HOWO TX 8×4 heavy-duty chassis, it is powered by a 350-horsepower engine and an HW19710 10-speed transmission, supported by a large 400L fuel tank. The superstructure includes a 25-cubic-meter vacuum tank made of 6mm high-quality carbon steel, integrated with an SK-20 water-ring vacuum pump capable of achieving a maximum suction rate of 20m³/min and an ultimate vacuum level of 8300Pa, ensuring powerful suction and corrosion resistance.
Operating on the principle of negative pressure vacuum, the HOWO TX sewage tank truck uses the pump system to rapidly create a high-pressure differential within the tank, allowing it to extract wastewater, fecal matter, and other liquids from depths of up to eight meters. Its notable advantages include long suction range, high filling efficiency (≤12 minutes), hydraulic lifting and self-dumping (angle ≥45°), and a hydraulically operated rear cover with locking mechanism for safe and convenient operation. It is widely used in urban sewer systems, septic tanks, storm drains, and industrial wastewater sumps, while also excelling in emergency drainage and pipeline dredging applications.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Features of HOWO TX vacuum sewage truck
1. SINOTRUK HOWO 8×4 heavy chassis with 350HP diesel engine
2. HOWO TX cabin with four-point suspended cab and air conditioning
3. Large capacity vacuum tank, made of high quality carbon steel
4. Equipped with China famous brand water circulation vacuum pump
5. Tank body equipped with front lifting system, can be lifted hydraulically
※ Ⅱ. Product Parameters for HOWO TX 8×4 vacuum truck:
|
Vehicle Description |
||
|
Overall dimensions |
11000*2550*3550mm |
|
|
GVW |
31000kg |
|
|
Curb weight |
14980kg |
|
|
Chassis brand |
SINOTRUK HOWO |
|
|
Traction type |
8*4 |
|
|
Chassis Description |
||
|
Chassis model |
ZZ1317N |
|
|
Cab |
HOWO TX cabin, extended cab, 2 seats and one sleeper bed, up/down and front/back adjustable steering wheel ,VDO instrument and control module, safety belt with double locking mechanism, exterior sun visor, air condition. |
|
|
Traction type |
LHD |
|
|
Drive type |
8×4 |
|
|
Wheelbase |
1800+3800+1350 |
|
|
Tire specification |
12.00R20 |
|
|
Tire quantity |
12+1 units |
|
|
Engine |
Engine model |
WP10.350E53 |
|
Emission standard |
Euro 5 |
|
|
Displacement/output |
9726ml/257kw |
|
|
Horsepower |
350hp |
|
|
Rated speed |
1900 rpm |
|
|
Gear box |
Model |
HW19710 |
|
Number of gears |
10 forward gears& 2 reverse |
|
|
Brake system |
Service brake: dual-circuit pneumatic brake; |
|
|
Axle load |
Front |
6500kg/7000kg |
|
Rear |
17500kg |
|
|
Suspension |
Front and rear leaf spring suspension, front suspension with shock absorber and transverse stabilizer, rear suspension is disconnected type with transverse stabilizer. |
|
|
Tires |
12.00R20, 12+1 pcs |
|
|
Fuel tanker |
Capacity |
400L |
|
Superstructure Description |
||
|
Tanker |
Capacity |
25000 liters |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump |
Type |
water circulation vacuum pump |
|
Model |
SK-20 |
|
|
Max. pumping speed |
20m3/min |
|
|
Ultimate vacuum |
8300 pa |
|
|
Rotation speed |
740 r/min |
|
|
Shaft power |
37 kw |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe, 10meters |
|
|
Special function |
Suction time ≤ 12 min, |
|
|
Standard configuration |
1. Equipped with view window, discharge valve, cleaning |
|
|
Optional configuration |
1. Tanker material: stainless steel. |
|
※ Ⅲ. Product Advantages

★ HOWO 8×4 Chassis:
Built on SINOTRUK HOWO 8×4 heavy duty chassis, equipped with WEICHAI 350HP diesel engine, HW19710 10-speed gearbox.

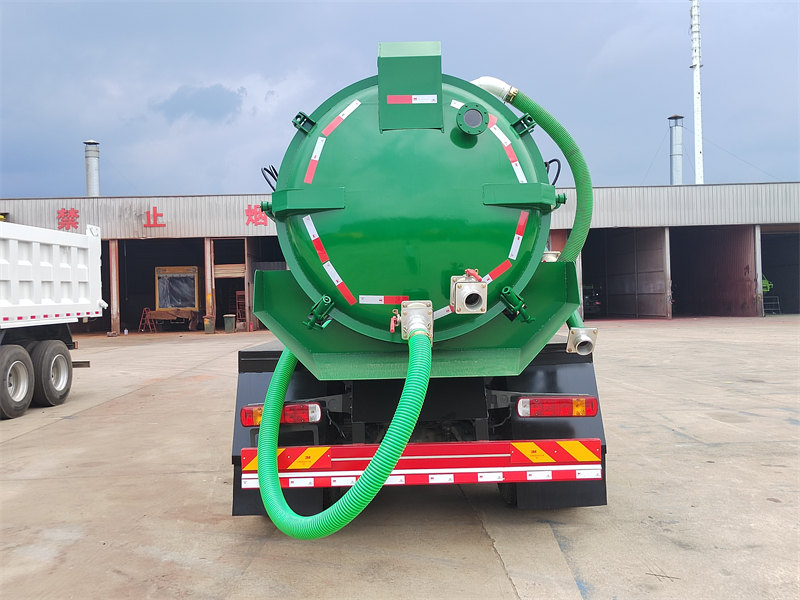

★ Vacuum Tank

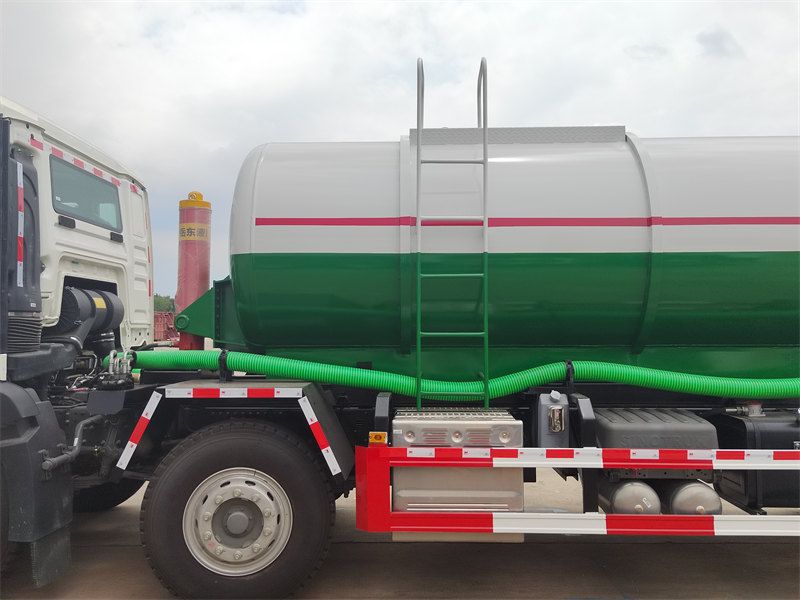

The vacuum tank has a capacity of 25000 liters and is constructed from high-quality steel plate with a thickness of 6mm. The tank is reasonably designed with anti-surge baffles in the middle, and both the front and rear ends are equipped with high-strength head covers.

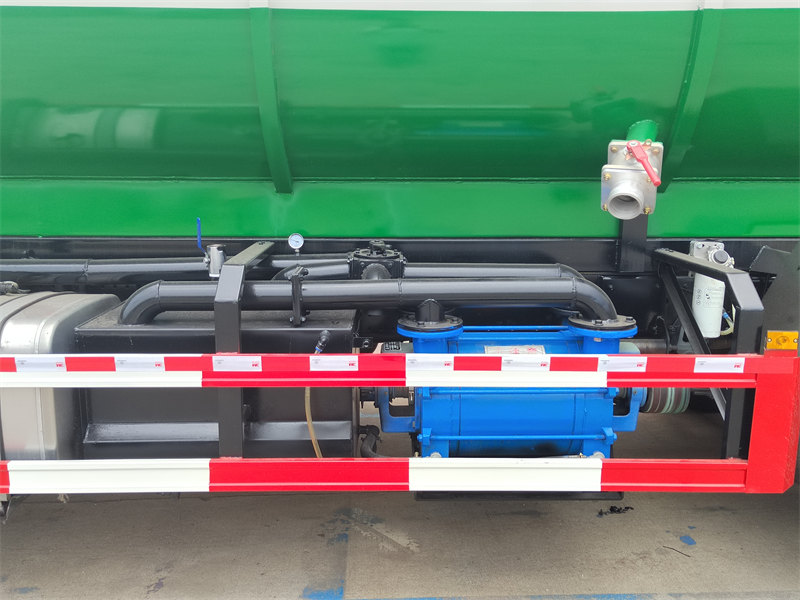

★ Vacuum Pump
Equipped with the renowned Chinese SK-20 water-ring vacuum pump, it achieves an ultimate vacuum of 8300 Pa and a maximum suction depth of 8 meters.

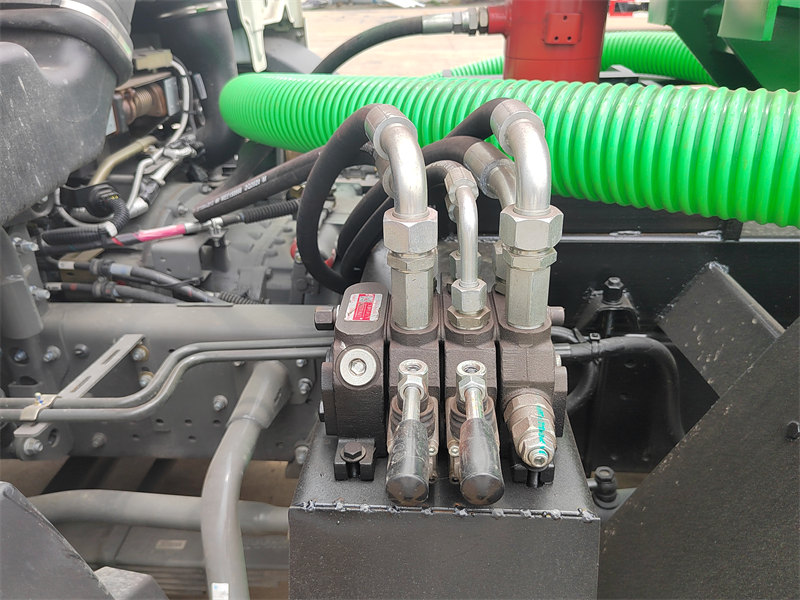

★ Hydraulic System

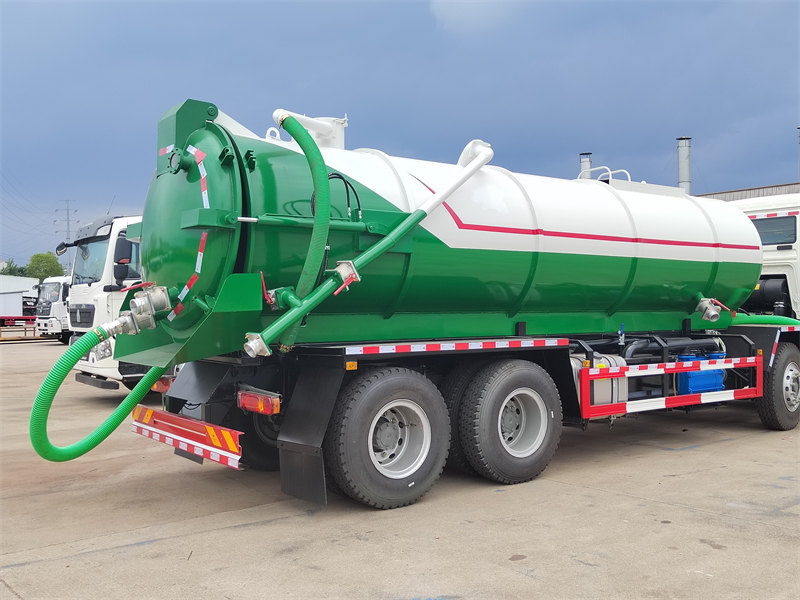

The tank is equipped with a hydraulic lifting and self-dumping system, and the rear door can be opened hydraulically. It is also fitted with a hydraulic oil cooler, which effectively reduces oil temperature during prolonged operation and ensures the stable performance of the hydraulic system.

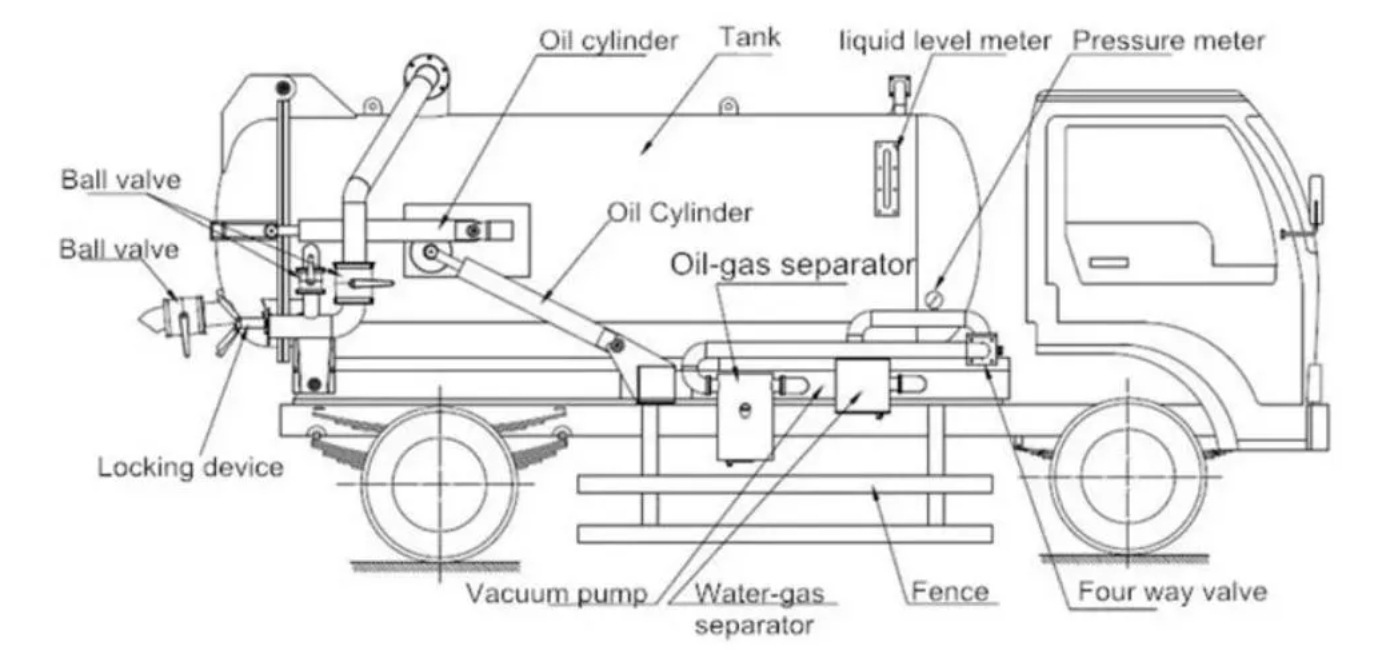

※ Ⅳ. Product Structure

1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

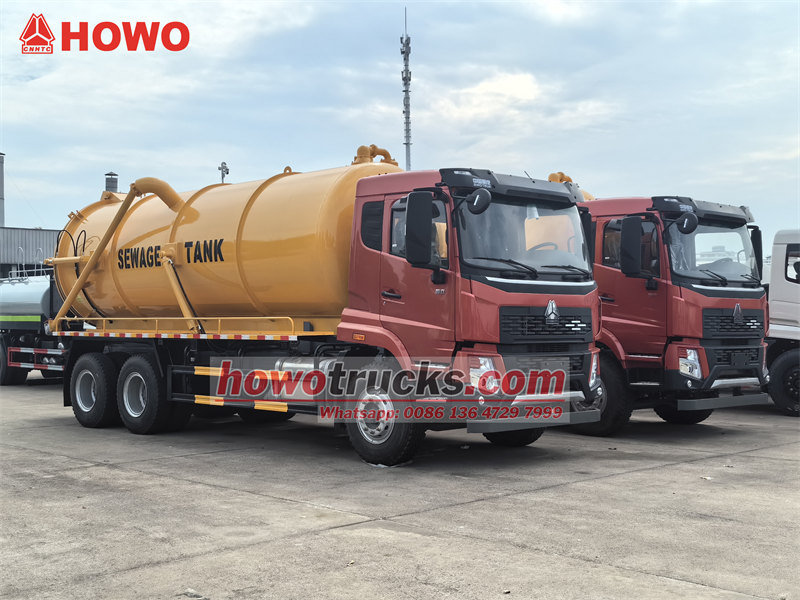

HOWO heavy vacuum tank trucks ready for shipment

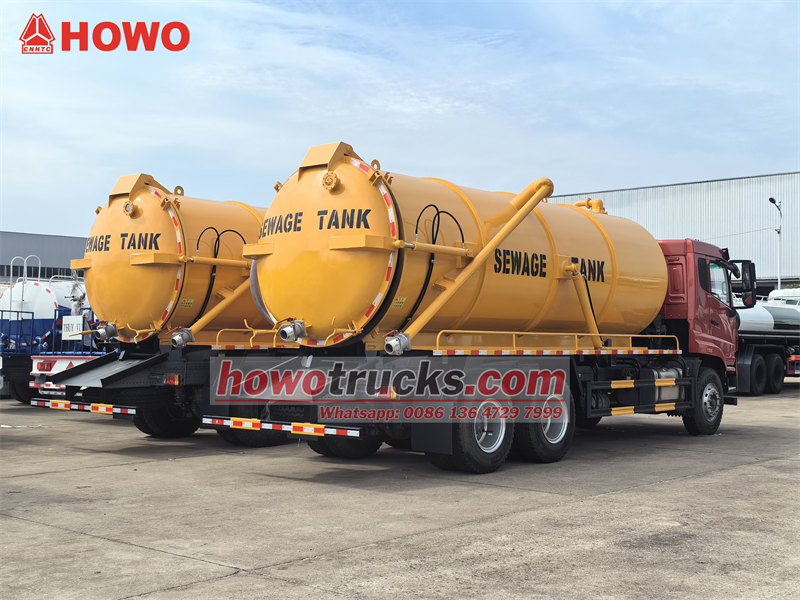

SIONTRUK HOWO septic tank trucks ready for delivery from CS TRUCKS factory
