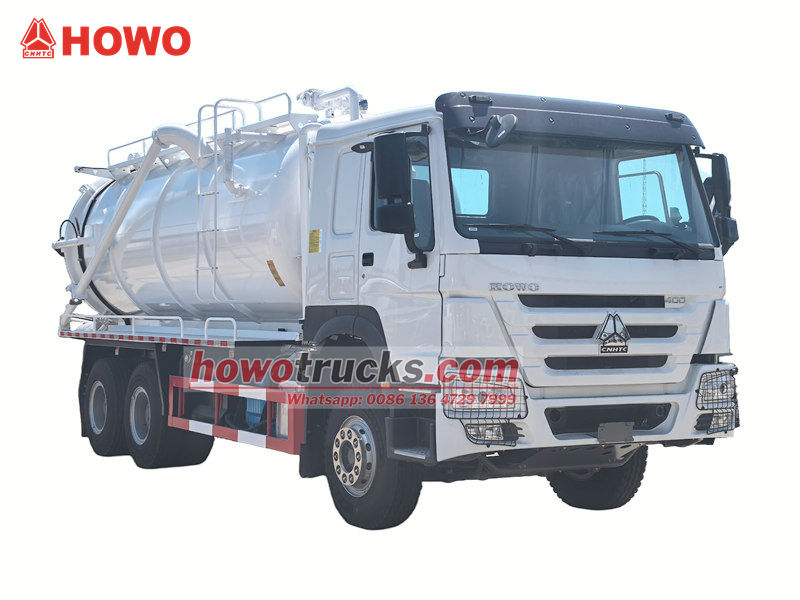

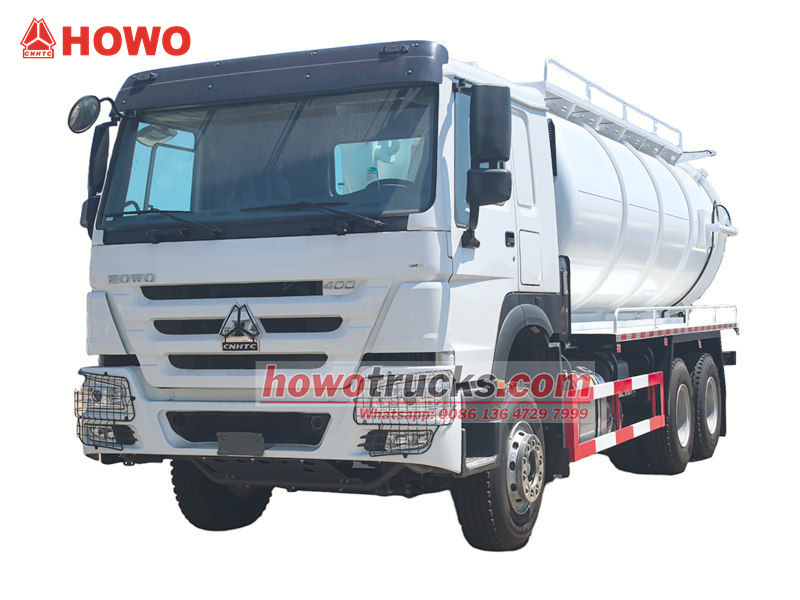

The Howo 20 cbm vacuum suction truck is built on a sturdy HOWO 6x4 chassis, featuring a 4325+1350mm wheelbase and fitted with eleven 12.00R20 tires. Powered by a 400hp WP12.400E32 diesel engine paired with an HW19710 transmission offering 10 forward and 2 reverse gears, along with ZF8198 steering, the truck delivers strong performance and easy handling. Its 20cbm vacuum tank is designed for efficient suction and discharge, supporting self-priming, self-draining, and self-unloading operations. This makes it ideal for demanding dredging and cleaning tasks in municipal sewers, drainage systems, and industrial pipelines.
Working capacity :
20 cbmCabin type :
Howo HW76 cabinDrive system :
6x4, LHDWheelbase ( mm) :
4325+1350Engine specific :
400HP / WP12.400E32Gear box :
HW19710, 10-speed, manualFront axle ( Kg ) :
7000Rear axle ( Kg ) :
2x13000The Howo 20 cbm vacuum suction pump truck is a specialized vehicle designed for cleaning and transporting dirt, sludge, and sewage. It is widely used in municipal sanitation, industrial and mining enterprises, and residential property management.
Equipped with a MORO vacuum pump and a sealed tank, the Howo vacuum suction pump truck features self-priming, self-draining, and self-unloading functions, efficiently completing cleaning tasks in sewers, septic tanks, sedimentation tanks, and other locations. Its design combines large capacity with powerful suction, ensuring easy operation, safety, and reliability. It not only improves work efficiency but also effectively enhances environmental hygiene, making it a vital piece of equipment for urban sanitation and pipeline maintenance.

● China best vacuum suction pump truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Product Features
1. Powerful Power and Adaptability
• Equipped with a WEICHAI 400hp engine and a 10-speed transmission, it offers high torque at low speeds, adapts to complex road conditions.
2. Professionally Designed, Efficient and Durable
• 20cbm carbon steel tank: Corrosion-resistant and pressure-resistant, suitable for sewage and sludge transportation.

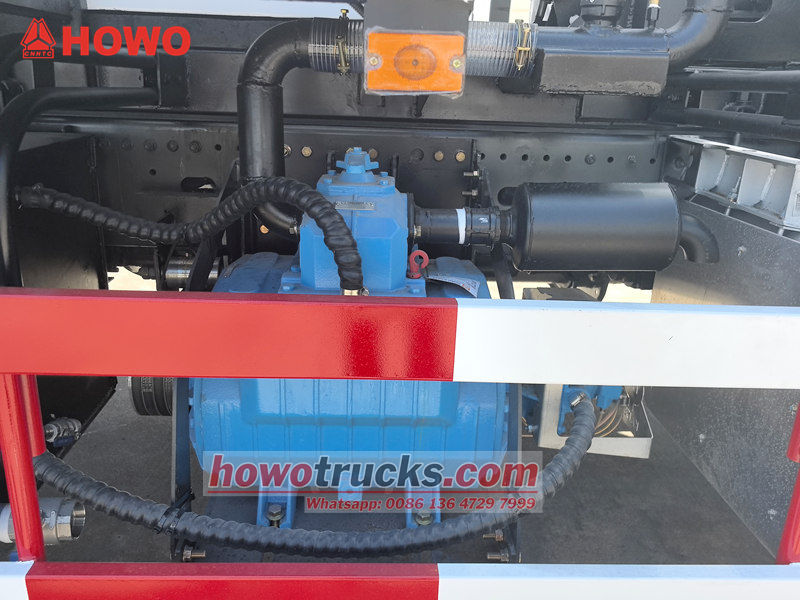

• MORO PM110W Vacuum Pump: High suction power, fast pumping speed, and high operating efficiency.
3. Convenient Operation and Safety Features

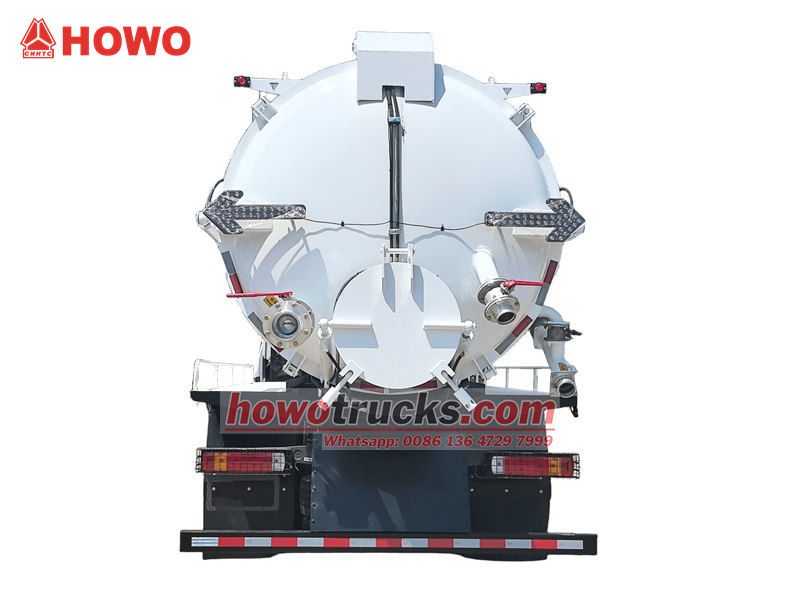

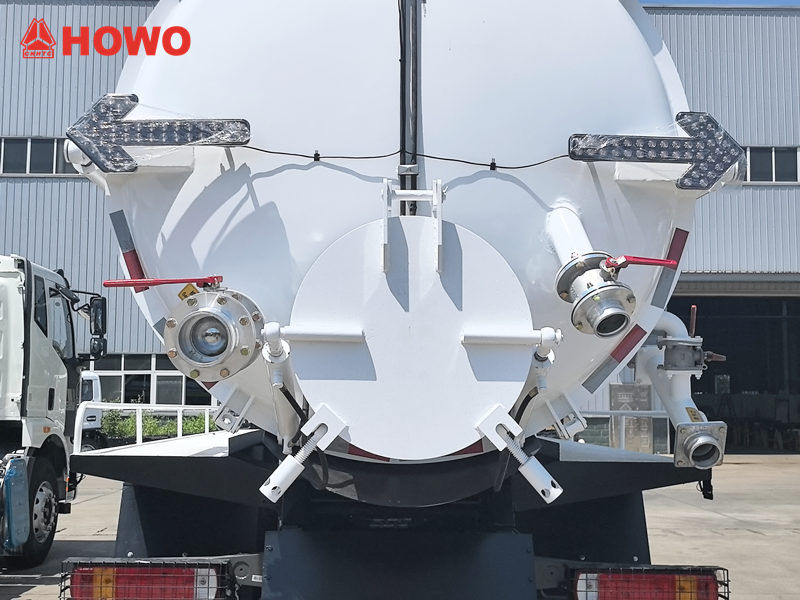

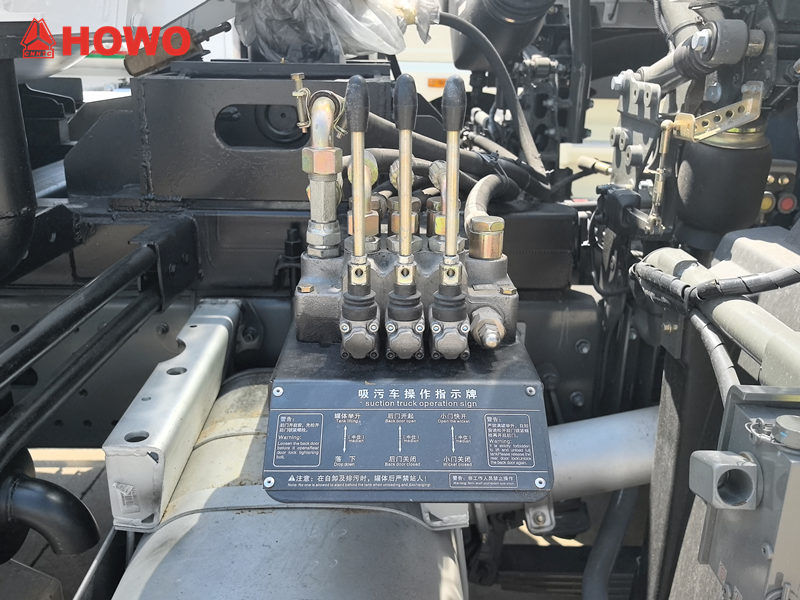

• Hydraulic control system (tank lift, tailgate discharge) ensures effortless and precise operation.

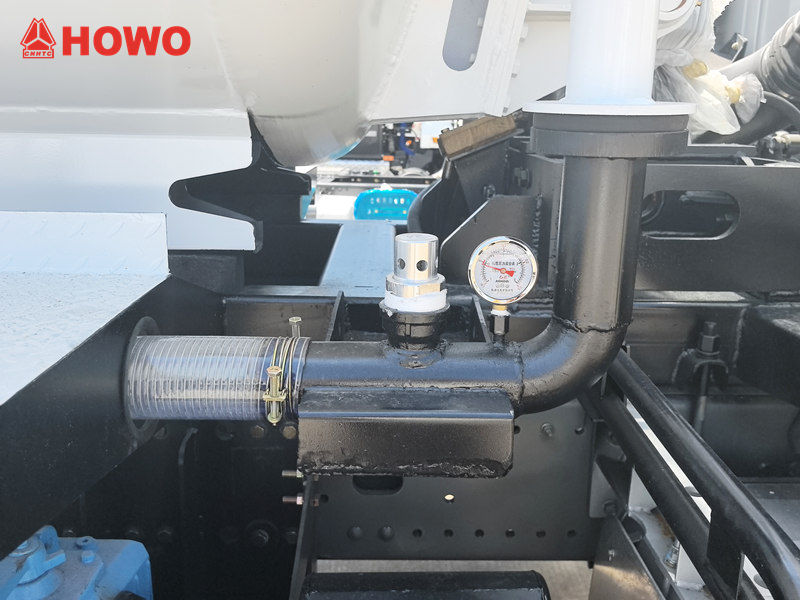

• Visual suction pipe allows for real-time monitoring of suction status to prevent blockage or overload.

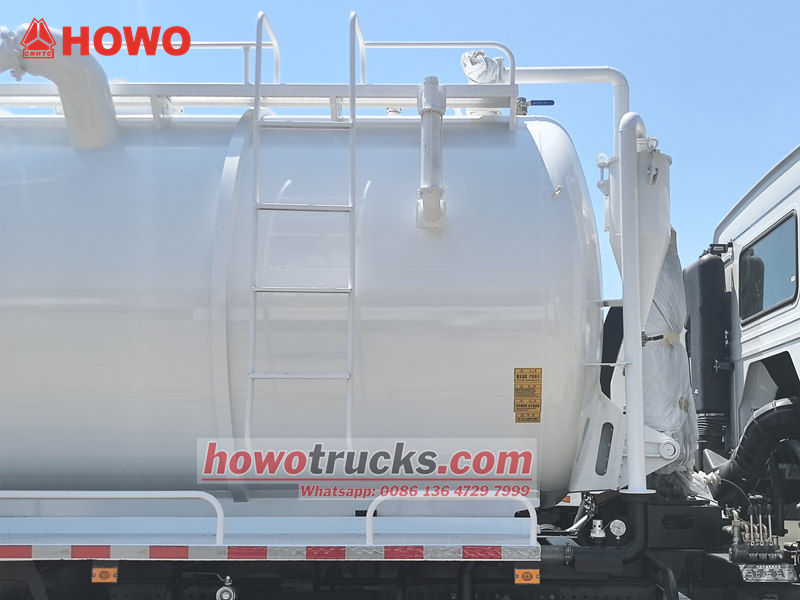

• Hydraulic ladder for easy access and maintenance

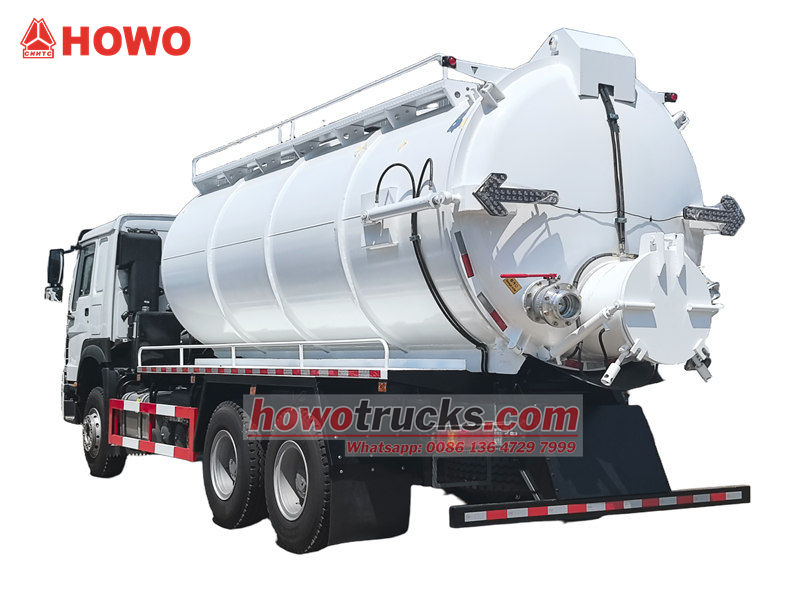

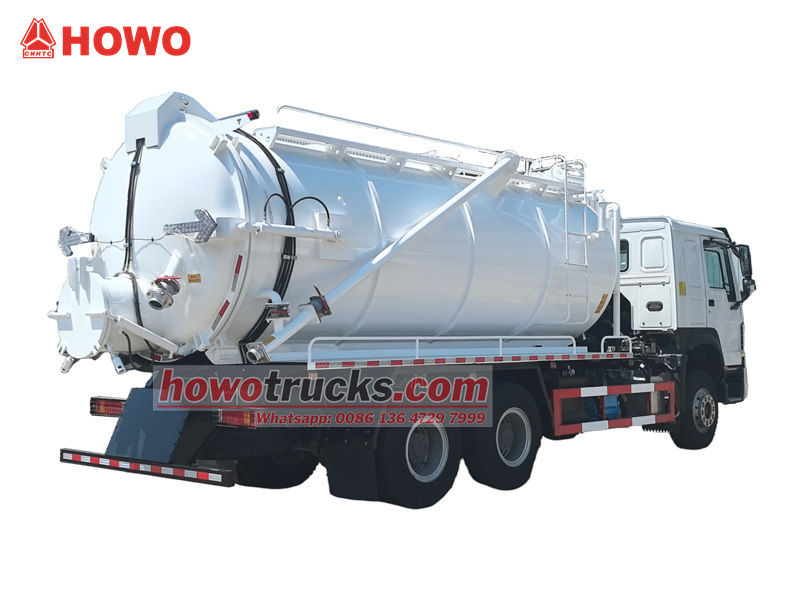

Howo 20 cbm vacuum suction pump truck (also called Howo 20,000 liters vacuum tanker truck, Howo 20 cbm septic tank pump truck, HOWO 400hp vacuum suction truck, Howo 6x4 vacuum sewage suction truck, HOWO 10 wheels sewage disposal tanker.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic.The tank body has been treated with anti-corrosion and anti-rust treatment and is extremely durable. Combined with a MORO vacuum pump, it has strong suction and is an indispensable professional equipment in urban and rural environmental governance.

The Howo 20 cbm vacuum suction pump truck operates primarily by generating negative pressure through a sealed tank, creating a powerful suction force that rapidly draws sewage, sludge, and impurities into the tank for storage.
When discharge is required, the vacuum pump can reverse or utilize a hydraulic system to achieve self-draining or self-unloading, ensuring efficient waste removal. The entire process is simple, safe, and reliable, achieving self-priming and self-draining while preventing secondary contamination. This truck plays a vital role in municipal sanitation, pipeline desilting, and sewage treatment.

» Ⅱ. Product Parameter for Howo 20 cbm vacuum suction pump truck:

|
Howo 20 cbm septic tank pump truck |
||
|
Vehicle Dimensions, Weights & Capacities |
Chassis brand |
HOWO |
|
Overall dimension (LxWxH) |
9680x2580x3750mm |
|
|
Wheelbase |
4325+1350mm |
|
|
Gross weight |
32,000 Kg |
|
|
Curb weight |
13,500 Kg |
|
|
Chassis |
Drive mode |
6x4,LHD |
|
Cabin type |
Standard roof one bed |
|
|
Seats |
2 seats |
|
|
Tires |
10+1 spare tire |
|
|
Tyre specification |
12.00R20 |
|
|
A/C |
Air conditioning |
|
|
Engine |
Engine model |
WP12.400E32 |
|
Fuel and engine Type |
Diesel, 6 cylinders in-line,Turbocharged intercooler |
|
|
Horse power |
400HP |
|
|
Displacement |
11.596L |
|
|
Emission level |
Euro 3 |
|
|
Tops Parameters |
Loading Capacity Volume |
20cbm ( can be customized ) |
|
Tank Material |
Strengthen high performance wear-resisting carbon steel with anti-corrosion treatment paint |
|
|
Colour |
As demands |
|
|
Logo Paint |
As demands |
|
|
Others |
Standard, customized |
|
» Ⅲ. Product Detailed introduction:

1. Detailed Introduction and Features
●The Howo 20 CBM vacuum suction pump truck is a specialized sanitation vehicle that combines cleaning, collection, and transportation of waste. It is widely used in daily maintenance for municipalities, industrial and mining enterprises, and community properties.
●Its key feature is its powerful vacuum pump, which generates strong negative pressure. Its sealed tank allows for efficient suction, storage, and self-unloading. It features three operating modes: self-priming, self-discharging, and self-unloading, making it convenient, safe, and reliable.
●With its well-designed design and powerful power, the truck can efficiently complete dredging and wastewater removal operations in complex environments, significantly improving work efficiency and effectively preventing secondary pollution.

2. Made of High-Quality Steel
The Howo vacuum pump truck's tank body is constructed from high-strength carbon steel or stainless steel, offering excellent pressure and corrosion resistance, ensuring a tight seal and structural strength over long-term use. The tank is lined with an anti-corrosion coating to extend service life and reduce maintenance costs, meeting the needs of diverse customers.

3. Wide Range of Applications
The Howo 20 CBM vacuum suction pump truck is primarily used for desilting and transporting wastewater from urban sewers, septic tanks, sewage wells, and industrial pipelines. It is also suitable for rural sewage treatment and cleaning factory sedimentation tanks. With its large tank capacity, powerful suction, and efficient discharge capabilities, this device can quickly handle large-scale cleaning tasks, making it an ideal and indispensable tool for municipal sanitation, construction projects, and industrial environmental protection.

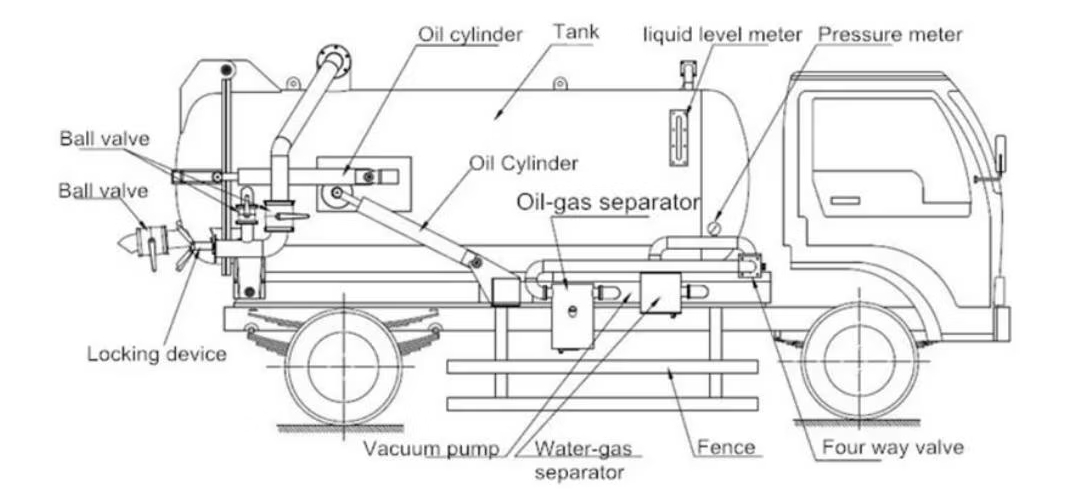

Drawing Of Sewage Suction Truck:
