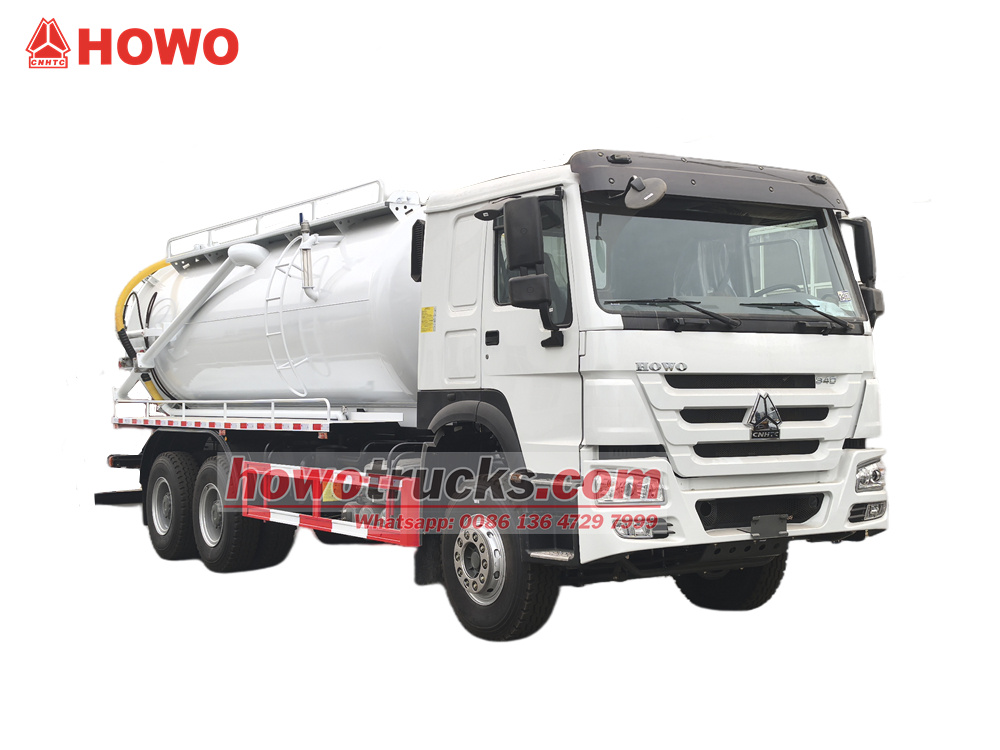

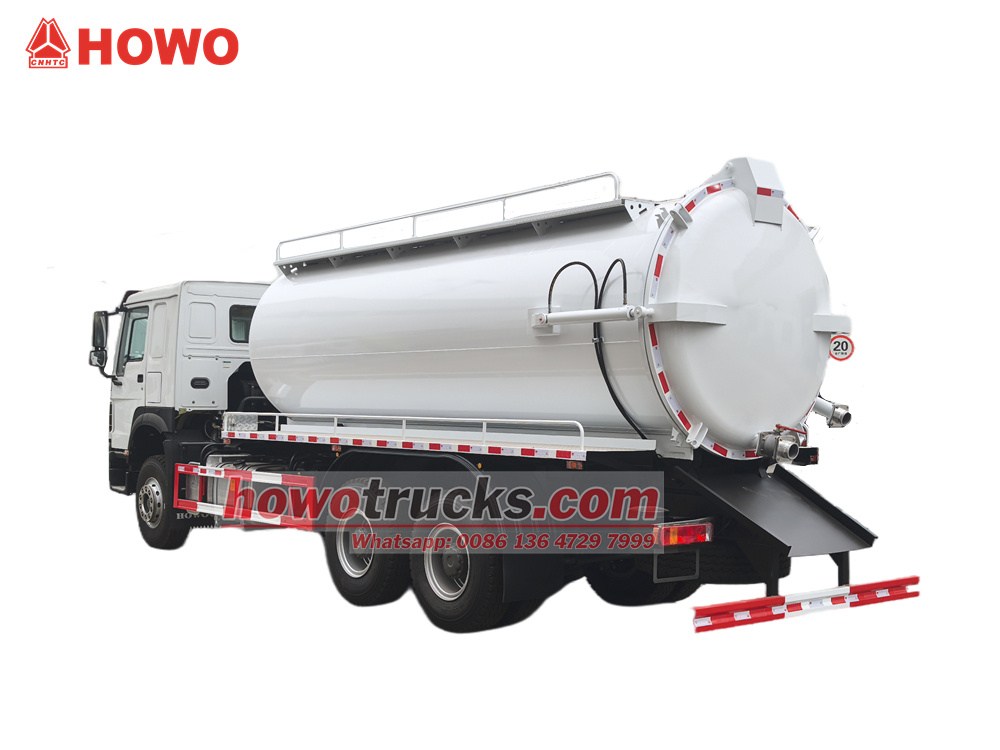

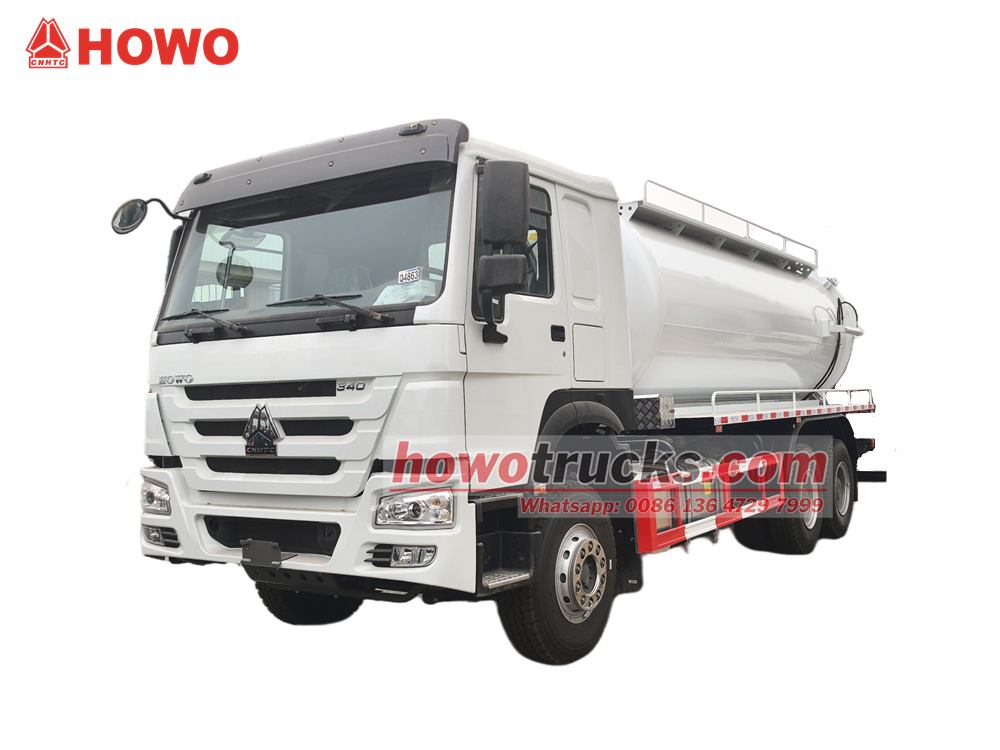

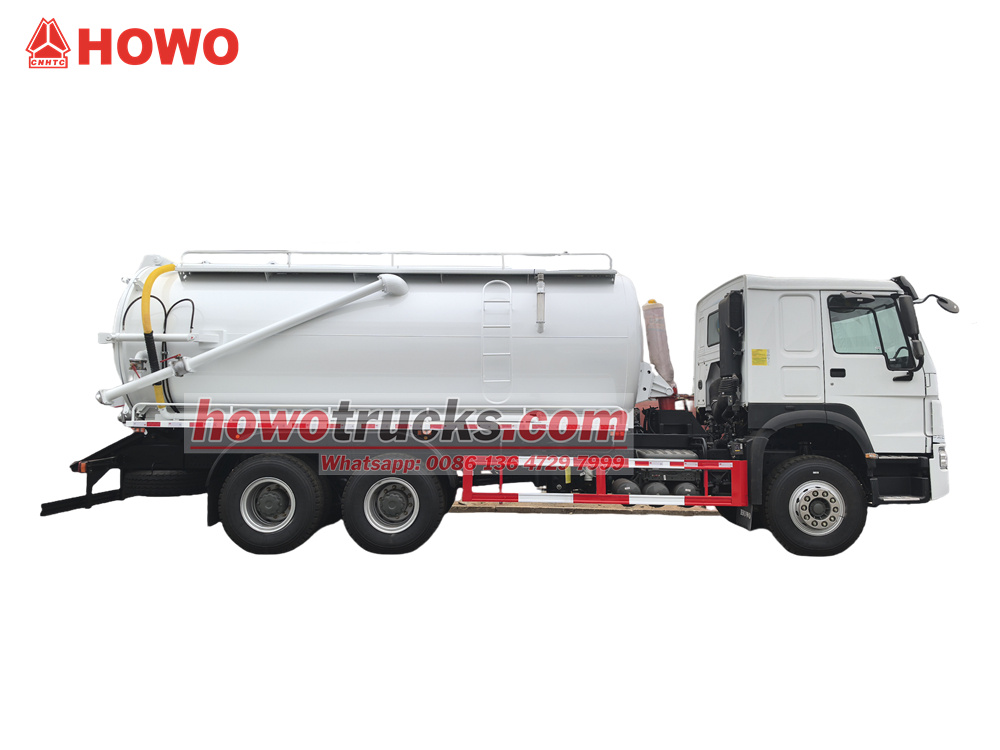

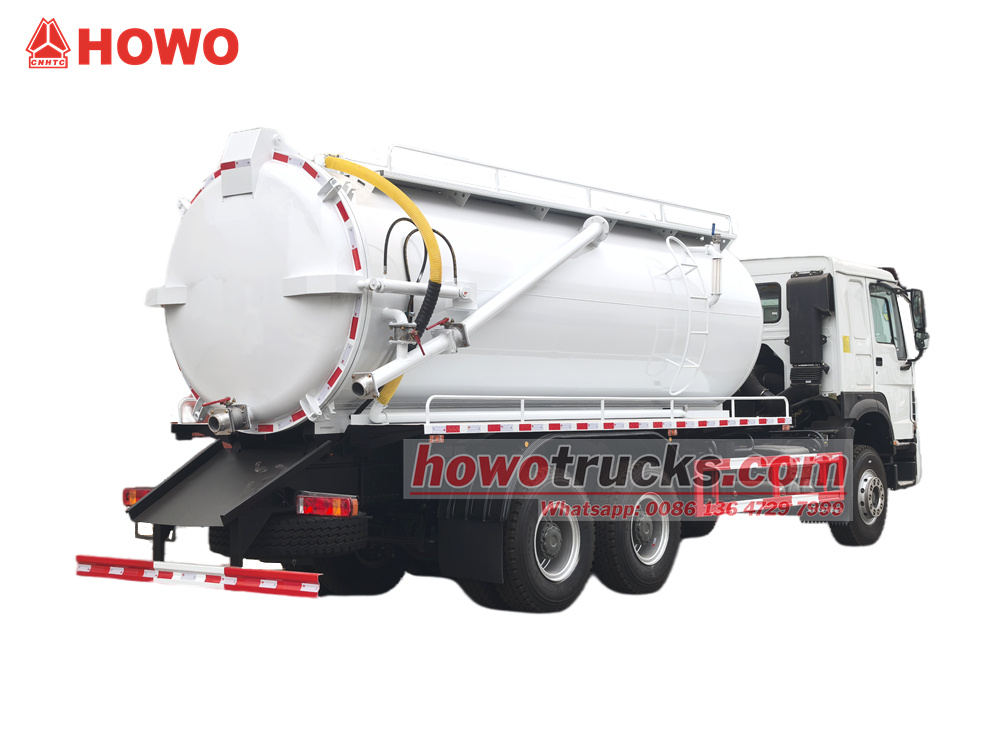

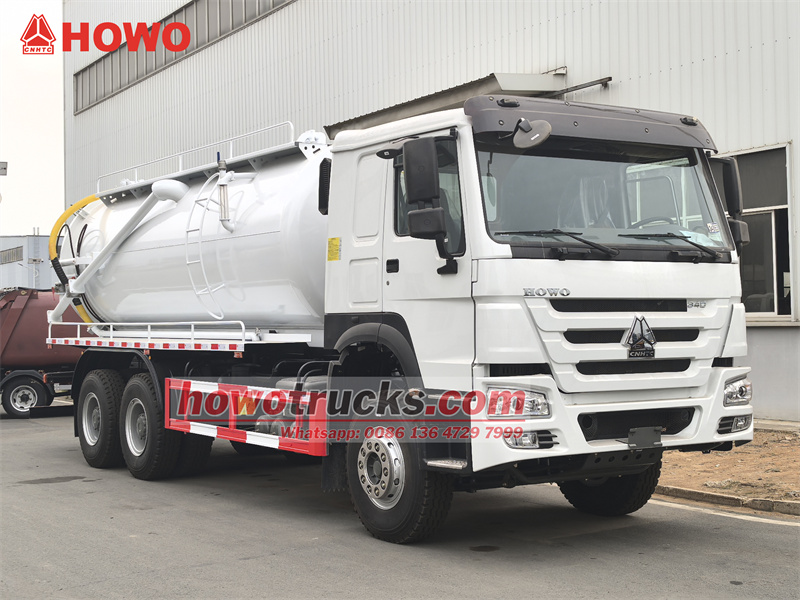

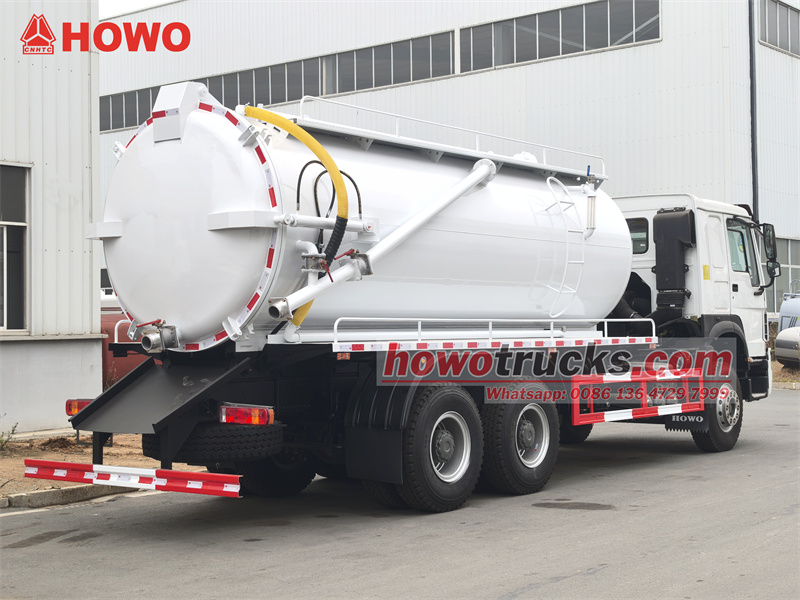

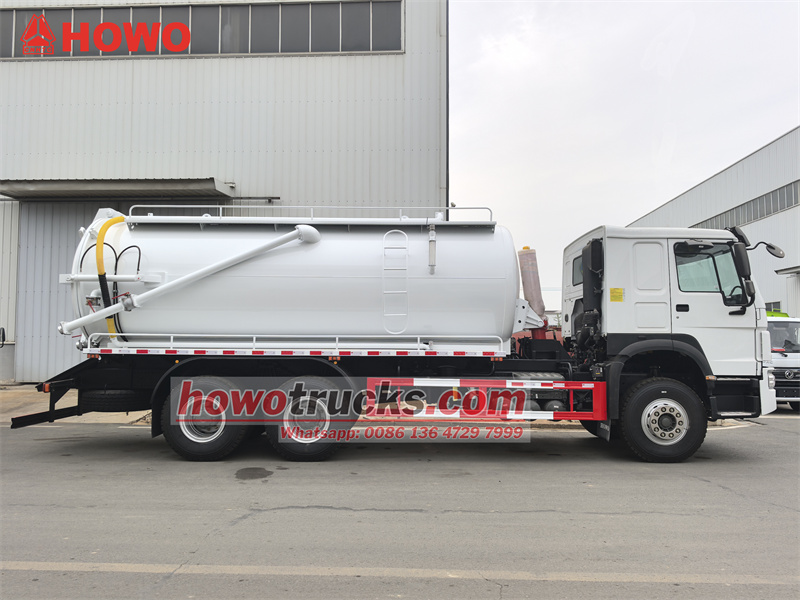

The HOWO 6x4 15 cbm sewage suction truck is modified on the HOWO HW76 cab chassis. 4600+1350mm wheelbase,equipped with a Weichai WP10.340E22 engine, and a Sinotruk HW19710 10-speed gearbox. The upper body is a 15 cbm sewage tank,carbon steel material, 5mm thickness.The tank can be lifted and the tailgate can be opened. with a Jurop PN106D vacuum pump with a flow rate of 11,000 L/min.The vehicle is also equipped with a view pipe, a ladder, a tailgate discharge valve, and a manual hydraulic operating lever on the driver's side (to control the opening/closing of the tailgate and the lifting/lowering of the tank).
Working capacity :
15cbmCabin type :
Howo HW76 cabinDrive system :
6x4,RHDWheelbase ( mm) :
4600+1350Engine specific :
340HP / WEICHAI WP10.340E22Gear box :
HW19710 transmission, 10 forward and 2 reverseFront axle ( Kg ) :
7000Rear axle ( Kg ) :
18000(2 AXLES)The Sewer clean tank trucks HOWO is a specialized vehicle designed for the efficient handling of liquid and semi-solid waste. Equipped with a Weichai 340-horsepower engine and a 10-speed transmission, it offers powerful power and adaptability to complex road conditions. The truck's core structure is a 15-cubic-meter carbon steel tank, equipped with an Italian Jurop high-flow vacuum pump, which quickly generates a strong negative pressure to efficiently extract sewage sludge, septic tank residue, industrial wastewater, and other wastewater. The tank supports hydraulic lifting, and the tailgate can be hydraulically opened for quick emptying. The tailgate discharge valve can also be opened for sewage discharge, making operation extremely convenient. Its powerful suction, sturdy structure, and easy operation make it widely used in septic tank cleaning, sewer drain cleaning, sludge suction, and other operations.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Product Features
1. Proven Powertrain: Weichai engine + Sinotruk transmission + HOWO chassis – a golden combination with stable performance and extensive nationwide service network.
2. Powerful Suction: JUROP high-flow vacuum pump delivers high efficiency and can handle a variety of complex working conditions.
3. Convenient Unloading: Dual-mode unloading (lift dump + tailgate direct discharge) accommodates waste of varying viscosities.
4. Large-Capacity Tank: 15 cubic meter large-capacity suction tank offers a large loading capacity and high operating efficiency.
5. Easy Operation: Equipped with a ground-level manual hydraulic control lever for simple and user-friendly handling.
» Ⅱ. Product Parameter for HOWO 15CBM vacuum suction truck:
|
HOWO 15CBM vacuum suction truck |
|||
|
General |
Vehicle Brand |
CS TRUCKS |
|
|
Vehicle Model |
CS5250GXH |
||
|
Chassis Brand |
HOWO |
||
|
Overall Dimension |
9760 x 2550 x 3540 mm |
||
|
GVW / Kerb Weight |
25000 kg / 11500 kg |
||
|
Axle loads |
7000/18000 kg |
||
|
Cab |
Cab Capacity |
HOWO HW76 cabin, one and half row, with A/C,USB, direction assistance |
|
|
Engine |
Fuel Type |
Diesel, 6 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled |
|
|
Brand |
WEICHAI |
||
|
Model |
WP10.340E22 |
||
|
Power |
340 HP/ 250kW |
||
|
Rated speed |
2200rpm |
||
|
Max torque |
1250N·m |
||
|
Max torque speed |
1400-1600rpm |
||
|
Displacement |
9.726L |
||
|
Emission Standard |
Euro 3 |
||
|
Chassis |
Drive Type |
6x4, left hand drive |
|
|
Transmission |
HW19710 transmission, 10 forward and 2 reverse |
||
|
Wheelbase |
4600+1350mm |
||
|
Number of axle |
3 |
||
|
Tyre Specification |
12.00R20 |
||
|
Tyre Number |
10 tyres and 1 spare tyre |
||
|
Max Speed |
89km/h |
||
|
Fuel tank |
400L Aluminum alloy fuel tank |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Tank |
Tank Capacity |
15000 liters |
|
Tank Material |
5mm carbon steel with antiseptic treatment |
||
|
Tank lifting angle |
≥45° |
||
|
Vacuum Pump |
Vacuum Pump |
Jurop PN106D |
|
|
Flow |
660 m³/h,11000 L/min,388cfm |
||
|
Rotation speed |
1300 rpm |
||
|
Max speed at max vacuum |
2900rpm |
||
|
Vacuum |
27.5 Hg,92% |
||
|
Continuous vacuum |
18 Hg,60% |
||
|
Max pressure |
1.5bar,21.8 psi |
||
|
Maximum no-load power. |
18.4HP/13.6kW |
||
|
Weight |
143kg |
||
|
Suction Head |
7m length with DN 100 mm |
||
|
Suction time |
250 s |
||
|
Nozzles |
A cluster of nozzles included |
||
|
Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |
||
|
Rear door can be hydraulic opened for complete discharge of solid stuff. |
|||
|
All standard accessories: manhole, tool kit, English manual..... |
|||
|
Optional |
** Tank material could be stainless steel. |
||
» Ⅲ. Product Detailed introduction

Chassis Configuration
• Chassis: HOWO HW76 series cab chassis, 4600+1350mm wheelbase, 6x4 drive, strong load capacity
• Engine: Equipped with a Weichai WP10.340E22 engine. Displacement: 10 liters, maximum power: 340 horsepower. This engine is renowned for its high torque, low fuel consumption, and high reliability, providing ample power for pumping operations and transport.
• Transmission: Utilizes the Sinotruk HW19710 series 10-speed manual transmission. The large first gear ratio provides strong gradeability, a well-defined gear step, and excellent shifting smoothness.

Core Body Configuration:
1. Sewage Suction Tank:
• Capacity: 15 cubic meters of carbon steel, constructed from high-quality Q235B steel with a thickness of 5mm. The interior of the tank is treated with corrosion protection to extend its service life.
• Structural Features:

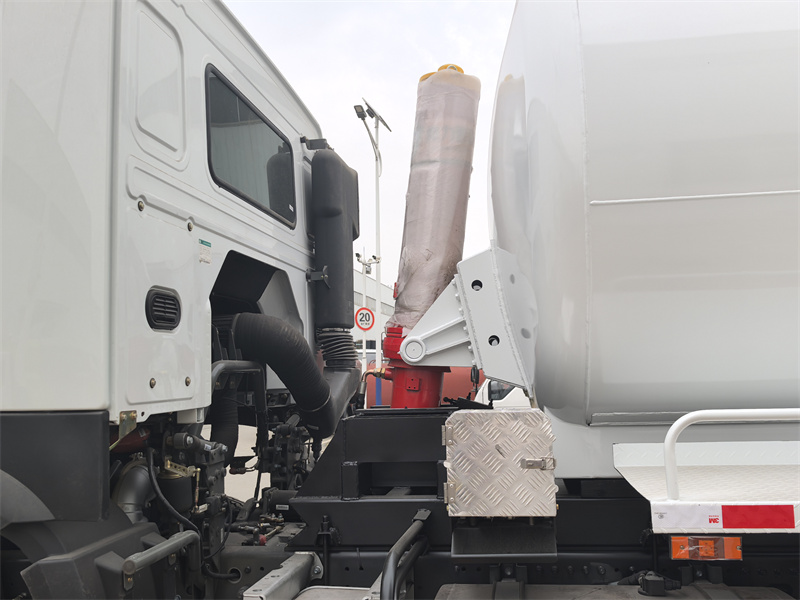

Hydraulic Lift System: Equipped with a hydraulic lift mechanism, controlled by a manual hydraulic lever on the driver's side, it tilts and raises the tank at a 45° angle, facilitating rapid emptying of waste.

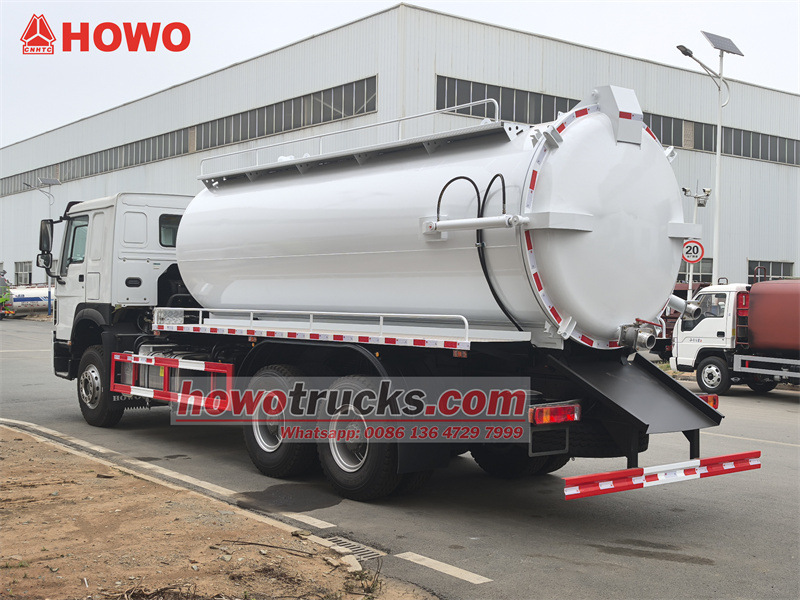

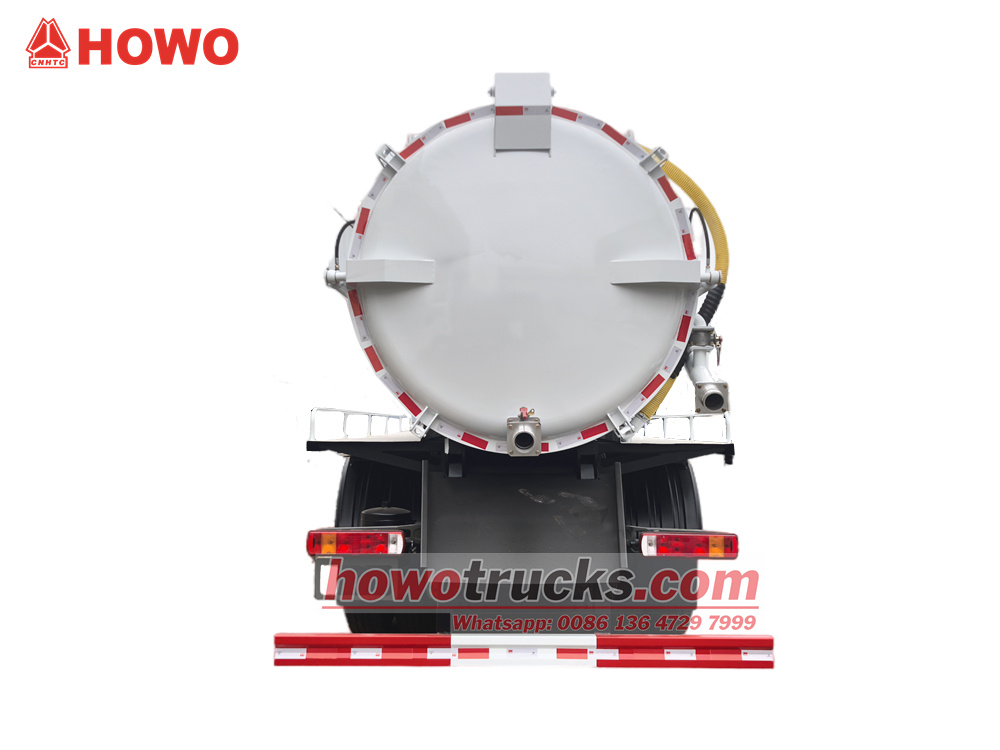

Tailgate: The tailgate features a hydraulic opening/closing mechanism with a safety lock to prevent accidental opening during operation. It also provides a strong seal to eliminate the risk of leakage.

2. Vacuum Pump System:

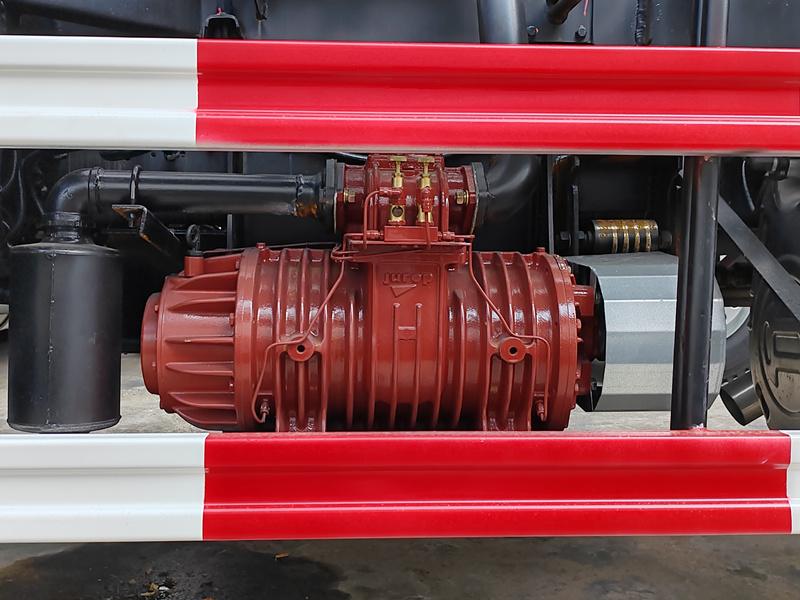

• Vacuum Pump: Equipped with the renowned Jurop PN106D rotary vane vacuum pump.
• Pumping Rate: 11,000 liters/minute. This pump offers fast pumping speed, high vacuum (27.5 Hg, 92%), long suction range, and powerful suction, enabling rapid extraction of highly viscous sludge and sewage.
3. Operation and Control:

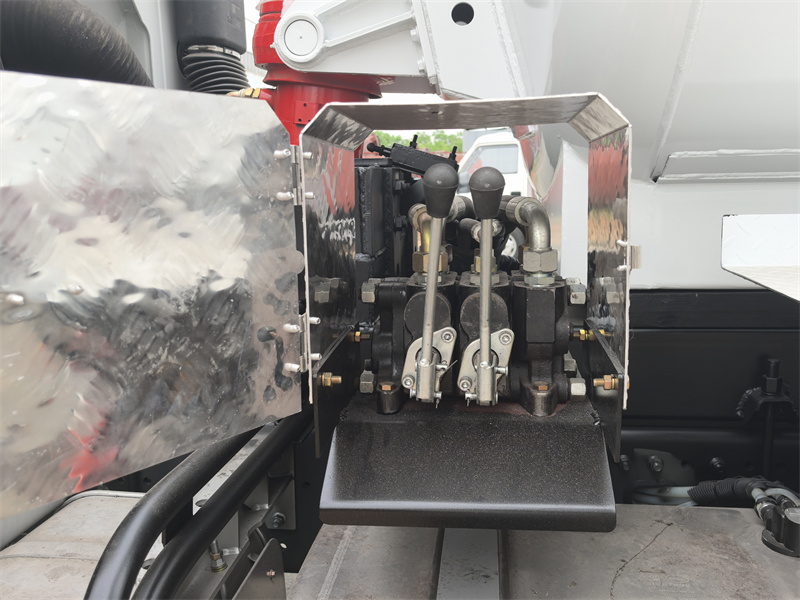

• Operation: A manual hydraulic joystick is located on the side of the cab for centralized control. The operator can easily raise/lower the tank and open/close the tailgate from the ground, ensuring safety, convenience, and time-saving operation.

4. Standard Accessories:
• Sewage Hose: Used to monitor the liquid level in the tank to prevent overfilling and the vacuum pump from being sucked in.

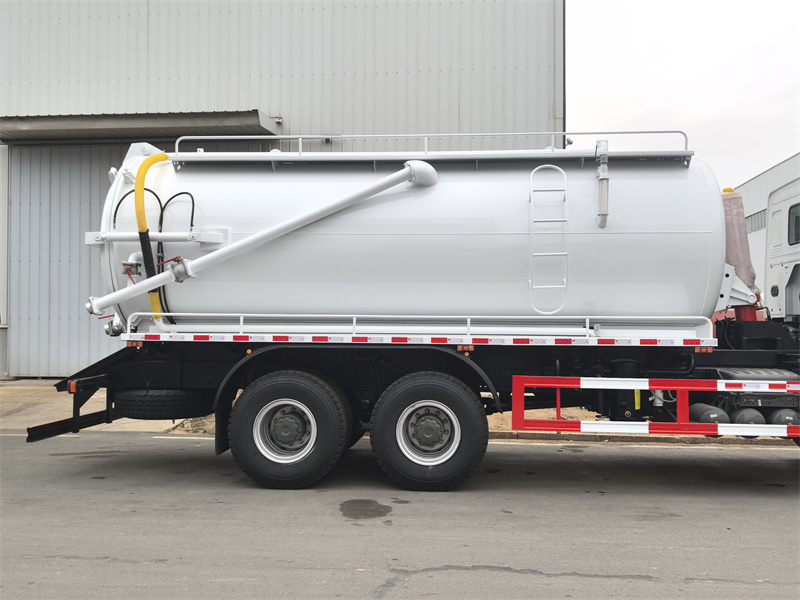

• Ladder: Allows operators to access the tank roof for inspection or observation. The tank roof is non-slip and equipped with side guardrails.
• Tailgate Drain Valve: Serves as an auxiliary drain port, allowing for the discharge of thinner liquids without lifting the tank.
• Anti-overflow Valve: A valve is installed on the top of the tank to prevent backflow of waste when the tank is full.
Drawing Of Sewage Suction Truck:

Open the rear door:
Unloading the sewage:


» Ⅳ. Working Principle
The core working principle of a sewage suction truck relies on the powerful suction of a vacuum pump. The engine drives the vacuum pump to continuously draw air out of the sealed tank, creating an extremely high vacuum (negative pressure state) inside. Under the effect of atmospheric pressure, external sewage and debris are forcibly pressed into the tank through the suction pipe, achieving the suction process. During operation, the liquid level can be monitored through the sight glass. For discharge, the tailgate of the tank can be opened for direct dumping, or the liquid can be expelled under positive pressure through a discharge valve. The entire process is controlled by the vehicle's hydraulic system, which manages tank lifting and valve opening/closing.
