The HOWO 20CBM rear load garbage truck is a heavy-duty sanitation vehicle designed for compacting and transporting municipal solid waste. It features an ultra-large 20-cubic-meter sealed container, enabling powerful compression of household waste and exceptional single-trip load capacity. Equipped with an innovative wastewater collection system, it completely prevents secondary pollution during transportation. Built with robust power and high reliability, it is specifically engineered to meet the demands of high-intensity urban sanitation operations.
Working capacity :
20CBMCabin type :
HOWO HW76Dimension (mm ) :
10600×2500×3560Drive system :
6×4Wheelbase ( mm) :
4625+1350Engine specific :
371HP/WD615.47Gear box :
HW19710Front axle ( Kg ) :
9000Rear axle ( Kg ) :
16000Remark :
4×4, 6×6, RHD drive is optionalThe HOWO 20 cubic rear loader truck is a large specialized sanitation vehicle built on a HOWO heavy-duty truck chassis. It integrates automated collection, compression, and transfer functions. More than just a waste transport tool, its core technology lies in "compression"—using a hydraulic system with pressure up to 18 MPa to forcefully compact loose household waste inside the container. This process increases the effective loading capacity to 20 cubic meters, significantly improving single-trip transport efficiency. The vehicle adopts a fully sealed design, with wastewater generated during compression thoroughly collected in a dedicated sewage tank. This fundamentally eliminates the common "leakage and spillage" issues associated with traditional garbage trucks, providing an efficient solution to secondary pollution in urban waste collection and transportation.
Designed and manufactured with durability and operational stability in mind, the HOWO refuse compactor truck features a container made of T420 high-strength special steel plate, formed integrally. Combined with an optimized hydraulic system and an intelligent electronic control system rated IP67 for protection, it ensures reliable performance even in harsh environments. The truck is compatible with a wide range of waste containers, from 240-liter standard bins to 3,000-liter swing-arm bins, demonstrating excellent versatility. These characteristics make it particularly suitable for urban areas with high waste generation and intensive operational demands, positioning it as a key asset in maintaining urban environmental hygiene.
CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Product Features
1. Durable Arc-Shaped Body
The body is constructed from special steel plates using a large R-angle integrated molding process, with no longitudinal welds on the side panels. This lightweight design offers high rigidity, effectively preventing common issues such as cracking, deformation, and water leakage found in traditional bodies.

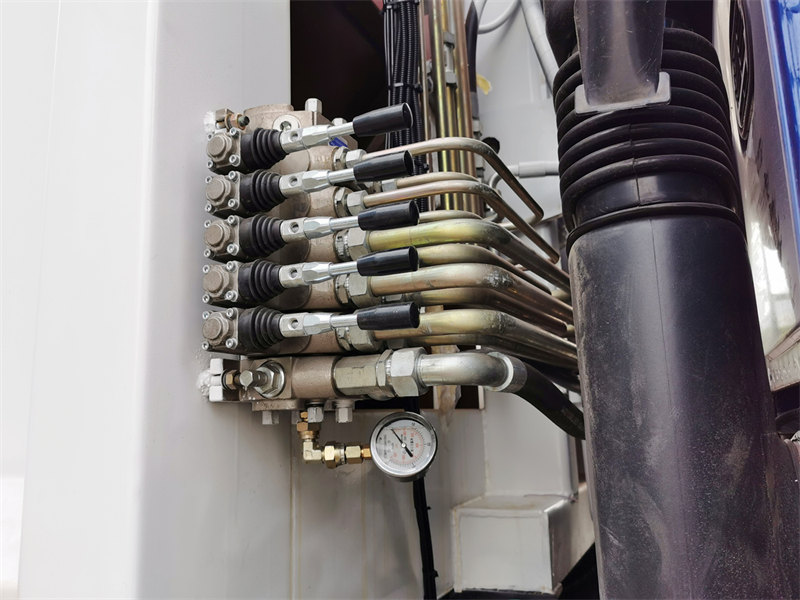

2. Stable and Reliable Hydraulic System
The core components of the system are sourced from leading domestic brands, with oil cylinder seals imported from the UK to ensure long-term sealing performance. Combined with a mature and reliable oil pump and multi-directional valve, the hydraulic system delivers high performance and stability under various working conditions.

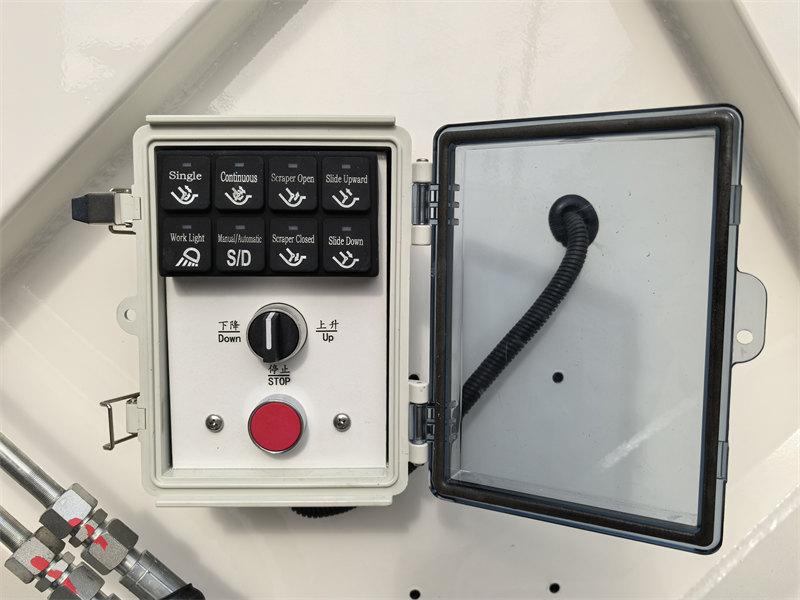

3. High-Protection Intelligent Control System
Featuring modular design and CAN bus technology, the system boasts an IP67 high protection rating, making it waterproof and corrosion-resistant. It supports wide voltage input, features simplified wiring, and includes a backlight function, ensuring stable all-weather operation in harsh environments.
4. Flexible Collection and Leak-Proof Design
Compatible with multiple collection methods, from 240L standard bins to 3000L swing-arm containers. The front of the body and the packing unit are equipped with large-capacity sewage tanks, along with a sealed push blade and leak-proof outlets, forming a complete sealed sewage system to prevent secondary pollution during transport.
5. Optimized Design of Key Components
Wear-prone parts such as the push blade and sliding plate are made of high-strength, wear-resistant materials and self-lubricating sliders to reduce abrasion. Critical load-bearing components, including cylinder supports and connecting rods, are manufactured from integrally cast steel, enhancing strength from a structural perspective and significantly extending service life.
※ Ⅱ. Product Parameter for HOWO 20CBM refuse compactor truck:
|
Product Name |
HOWO garbage compactor truck 20m3 |
|
Driving Type |
6×4, left hand drive |
|
Weights |
|
|
Gross vehicle weight (kg) |
25000 |
|
Curb weight(kg) |
Approx.12500 |
|
Dimensions |
|
|
Wheelbase(mm) |
4625+1350 |
|
Overall Dimension(mm) |
Approx.10600×2500×3560 |
|
Compactor capacity |
20m3 |
|
Engine |
|
|
Engine model |
WD615.47 |
|
Engine type |
4 stroke water-cooled, inter-cooling |
|
No. of cylinders |
straight-6 cylinders |
|
Hose power (HP) |
371HP |
|
Displacement(L) |
9.726L |
|
Rated power/Speed((Kw/rpm) |
273kw/2200rpm |
|
Max Torque(N*m)/Speed(r/min) |
1500/1100-1600 |
|
Emission standard |
EURO 2 |
|
Drive Line |
|
|
Transmission |
HW19710, 10 forwards, 2 reverse gear, manual operation |
|
Steering |
ZF8118 power steering |
|
Brake system |
Air brake |
|
Cab |
|
|
Cab |
HW76 new type cabin |
|
Standard configuration |
2 seats, one sleeper bed, with A/C |
|
Axle |
|
|
Front axle |
HF7 |
|
Rear axle |
ST16+ST16 |
|
Tire specification |
|
|
Tire specification |
12.00R20 radial tire,10 tires+1 spare tire |
|
Specification of compactor body |
|
|
Compactor box capacity |
20CBM |
|
Box material |
T420 high strength special steel |
|
Box body thickness |
Walls 5 mm, floor 6mm |
|
Sewage tanker |
200L |
|
Tailgate volume |
2m3 |
|
Loading time of single cycle |
≤25 |
|
Tailgate lifting time |
≤15 |
|
Unloading cycle time |
≤110 |
|
Hydraulic system pressure |
≥18Mpa |
|
Control system |
CAN bus + motion controller |

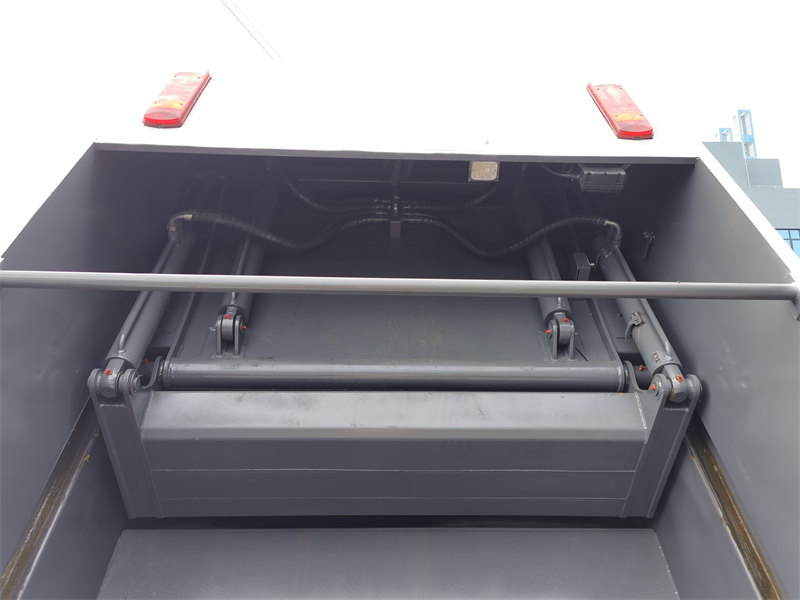

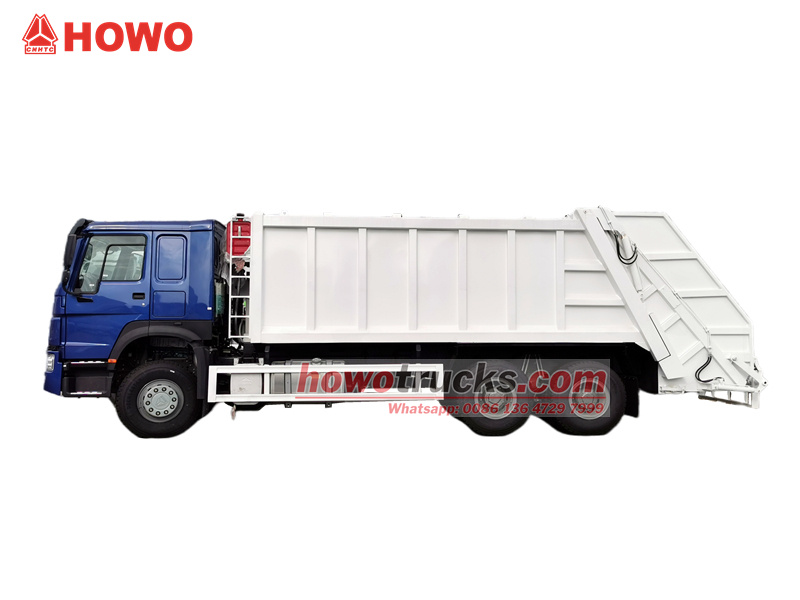

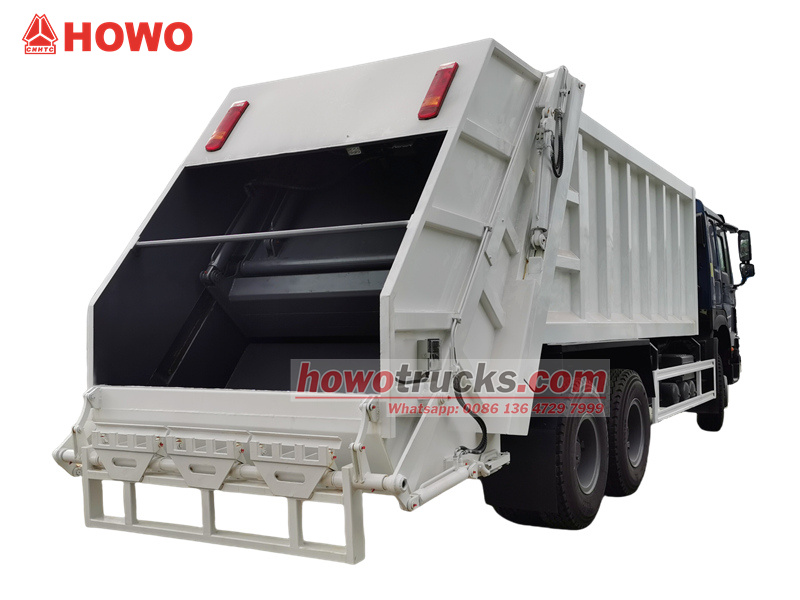

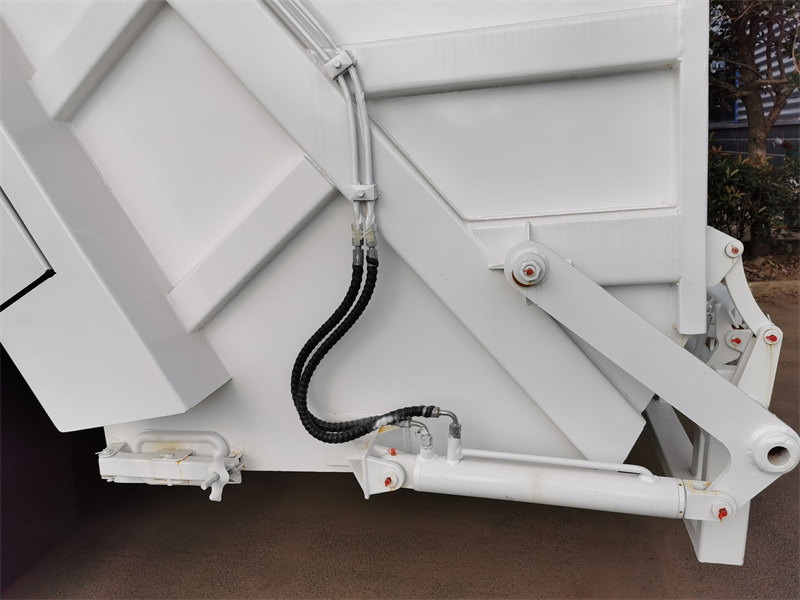

※ Ⅲ. Product Details

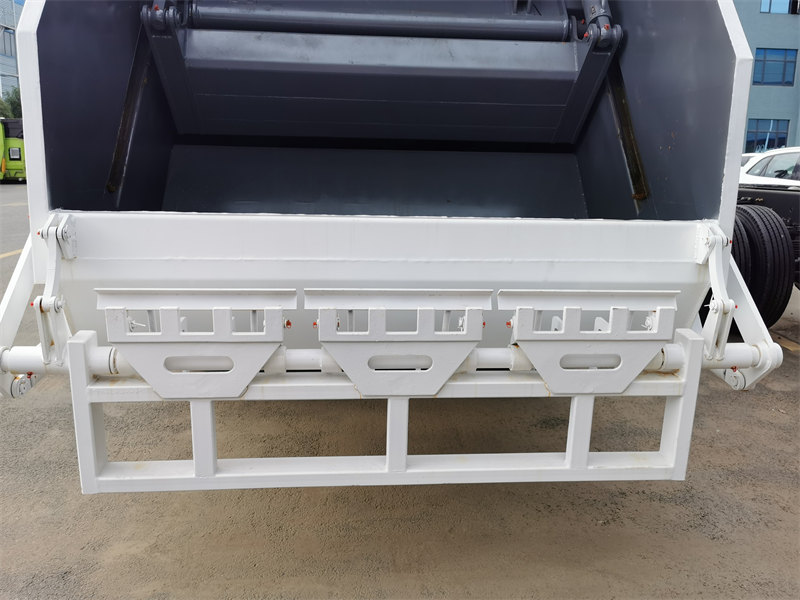

※ Ⅳ. Bin lifter of HOWO waste compactor truck:
Bin lifter of HOWO garbage compactor is suitable for different sizes of garbage bins
 |
 |
| Size of 240 liters garbage bin | Lifting 2 pcs 240L bins |
 |
 |
| Size of 660 liters garbage bin | Lifting one 660L bin |
 |
 |
| Size of 1110 liters garbage bin | Lifting one 1110L bin |

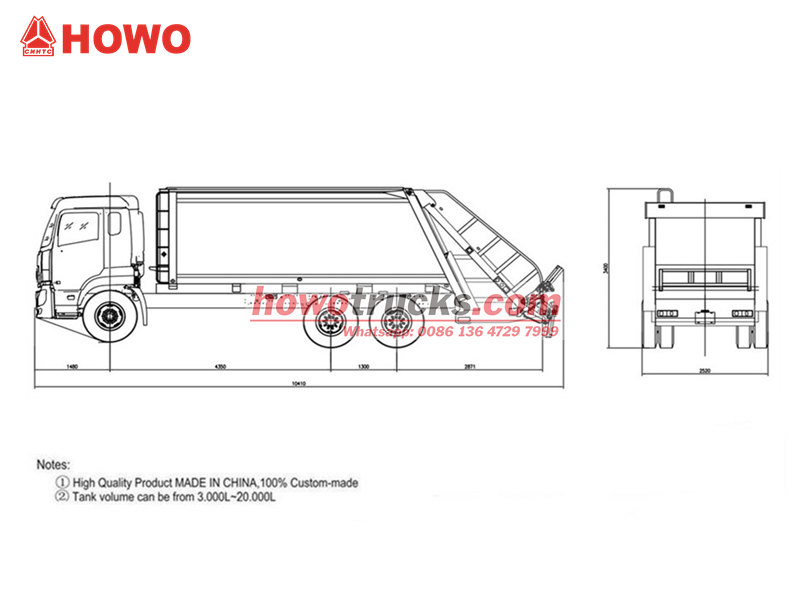

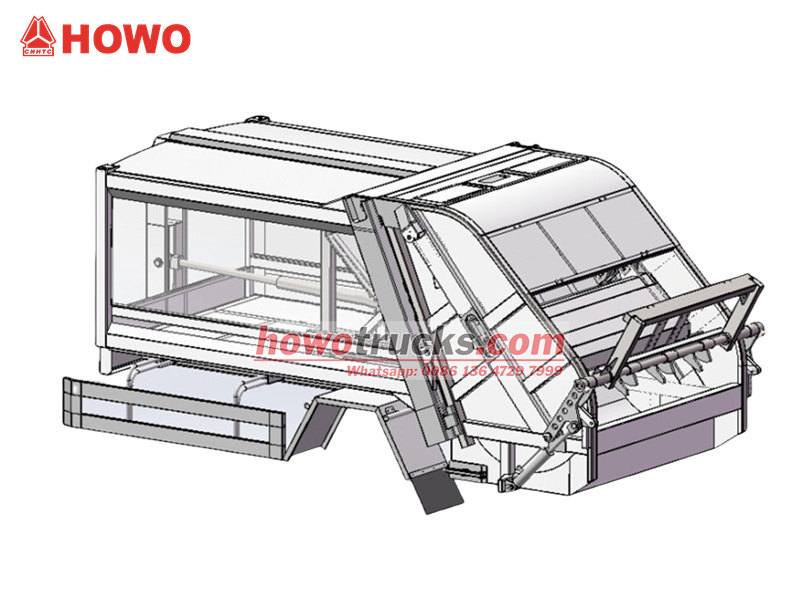

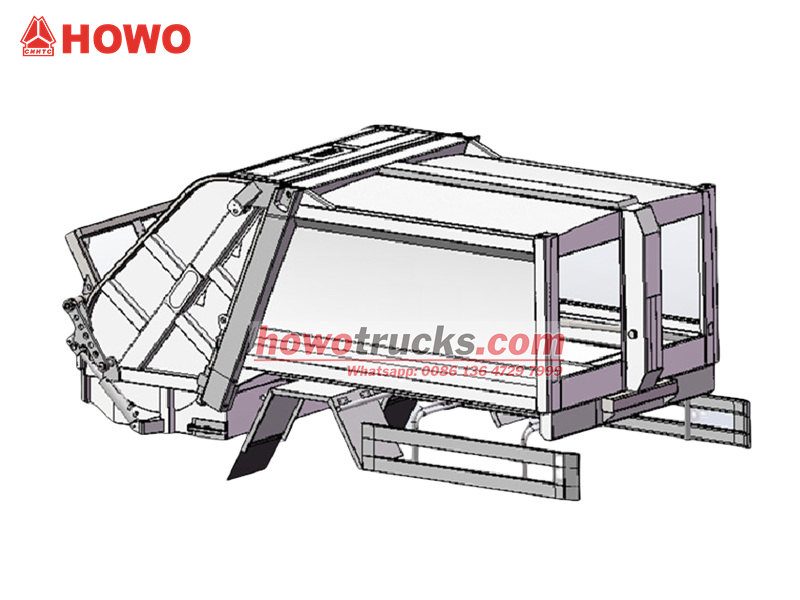

※Ⅴ. Product Drawing:
 |
 |
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

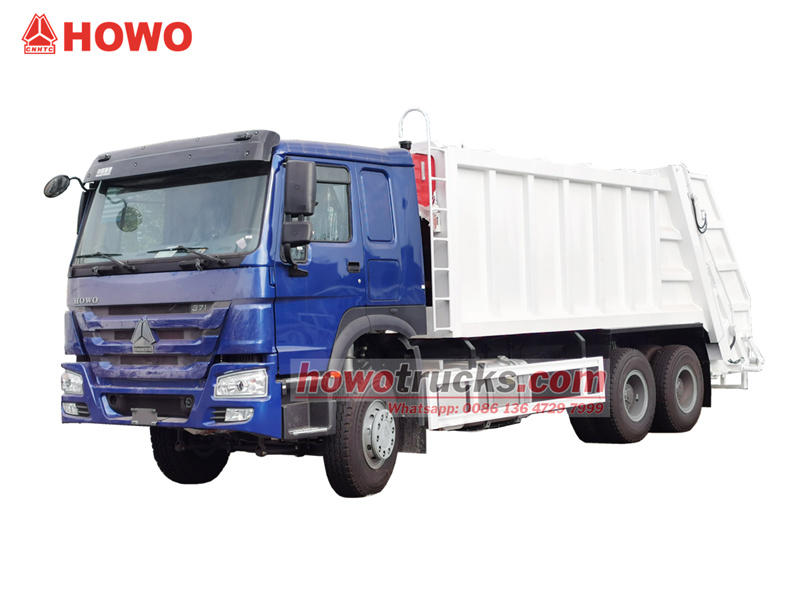

SINOTRUK HOWO 6×4 garbage compactor trucks for export

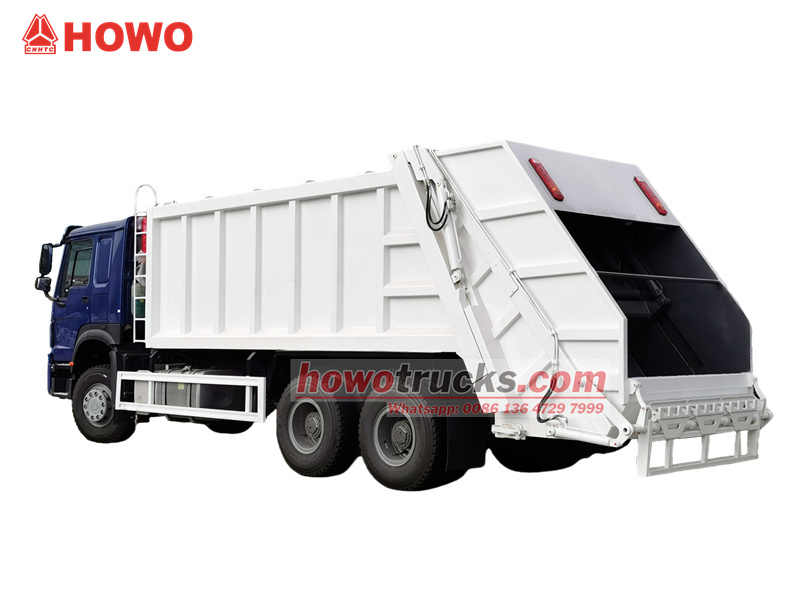

SINOTRUK HOWO rear load garbage trucks ready for delivery
