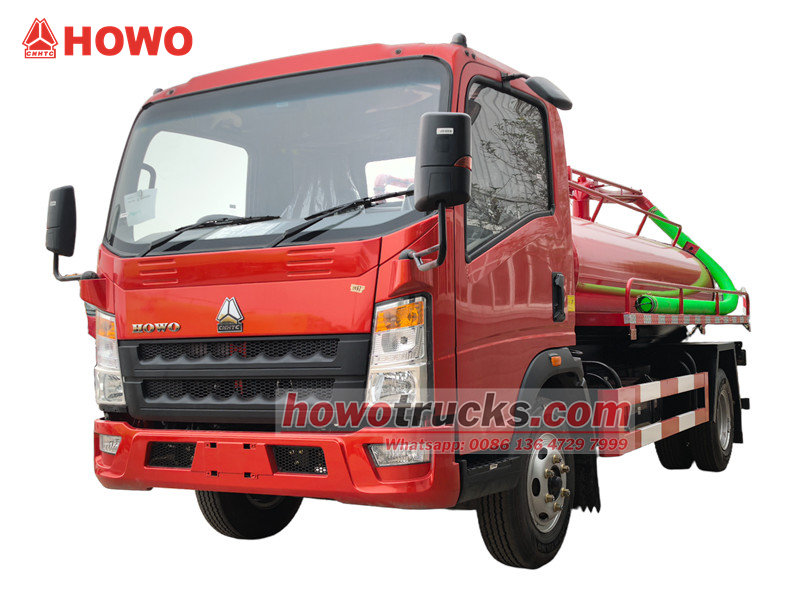

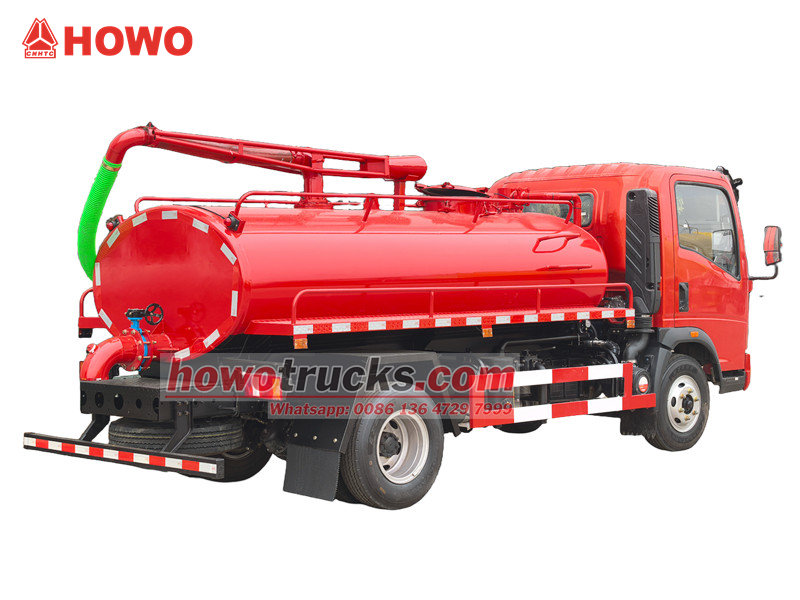

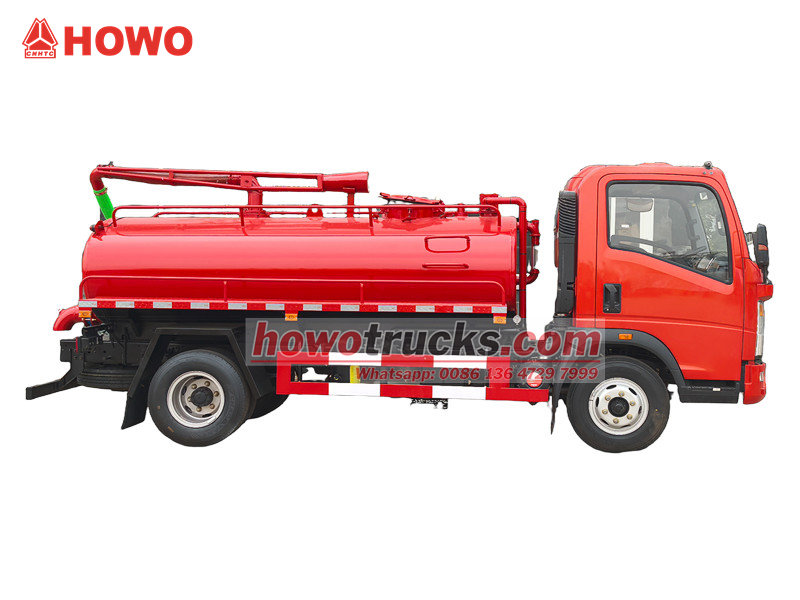

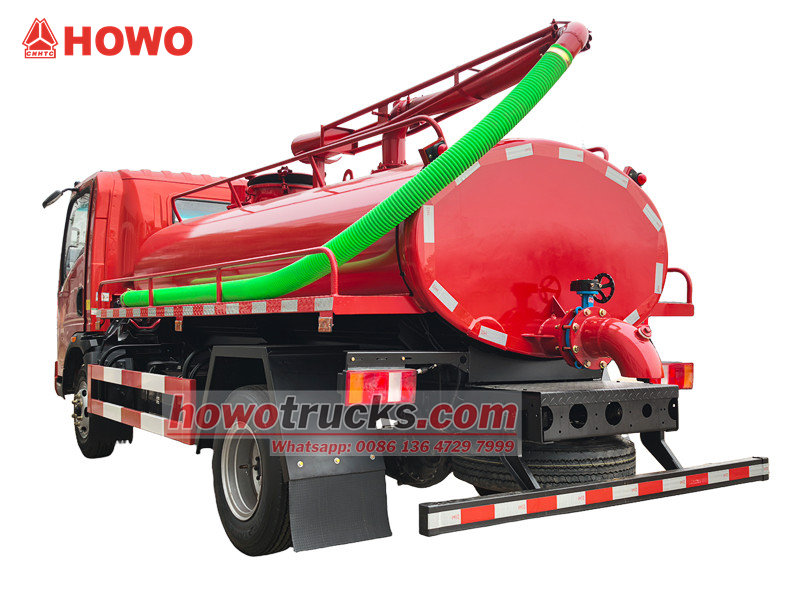

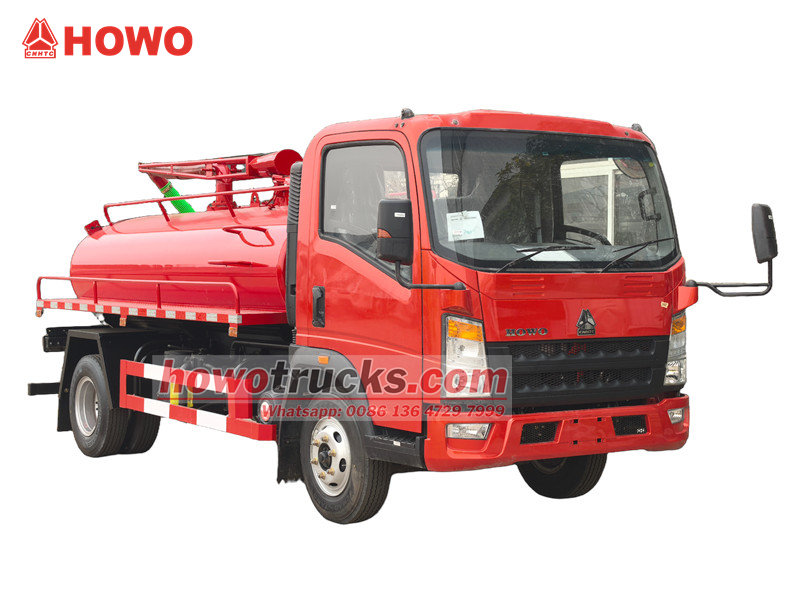

Howo toilet suction truck 6 wheeler 5000L

Howo toilet suction truck 6 wheeler 5000L

Howo toilet suction truck 6 wheeler 5000L is a special vehicle used to collect, transfer and transport feces, sewage and other wastes. which is modified on the Howo RHD light chassis,3360mm wheelbase, Equipped with WLY6TS55 transmission, 7.50R16 tires with totally 7 pcs, A/C,USB,direction assistance.Equipped with Cummins ISF3.8S3141 141HPdiesel engine. It is widely used in sanitation, municipal and rural sewage treatment.



  • Working capacity :

    5 cbm
  • Cabin type :

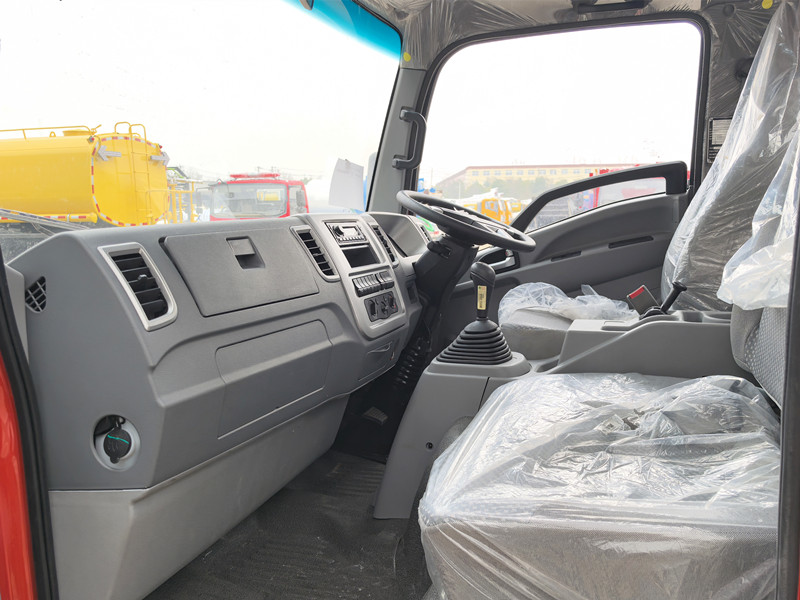

    Howo 2080 cabin
  • Dimension (mm ) :

    5850 x 2150 x 2700
  • Drive system :

    4x2, RHD
  • Wheelbase ( mm) :

    3360
  • Engine specific :

    141HP / ISF3.8S3141
  • Gear box :

    WLY651, 6-speed, manual
  • Front axle ( Kg ) :

    2400
  • Rear axle ( Kg ) :

    4200
  • Remark :

    MORO or Jurop vacuum pump
New Products

The Howo toilet suction truck 6 wheeler 5000L utilizes a powerful vacuum pump system to efficiently complete suction and discharge operations. The process is leak-proof and environmentally friendly. Its tank is constructed of high-quality steel, making it corrosion-resistant, large-capacity, and capable of long-term operation.

The Howo toilet suction truck is easy to operate and highly maneuverable, suitable for various scenarios including urban sanitation, industrial and mining enterprises, and rural wastewater treatment, effectively improving wastewater treatment efficiency and environmental sanitation levels.

● China best toilet suction truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service



*Howo toilet suction truck 6 wheeler 5000L

Howo 5cbm septic tank pump truck*

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED



Product Features:

Powerful suction: Equipped with a high-performance vacuum pump, it can quickly extract sewage, feces, and sludge.

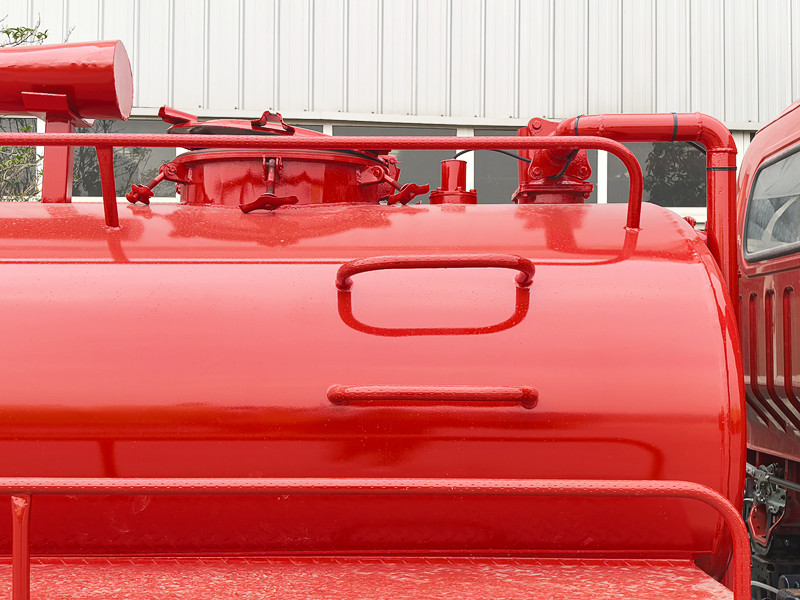

Excellent sealing: The tank is tightly welded to prevent sewage leakage and odor spread during transportation.

Easy operation: Features automatic suction and discharge functions, simple control, and high work efficiency.

High adaptability: Suitable for various sewage treatment environments, including urban areas, rural areas, and industrial and mining areas.

Howo toilet suction truck 6 wheeler 5000L (also called Howo 5,000 liters single axle septic tank truck, Howo 5,000 liters vacuum tanker truck, Howo 5cbm septic tank pump truck, Howo sludge vacuum pump tanker truck, Howo sludge vacuum pump tanker truck, Howo RHD sewage disposal tanker,etc.)  It is a specialized vehicle used for cleaning and transporting sewage, excrement, and sludge, equipped with functions such as vacuum suction, sealed transportation, and automatic discharge.




The suction principle of the Howo toilet suction truck:

The core working principle of the Howo toilet suction truck is to generate negative pressure through a vacuum pump, drawing air out of the tank and creating a high vacuum.

When the suction pipe is inserted into sewage or feces, the external atmospheric pressure causes the waste to be rapidly sucked into the tank under the pressure difference.

The vacuum pump typically uses a rotary vane or water circulation type structure, providing strong suction and stable operation, and can efficiently complete the suction of waste from septic tanks, sewers, and sludge wells.

The discharge principle of the Howo toilet suction truck:

When the tank is full, adjusting the valve reverses the vacuum pump or utilizes the internal pressure to quickly discharge waste.

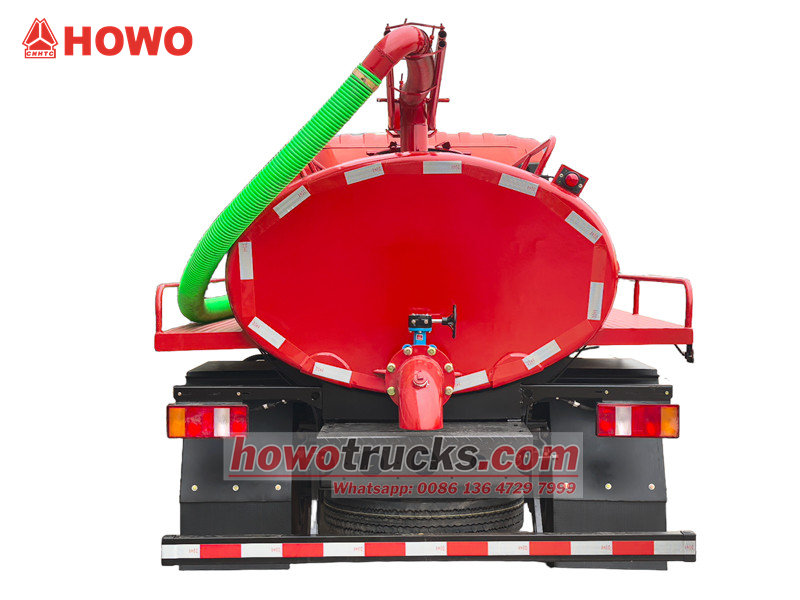

The truck is equipped with a hydraulic lifting device, which tilts the tank to further accelerate waste discharge. The discharge port is designed for easy connection to sewer pipes or sewage treatment facilities.

The entire process is closed and pollution-free, easy to operate, and effectively improves waste collection efficiency while maintaining environmental cleanliness. It is an important piece of equipment for urban sanitation and rural sewage treatment.

» Ⅱ. Product Parameter for Howo toilet suction truck 6 wheeler 5000L:



Howo toilet suction truck 6 wheeler 5000L

Vehicle

Brand

HOWO

Overall Dimensions LxWxH

5850x2150x2700mm

Weights

GVW.

6800kg

Curb Weight

3250kg

Chassis

Drive Type

4x2

Steering

RHD

No. of axle

2

Transmission

WLY6TS55 ,6 Forward & 1 Reverse Gear,manual

Engine

Brand

Cummins  ISF3.8S3141

Power

105KW/141HP

Emission Level

EURO 3

Wheel base

3360mm

Tyre Specifications

7.50R16, 6 Pieces with 1 Spare Tire

Body/Superstructure

Vacuum pump

Italy Moro pump or China famous vacuum pump

Suction head

6m-8m

Tank

Capacity

5000L

Material

high quality carbon steel

Thickness

Side 3mm,bottom 4mm

Basic

Install vacuum pumps and hydraulic systems driven by engine through

Equipment

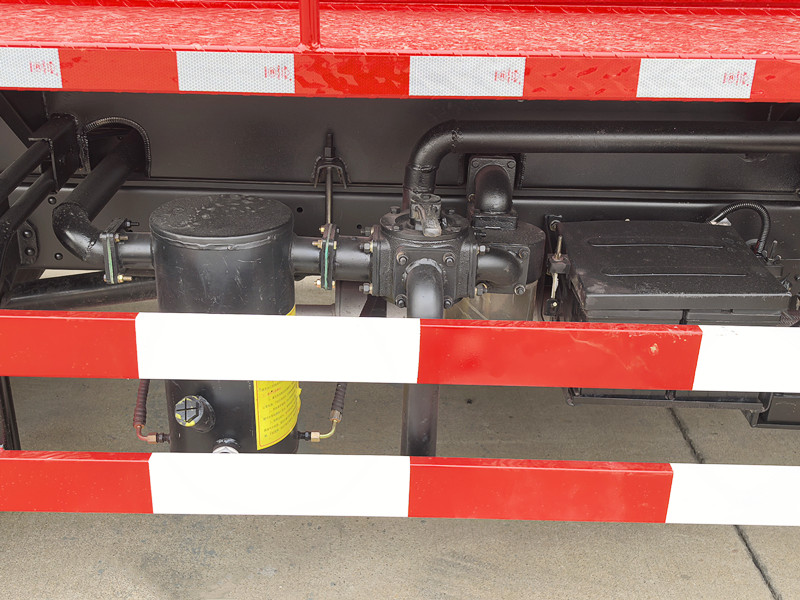

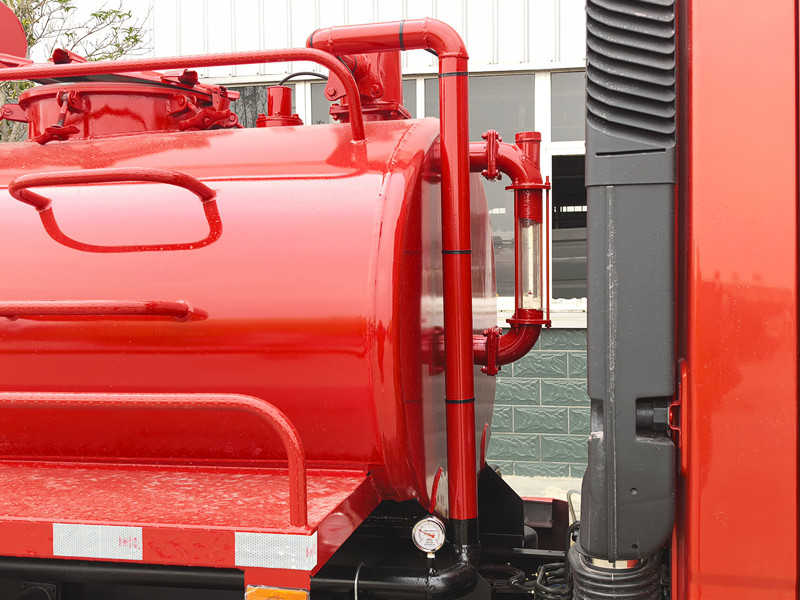

PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window

Paint

Tank color is according to client's requirements.

Optional Equipment

Italy or Spain vacuum pumps

Stainless steel

Anti-rust coating inside tank



» Product Detailed introduction:

1. Product Overview

The Howo toilet suction truck 6 wheeler 5000L utilizes advanced vacuum negative pressure suction technology, generating powerful suction through a high-efficiency vacuum pump system to achieve rapid suction and sealed transport of waste.

The vehicle is equipped with a corrosion-resistant, high-strength tank structure, available in various volumes, and can be customized to different tonnage requirements according to user needs.

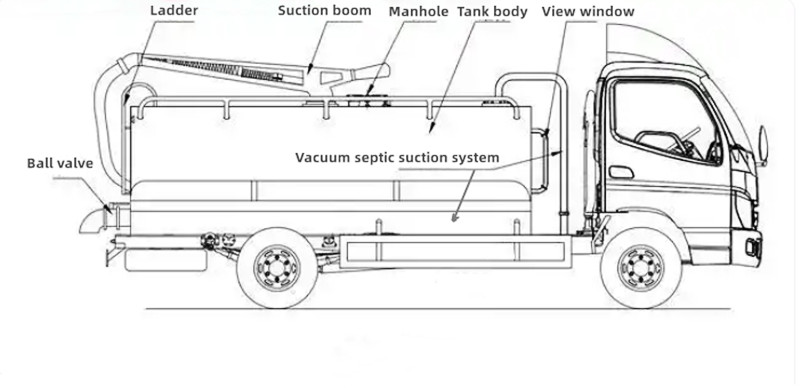

2. Structure and Performance Characteristics

The Howo septic tank pump truck uses high-quality domestic and international brands, boasting strong suction and stable operation. The tank body undergoes anti-corrosion treatment, ensuring excellent sealing performance and preventing leakage and odor during transportation.

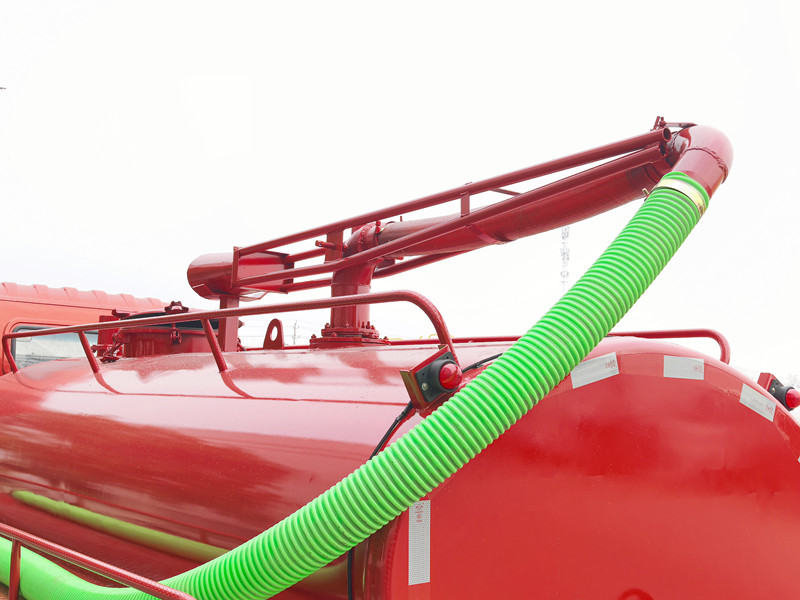

The suction pipe has a large diameter and is equipped with an overflow valve and filter to prevent debris from entering the vacuum pump system. The operating system is rationally designed, supporting automatic suction and discharge functions, ensuring safety and reliability, and greatly improving operational efficiency.

3. Advantages of Use

The Howo toilet suction truck 6-wheeler 5000L boasts advantages such as high efficiency, environmental friendliness, and ease of operation.

Its vacuum negative pressure operation mode can complete sewage suction and discharge tasks in a short time, saving labor costs; the vehicle's excellent sealing effectively prevents secondary pollution.

It possesses good mobility and adaptability, allowing for flexible operation in urban streets, rural roads, and complex terrains, providing an efficient and reliable solution for municipal sanitation and rural sewage treatment.







Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

howotrucks is a leading exporter of toilet suction truck in China. We possess over 10-year export experience of toilet suction truck. We can ensure the fast delivery time and 12 months guarantee for our toilet suction truck. Our toilet suction truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safety, Quickly, Timely
